SKODA Felicia (6U) 1.9 D (AEF) 1995 until 2000
Wiper/washer, High level
©HaynesPro B.V.
Powered by ATRis_Technik

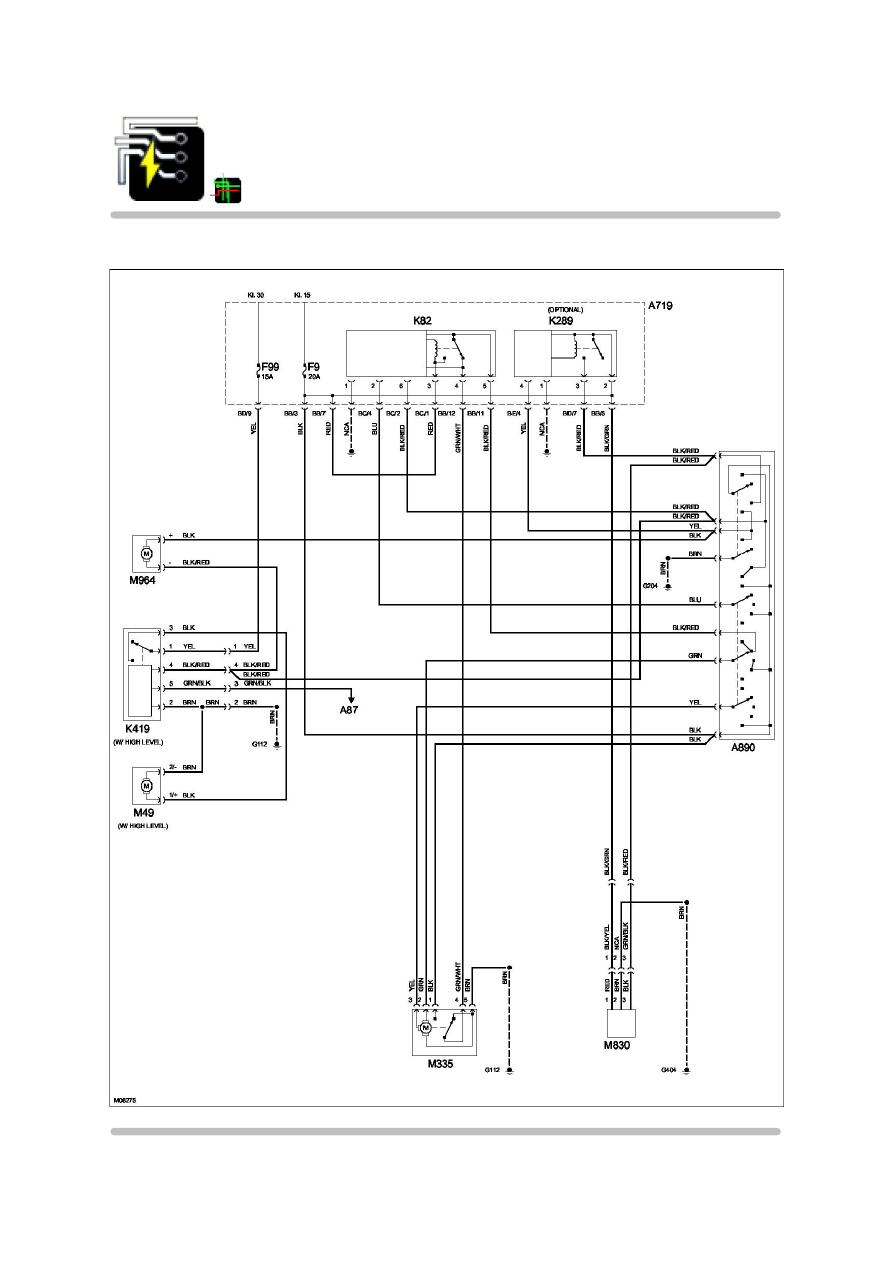

Wiring diagram 1
Page 1/2
SKODA Felicia (6U) 1.9 D (AEF) 1995 until 2000
Wiper/washer, High level
©HaynesPro B.V.
Powered by ATRis_Technik
Wiring diagram 1
Page 2/2
SKODA Felicia (6U) 1.9 D (AEF) 1995 until 2000
Wiper/washer, High level
©HaynesPro B.V.
Powered by ATRis_Technik
Legend (1)
M830
Rear window wiper motor
F99
Fuse 16
M49
Headlight washer pump
A890
Wiper/washer switch assembly
F9
Fuse 2
A87
Exterior lights system
K419
Headlight washer relay
M335
Front wiper motor
M964
Windscreen and rear window washer pump
K289
Rear window washer relay
A719
Central electric
K82
Intermittent wiper relay
