background image

SYSTEM WIRING DIAGRAMS

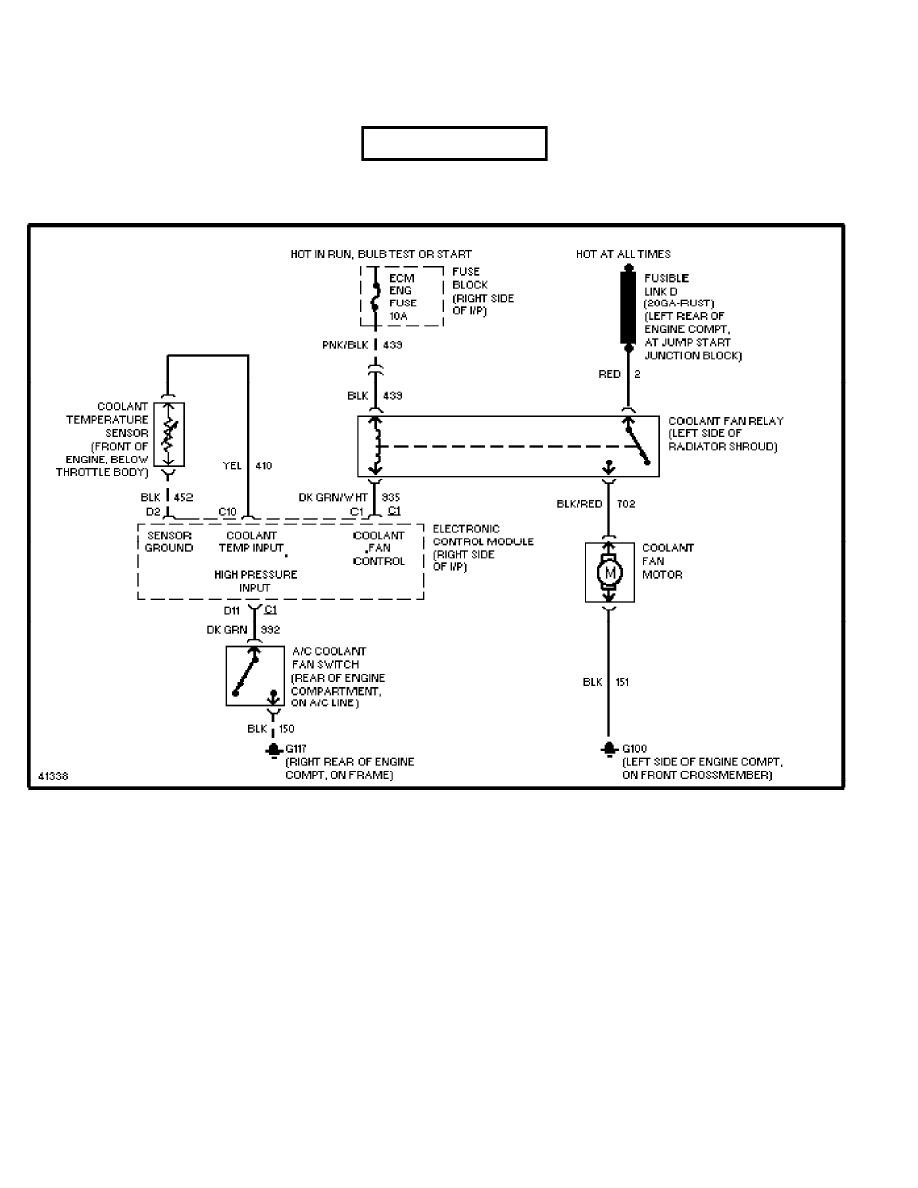

Cooling Fan Circuit

1989 Chevrolet Corvette

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, July 31, 2004  02:09PM

      CDR@WP.PL

background image

SYSTEM WIRING DIAGRAMS

Cooling Fan Circuit, Auxiliary (p. 2)

1989 Chevrolet Corvette

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, July 31, 2004  02:09PM

background image

SYSTEM WIRING DIAGRAMS

Defogger Circuit, Electronic A/C (p. 3)

1989 Chevrolet Corvette

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, July 31, 2004  02:09PM

background image

SYSTEM WIRING DIAGRAMS

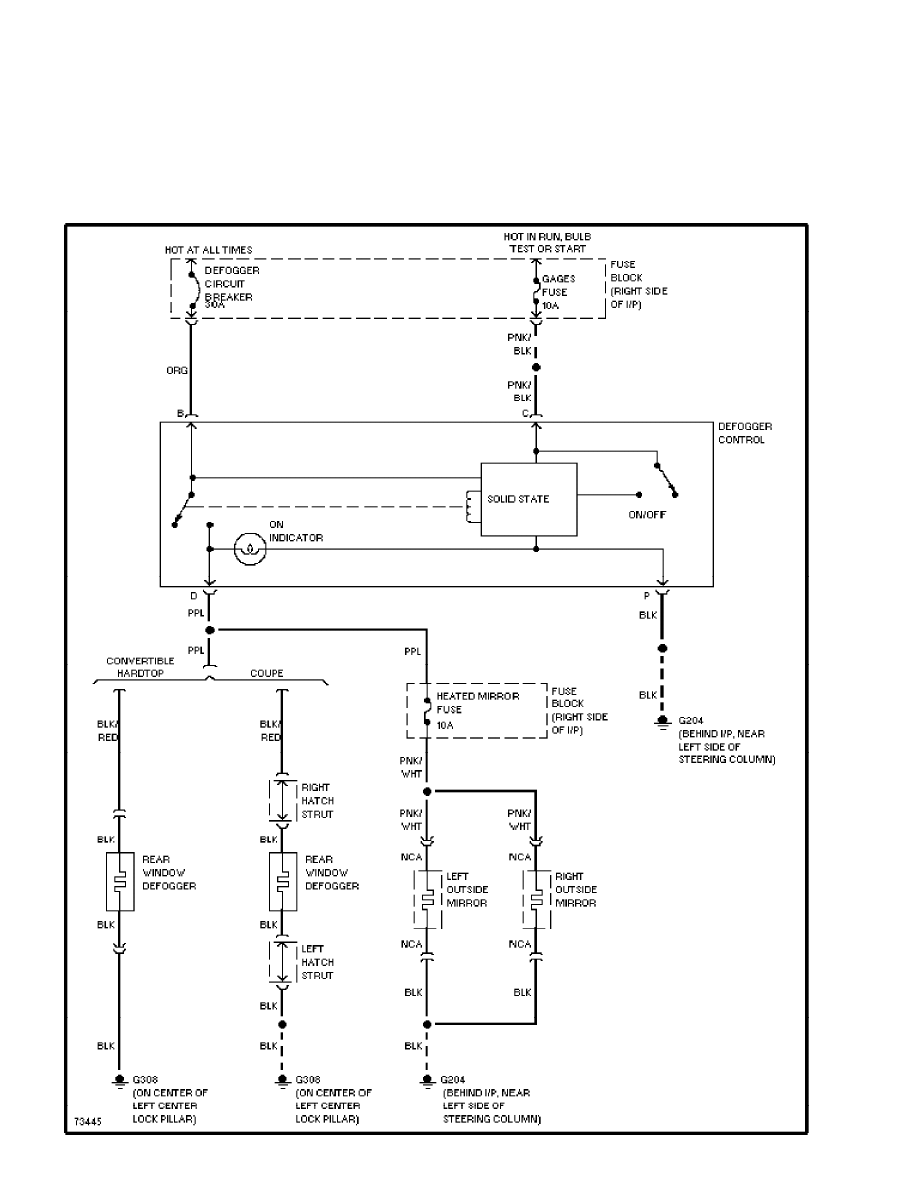

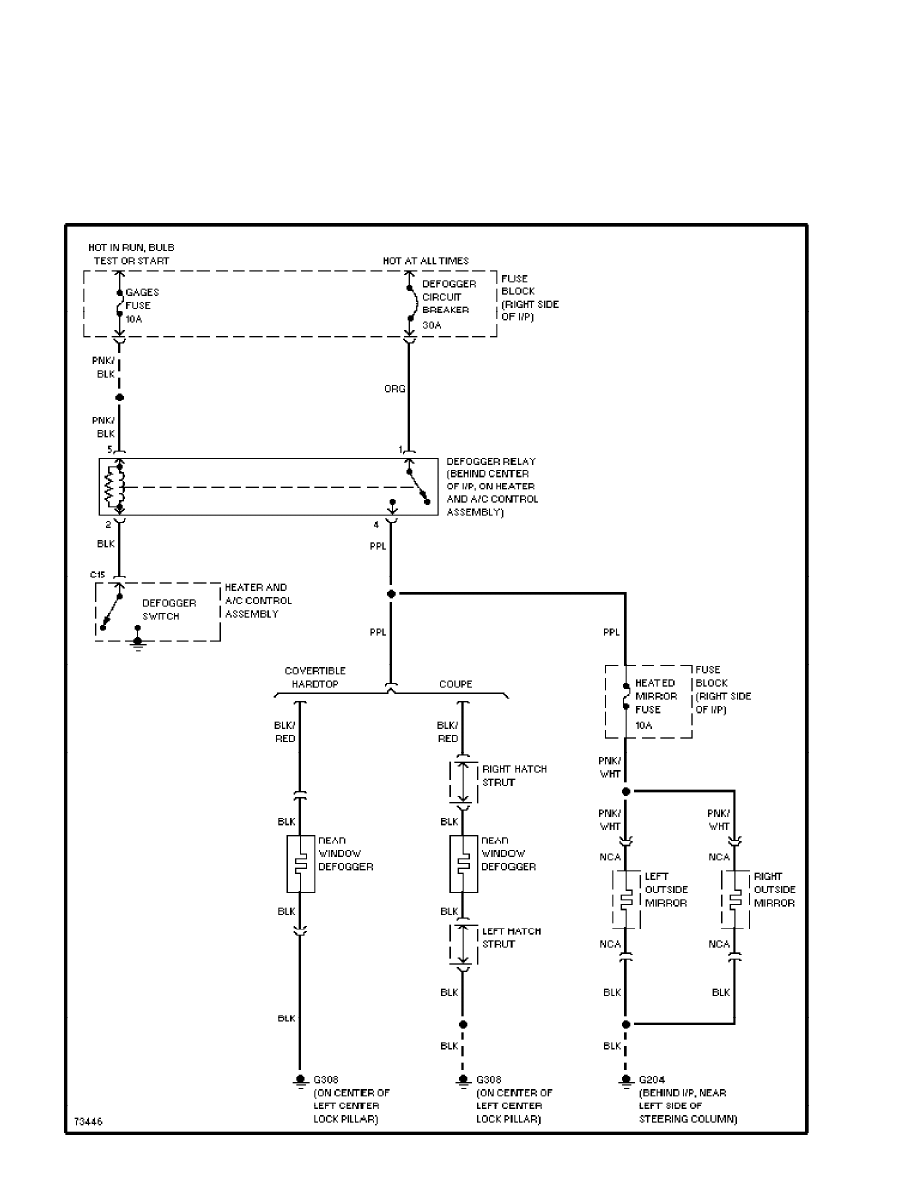

Defogger Circuit, Manual A/C (p. 4)

1989 Chevrolet Corvette

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, July 31, 2004  02:09PM

background image

SYSTEM WIRING DIAGRAMS

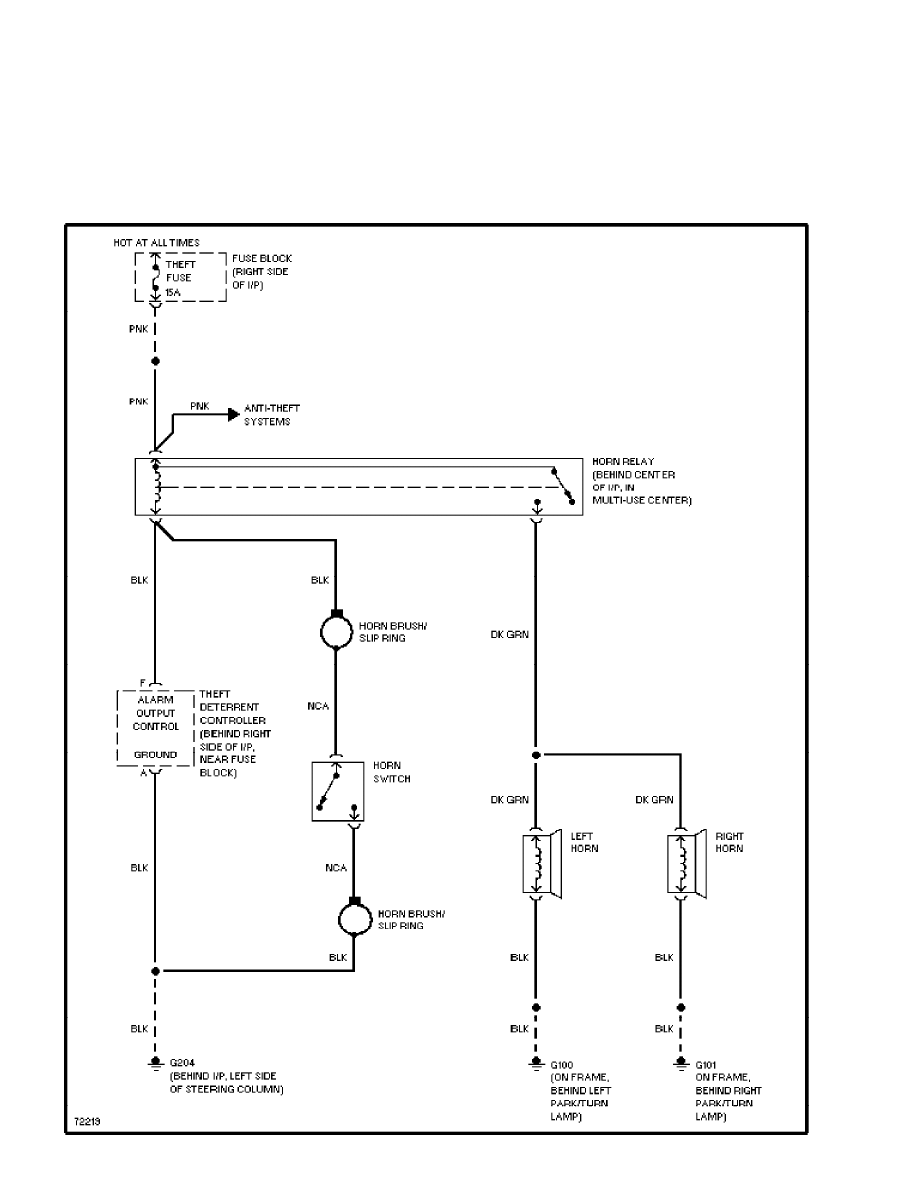

Horn Circuit (p. 5)

1989 Chevrolet Corvette

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, July 31, 2004  02:09PM

background image

SYSTEM WIRING DIAGRAMS

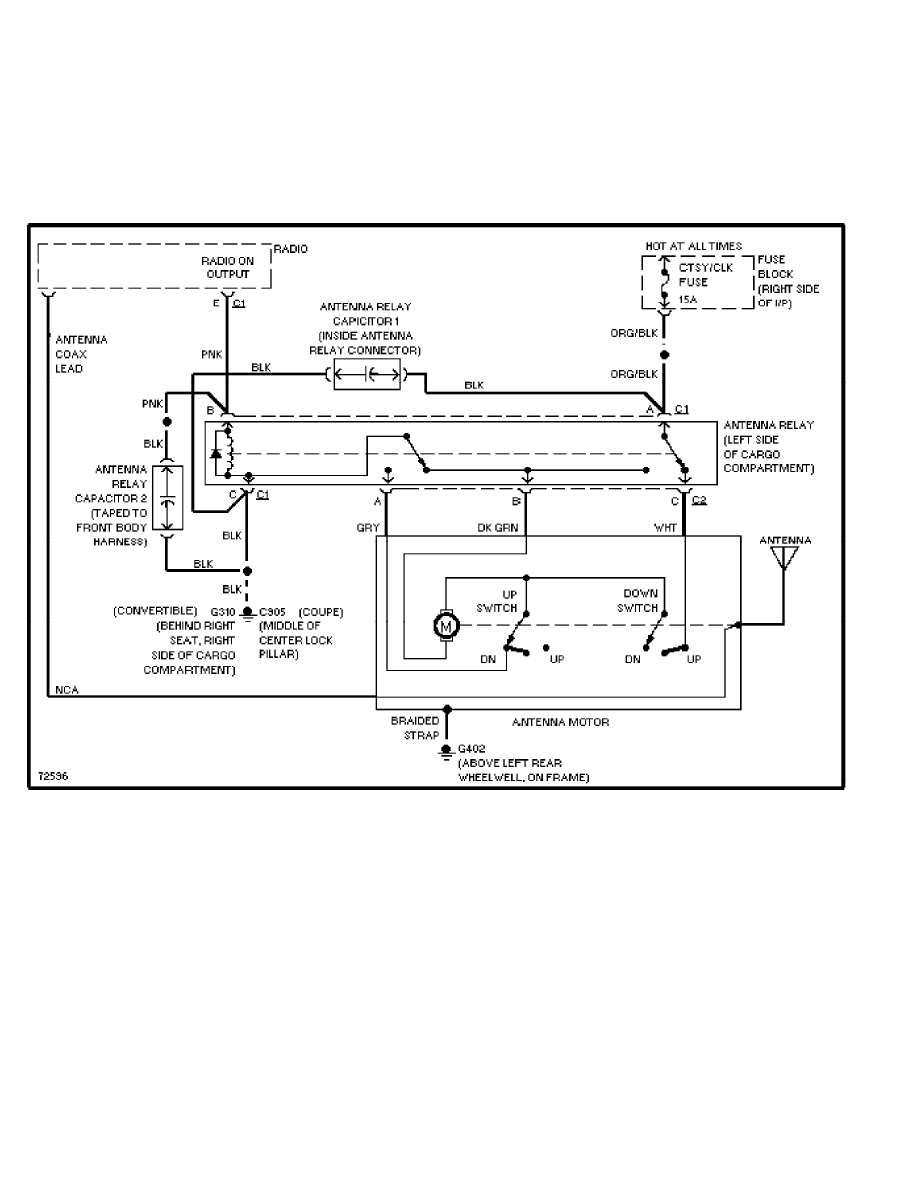

Power Antenna Circuit (p. 6)

1989 Chevrolet Corvette

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, July 31, 2004  02:09PM

background image

SYSTEM WIRING DIAGRAMS

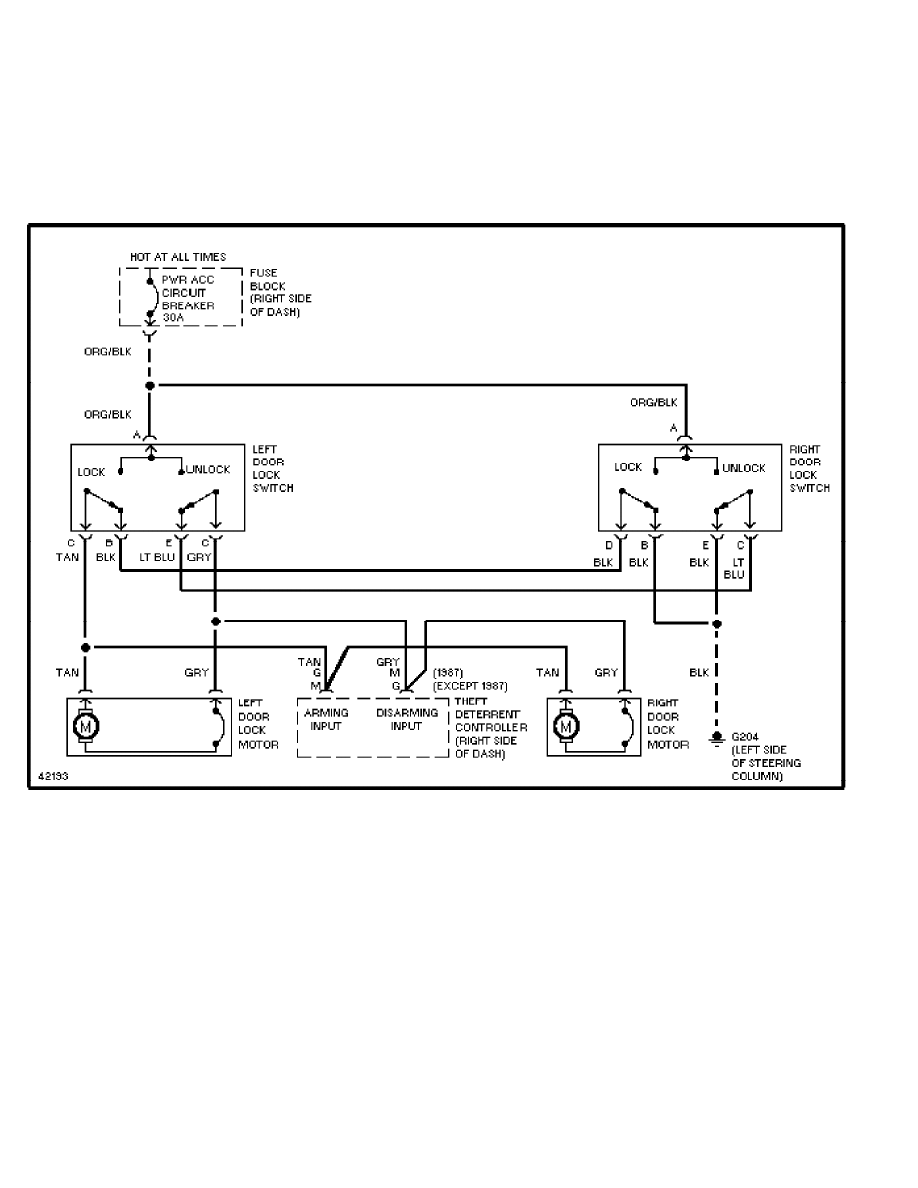

Power Door Lock Circuit (p. 7)

1989 Chevrolet Corvette

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, July 31, 2004  02:09PM

background image

SYSTEM WIRING DIAGRAMS

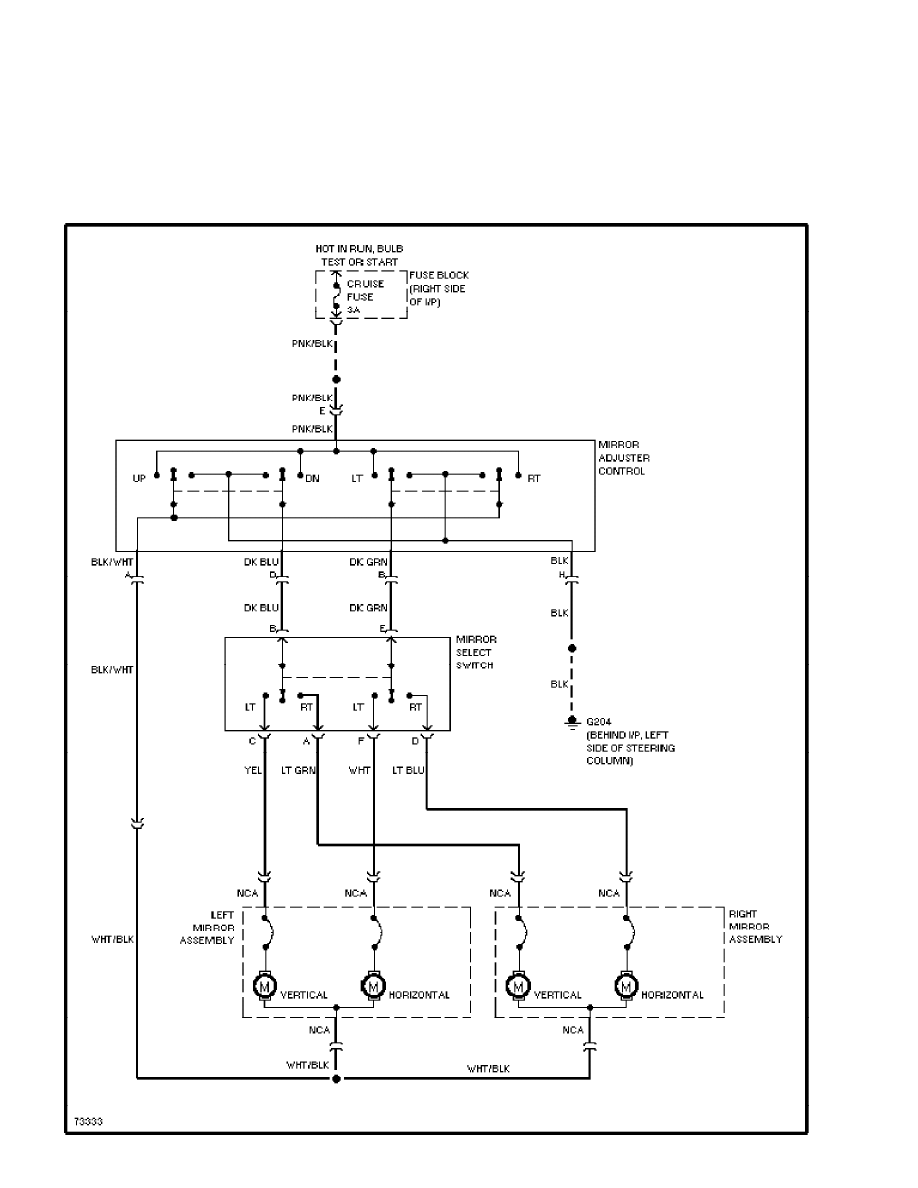

Power Mirror Circuit (p. 8)

1989 Chevrolet Corvette

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, July 31, 2004  02:09PM

background image

SYSTEM WIRING DIAGRAMS

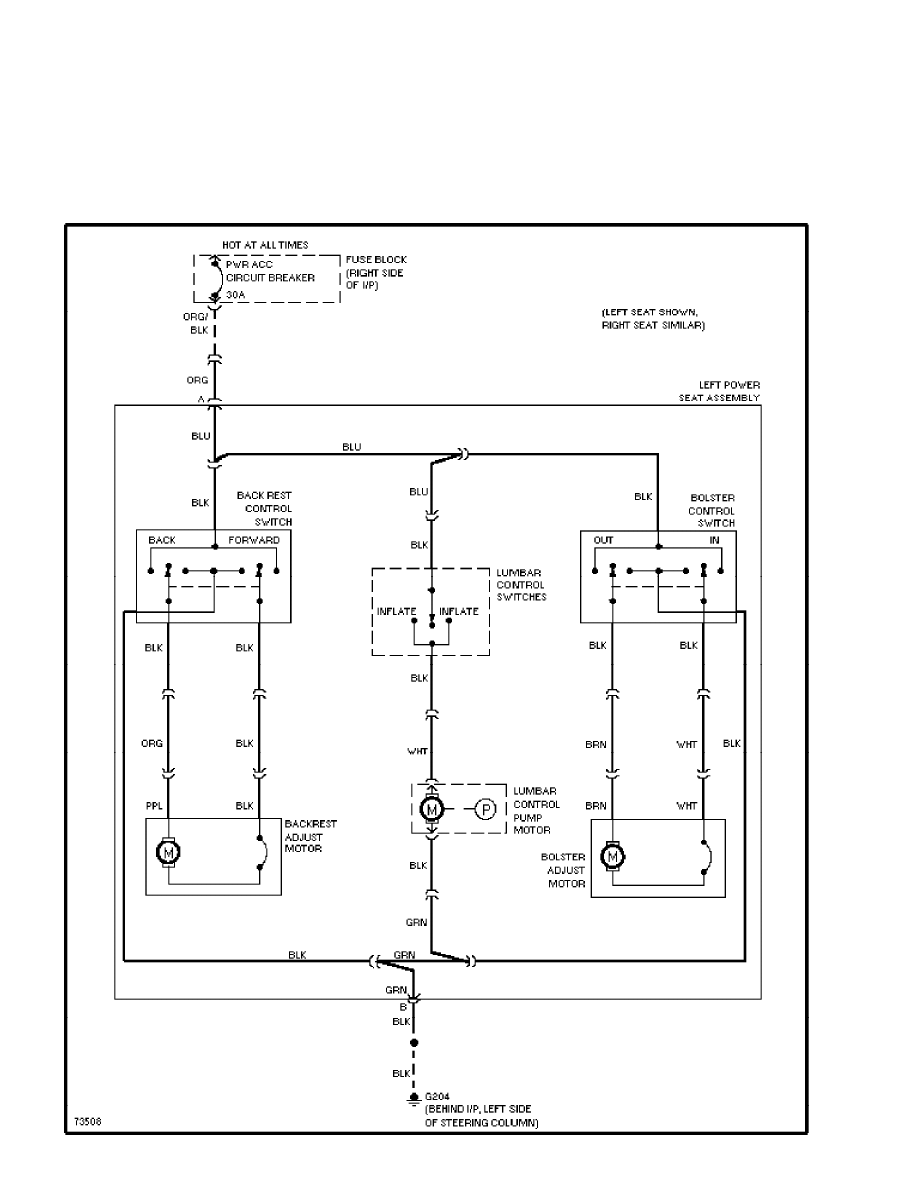

Lumbar Circuit (p. 9)

1989 Chevrolet Corvette

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, July 31, 2004  02:09PM

background image

SYSTEM WIRING DIAGRAMS

Power Seat Circuit (p. 10)

1989 Chevrolet Corvette

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, July 31, 2004  02:09PM

background image

SYSTEM WIRING DIAGRAMS

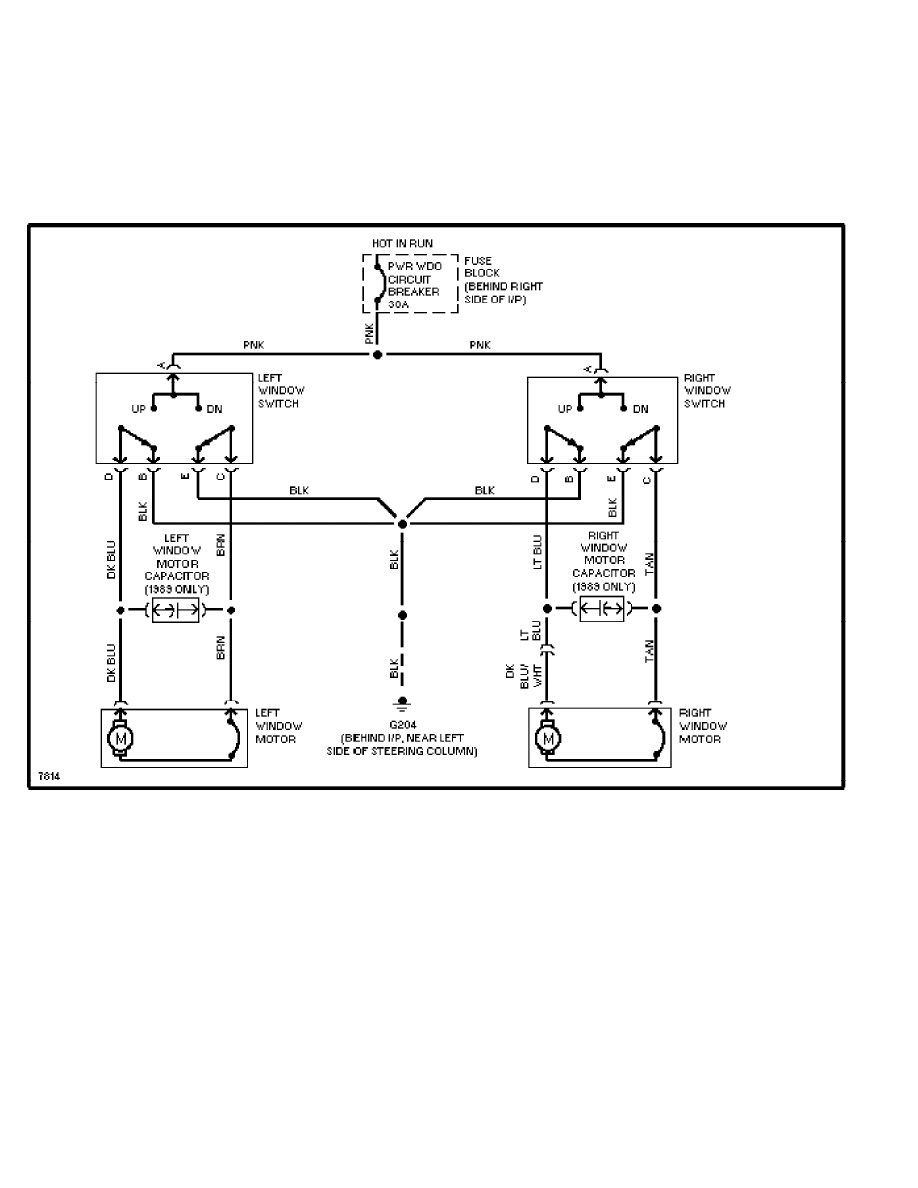

Power Window Circuit (p. 11)

1989 Chevrolet Corvette

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, July 31, 2004  02:09PM

background image

SYSTEM WIRING DIAGRAMS

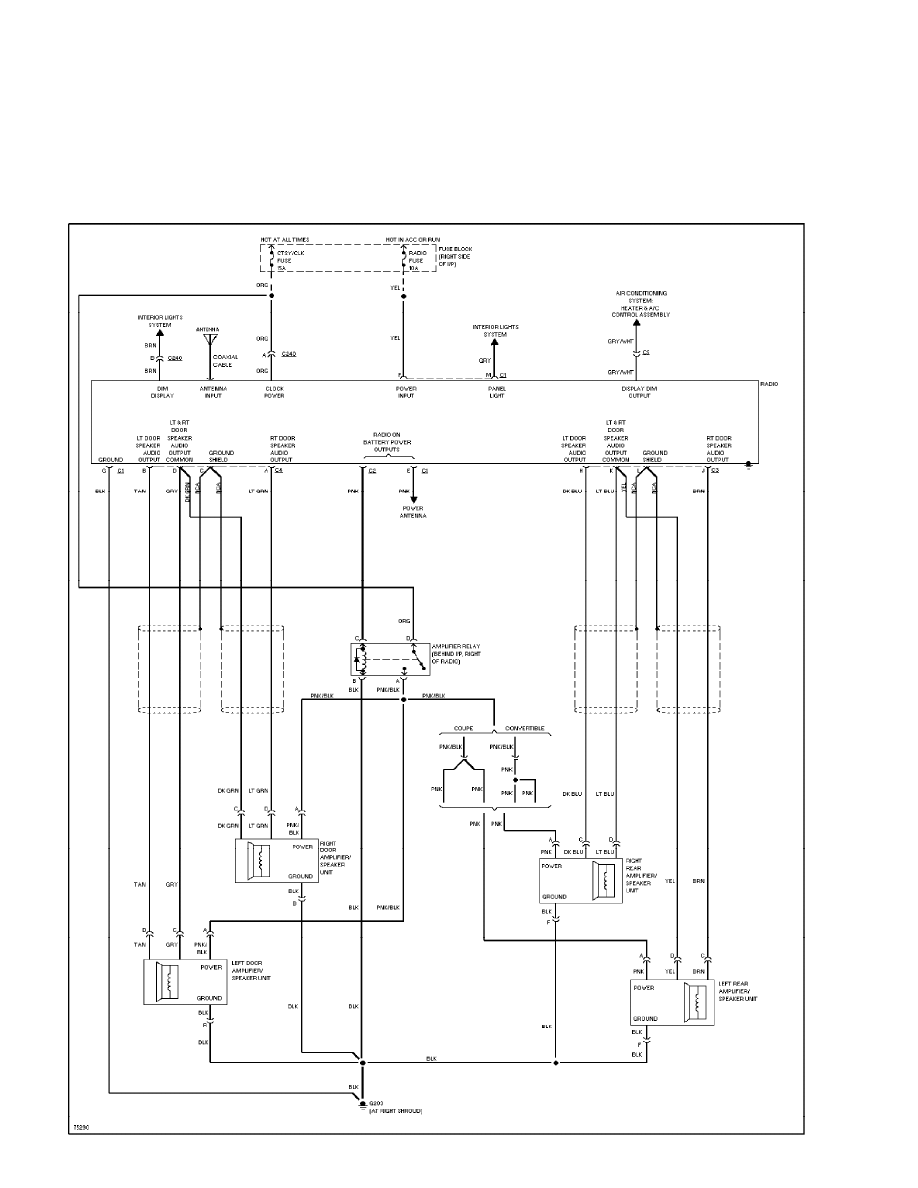

W/ Delco Bose (p. 12)

1989 Chevrolet Corvette

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, July 31, 2004  02:09PM

background image

SYSTEM WIRING DIAGRAMS

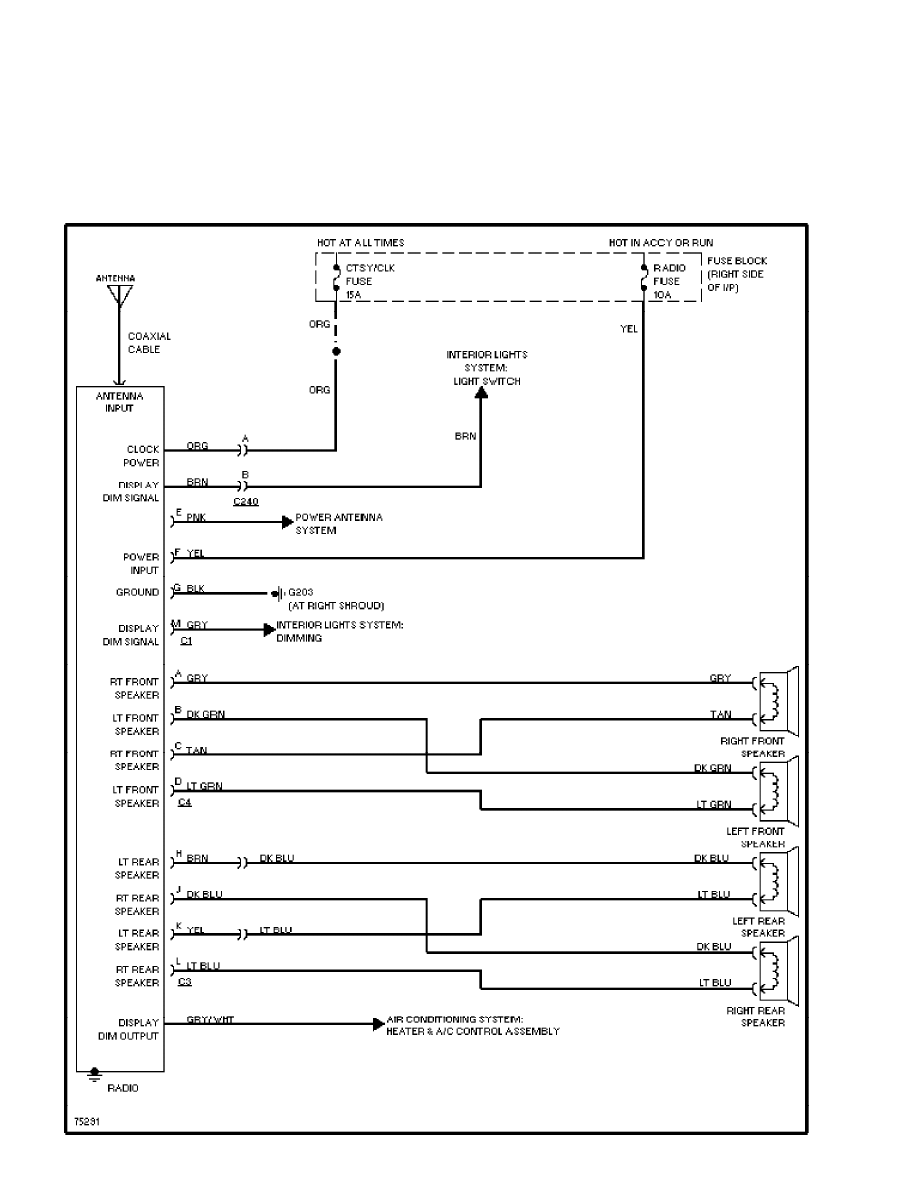

W/O Delco Bose (p. 13)

1989 Chevrolet Corvette

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, July 31, 2004  02:09PM

background image

SYSTEM WIRING DIAGRAMS

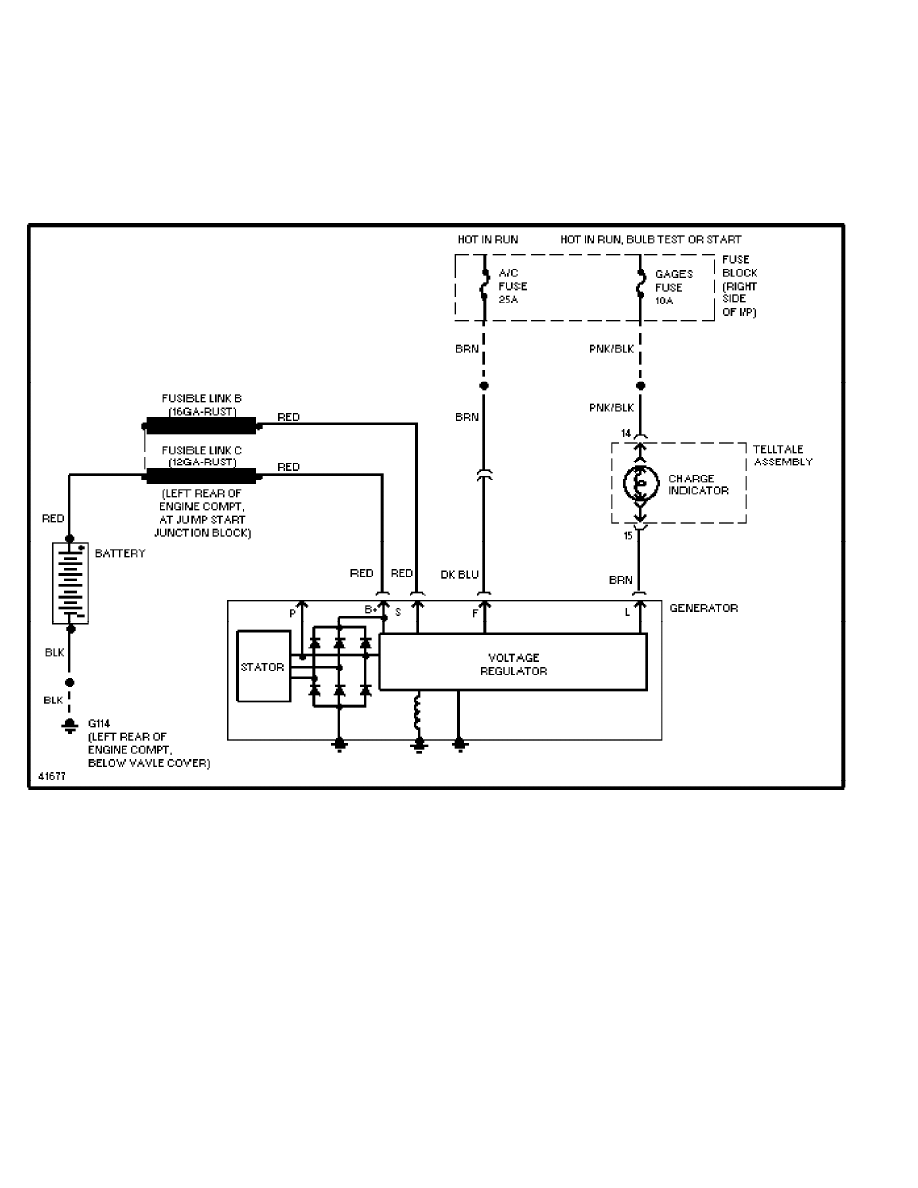

Charging Circuit (p. 14)

1989 Chevrolet Corvette

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, July 31, 2004  02:09PM

background image

SYSTEM WIRING DIAGRAMS

Starting Circuit (p. 15)

1989 Chevrolet Corvette

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, July 31, 2004  02:09PM

background image

SYSTEM WIRING DIAGRAMS

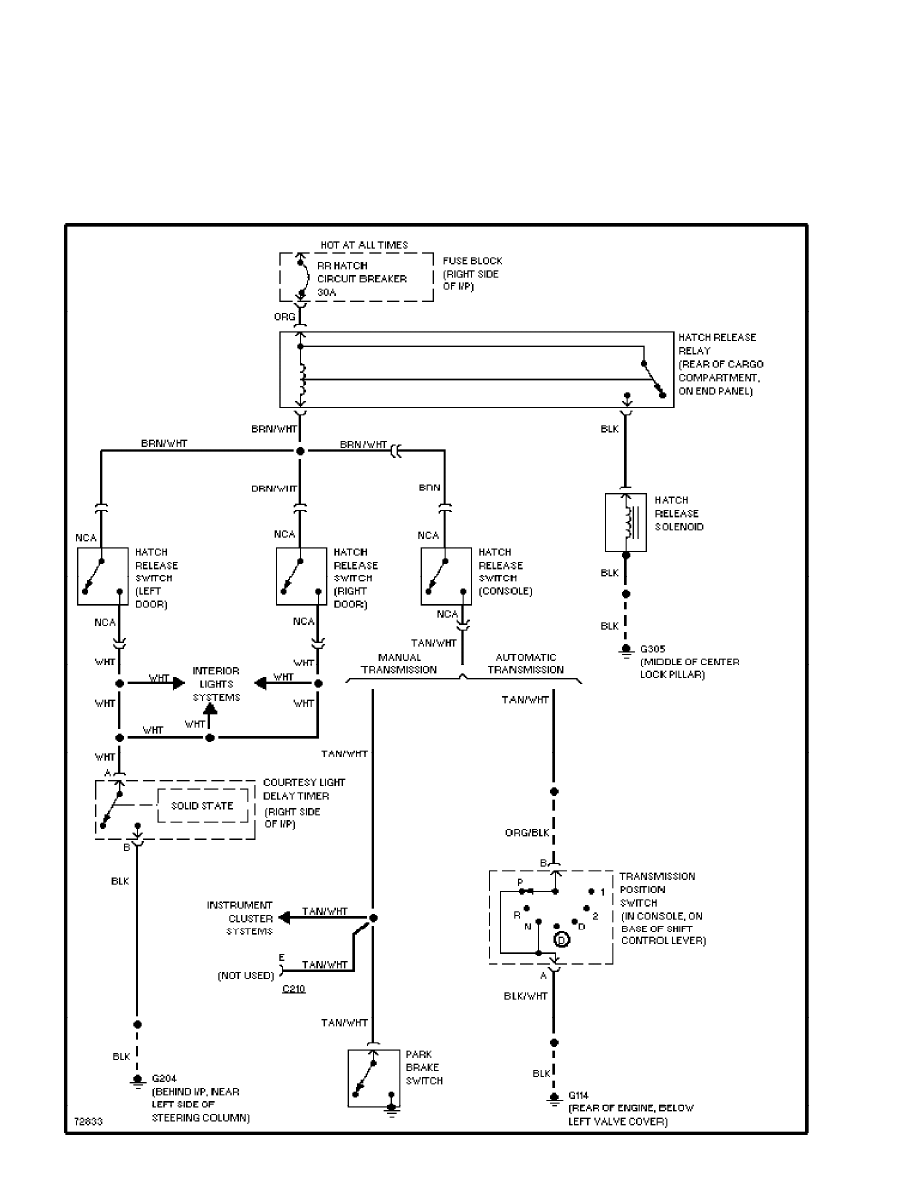

Trunk, Tailgate, Fuel Door Circuits (p. 16)

1989 Chevrolet Corvette

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, July 31, 2004  02:09PM

background image

SYSTEM WIRING DIAGRAMS

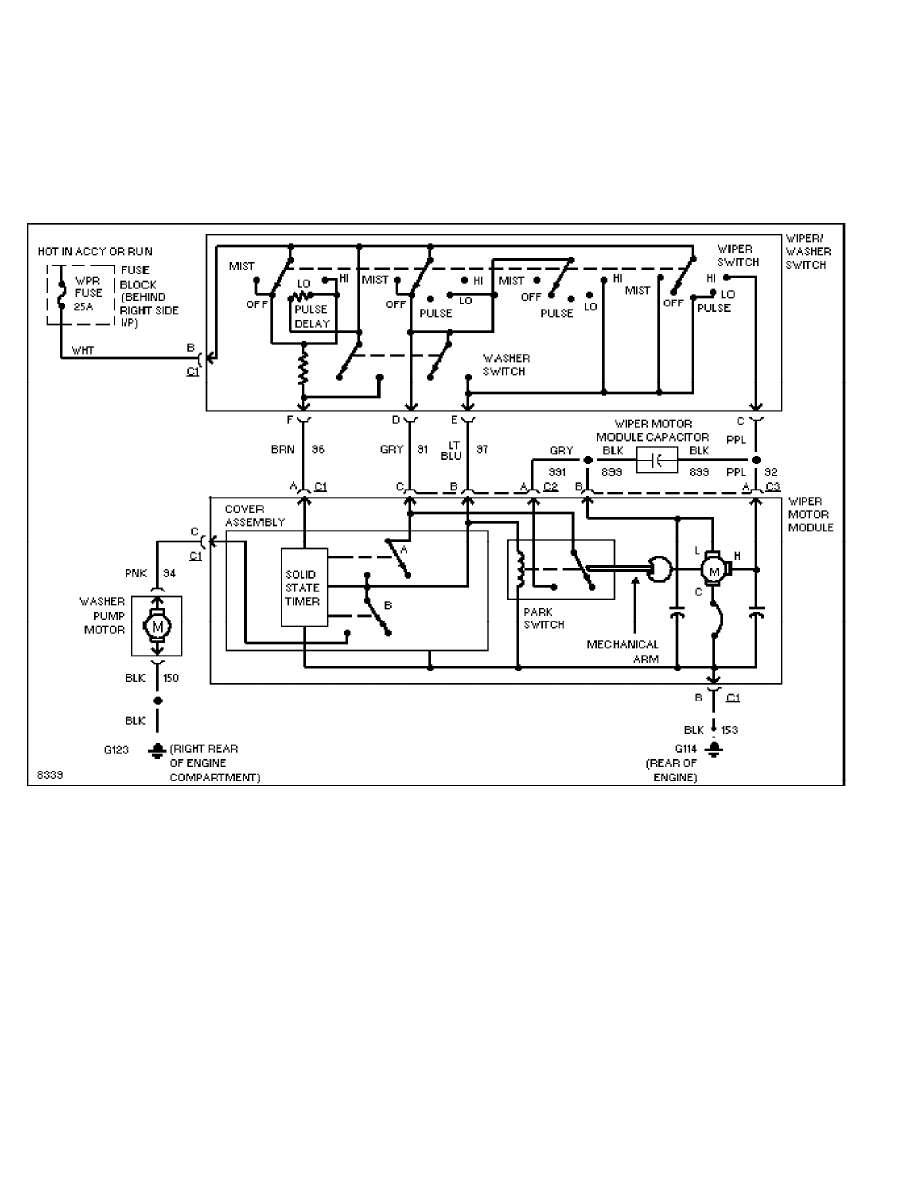

Wiper/Washer Circuit (p. 17)

1989 Chevrolet Corvette

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, July 31, 2004  02:09PM

background image

WIRING DIAGRAMS

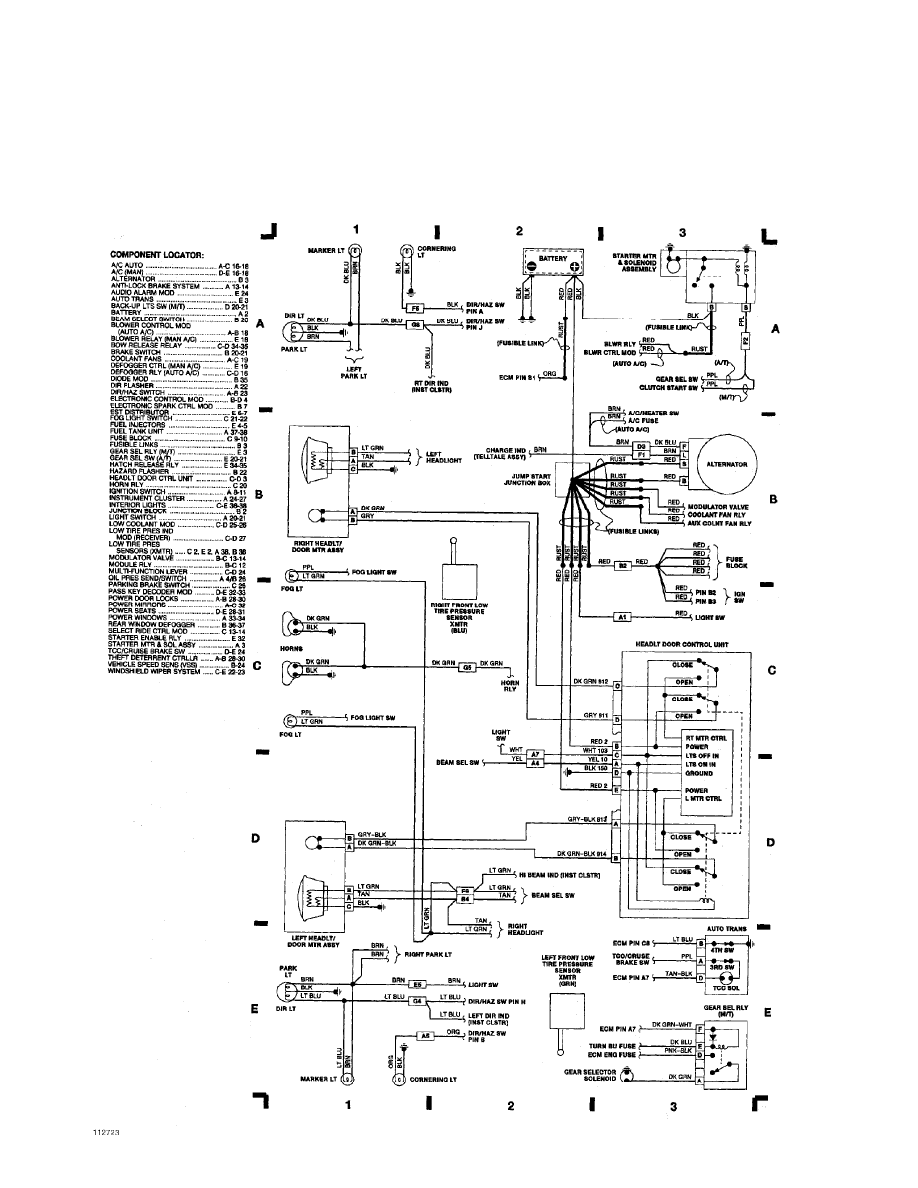

Fig. 1:  Engine Compartment & Headlights

1989 Chevrolet Corvette

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, July 31, 2004  02:09PM

background image

WIRING DIAGRAMS

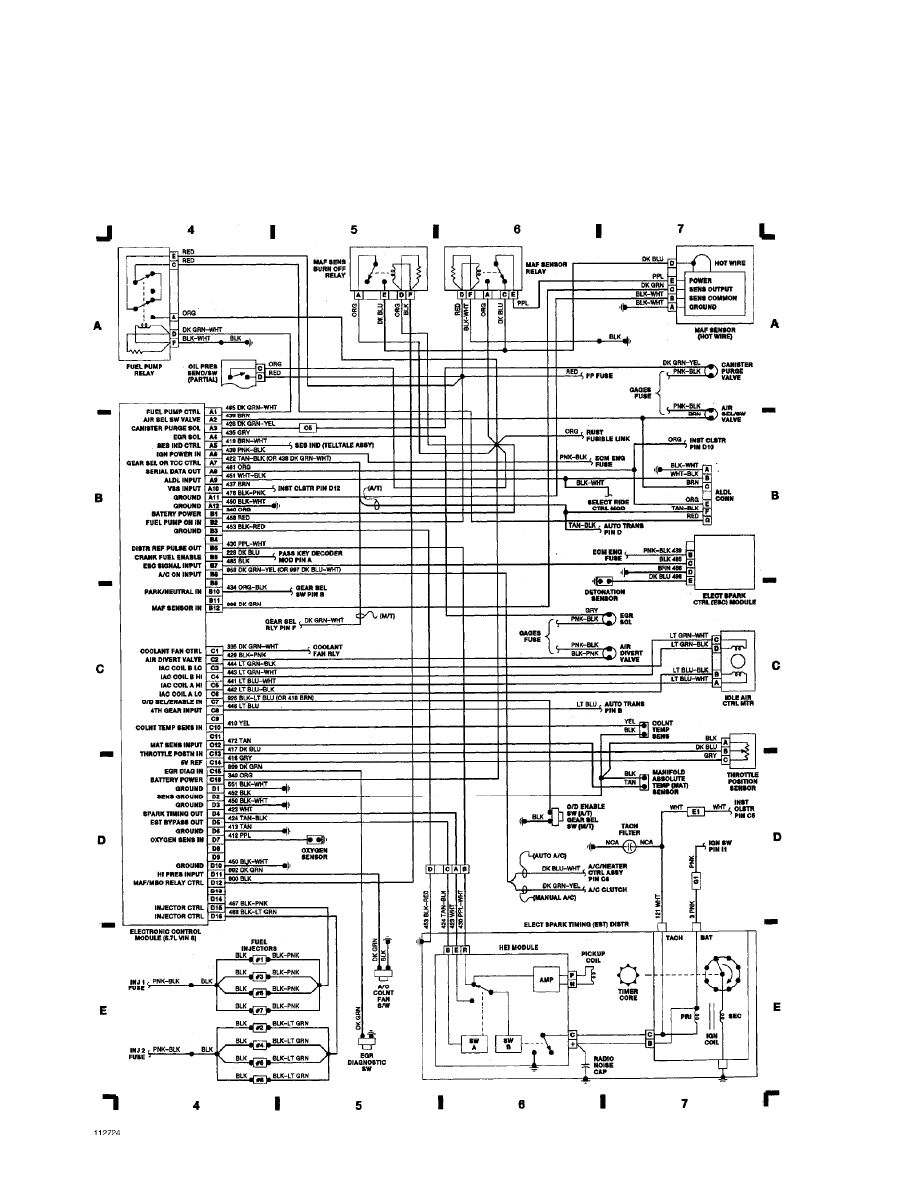

Fig. 2:  Computer Engine Control (p. 2)

1989 Chevrolet Corvette

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, July 31, 2004  02:09PM

background image

WIRING DIAGRAMS

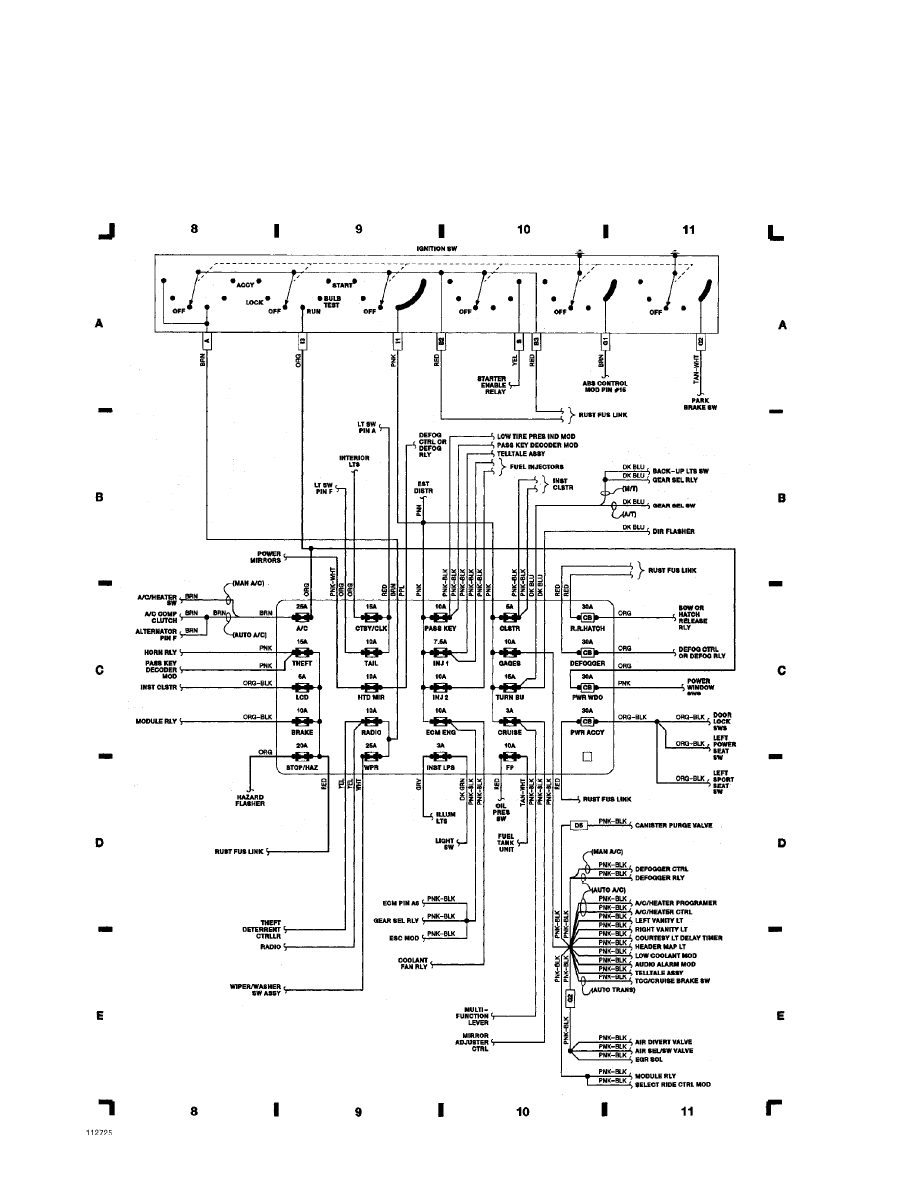

Fig. 3:  Fuse Block (p. 3)

1989 Chevrolet Corvette

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, July 31, 2004  02:09PM

background image

WIRING DIAGRAMS

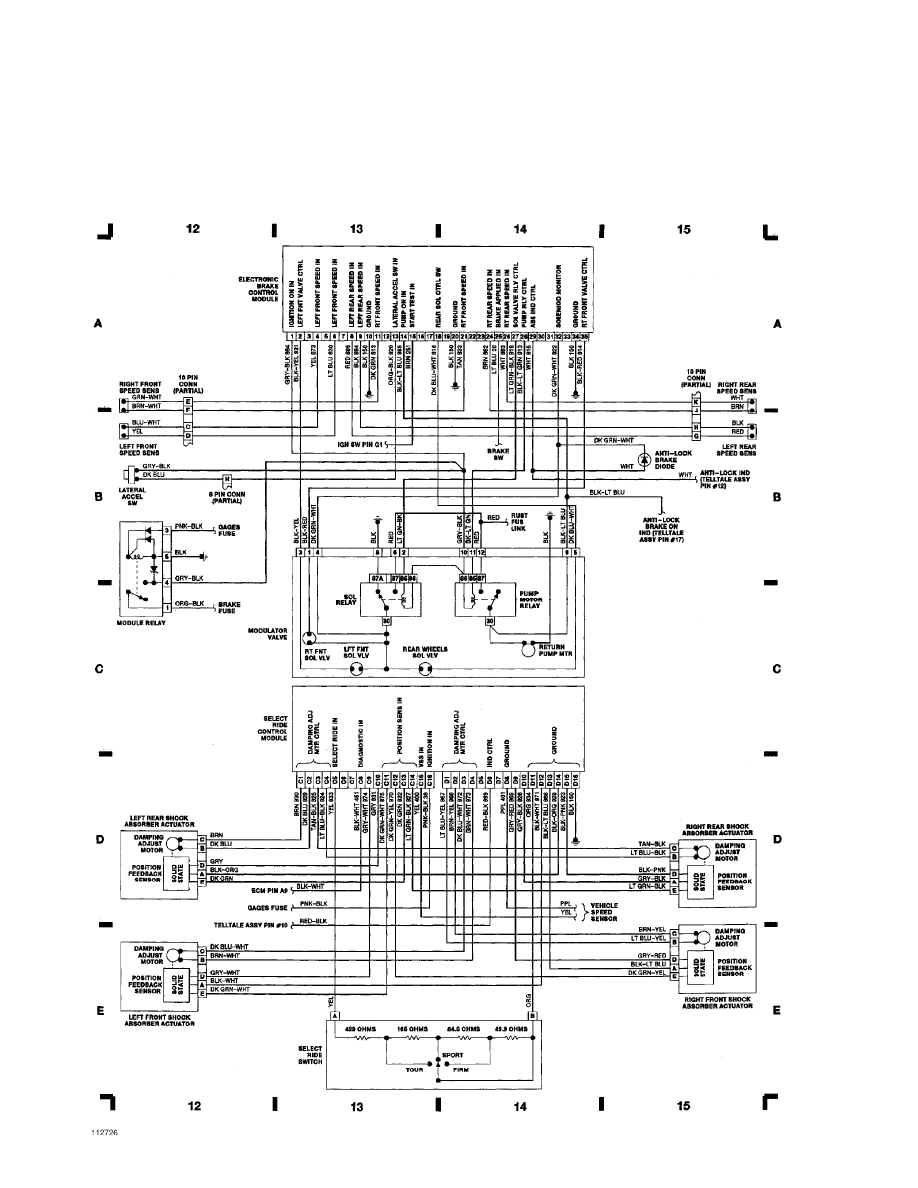

Fig. 4:  Anti-Lock Brake System & Electronic Suspension System (p. 4)

1989 Chevrolet Corvette

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, July 31, 2004  02:09PM

background image

WIRING DIAGRAMS

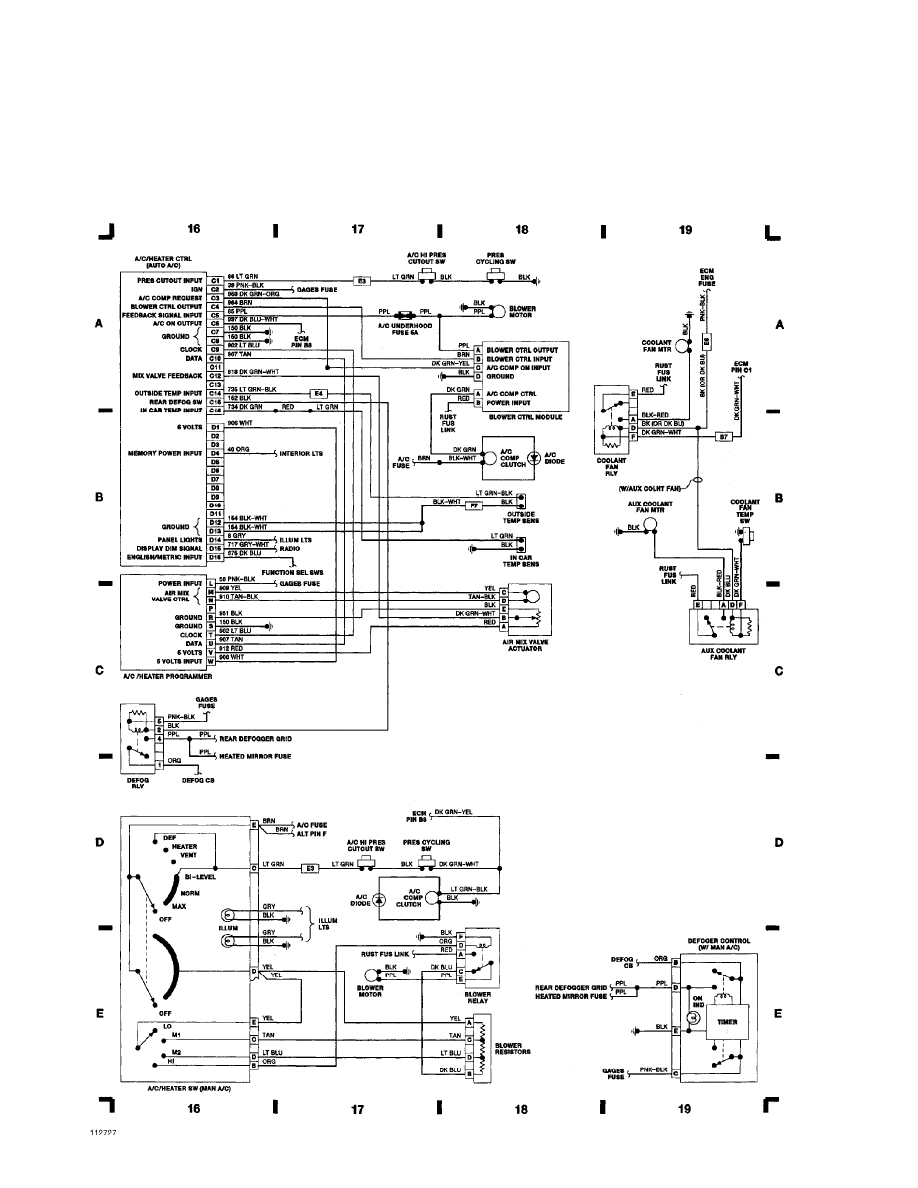

Fig. 5:  A/C (p. 5)

1989 Chevrolet Corvette

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, July 31, 2004  02:09PM

background image

WIRING DIAGRAMS

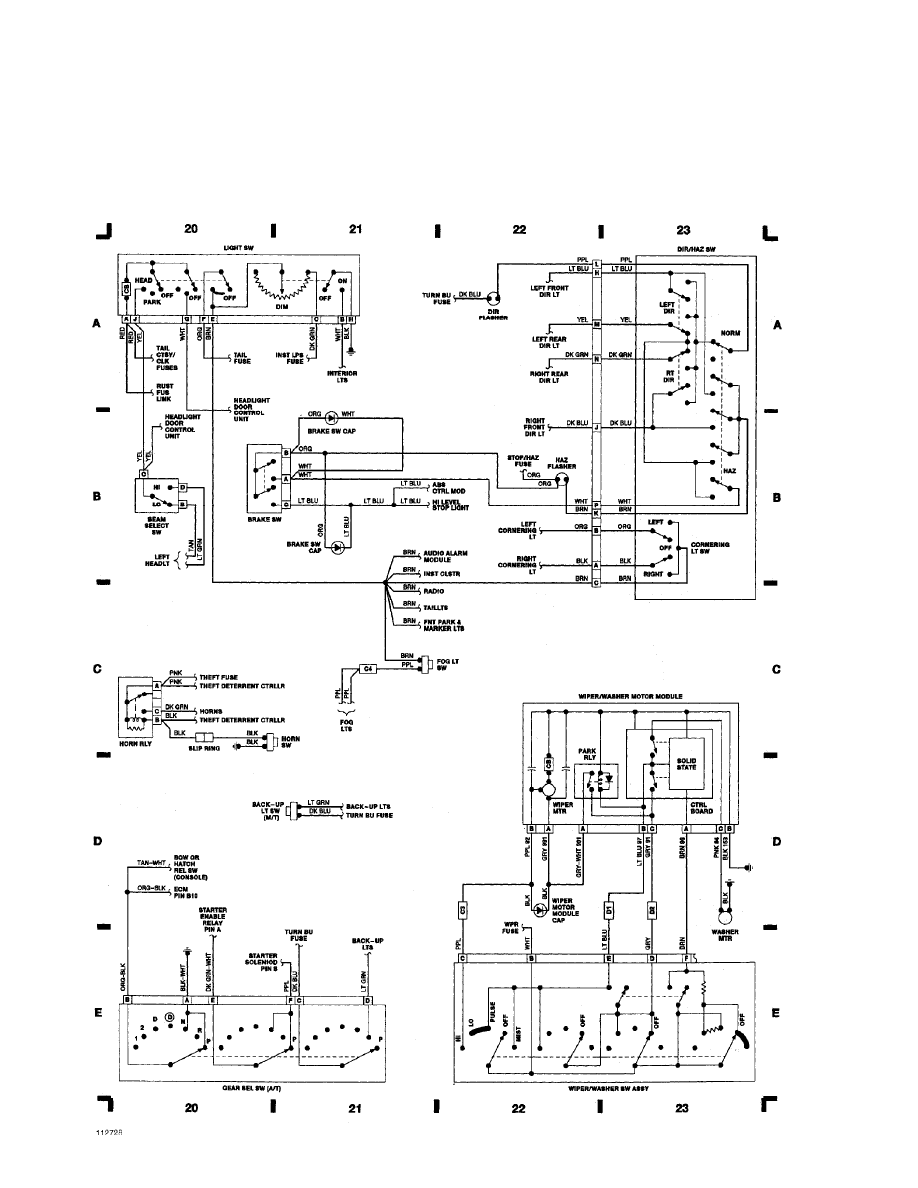

Fig. 6:  Steering Column Switches, Wiper/Washer System (p. 6)

1989 Chevrolet Corvette

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, July 31, 2004  02:09PM

background image

WIRING DIAGRAMS

Fig. 7:  Instrument Panel (p. 7)

1989 Chevrolet Corvette

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, July 31, 2004  02:09PM

background image

WIRING DIAGRAMS

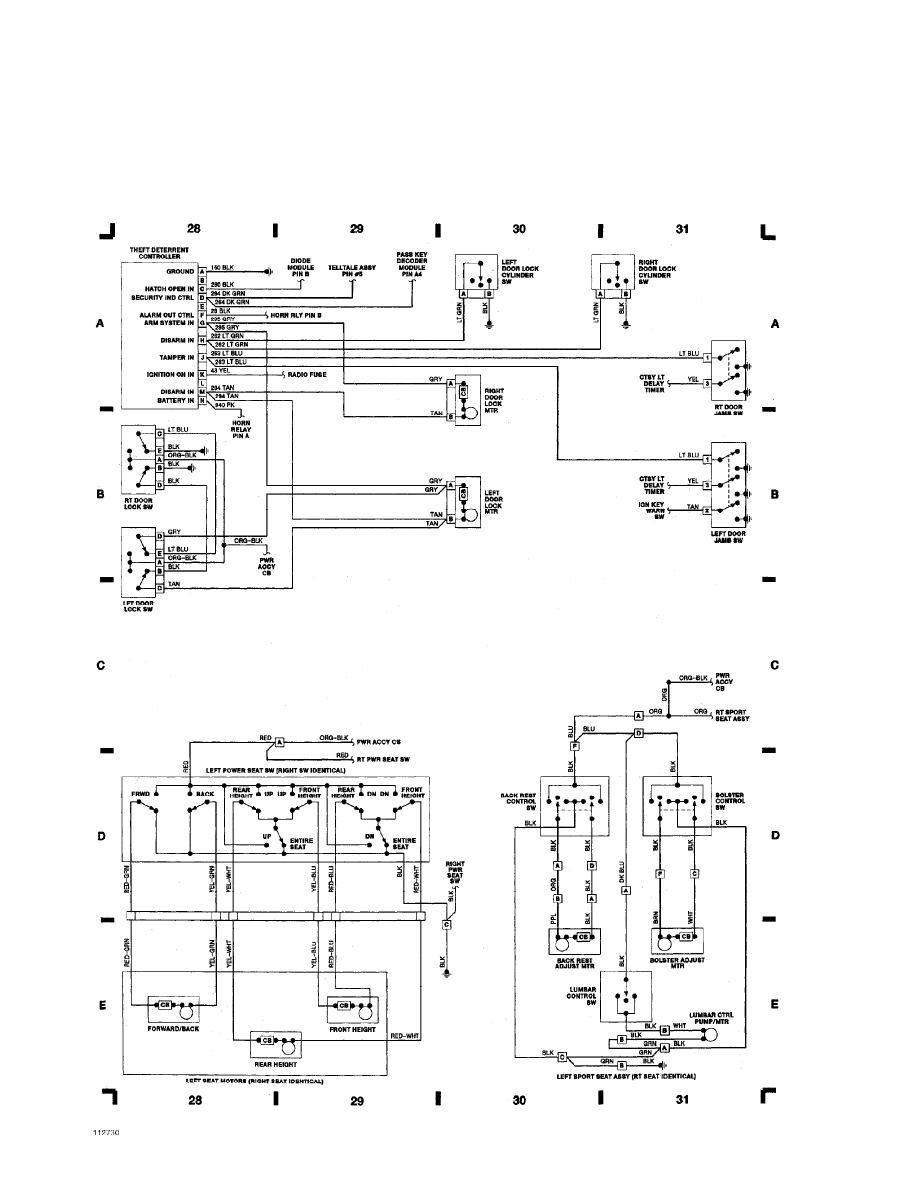

Fig. 8:  Anti-Theft & Power Seats (p. 8)

1989 Chevrolet Corvette

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, July 31, 2004  02:09PM

background image

WIRING DIAGRAMS

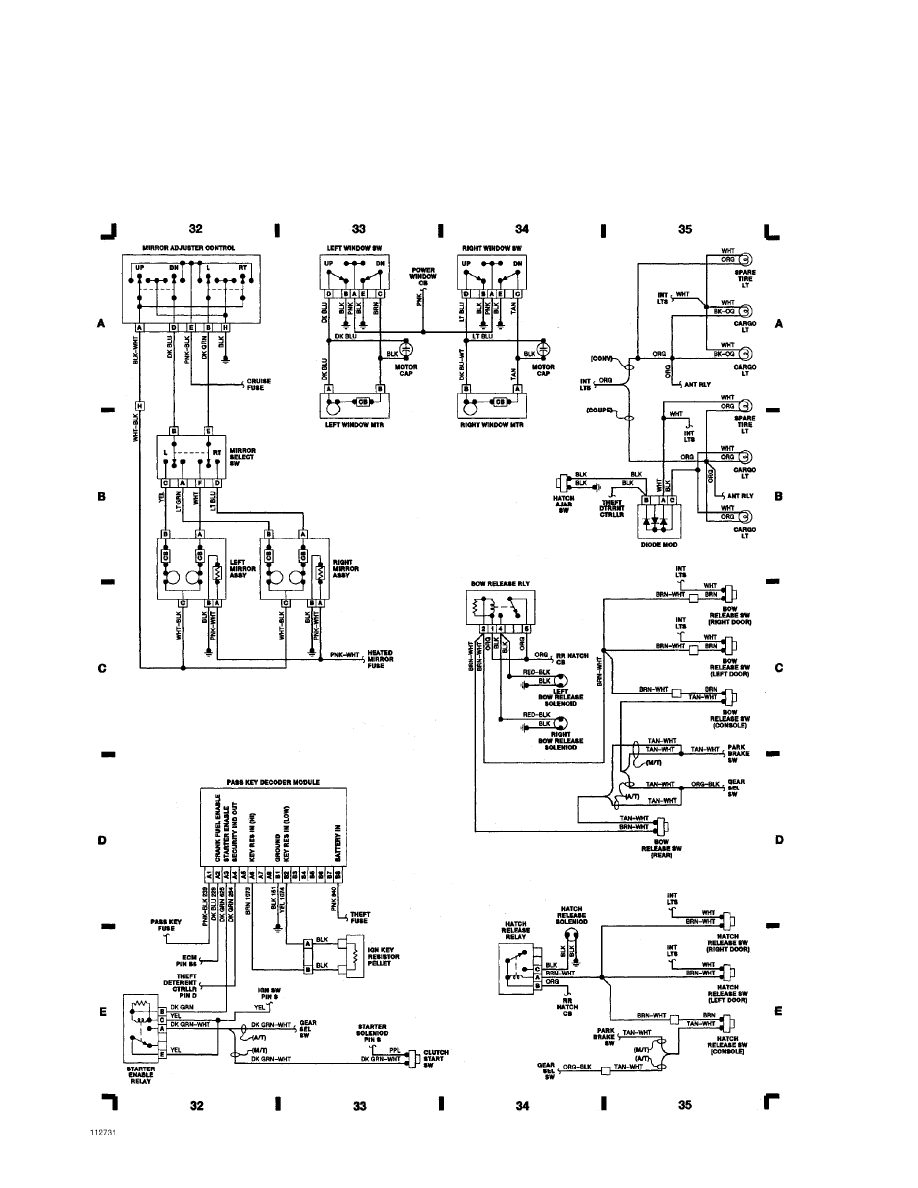

Fig. 9:  Passenger Compartment (p. 9)

1989 Chevrolet Corvette

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, July 31, 2004  02:09PM

background image

WIRING DIAGRAMS

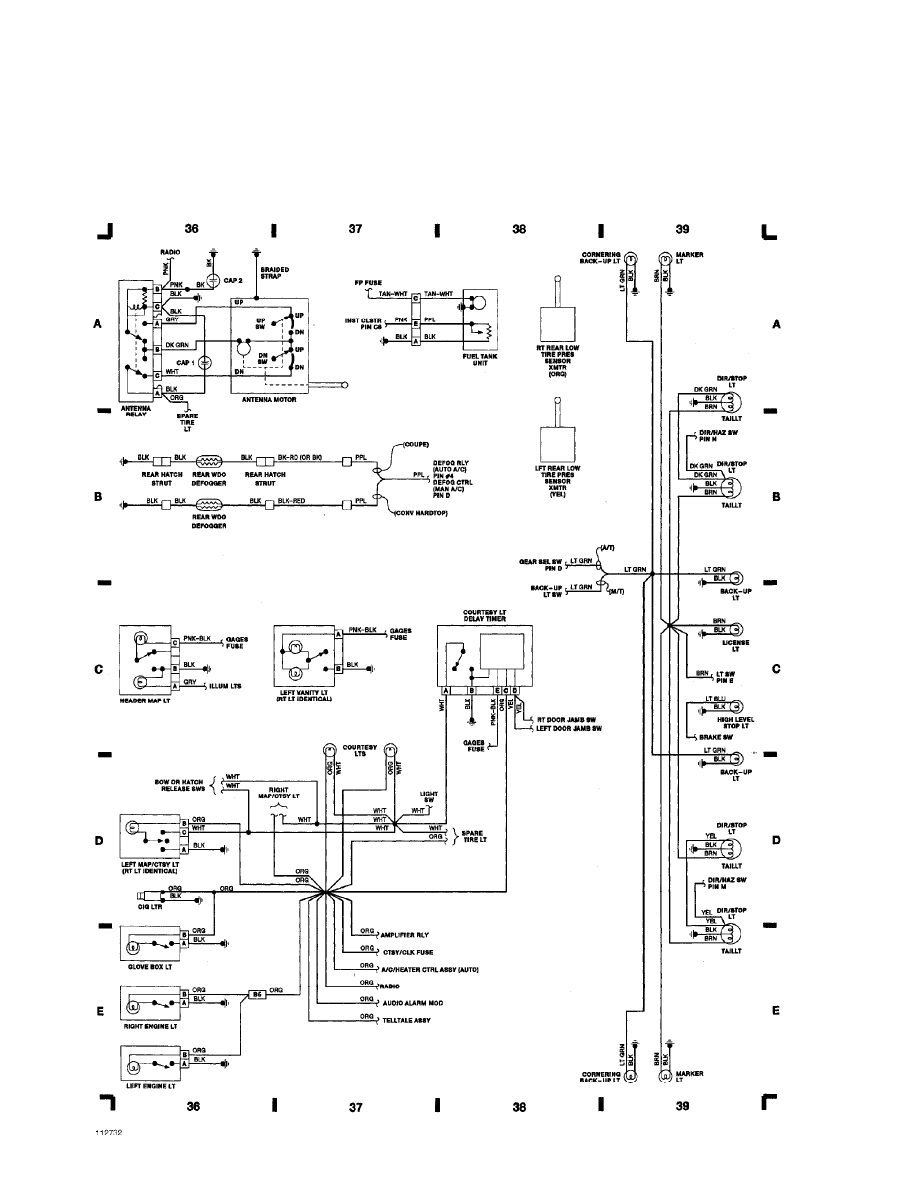

Fig. 10:  Passenger Compartment (Cont.) & Taillights (p. 10)

1989 Chevrolet Corvette

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, July 31, 2004  02:09PM
