background image

SYSTEM WIRING DIAGRAMS

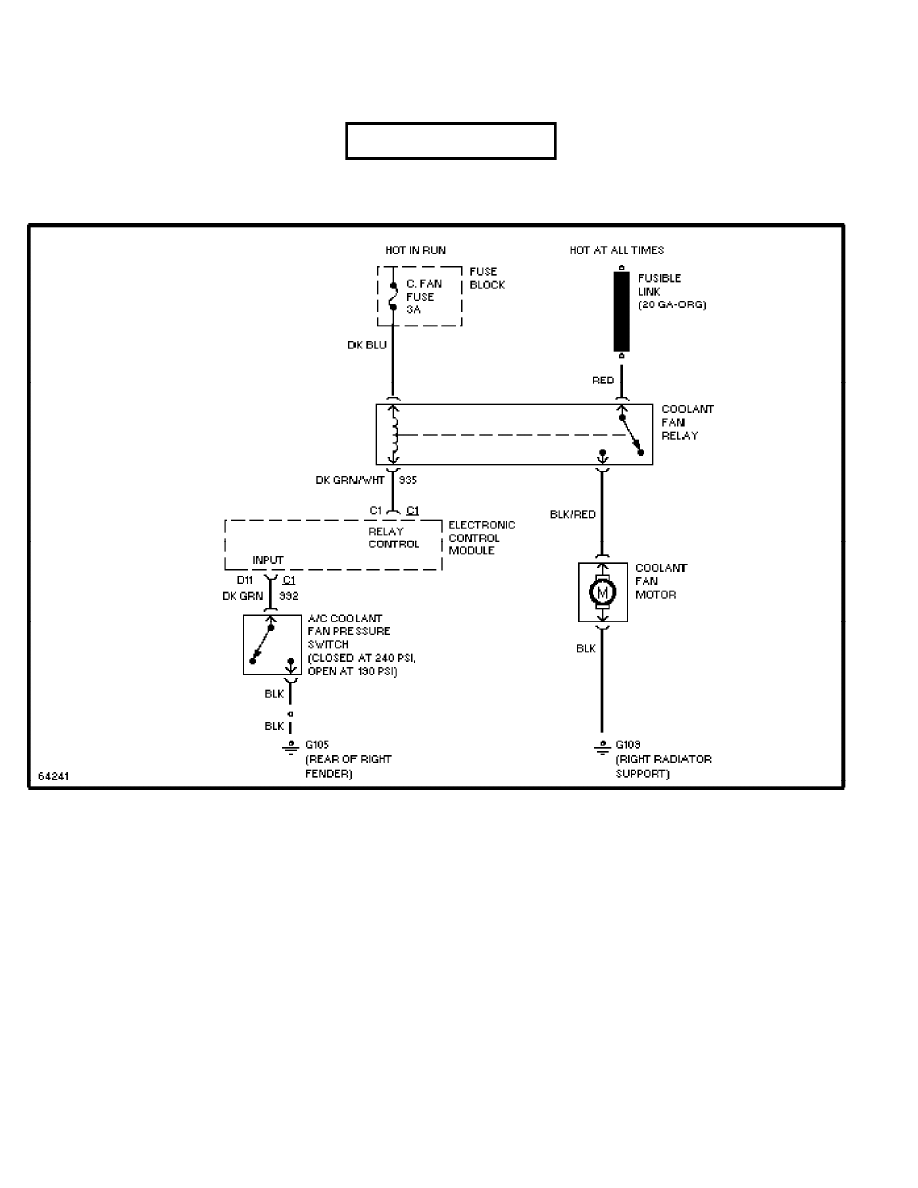

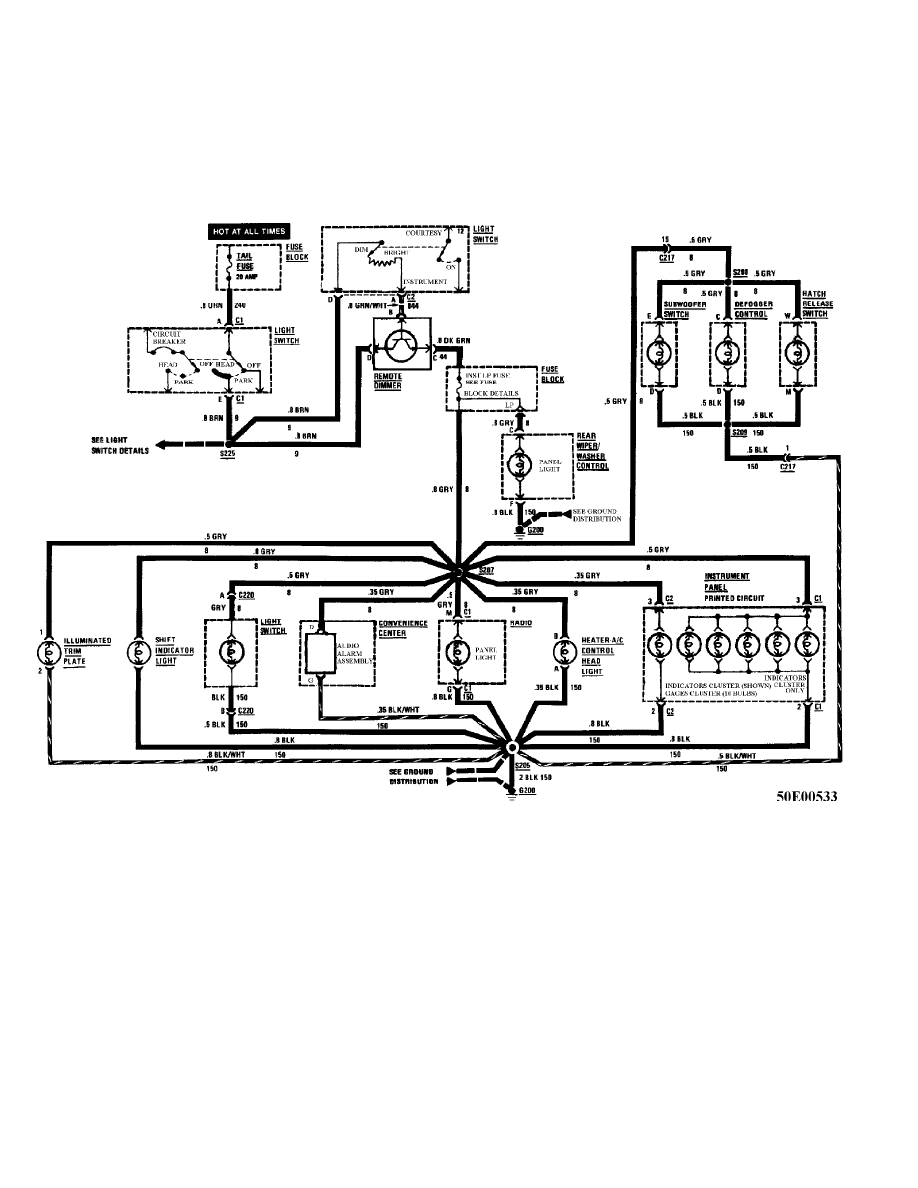

Cooling Fan Circuit

1986 Chevrolet Corvette

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, July 31, 2004  02:05PM

        CDR@WP.PL

background image

SYSTEM WIRING DIAGRAMS

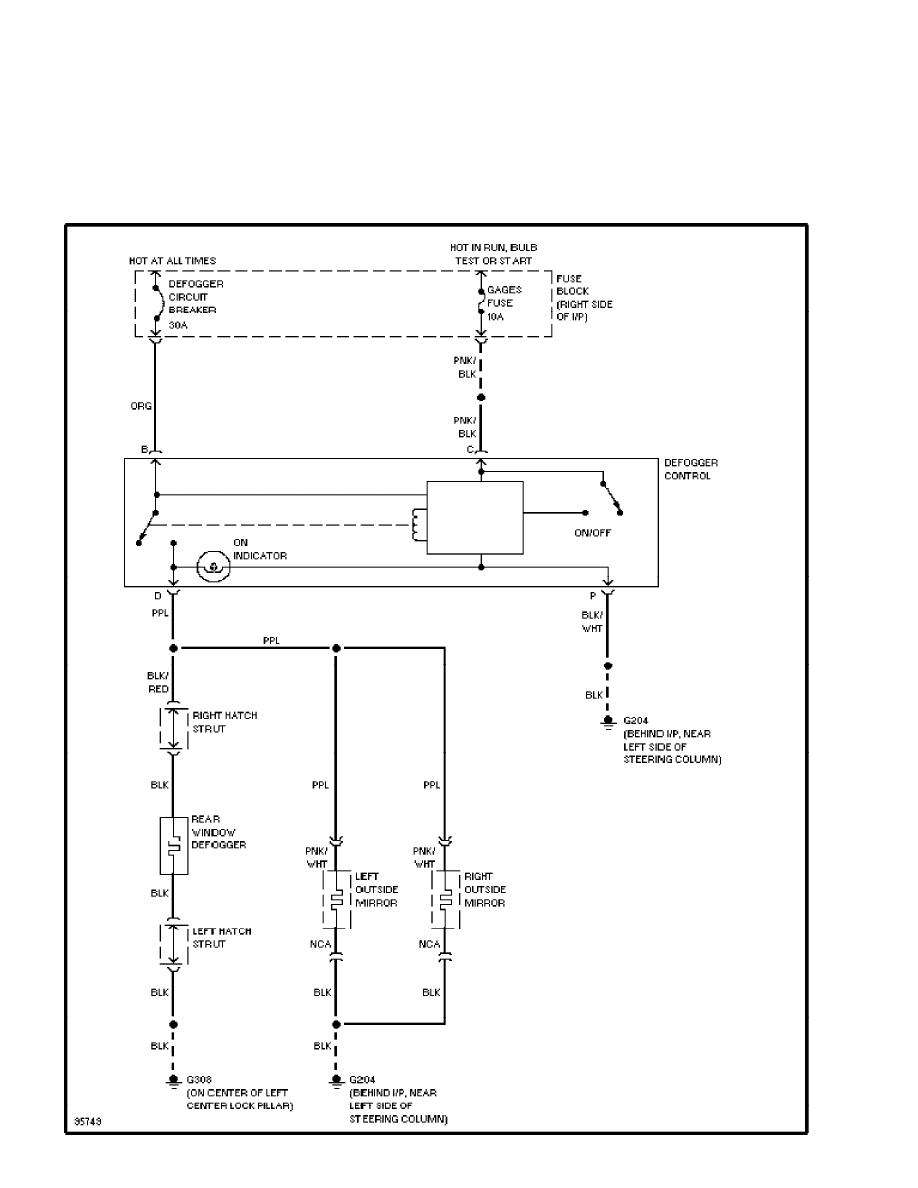

Defogger Circuit (p. 2)

1986 Chevrolet Corvette

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, July 31, 2004  02:05PM

background image

SYSTEM WIRING DIAGRAMS

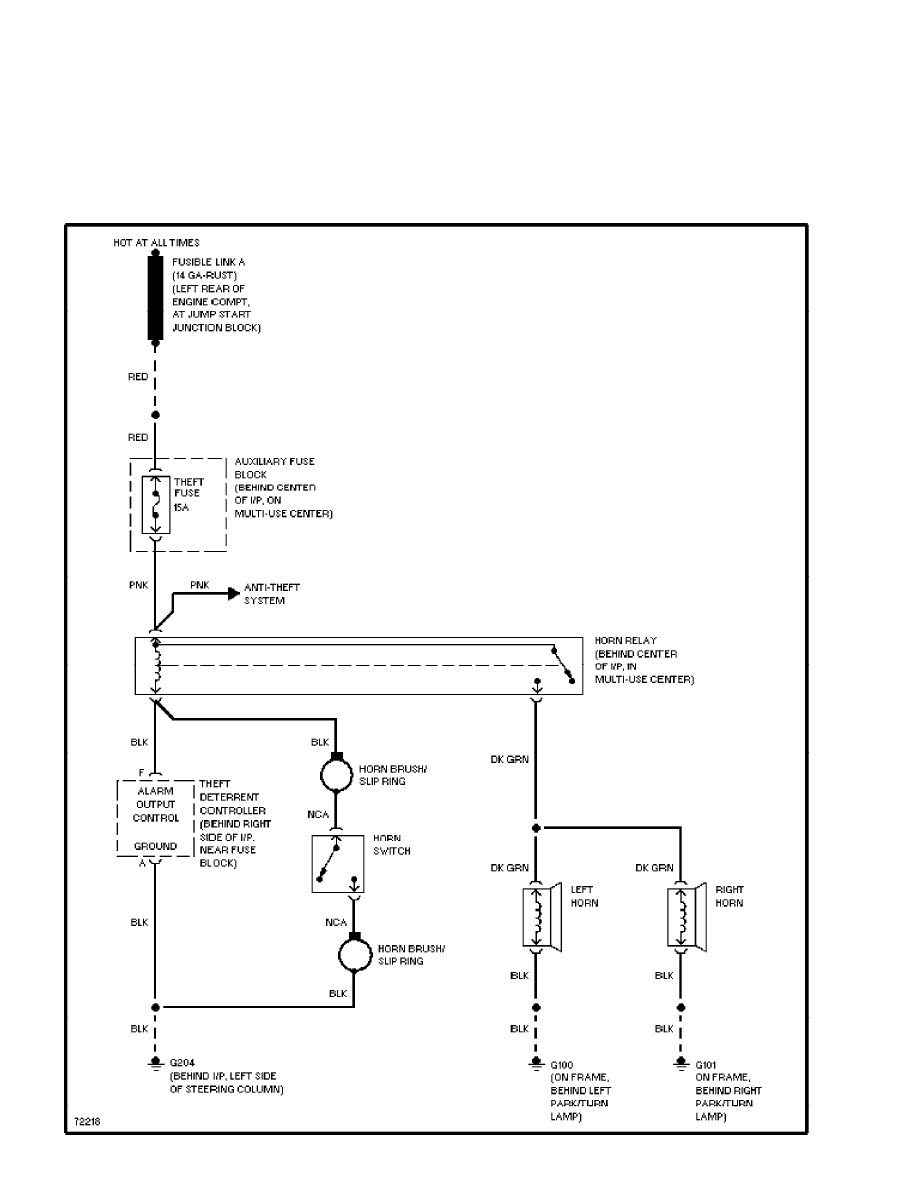

Horn Circuit (p. 3)

1986 Chevrolet Corvette

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, July 31, 2004  02:05PM

background image

SYSTEM WIRING DIAGRAMS

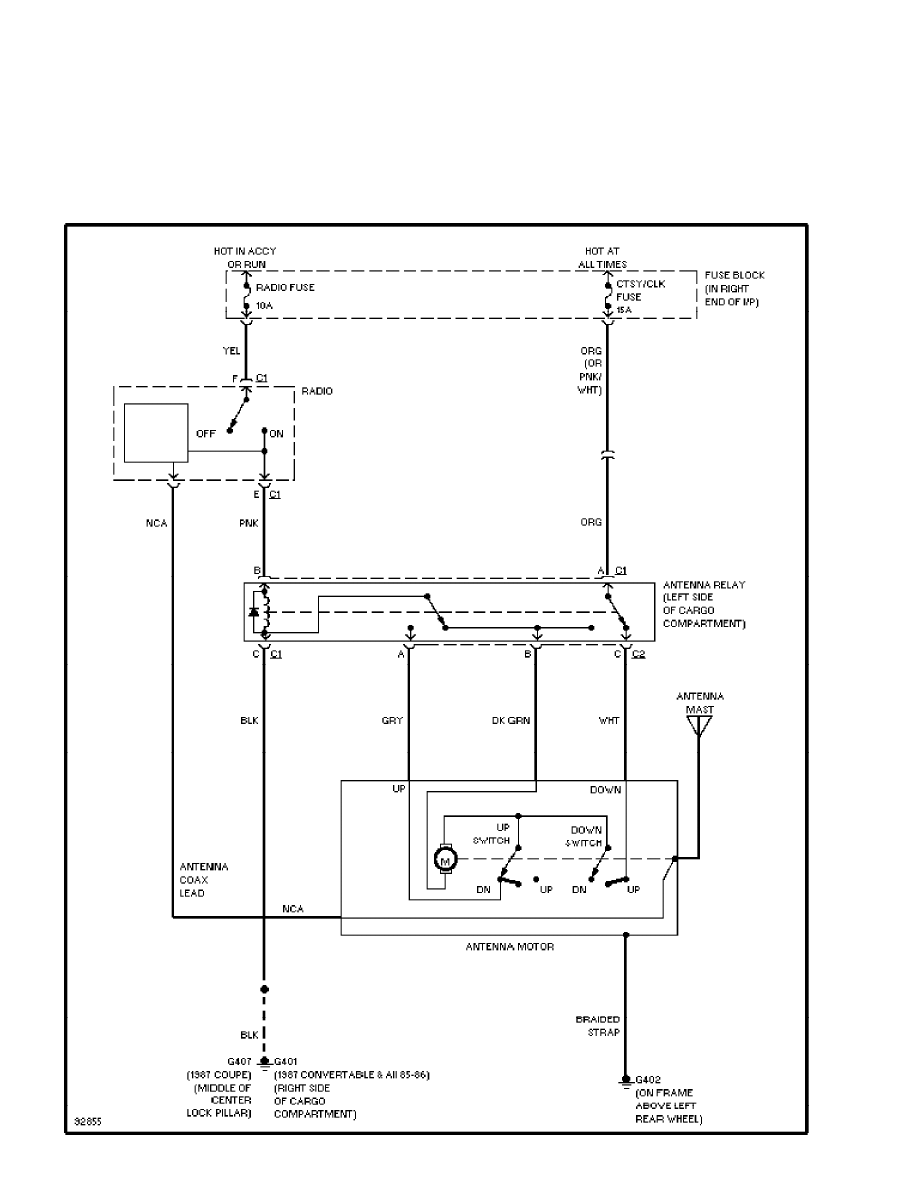

Power Antenna Circuit (p. 4)

1986 Chevrolet Corvette

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, July 31, 2004  02:05PM

background image

SYSTEM WIRING DIAGRAMS

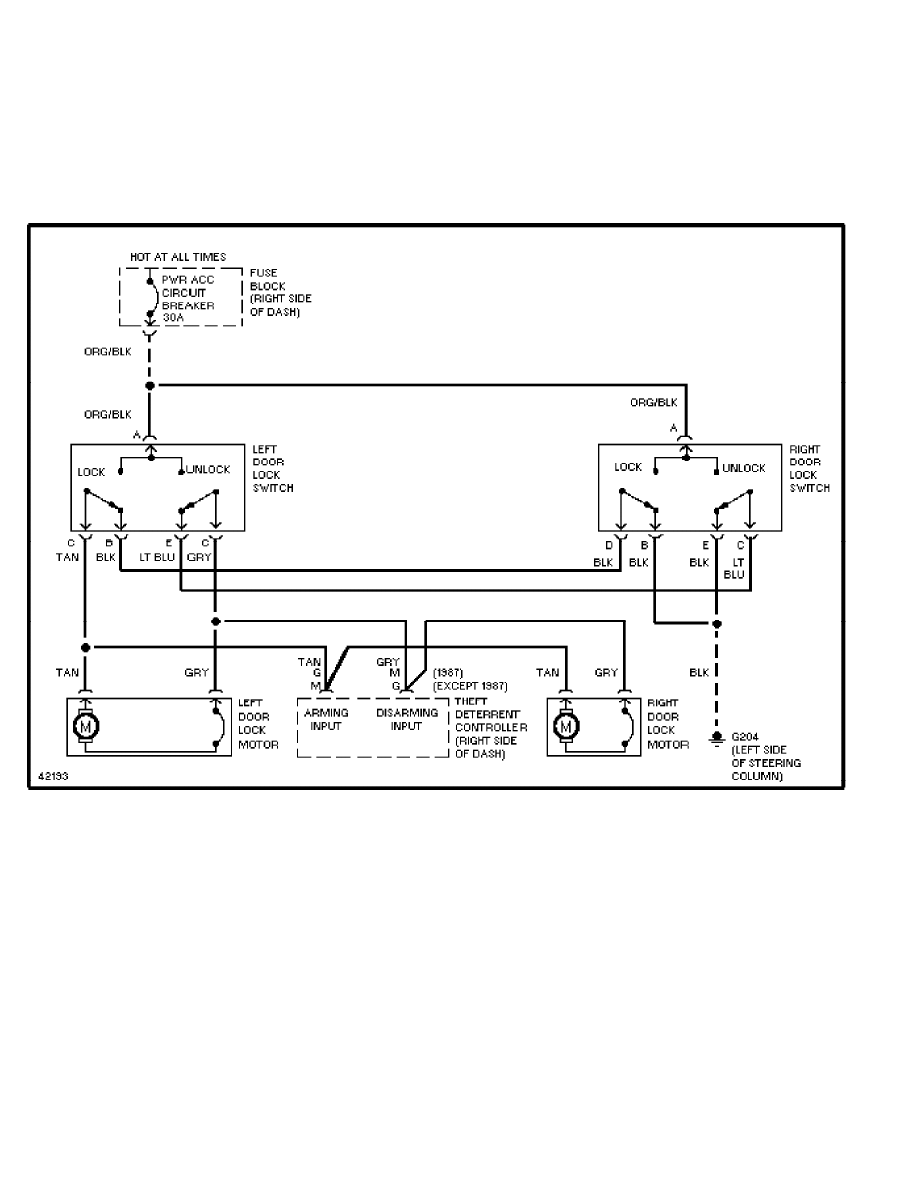

Power Door Lock Circuit (p. 5)

1986 Chevrolet Corvette

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, July 31, 2004  02:05PM

background image

SYSTEM WIRING DIAGRAMS

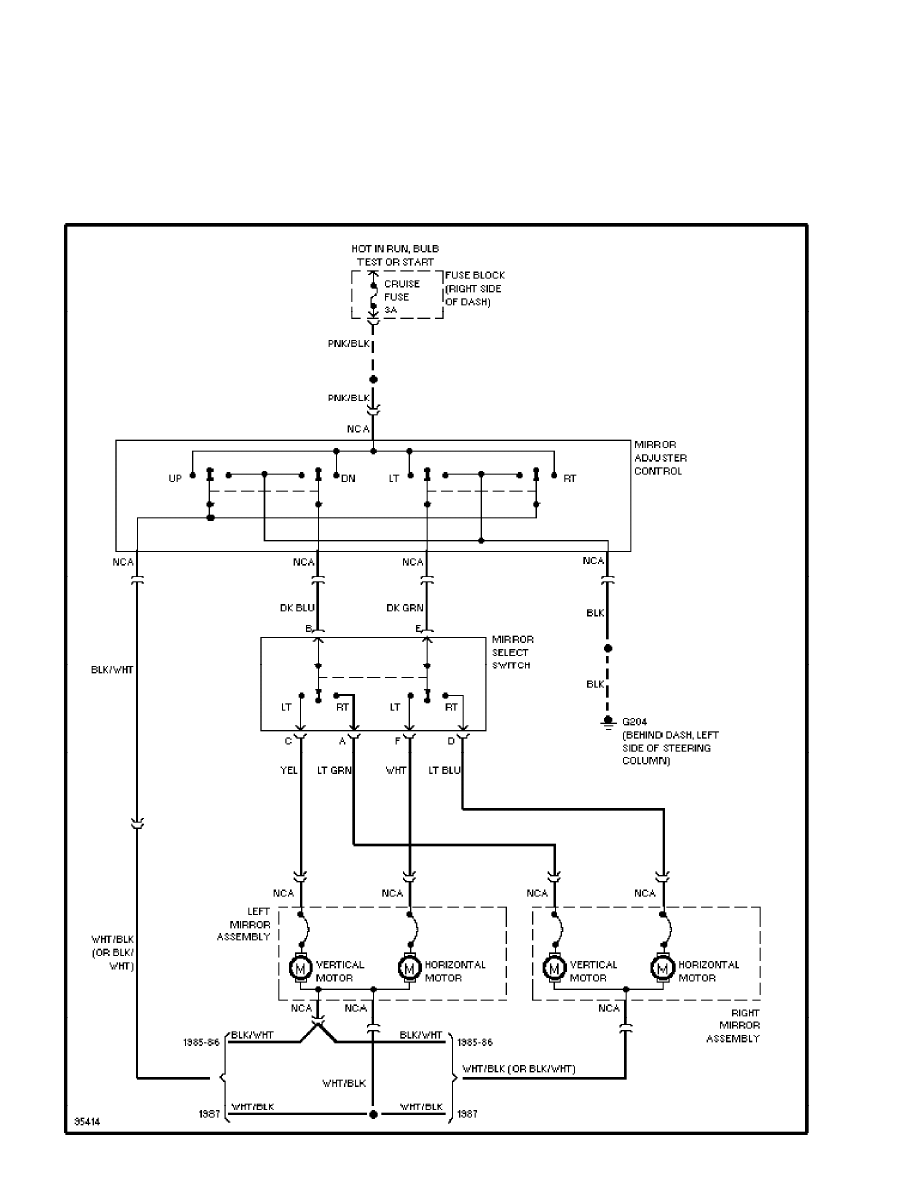

Power Mirror Circuit (p. 6)

1986 Chevrolet Corvette

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, July 31, 2004  02:05PM

background image

SYSTEM WIRING DIAGRAMS

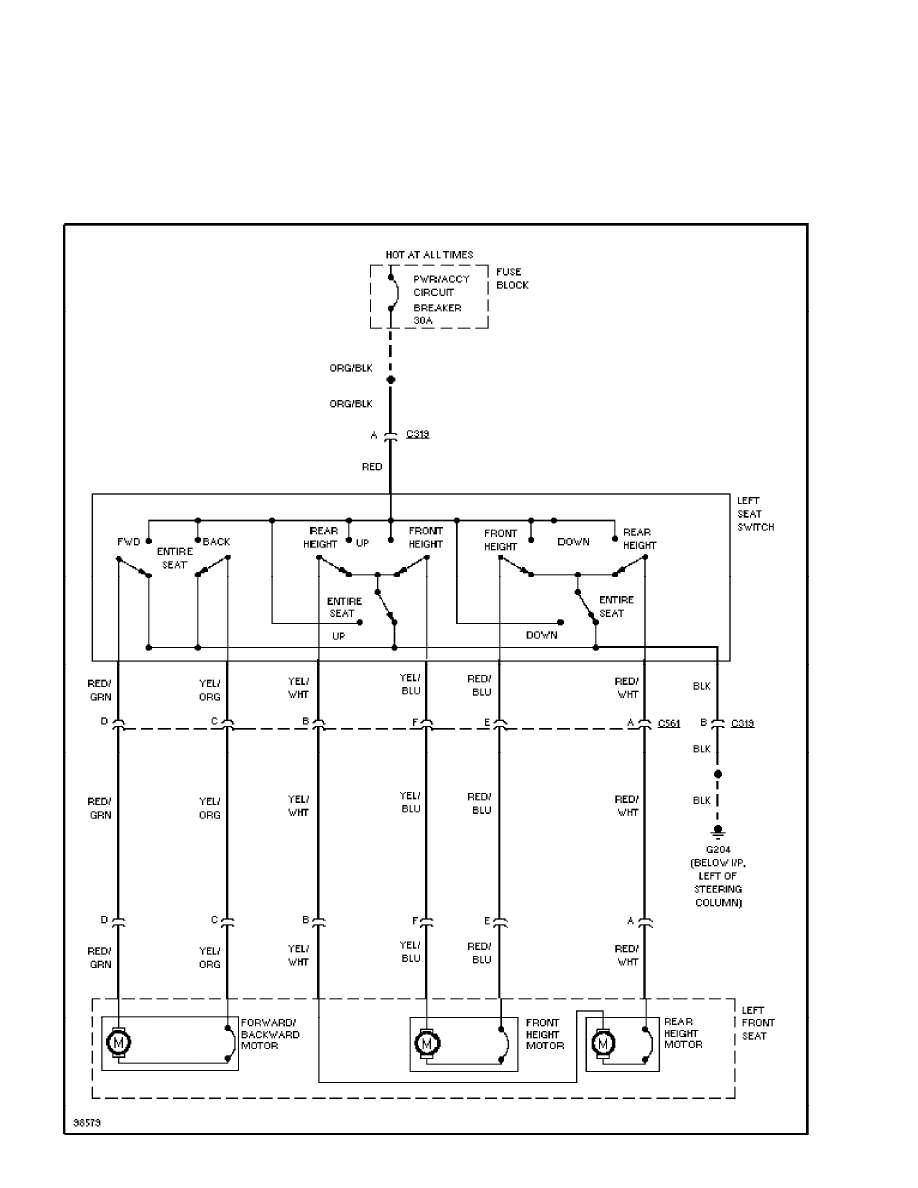

Power Seat Circuits (p. 7)

1986 Chevrolet Corvette

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, July 31, 2004  02:05PM

background image

SYSTEM WIRING DIAGRAMS

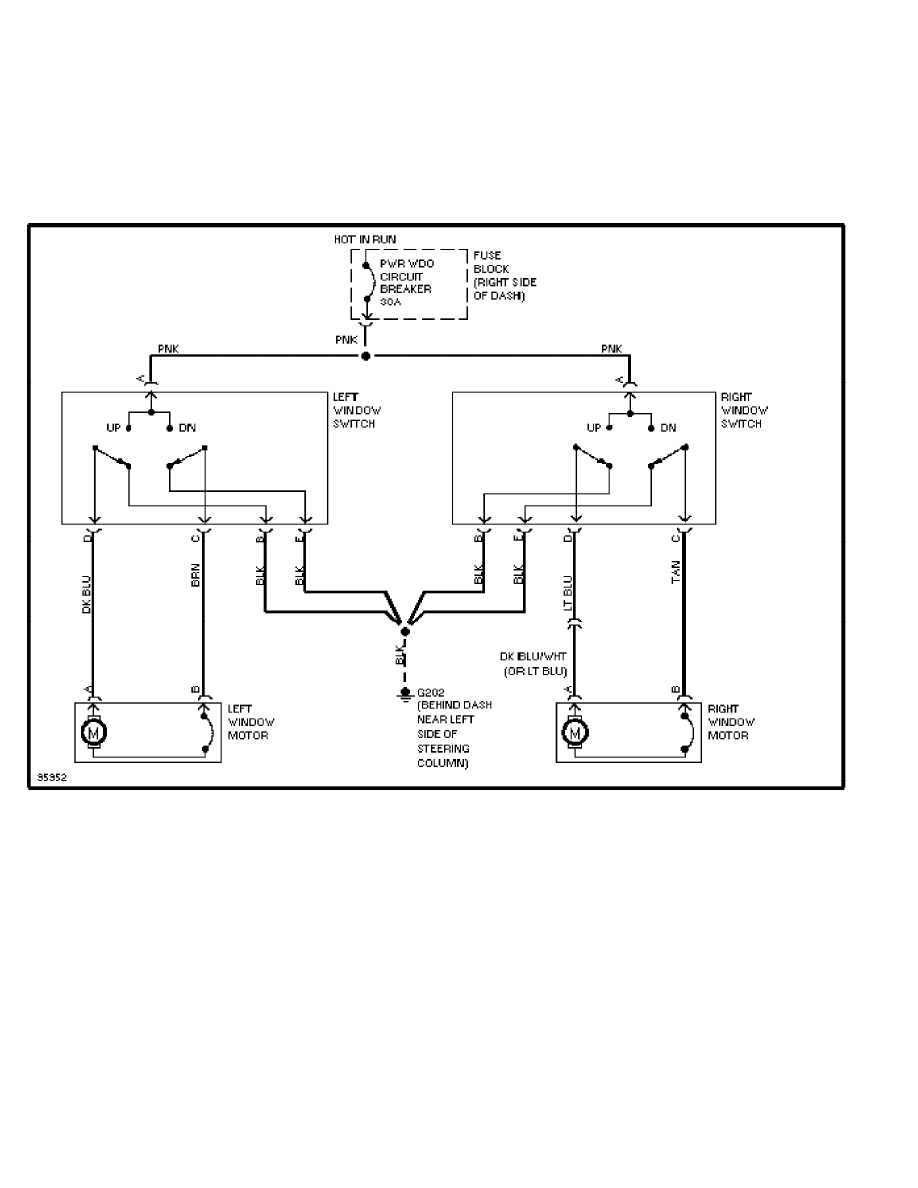

Power Window Circuit (p. 8)

1986 Chevrolet Corvette

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, July 31, 2004  02:05PM

background image

SYSTEM WIRING DIAGRAMS

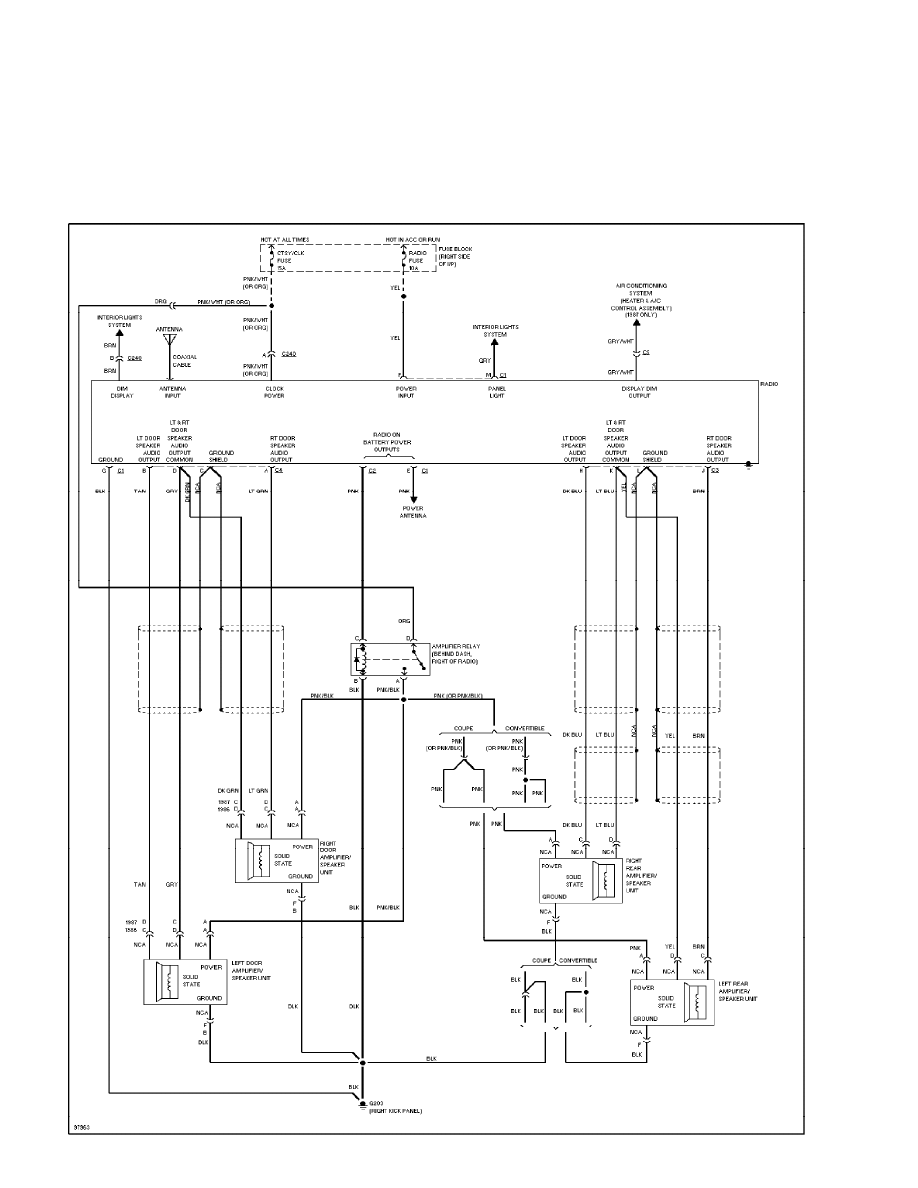

Radio Circuits, W/ Bose System (p. 9)

1986 Chevrolet Corvette

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, July 31, 2004  02:05PM

background image

SYSTEM WIRING DIAGRAMS

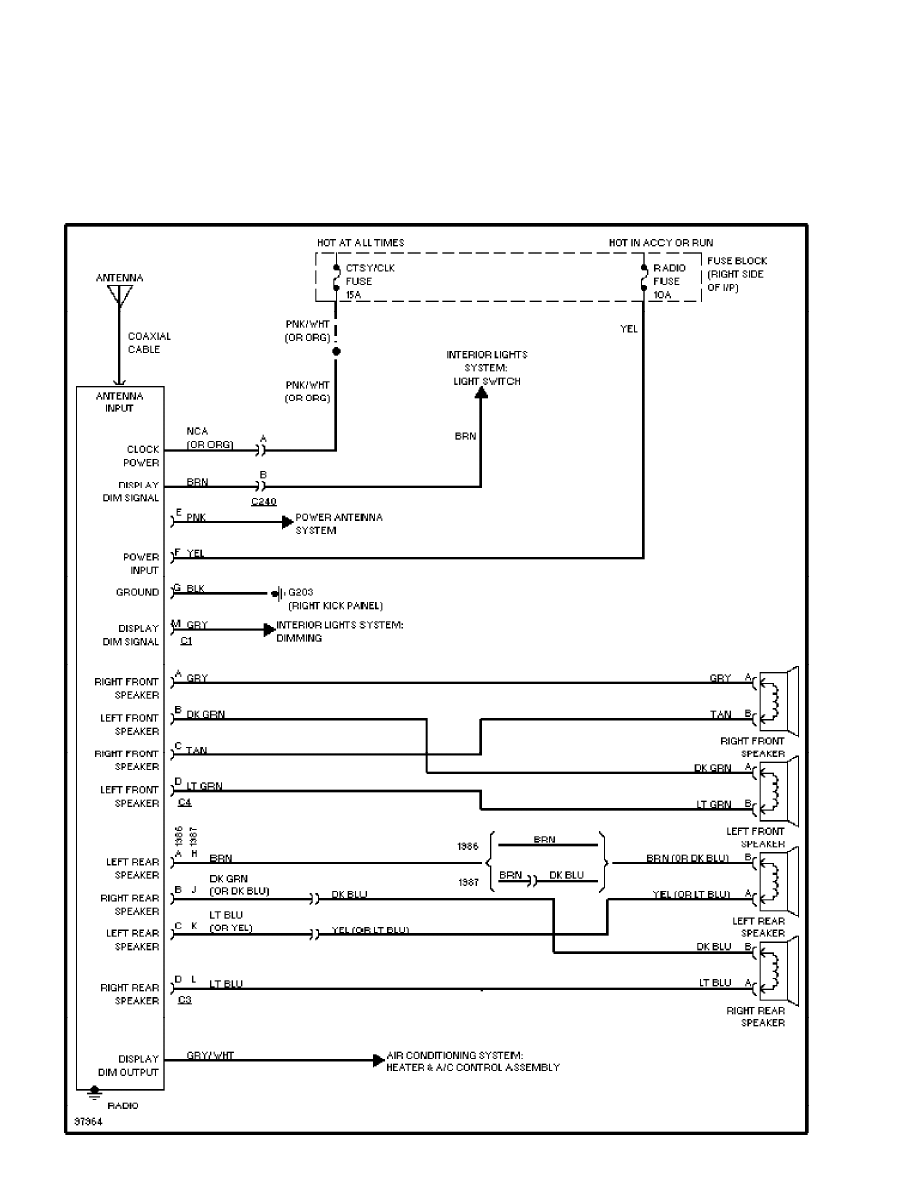

Radio Circuits, W/O Bose System (p. 10)

1986 Chevrolet Corvette

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, July 31, 2004  02:05PM

background image

SYSTEM WIRING DIAGRAMS

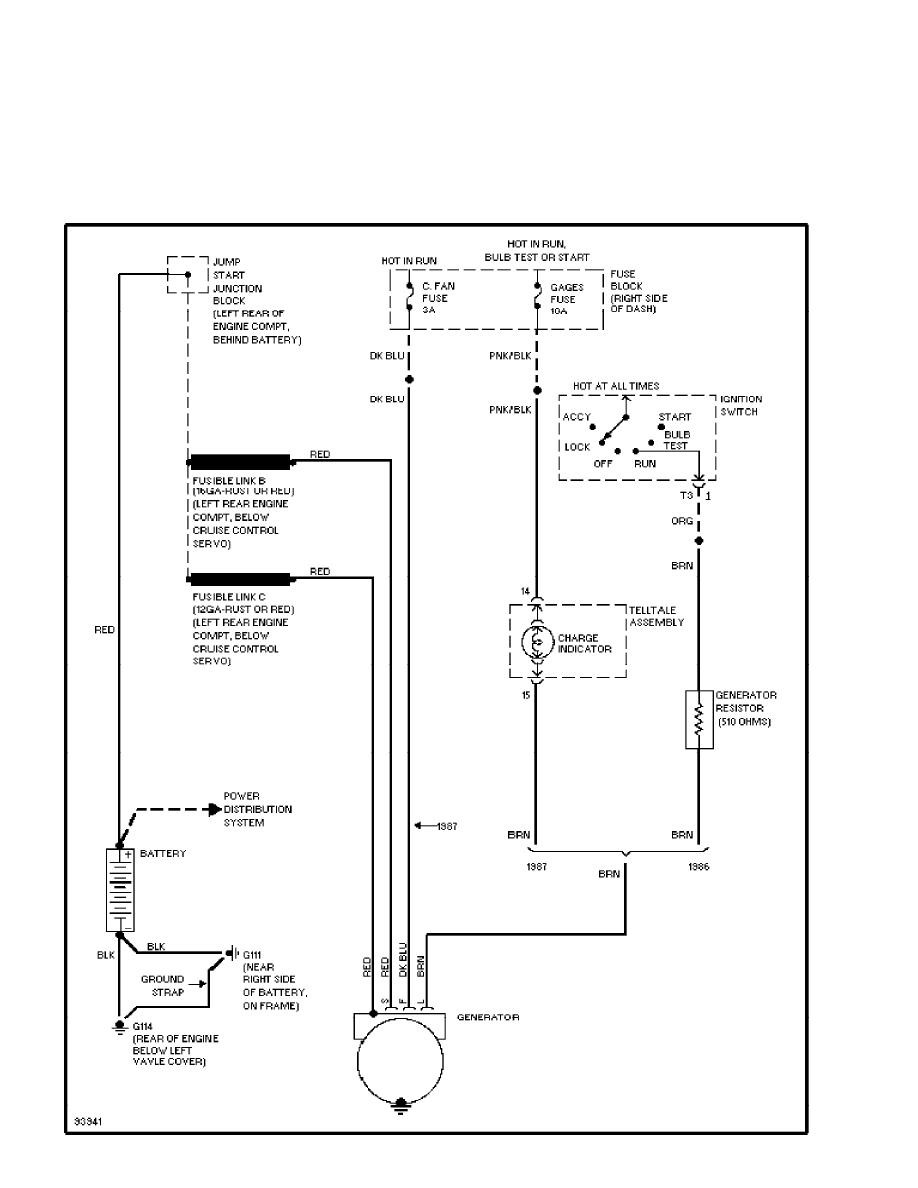

Charging Circuit (p. 11)

1986 Chevrolet Corvette

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, July 31, 2004  02:05PM

background image

SYSTEM WIRING DIAGRAMS

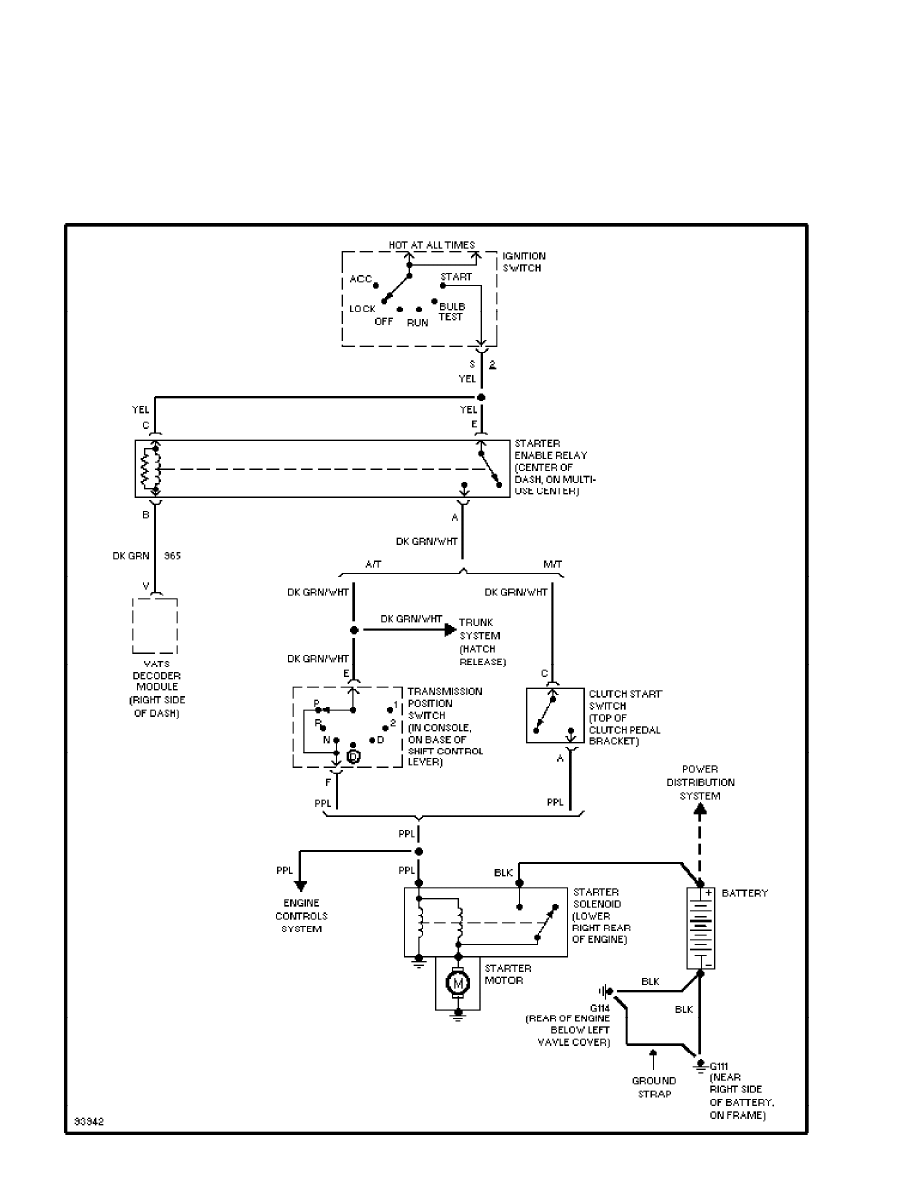

Starting Circuit (p. 12)

1986 Chevrolet Corvette

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, July 31, 2004  02:05PM

background image

SYSTEM WIRING DIAGRAMS

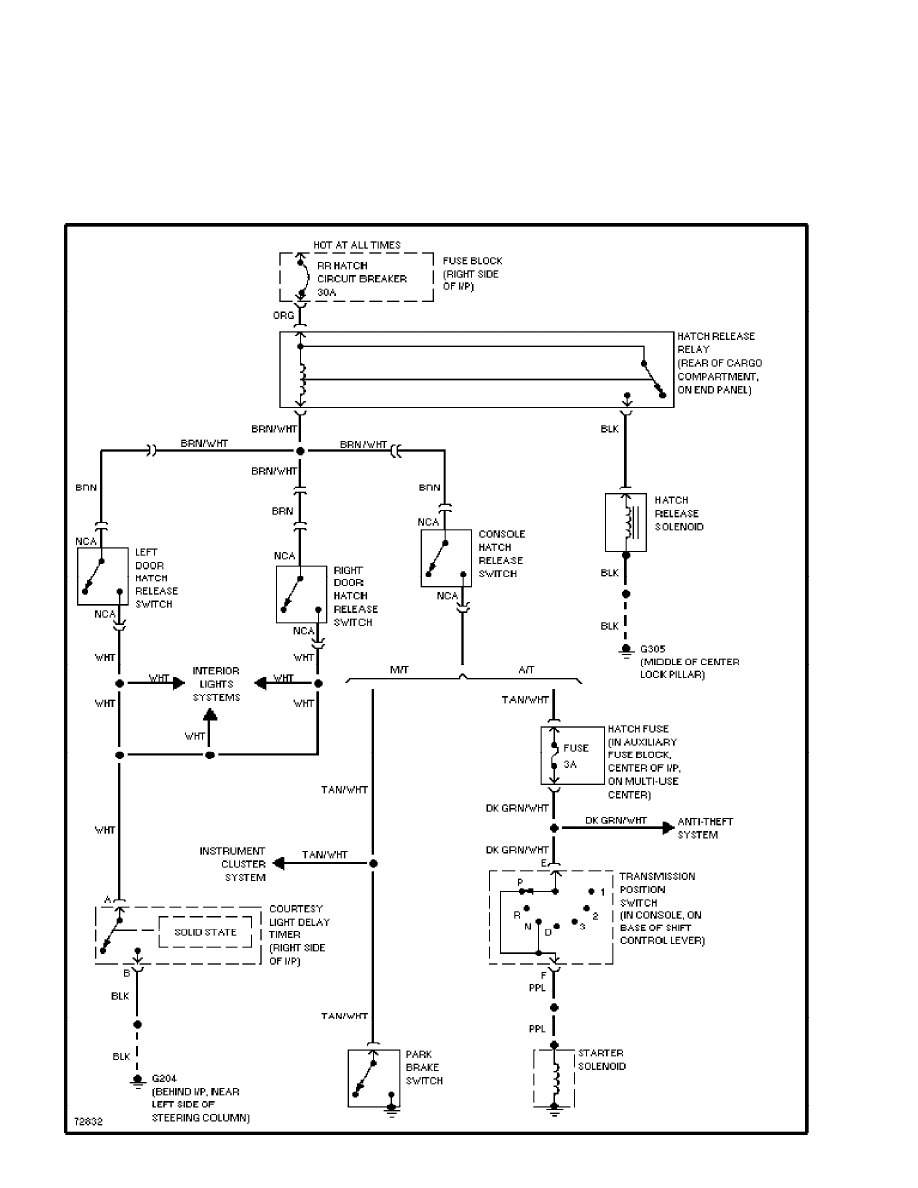

Trunk, Tailgate, Fuel Door Circuits (p. 13)

1986 Chevrolet Corvette

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, July 31, 2004  02:05PM

background image

SYSTEM WIRING DIAGRAMS

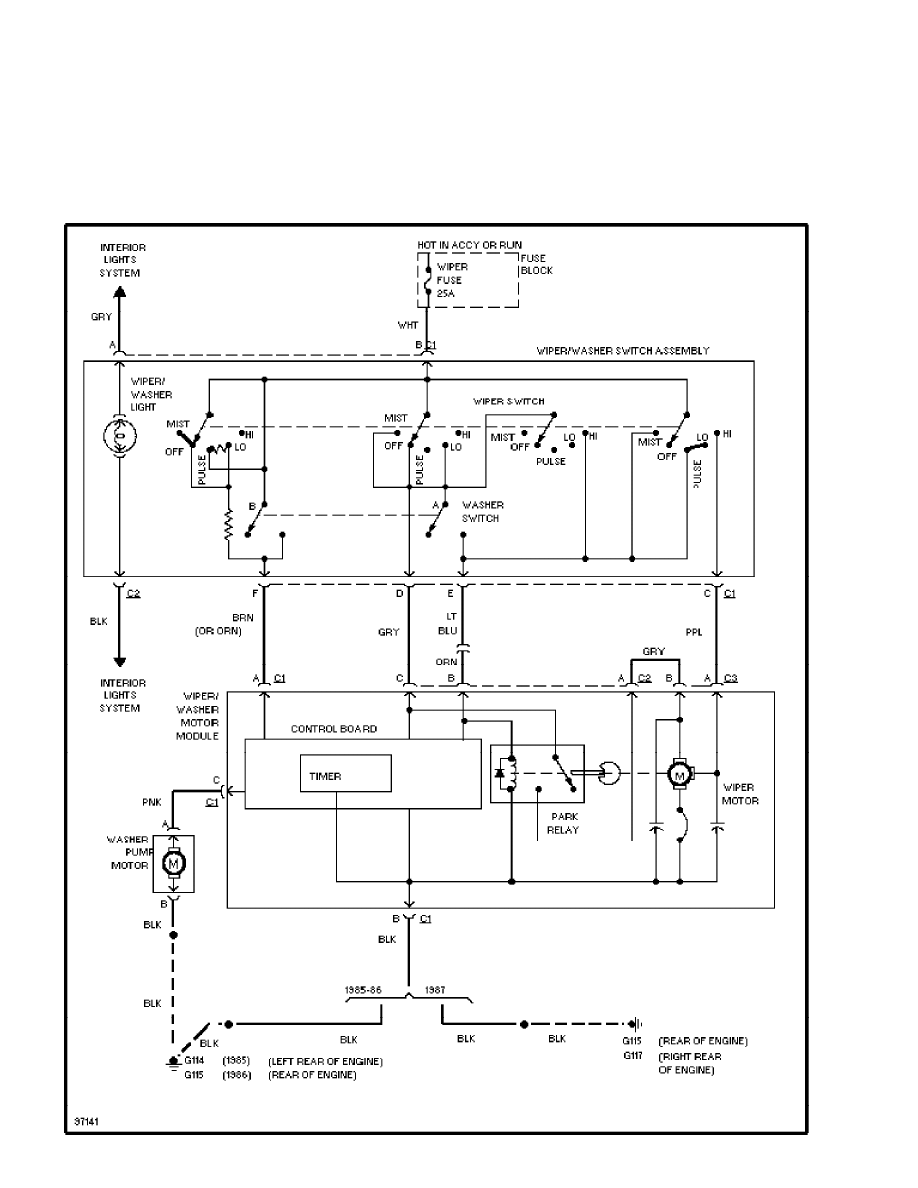

Wiper/Washer Circuit (p. 14)

1986 Chevrolet Corvette

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, July 31, 2004  02:05PM

background image

WIRING DIAGRAMS

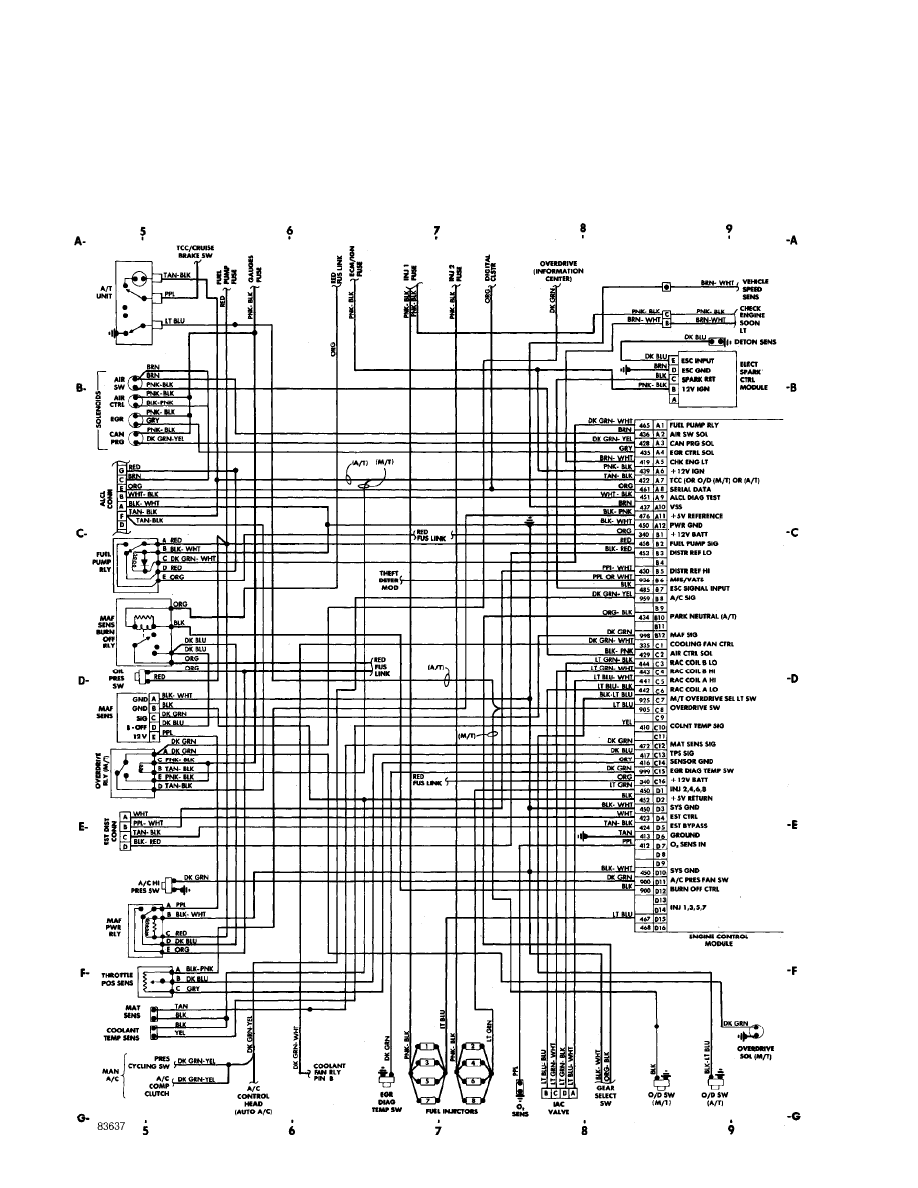

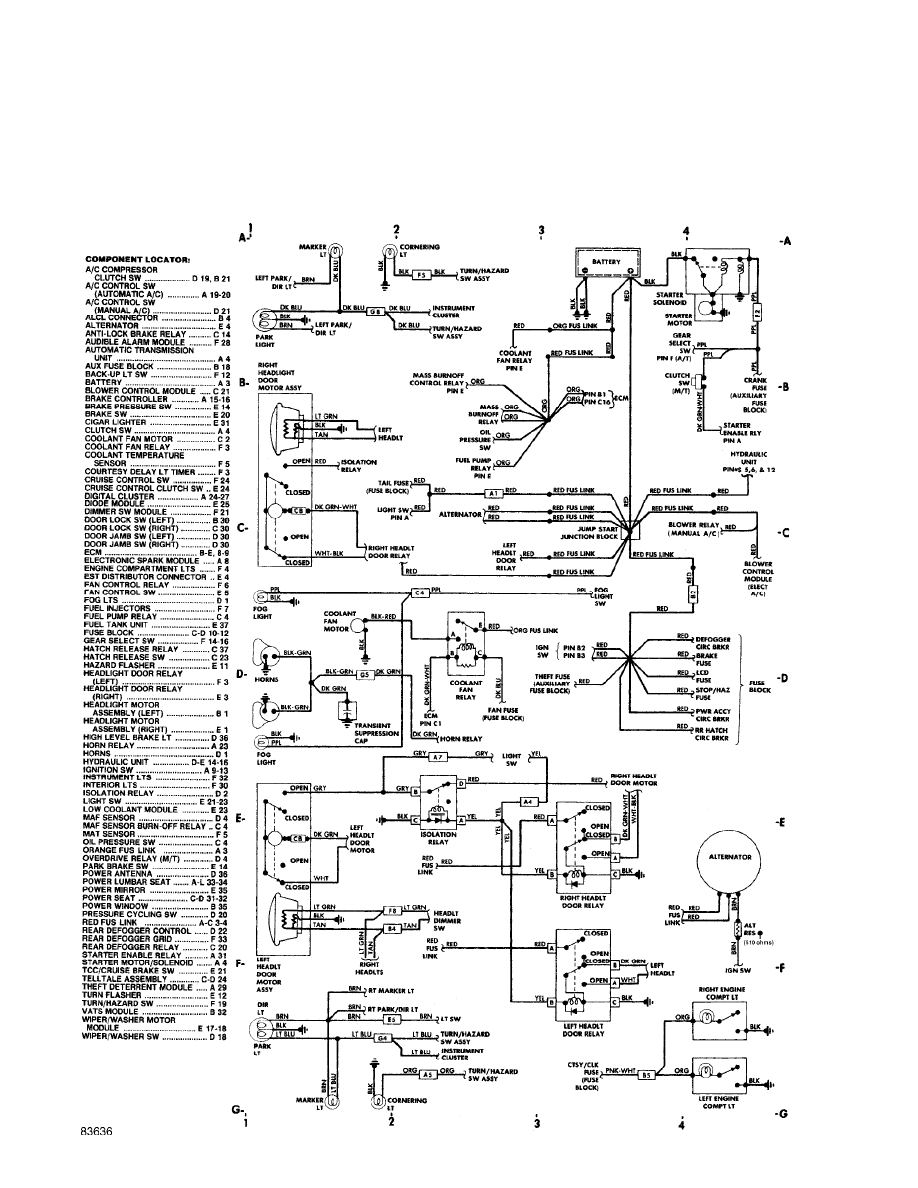

Fig. 1:  Engine Compartment

1986 Chevrolet Corvette

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, July 31, 2004  02:06PM

background image

WIRING DIAGRAMS

Fig. 2:  Engine Compartment (Cont.) (p. 2)

1986 Chevrolet Corvette

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, July 31, 2004  02:06PM

background image

WIRING DIAGRAMS

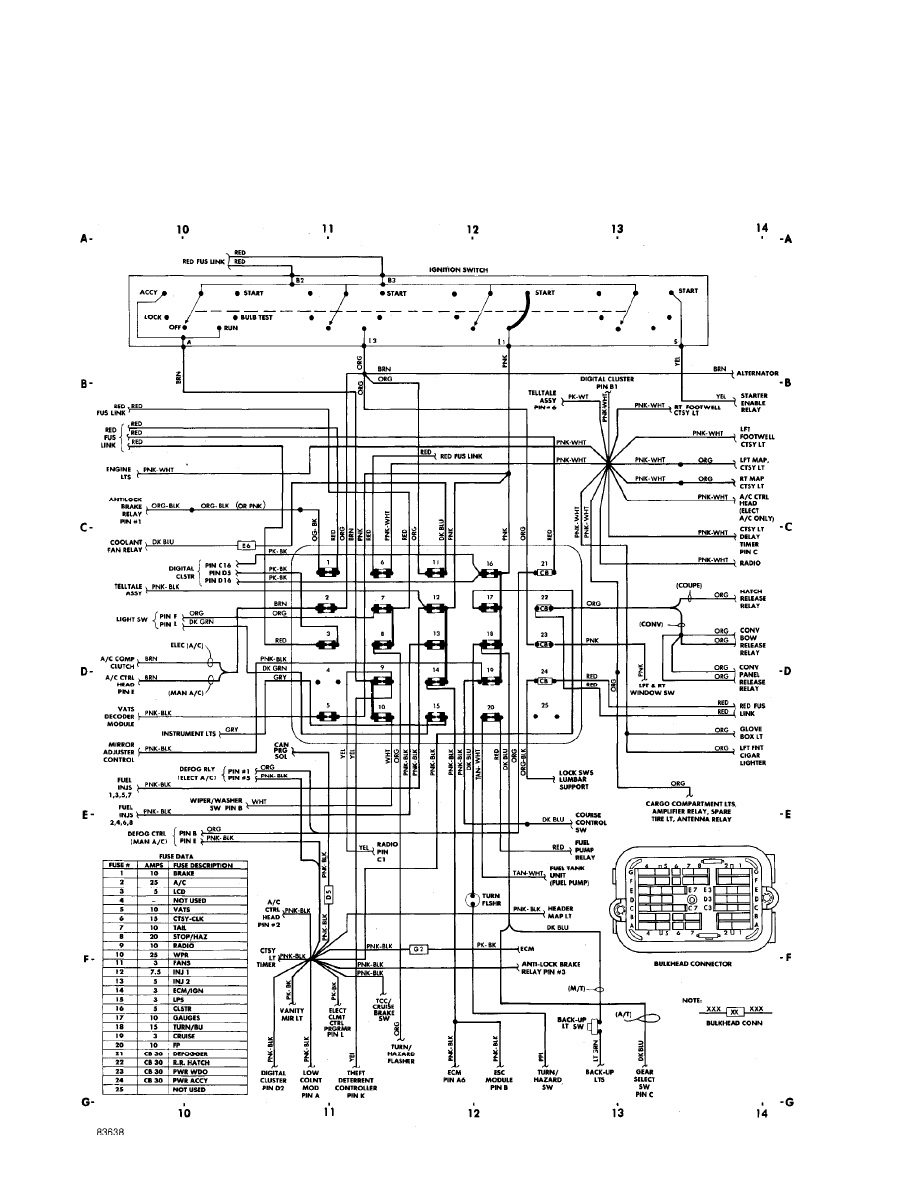

Fig. 3:  Fuse Block (p. 3)

1986 Chevrolet Corvette

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, July 31, 2004  02:06PM

background image

WIRING DIAGRAMS

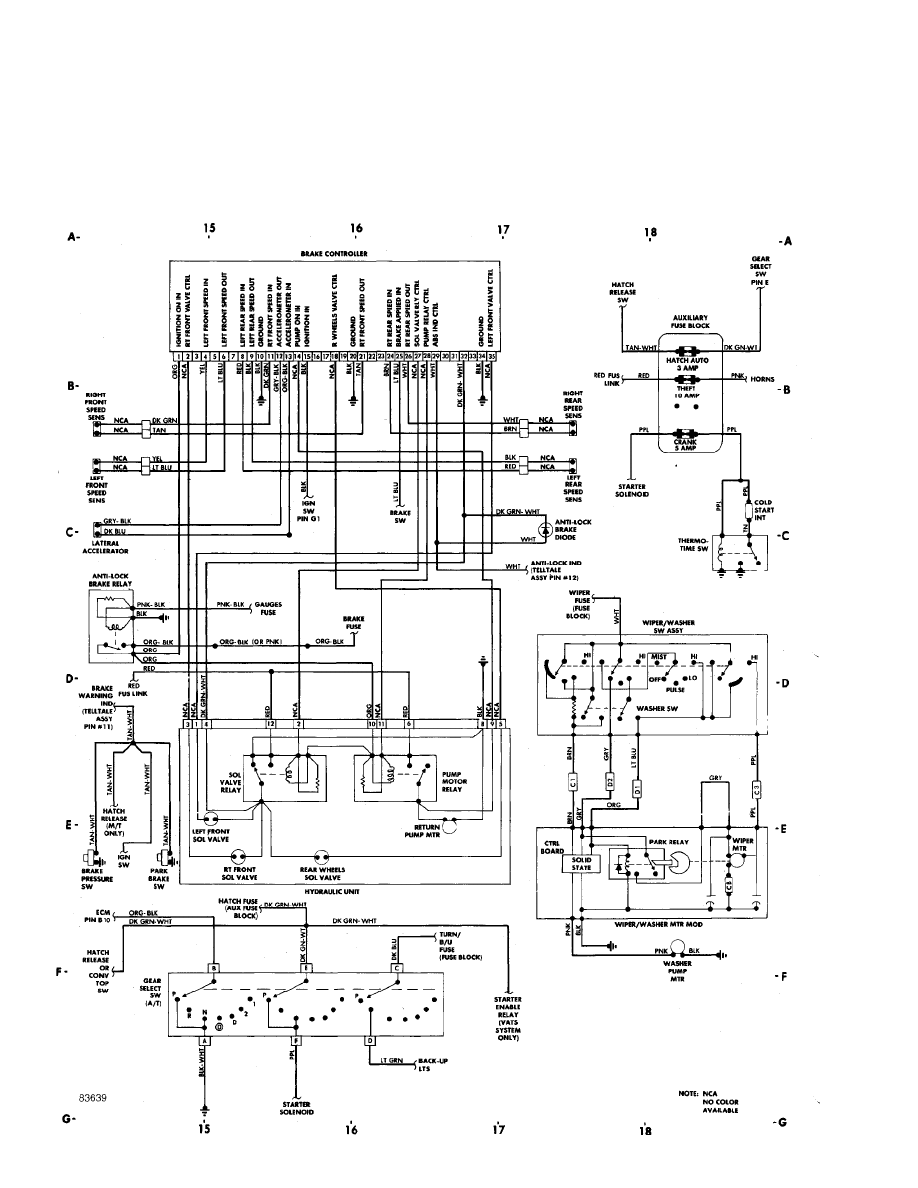

Fig. 4:  3rd Center Stop Light (p. 4)

1986 Chevrolet Corvette

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, July 31, 2004  02:06PM

background image

WIRING DIAGRAMS

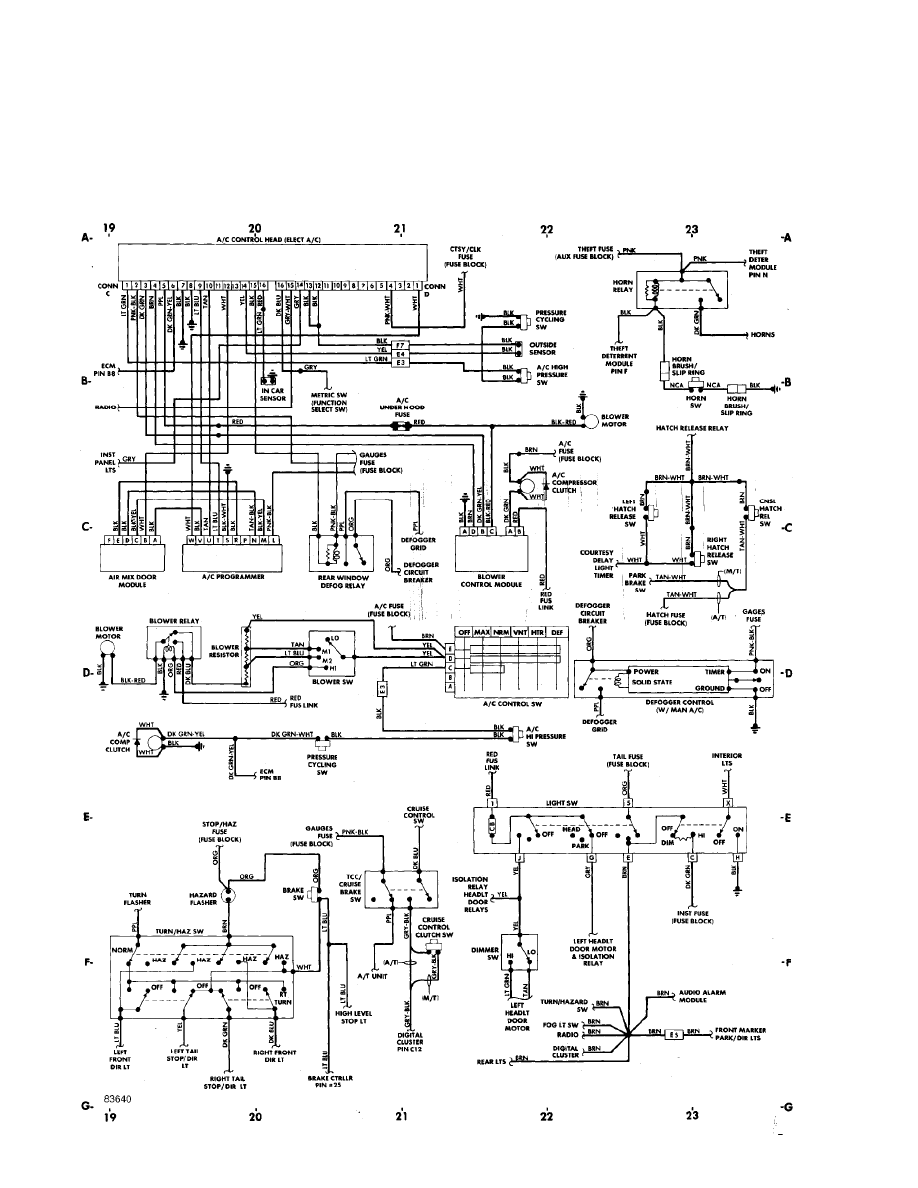

Fig. 5:  Underdash (p. 5)

1986 Chevrolet Corvette

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, July 31, 2004  02:06PM

background image

WIRING DIAGRAMS

Fig. 6:  Underdash (Cont.), A/C (p. 6)

1986 Chevrolet Corvette

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, July 31, 2004  02:06PM

background image

WIRING DIAGRAMS

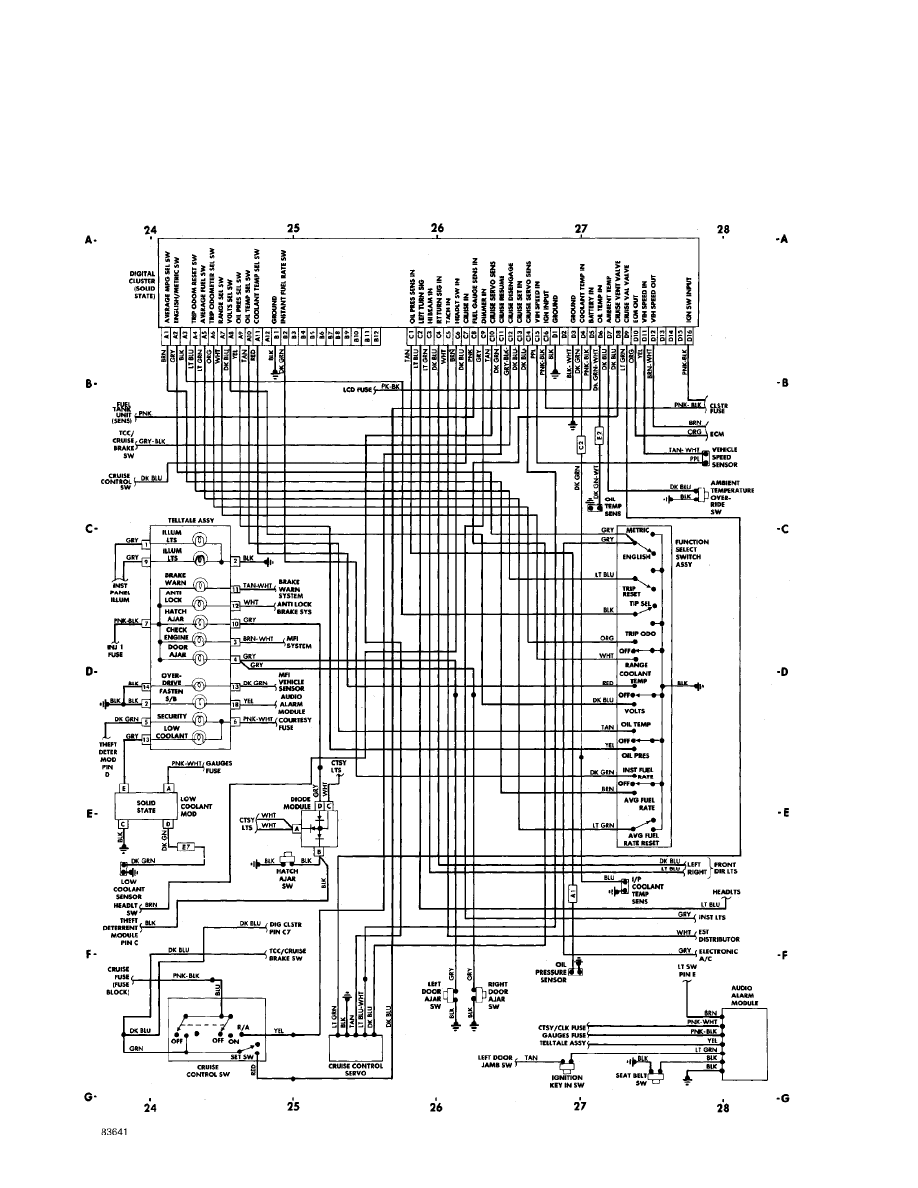

Fig. 7:  Instrument Panel (p. 7)

1986 Chevrolet Corvette

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, July 31, 2004  02:06PM

background image

WIRING DIAGRAMS

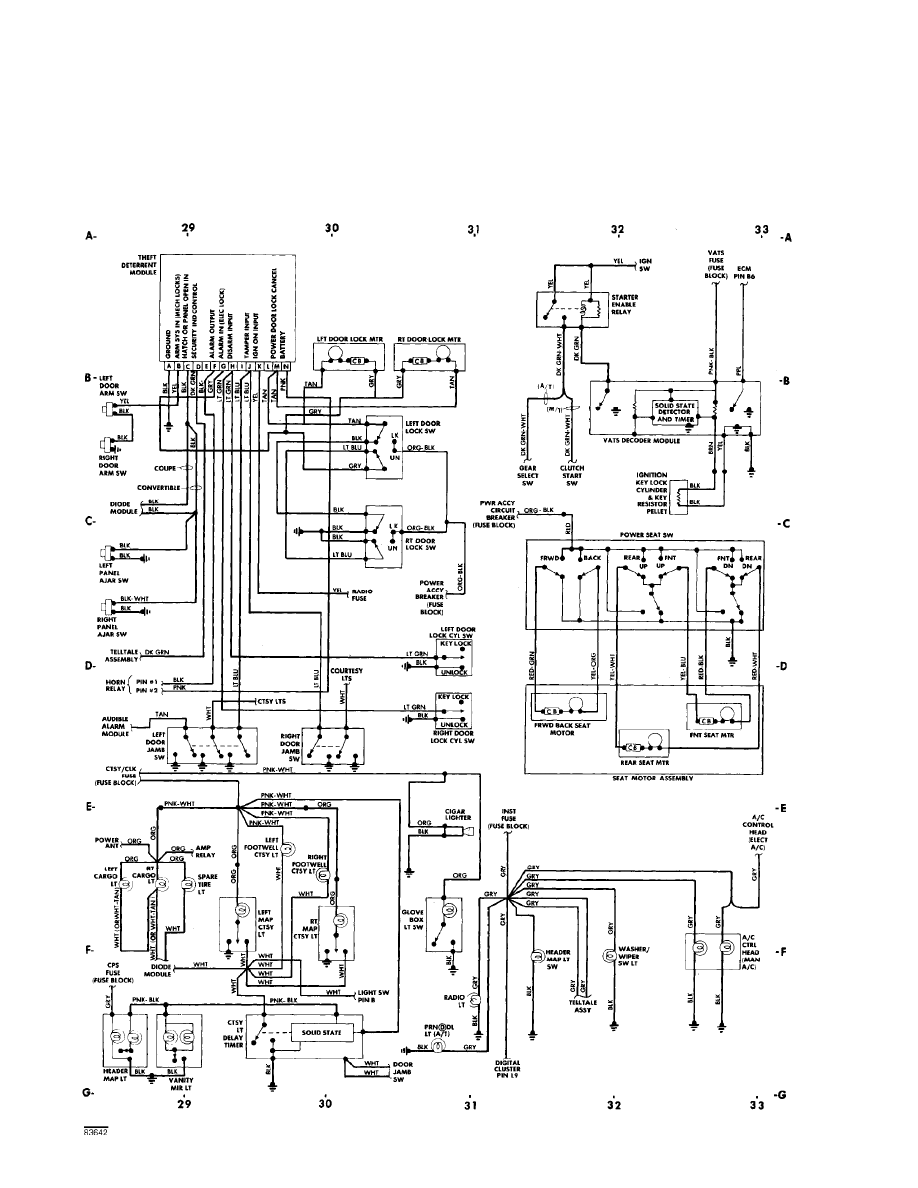

Fig. 8:  Rear Compartment & Accessories (p. 8)

1986 Chevrolet Corvette

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, July 31, 2004  02:06PM

background image

WIRING DIAGRAMS

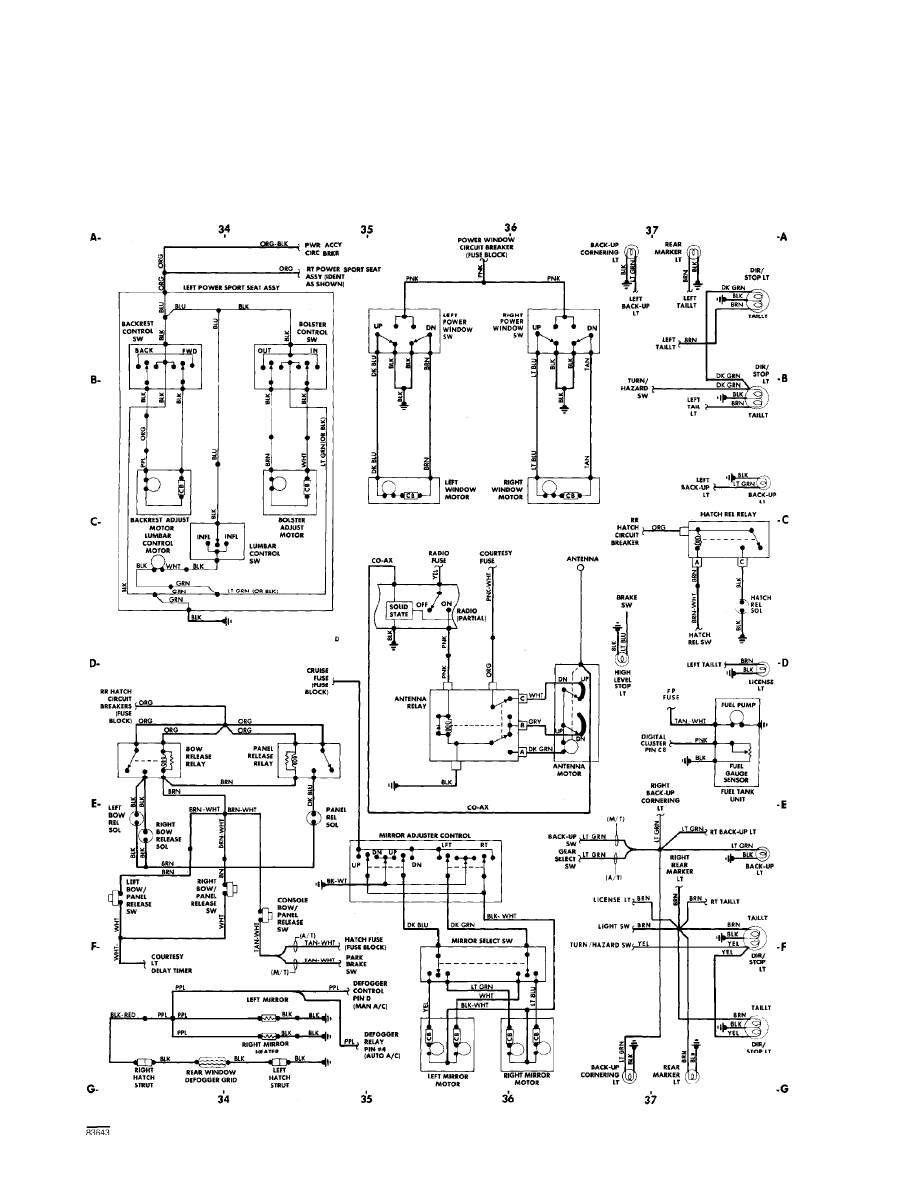

Fig. 9:  Rear Compartment & Accessories (Cont.) (p. 9)

1986 Chevrolet Corvette

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, July 31, 2004  02:06PM
