FIELD SERVICE BULLETIN



FSB Number:

LVCCFSB2005-44



Author: Tony

Bryan

Date:

February 23, 2005

Total No. of Pages:  3
Subject:

GSM V220 – 40-Pin Board to Board Connector

Phone Models:         GSM V220
Level of Repair:

2







Problem

Service is aware of an issue, identified in factory testing and highlighted by the
field, on the GSM V220. Some units, returned with various customer complaints
including “Turn On/Off – No Turn On” and “Display Main – No Display”, were
found to be caused by poor connection between the flex cable and the PCBA at
the J932 40-pin connector. In some instances it was found that the flex cable is
making contact with the edge of the base front housing. See Fig. 1.0 below. This
prevents the connector from being fully seated and will result in intermittent
failure after drop.




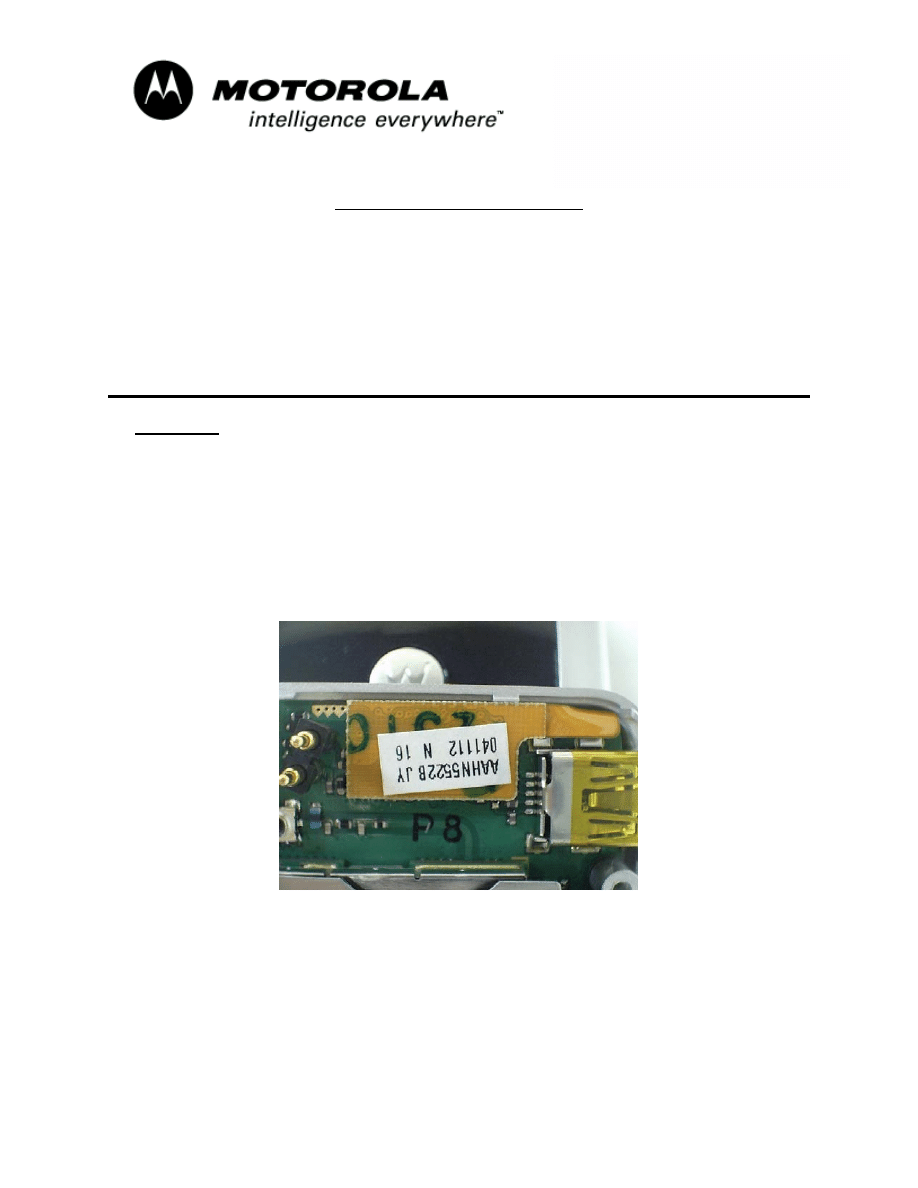

                                                       Fig. 1.0 – Flex Cable is touching edge of F-Hsg





The root cause of the issue has been determined to be a connector shift, due to
surface pulling tension, during pick & place – SMT process. If connector is shifted
in the wrong direction edge of flex can contact housing. See Fig. 2.0 below.





`

MOTOROLA INTERNAL USE ONLY



Page 2

Consumer Solutions & Support
US Competency Center
600 North US Highway 45
Libertyville, Illinois    60048

Website:  gs.mot.com







                                              Fig. 2.0 – Flex to Housing Positioning




Field Service Action

Customer Returns:
When servicing GSM V220 customer returns, with various customer complaints
including “Turn On/Off – No Turn On” and “Display Main – No Display”, where
the failure is suspected to be caused by poor connection between the flex cable
and the PCBA at the J932 40-pin connector, then:

1.  Disassemble the housing and re-seat the flex cable into the J932 board

connector to determine if the failure is related to this issue.

a.  If the failure is not related to this issue, then follow normal

troubleshooting and repair techniques to repair the defect per the
customer complaint.

2.  Inspect the positioning of the flex cable, under magnification, to ensure

that is not contacting the edge of the base front housing. See Fig. 1.0
above.

3.  If the flex cable is contacting the edge of base front housing, then replace

the flex cable to resolve this issue.










Connector

V220 Housing

0.2mm

Flex with FR4

`

MOTOROLA INTERNAL USE ONLY



Page 3

Consumer Solutions & Support
US Competency Center
600 North US Highway 45
Libertyville, Illinois    60048

Website:  gs.mot.com



Call Center Action:

When responding to customer inquires on the GSM V220 product, with various
customer complaints including “Turn On/Off – No Turn On” and “Display Main –
No Display”, please direct the customer to have their phone serviced per this
FSB.


Service Entry Code

Please ensure that repairs of this type are logged on the Service Link database
as follows:
Global M-Claims Codes:

Customer Complaint Code:

DIM01 (Display Main – No Display)
TON01 (Turn On/Off – Can’t switch phone on)



Problem Found Code:

DIM01 (Display Main – No Display)
TON01 (Turn On/Off – Can’t switch phone on)

Reference Designator Code:

 J (Connector)



Repair Code:

RAS04 (Reassemble - CSB/FSB)
RMP10 (Replace Mechanical Part - CSB/FSB)


PRC E-Service Codes:

Problem Found Code:

3001 (Display Main – No Display)
2001 (Turn On/Off – Can’t switch phone on)

Repair Code:

1604 (Reassemble - CSB/FSB)
1310 (Replace Mechanical Part - CSB/FSB)
