SYSTEM WIRING DIAGRAMS

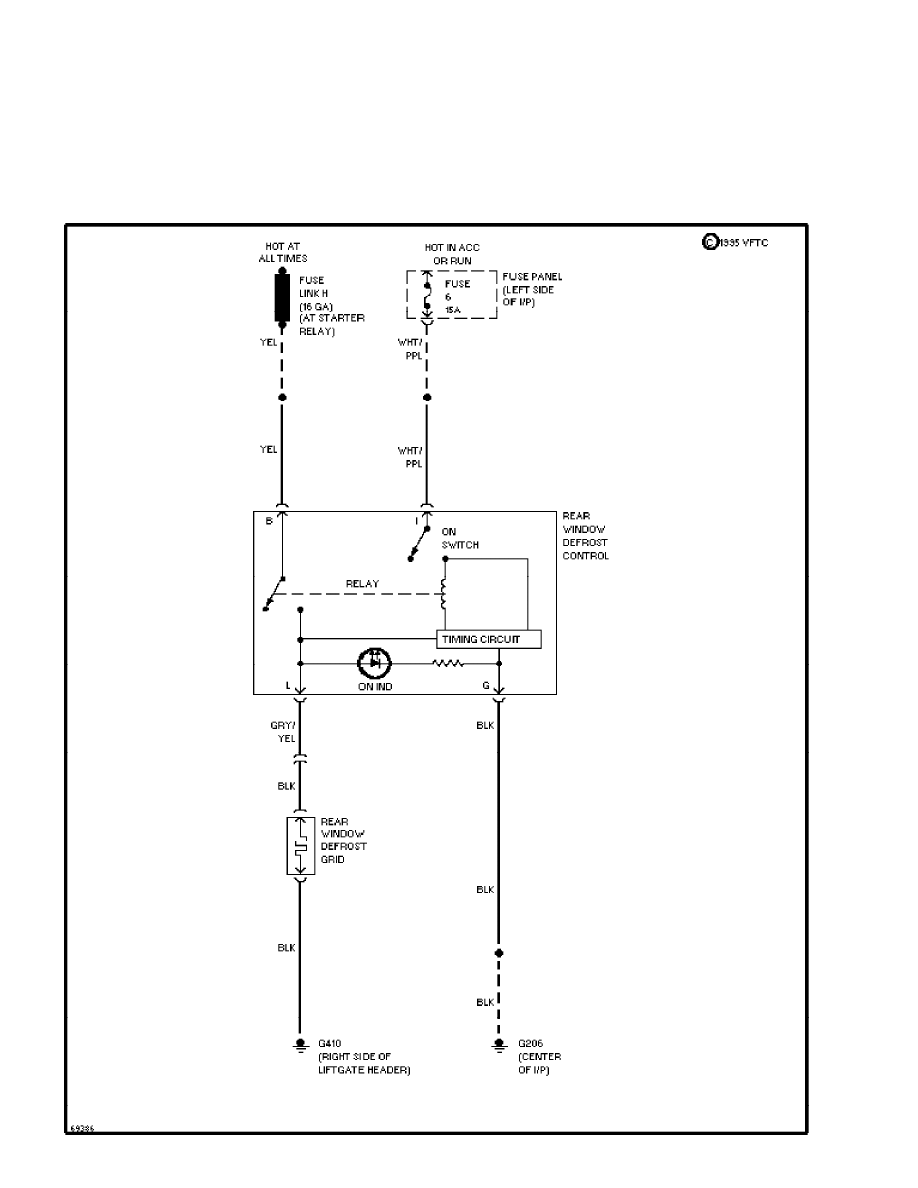

Defogger Circuit
1987 Ford Aerostar
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Saturday, September 11, 2004 11:20AM
SYSTEM WIRING DIAGRAMS
Defogger Circuit
1987 Ford Aerostar
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Saturday, September 11, 2004 11:20AM
SYSTEM WIRING DIAGRAMS

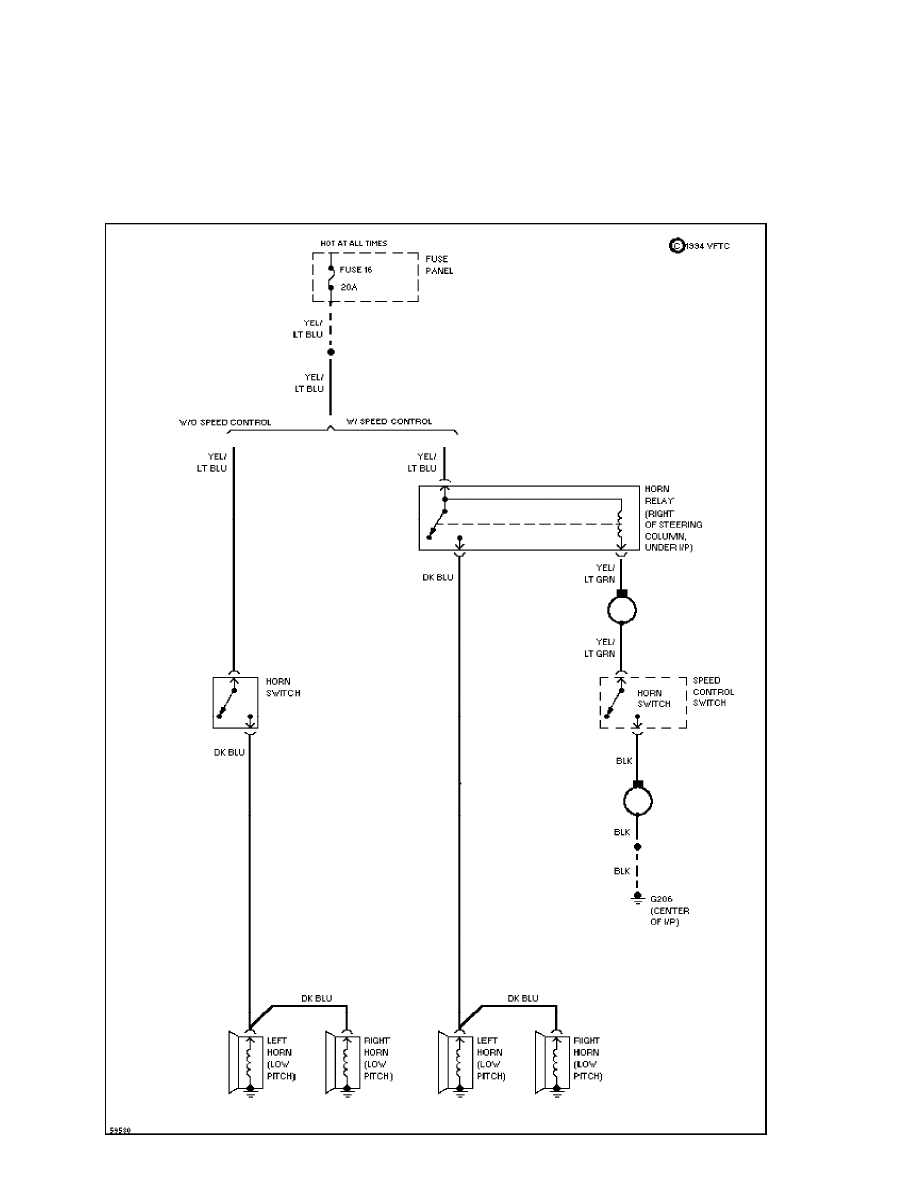

Horn Circuit (p. 2)
1987 Ford Aerostar
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Saturday, September 11, 2004 11:20AM
SYSTEM WIRING DIAGRAMS

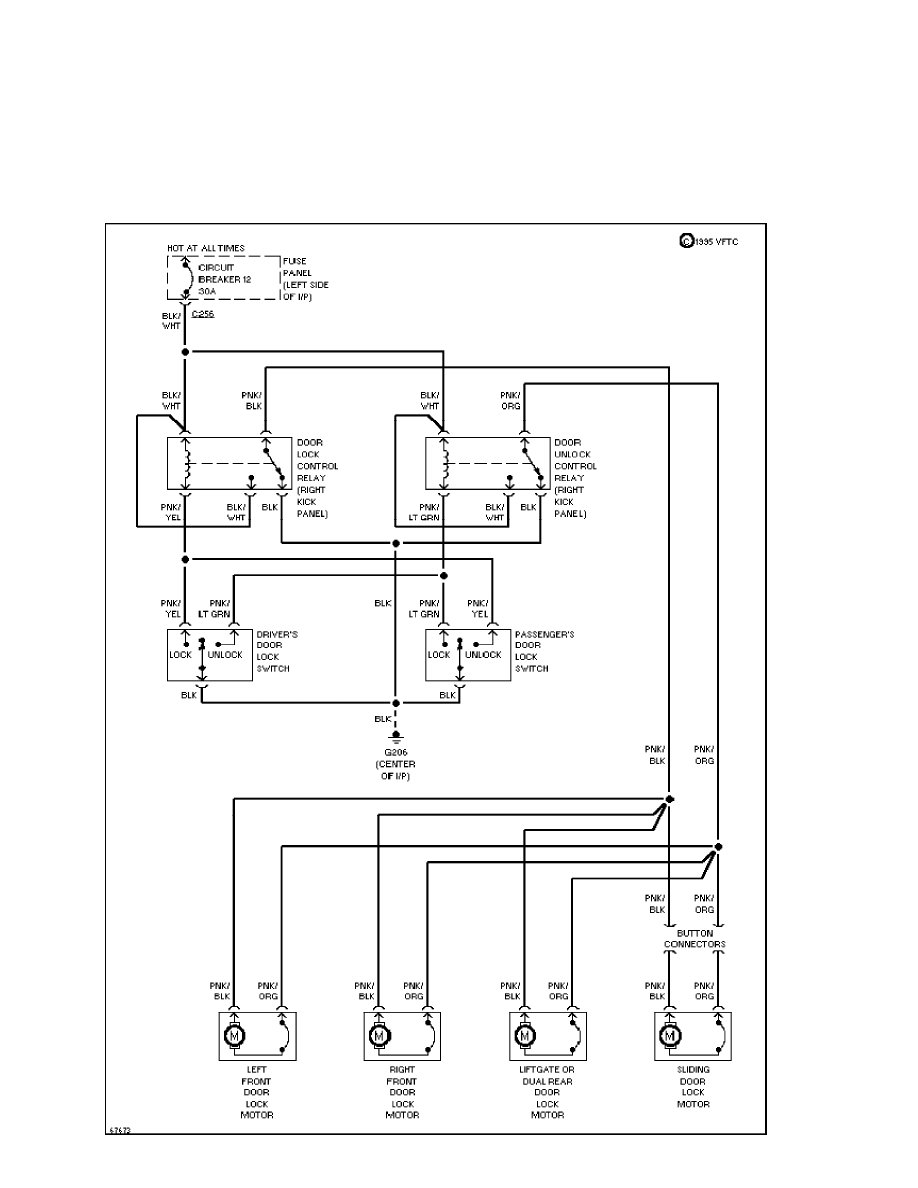

Power Door Lock Circuit (p. 3)
1987 Ford Aerostar
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Saturday, September 11, 2004 11:20AM
SYSTEM WIRING DIAGRAMS

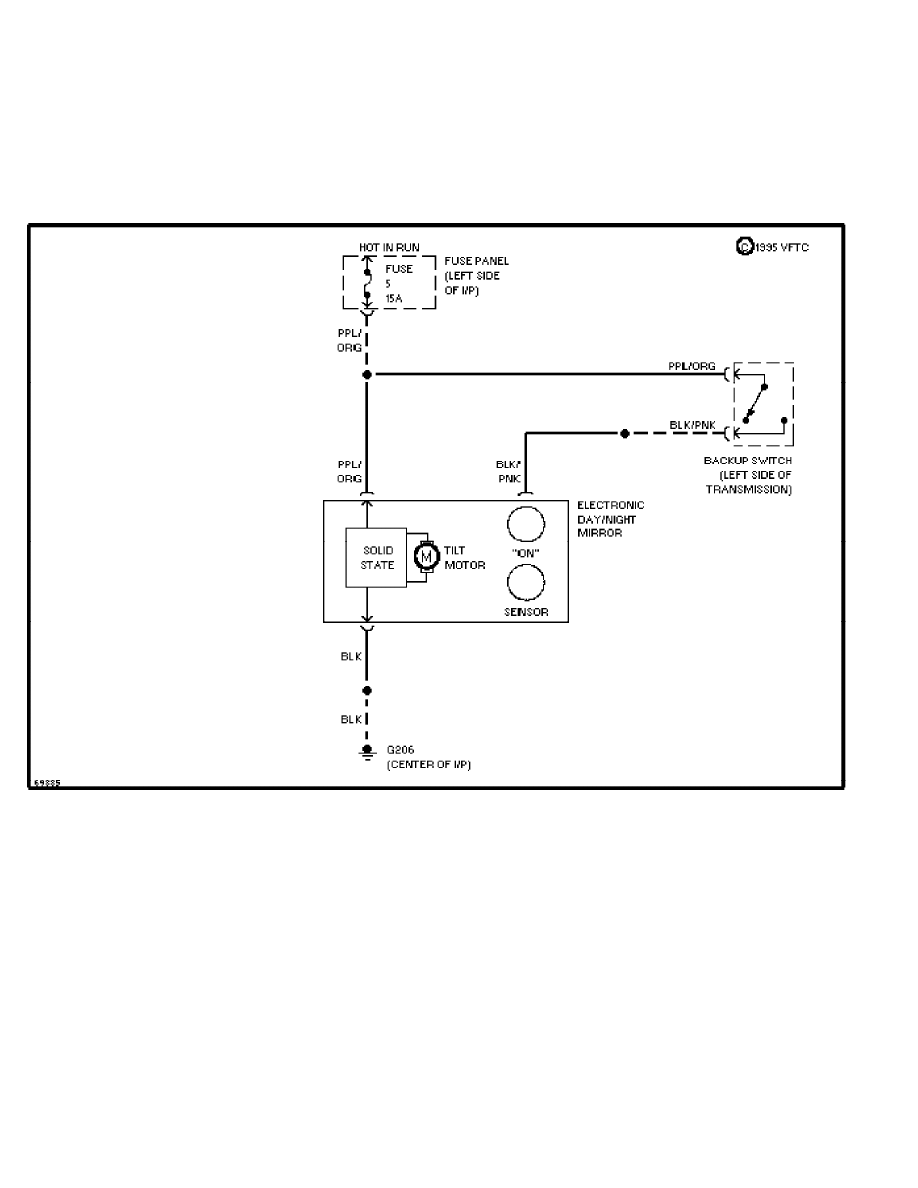

Electronic Day/Night Mirror Circuit (p. 4)
1987 Ford Aerostar
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Saturday, September 11, 2004 11:20AM
SYSTEM WIRING DIAGRAMS

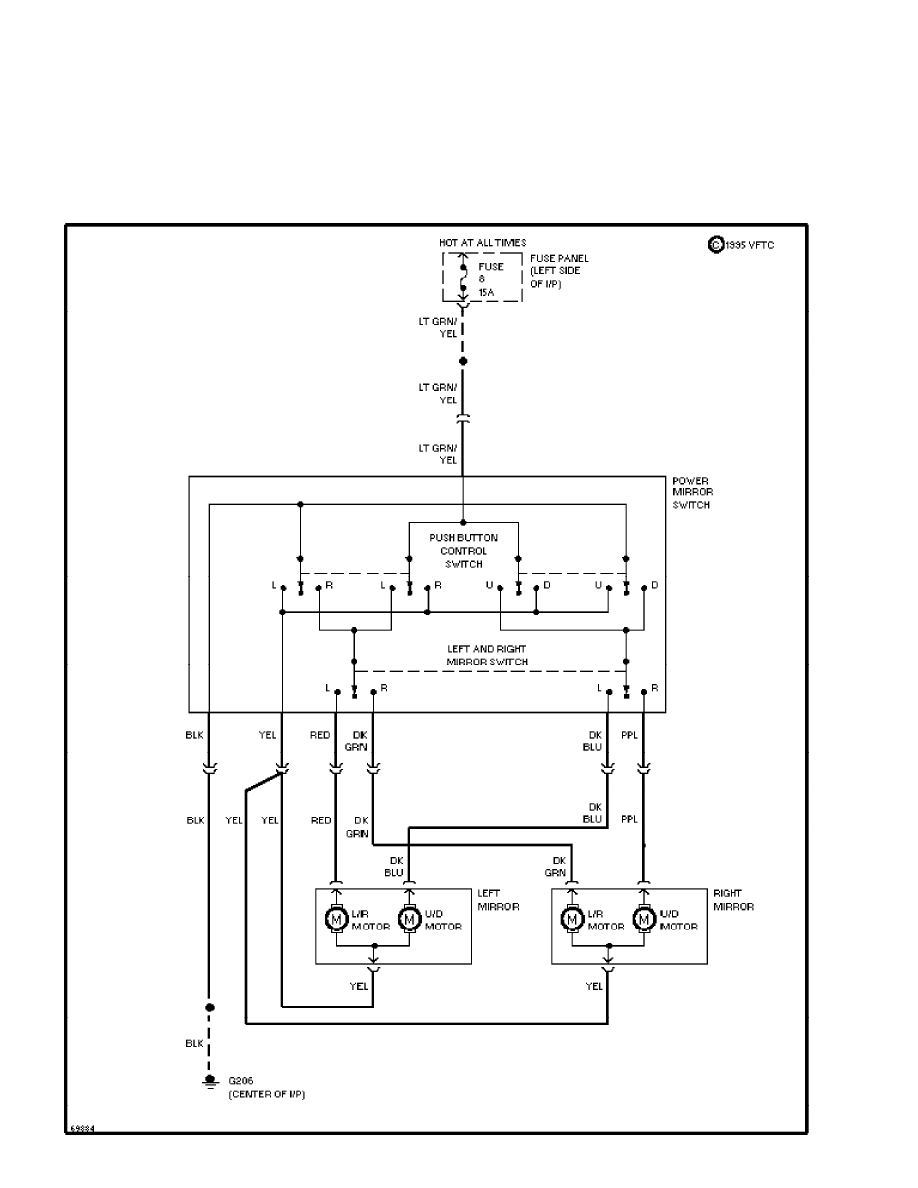

Exterior Power Mirror Circuit (p. 5)
1987 Ford Aerostar
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Saturday, September 11, 2004 11:20AM
SYSTEM WIRING DIAGRAMS

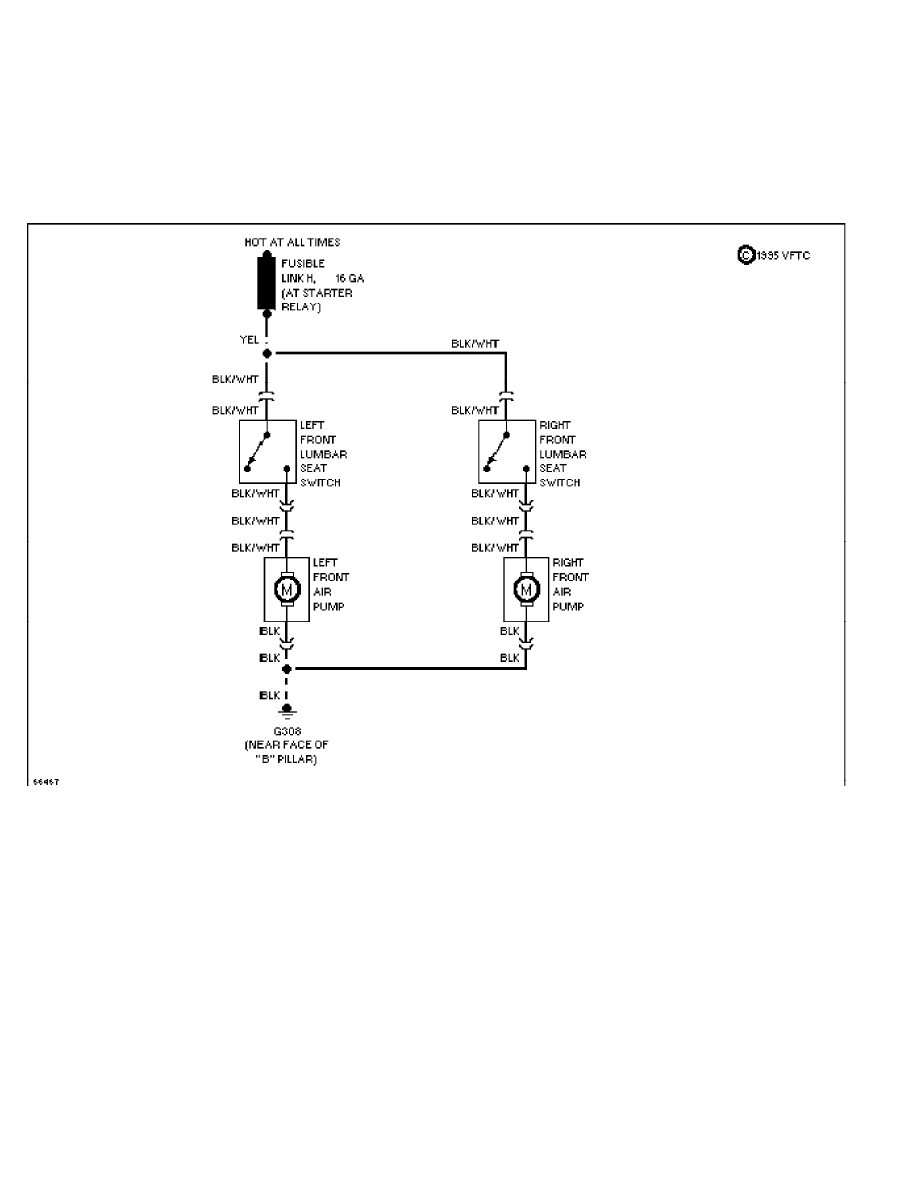

Lumbar Circuit (p. 6)
1987 Ford Aerostar
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Saturday, September 11, 2004 11:20AM
SYSTEM WIRING DIAGRAMS

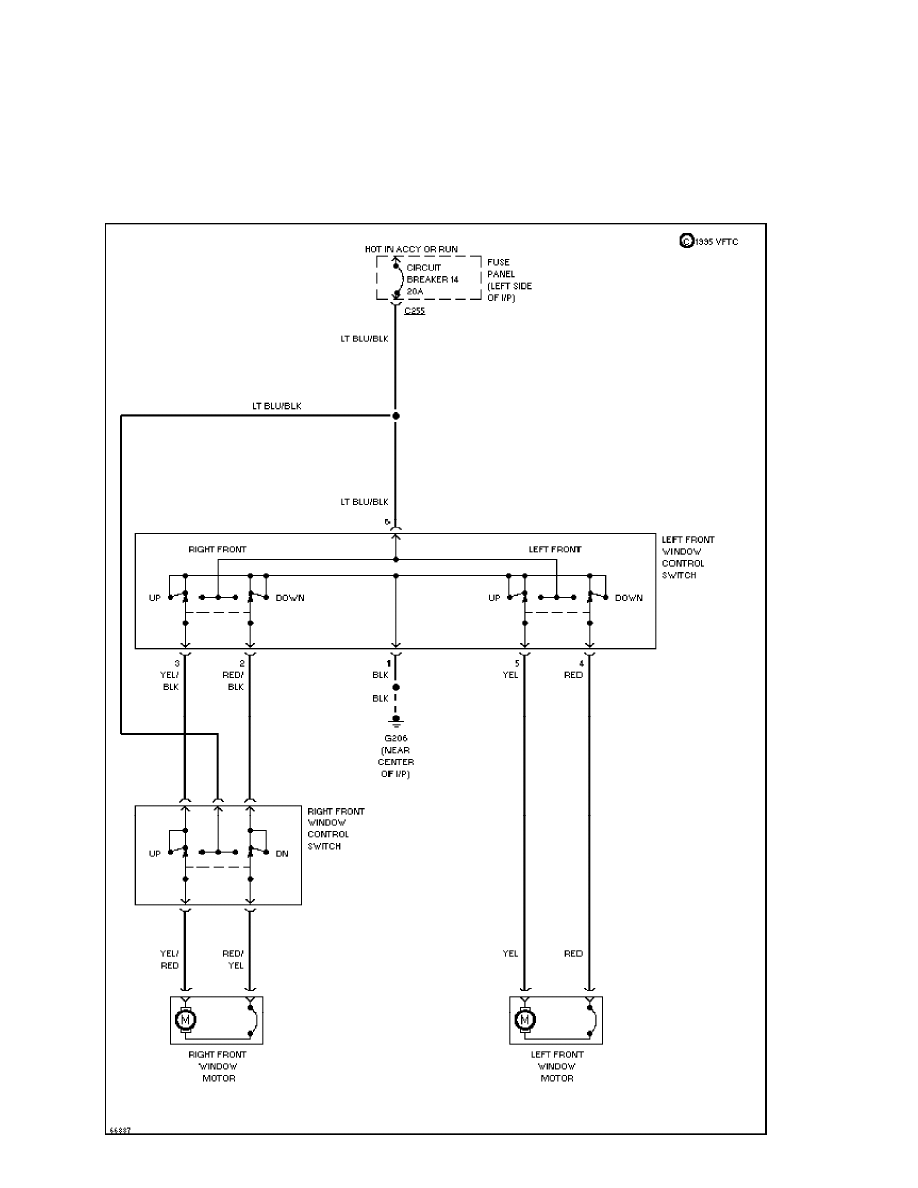

Power Window Circuit (p. 7)
1987 Ford Aerostar
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Saturday, September 11, 2004 11:20AM
SYSTEM WIRING DIAGRAMS

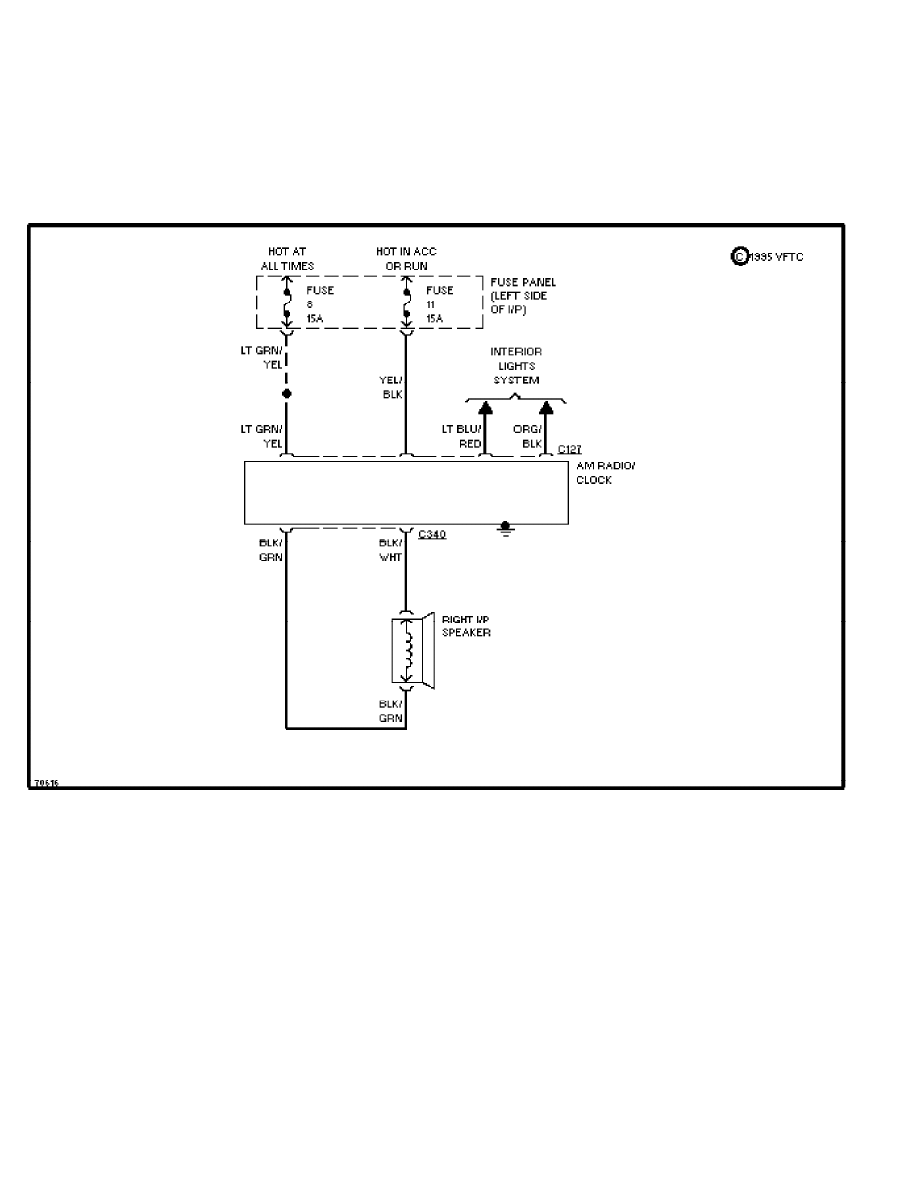

AM Radio Circuit (p. 8)
1987 Ford Aerostar
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Saturday, September 11, 2004 11:20AM
SYSTEM WIRING DIAGRAMS
Electronic Radio Circuit, W/ Remote Headphones (p. 9)
1987 Ford Aerostar
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Saturday, September 11, 2004 11:20AM
SYSTEM WIRING DIAGRAMS

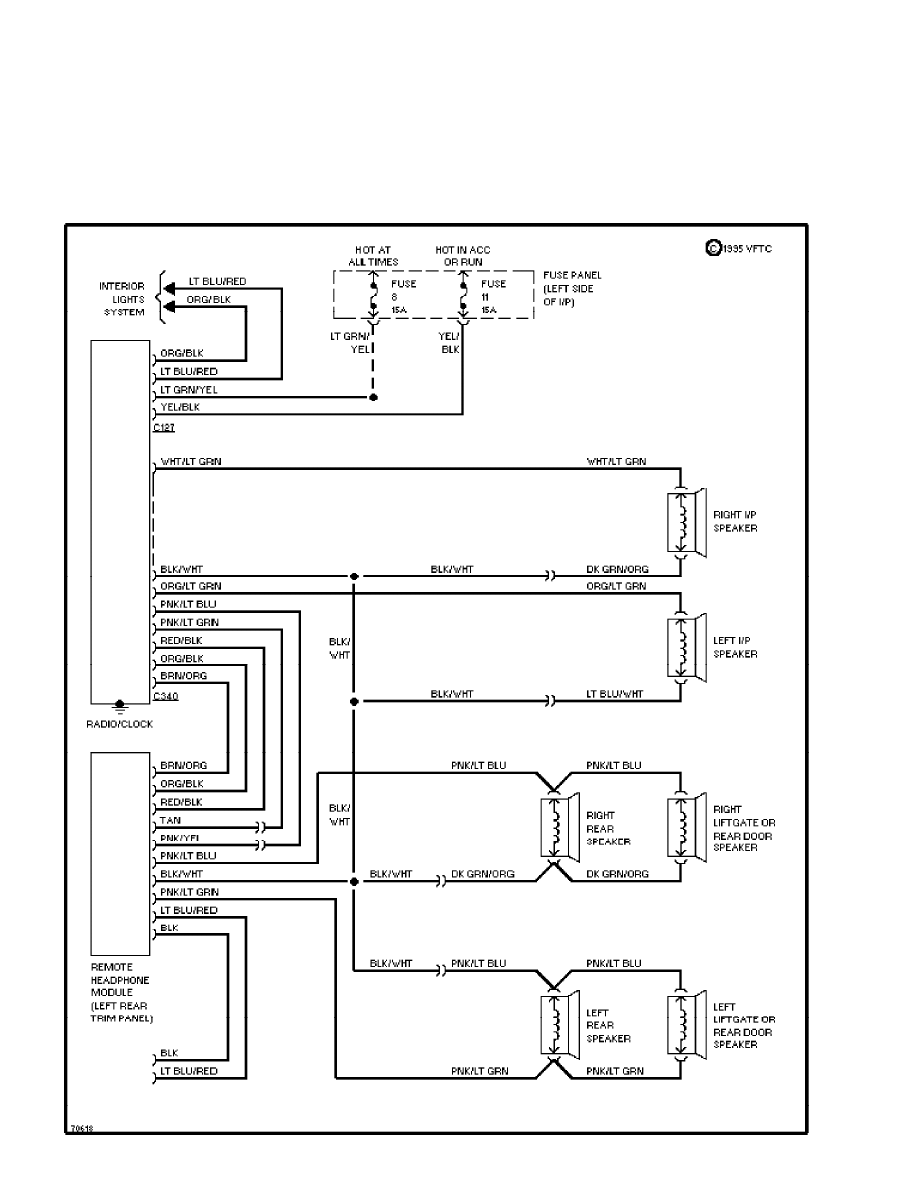

Electronic Radio Circuit, W/O Remote Headphones (p. 10)
1987 Ford Aerostar
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Saturday, September 11, 2004 11:20AM
SYSTEM WIRING DIAGRAMS

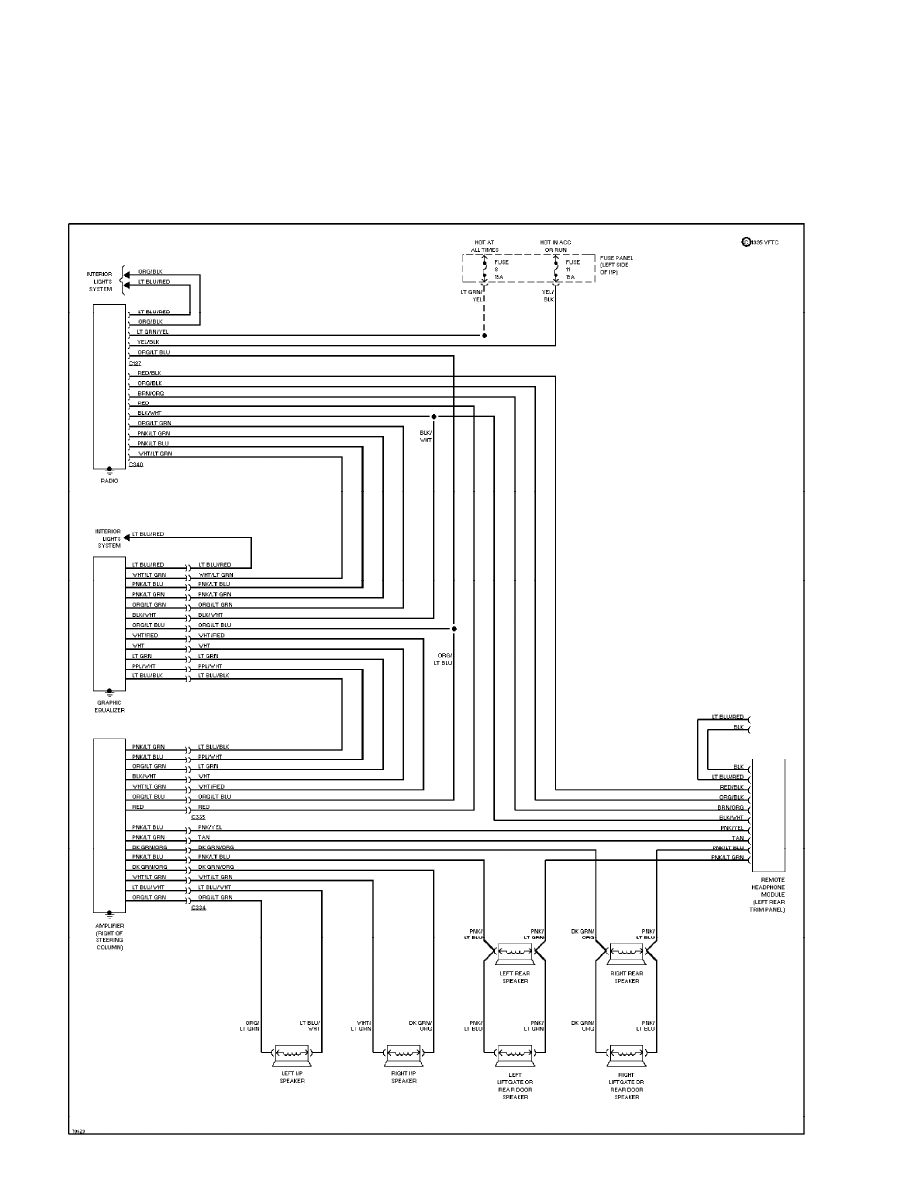

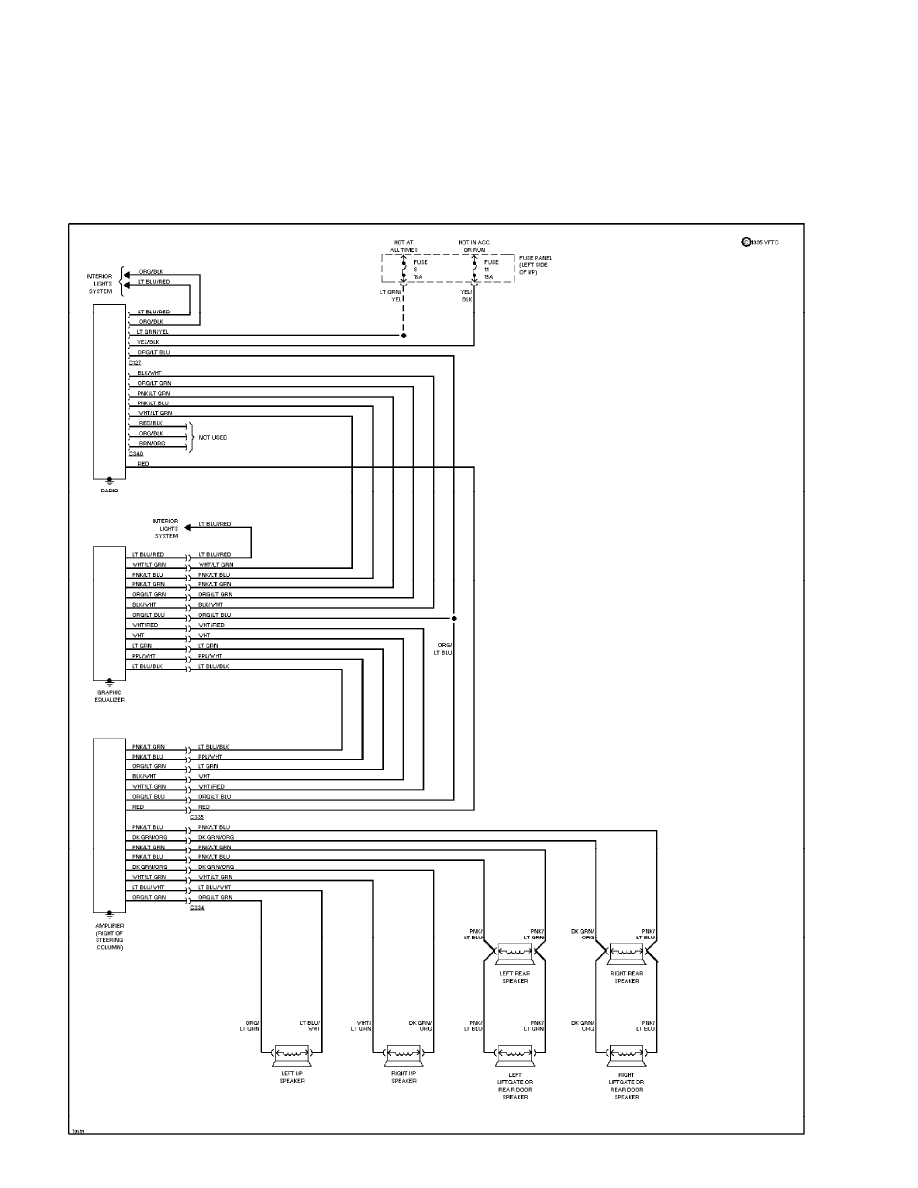

Stereo Radio Circuit, W/ Remote Headphones (p. 11)
1987 Ford Aerostar
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Saturday, September 11, 2004 11:20AM
SYSTEM WIRING DIAGRAMS

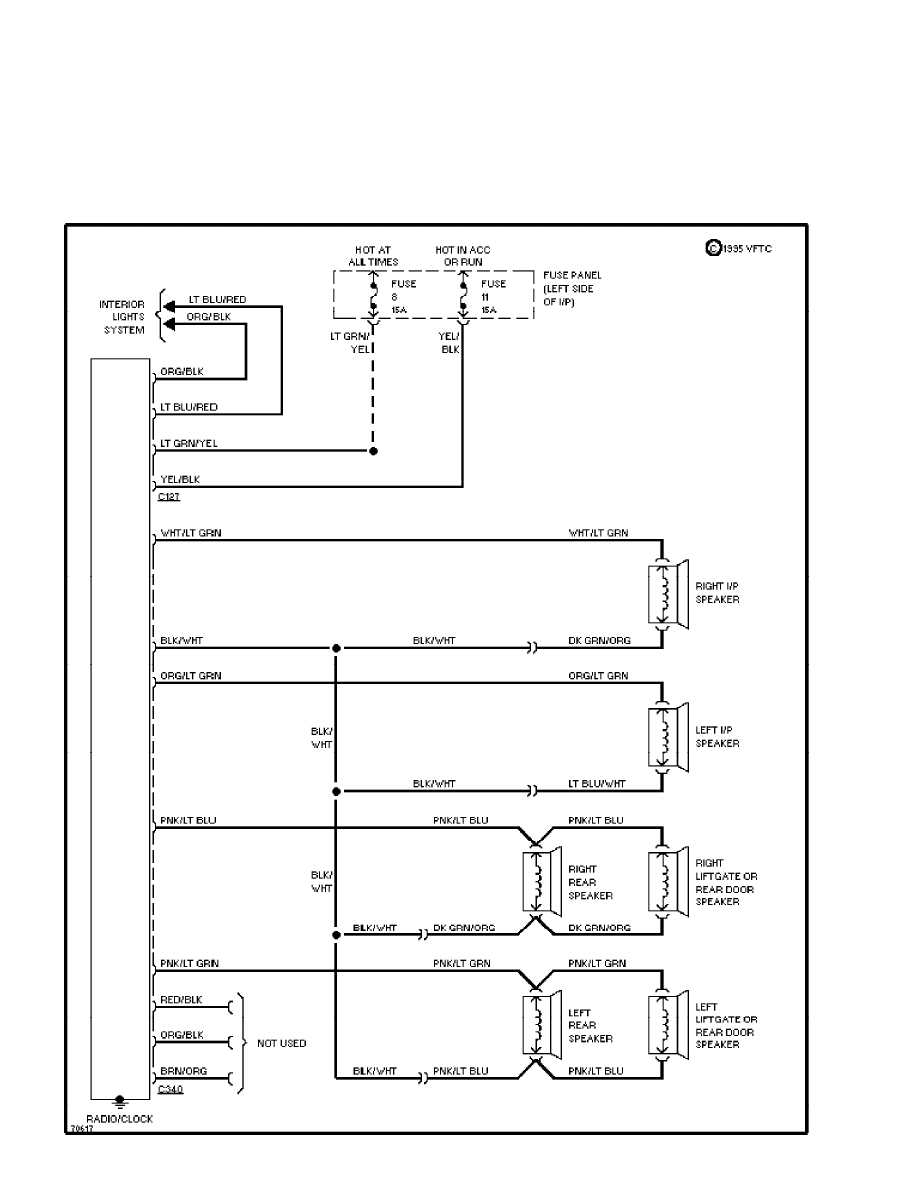

Stereo Radio Circuit, W/O Remote Headphones (p. 12)
1987 Ford Aerostar
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Saturday, September 11, 2004 11:20AM
SYSTEM WIRING DIAGRAMS

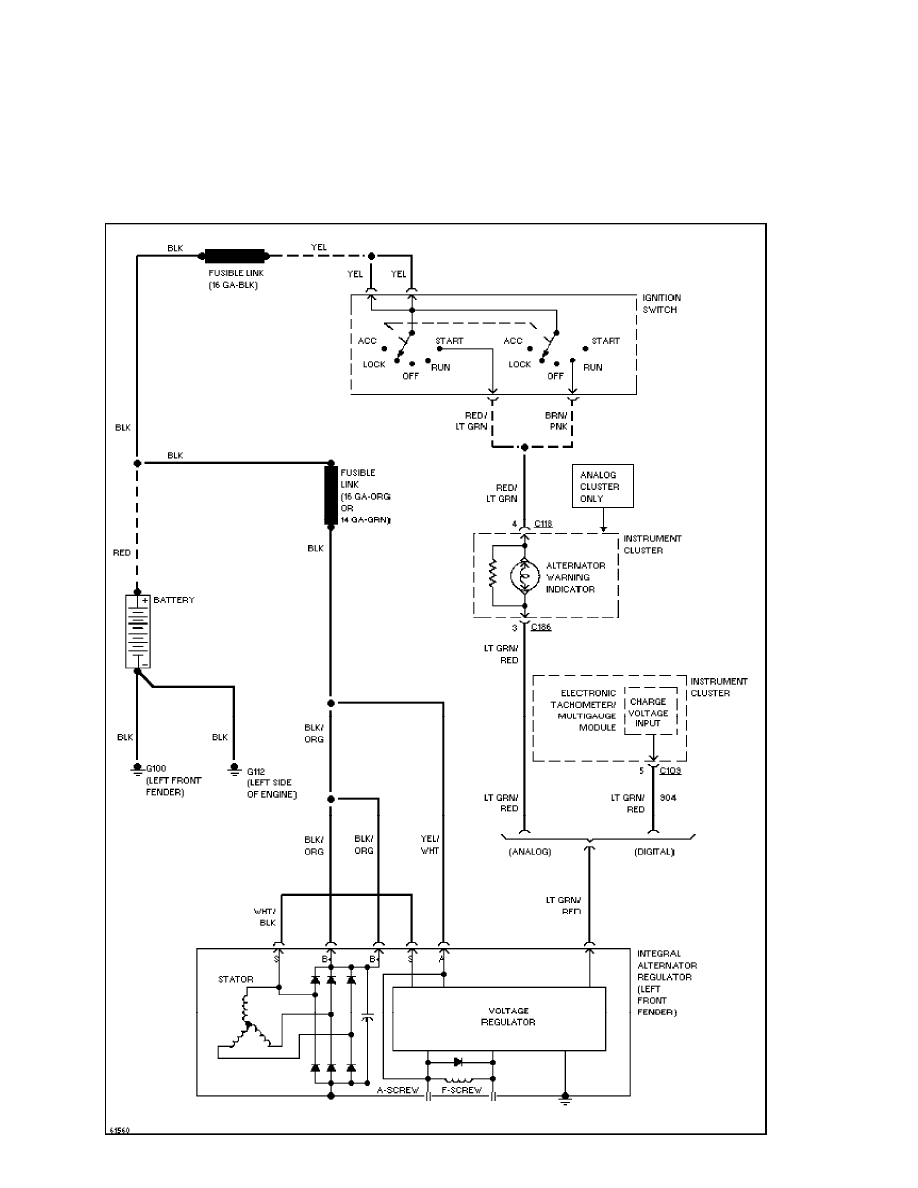

Charging Circuit (p. 13)
1987 Ford Aerostar
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Saturday, September 11, 2004 11:20AM
SYSTEM WIRING DIAGRAMS
Starting Circuit (p. 14)
1987 Ford Aerostar
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Saturday, September 11, 2004 11:20AM
SYSTEM WIRING DIAGRAMS

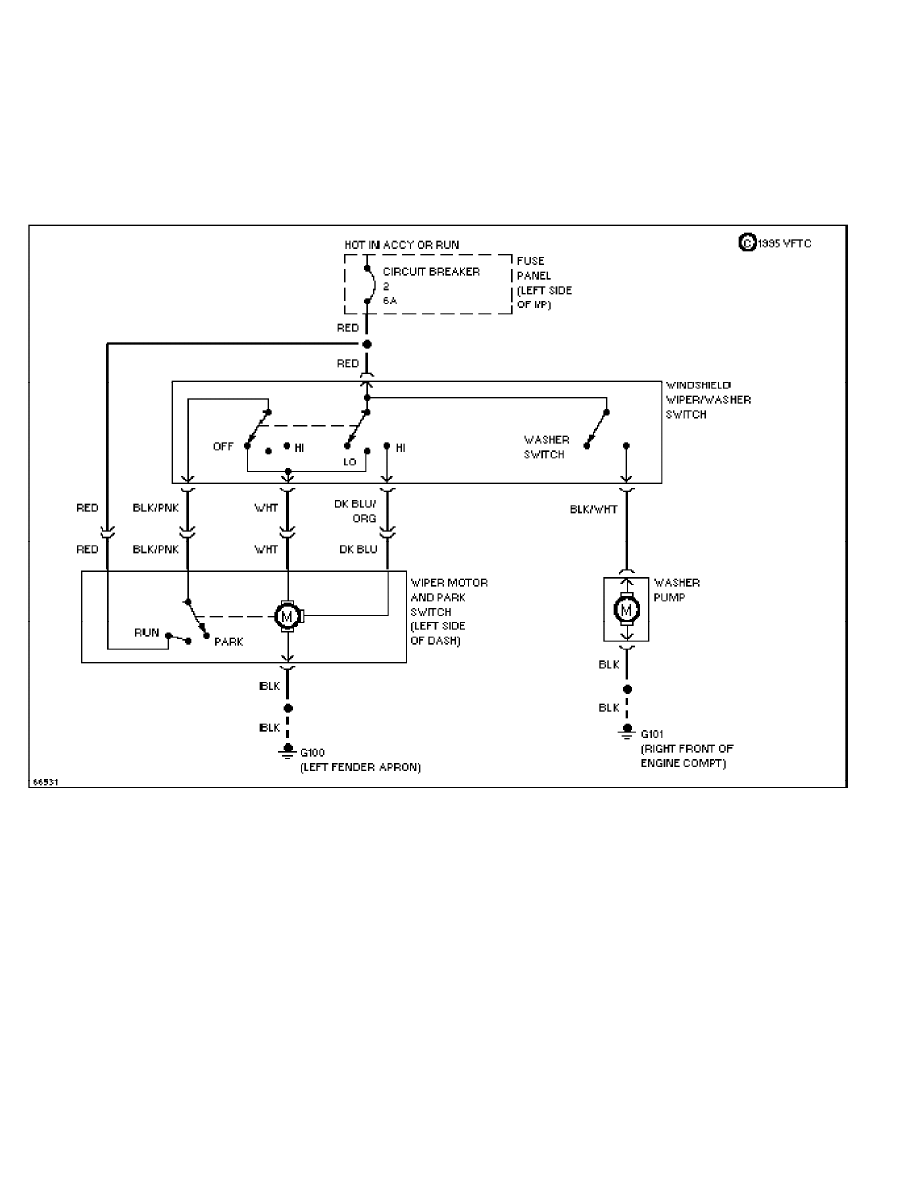

2-Speed Wiper/Washer Circuit (p. 15)
1987 Ford Aerostar
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Saturday, September 11, 2004 11:20AM
SYSTEM WIRING DIAGRAMS

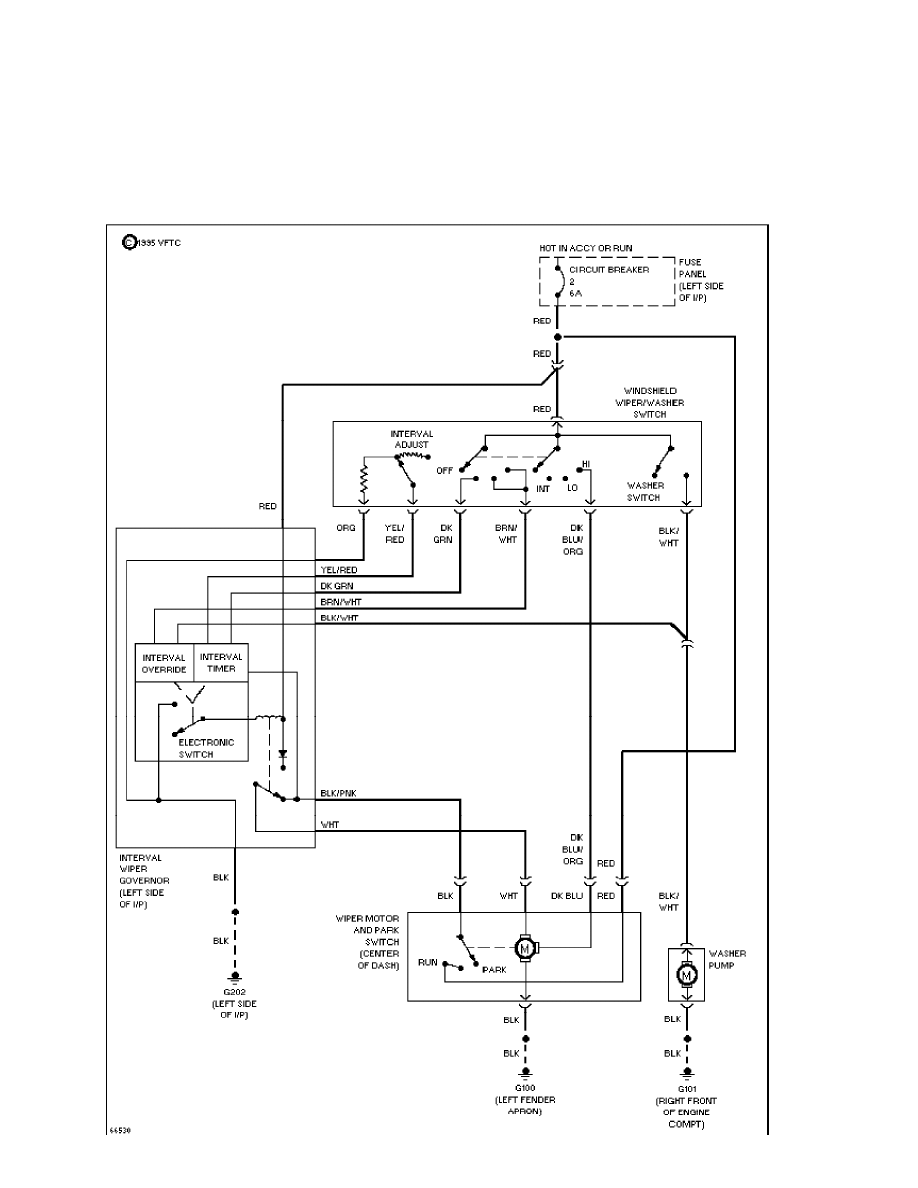

Interval Wiper/Washer Circuit (p. 16)
1987 Ford Aerostar
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Saturday, September 11, 2004 11:20AM
SYSTEM WIRING DIAGRAMS

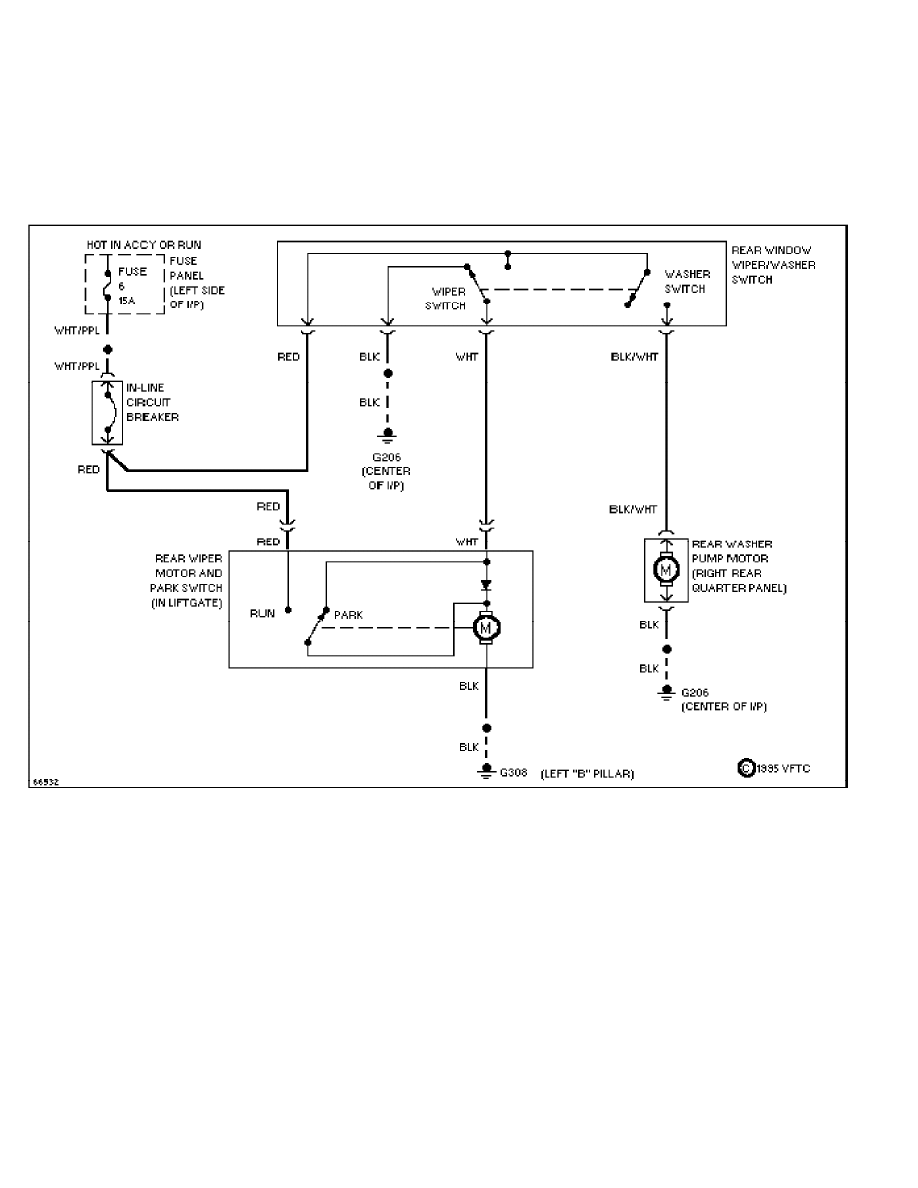

Rear Wiper/Washer Circuit (p. 17)
1987 Ford Aerostar
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Saturday, September 11, 2004 11:20AM
WIRING DIAGRAMS

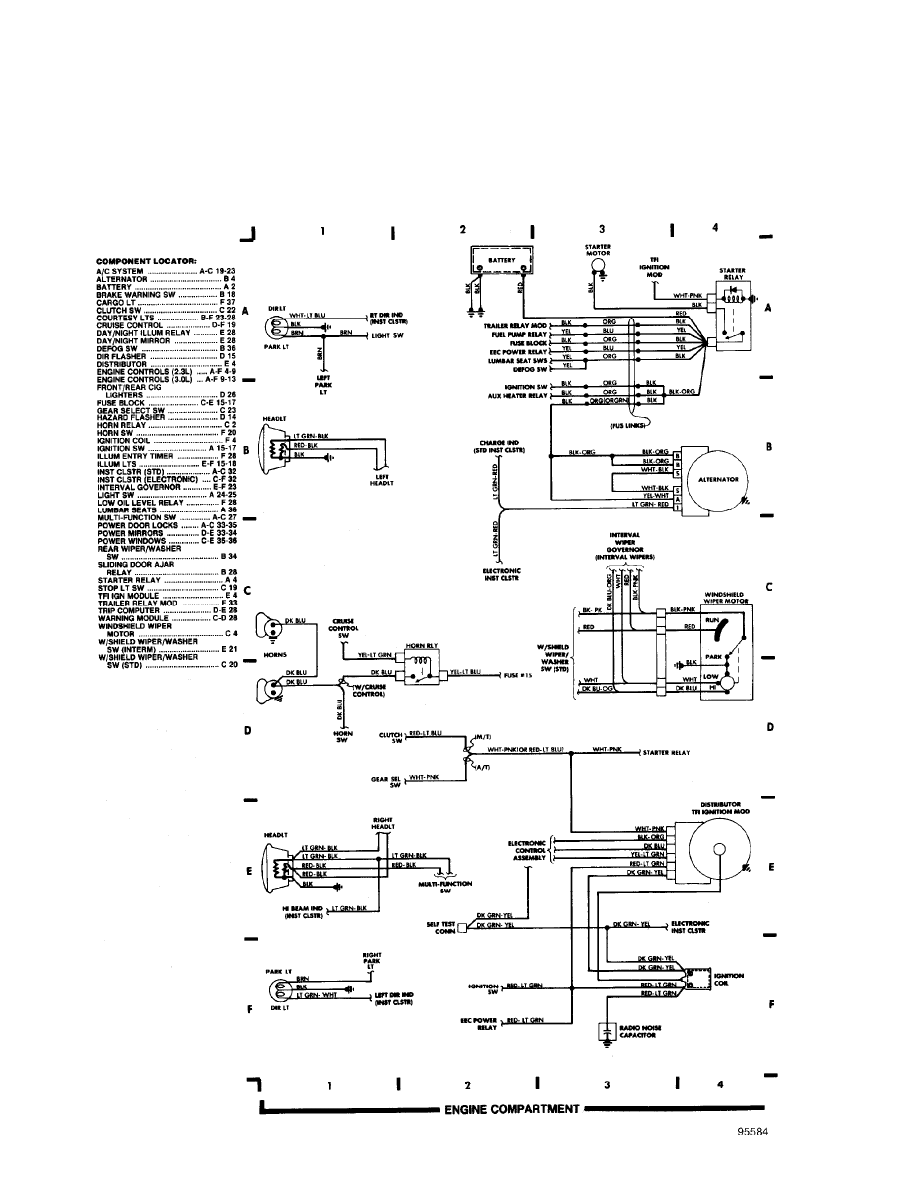

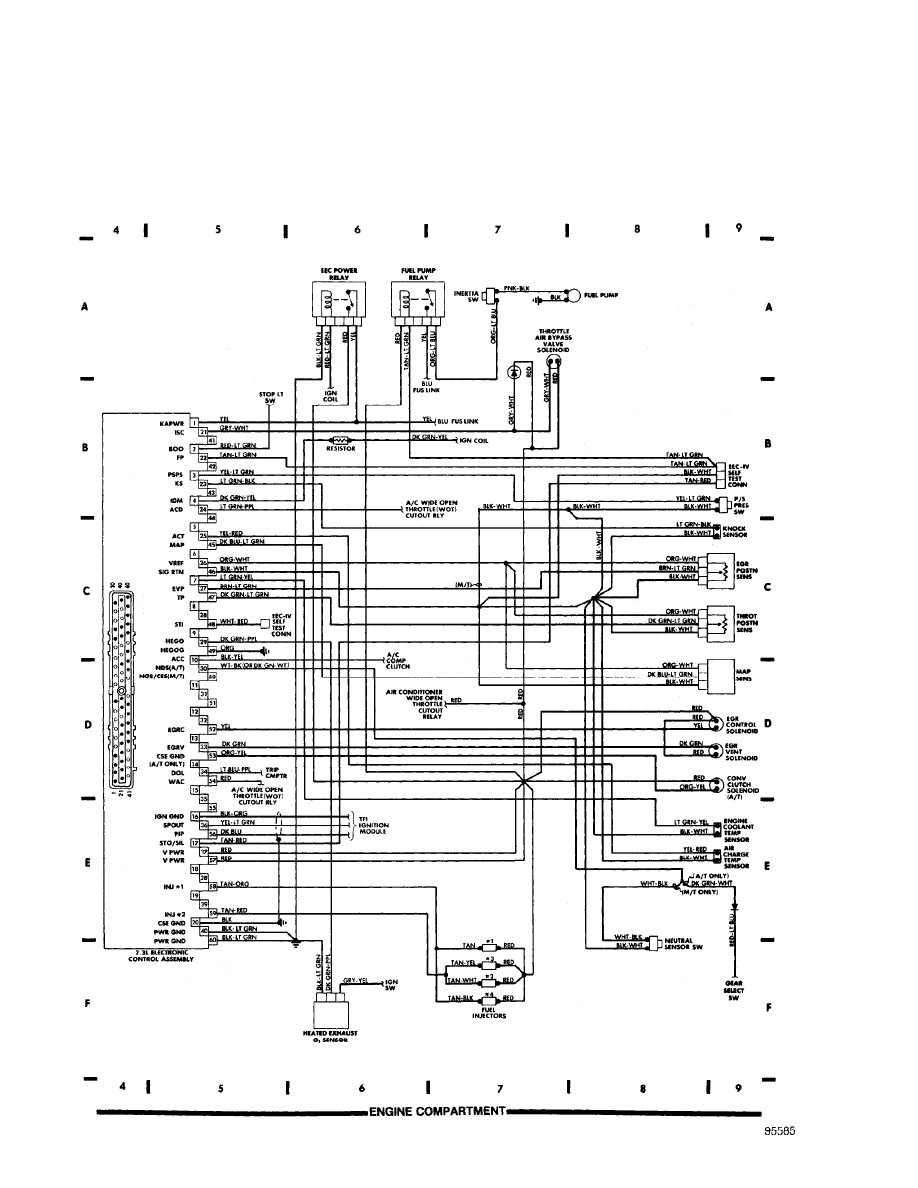

Fig. 1: Engine Compartment
1987 Ford Aerostar
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Saturday, September 11, 2004 11:20AM
WIRING DIAGRAMS

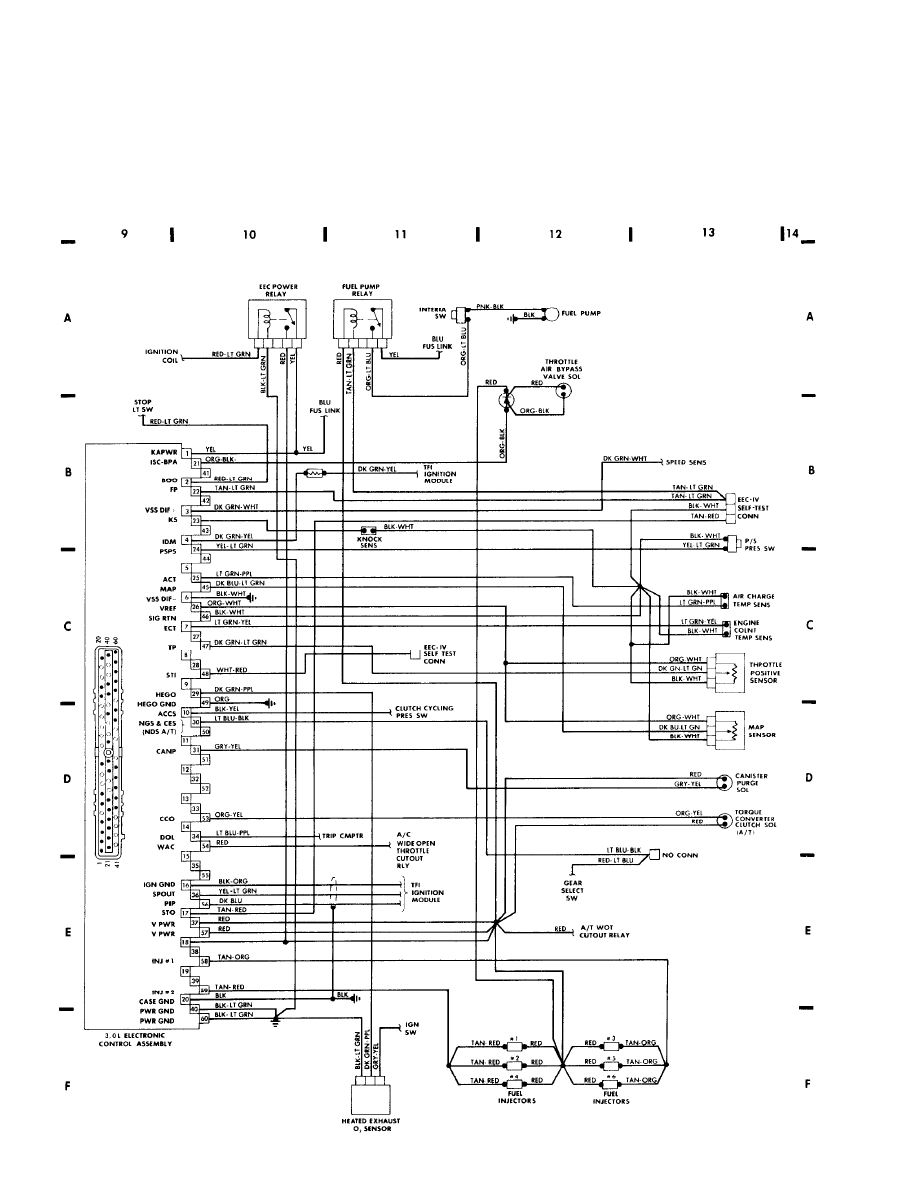

Fig. 2: Engine Compartment (Cont.) (p. 2)
1987 Ford Aerostar
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Saturday, September 11, 2004 11:20AM
WIRING DIAGRAMS
Fig. 3: Engine Compartment (Cont.) (p. 3)
1987 Ford Aerostar
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Saturday, September 11, 2004 11:20AM
WIRING DIAGRAMS
Fig. 4: Fuse Block (p. 4)
1987 Ford Aerostar
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Saturday, September 11, 2004 11:20AM
WIRING DIAGRAMS

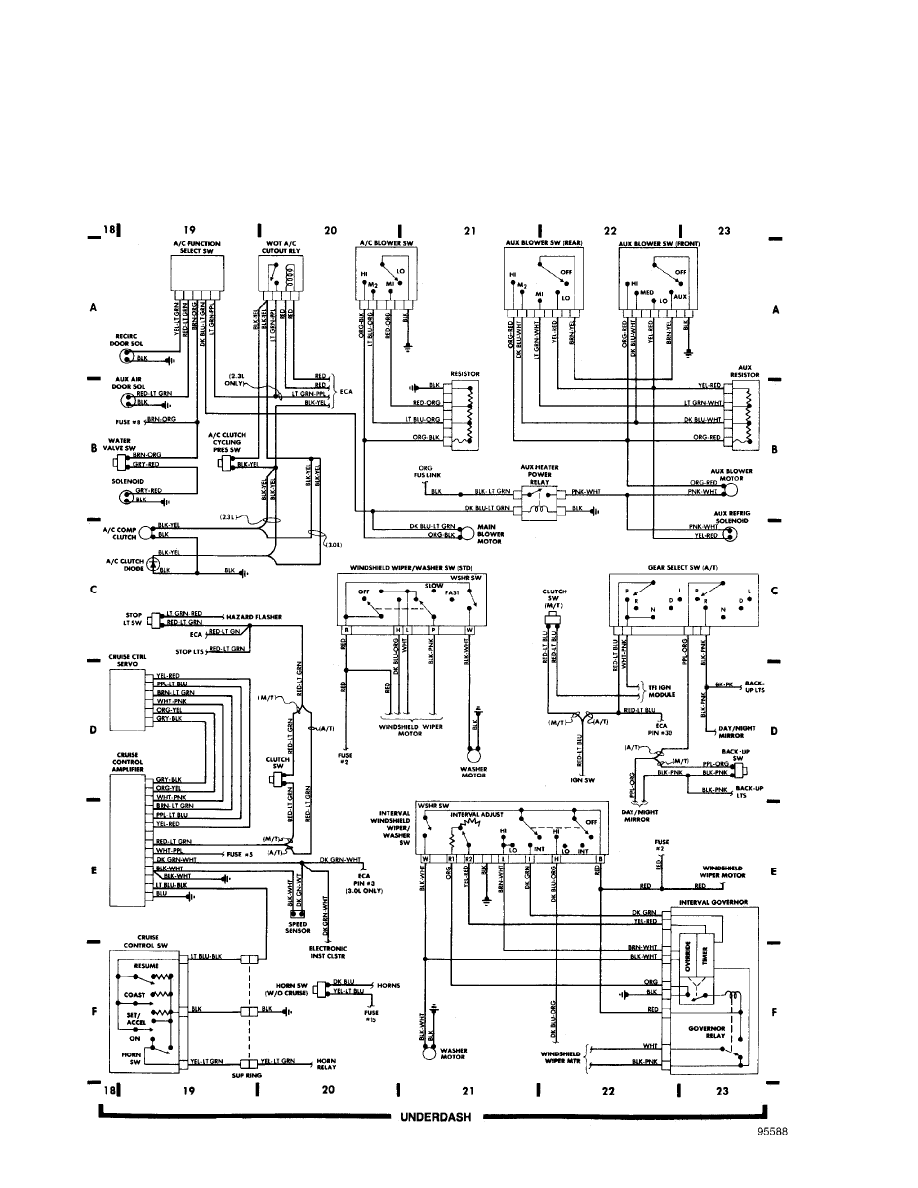

Fig. 5: Underdash (p. 5)
1987 Ford Aerostar
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Saturday, September 11, 2004 11:20AM
WIRING DIAGRAMS

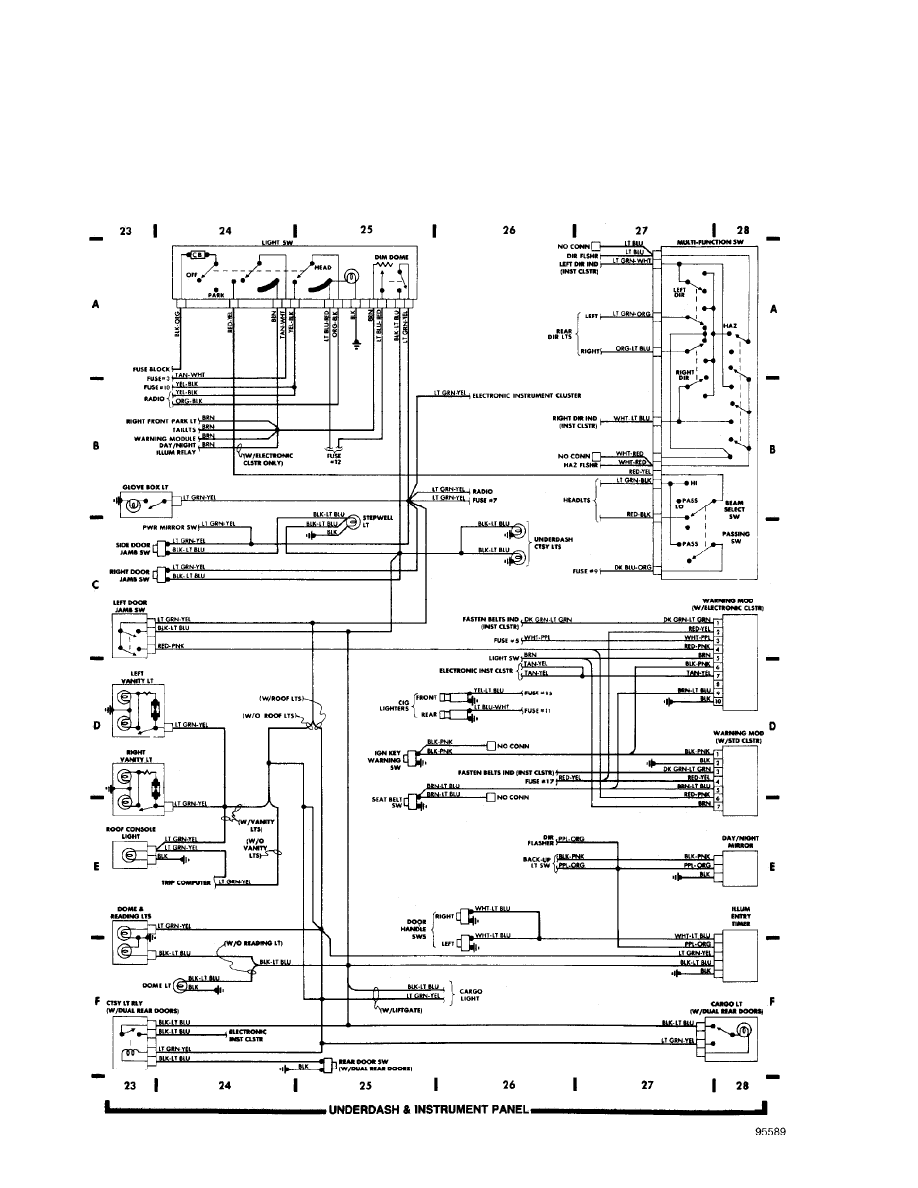

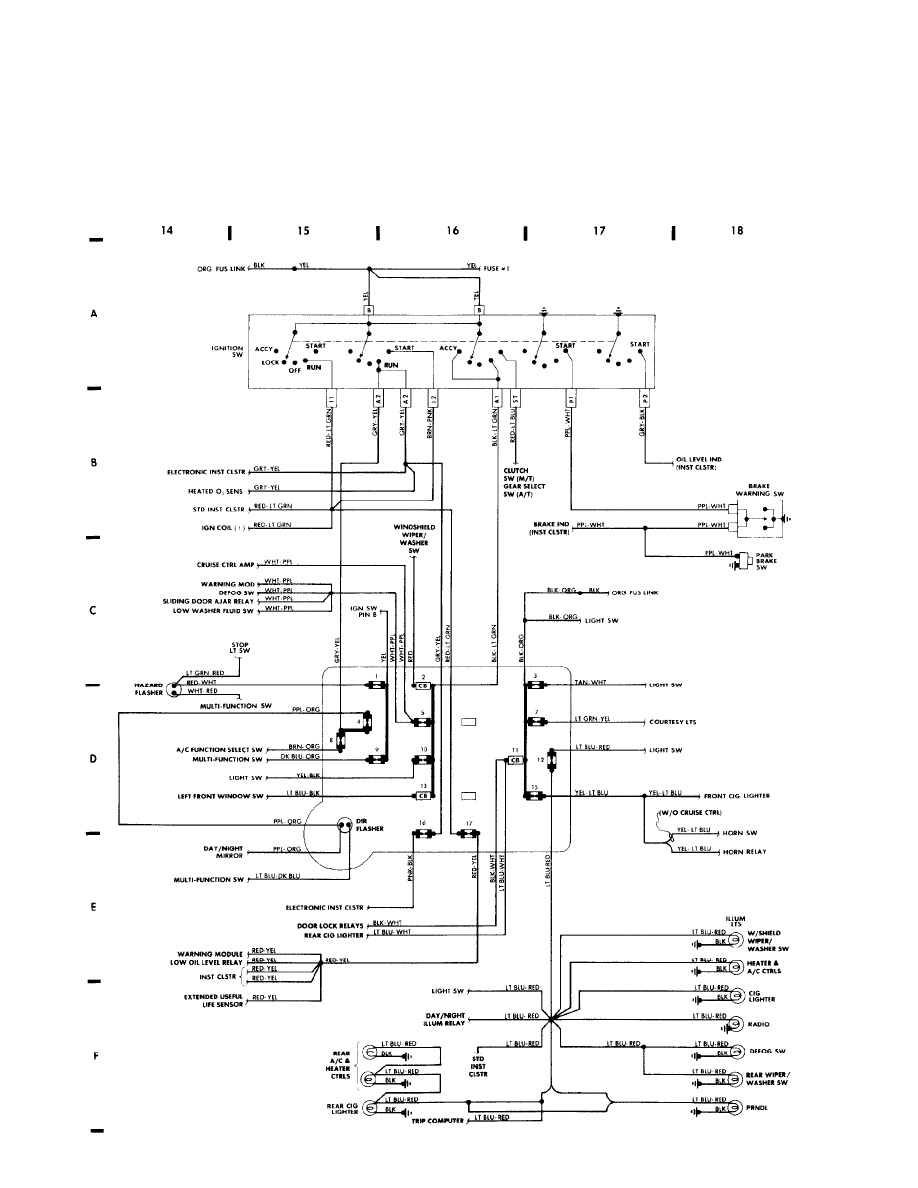

Fig. 6: Underdash & Instrument Panel (p. 6)
1987 Ford Aerostar
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Saturday, September 11, 2004 11:20AM
WIRING DIAGRAMS

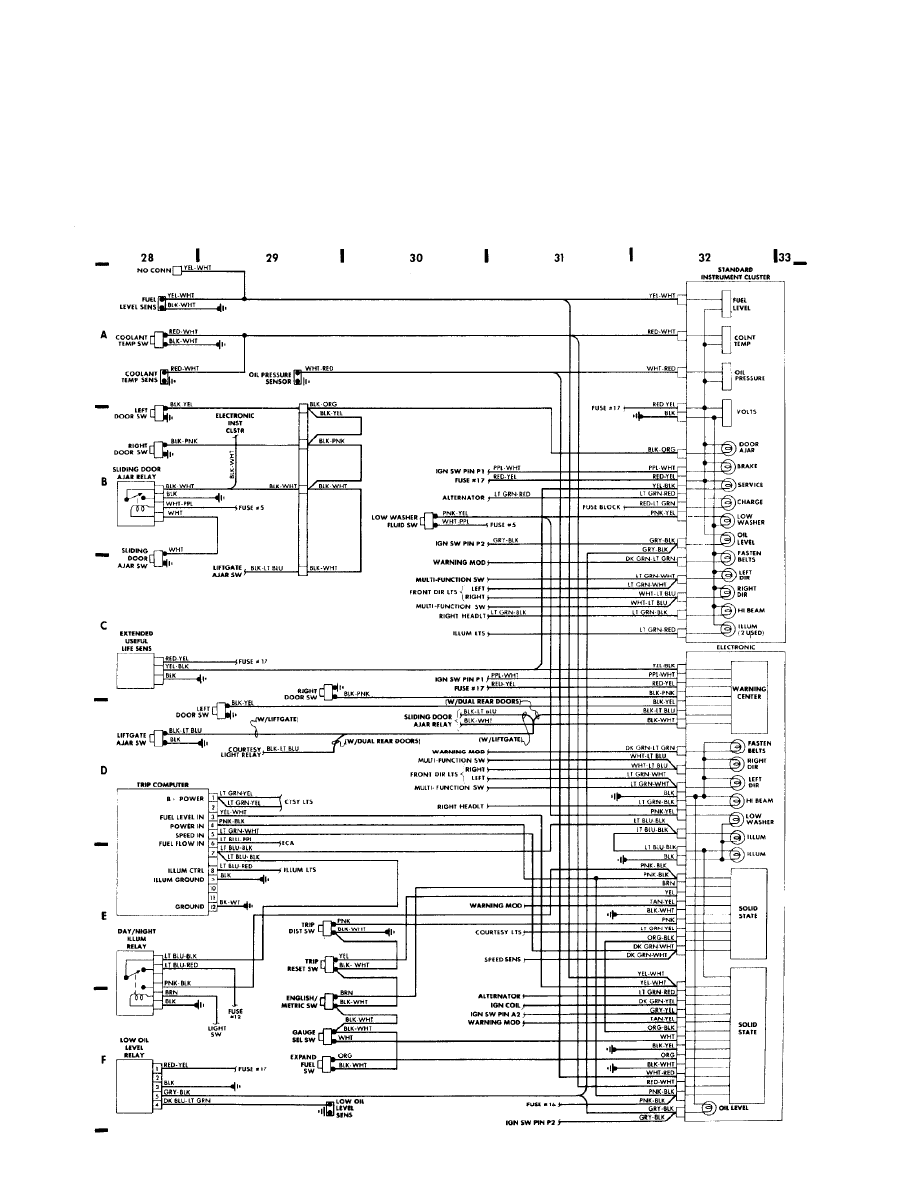

Fig. 7: Instrument Panel (p. 7)
1987 Ford Aerostar
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Saturday, September 11, 2004 11:20AM
WIRING DIAGRAMS

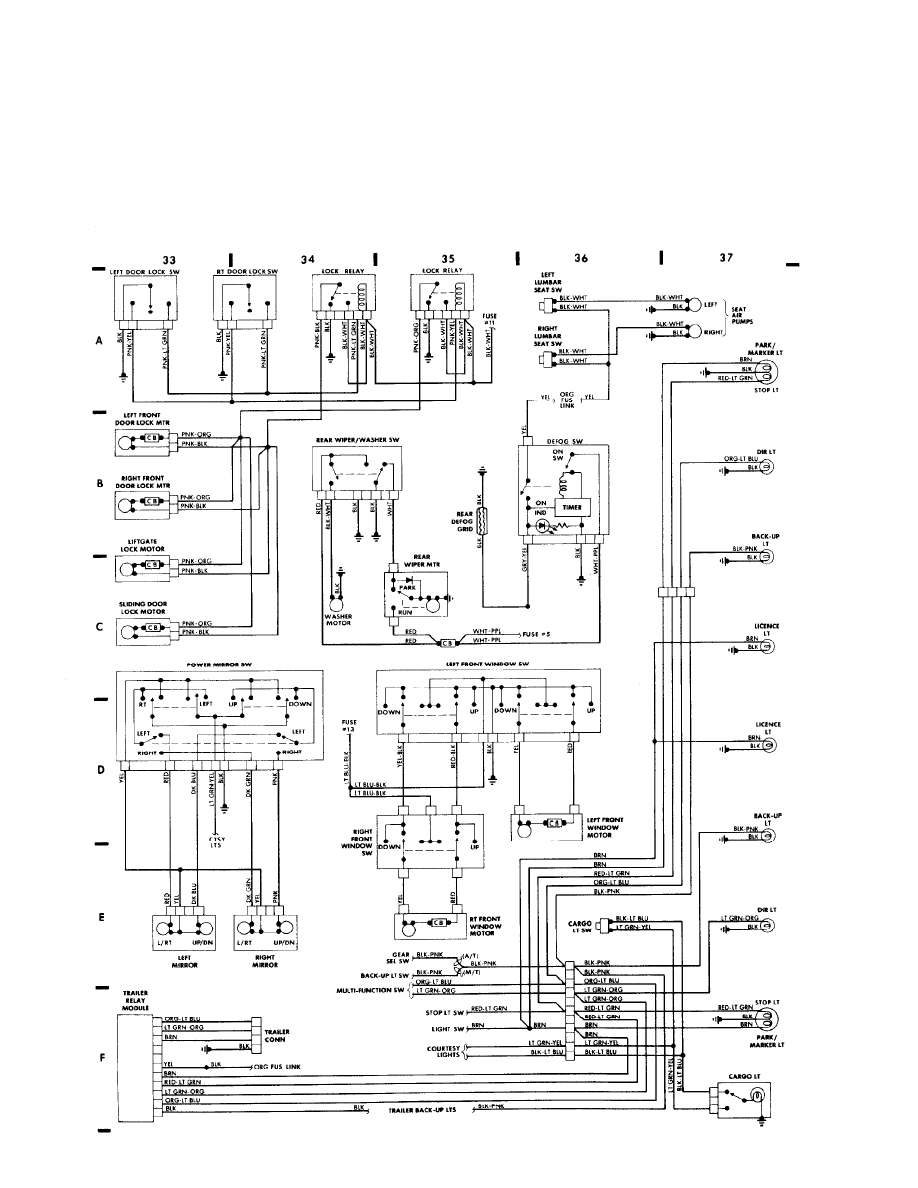

Fig. 8: Rear Compartment & Accessories (p. 8)
1987 Ford Aerostar
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Saturday, September 11, 2004 11:20AM
