PEUGEOT 106

ENGINE TYPE: TU9MZ/L - TU3MCZ/L

INJECTION BOSCH MA3.0

I ---> 51 000 000

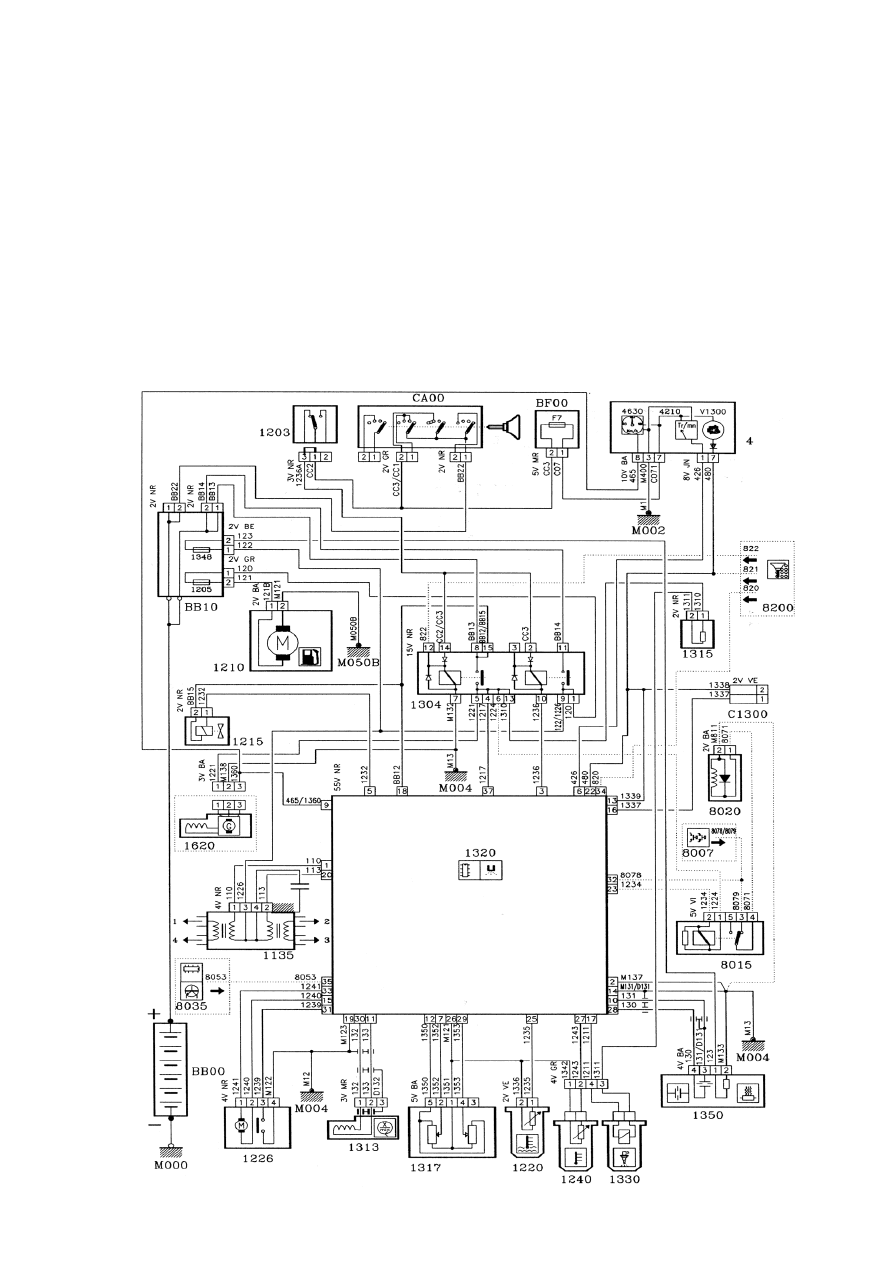

WIRING DIAGRAMS:

SCHEMATIC DIAGRAMS :



background image

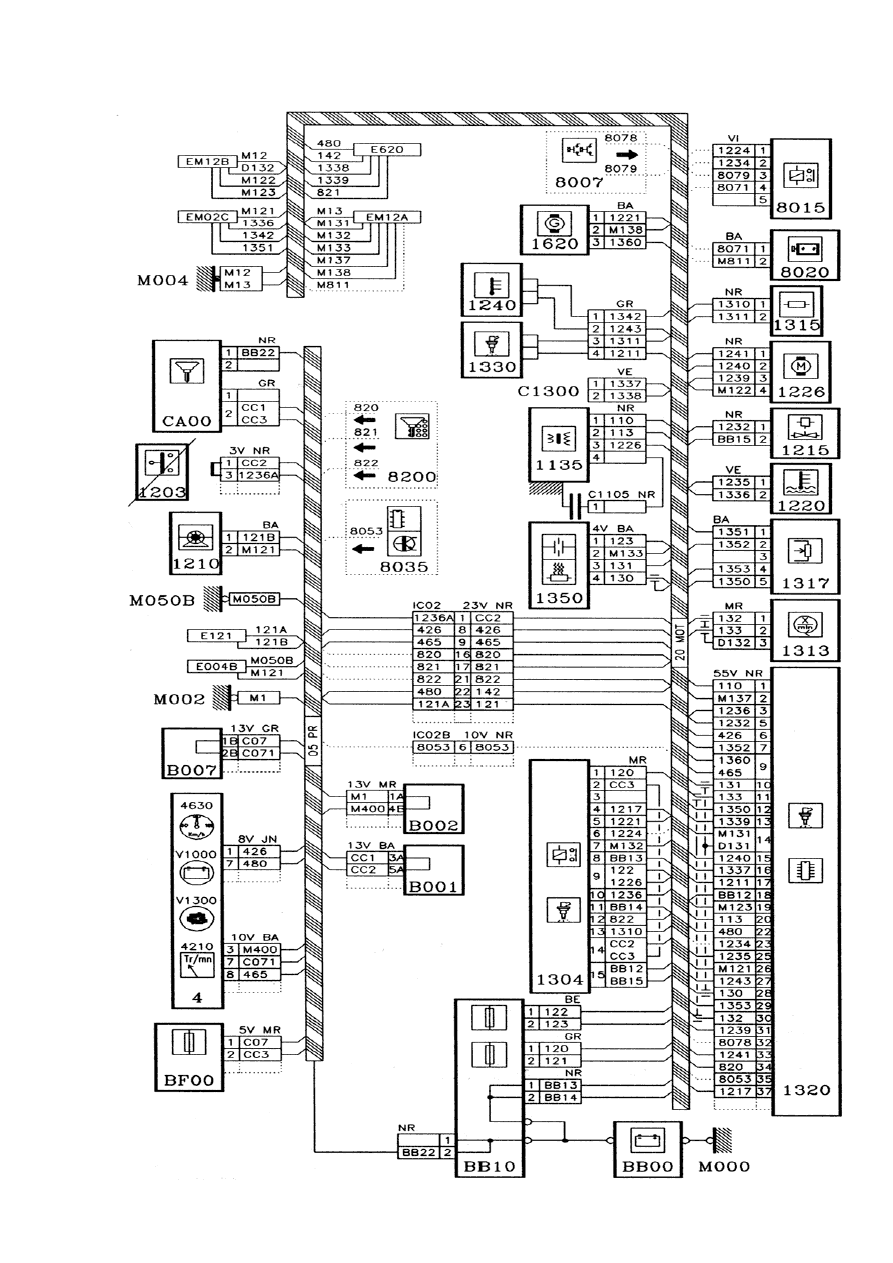

INSTALLATION DIAGRAMS :



background image

WIRING:
