PEUGEOT 106

ENGINE TYPE: TU5JPZ/L

INJECTION BOSCH MP5.1

I ---> 51 000 000

WIRING DIAGRAMS:

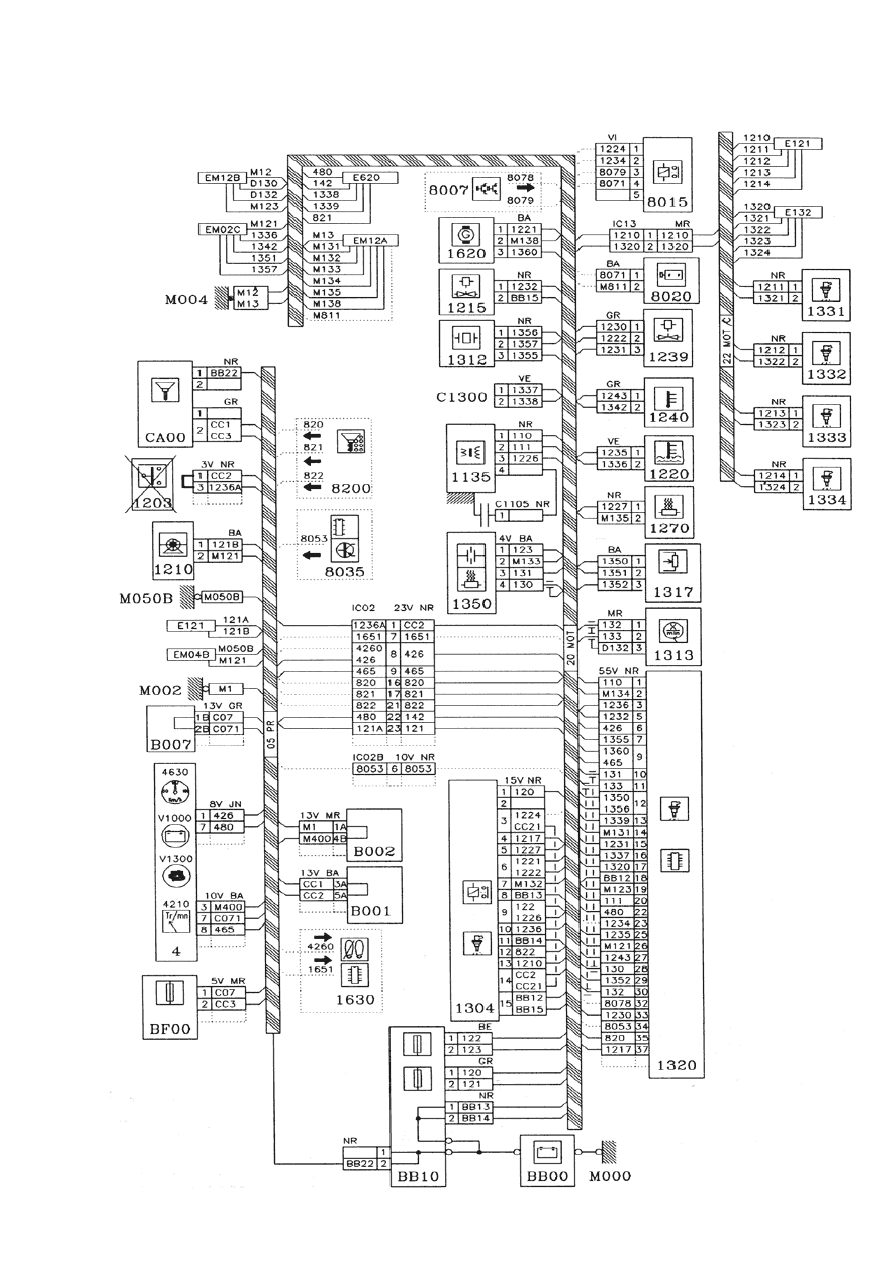

SCHEMATIC DIAGRAMS :



background image

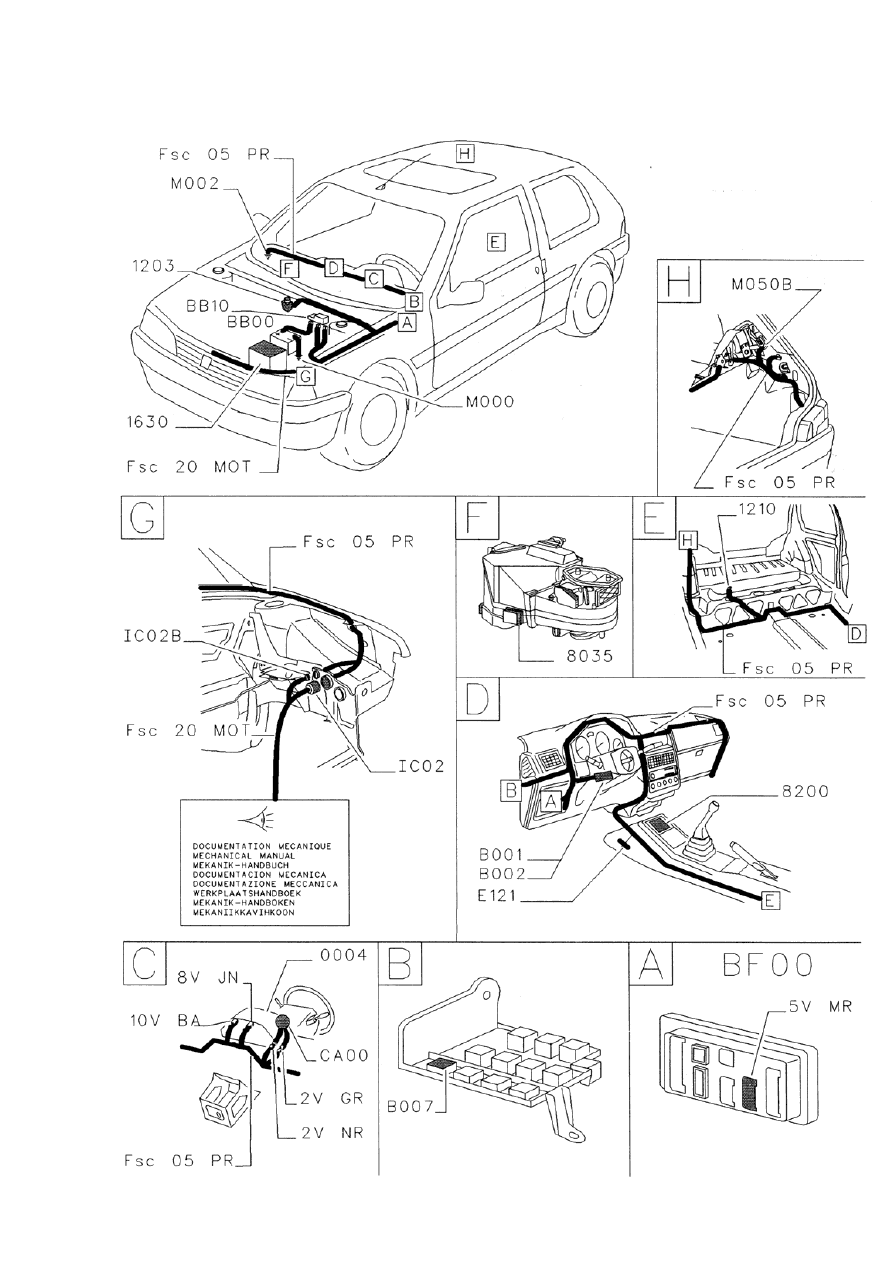

INSTALLATION DIAGRAMS :



background image

WIRING DIAGRAMS :
