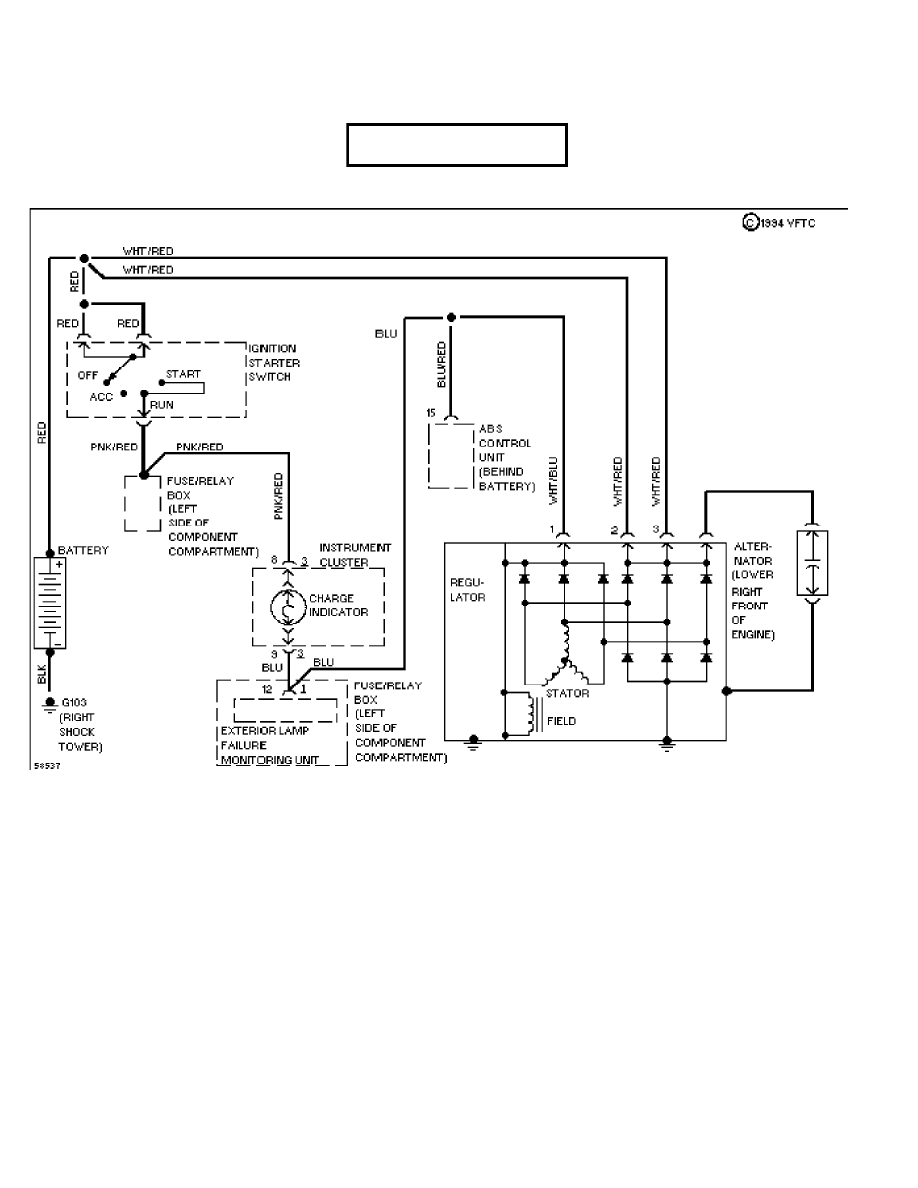

SYSTEM WIRING DIAGRAMS
Charging Circuit
1989 Mercedes-Benz 300CE
For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, November 29, 2000 07:55PM
cdr@wp.pl
SYSTEM WIRING DIAGRAMS
Charging Circuit
1989 Mercedes-Benz 300CE
For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, November 29, 2000 07:55PM
cdr@wp.pl

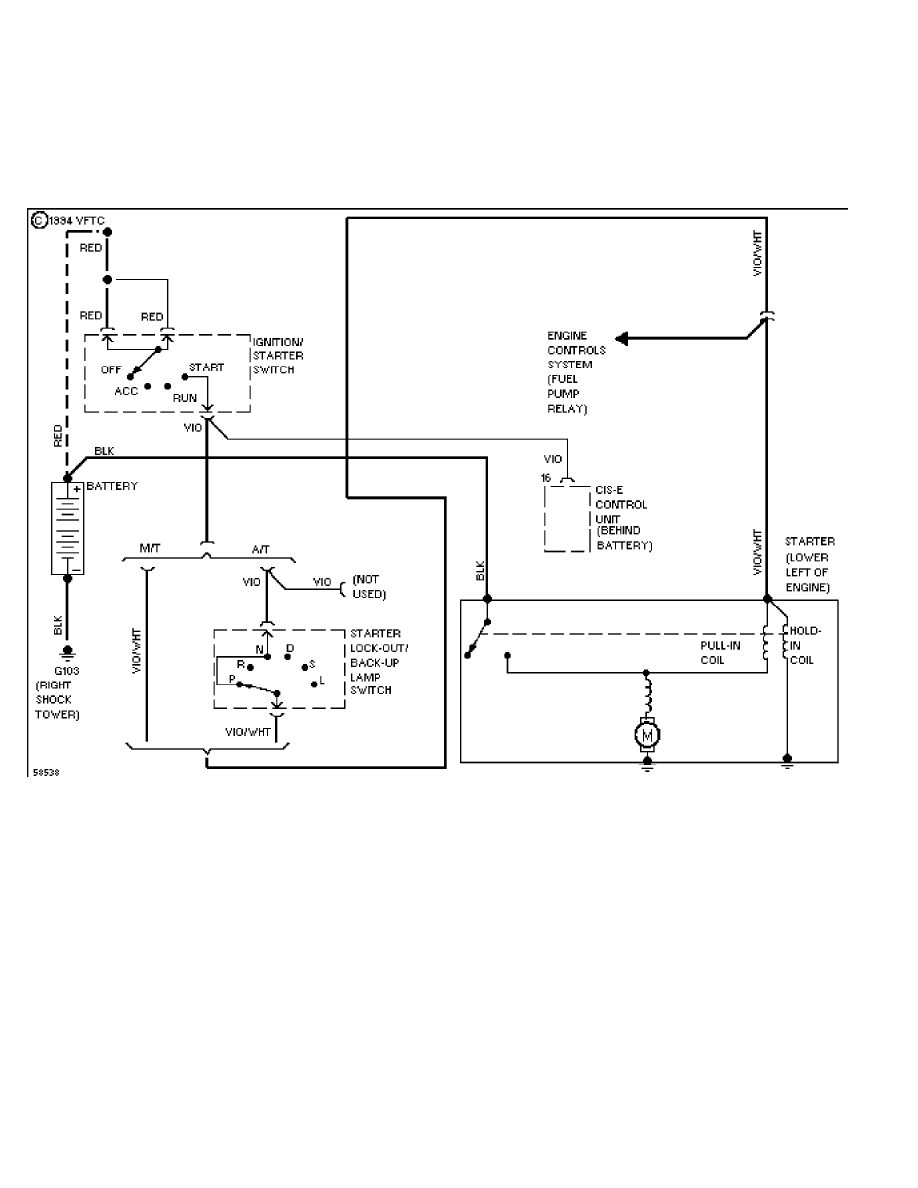

SYSTEM WIRING DIAGRAMS
Starting Circuit
1989 Mercedes-Benz 300CE
For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, November 29, 2000 07:55PM
SYSTEM WIRING DIAGRAMS

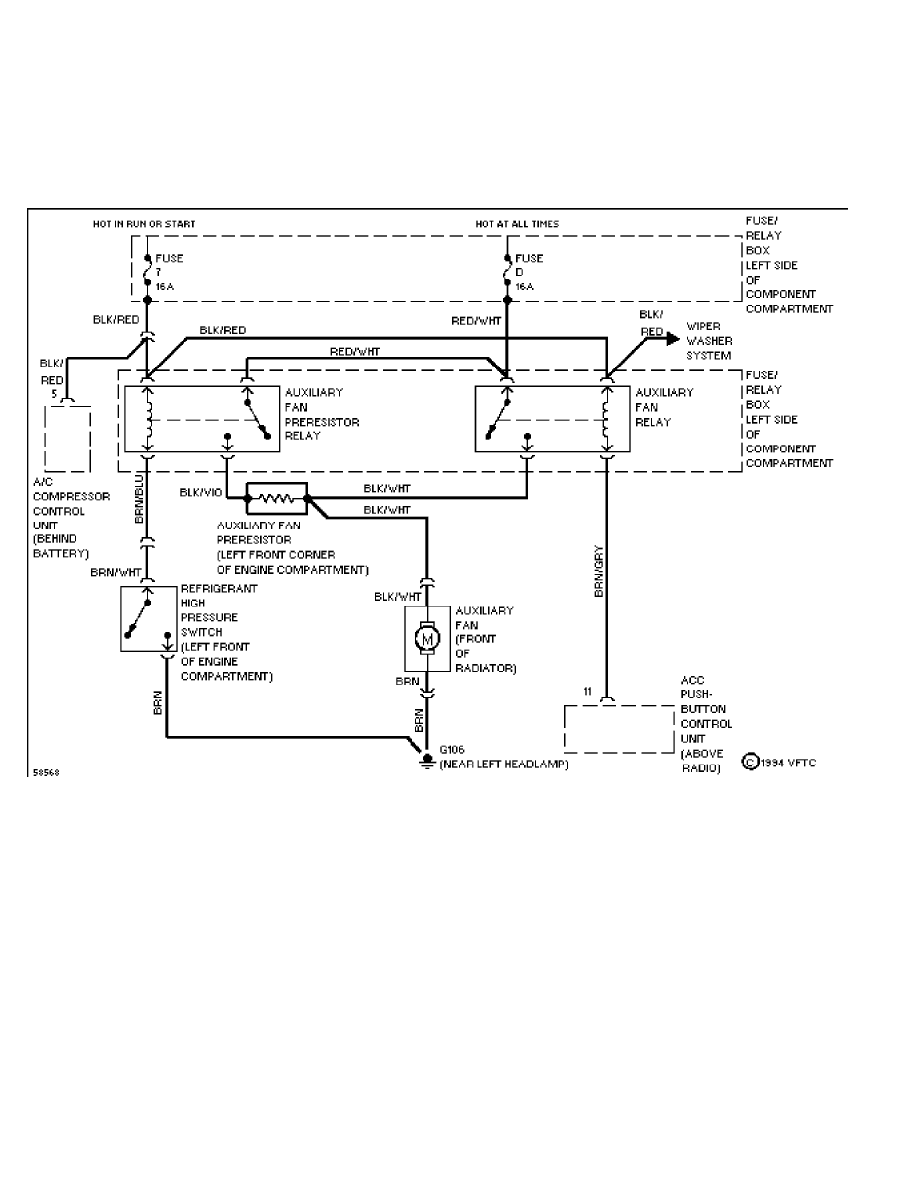

Cooling Fan Circuit
1989 Mercedes-Benz 300CE
For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, November 29, 2000 07:52PM
SYSTEM WIRING DIAGRAMS
Defogger Circuit
1989 Mercedes-Benz 300CE
For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, November 29, 2000 07:52PM

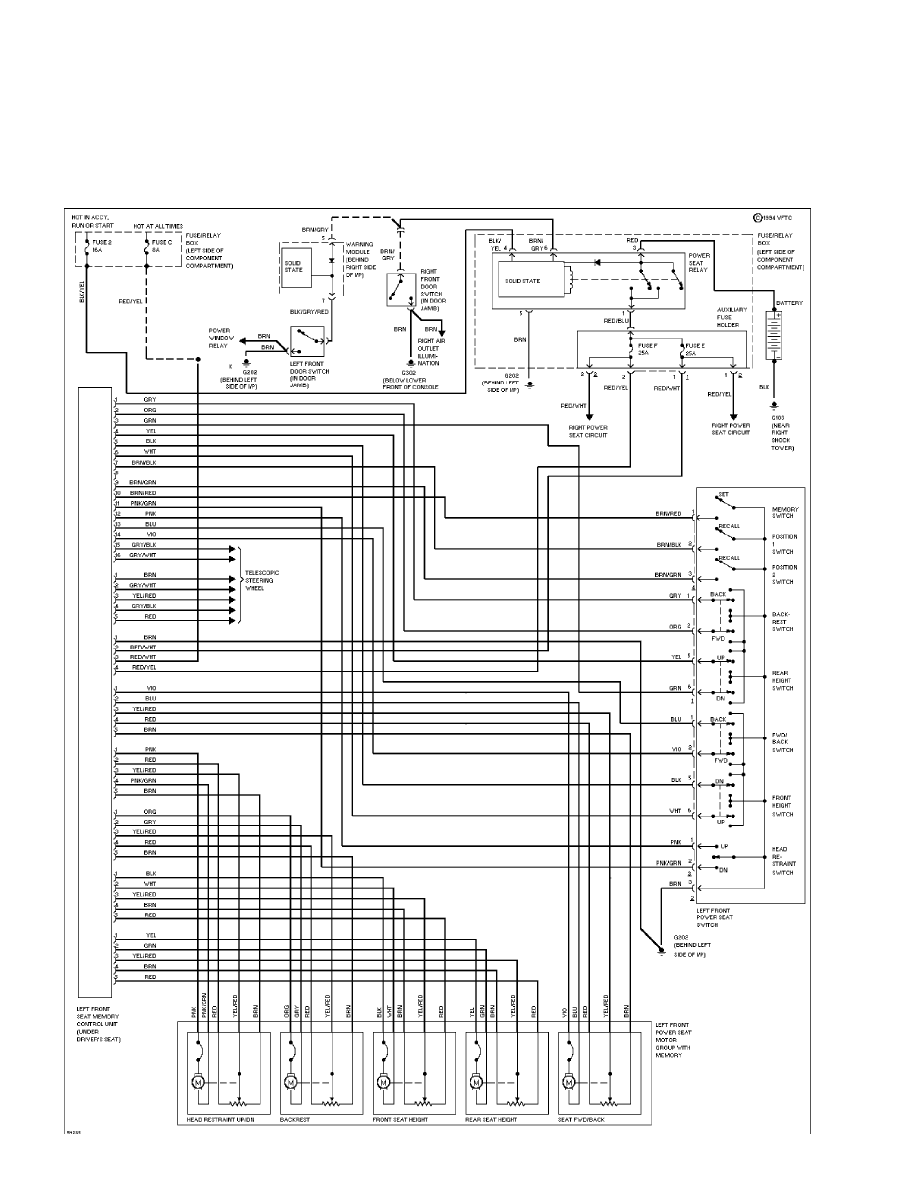

SYSTEM WIRING DIAGRAMS
Driver Power Seat Circuit, W/ Memory
1989 Mercedes-Benz 300CE
For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, November 29, 2000 07:53PM
SYSTEM WIRING DIAGRAMS

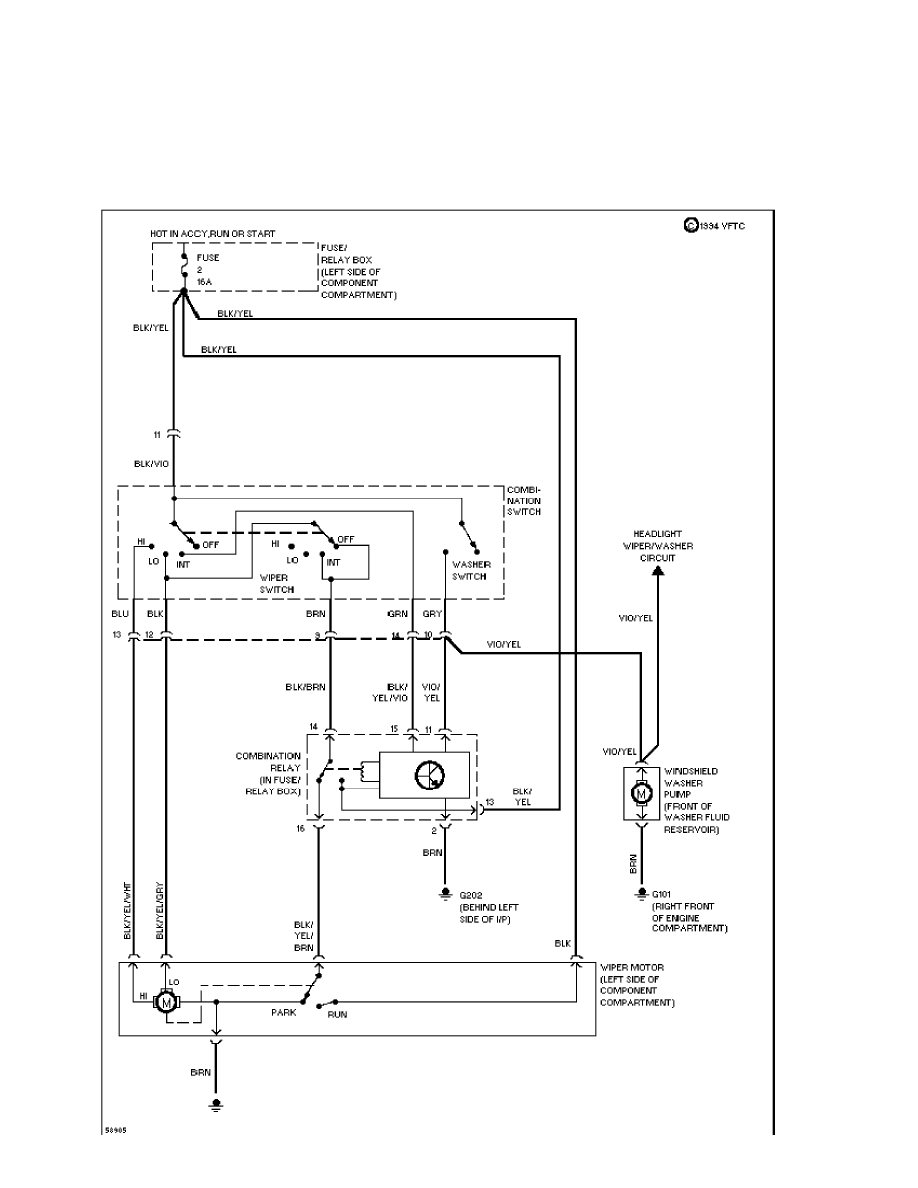

Front Wiper/Washer Circuit
1989 Mercedes-Benz 300CE
For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, November 29, 2000 07:55PM

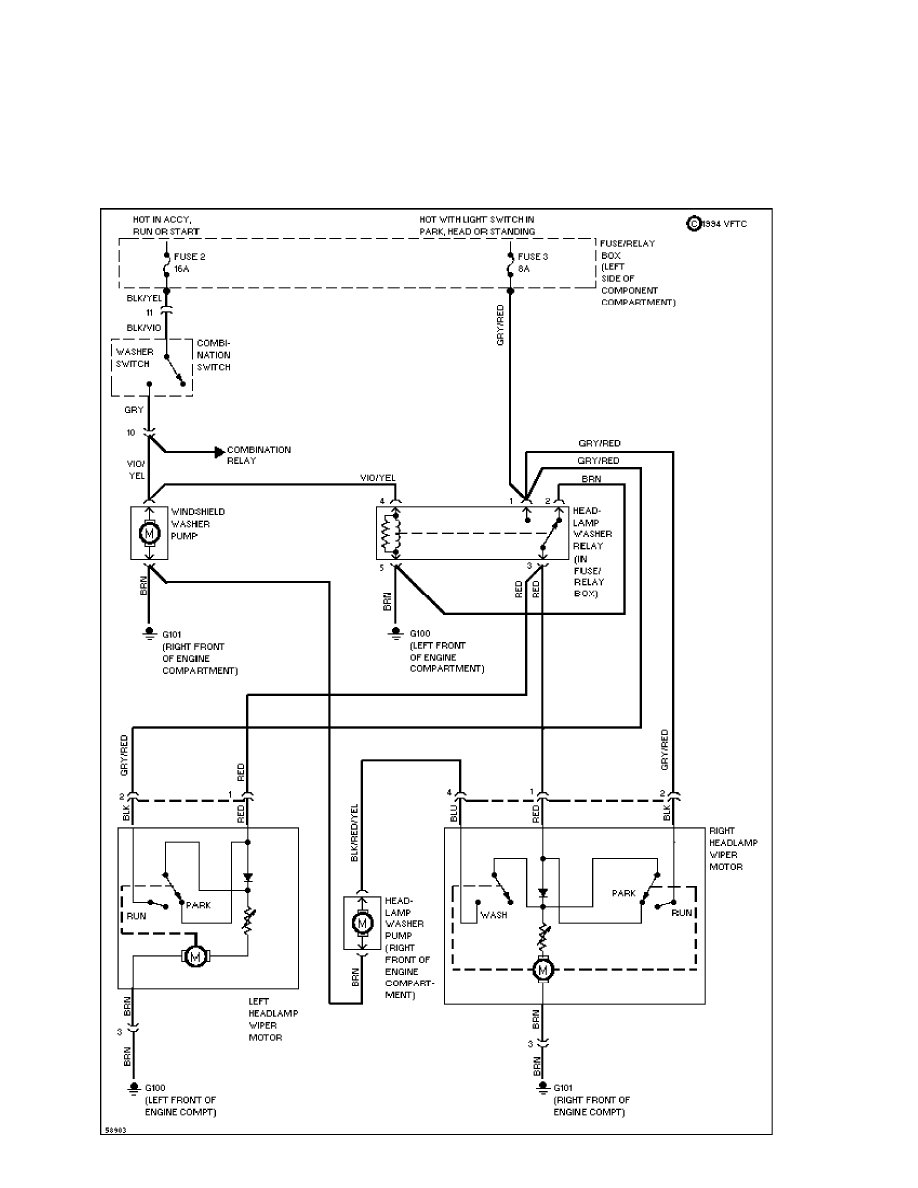

SYSTEM WIRING DIAGRAMS
Headlight Washer/Wiper Circuit
1989 Mercedes-Benz 300CE
For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, November 29, 2000 07:55PM
SYSTEM WIRING DIAGRAMS
Heated Windshield Washer Circuit
1989 Mercedes-Benz 300CE
For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, November 29, 2000 07:55PM
SYSTEM WIRING DIAGRAMS
Heater Circuit
1989 Mercedes-Benz 300CE
For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, November 29, 2000 07:53PM
SYSTEM WIRING DIAGRAMS
Horn Circuit
1989 Mercedes-Benz 300CE
For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, November 29, 2000 07:52PM
SYSTEM WIRING DIAGRAMS
Interval Wiper/Washer Circuit
1989 Mercedes-Benz 300CE
For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, November 29, 2000 07:56PM
SYSTEM WIRING DIAGRAMS

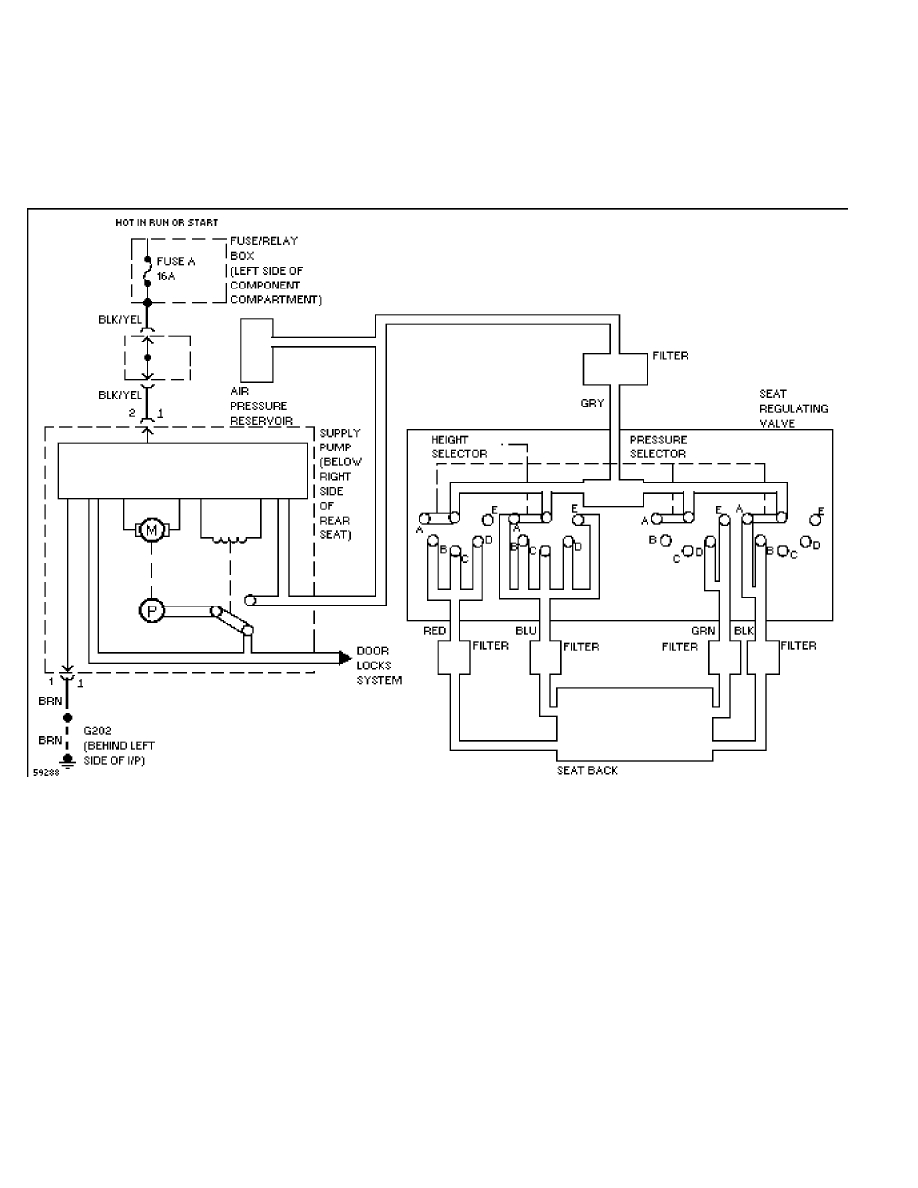

Orthopedic Seats
1989 Mercedes-Benz 300CE
For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, November 29, 2000 07:54PM
SYSTEM WIRING DIAGRAMS
Power Antenna Circuit
1989 Mercedes-Benz 300CE
For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, November 29, 2000 07:52PM
SYSTEM WIRING DIAGRAMS

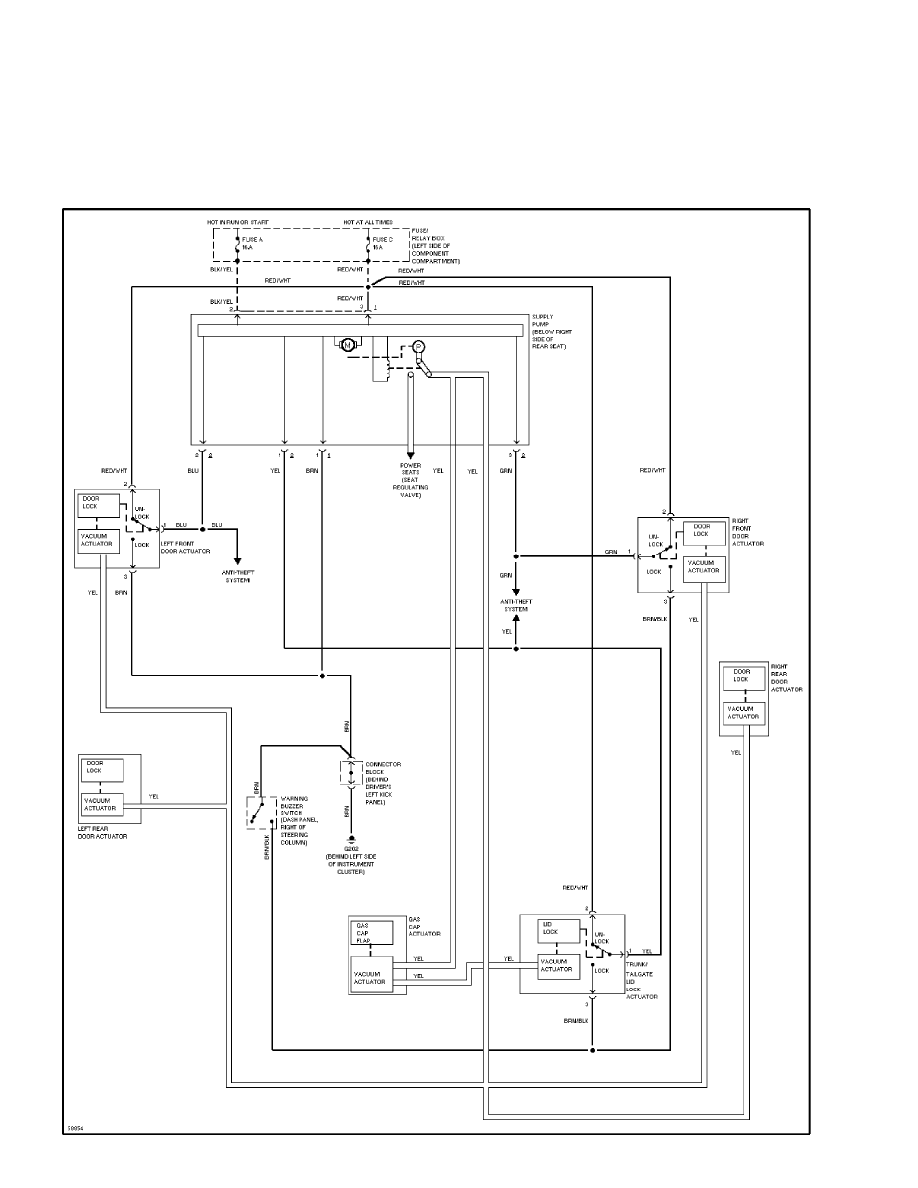

Power Door Lock Circuit
1989 Mercedes-Benz 300CE
For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, November 29, 2000 07:53PM

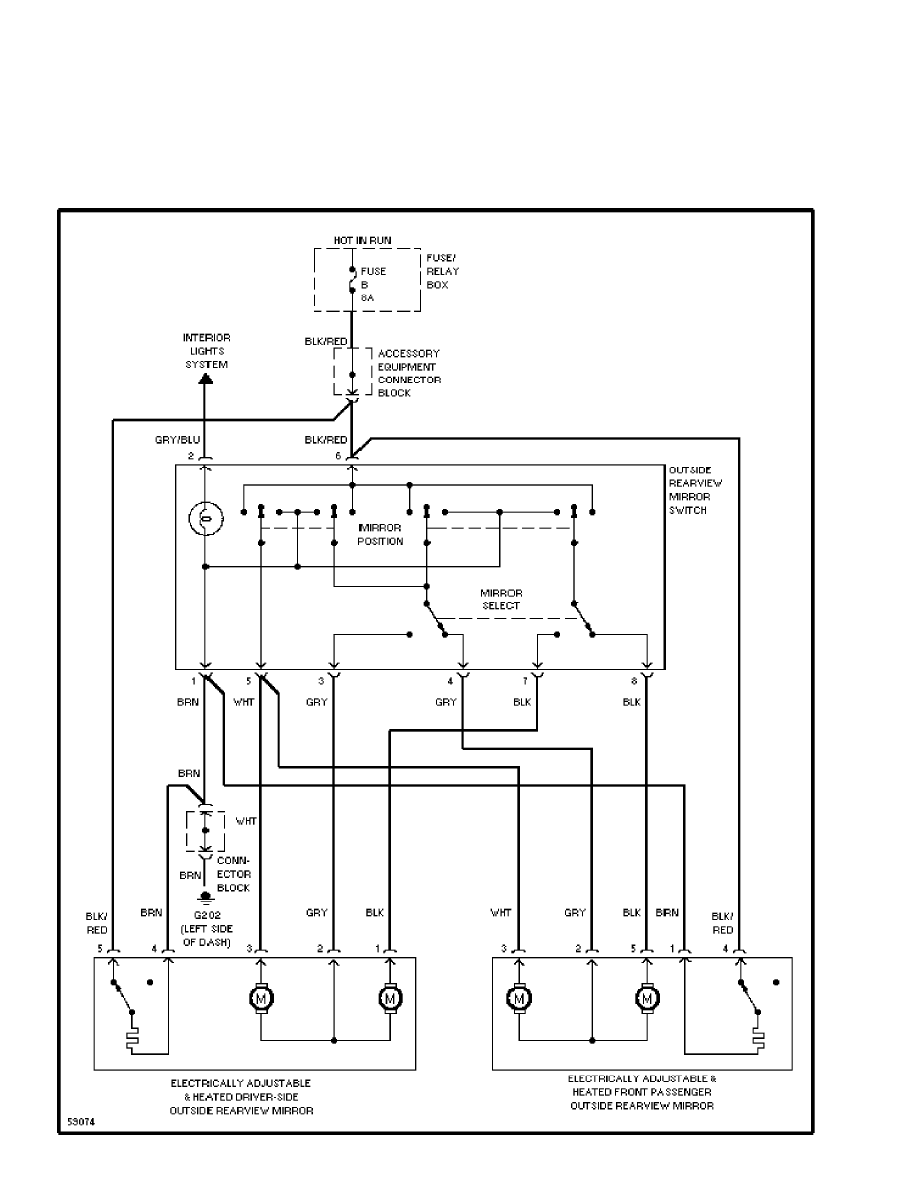

SYSTEM WIRING DIAGRAMS
Power Mirror Circuit
1989 Mercedes-Benz 300CE
For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, November 29, 2000 07:53PM

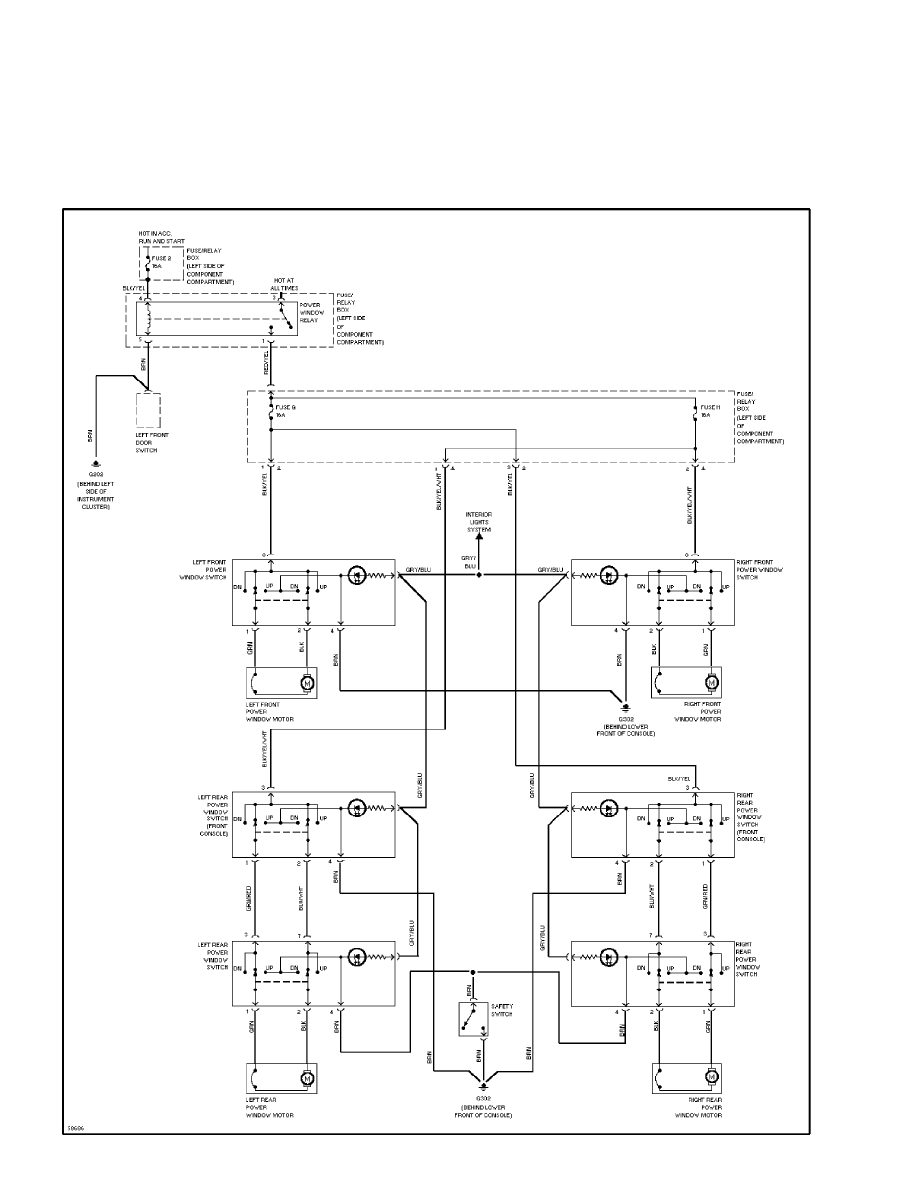

SYSTEM WIRING DIAGRAMS
Power Window Circuit
1989 Mercedes-Benz 300CE
For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, November 29, 2000 07:54PM
SYSTEM WIRING DIAGRAMS
Radio Circuits
1989 Mercedes-Benz 300CE
For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, November 29, 2000 07:55PM

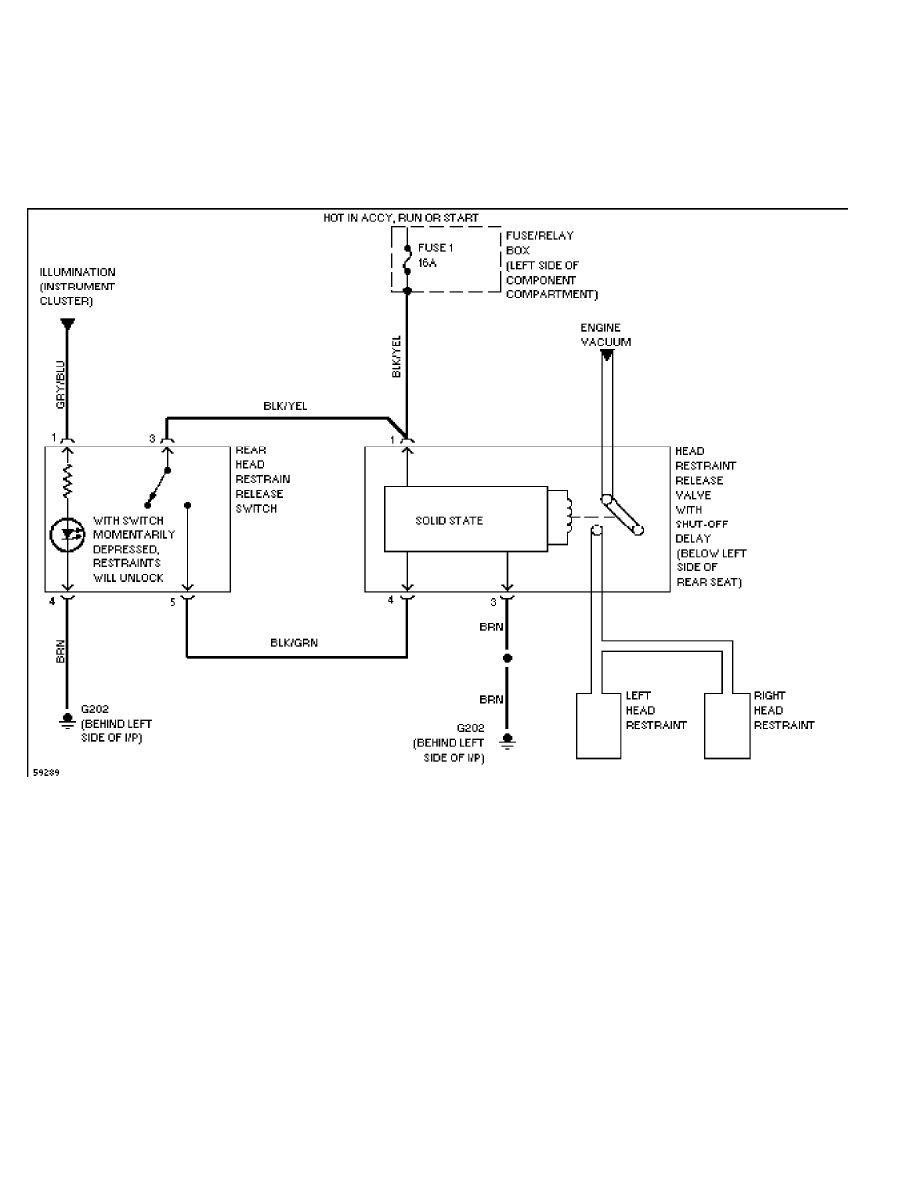

SYSTEM WIRING DIAGRAMS
Rear Head Restraint Circuit
1989 Mercedes-Benz 300CE
For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, November 29, 2000 07:54PM
SYSTEM WIRING DIAGRAMS

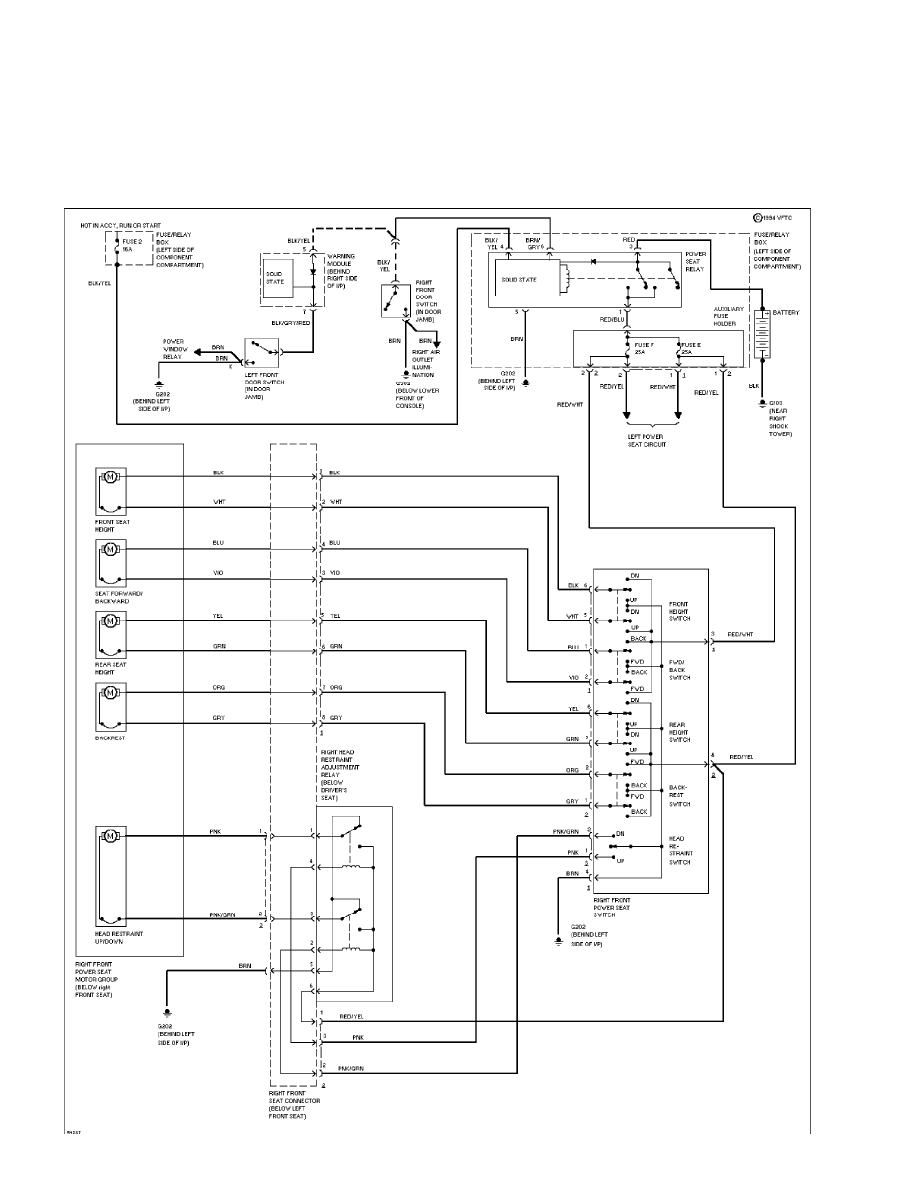

Right Seat Circuit
1989 Mercedes-Benz 300CE
For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, November 29, 2000 07:54PM

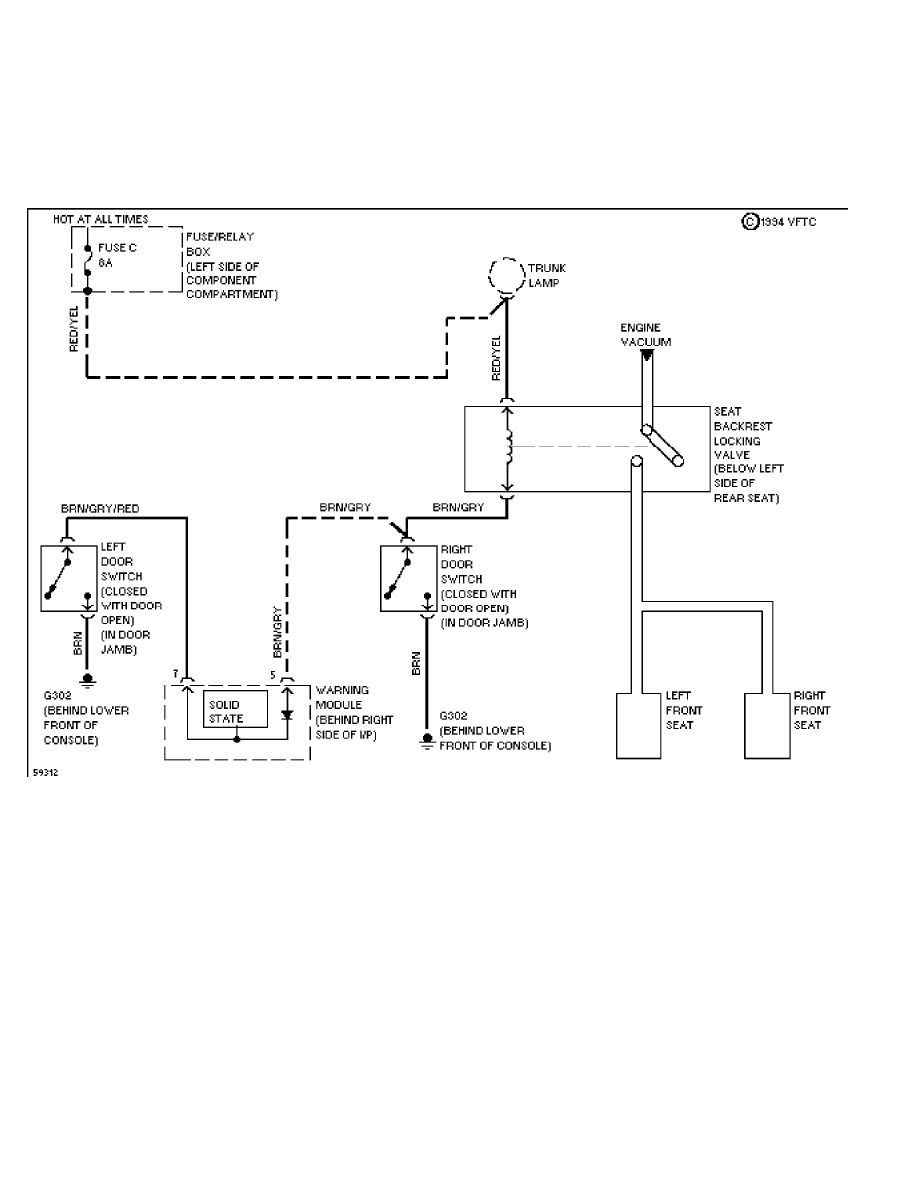

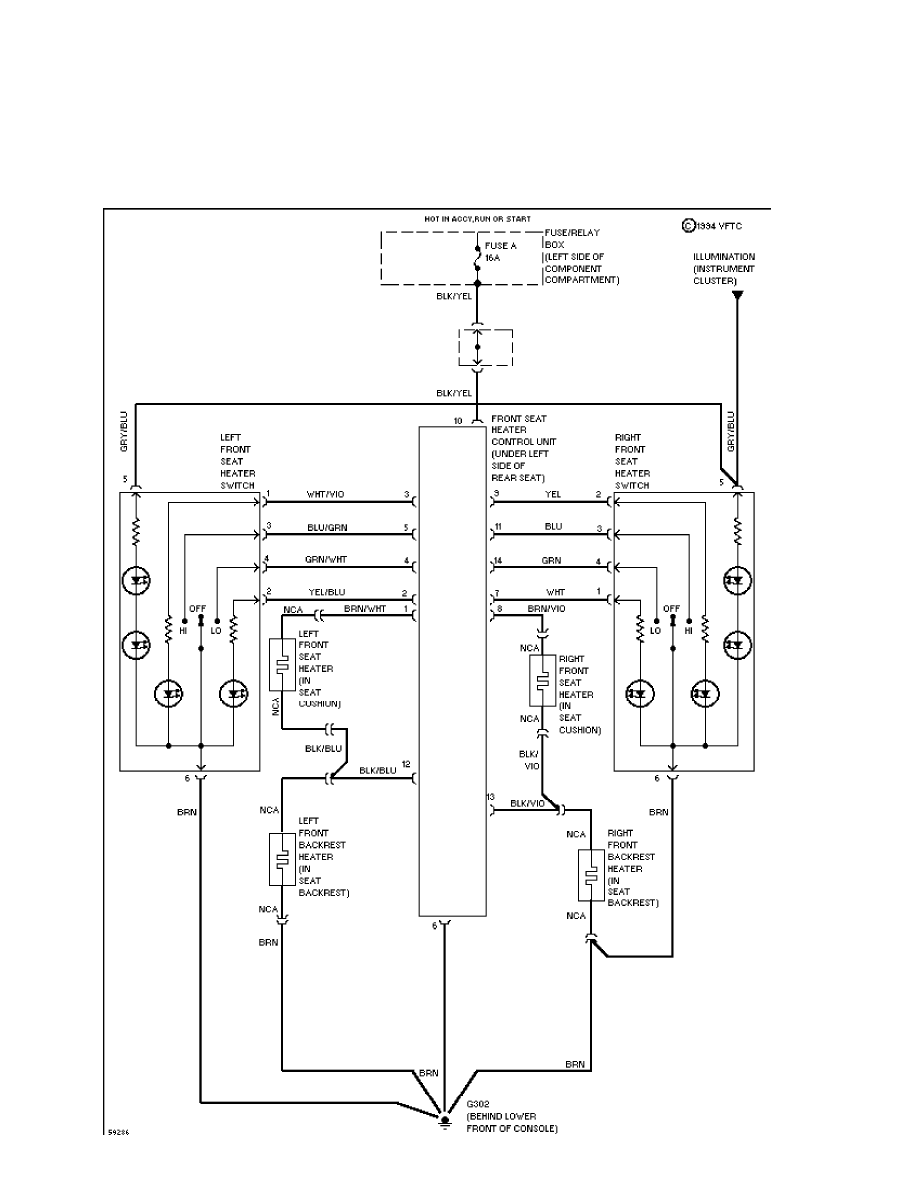

SYSTEM WIRING DIAGRAMS
Seat Backrest Locking System
1989 Mercedes-Benz 300CE
For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, November 29, 2000 07:54PM
