SYSTEM WIRING DIAGRAMS

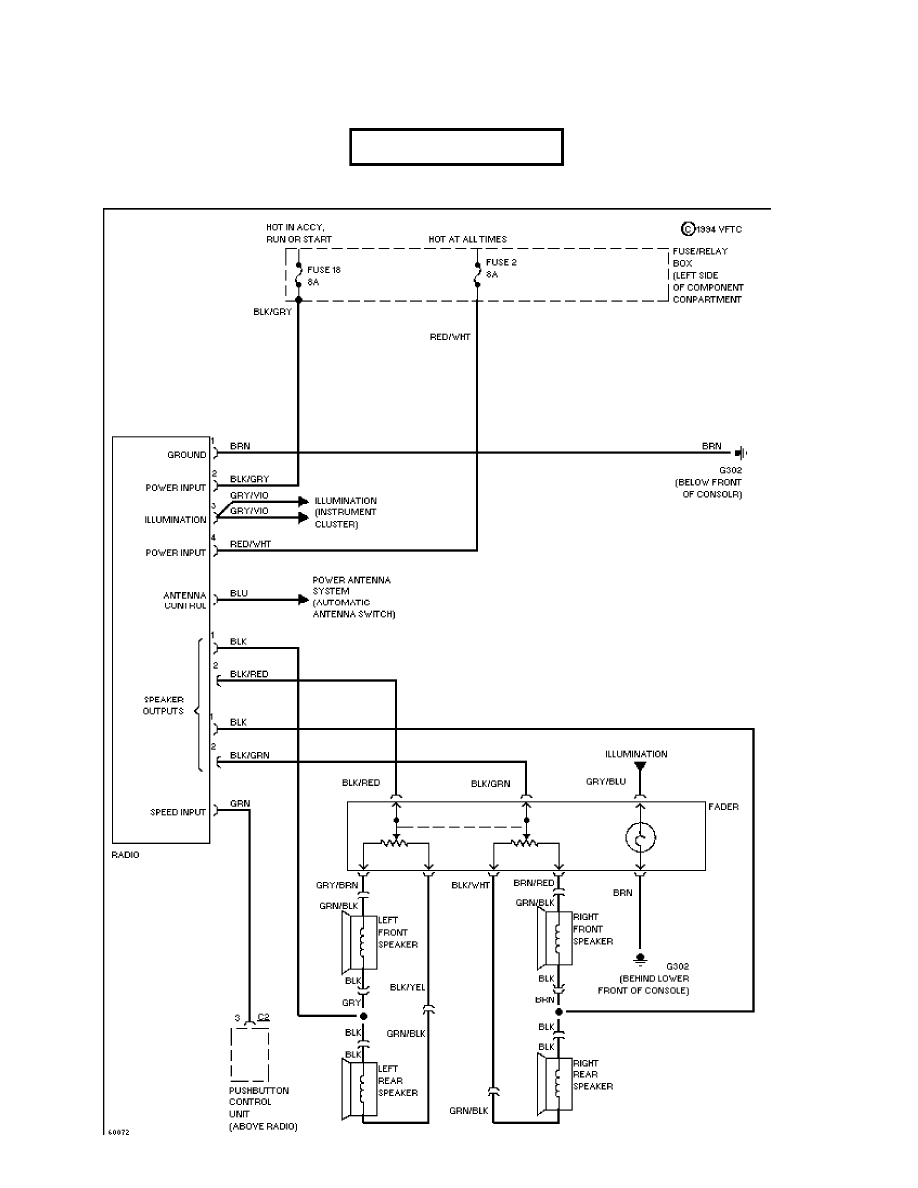

Base Radio
1989 Mercedes-Benz 560SEC
For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, November 29, 2000 08:41PM
cdr@wp.pl
SYSTEM WIRING DIAGRAMS
Base Radio
1989 Mercedes-Benz 560SEC
For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, November 29, 2000 08:41PM
cdr@wp.pl
SYSTEM WIRING DIAGRAMS

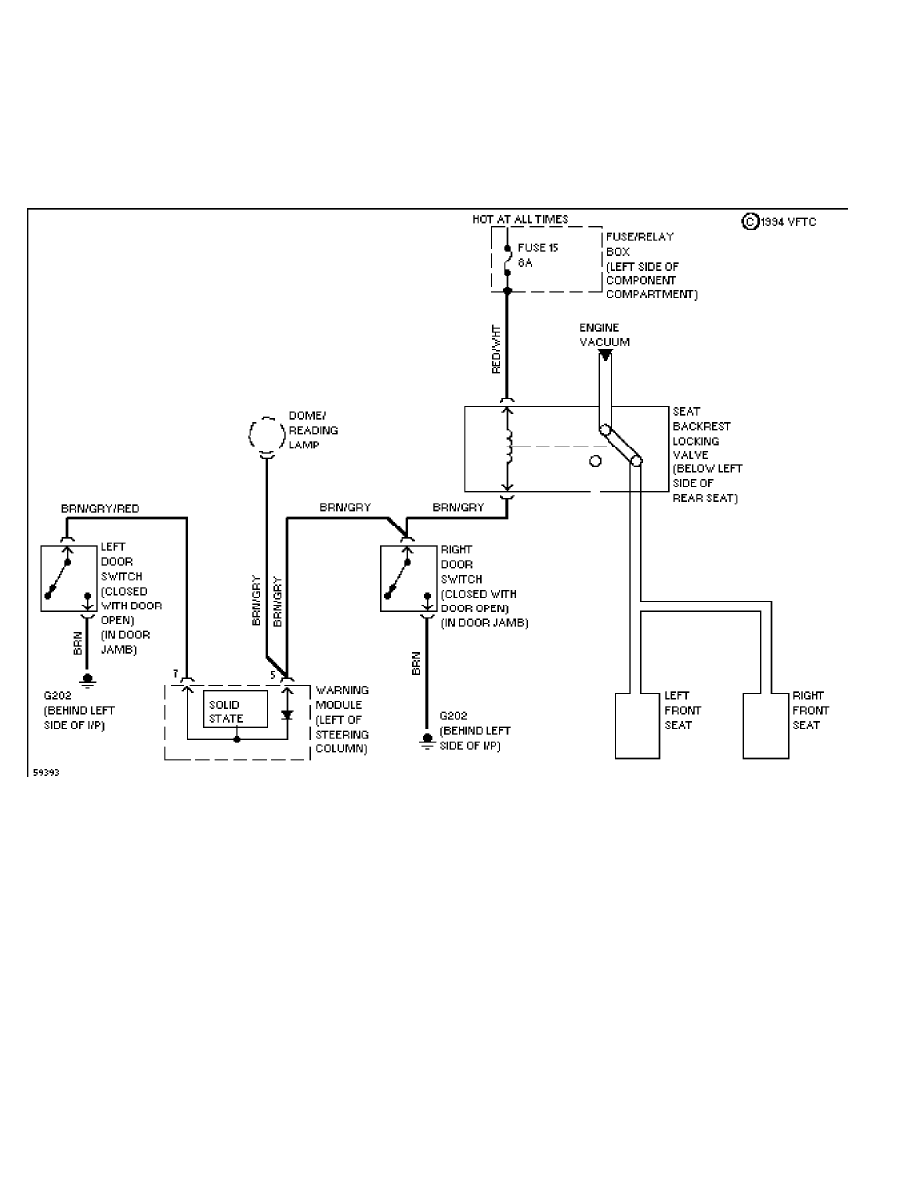

Seat Backrest Locking System
1989 Mercedes-Benz 560SEC
For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, November 29, 2000 08:41PM
SYSTEM WIRING DIAGRAMS

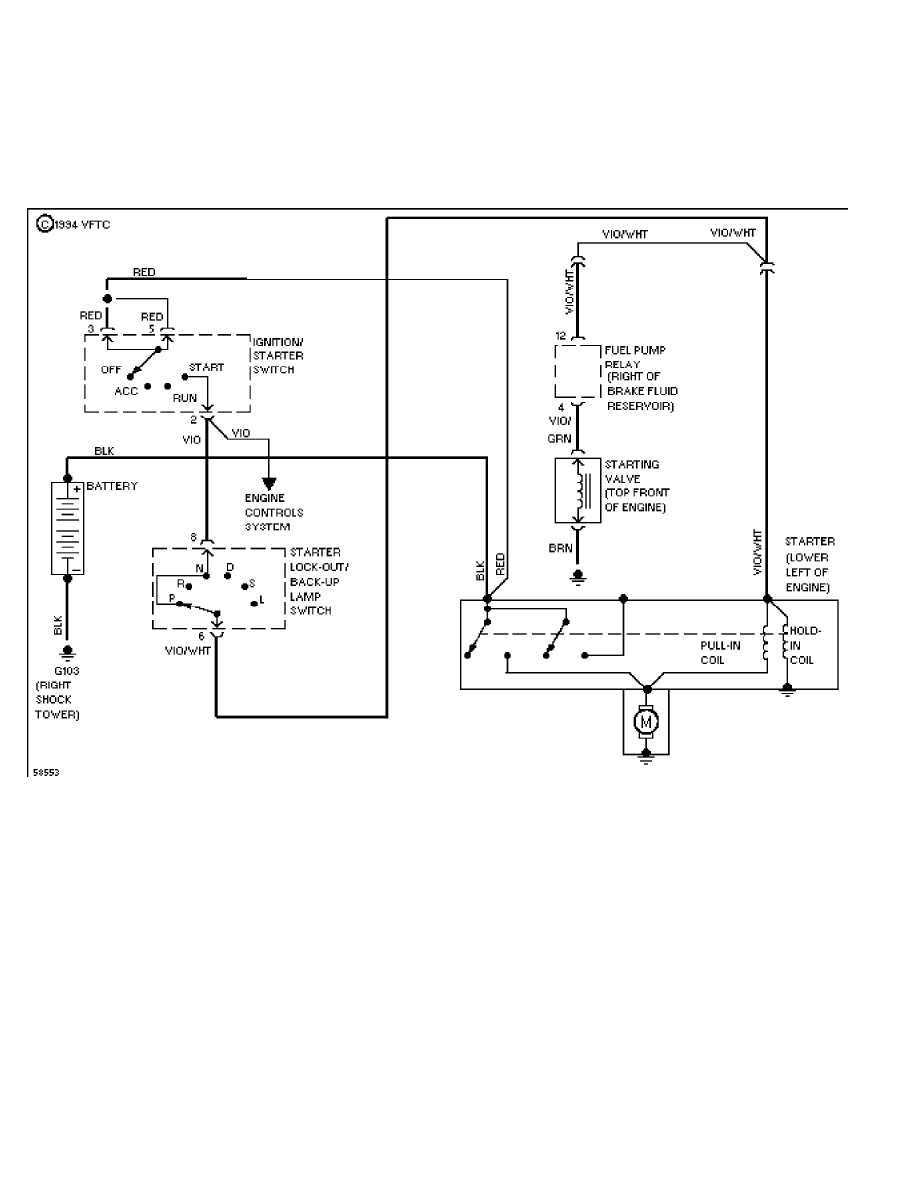

Starting Circuit
1989 Mercedes-Benz 560SEC
For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, November 29, 2000 08:42PM
SYSTEM WIRING DIAGRAMS

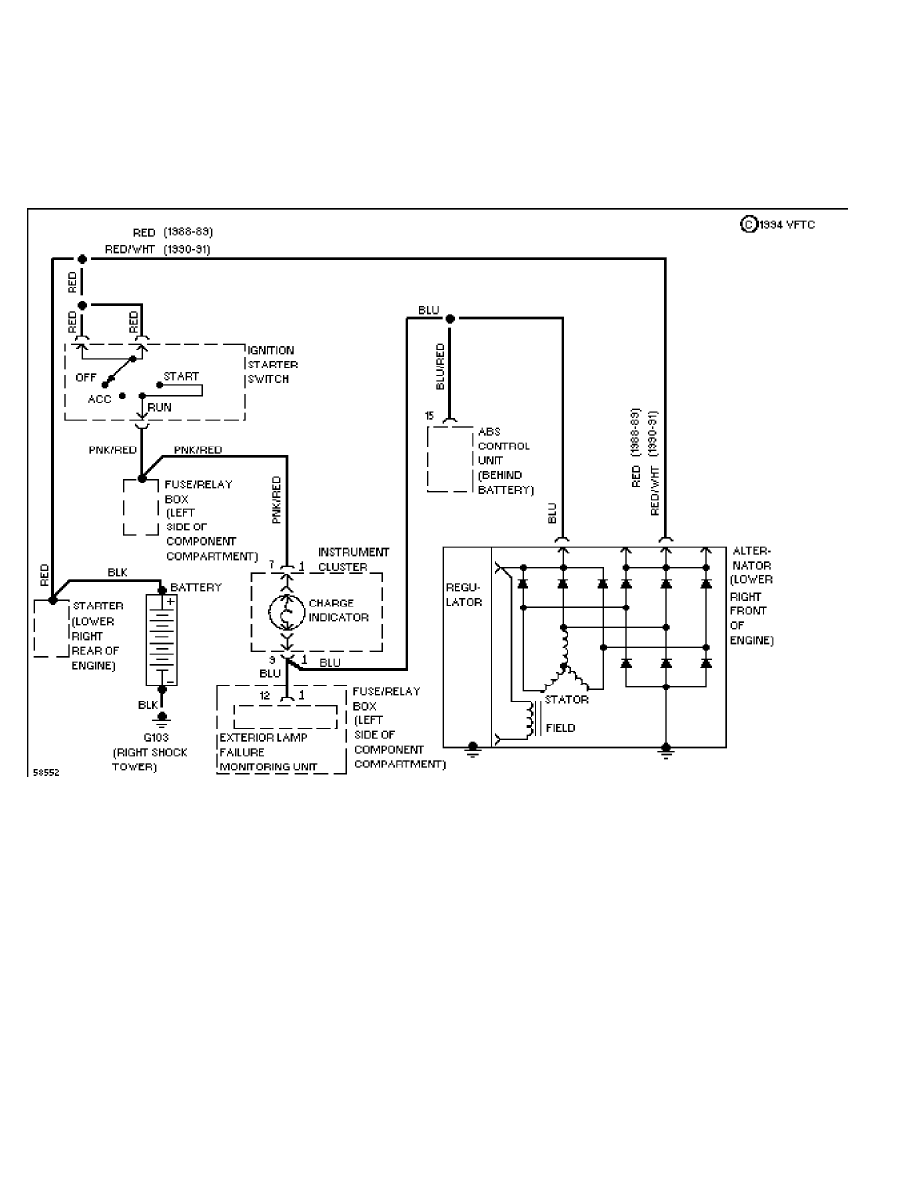

Charging Circuit
1989 Mercedes-Benz 560SEC
For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, November 29, 2000 08:42PM
SYSTEM WIRING DIAGRAMS

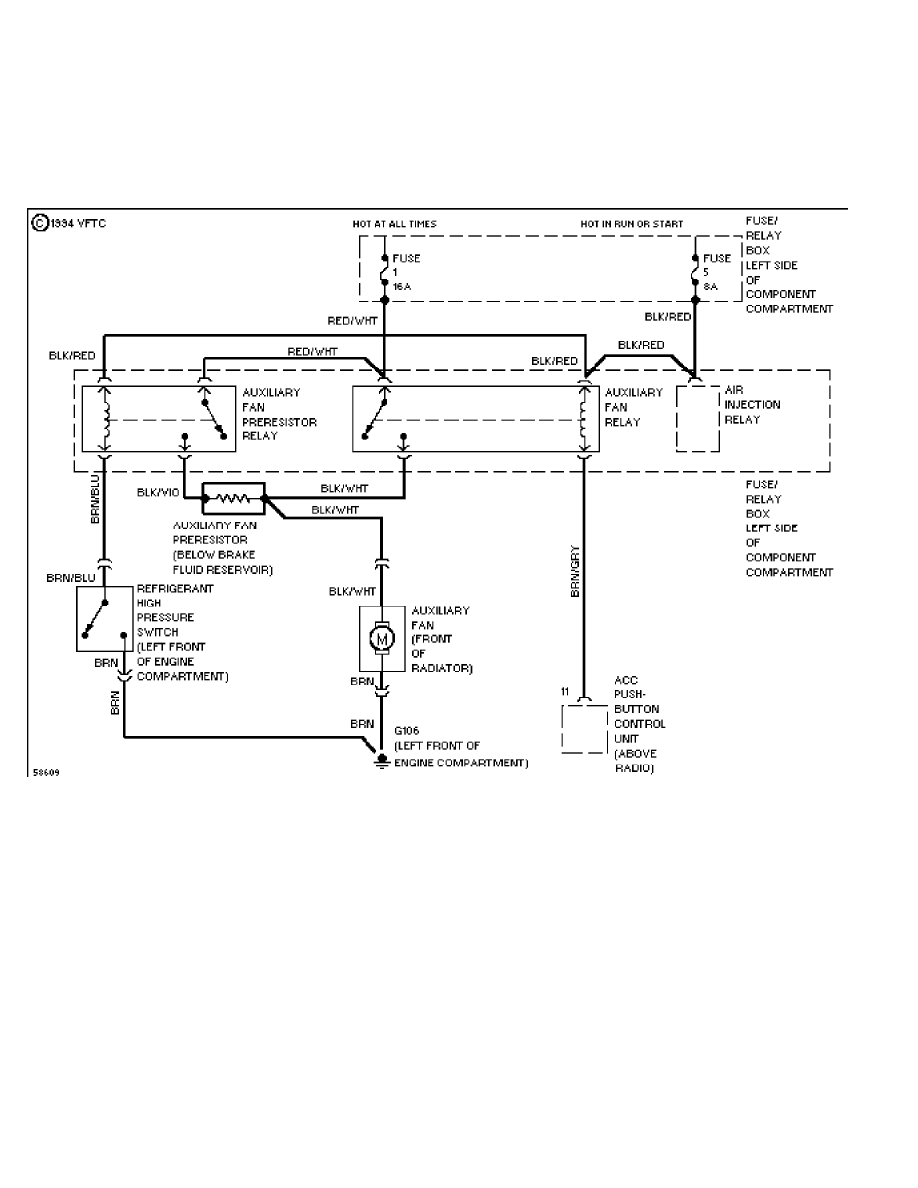

Cooling Fan Circuit
1989 Mercedes-Benz 560SEC
For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, November 29, 2000 08:37PM
SYSTEM WIRING DIAGRAMS

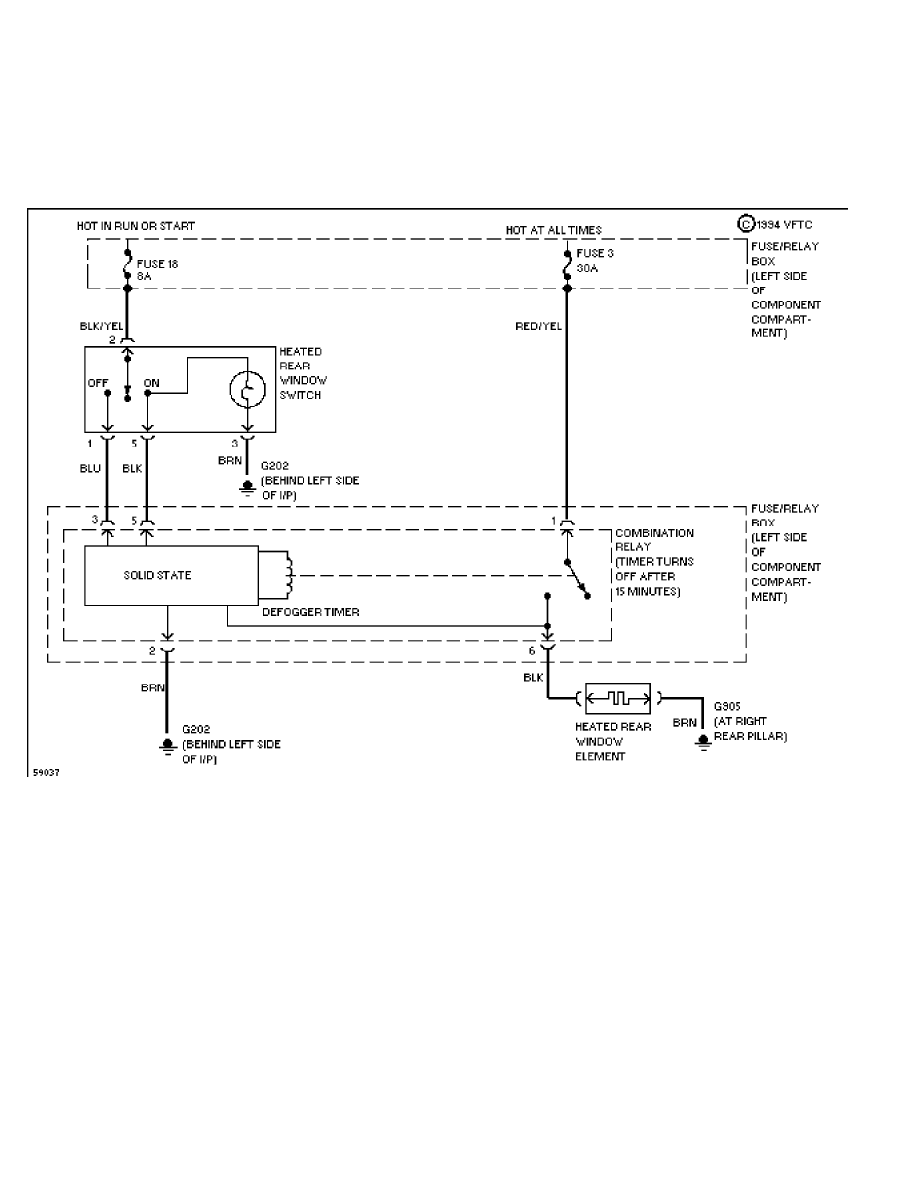

Defogger Circuit
1989 Mercedes-Benz 560SEC
For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, November 29, 2000 08:37PM
SYSTEM WIRING DIAGRAMS

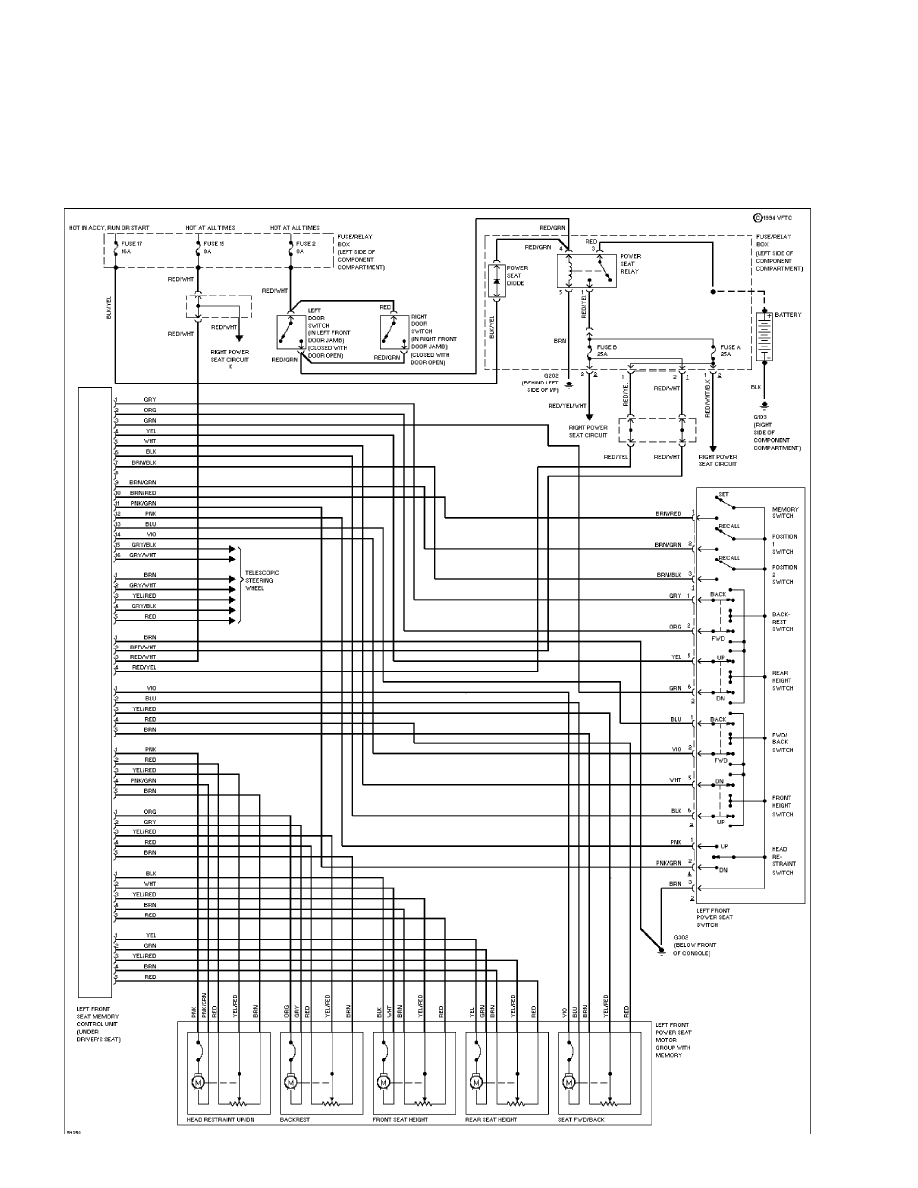

Driver Power Seat Circuit, Early Production
1989 Mercedes-Benz 560SEC
For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, November 29, 2000 08:39PM
SYSTEM WIRING DIAGRAMS

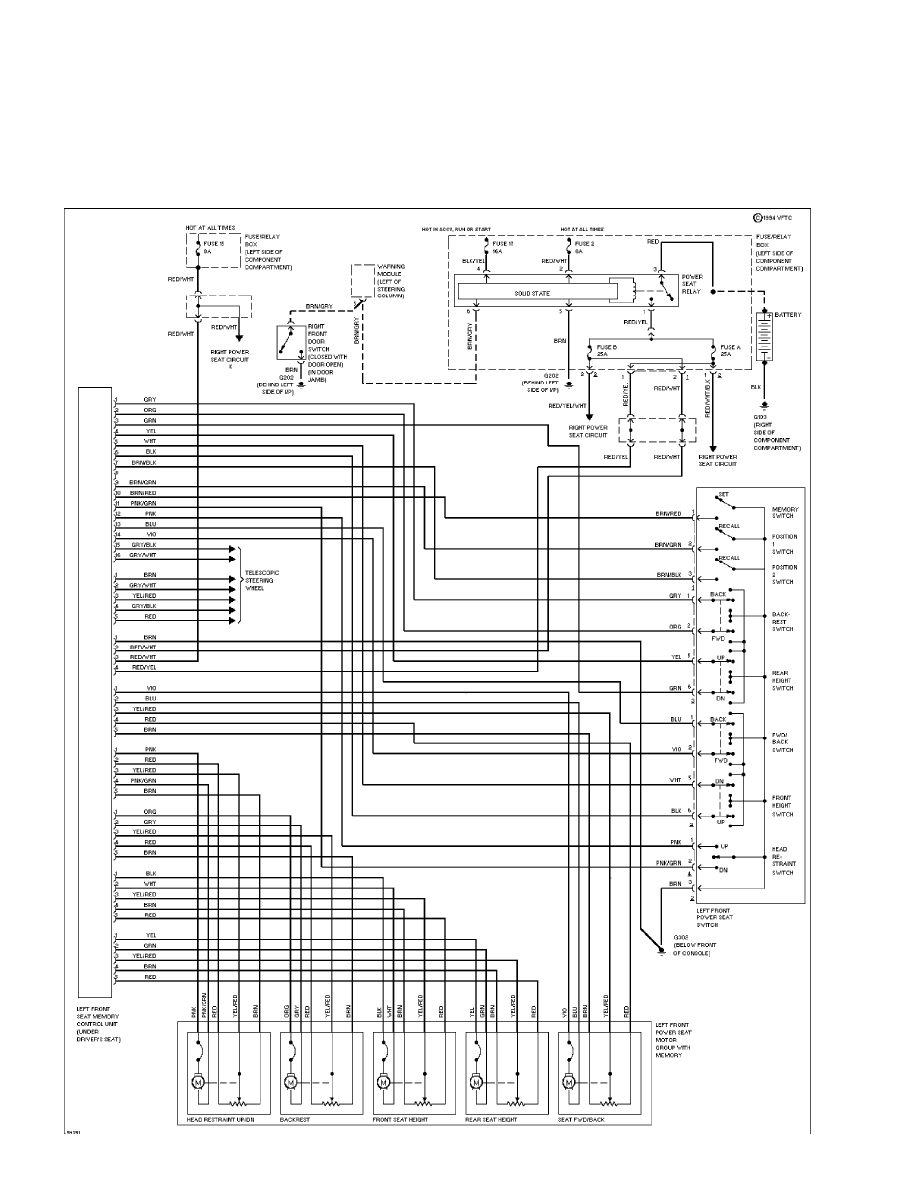

Driver Power Seat Circuit, Late Production
1989 Mercedes-Benz 560SEC
For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, November 29, 2000 08:39PM
SYSTEM WIRING DIAGRAMS

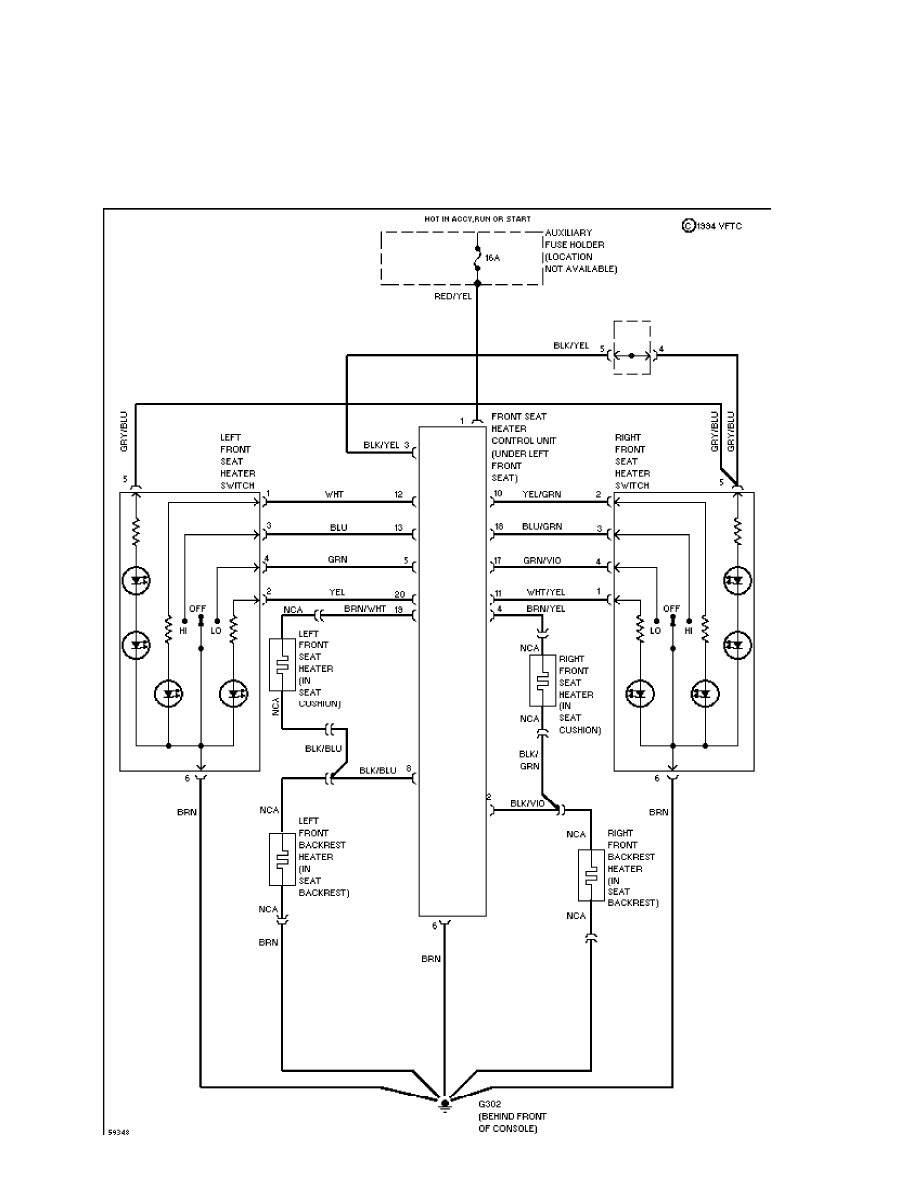

Front Seat Heater Circuit
1989 Mercedes-Benz 560SEC
For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, November 29, 2000 08:40PM
SYSTEM WIRING DIAGRAMS

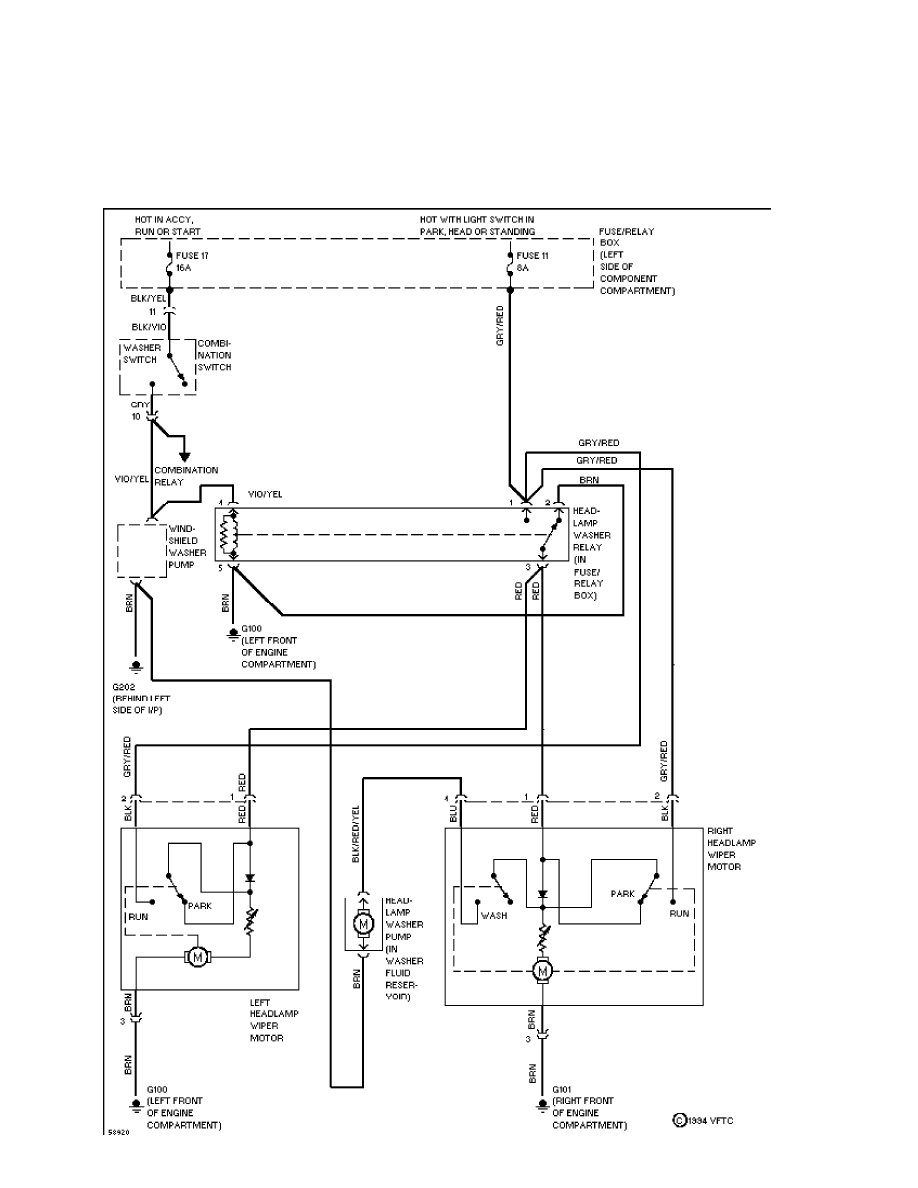

Headlight Washer/Wiper Circuit
1989 Mercedes-Benz 560SEC
For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, November 29, 2000 08:42PM
SYSTEM WIRING DIAGRAMS

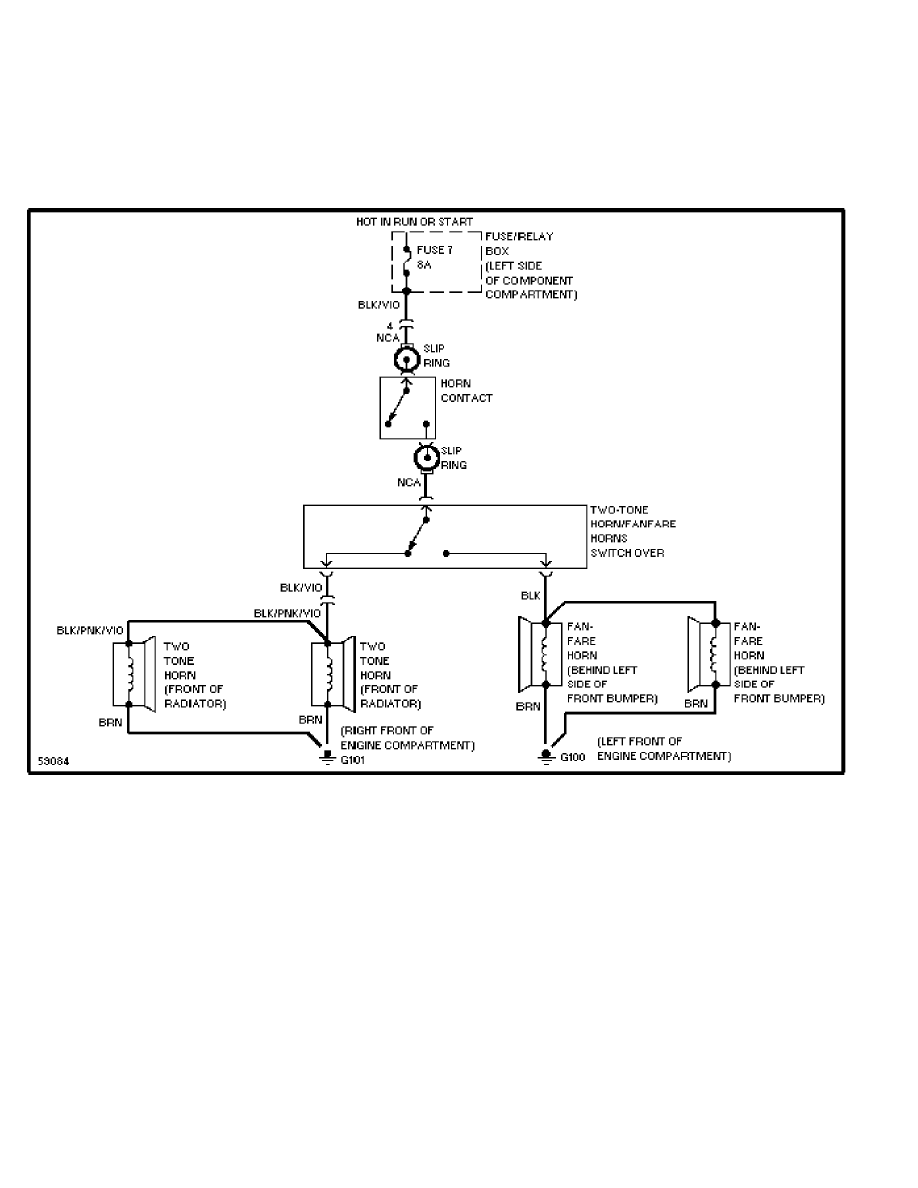

Horn Circuit
1989 Mercedes-Benz 560SEC
For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, November 29, 2000 08:37PM
SYSTEM WIRING DIAGRAMS

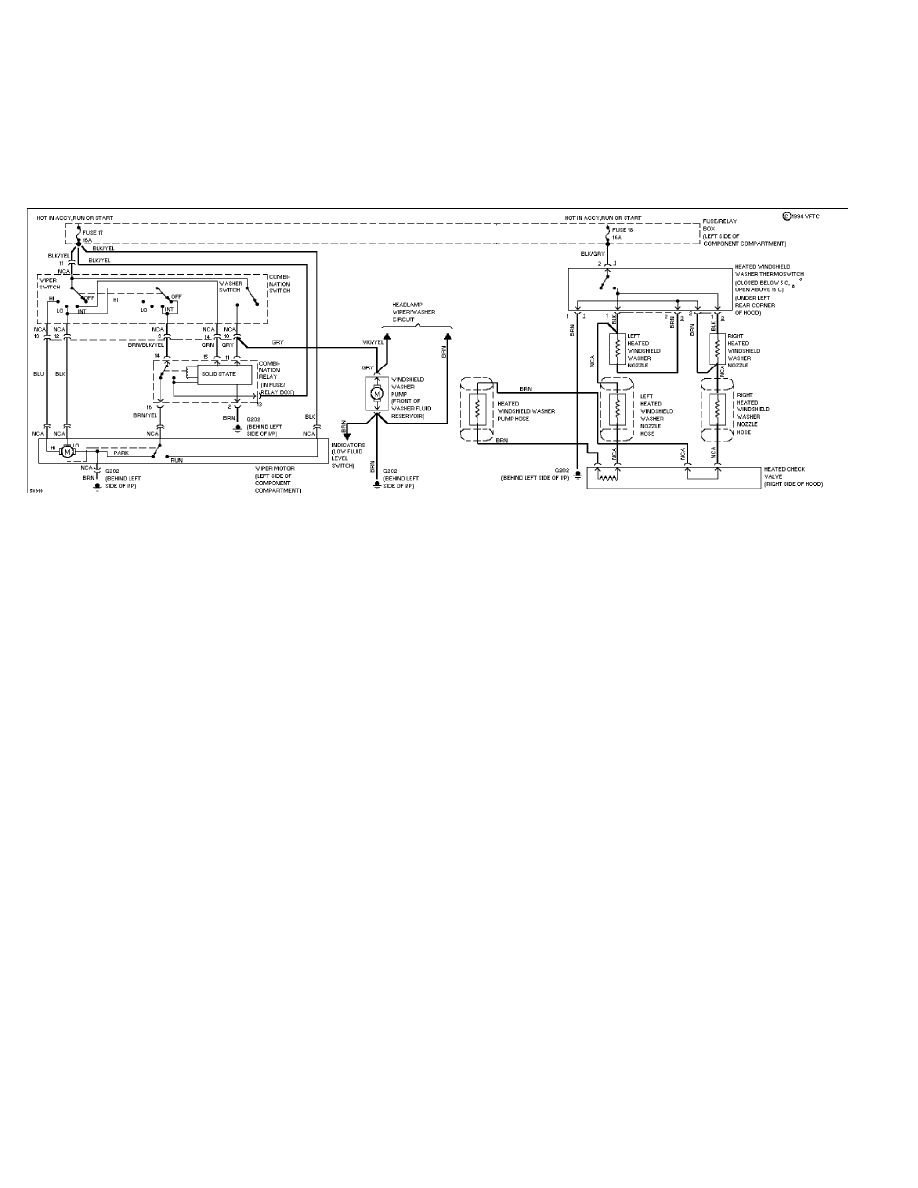

Interval Wiper/Washer Circuit
1989 Mercedes-Benz 560SEC
For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, November 29, 2000 08:42PM
SYSTEM WIRING DIAGRAMS

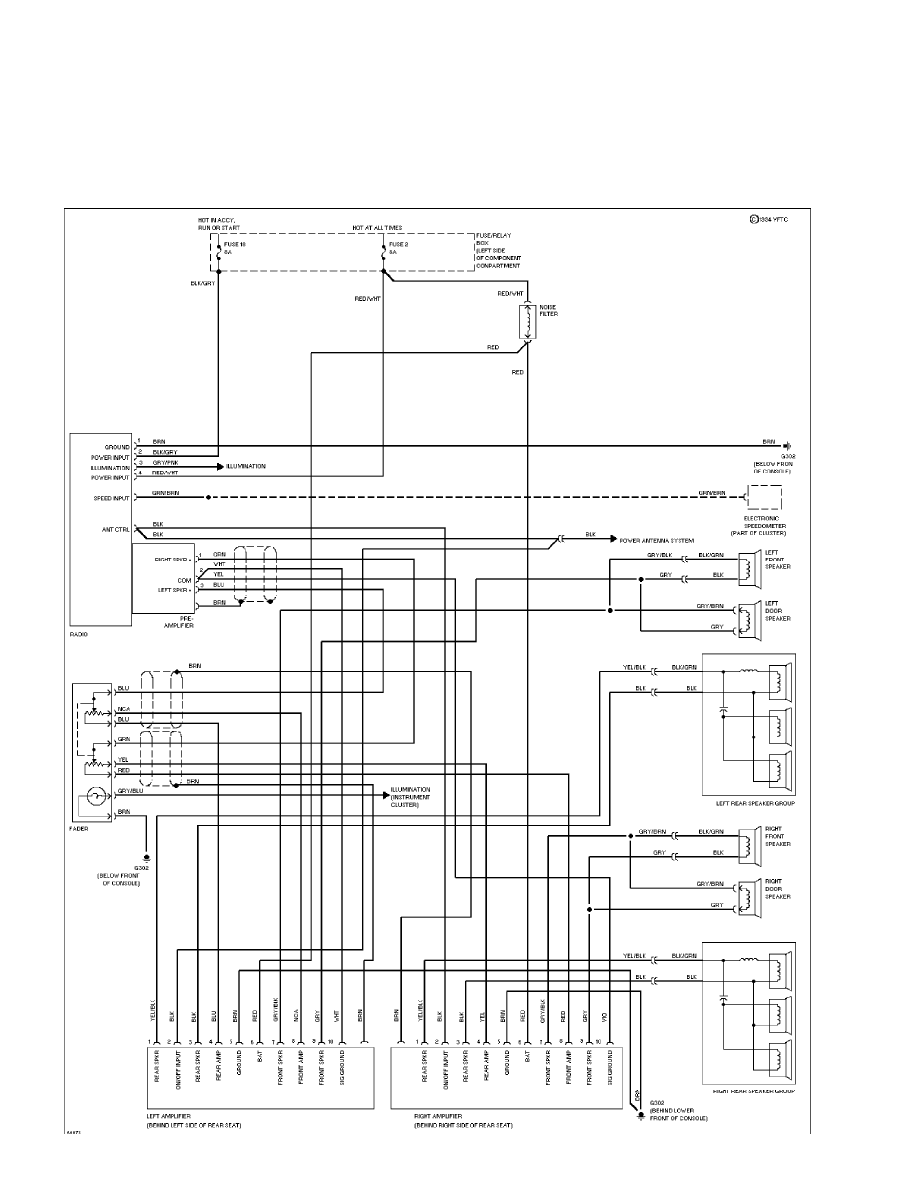

One Piece Radio, W/ Sound System
1989 Mercedes-Benz 560SEC
For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, November 29, 2000 08:41PM
SYSTEM WIRING DIAGRAMS

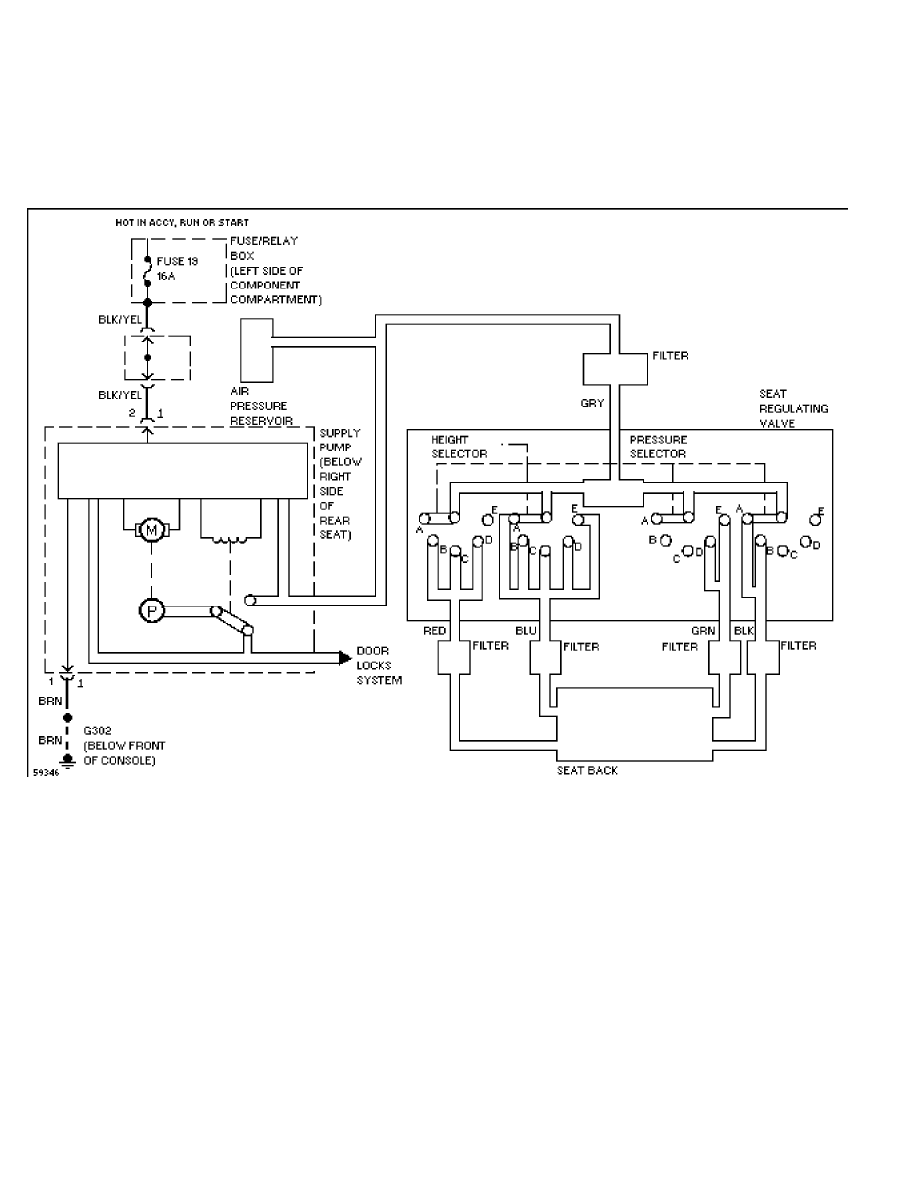

Orthopedic Seats
1989 Mercedes-Benz 560SEC
For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, November 29, 2000 08:40PM
SYSTEM WIRING DIAGRAMS

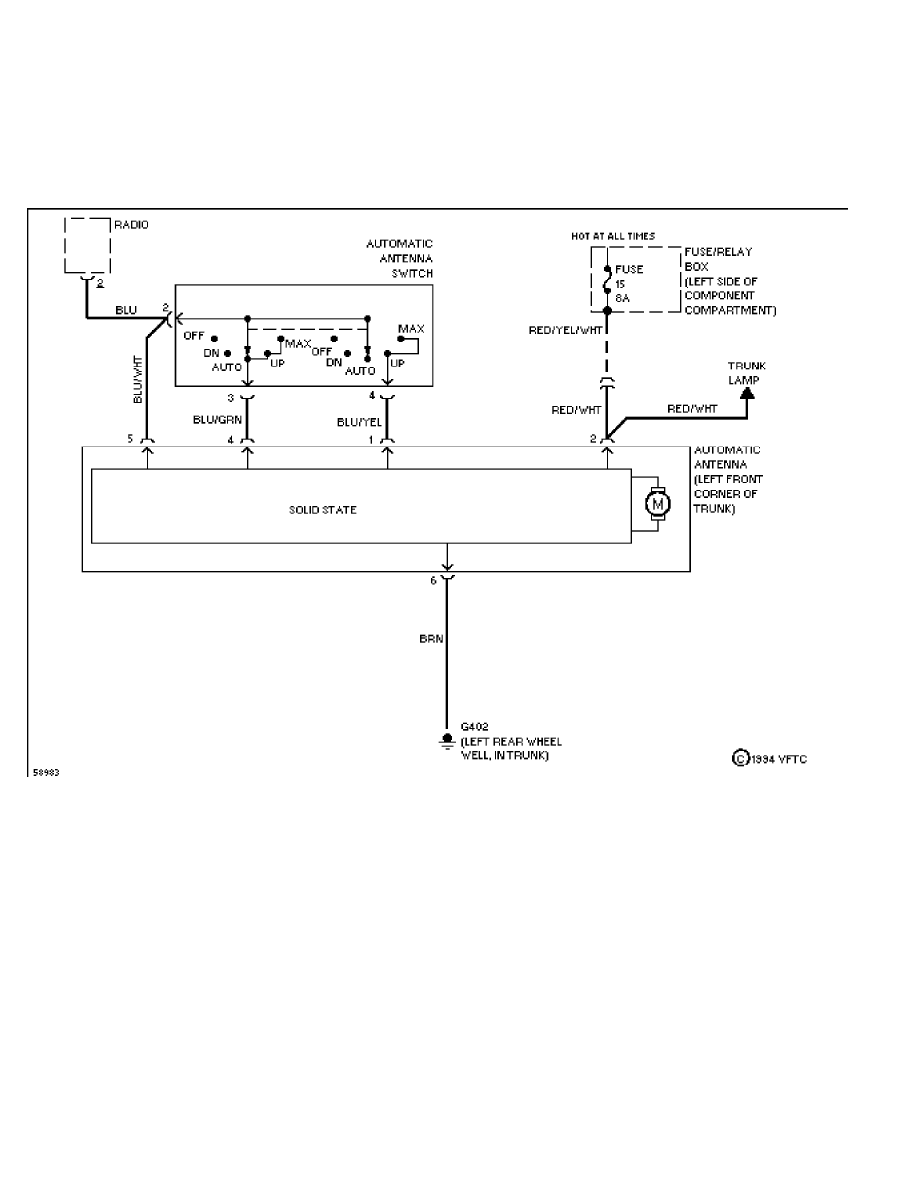

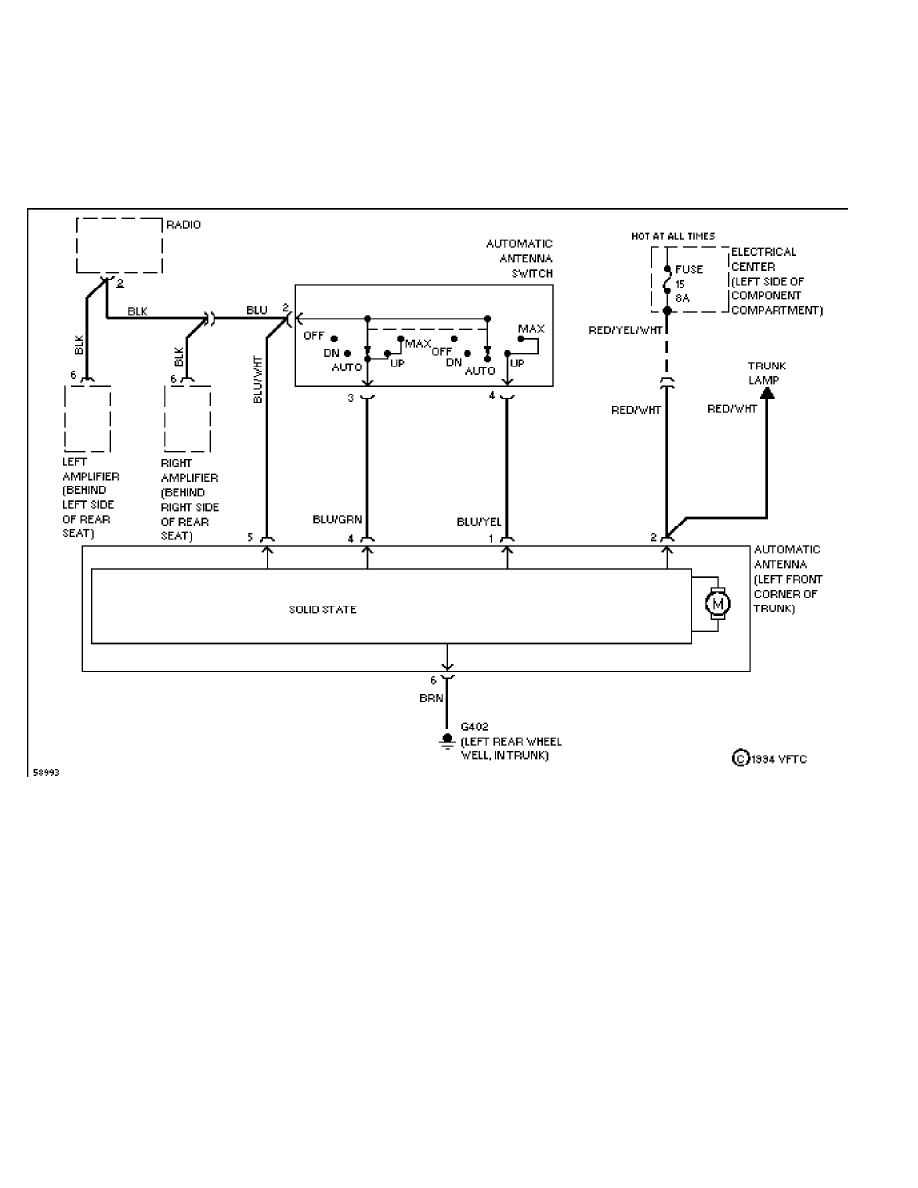

Power Antenna Circuit, Base Radio
1989 Mercedes-Benz 560SEC
For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, November 29, 2000 08:37PM
SYSTEM WIRING DIAGRAMS
Power Antenna Circuit, W/ Sound System
1989 Mercedes-Benz 560SEC
For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, November 29, 2000 08:37PM
SYSTEM WIRING DIAGRAMS

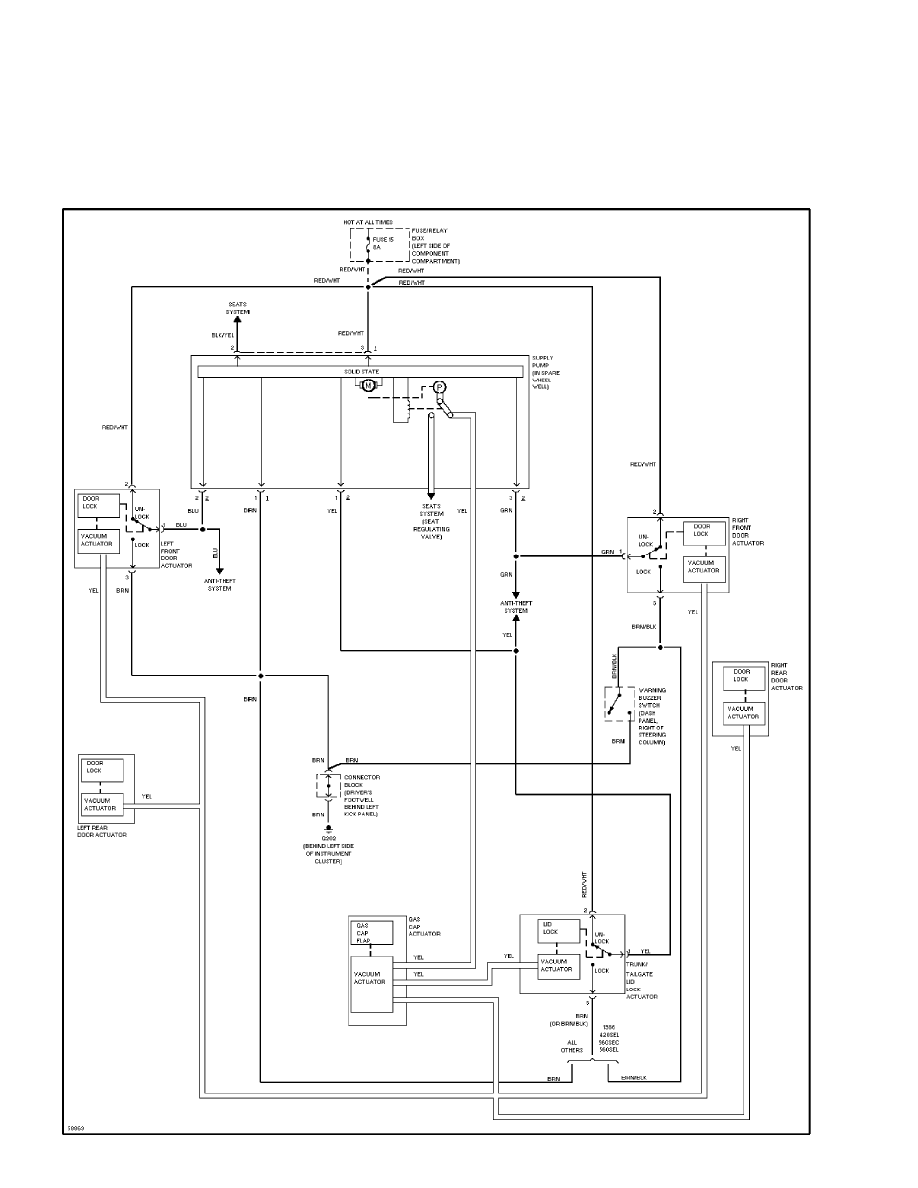

Power Door Lock Circuit
1989 Mercedes-Benz 560SEC
For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, November 29, 2000 08:38PM
SYSTEM WIRING DIAGRAMS

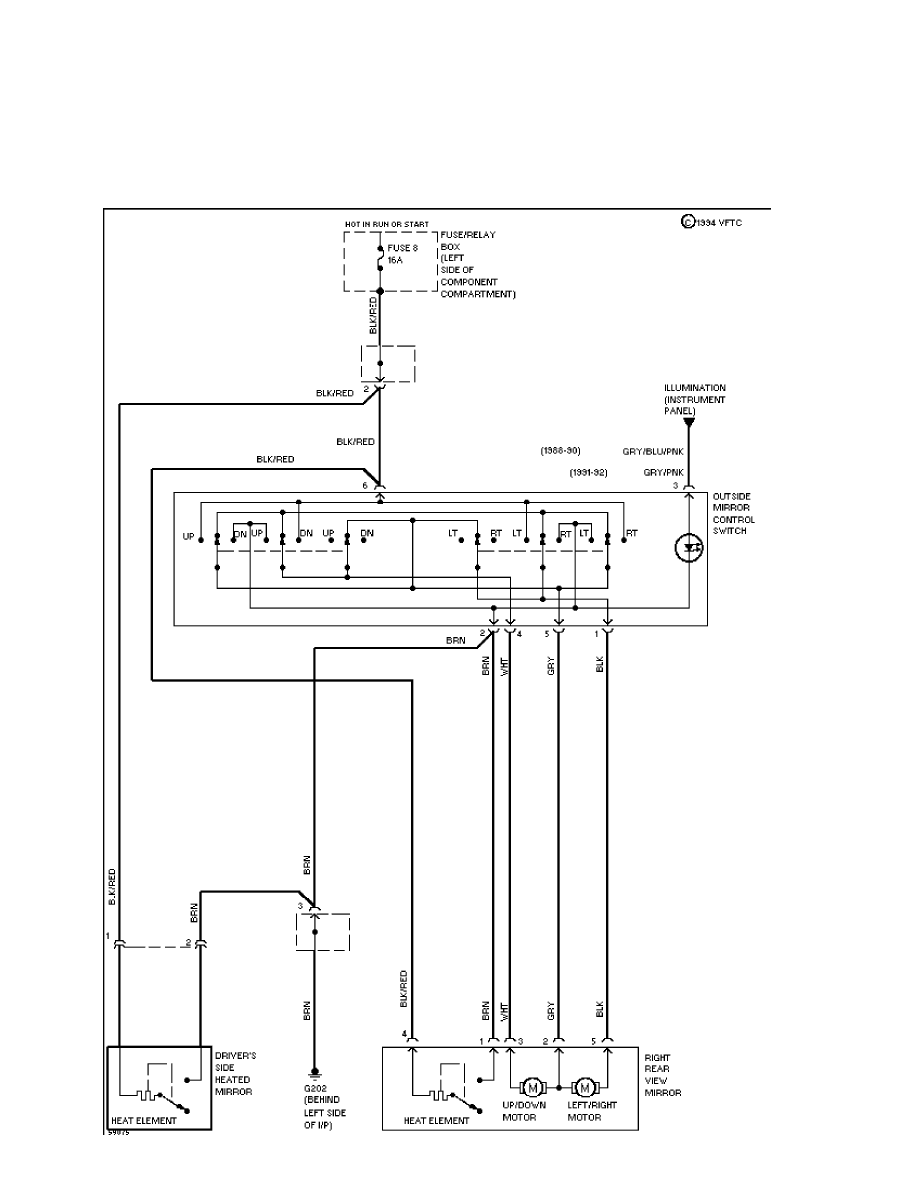

Power Mirror Circuit
1989 Mercedes-Benz 560SEC
For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, November 29, 2000 08:38PM
SYSTEM WIRING DIAGRAMS

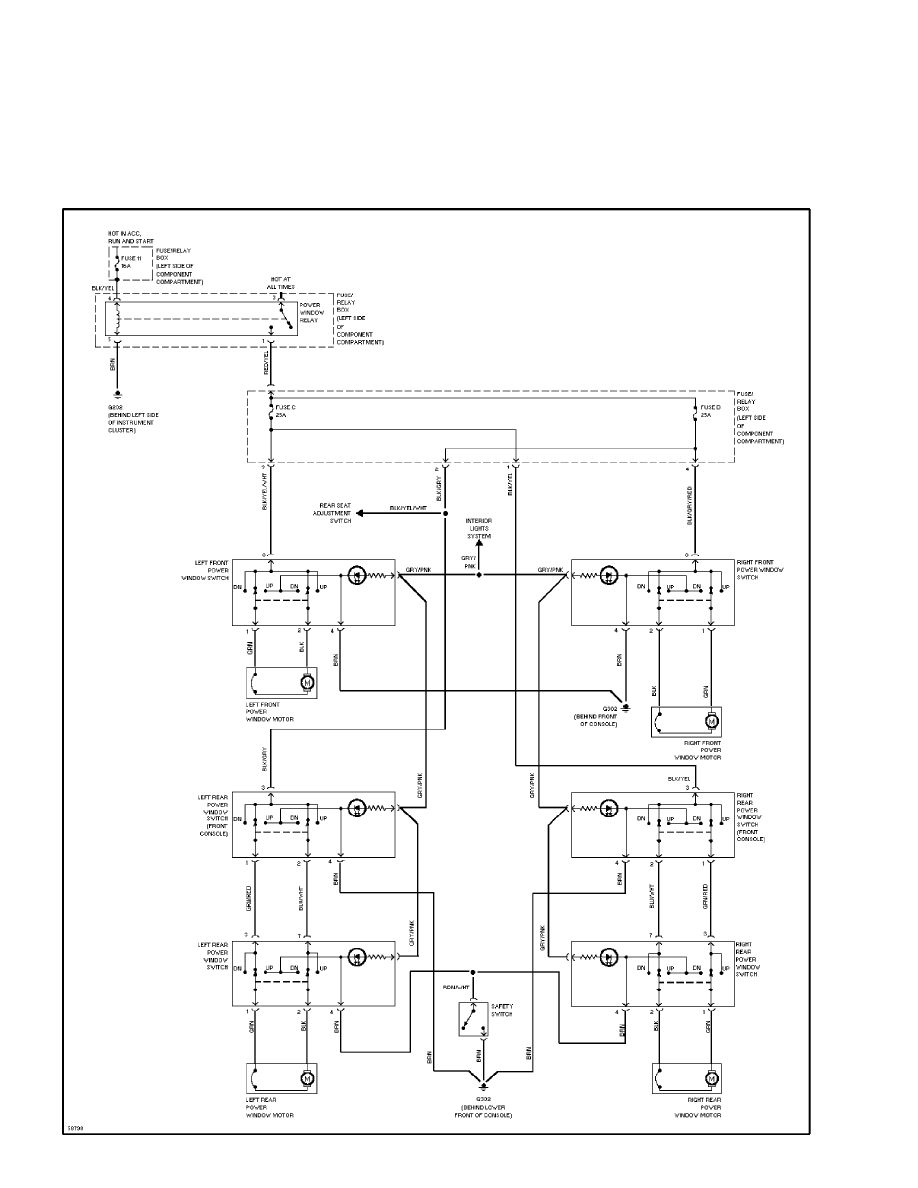

Power Window Circuit
1989 Mercedes-Benz 560SEC
For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, November 29, 2000 08:41PM
SYSTEM WIRING DIAGRAMS
Rear Seat Adjuster Circuit
1989 Mercedes-Benz 560SEC
For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, November 29, 2000 08:40PM
SYSTEM WIRING DIAGRAMS
Rear Seat Heater Circuit
1989 Mercedes-Benz 560SEC
For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, November 29, 2000 08:40PM
SYSTEM WIRING DIAGRAMS

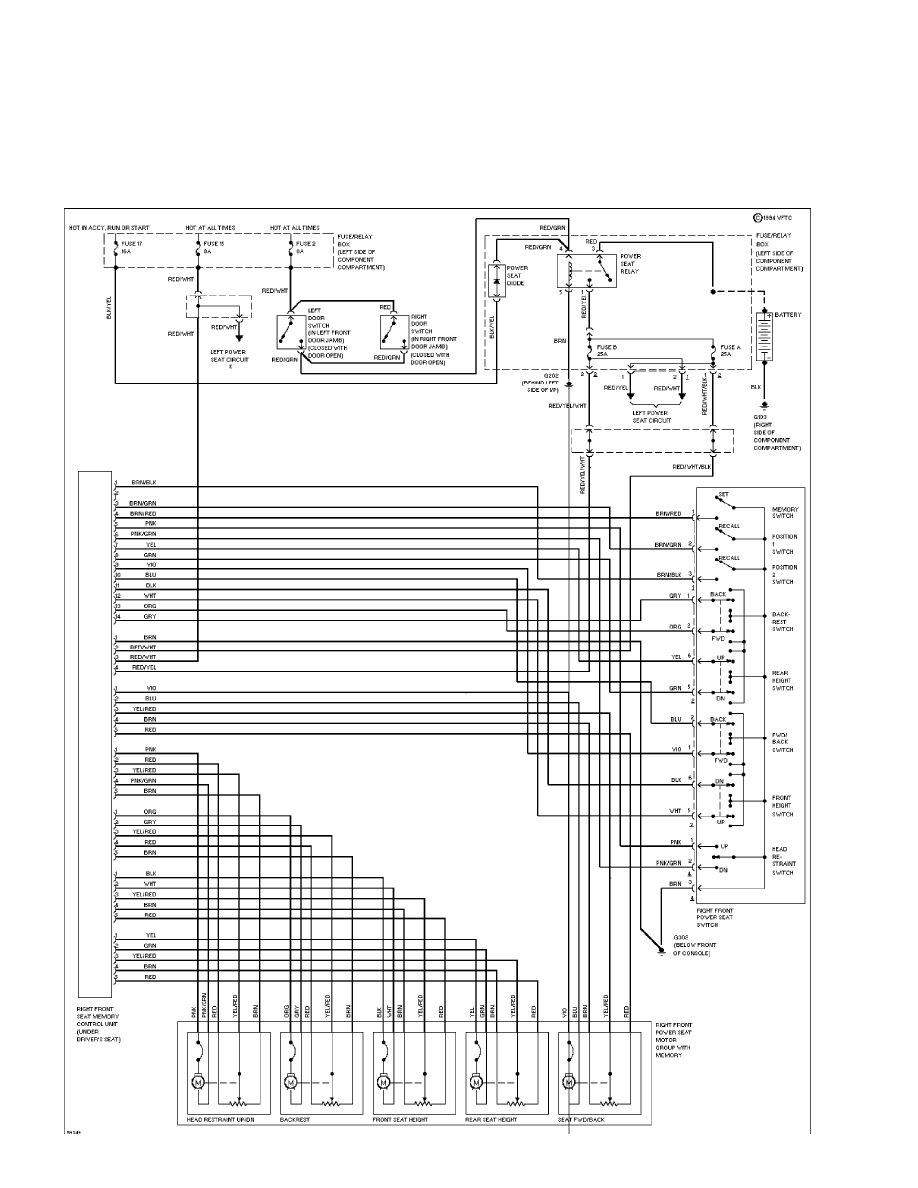

Right Seat Circuit, Early Production
1989 Mercedes-Benz 560SEC
For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, November 29, 2000 08:41PM
SYSTEM WIRING DIAGRAMS

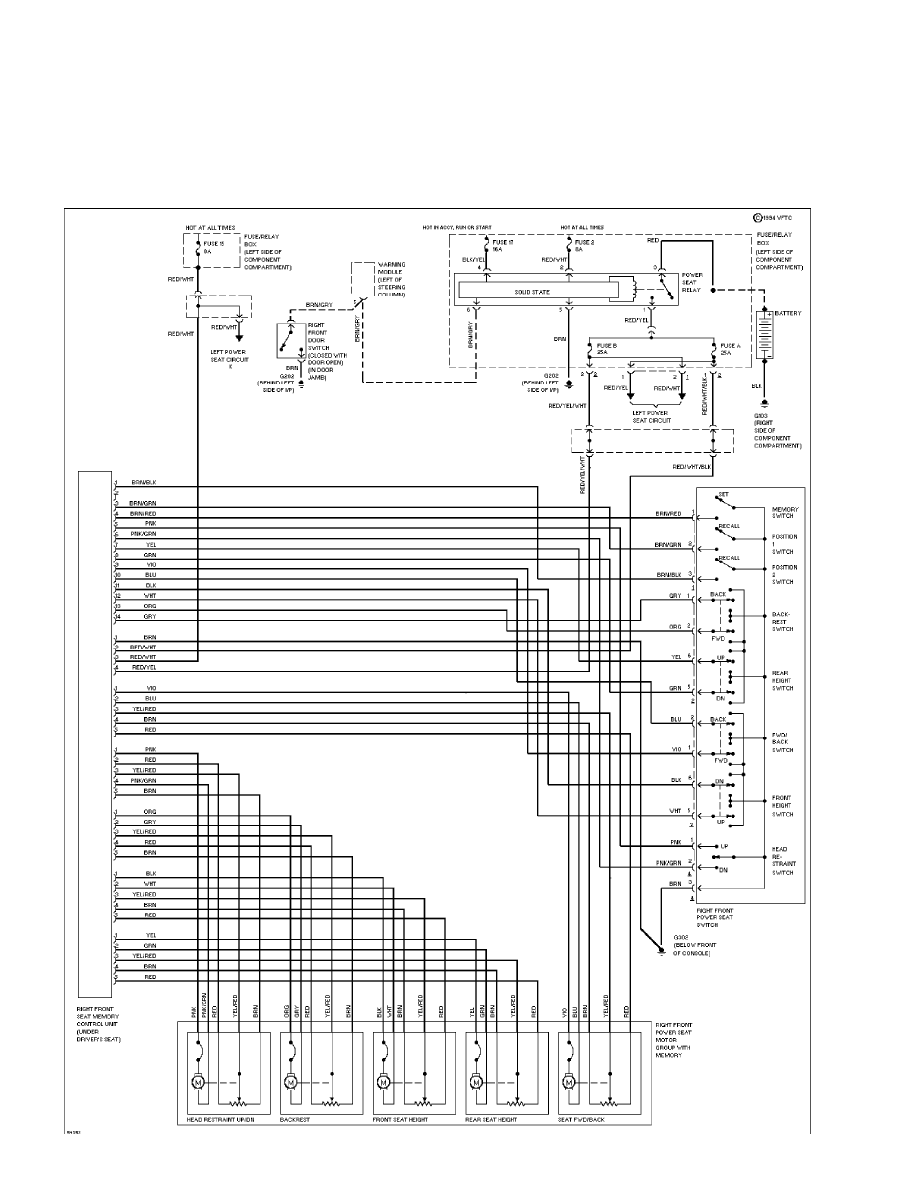

Right Seat Circuit, Late Production
1989 Mercedes-Benz 560SEC
For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, November 29, 2000 08:41PM
