032R9500

EVR 2, 3, 4, 6,  8, 10 (NC fl are)

 DKRCC.PI.BB0.A1.02-520H0419

032R9500

© Danfoss A/S 05-2005

EVR 15, 20
(NC fl ange)

EVR 6, 10 (NC solder)

Note: Tube
construction

Instruction

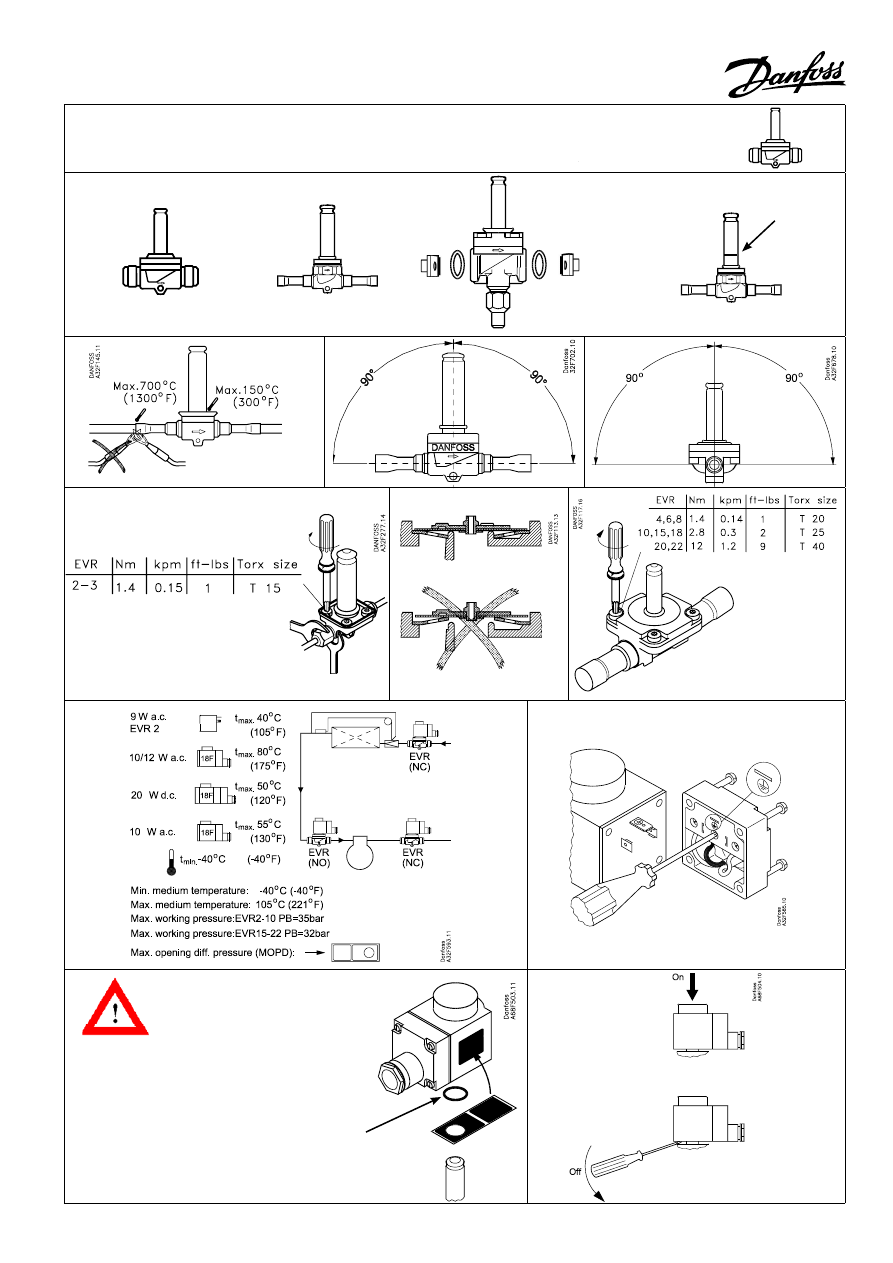

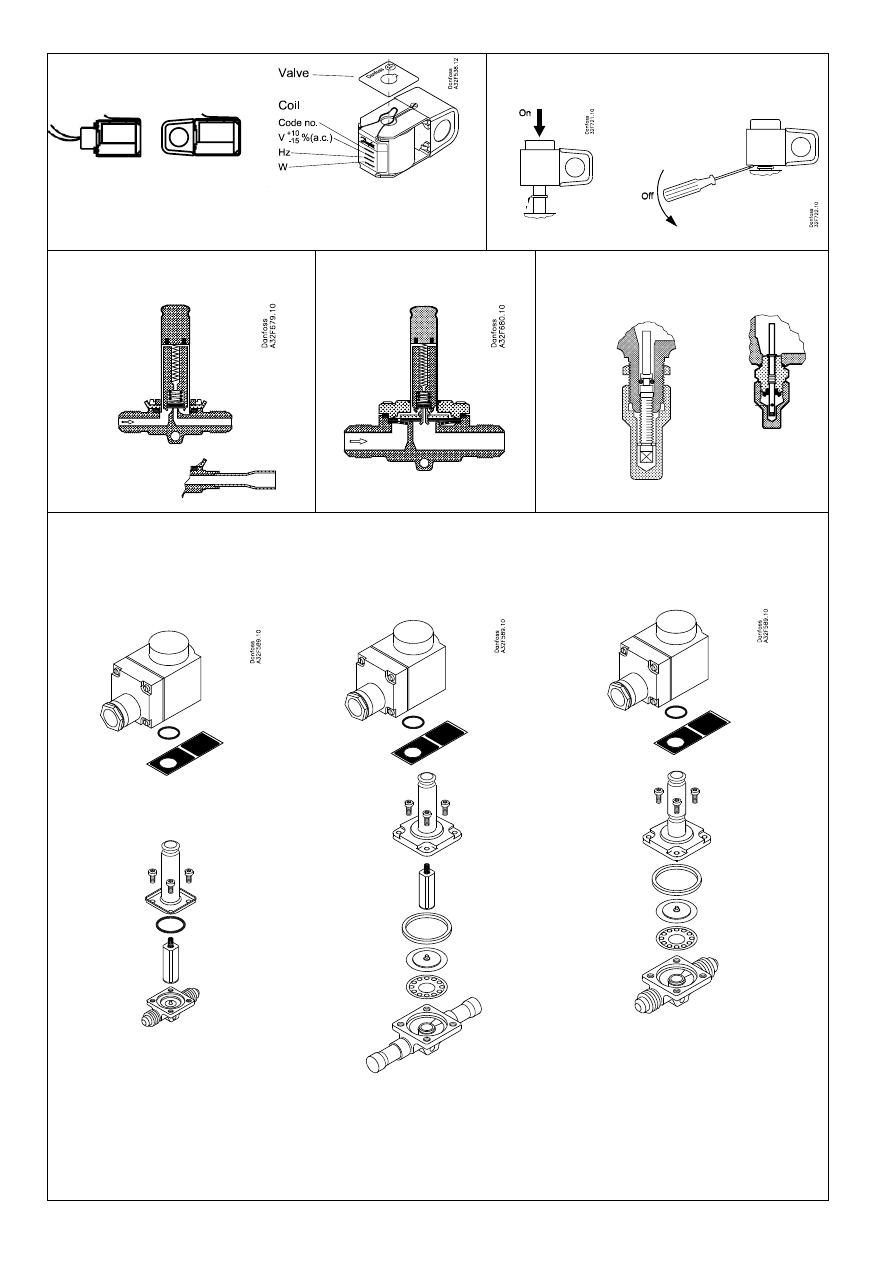

EVR 2 - 22, Normally Closed/Normally Open (NC/NO)

Refrigerants CFC, HCFC, HFC

Be sure that the O-ring is
in place

Warning
Never switch on power
to the coil when the coil
is dismounted from the
valve. Otherwise the coil
may be damaged and
there is risk of injuries and
burns

EVR 2, 3, 4, 6, 8, 10 (NO solder)

Conduit coil

Junction box

© Danfoss A/S, (IC-MC,mr)  05 - 2005

DKRCC.PI.BB0.A1.02

EVR 2, 3 (NC)

EVR 4 - 22 (NC)

EVR 4 - 22 (NC)

EVR 3 (NC)

EVR 15 - 22 (NC)

EVR 6 - 20 (NO)

EVR 4 - 10 (NC)

UL approved coils

UL approved coils

Caution
Wiring and fusing (when used) must
comply with prevailing local and
national wiring codes and ordinances
