WIRING DIAGRAMS

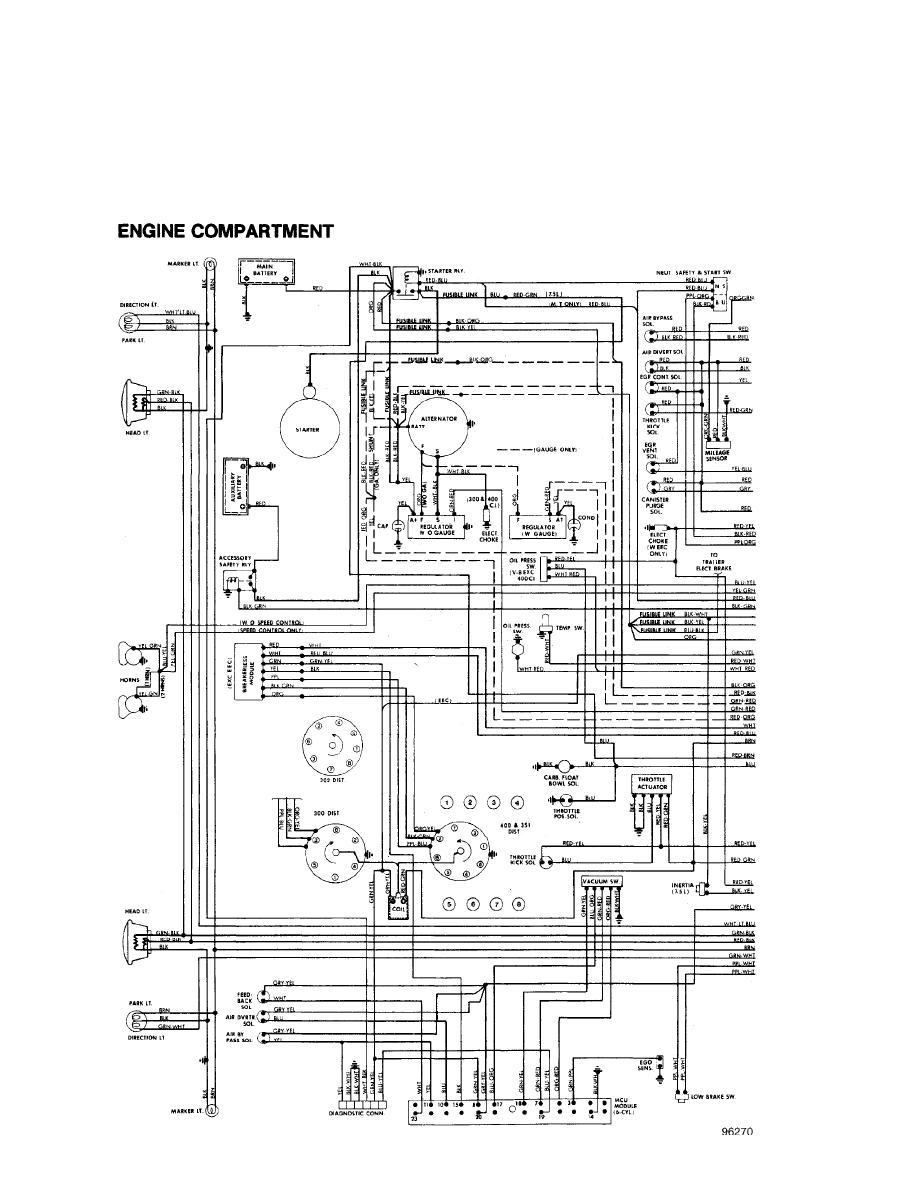

Fig. 1:  Engine Compartment

1983 Ford Econoline/Club Wagon

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006  06:33PM

background image

WIRING DIAGRAMS

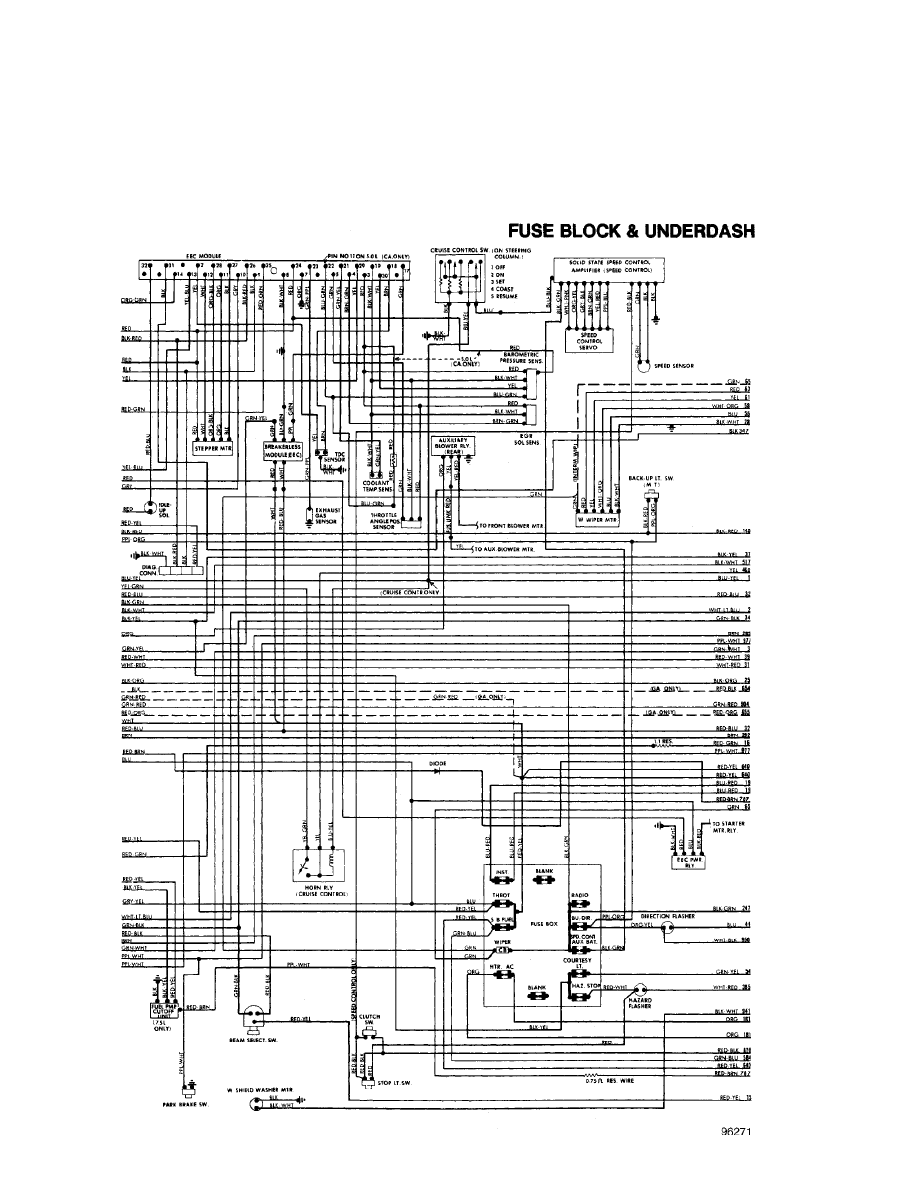

Fig. 2:  Fuse Block & Underdash (p. 2)

1983 Ford Econoline/Club Wagon

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006  06:33PM

background image

WIRING DIAGRAMS

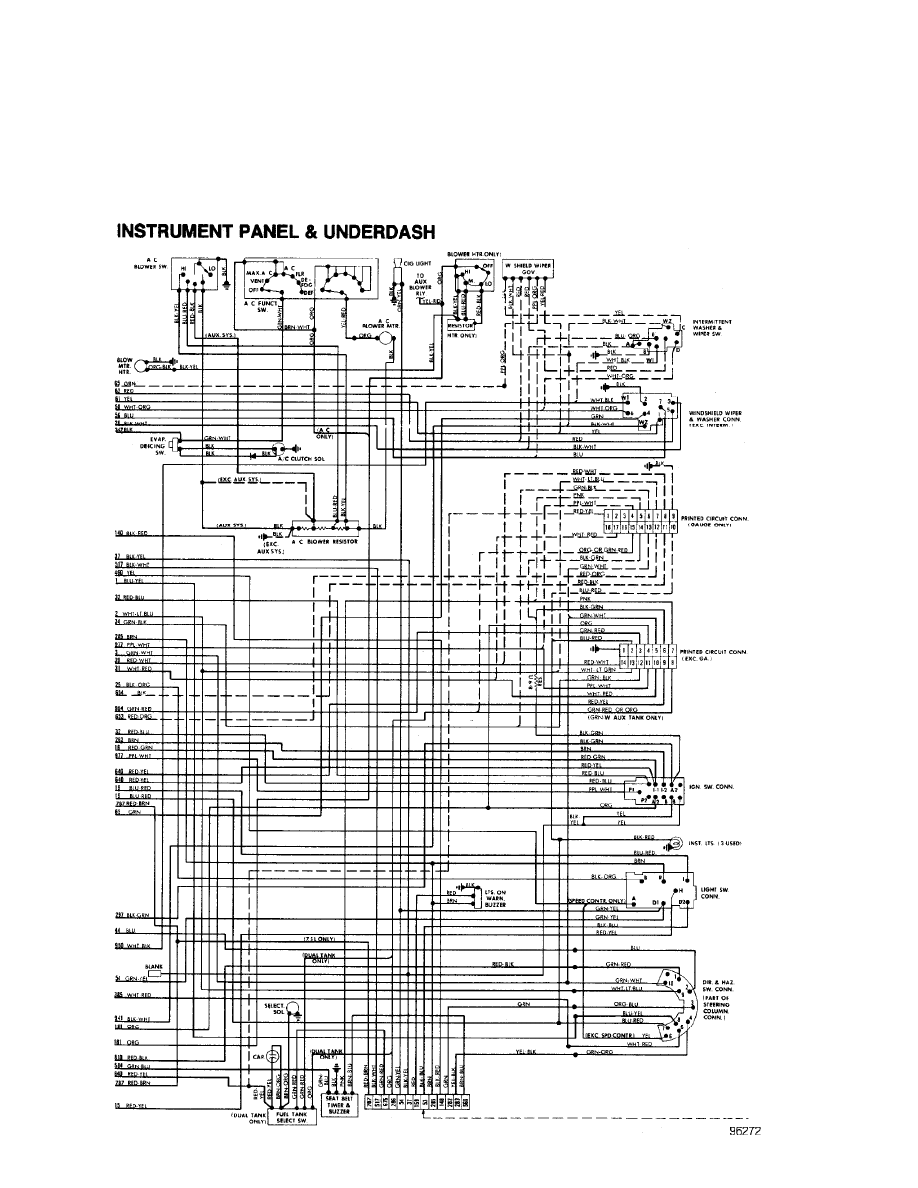

Fig. 3:  Instrument Panel & Underdash (p. 3)

1983 Ford Econoline/Club Wagon

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006  06:33PM

background image

WIRING DIAGRAMS

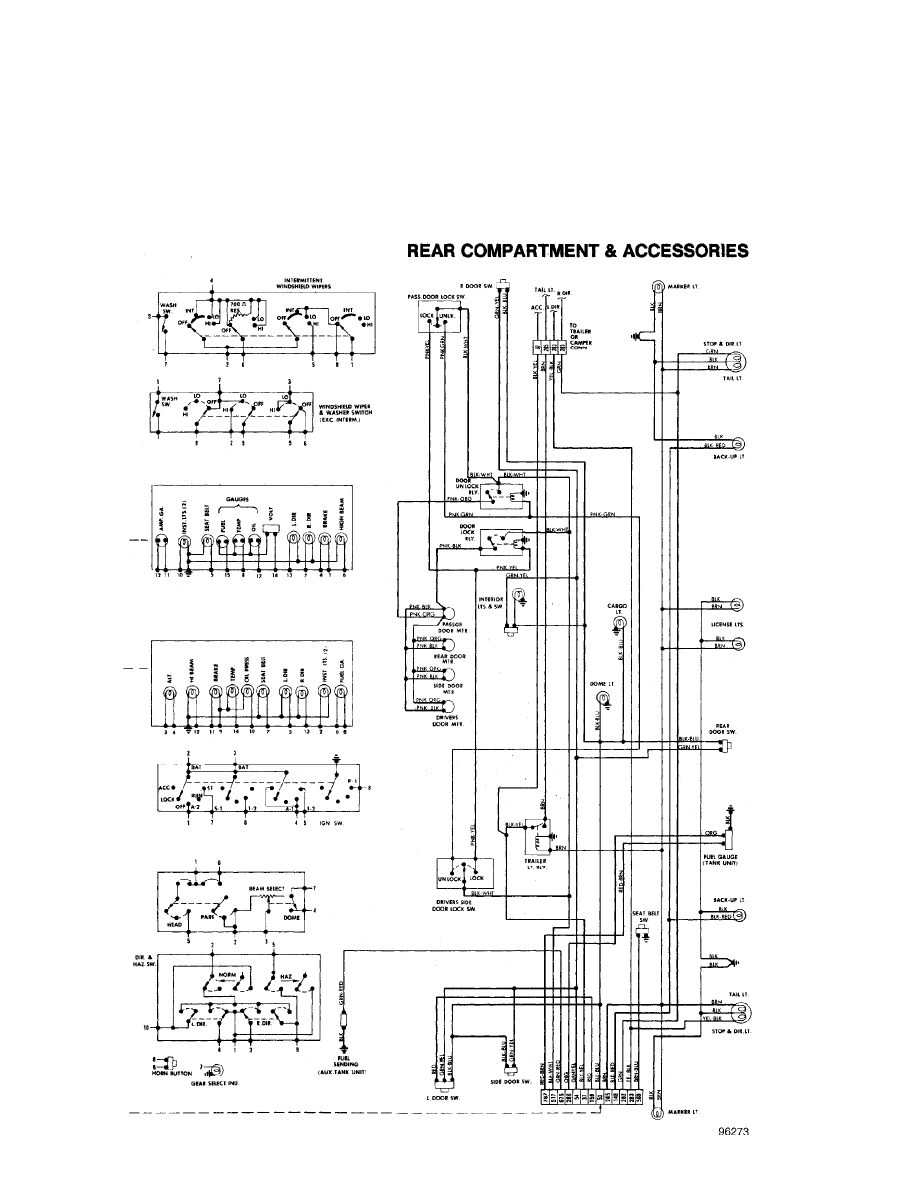

Fig. 4:  Rear Compartment & Accessories

 The Component Marked Fuel Gauge Sending Unit is also the Fuel Pump (p. 4)

1983 Ford Econoline/Club Wagon

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006  06:33PM
