WIRING DIAGRAMS

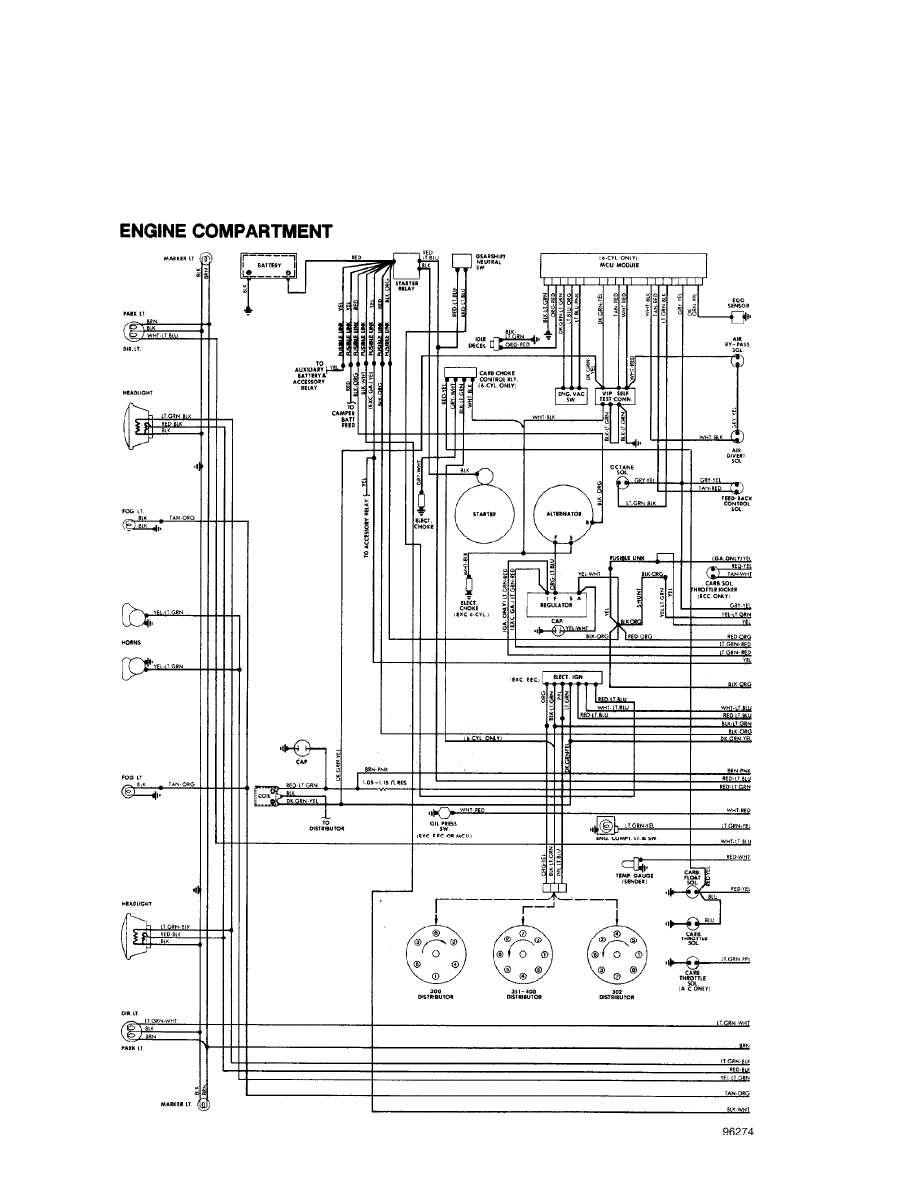

Fig. 1:  Engine Compartment - Gas Engines

1983 Ford Bronco

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006  06:15PM

background image

WIRING DIAGRAMS

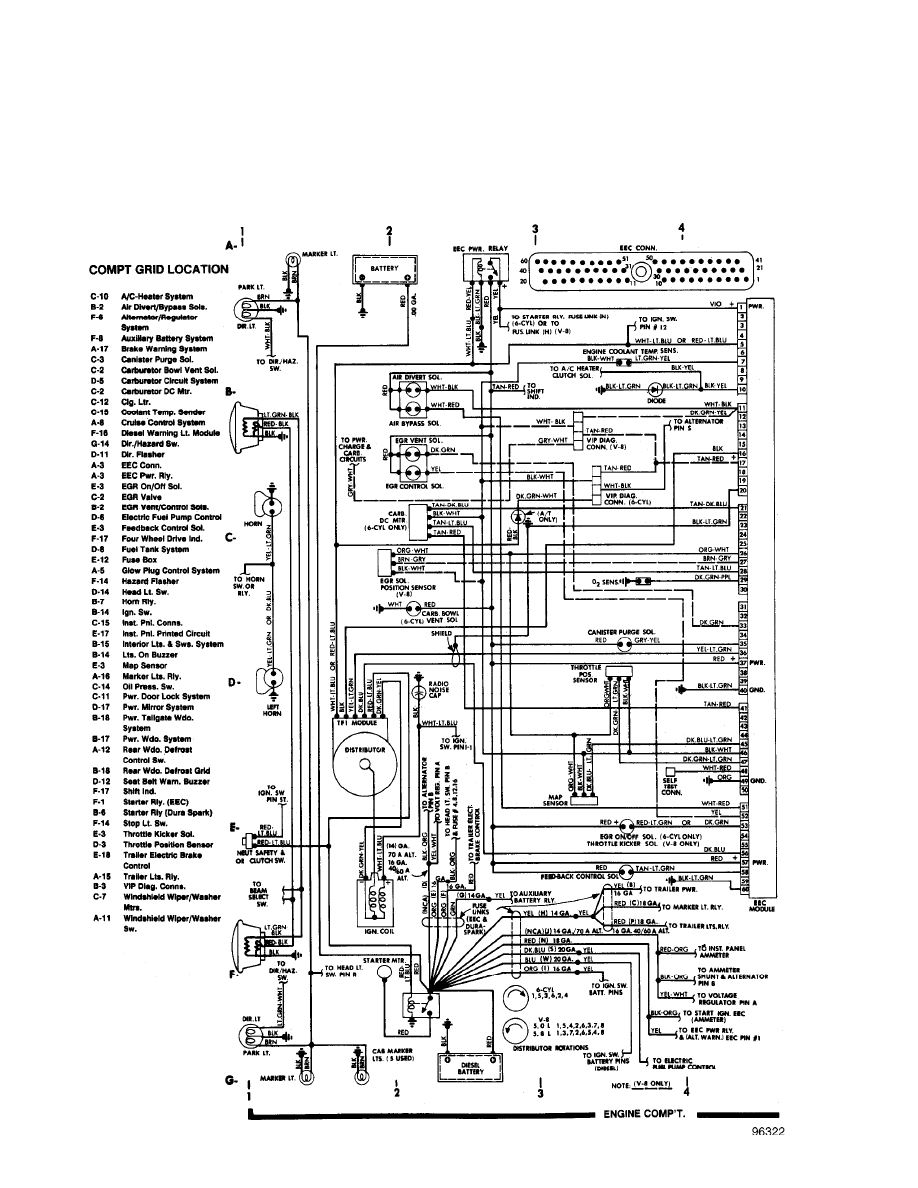

Fig. 2:  Engine Compartment - Diesel Engines (1 of 2) (p. 2)

1983 Ford Bronco

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006  06:15PM

background image

WIRING DIAGRAMS

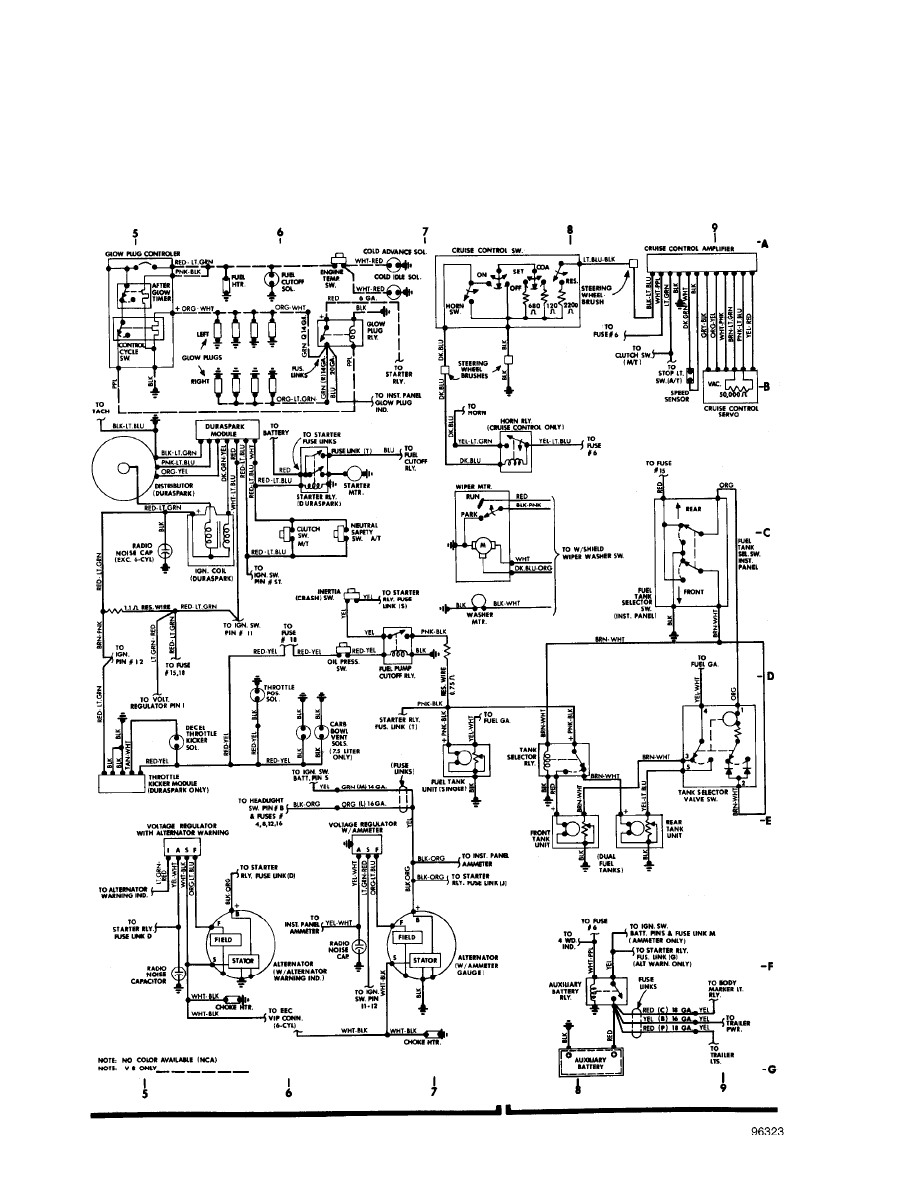

Fig. 3:  Engine Compartment - Diesel Engines (2 of 2) (p. 3)

1983 Ford Bronco

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006  06:15PM

background image

WIRING DIAGRAMS

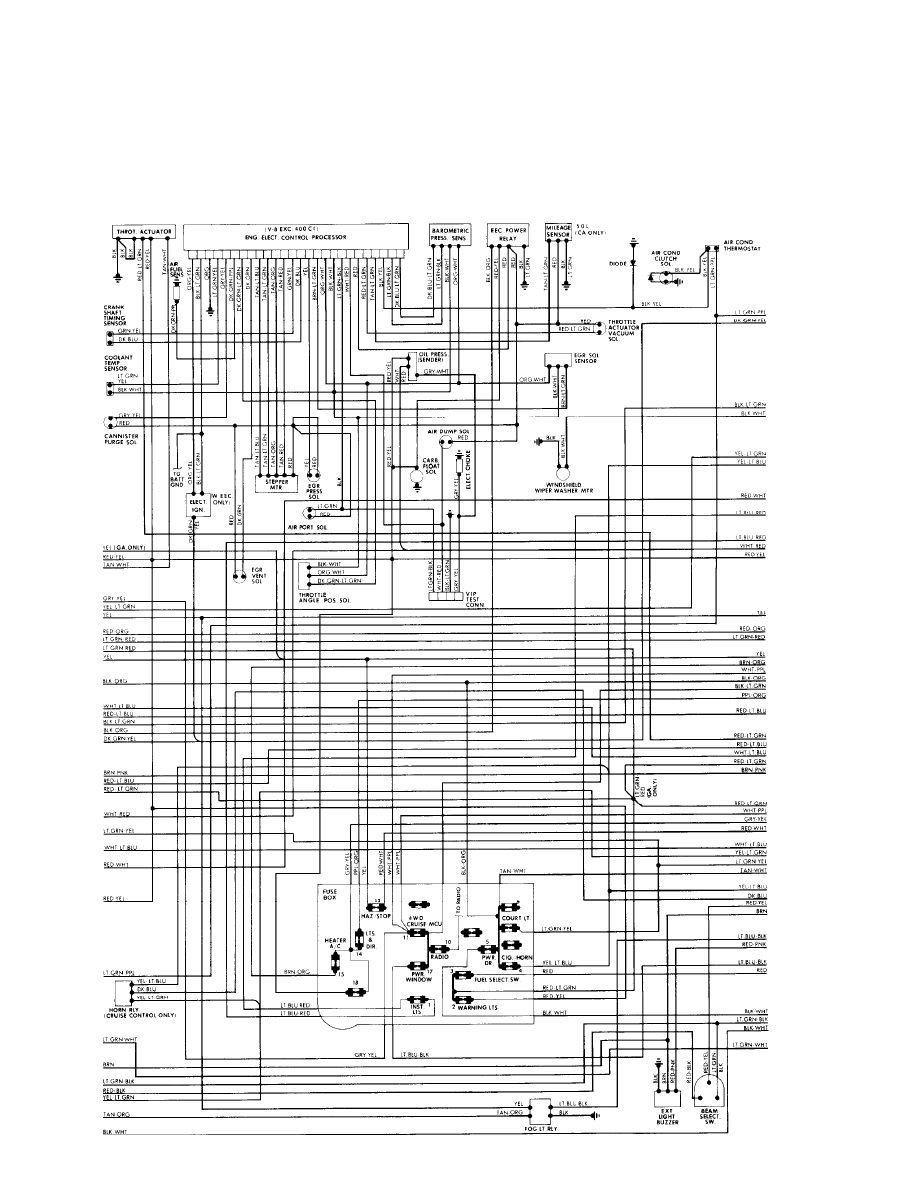

Fig. 4:  Fuse Block & Underdash (p. 4)

1983 Ford Bronco

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006  06:15PM

background image

WIRING DIAGRAMS

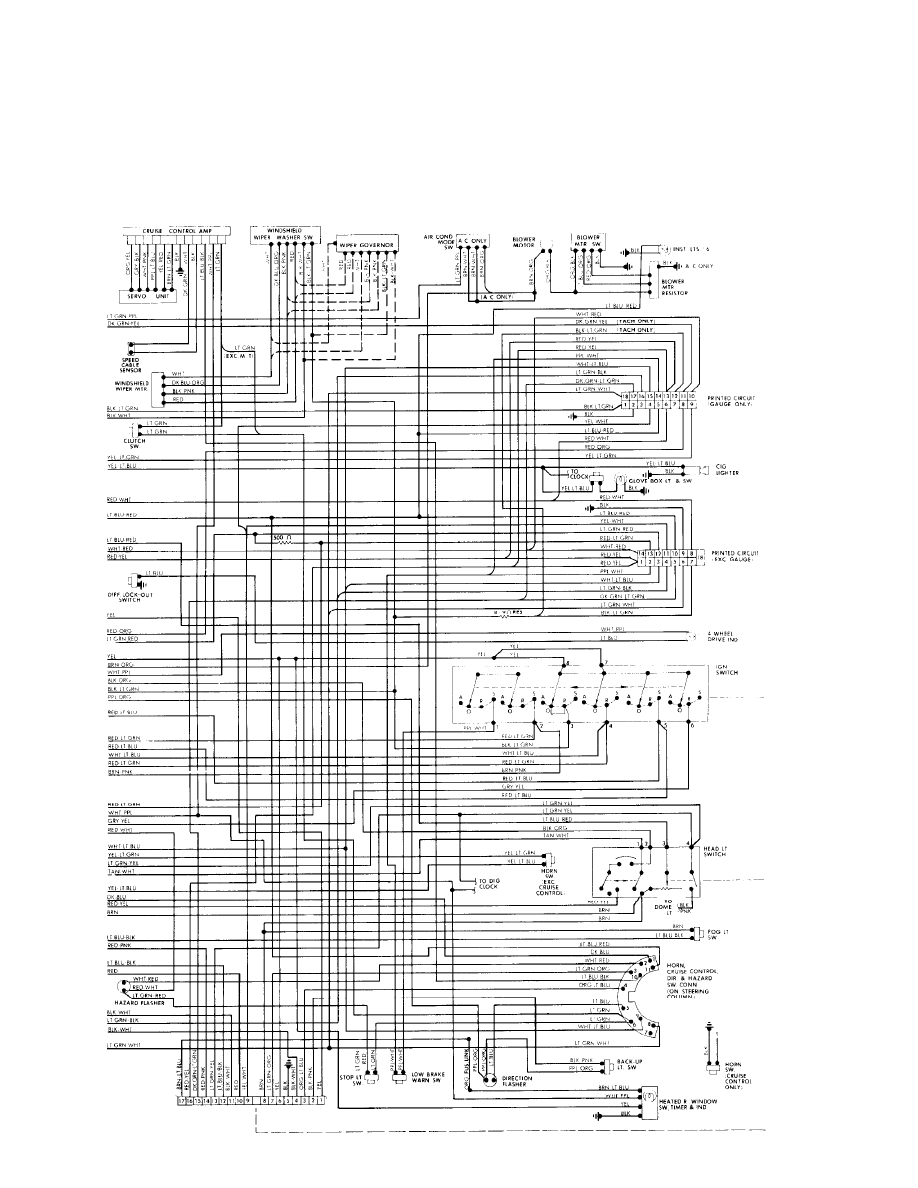

Fig. 5:  Instrument Panel & Underdash (p. 5)

1983 Ford Bronco

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006  06:15PM

background image

WIRING DIAGRAMS

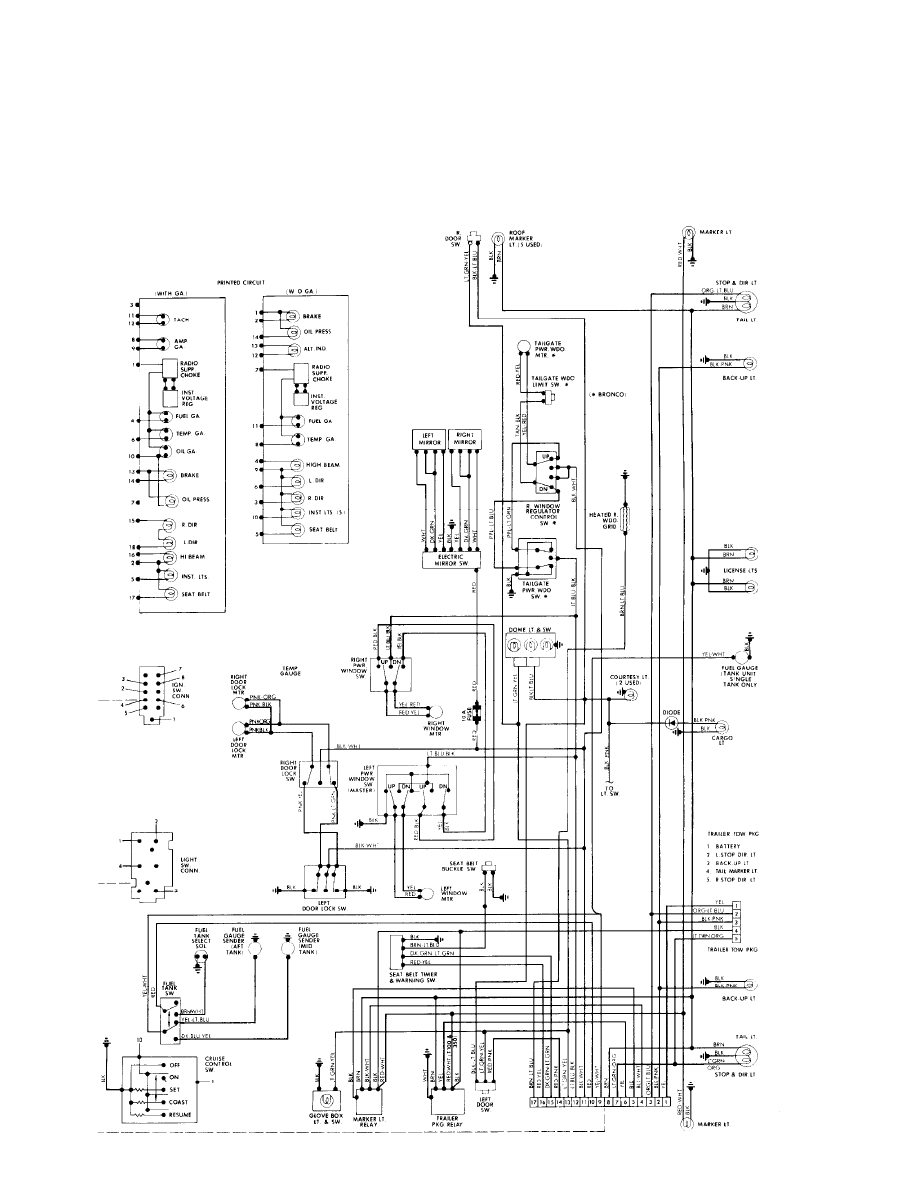

Fig. 6:  Rear Compartment & Accessories (p. 6)

1983 Ford Bronco

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006  06:15PM
