SYSTEM WIRING DIAGRAMS

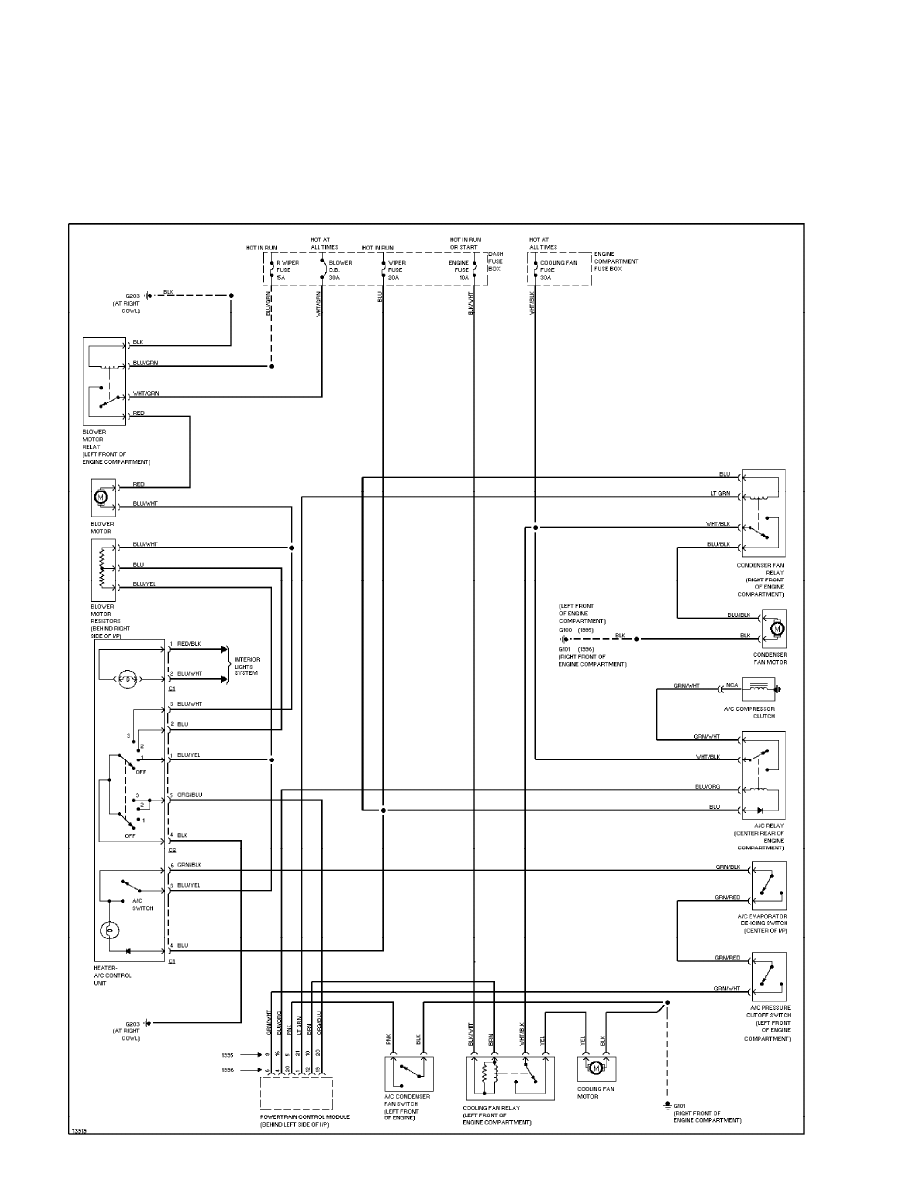

A/C Circuit

1995 Ford Aspire

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 06:13PM

SYSTEM WIRING DIAGRAMS

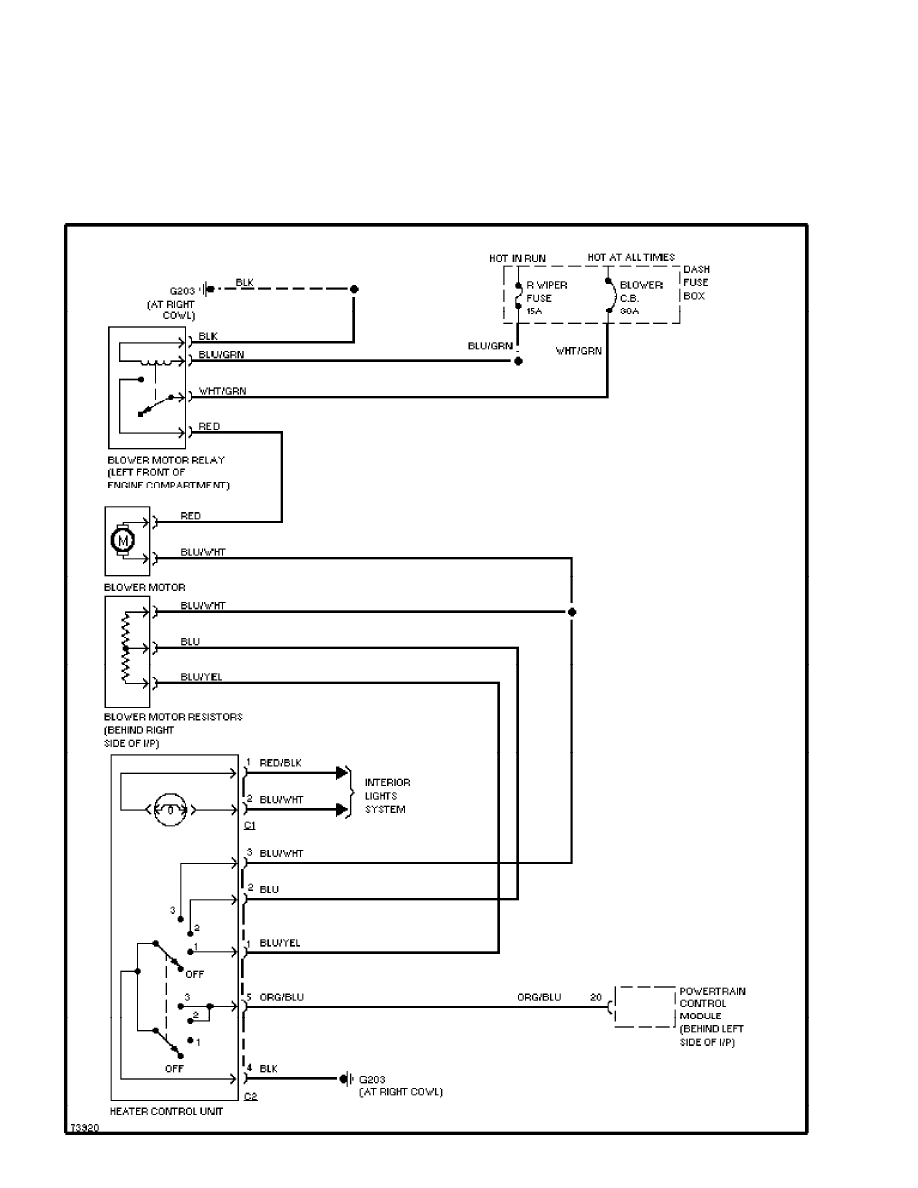

Heater Circuit (p. 2)

1995 Ford Aspire

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 06:13PM

SYSTEM WIRING DIAGRAMS

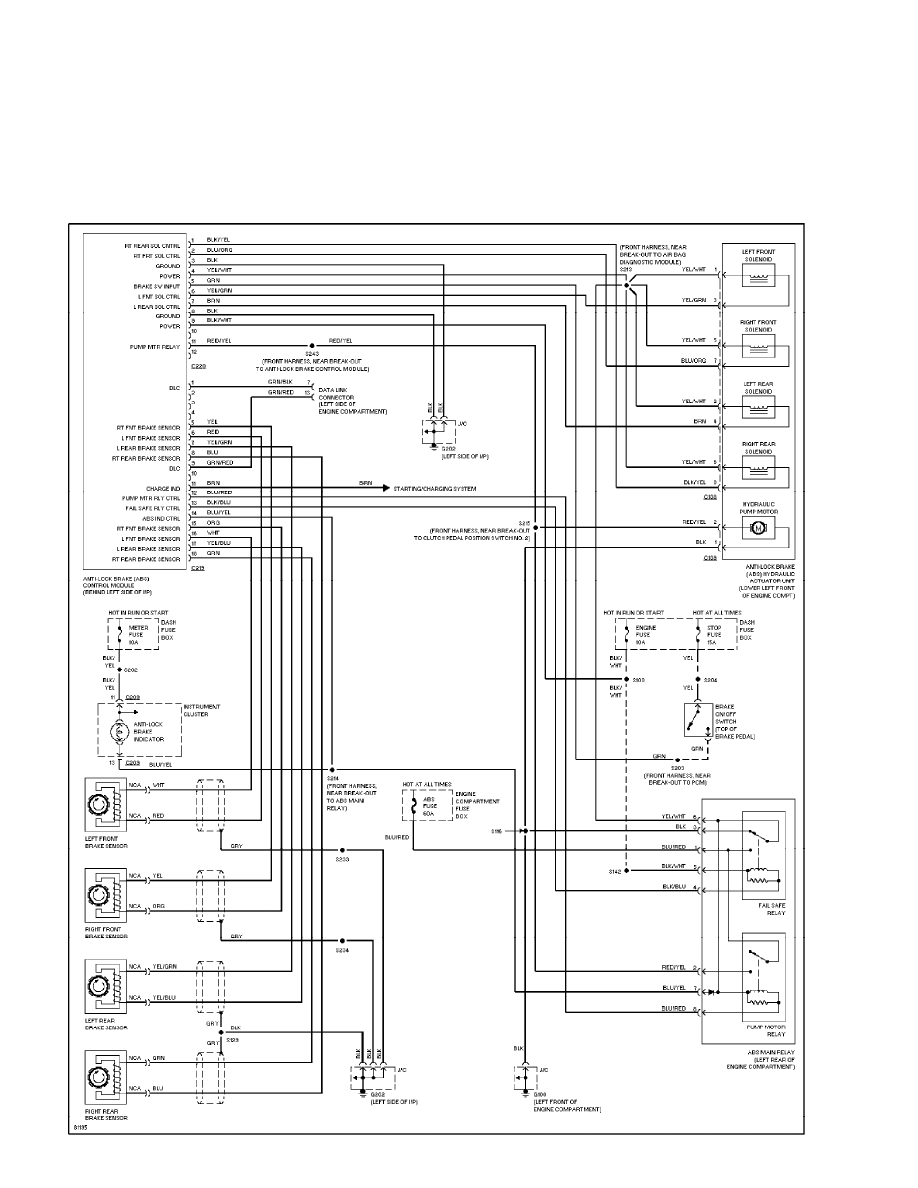

Anti-lock Brake Circuits (p. 3)

1995 Ford Aspire

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 06:13PM

SYSTEM WIRING DIAGRAMS

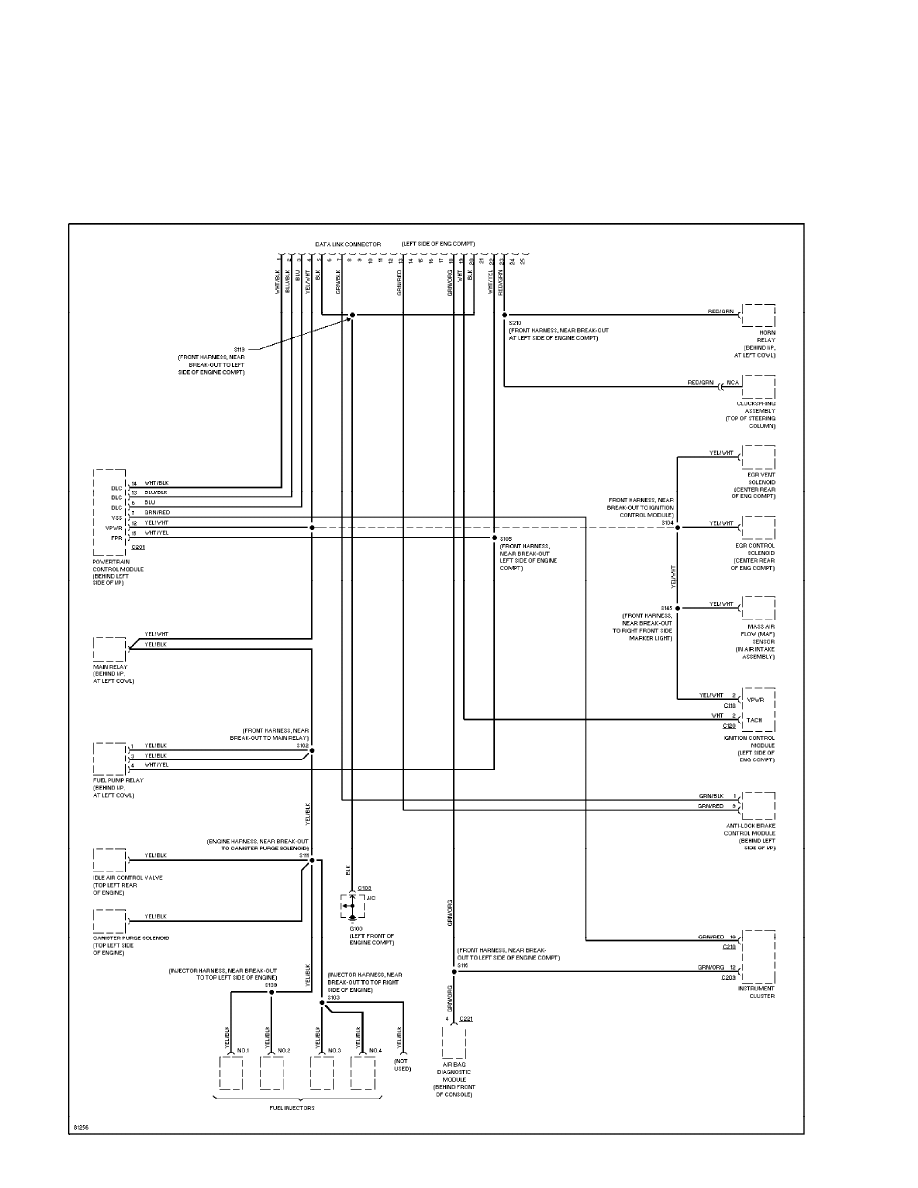

Computer Data Lines (p. 4)

1995 Ford Aspire

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 06:13PM

SYSTEM WIRING DIAGRAMS

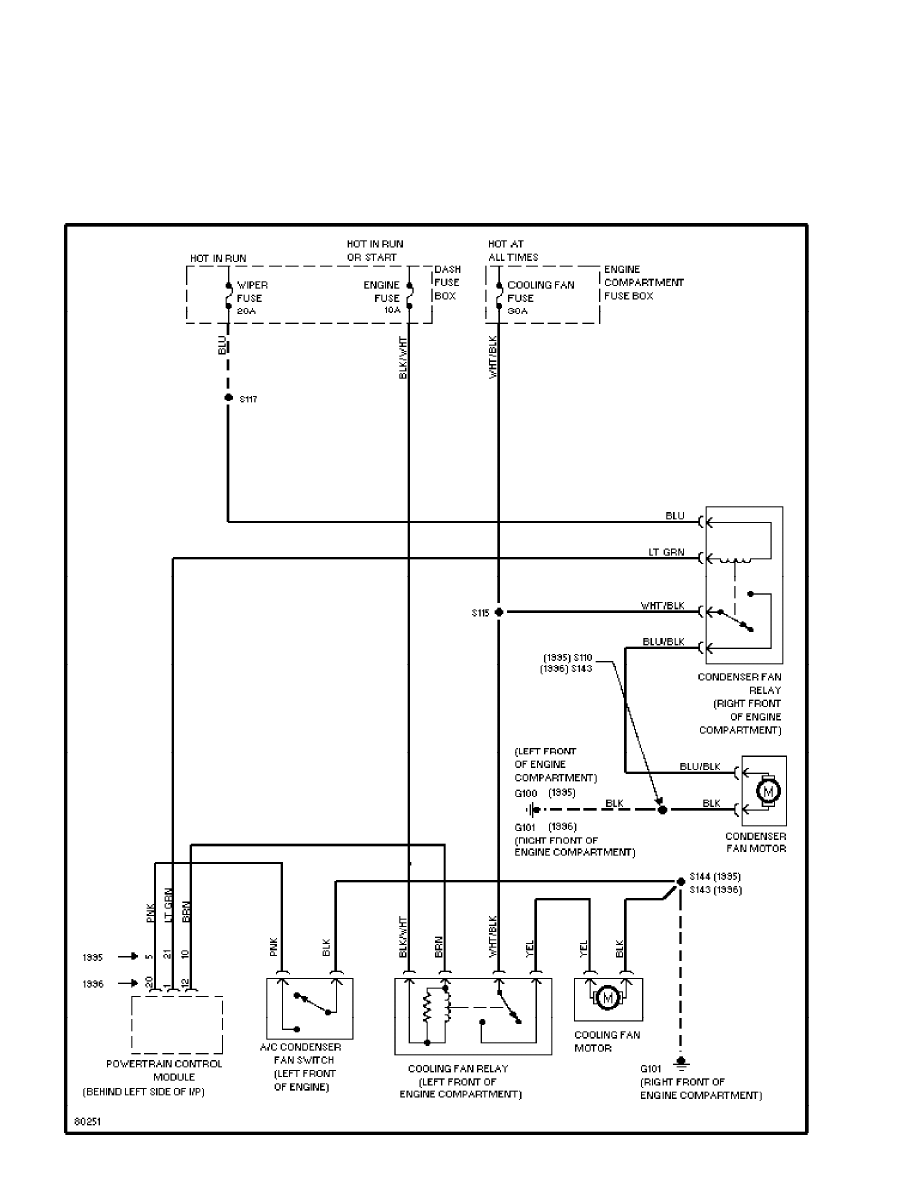

Cooling Fan Circuit (p. 5)

1995 Ford Aspire

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 06:13PM

SYSTEM WIRING DIAGRAMS

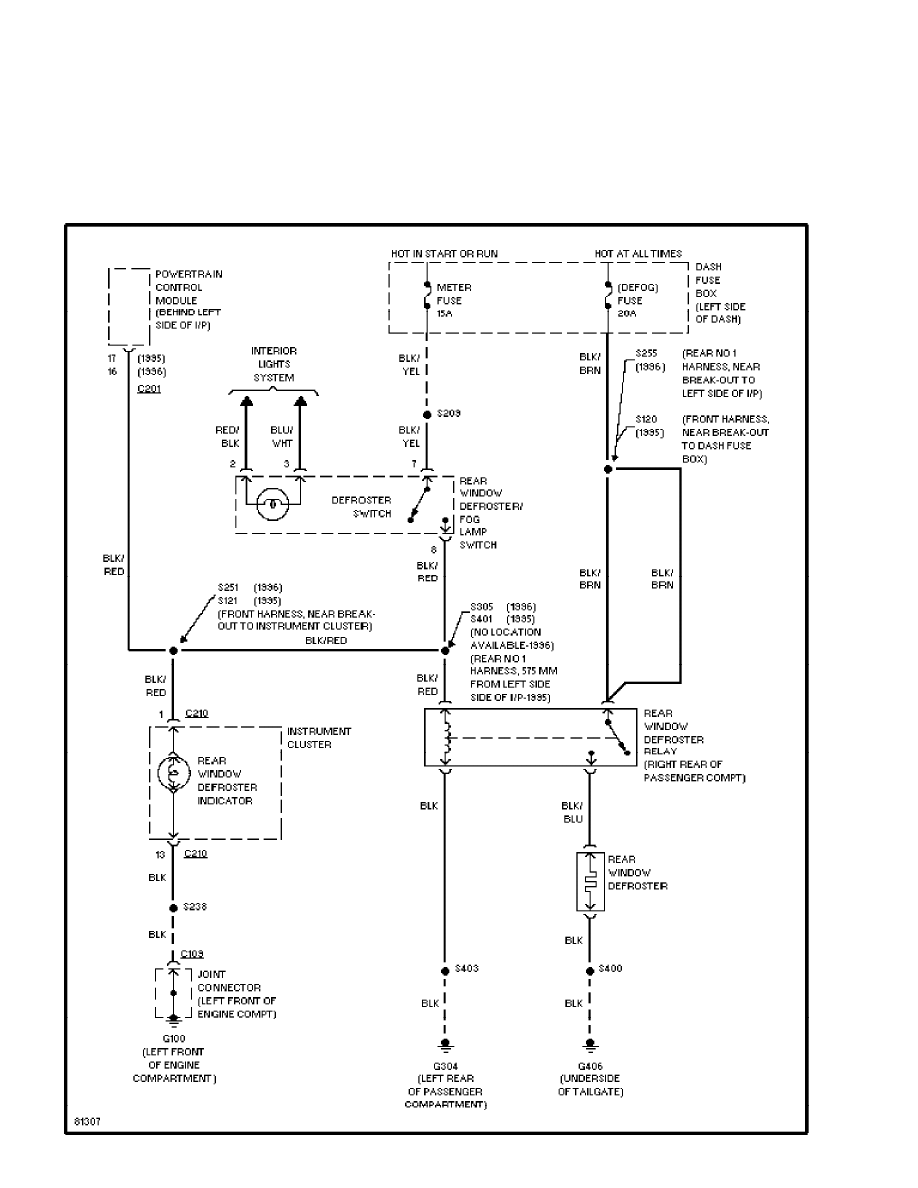

Defogger Circuit (p. 6)

1995 Ford Aspire

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 06:13PM

SYSTEM WIRING DIAGRAMS

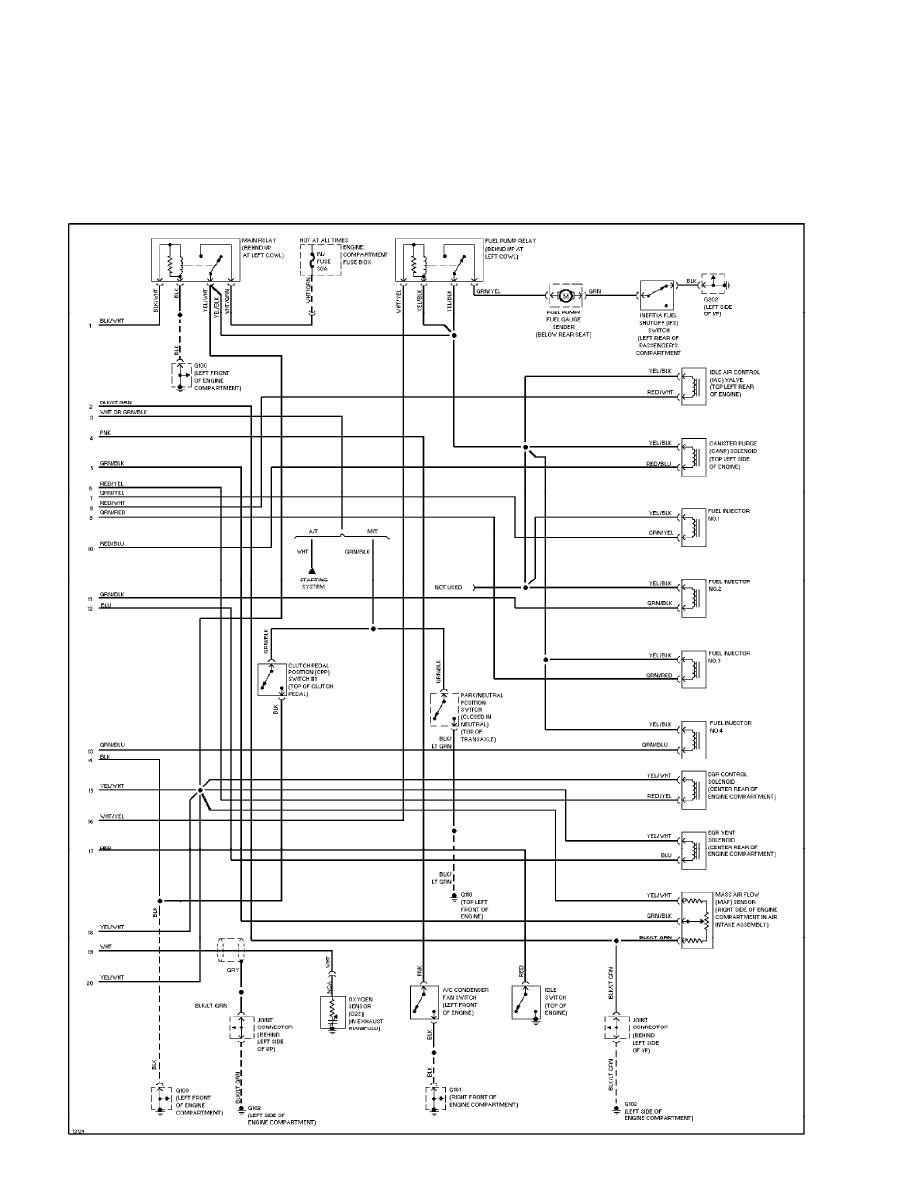

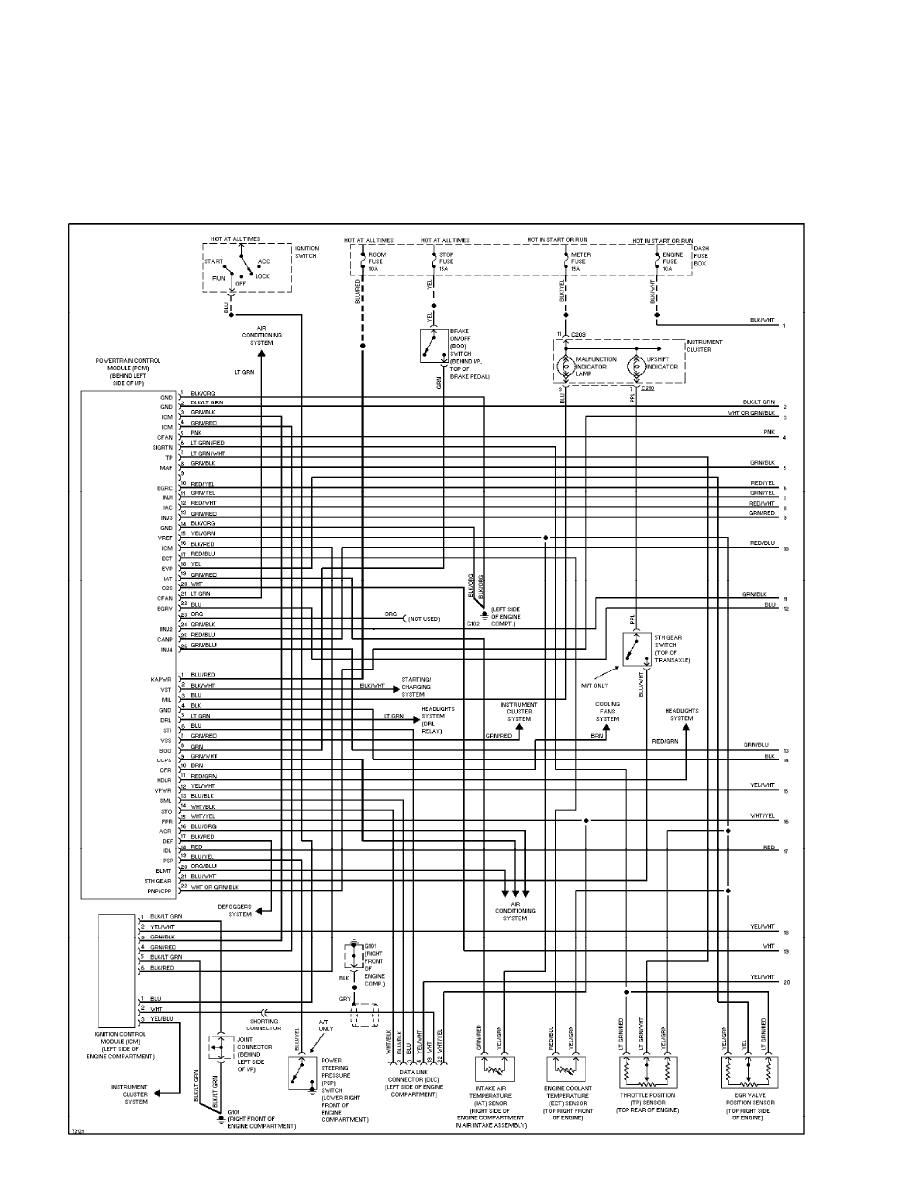

1.3L, Engine Performance Circuits (1 of 2) (p. 7)

1995 Ford Aspire

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 06:13PM

SYSTEM WIRING DIAGRAMS

1.3L, Engine Performance Circuits (2 of 2) (p. 8)

1995 Ford Aspire

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 06:13PM

SYSTEM WIRING DIAGRAMS

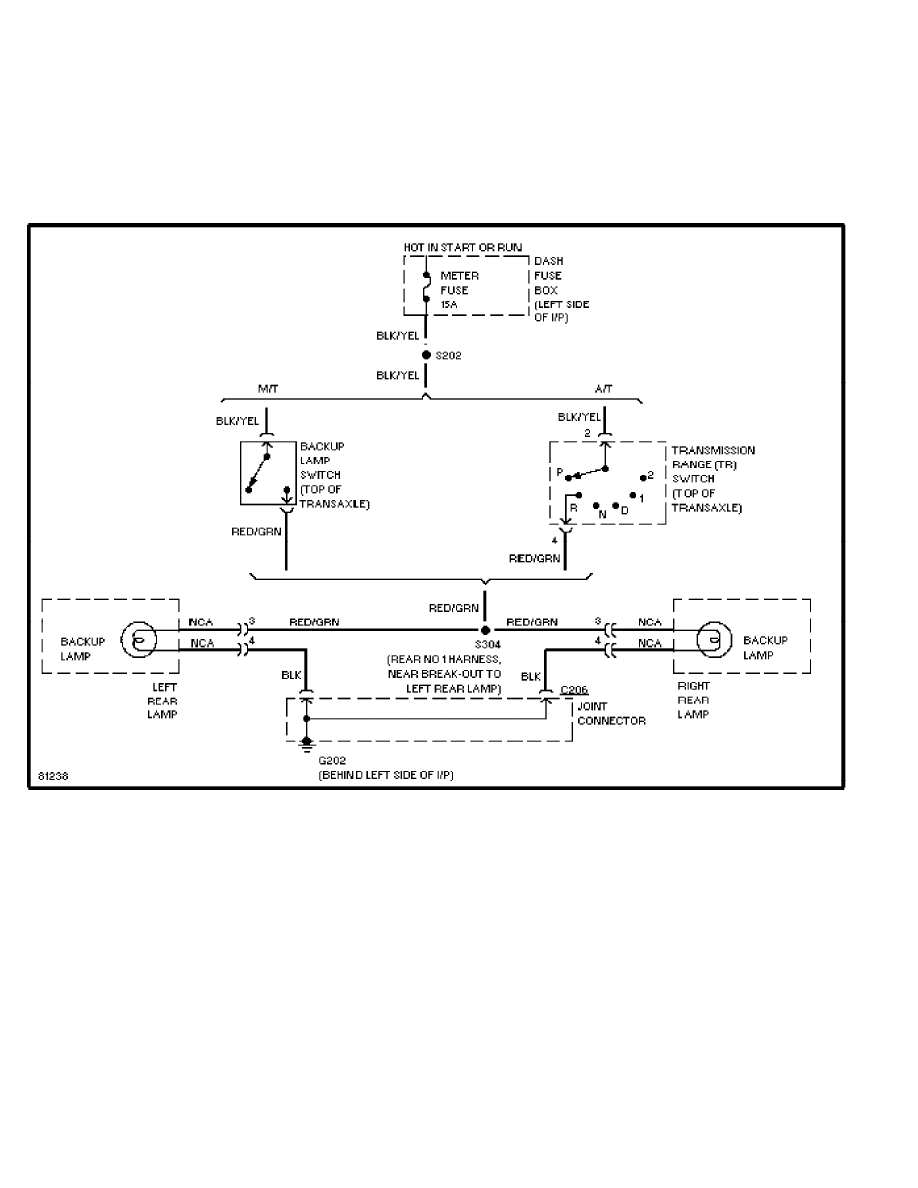

Back-up Lamps Circuit (p. 9)

1995 Ford Aspire

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 06:13PM

SYSTEM WIRING DIAGRAMS

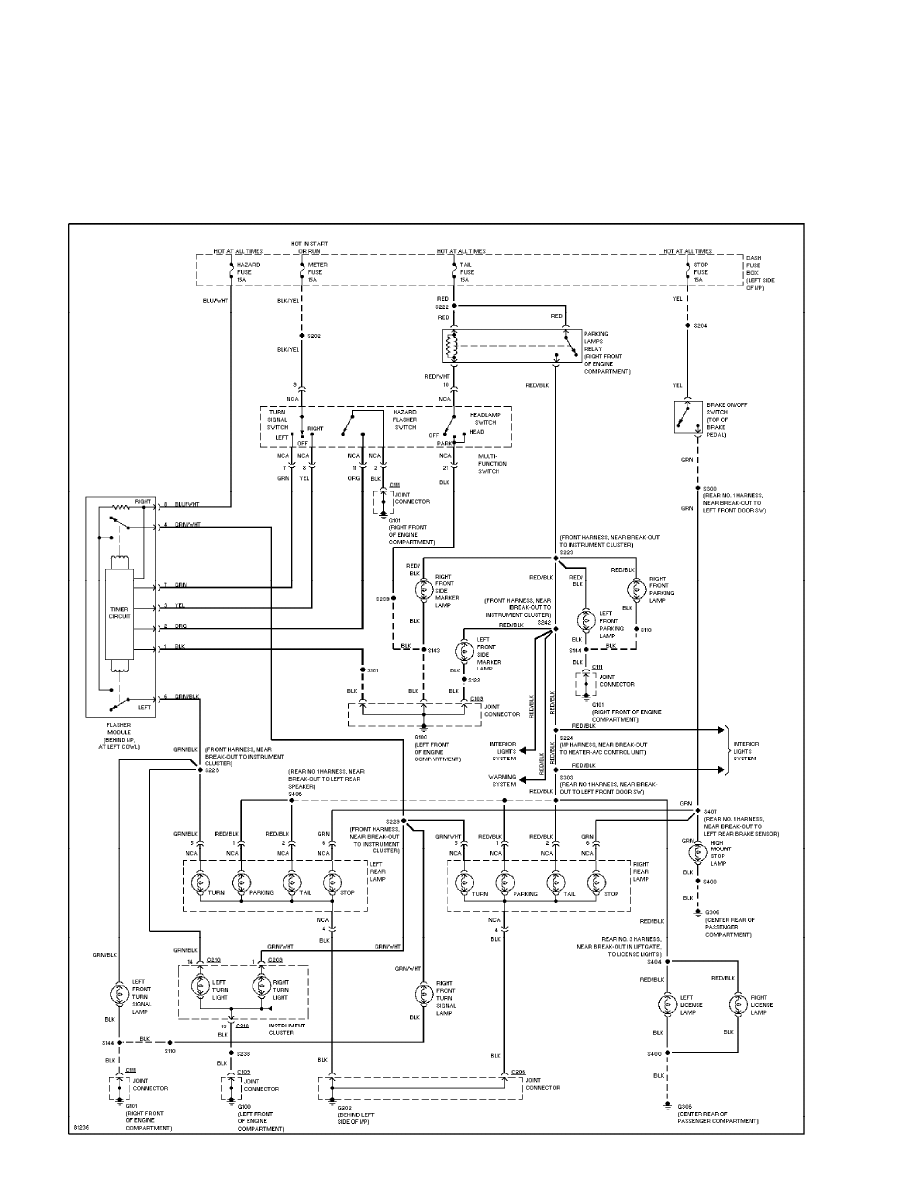

Exterior Lamps Circuit (p. 10)

1995 Ford Aspire

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 06:13PM

SYSTEM WIRING DIAGRAMS

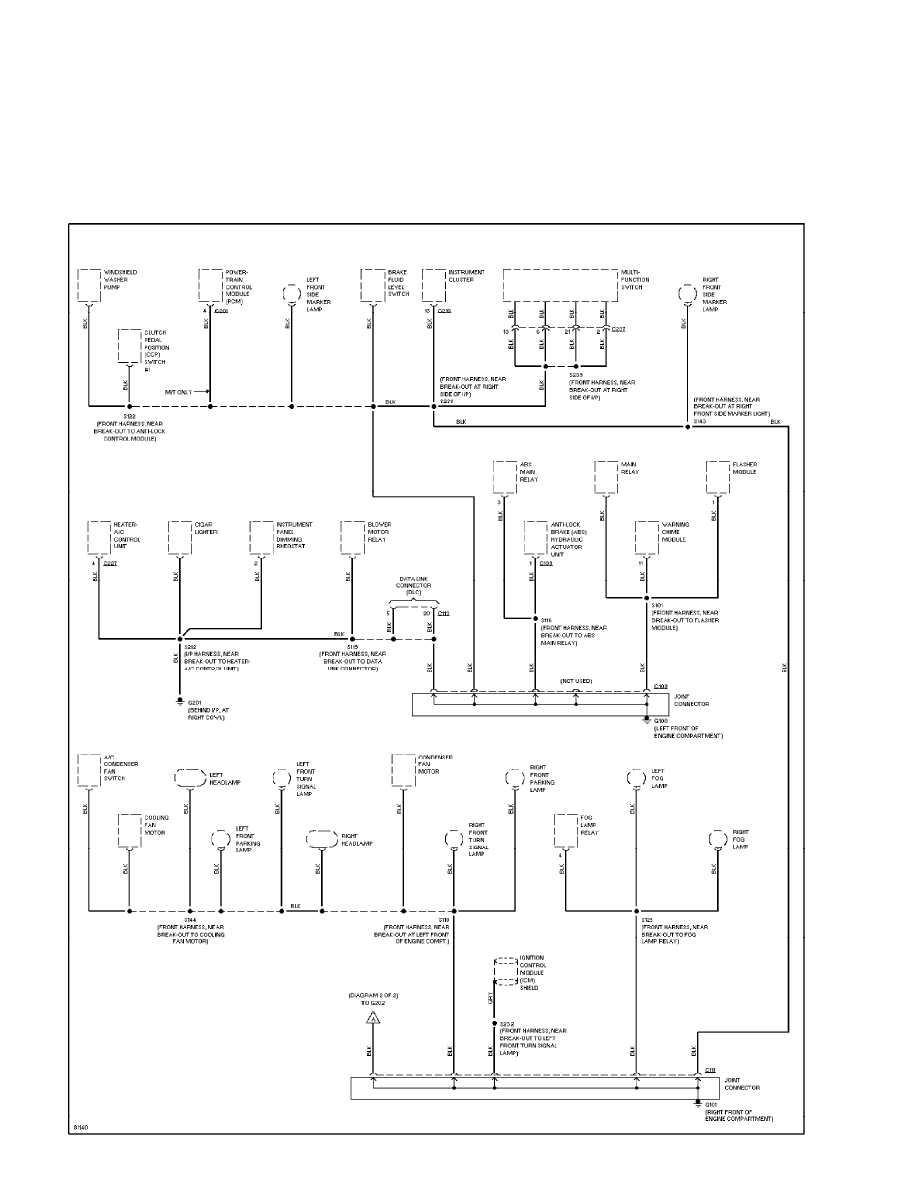

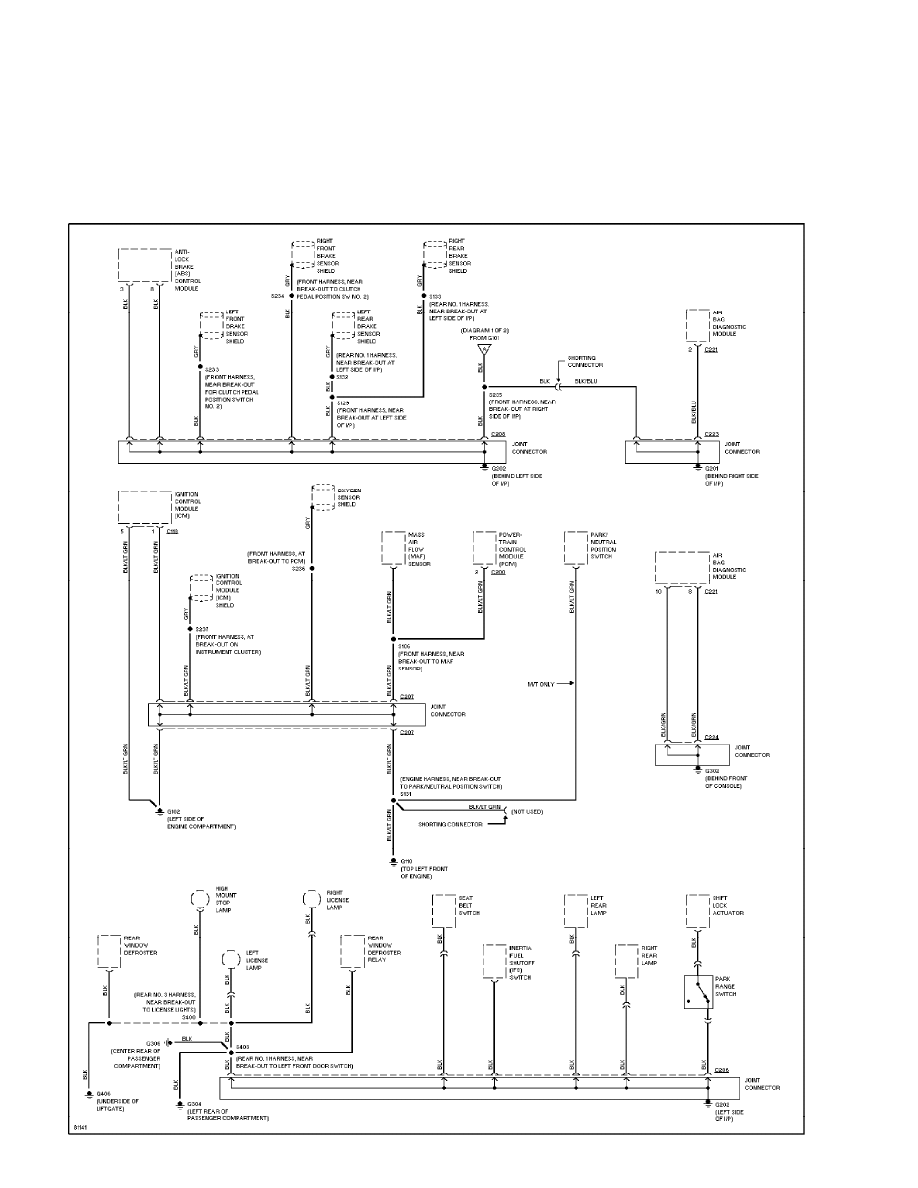

Ground Distribution Circuit (1 of 2) (p. 11)

1995 Ford Aspire

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 06:13PM

SYSTEM WIRING DIAGRAMS

Ground Distribution Circuit (2 of 2) (p. 12)

1995 Ford Aspire

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 06:13PM

SYSTEM WIRING DIAGRAMS

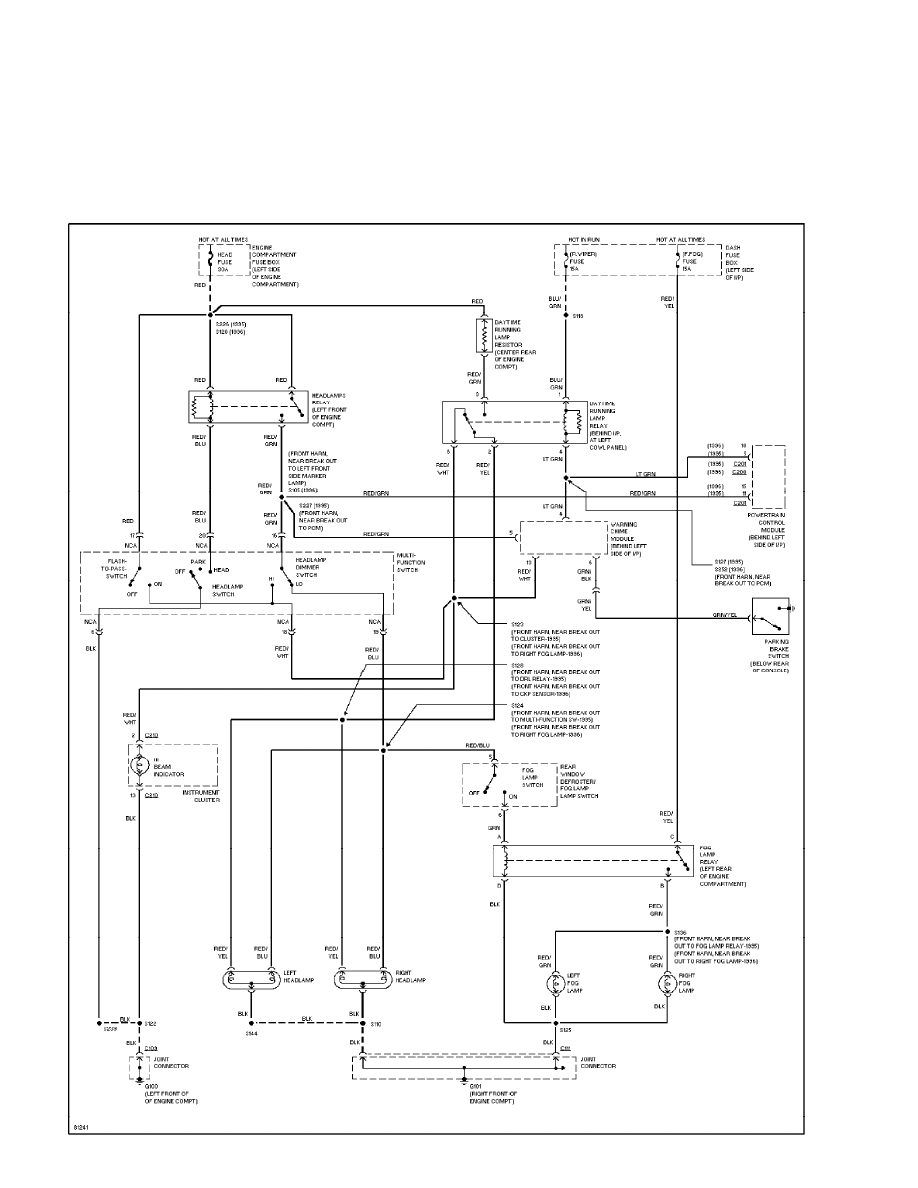

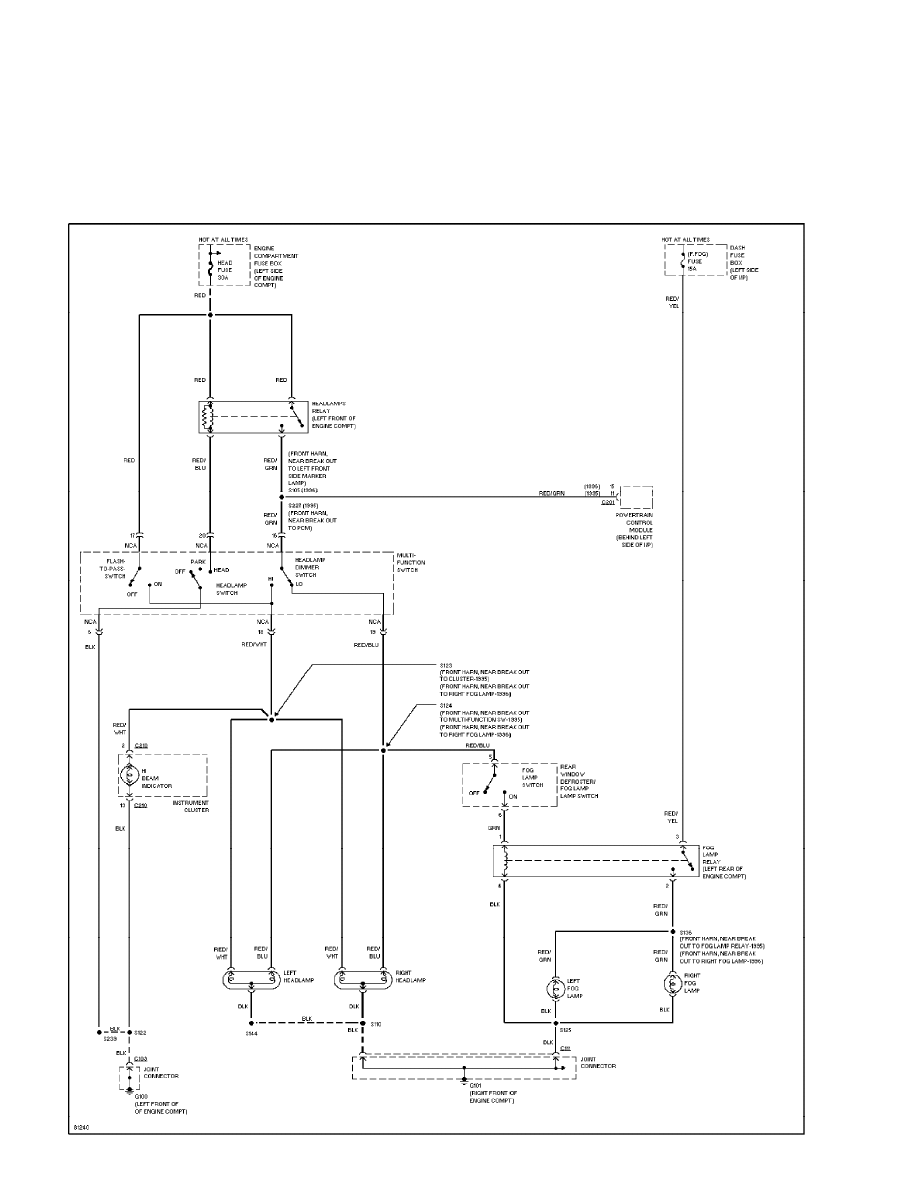

Headlight Circuit, W/ DRL (p. 13)

1995 Ford Aspire

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 06:13PM

SYSTEM WIRING DIAGRAMS

Headlight Circuit, W/O DRL (p. 14)

1995 Ford Aspire

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 06:13PM

SYSTEM WIRING DIAGRAMS

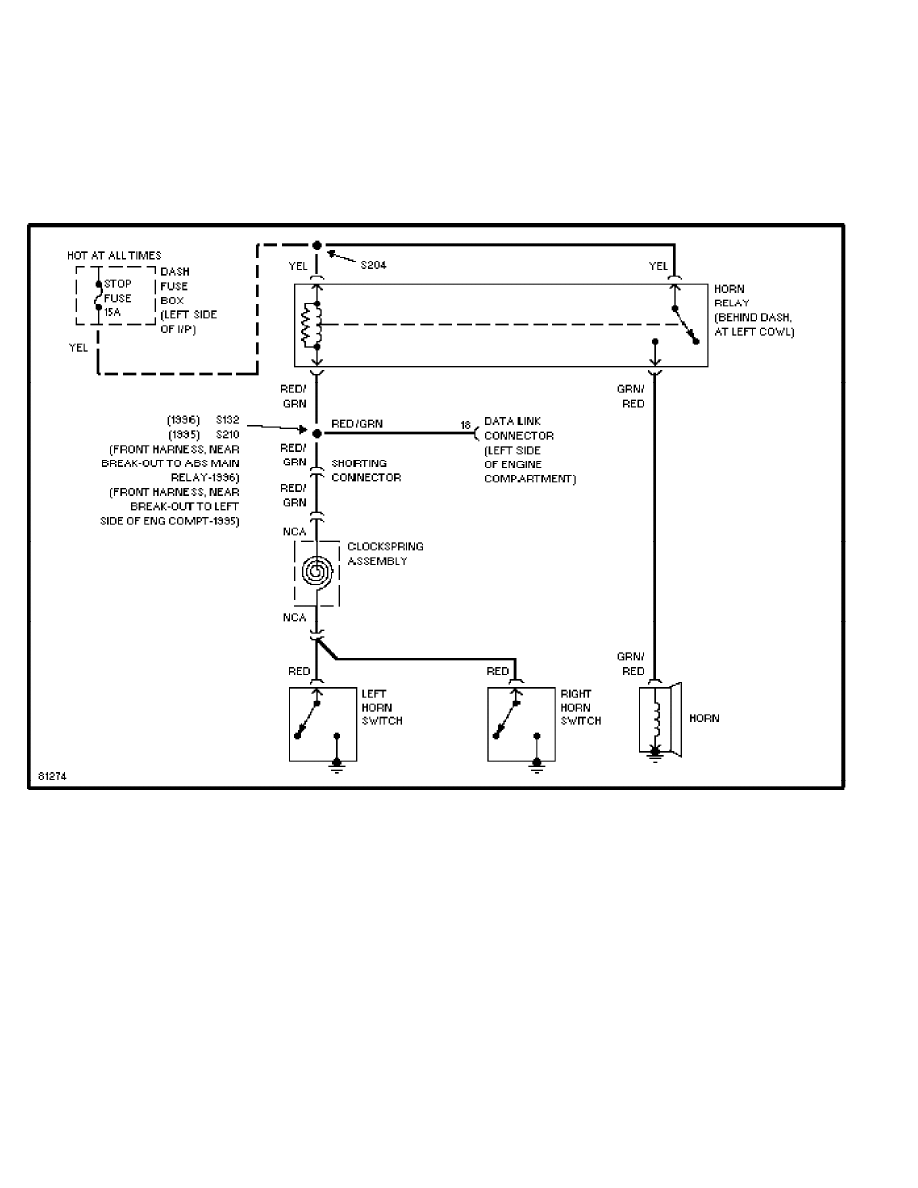

Horn Circuit (p. 15)

1995 Ford Aspire

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 06:13PM

SYSTEM WIRING DIAGRAMS

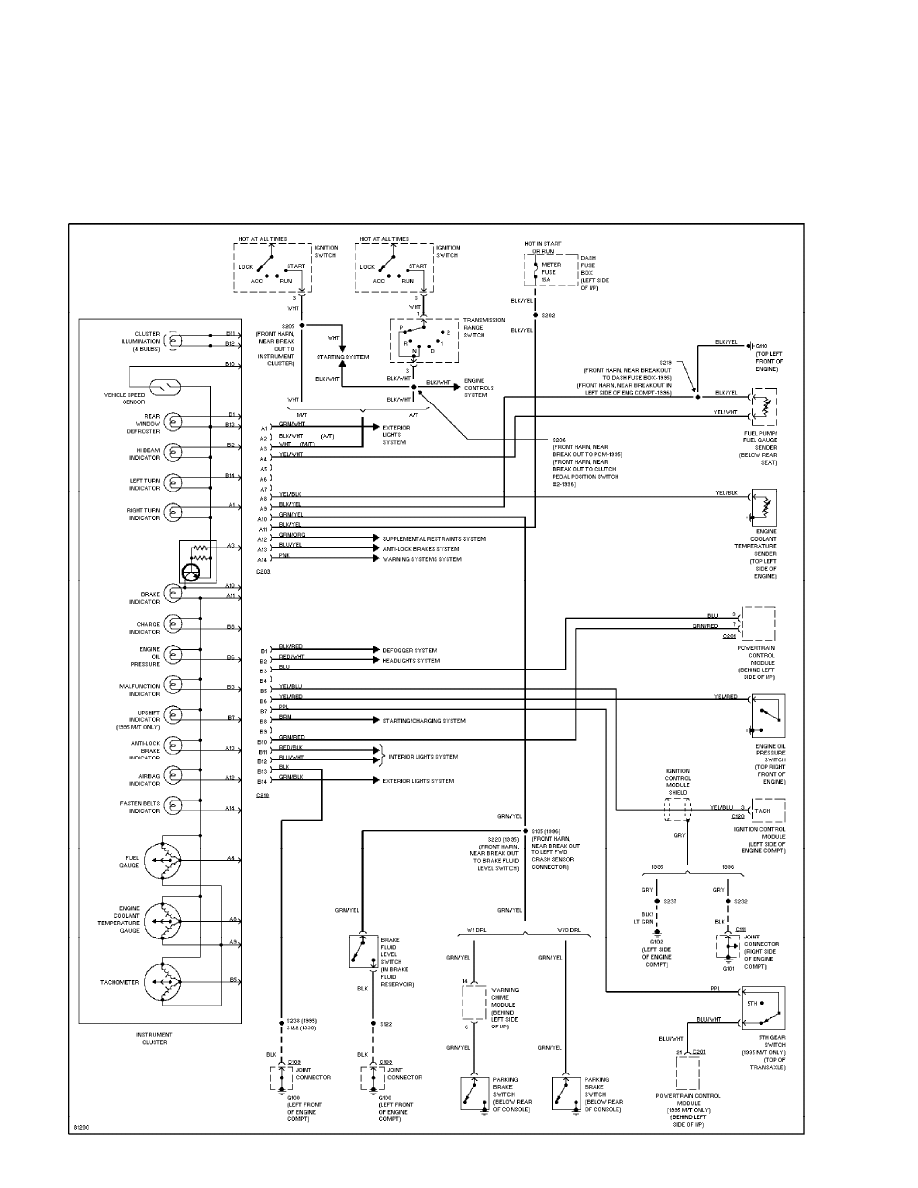

Instrument Cluster Circuit (p. 16)

1995 Ford Aspire

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 06:13PM

SYSTEM WIRING DIAGRAMS

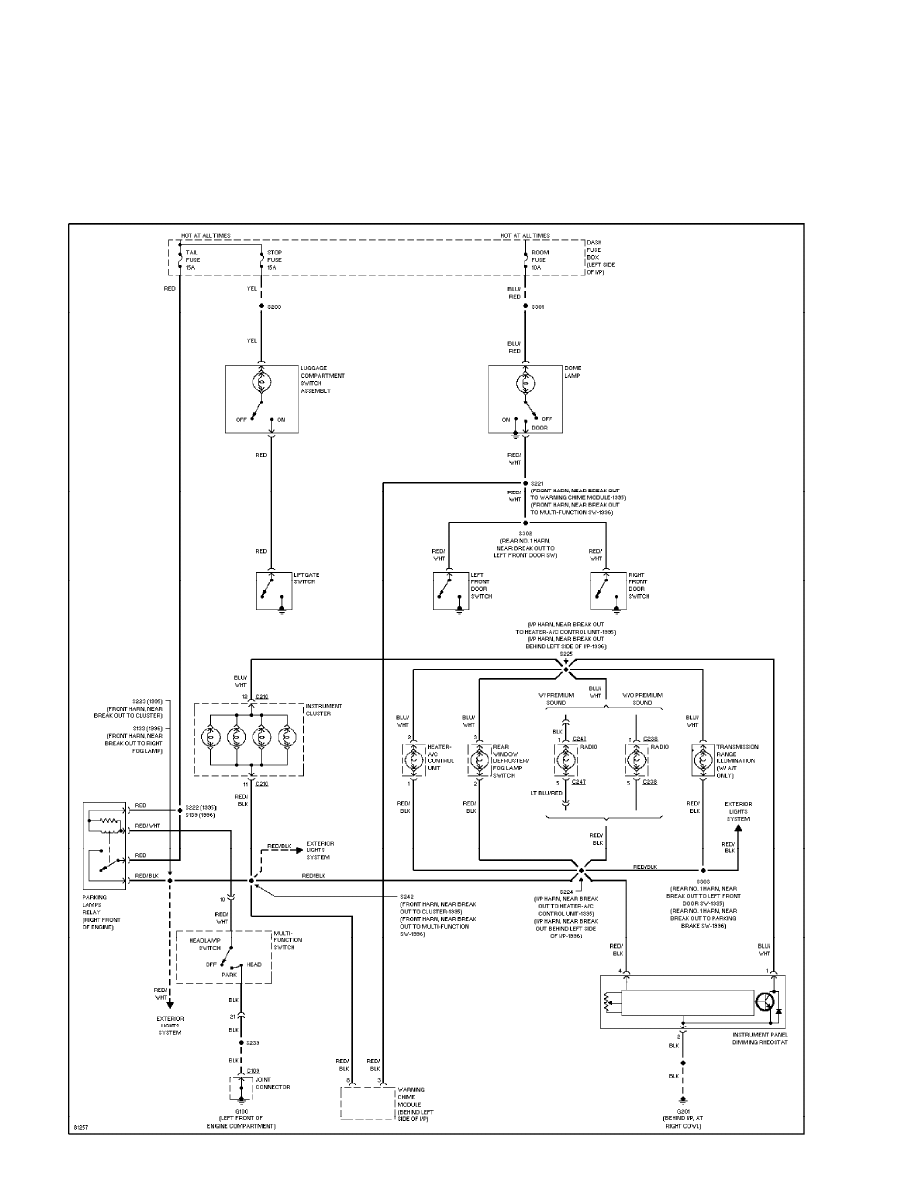

Interior Light Circuit (p. 17)

1995 Ford Aspire

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 06:13PM

SYSTEM WIRING DIAGRAMS

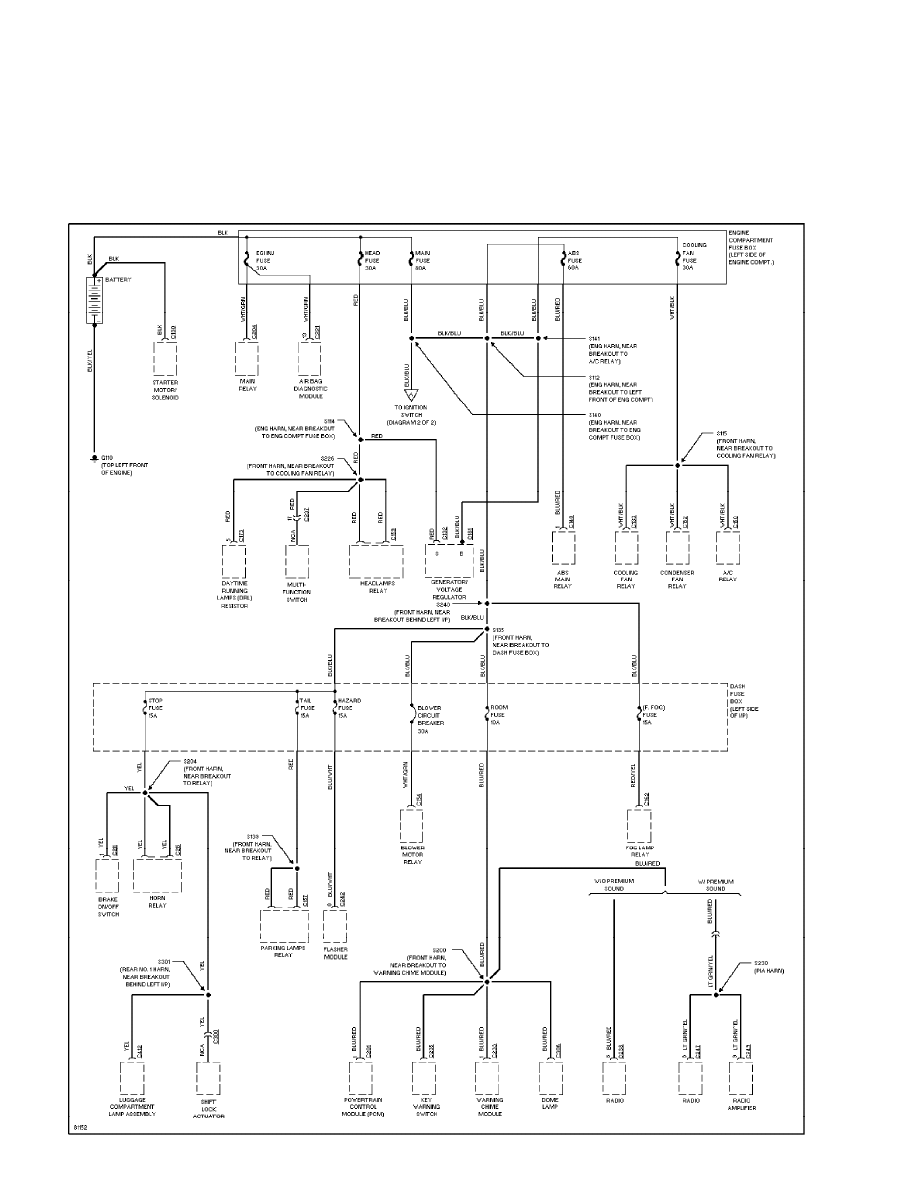

Power Distribution Circuit (1 of 2) (p. 18)

1995 Ford Aspire

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 06:13PM

SYSTEM WIRING DIAGRAMS

Power Distribution Circuit (2 of 2) (p. 19)

1995 Ford Aspire

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 06:13PM

SYSTEM WIRING DIAGRAMS

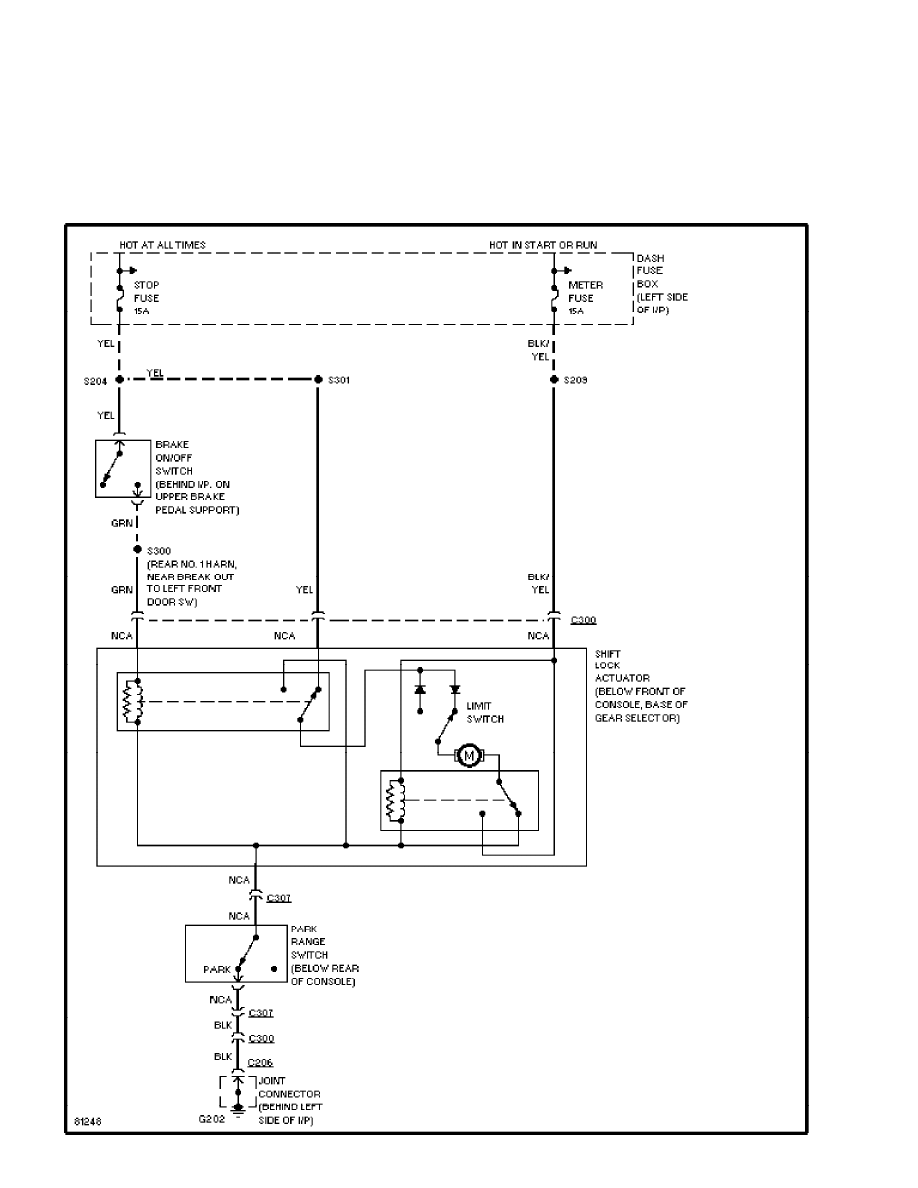

Shift Interlock Circuit (p. 20)

1995 Ford Aspire

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 06:13PM

SYSTEM WIRING DIAGRAMS

Charging Circuit (p. 21)

1995 Ford Aspire

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 06:13PM

SYSTEM WIRING DIAGRAMS

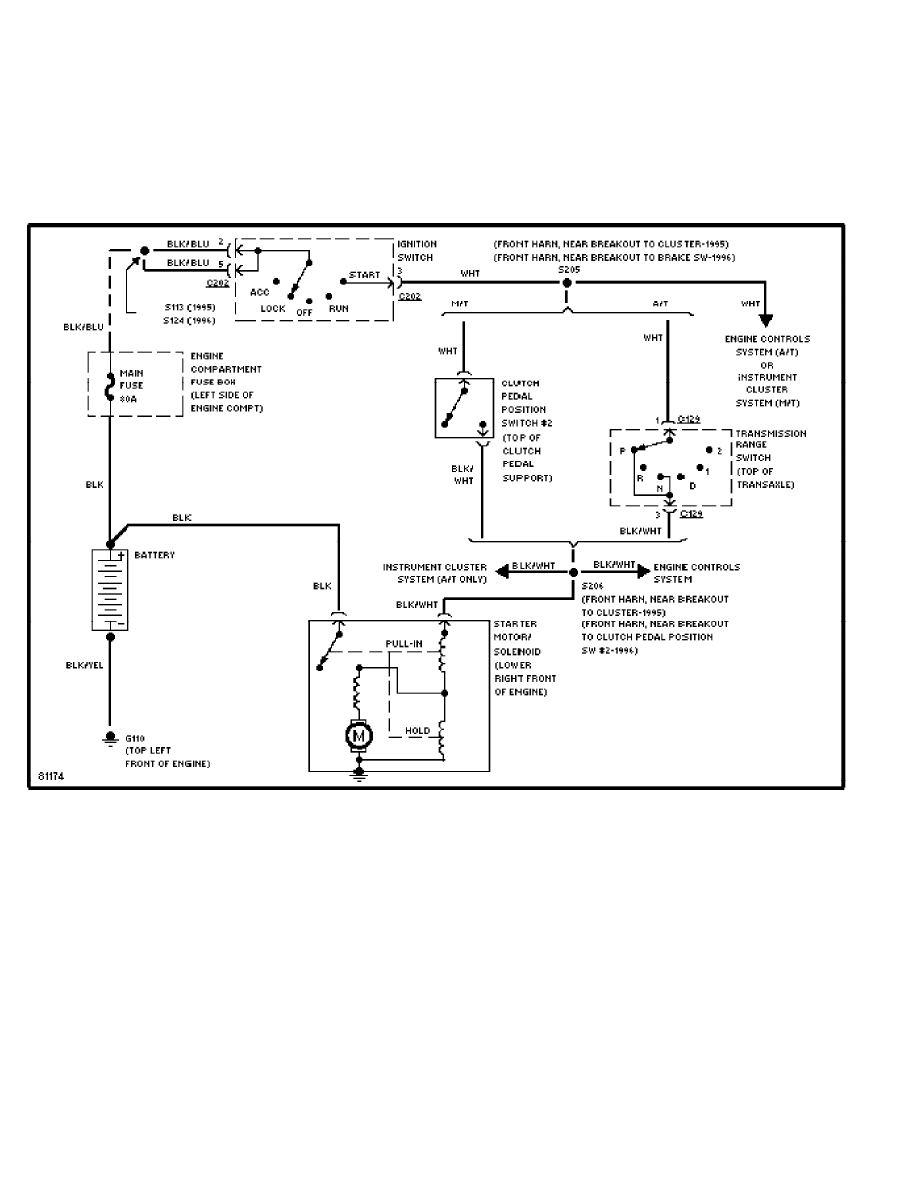

Starting Circuit (p. 22)

1995 Ford Aspire

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 06:13PM

SYSTEM WIRING DIAGRAMS

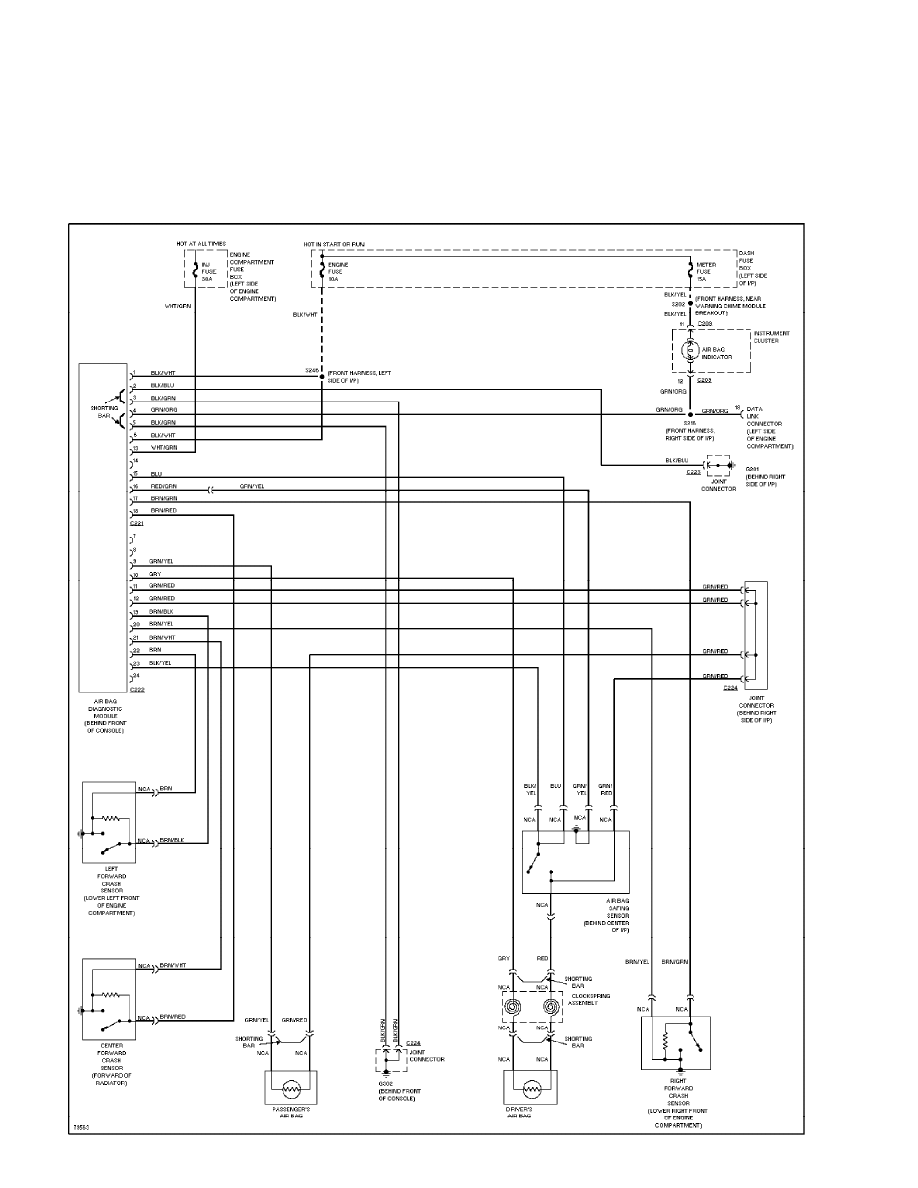

Supplemental Restraint Circuit (p. 23)

1995 Ford Aspire

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 06:13PM

SYSTEM WIRING DIAGRAMS

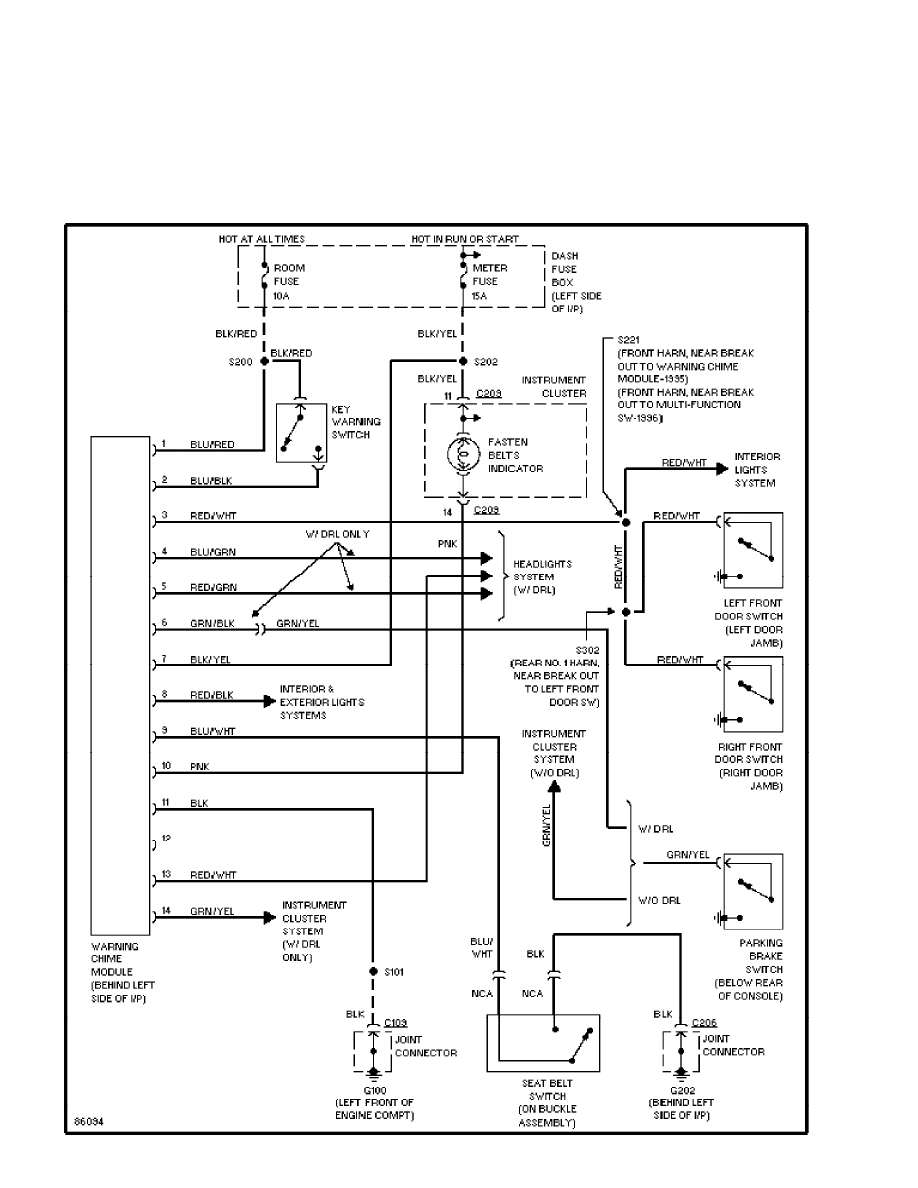

Warning System Circuits (p. 24)

1995 Ford Aspire

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 06:13PM

SYSTEM WIRING DIAGRAMS

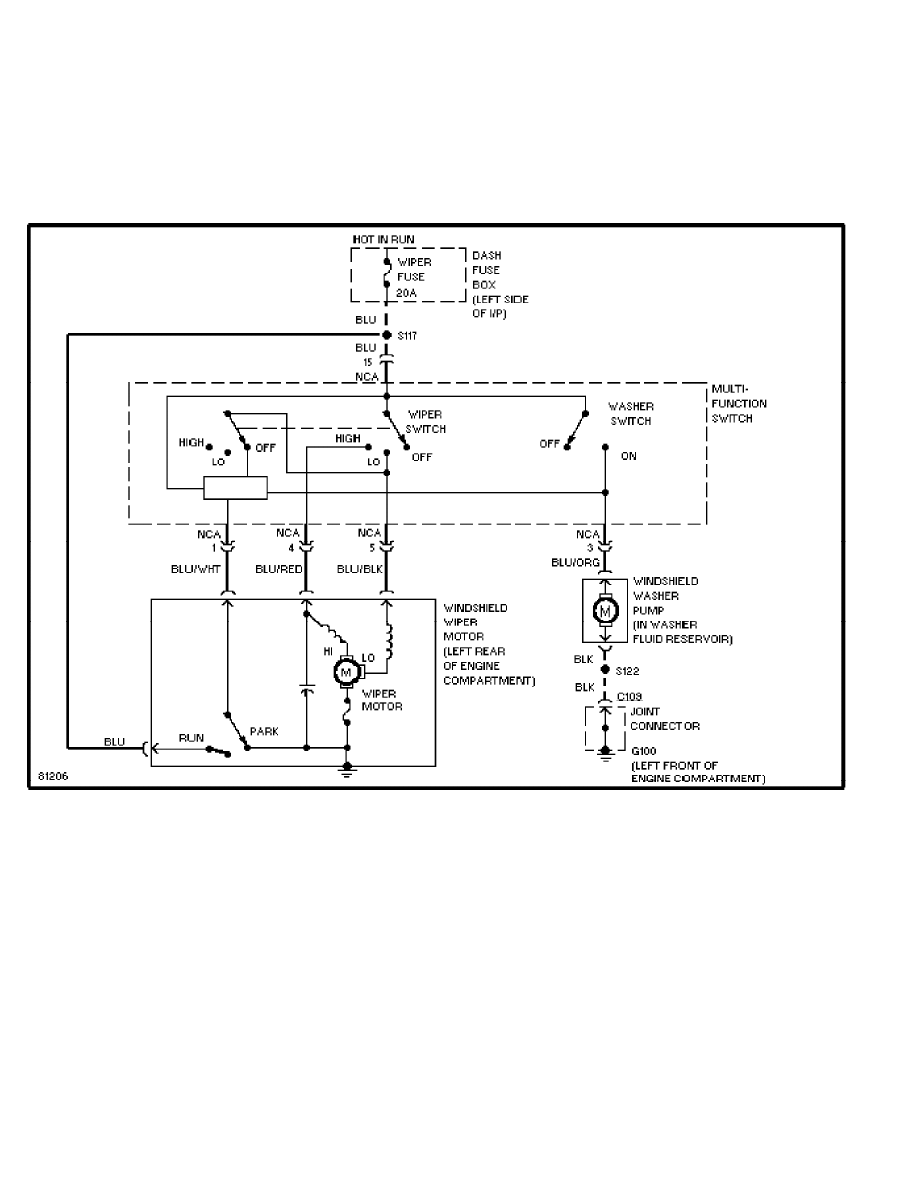

2-Speed Wiper/Washer Circuit (p. 25)

1995 Ford Aspire

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 06:13PM

SYSTEM WIRING DIAGRAMS

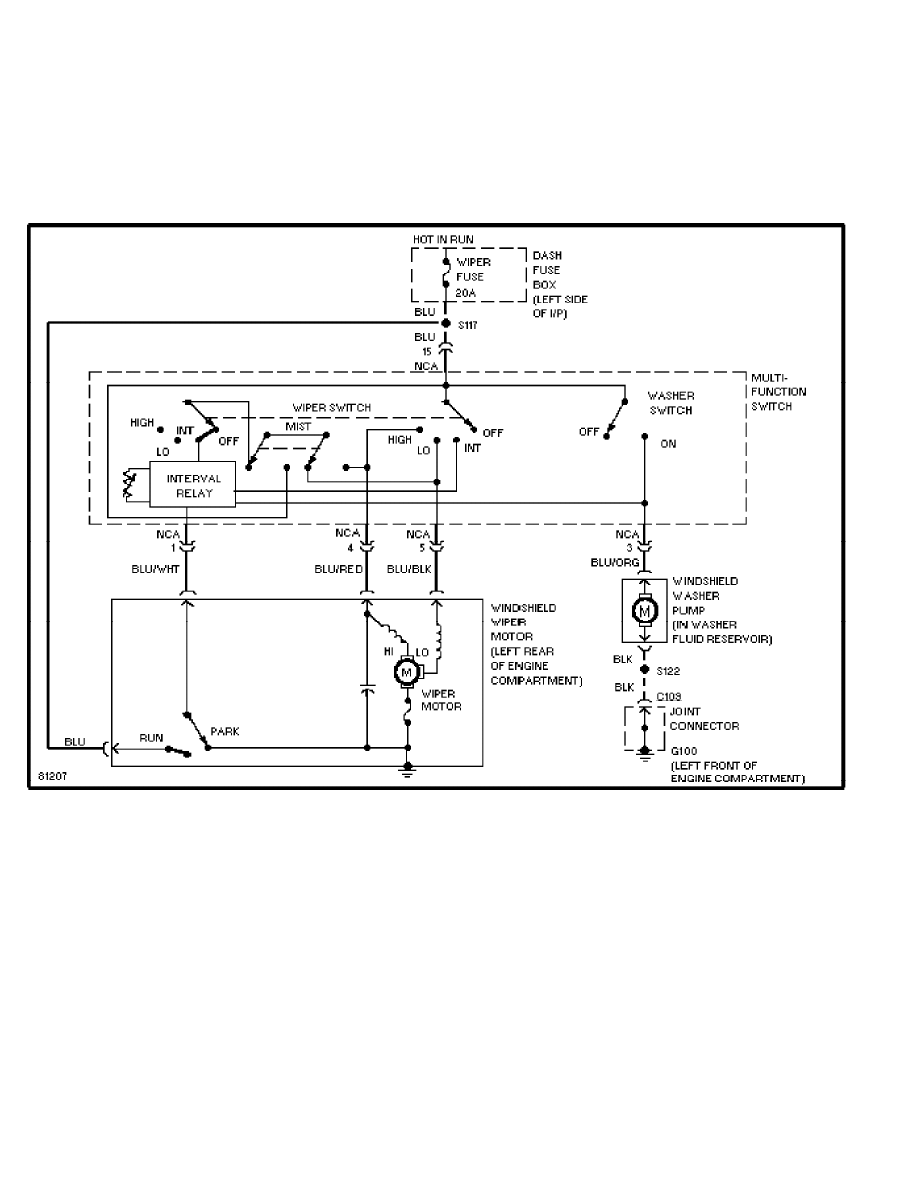

Interval Wiper/Washer Circuit (p. 26)

1995 Ford Aspire

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 06:14PM

SYSTEM WIRING DIAGRAMS

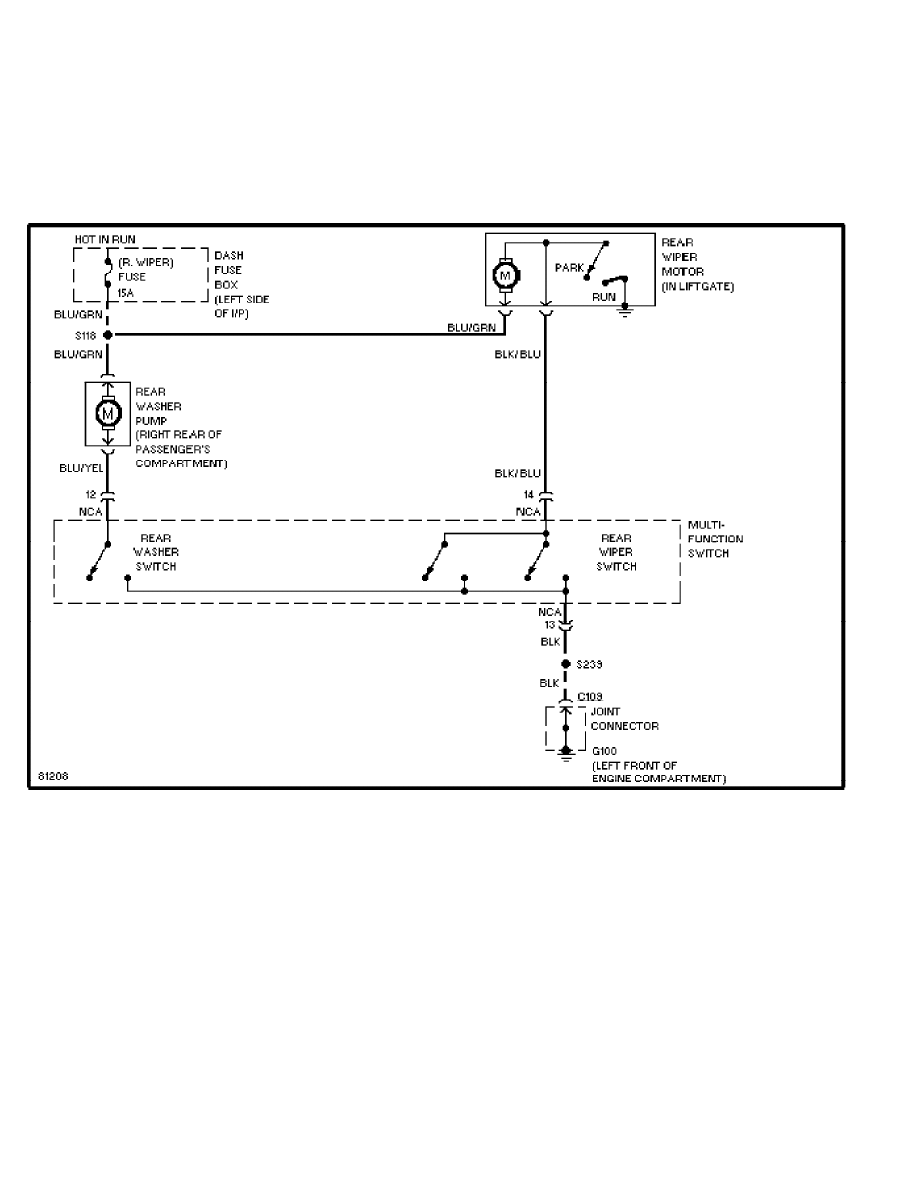

Rear Wiper/Washer Circuit (p. 27)

1995 Ford Aspire

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 06:14PM
