PARTS CATALOGUE

PF-9

PRINTER OPTION

PRINTER OPTION - Parts Catalogue

KYOCERA PF-9

Page 1

PF-9 Parts Catalogue

Table of Contents

3

Assembly (Fig.1)

Introduction

The figures which follow depict the major assemblies of the printer or option,
broken down into components. Following each figure are the list giving the
following information:

Reference number which corresponds to the parts in the figure

’Ref No.’

Part code which identifies the part

’Part code’

A brief description of the part

’Part description’

Quantity of the part used in the printer or option

’Quantity’

Only the parts highlighted in BOLD should be ordered. All other parts are for
reference only and are not stocked.

PRINTER OPTION - Parts Catalogue

KYOCERA PF-9

Page 2

07-007

07-008

07-009

07-001

07-006

07-003

07-002

07-007

01-010

01-008

14-002

14-003

05-002

10-001

09-001

14-001

13-001

13-003

08-001

11-004

13-002

06-001

10-003

10-002

06-002

04-002

06-003

17-003

18-001

18-002

18-001

17-001

18-002

11-001

11-006

11-007

16-001

16-003

16-002

11-005

01-001

02-002

02-001

02-006

02-005

02-003

02-007

02-004

01-002

08-002

08-003

07-004

08-005

07-005

01-008

09-002

01-013

01-012

08-004

08-007

08-008

07-007

08-006

07-005

01-011

08-007

01-003

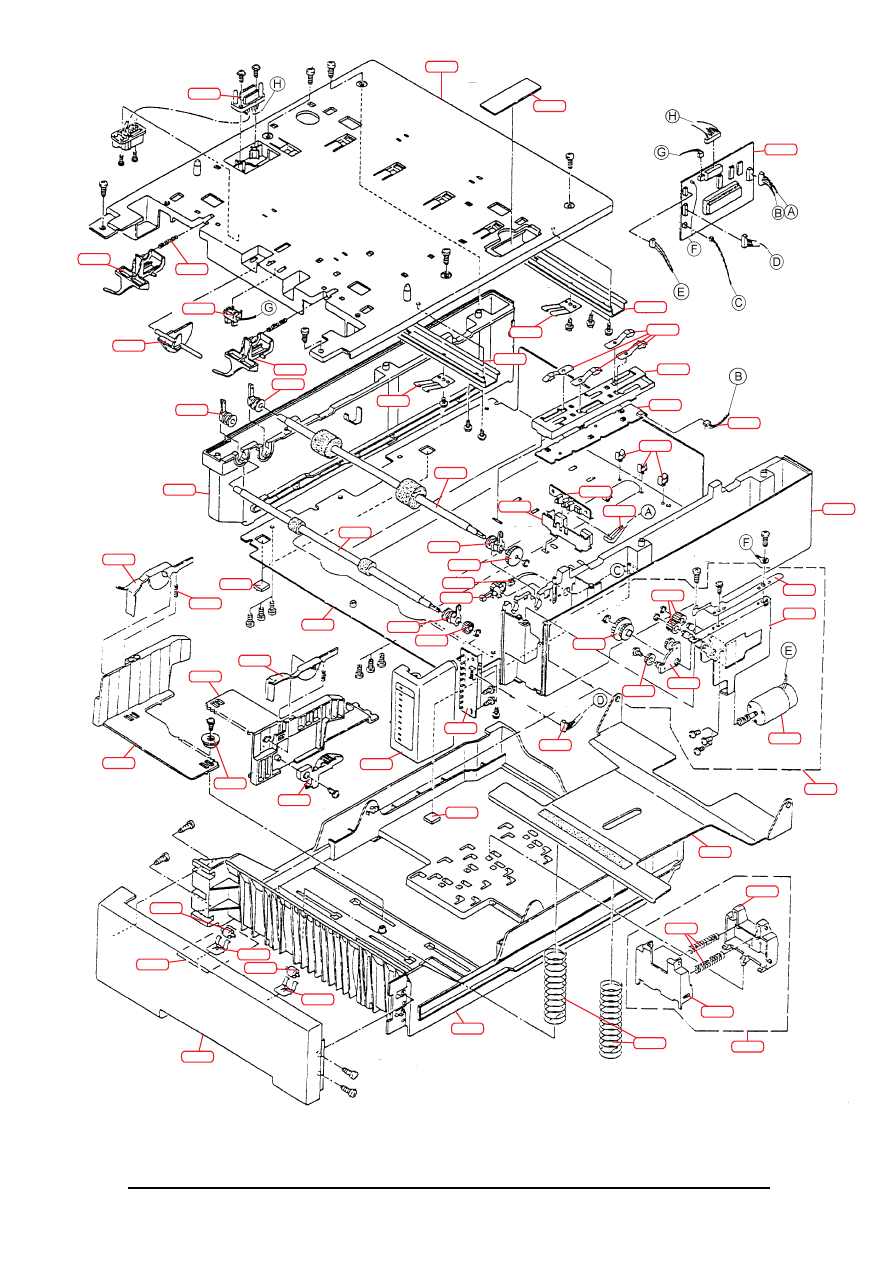

Fig.1 - Assembly

PRINTER OPTION - Parts Catalogue

KYOCERA PF-9

Page 3

Quantity

Description

Part Code

Ref No.

Quantity

Description

Part Code

Ref No.

1

BRACKET DRIVE ASSY

5S

NSP0009737

01-001

1

FRAME RIGHT ASSY

5S

NSP0009738

01-002

1

FRAME LEFT ASSY

5S

NSP0009739

01-003

1

BUSHING

5S

NSP0009745

01-008

1

BUSHING

5S

NSP0009745

01-010

1

PWB CONTROL

5S

NSP0009746

01-011

1

SENSOR PA-5

5S

NSP0009747

01-012

1

CONN. CORD ASSY

5S

NSP0009748

01-013

1

BRACKET DRIVE

5S

NSP0009749

02-001

1

MOTOR ASSY

5S

NSP0009750

02-002

1

GEAR JOINT Z15

5S

NSP0009752

02-003

2

GEAR IDLE Z15

5S

NSP0009753

02-004

1

GEAR Z25-Z40

5S

NSP0009754

02-005

1

PLATE EARTH

5S

NSP0009755

02-006

1

PLATE ARM ASSY

5S

NSP0009751

02-007

2

FOOT

5S

NSP0009759

04-002

2

FOOT

5S

NSP0009759

05-002

1

COVER PANEL ASSY

5S

NSP0009761

06-001

1

PWB PANEL

5S

NSP0009762

06-002

1

CONN. CORD ASSY

5S

NSP0009763

06-003

1

COVER TOP

5S

NSP0009766

07-001

1

PE SENSOR ASSY

5S

NSP0009767

07-002

1

ACTVATOR SENSOR

5S

NSP0009768

07-003

2

CHANNEL REAM

5S

NSP0009769

07-004

3

PLATE EARTH

5S

NSP0009770

07-005

1

SHEET COVER

5S

NSP0009771

07-006

2

GUIDE PLATE

5S

NSP0009772

07-007

2

SPRING GUIDE PAPER

5S

NSP0009773

07-008

1

CONNECTER ASSY

5S

NSP0009774

07-009

1

PLATE BASE

5S

NSP0009776

08-001

1

COVER SENSOR REAR

5S

NSP0009777

08-002

1

PWB SENSOR REAR

5S

NSP0009778

08-003

1

COVER SENSOR WIDE

5S

NSP0009779

08-004

1

PWB SENSOR WIDE

5S

NSP0009780

08-005

4

SPRING ACTUATER

5S

NSP0009781

08-006

1

CONN. CORD ASSY

5S

NSP0009782

08-007

4

NYLON CLAMP

5S

NSP0009783

08-008

1

ROLL FEED

5S

NSP0009784

09-001

1

GEAR FEED Z30

5S

NSP0009785

09-002

1

ROLL DRIVE

5S

NSP0009786

10-001

1

GEAR DRIVE Z15

5S

NSP0009787

10-002

1

BUSHING

5S

NSP0009745

10-003

1

BASE CASSETTE ASSY

5S

NSP0009788

11-001

1

GEAR PINION Z16

5S

NSP0009791

11-004

1

PLATE BOTTOM ASSY

5S

NSP0009792

11-005

PRINTER OPTION - Parts Catalogue

KYOCERA PF-9

Page 4

Quantity

Description

Part Code

Ref No.

2

SPRING CASSETTE

5S

NSP0009793

11-006

1

BACK END ASSY

5S

NSP0009794

11-007

1

GUIDE PAPER R

5S

NSP0009800

13-001

1

LEVEL LOCK

5S

NSP0009801

13-002

1

NAIL R

5S

NSP0009802

13-003

1

GUIDE PANEL L

5S

NSP0009804

14-001

1

NAIL L

5S

NSP0009805

14-002

1

SPRING NAIL

5S

NSP0009803

14-003

1

BACK END F

5S

NSP0009808

16-001

1

BACK END R

5S

NSP0009809

16-002

1

SPRING PRESS

5S

NSP0009810

16-003

1

COVER FRONT

5S

NSP0009811

17-001

2

ROLL PINCH ASSY

5S

NSP0009813

17-003

1

ROLL PINCH

5S

NSP0009814

18-001

1

SPRING ROLL PINCH

5S

NSP0009815

18-002
