Kyocera Paper Feeder PF 2 Parts Manual

background image

PARTS CATALOGUE

PF-2

PRINTER OPTIONS

PRINTER OPTIONS - Parts Catalogue

KYOCERA PF-2

Page 1

background image

PF-2 Parts Catalogue

Table of Contents

Internal Parts of Main Unit (Fig.2)

Harness (Fig.4)

Introduction

The figures which follow depict the major assemblies of the printer or option,
broken down into components. Following each figure are the list giving the
following information:

Reference number which corresponds to the parts in the figure

’Ref No.’

Part code which identifies the part

’Part code’

A brief description of the part

’Part description’

Quantity of the part used in the printer or option

’Quantity’

Only the parts highlighted in BOLD should be ordered. All other parts are for
reference only and are not stocked.

PRINTER OPTIONS - Parts Catalogue

KYOCERA PF-2

Page 2

background image

Fig.1 - Covers

PRINTER OPTIONS - Parts Catalogue

KYOCERA PF-2

Page 3

background image

Quantity

Description

Part Code

Ref No.

Quantity

Description

Part Code

Ref No.

1

TOP COVER

1

FOOT SPACER

1

SET SCREW

1

REAR COVER

1

SOARD BRACKET

1

P.W. BOARD ASSY (MAIN)

1

UPJOINTCORDASSY

1

LOW JOINT CORD ASSY

1

FEED COVER ASSY

1

FEED COVERPINA

1

FEED COVER PIN B

1

RIGHT COVER

1

LEFTCOVER

1

BUSHING PLATE

1

CONN CORD ASSY(I/F)

1

FERRITE CDRE

2

SPACERPIN

1

FERRITE CORE

1

EARTH PLATE

4

SPACER COLLAR

1

BUSHING

PRINTER OPTIONS - Parts Catalogue

KYOCERA PF-2

Page 4

background image

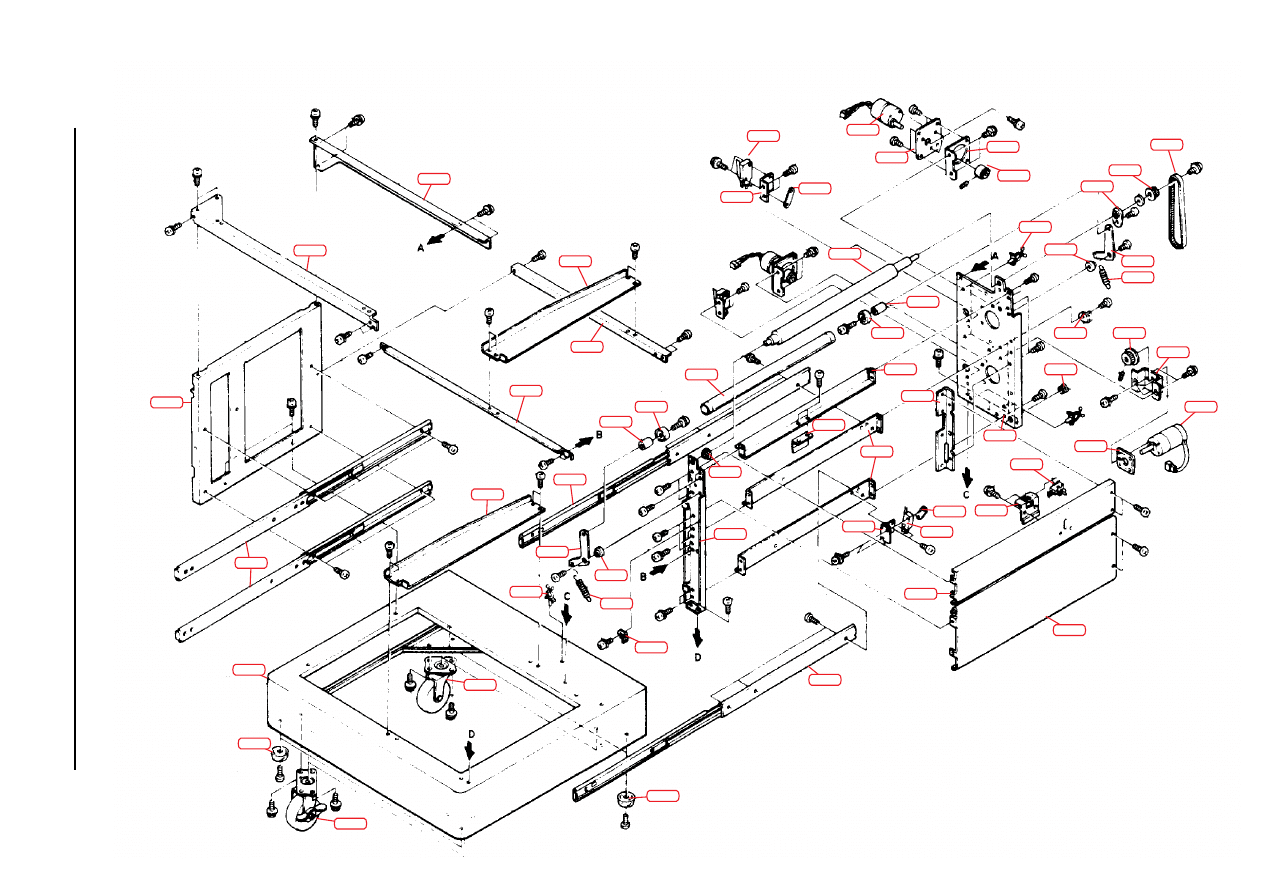

Fig.2 - Internal Parts of Main Unit

PRINTER OPTIONS - Parts Catalogue

KYOCERA PF-2

Page 5

background image

Quantity

Description

Part Code

Ref No.

Quantity

Description

Part Code

Ref No.

1

UPPER CHANNEL R

1

UPPER CHANNEL F

1

FRAME U FT

2

GUIDE RAIL

1

LOWER CHANNEL F

1

LOWER CHANNEL R

1

GUIDE FRAME F

1

GUIDE FRAME R

2

CHANNEL FRAME

4

SUDE RAIL

1

BASE FRAME

1

CARRIER MOTOR ASSY

1

CARRIER MOTOR BKT

1

RUBBER PLATE

1

TIMING PULLEY B

1

TIMING BELT

2

FEEDMOTORASSY

2

FEED MOTOR BRACKET

2

MOTOR PLATE

2

MOTOR GEAR Z20B

3

MICRO SWITCH

2

SWITCH BRACKET

3

SCREW PLATE

1

COVER SW BRACKET

1

GUIDE PLATE BRACKET

1

GUIDE PLATE LOWER

1

GUIDE PLATE MIDDLE

1

PHOTO SENSOR

1

SEN80R BRACKET B

1

GUIDE PLATE UPPER

1

MAGNET PLATE

1

CARRIER ROLL LOW

1

ROLLEUSH

1

TIMING PULLEY ASSY**

1

BUSH METAL

1

CARRIER ROLL UP

2

PRESSURE LEVER

2

BEARING

2

STOPPER PIN

2

LEVER PIN

2

PRESSURE SPRING

2

SPRING PLATE

2

FRONT CASTER

2

REARCASTER

4

FOOT

PRINTER OPTIONS - Parts Catalogue

KYOCERA PF-2

Page 6

background image

Quantity

Description

Part Code

Ref No.

1

OPEN CLOSED BUSHING

4

CABLE HOLDER A

3

CABLE HOLDER B

PRINTER OPTIONS - Parts Catalogue

KYOCERA PF-2

Page 7

background image

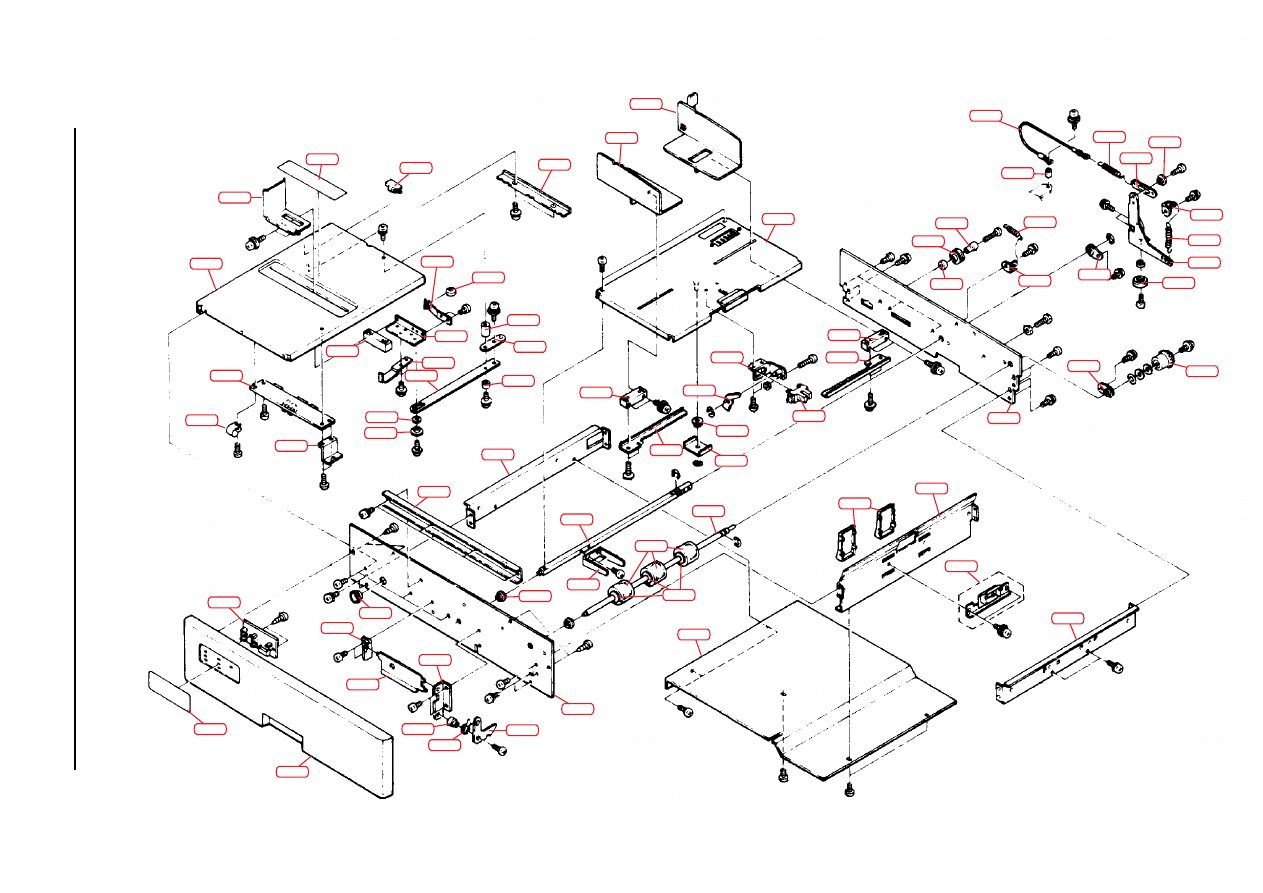

Fig.3 - Trays

PRINTER OPTIONS - Parts Catalogue

KYOCERA PF-2

Page 8

background image

Quantity

Description

Part Code

Ref No.

Quantity

Description

Part Code

Ref No.

2

LABEL PAPER SIZE

2

PAPER STOPPER

2

FEED BASE

2

PW BOARD ASSY (SENSOR)

2

BASE SUPPORT

2

SLIDE BRACKET

6

SLIDE BASE

2

FLAT SPRING

2

ROLL STOPPER

2

JOINT LINK

2

ADJUST PLATE

2

PIVOT SPACER

2

PIVOT PIN

2

SLIDE BRACKET PIN

2

SLIDE COLLAR

2

SENSOR PLATE

2

FRONTCOVER

2

PANEL

2

P.W. BOARD ASSY (LED)

2

FRAME FRONT

2

LEVER BRACKET R

2

HOOK PLATE

2

HOOK PIN

2

HOOK SPRING

2

OPEN LEVER

2

LEVER BRACKET L

2

STOPPER PLATE

2

STAY LEFT

2

STAY RIGHT

2

FRAME REAR

4

BUSH METAL

2

HINGE ROD

2

HINGE BRACKET

2

HINGE BUSH

2

HINGE LEVER

2

GUIDE ROLL

2

SPRING PLATE

2

SPRING PLATE PIN

2

TENSION SPRING A

4

ANGLE PLATE

2

PULUEY

2

PULUEY PIN

2

COU AR

2

TENSION SPRING B

2

TENSION WIRE

PRINTER OPTIONS - Parts Catalogue

KYOCERA PF-2

Page 9

background image

Quantity

Description

Part Code

Ref No.

2

WIRE PIN

2

TENSION SPRING C

2

FEED ROLLSHAFT

6

FEED ROLL

6

WHEEL ROLL

2

FEED BUSH

2

FEED GEAR ASSY

2

GUIDE PLATE F

2

GUIDE PLATE R ASSY

2

BOTTOM PLATE ASSY

4

RACK

2

GEAR Z145

2

RACK GUIDE PLATE

2

SENSOR BRACKET A

2

FEED ACTUATOR

2

PHOTO SENSOR

2

PAPER FEED PLATE

4

GUIDE LIB

2

SEPARATOR ASSY

2

BASE PLATE

1

CHANNEL

1

CABLE CLAMP

1

CORD KEEP

1

OPEN CLOSED BUSHING

PRINTER OPTIONS - Parts Catalogue

KYOCERA PF-2

Page 10

background image

Fig.4 - Harness

PRINTER OPTIONS - Parts Catalogue

KYOCERA PF-2

Page 11

background image

Quantity

Description

Part Code

Ref No.

Quantity

Description

Part Code

Ref No.

2

CONN CORD ASSY(CONNECT)

2

CONN CORD ASBY(SENSOR)

2

CONN CORD ASSY(DISPLAY)

1

CONN CORD ASSY(MAIN)

2

CONN CORD ASSY(MOTOR)

1

UPPER CORD ASSY

1

LOWER CORD ASSY

PRINTER OPTIONS - Parts Catalogue

KYOCERA PF-2

Page 12
