MERCEDES BENZ 420SEL 1990

background image

SYSTEM WIRING DIAGRAMS

Base Radio

1990 Mercedes-Benz 420SEL

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, November 30, 2000 12:34PM

cdr@wp.pl

background image

SYSTEM WIRING DIAGRAMS

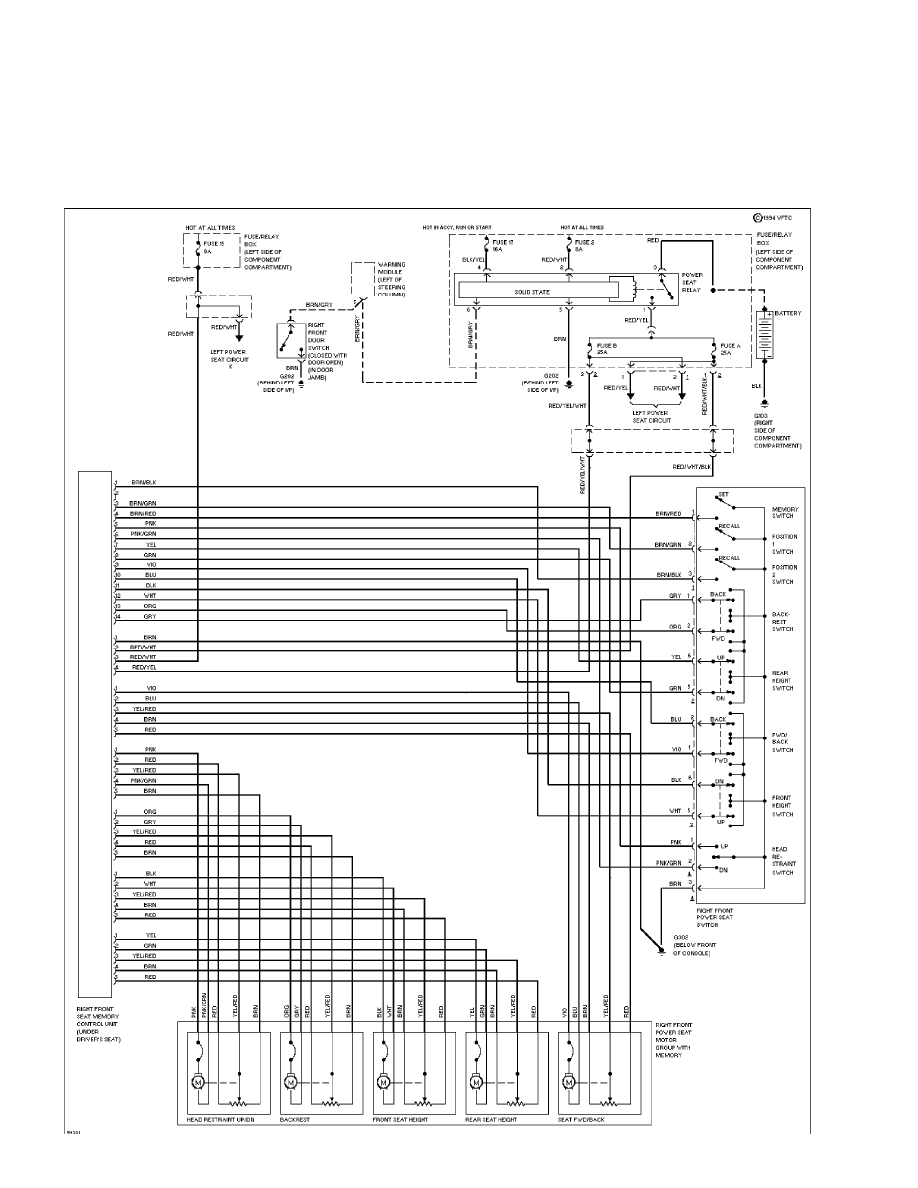

Right Seat Circuit

1990 Mercedes-Benz 420SEL

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, November 30, 2000 12:33PM

background image

SYSTEM WIRING DIAGRAMS

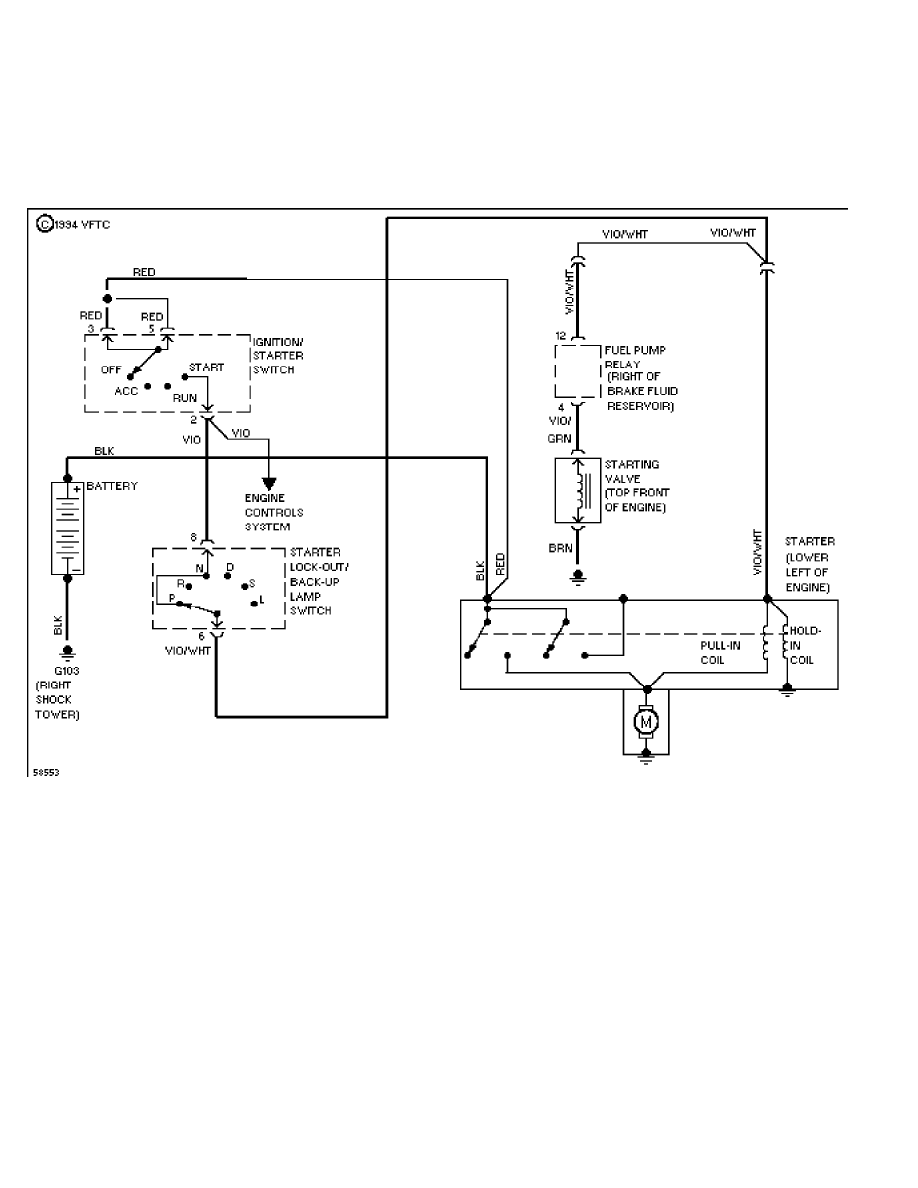

Starting Circuit

1990 Mercedes-Benz 420SEL

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, November 30, 2000 12:34PM

background image

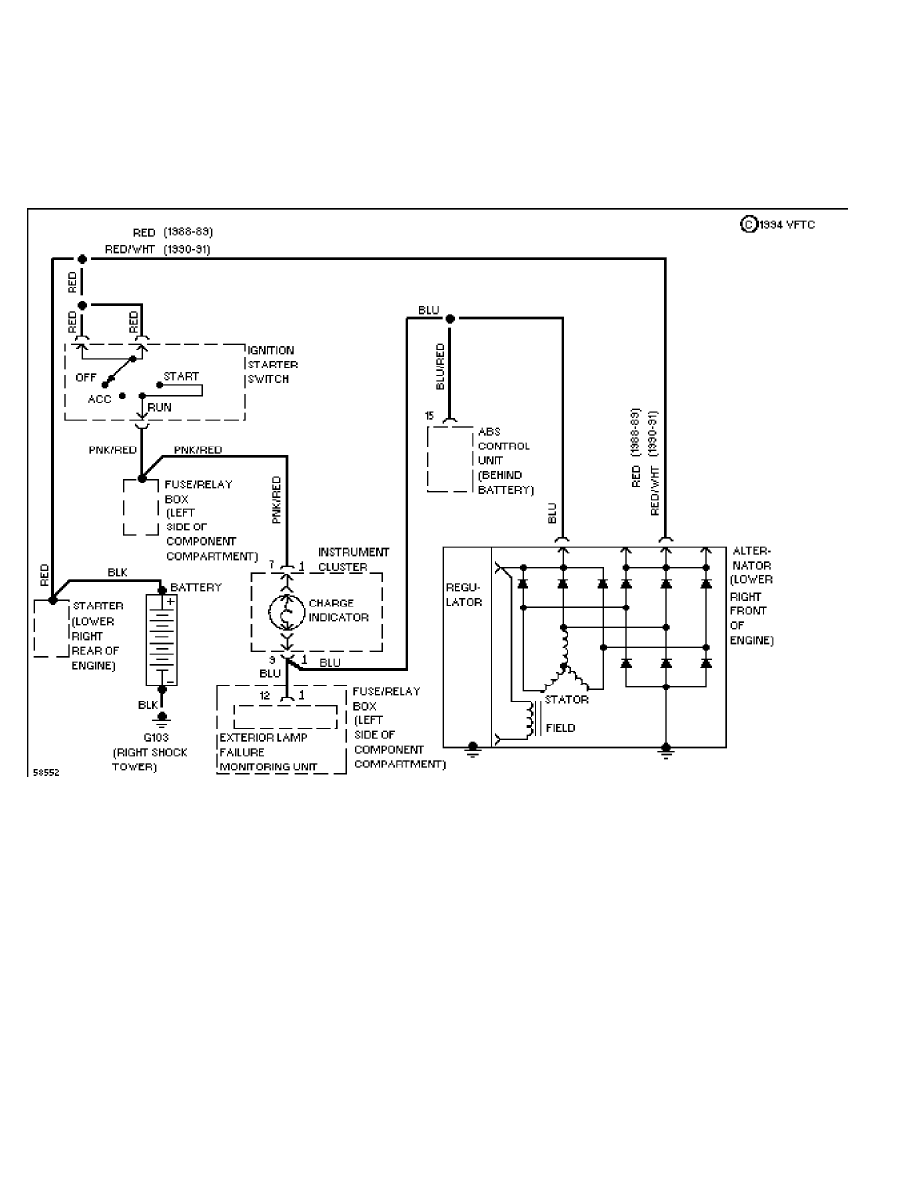

SYSTEM WIRING DIAGRAMS

Charging Circuit

1990 Mercedes-Benz 420SEL

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, November 30, 2000 12:34PM

background image

SYSTEM WIRING DIAGRAMS

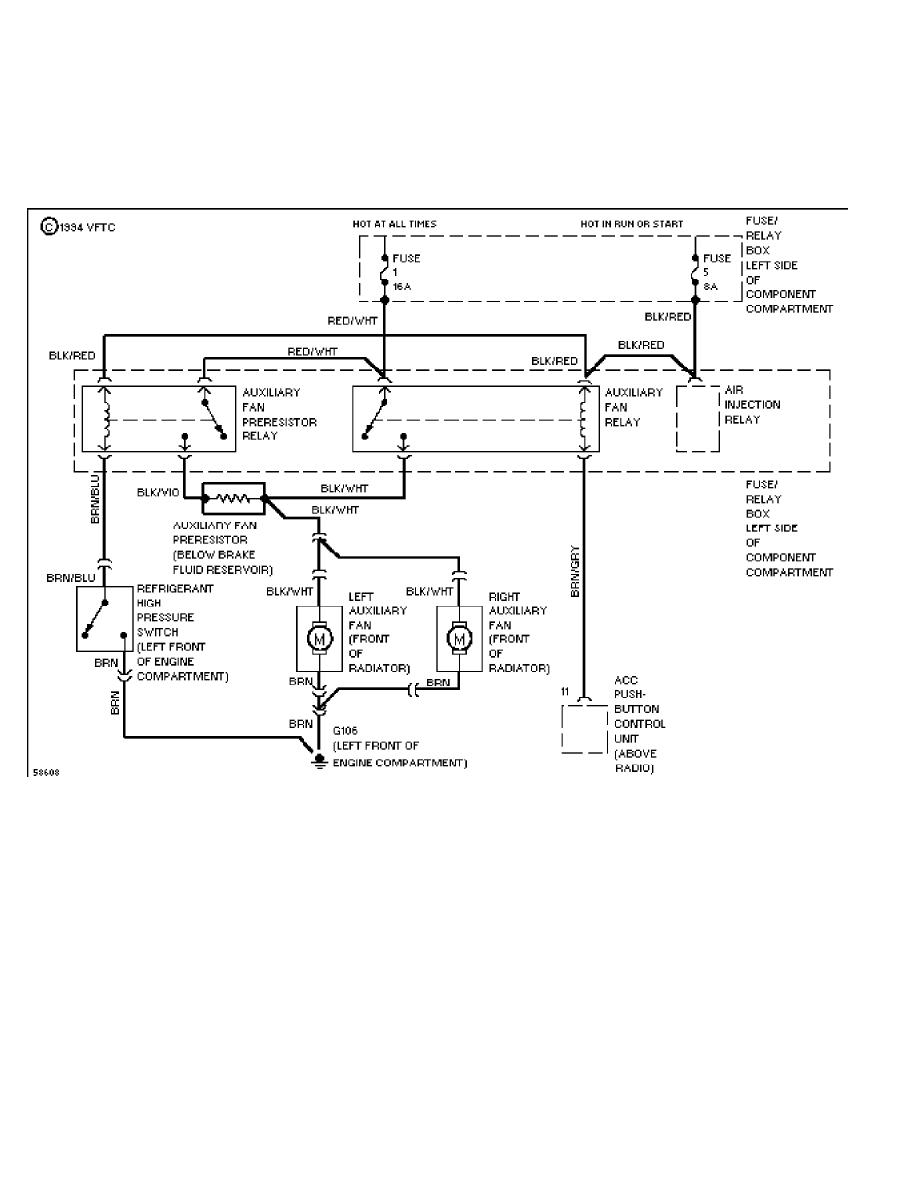

Cooling Fan Circuit

1990 Mercedes-Benz 420SEL

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, November 30, 2000 12:31PM

background image

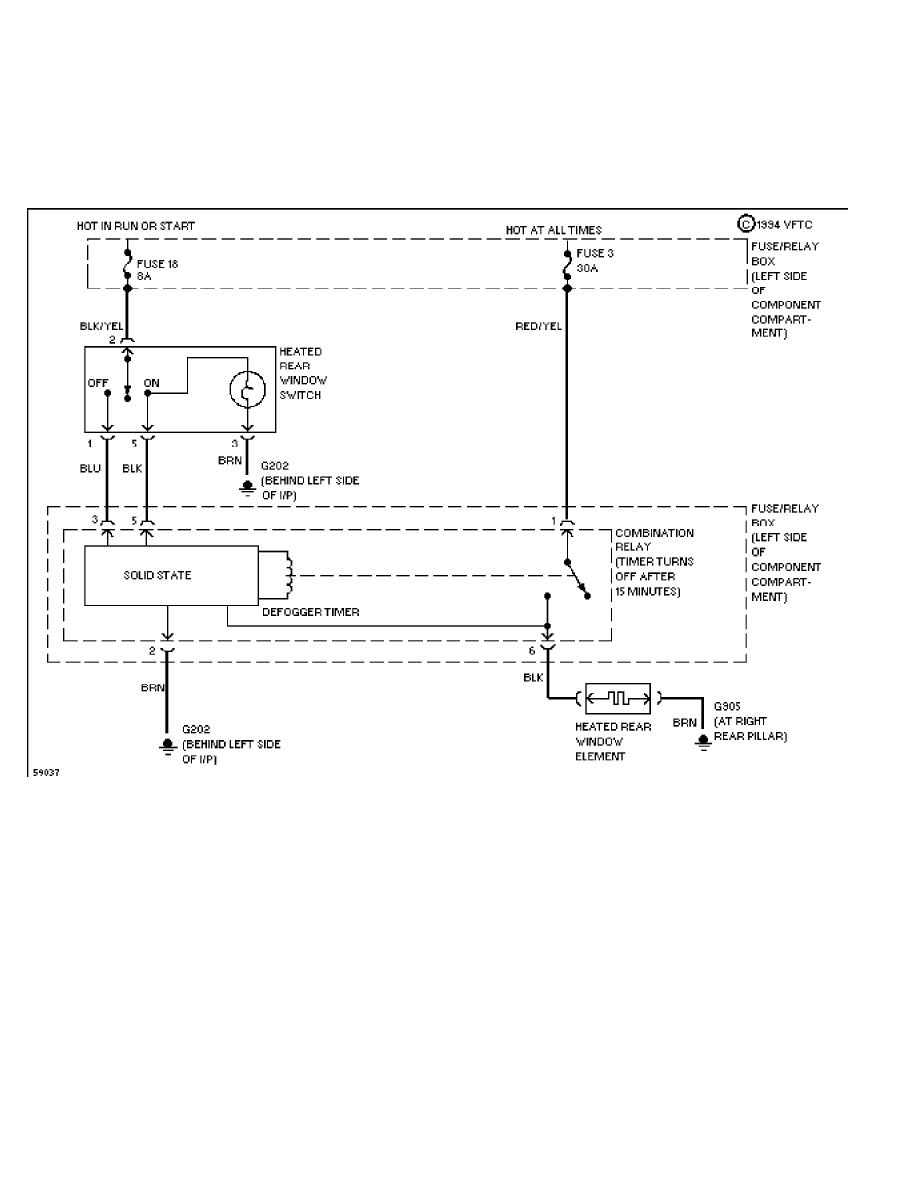

SYSTEM WIRING DIAGRAMS

Defogger Circuit

1990 Mercedes-Benz 420SEL

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, November 30, 2000 12:31PM

background image

SYSTEM WIRING DIAGRAMS

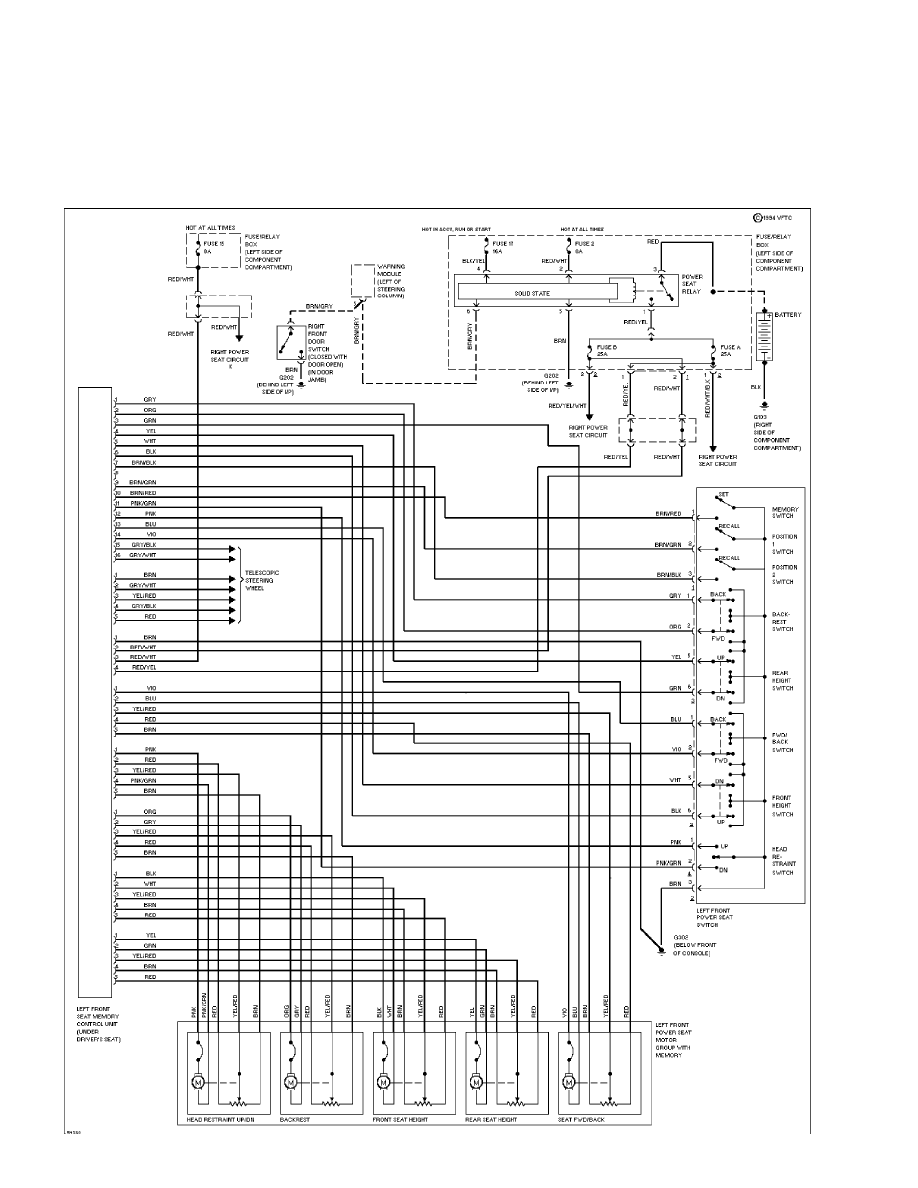

Driver Power Seat Circuit

1990 Mercedes-Benz 420SEL

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, November 30, 2000 12:32PM

background image

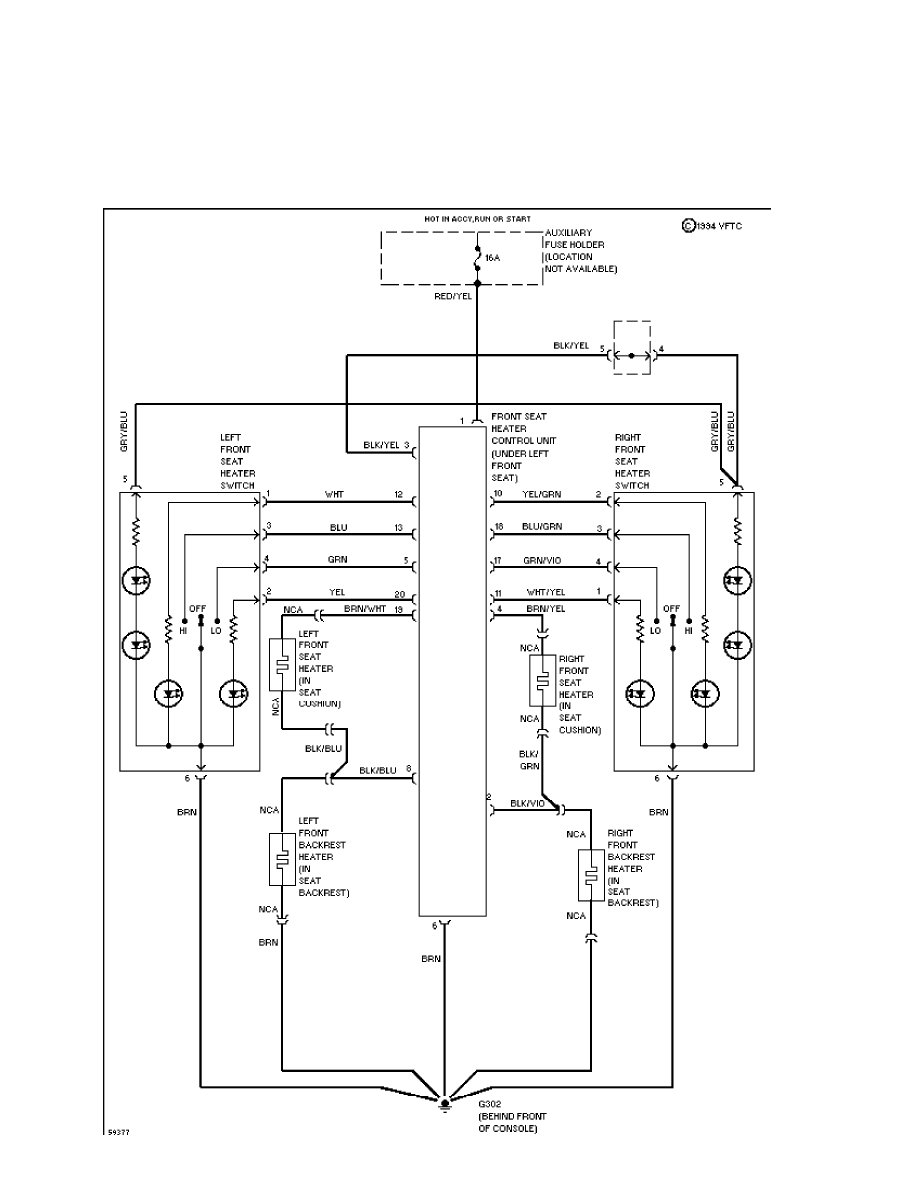

SYSTEM WIRING DIAGRAMS

Front Seat Heater Circuit

1990 Mercedes-Benz 420SEL

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, November 30, 2000 12:32PM

background image

SYSTEM WIRING DIAGRAMS

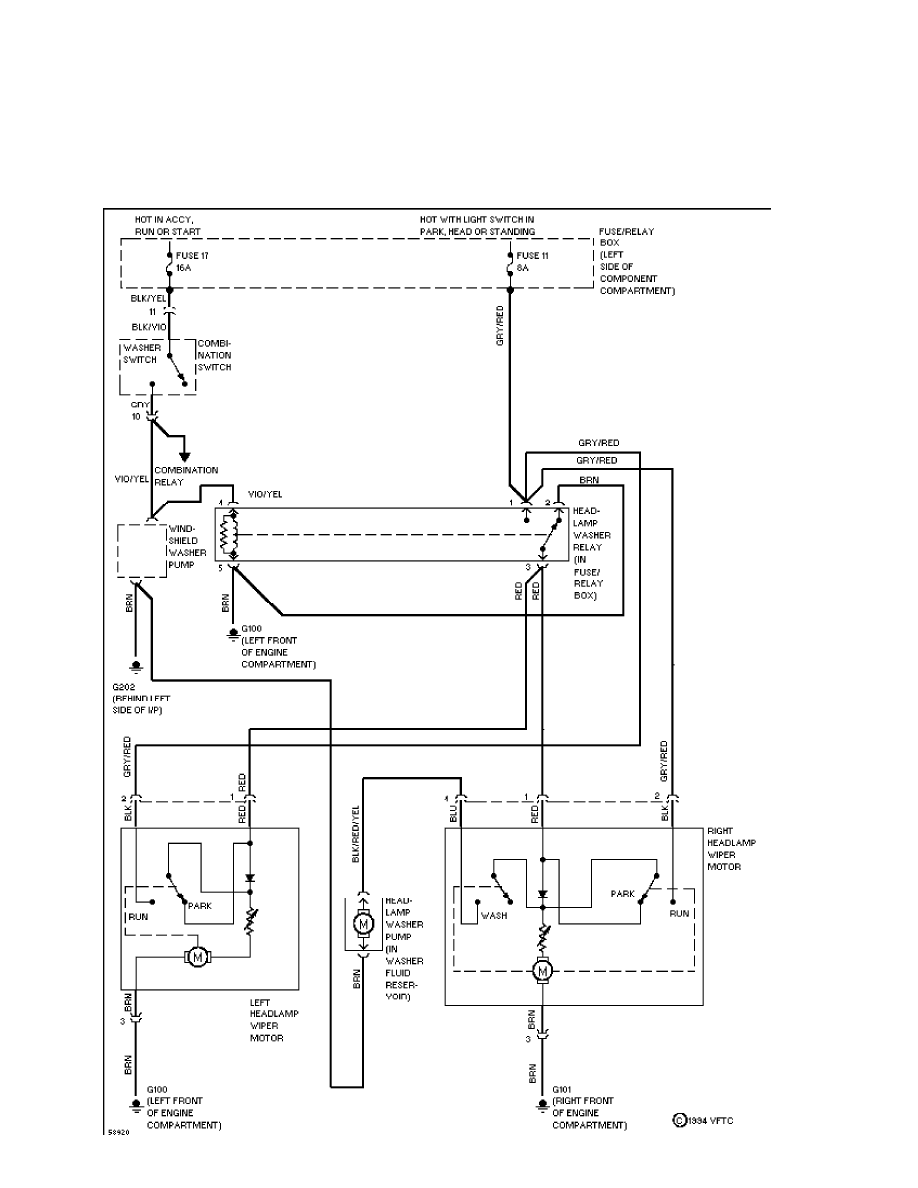

Headlight Washer/Wiper Circuit

1990 Mercedes-Benz 420SEL

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, November 30, 2000 12:34PM

background image

SYSTEM WIRING DIAGRAMS

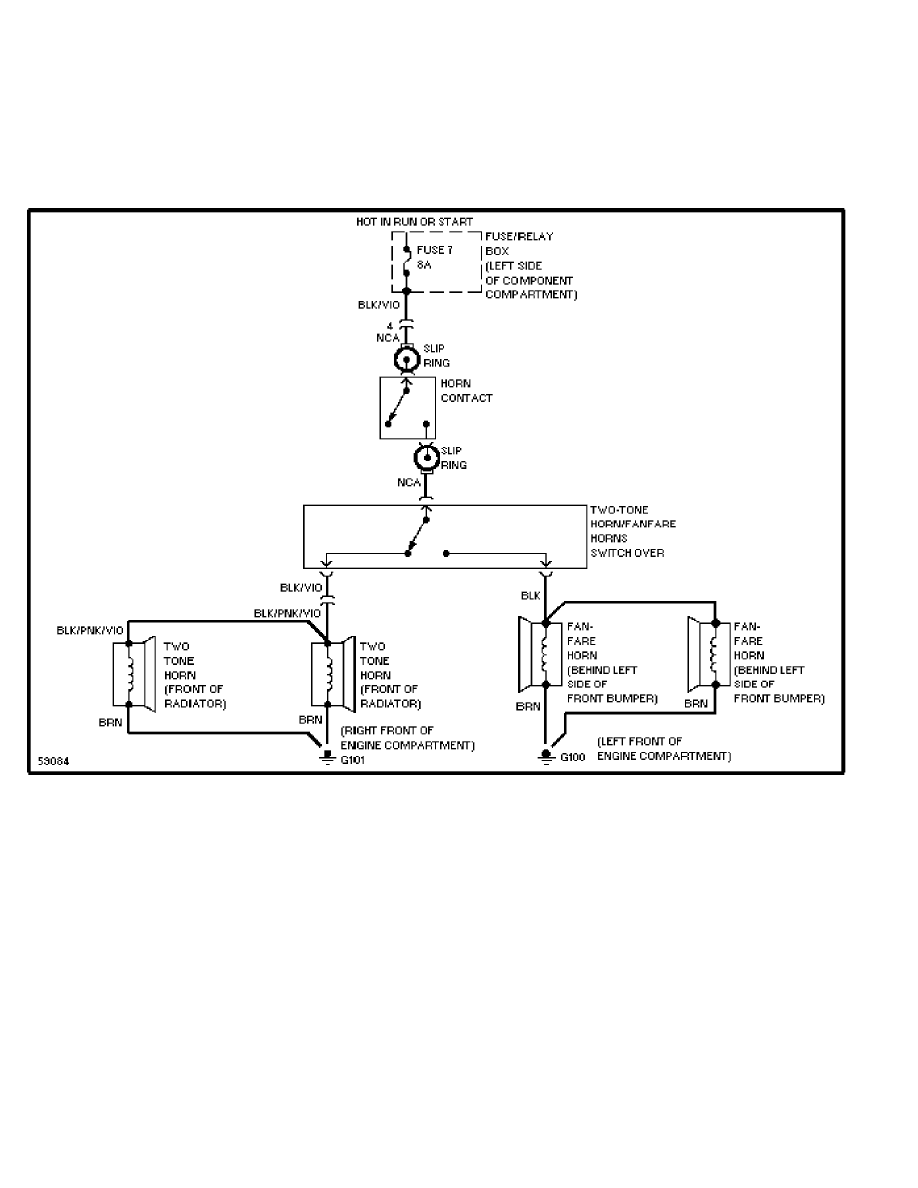

Horn Circuit

1990 Mercedes-Benz 420SEL

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, November 30, 2000 12:31PM

background image

SYSTEM WIRING DIAGRAMS

Interval Wiper/Washer Circuit

1990 Mercedes-Benz 420SEL

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, November 30, 2000 12:35PM

background image

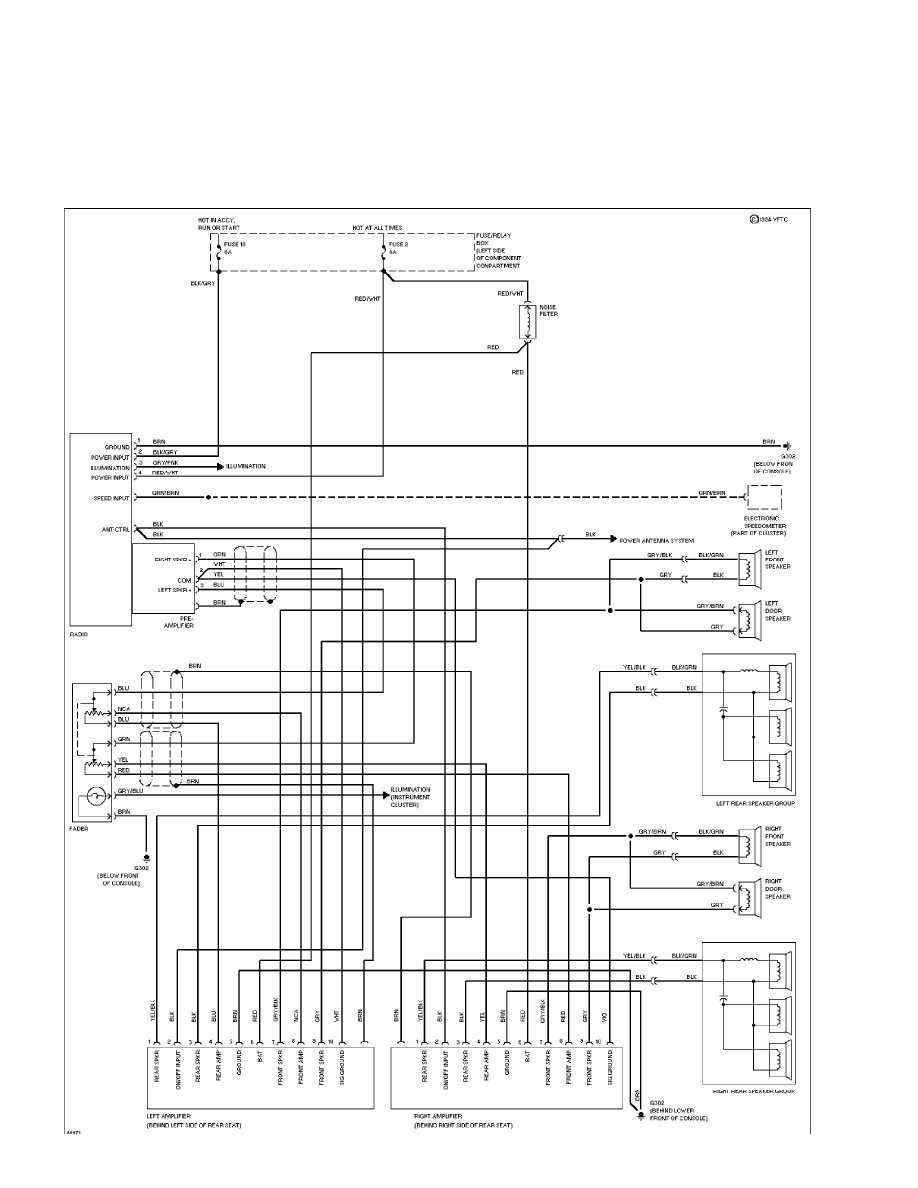

SYSTEM WIRING DIAGRAMS

One Piece Radio, W/ Sound System

1990 Mercedes-Benz 420SEL

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, November 30, 2000 12:34PM

background image

SYSTEM WIRING DIAGRAMS

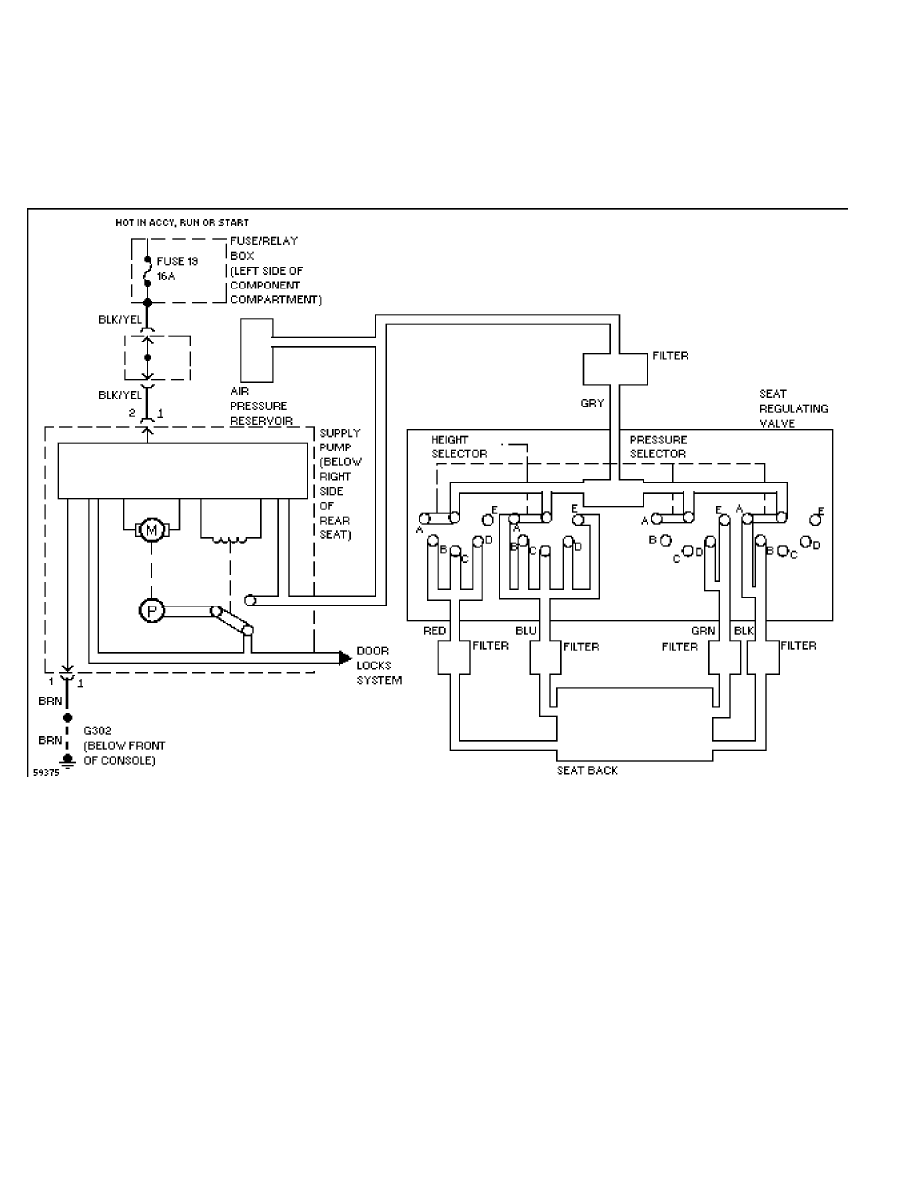

Orthopedic Seats

1990 Mercedes-Benz 420SEL

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, November 30, 2000 12:33PM

background image

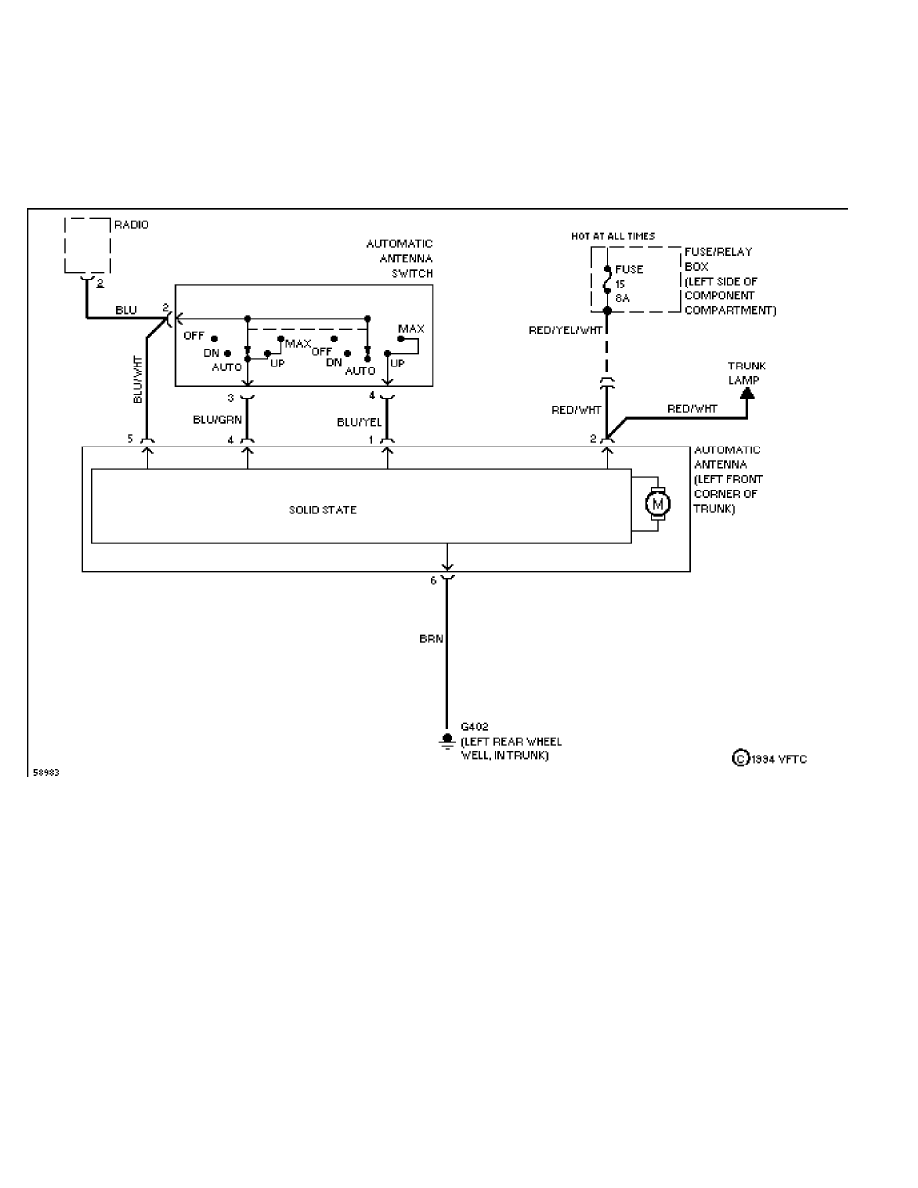

SYSTEM WIRING DIAGRAMS

Power Antenna Circuit, Base Radio

1990 Mercedes-Benz 420SEL

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, November 30, 2000 12:32PM

background image

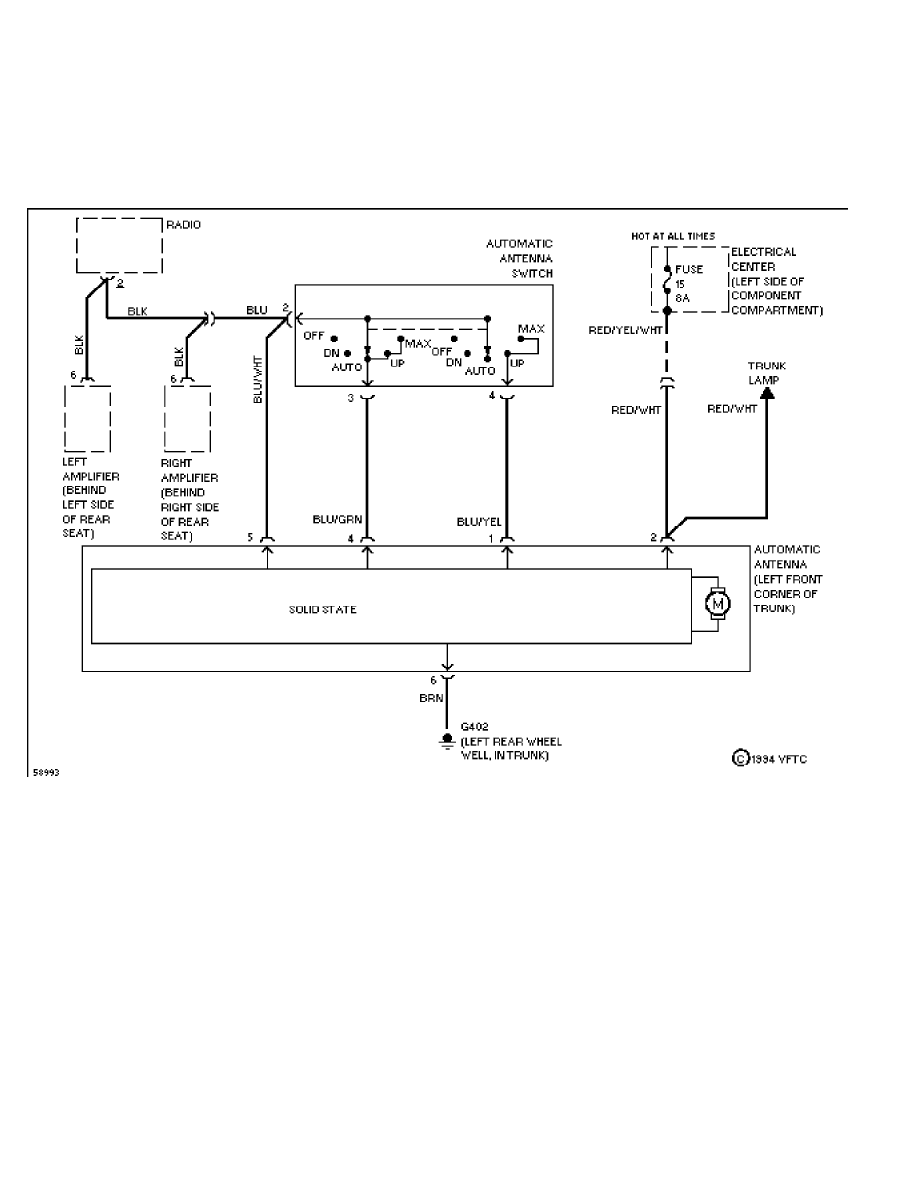

SYSTEM WIRING DIAGRAMS

Power Antenna Circuit, W/ Sound System

1990 Mercedes-Benz 420SEL

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, November 30, 2000 12:32PM

background image

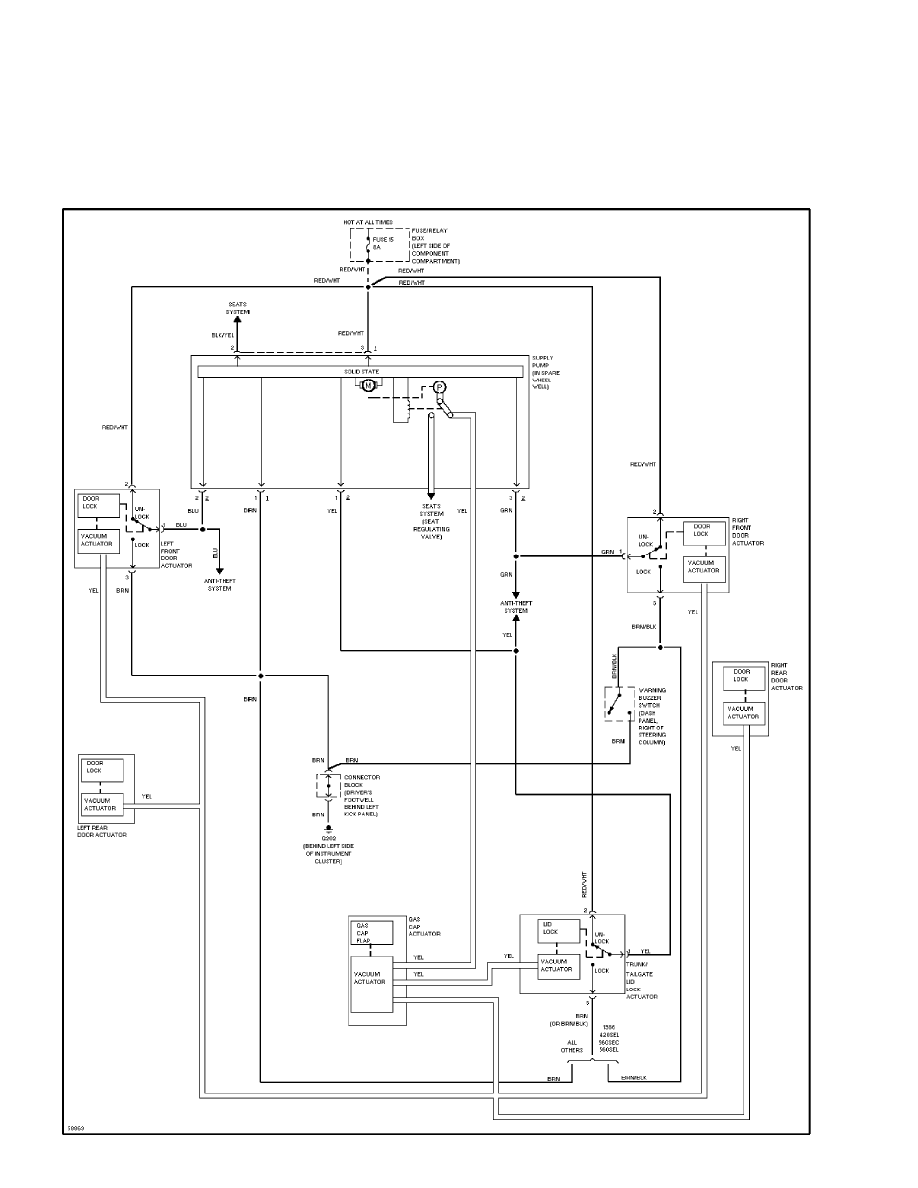

SYSTEM WIRING DIAGRAMS

Power Door Lock Circuit

1990 Mercedes-Benz 420SEL

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, November 30, 2000 12:32PM

background image

SYSTEM WIRING DIAGRAMS

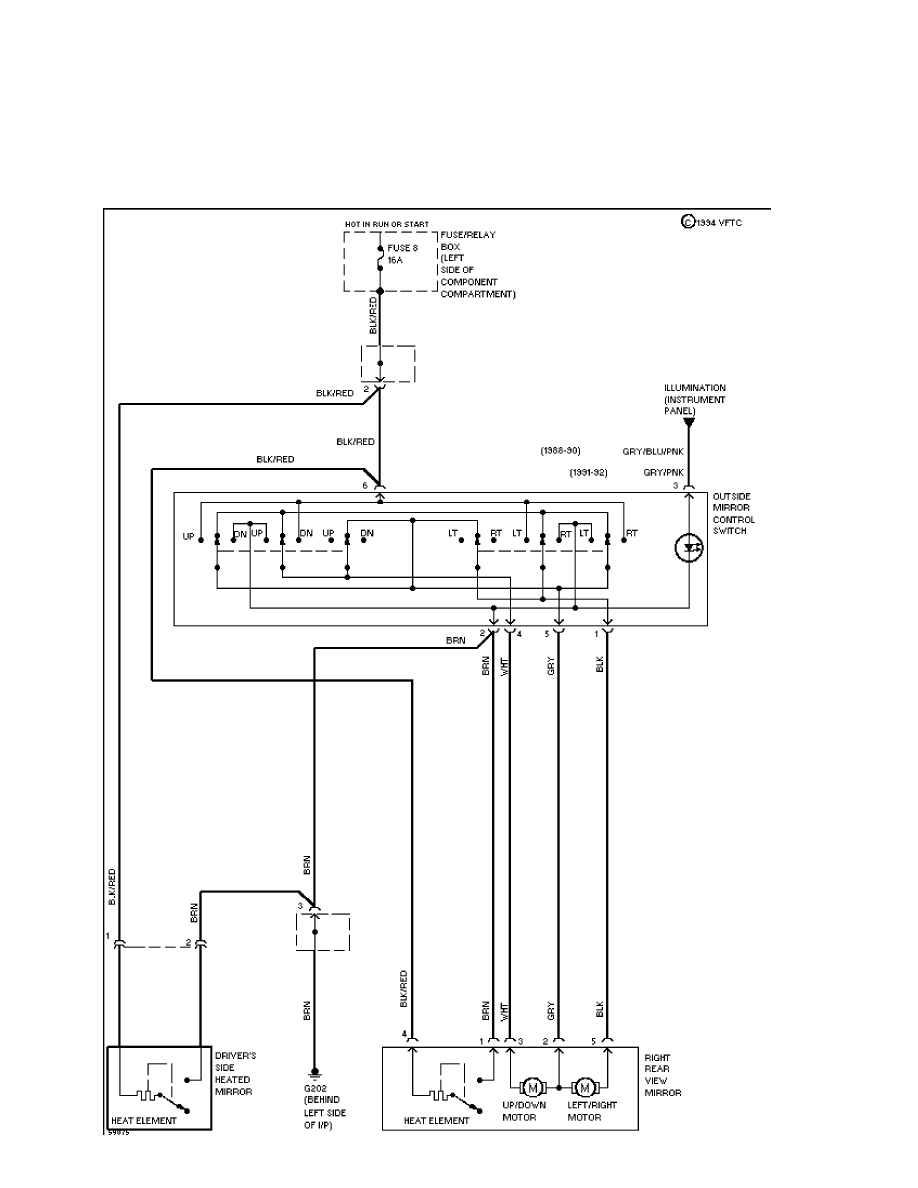

Power Mirror Circuit

1990 Mercedes-Benz 420SEL

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, November 30, 2000 12:32PM

background image

SYSTEM WIRING DIAGRAMS

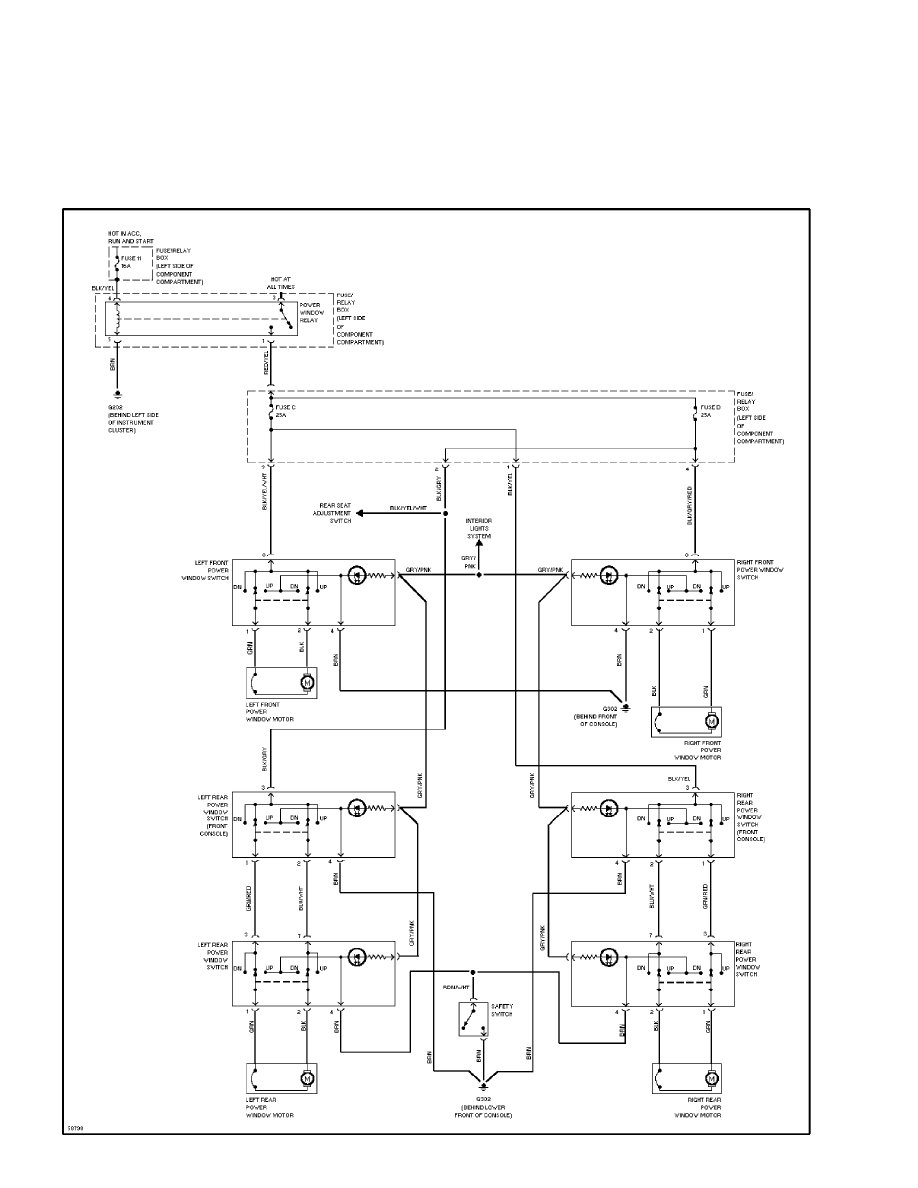

Power Window Circuit

1990 Mercedes-Benz 420SEL

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, November 30, 2000 12:33PM

background image

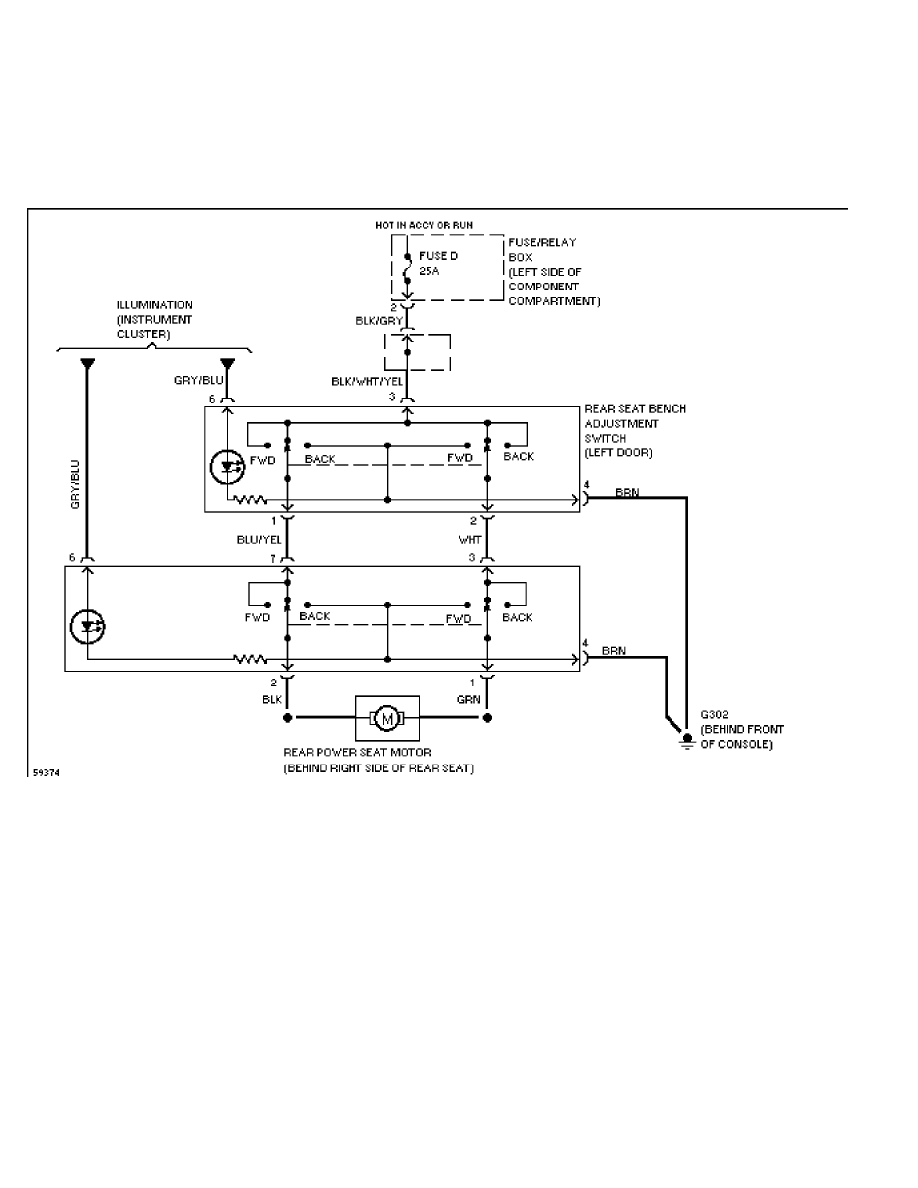

SYSTEM WIRING DIAGRAMS

Rear Seat Adjuster Circuit

1990 Mercedes-Benz 420SEL

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, November 30, 2000 12:33PM

background image

SYSTEM WIRING DIAGRAMS

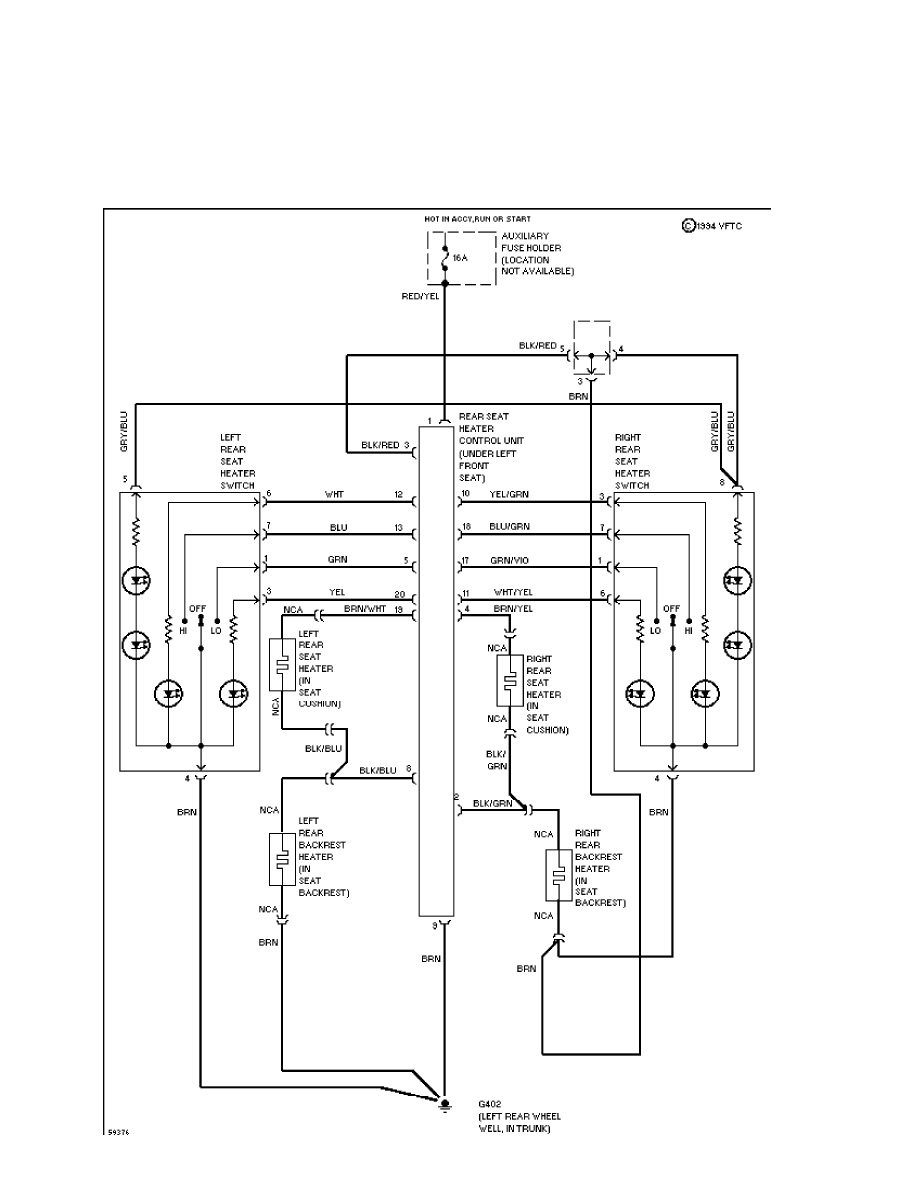

Rear Seat Heater Circuit

1990 Mercedes-Benz 420SEL

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, November 30, 2000 12:33PM
