MERCEDES BENZ 300SEL 1990

background image

SYSTEM WIRING DIAGRAMS

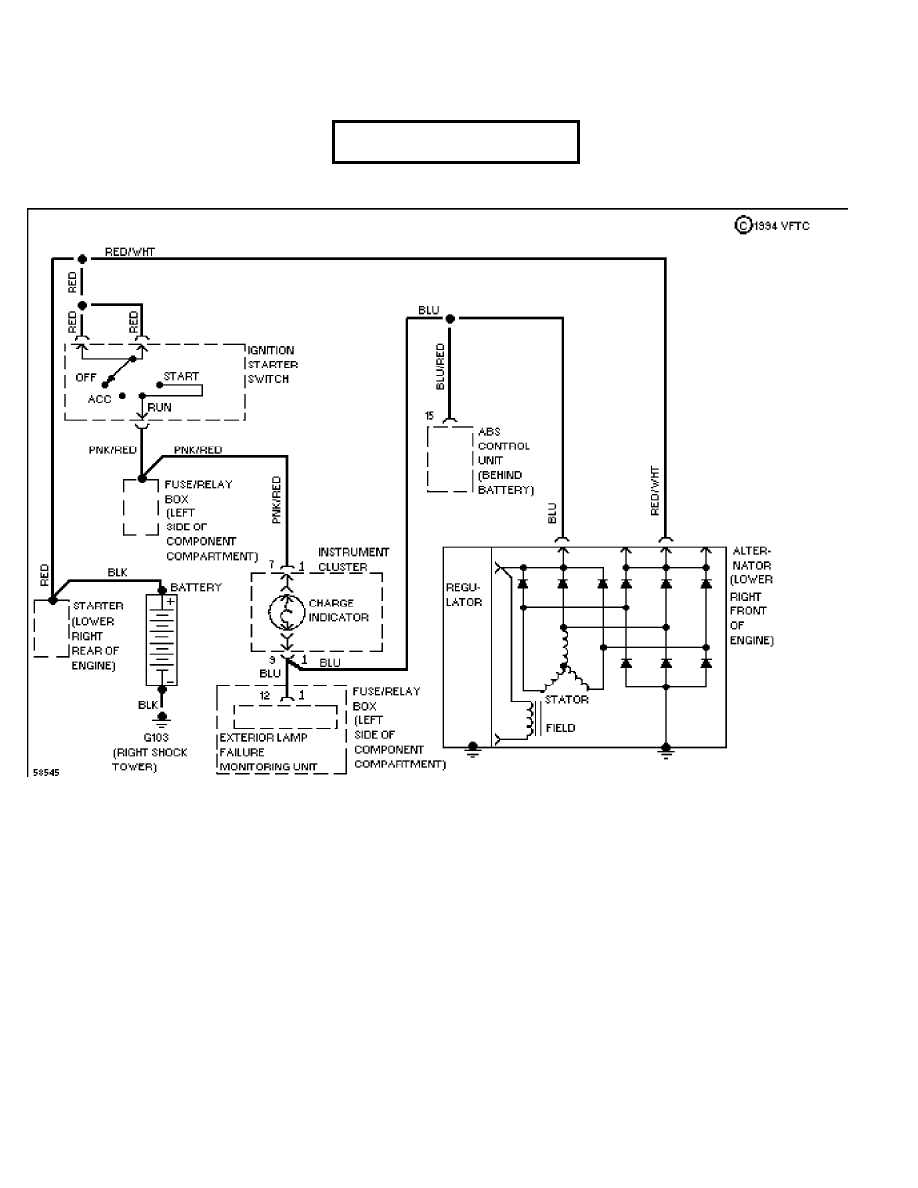

Charging Circuit

1990 Mercedes-Benz 300SEL

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, November 30, 2000 12:21PM

cdr@wp.pl

background image

SYSTEM WIRING DIAGRAMS

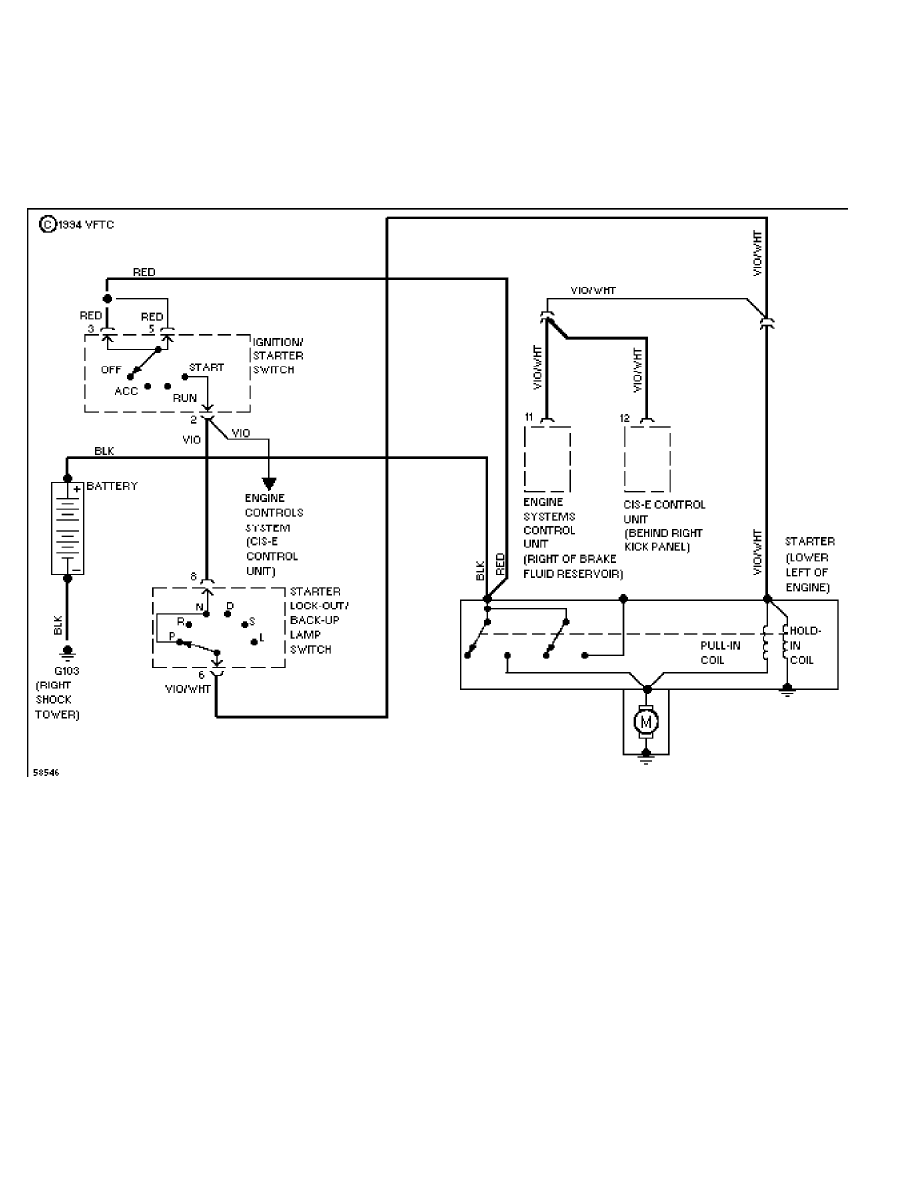

Starting Circuit

1990 Mercedes-Benz 300SEL

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, November 30, 2000 12:21PM

background image

SYSTEM WIRING DIAGRAMS

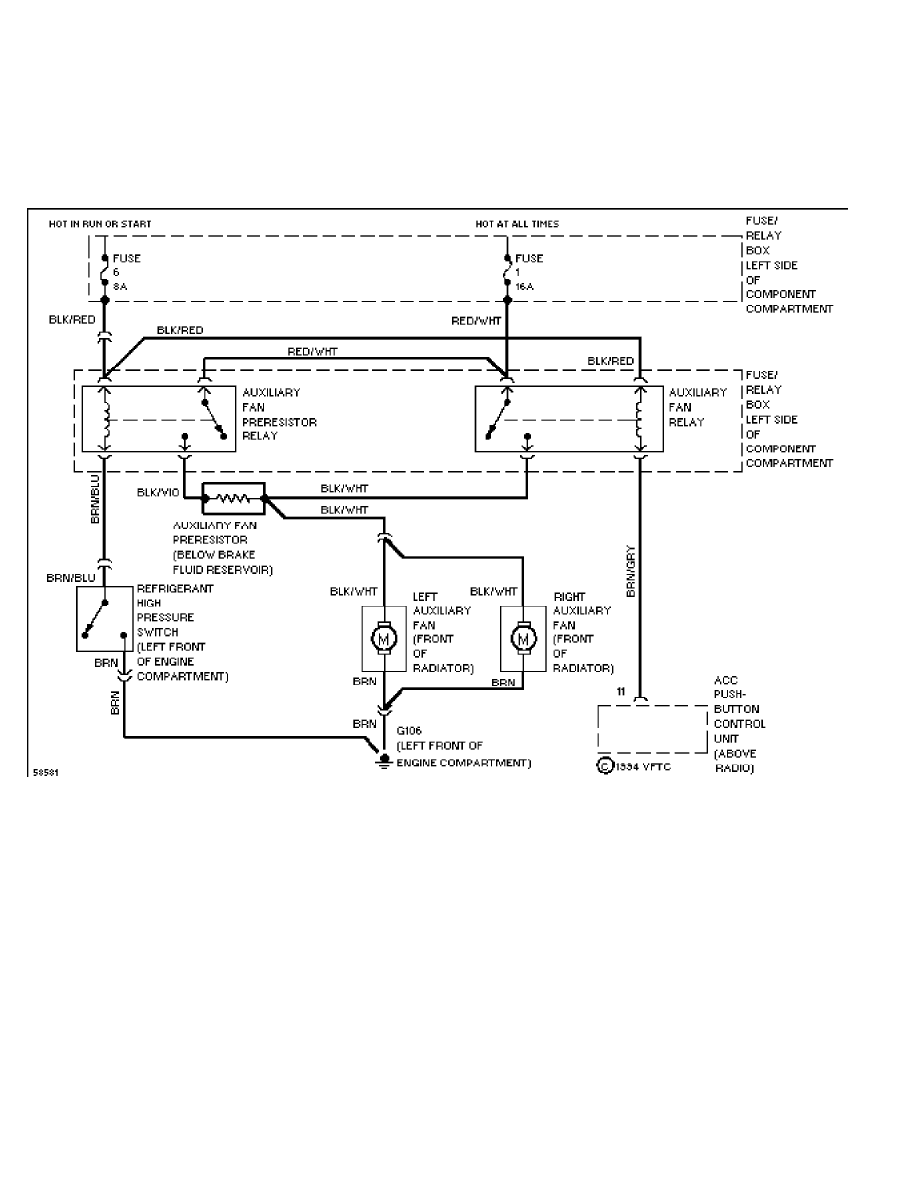

Cooling Fan Circuit

1990 Mercedes-Benz 300SEL

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, November 30, 2000 12:07PM

background image

SYSTEM WIRING DIAGRAMS

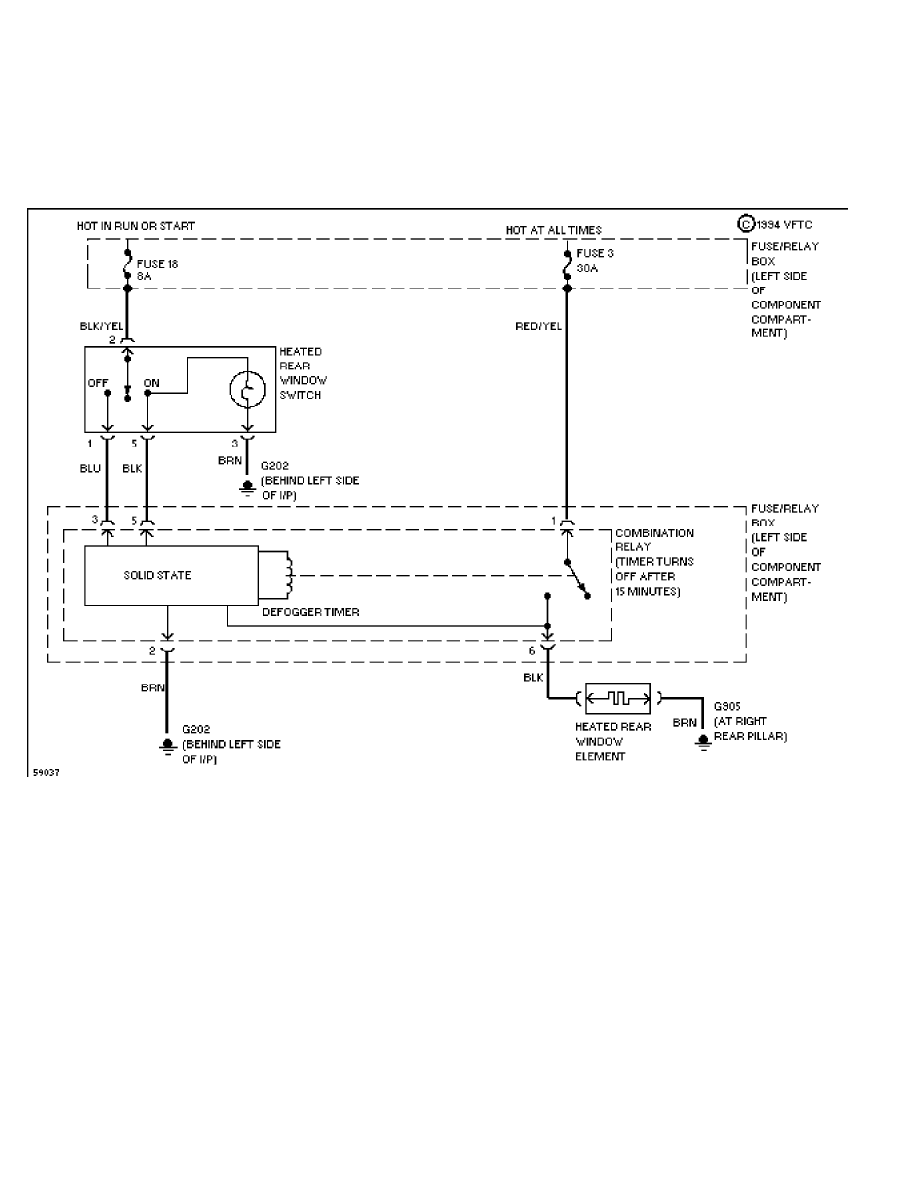

Defogger Circuit

1990 Mercedes-Benz 300SEL

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, November 30, 2000 12:07PM

background image

SYSTEM WIRING DIAGRAMS

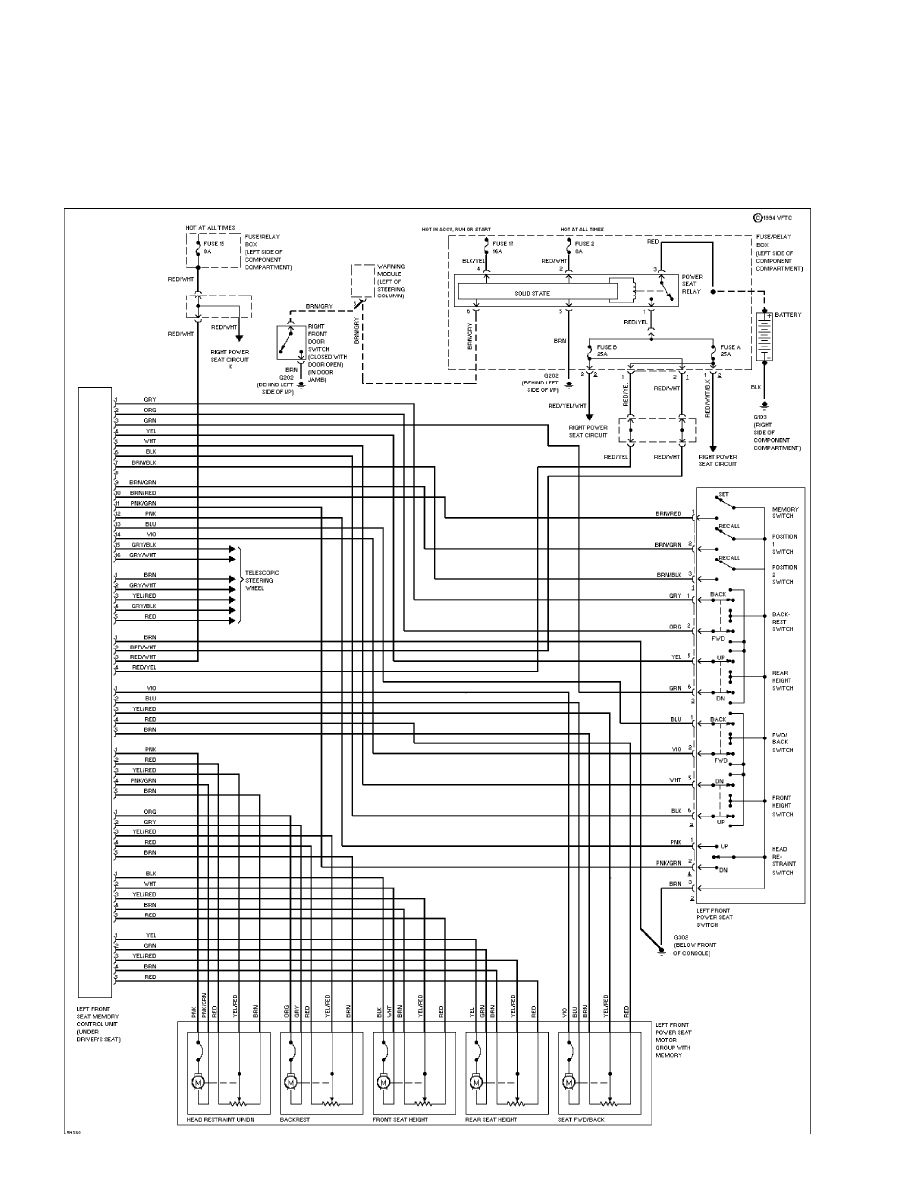

Driver Power Seat Circuit

1990 Mercedes-Benz 300SEL

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, November 30, 2000 12:19PM

background image

SYSTEM WIRING DIAGRAMS

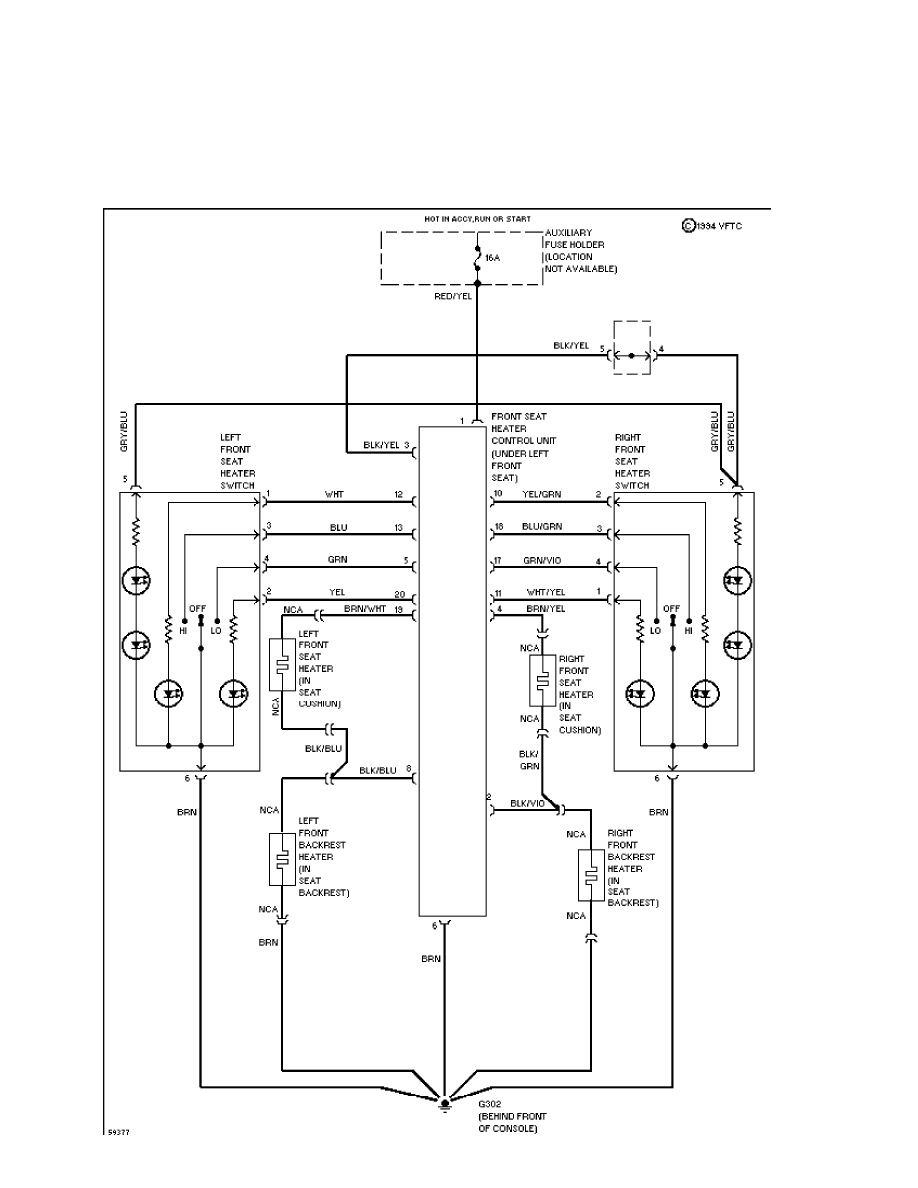

Front Seat Heater Circuit

1990 Mercedes-Benz 300SEL

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, November 30, 2000 12:19PM

background image

SYSTEM WIRING DIAGRAMS

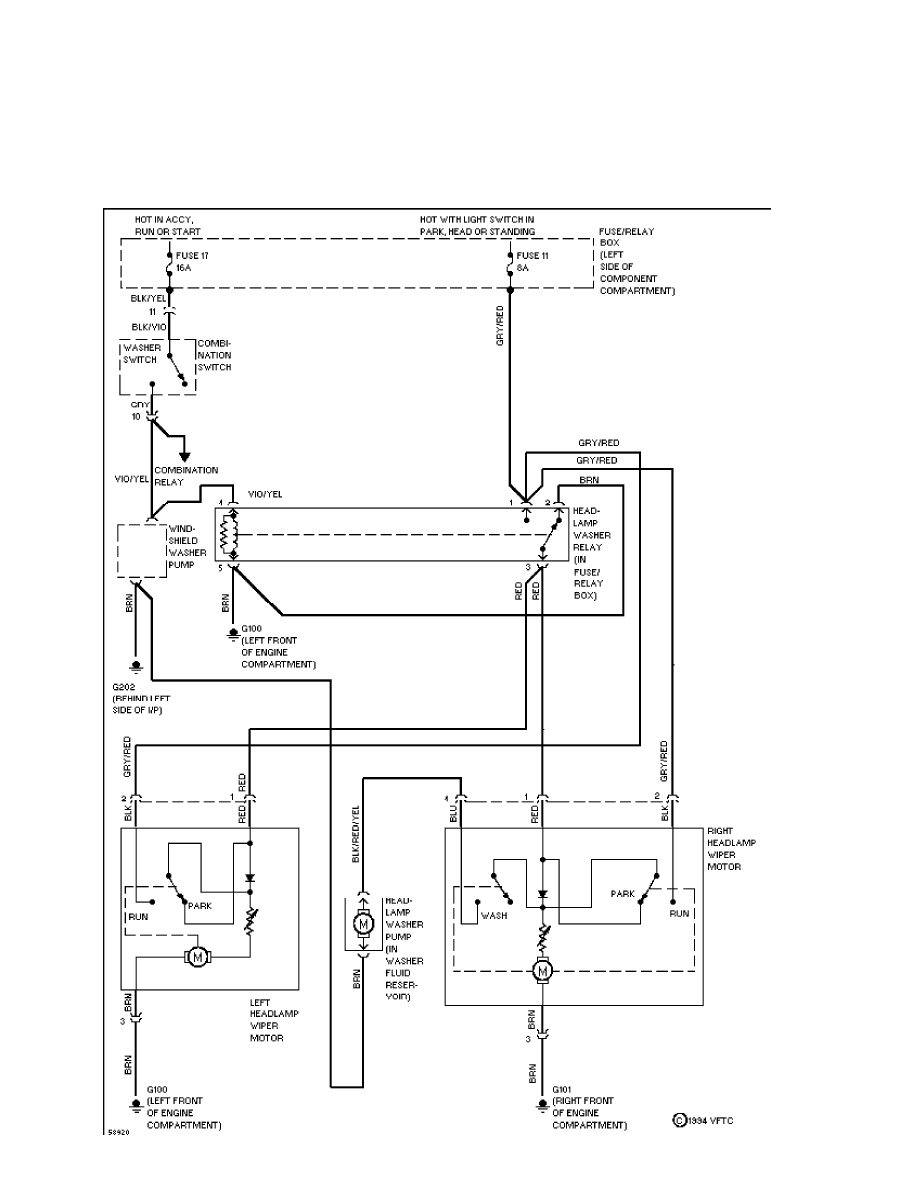

Headlight Washer/Wiper Circuit

1990 Mercedes-Benz 300SEL

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, November 30, 2000 12:21PM

background image

SYSTEM WIRING DIAGRAMS

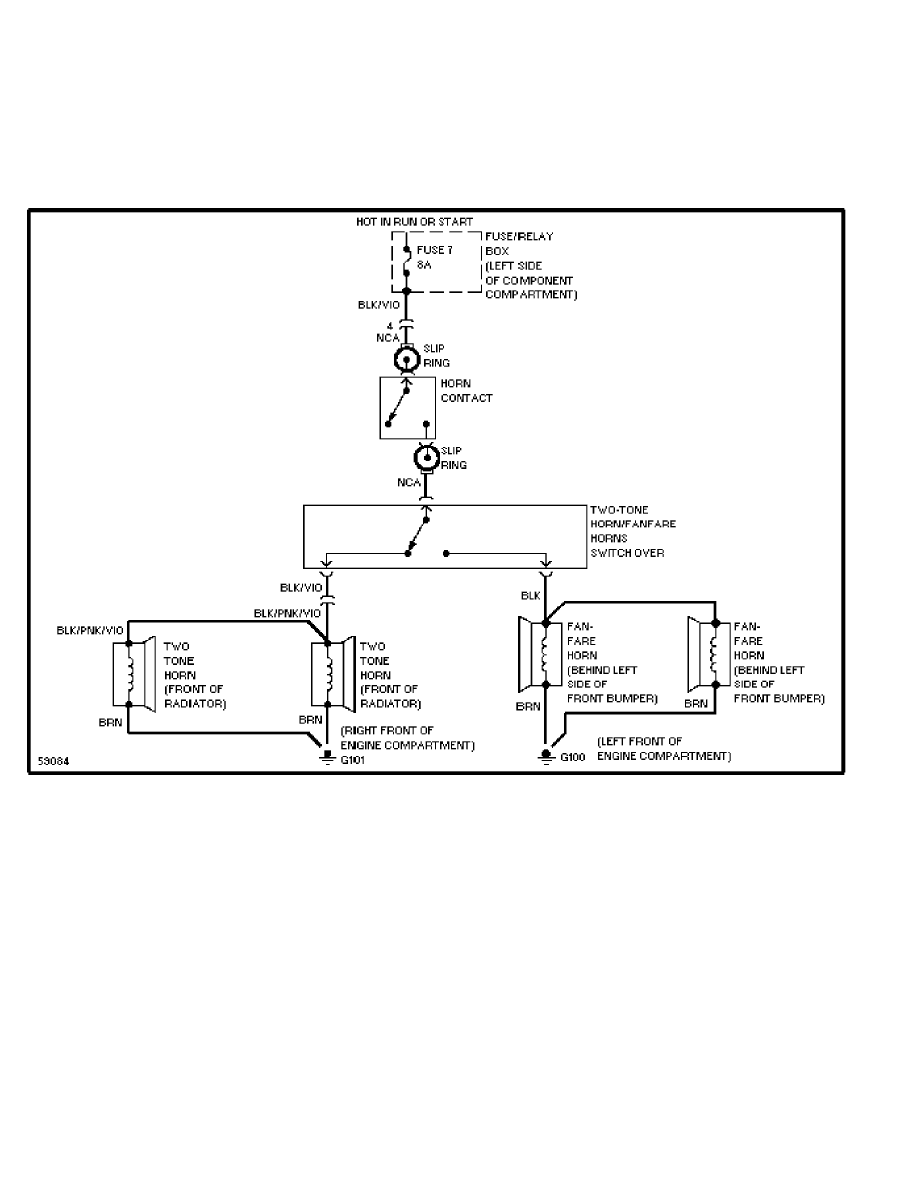

Horn Circuit

1990 Mercedes-Benz 300SEL

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, November 30, 2000 12:08PM

background image

SYSTEM WIRING DIAGRAMS

Interval Wiper/Washer Circuit

1990 Mercedes-Benz 300SEL

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, November 30, 2000 12:21PM

background image

SYSTEM WIRING DIAGRAMS

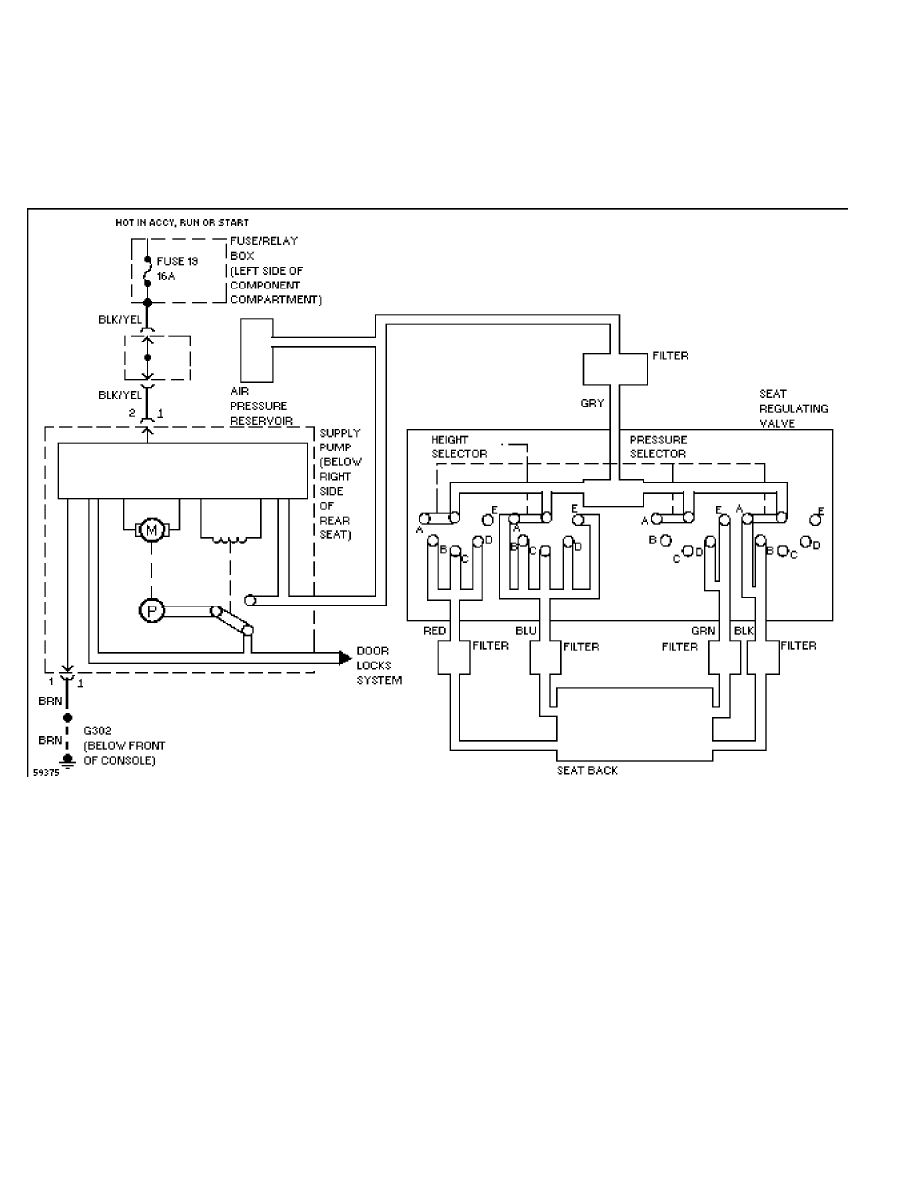

Orthopedic Seats

1990 Mercedes-Benz 300SEL

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, November 30, 2000 12:19PM

background image

SYSTEM WIRING DIAGRAMS

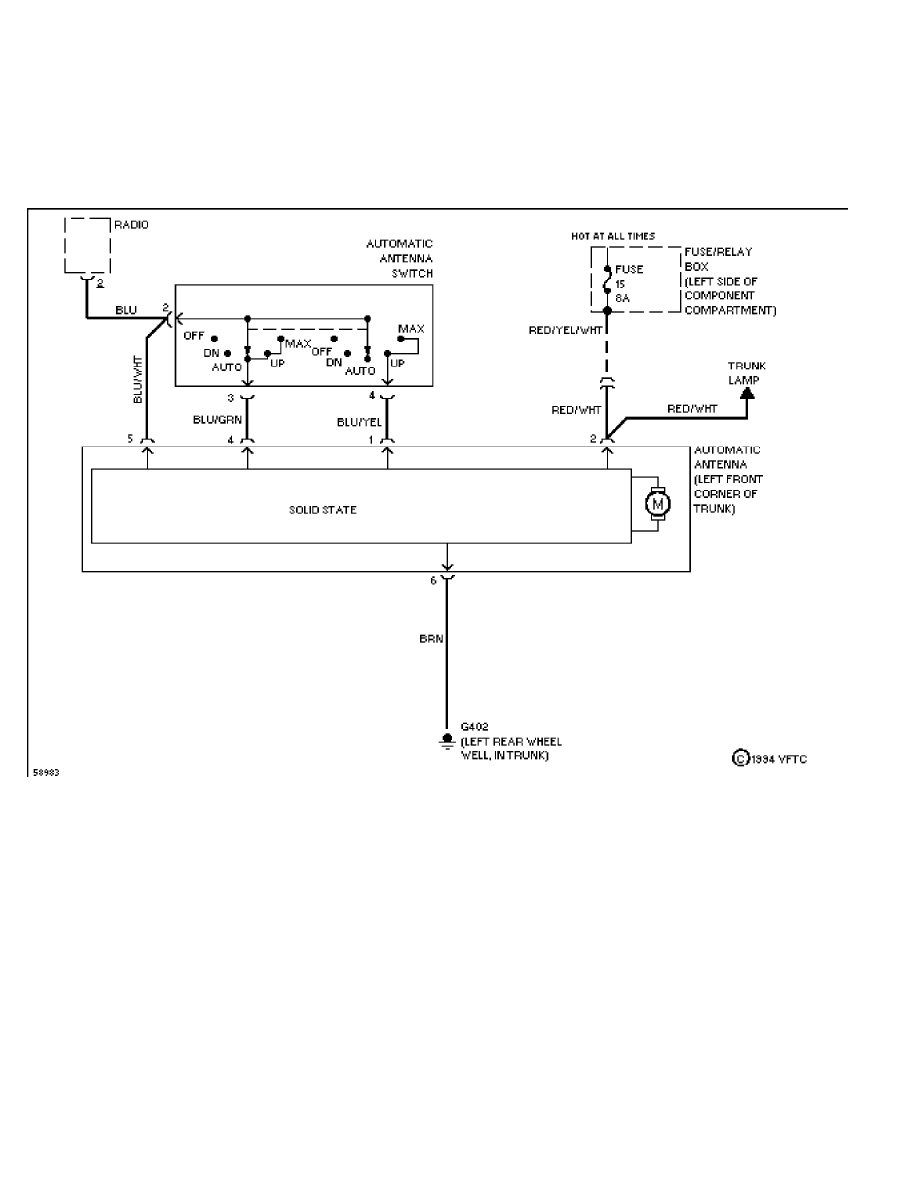

Power Antenna Circuit, Base Radio

1990 Mercedes-Benz 300SEL

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, November 30, 2000 12:08PM

background image

SYSTEM WIRING DIAGRAMS

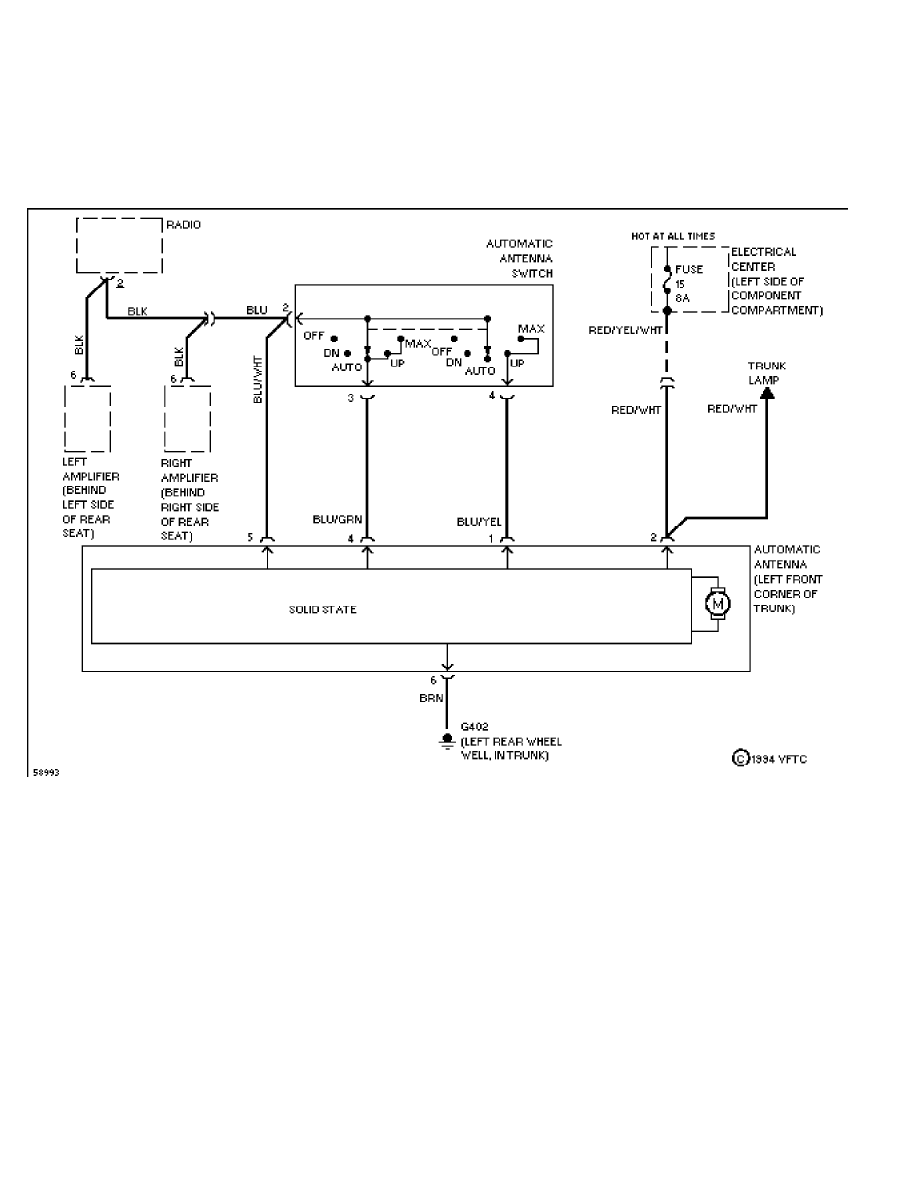

Power Antenna Circuit, W/ Sound System

1990 Mercedes-Benz 300SEL

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, November 30, 2000 12:08PM

background image

SYSTEM WIRING DIAGRAMS

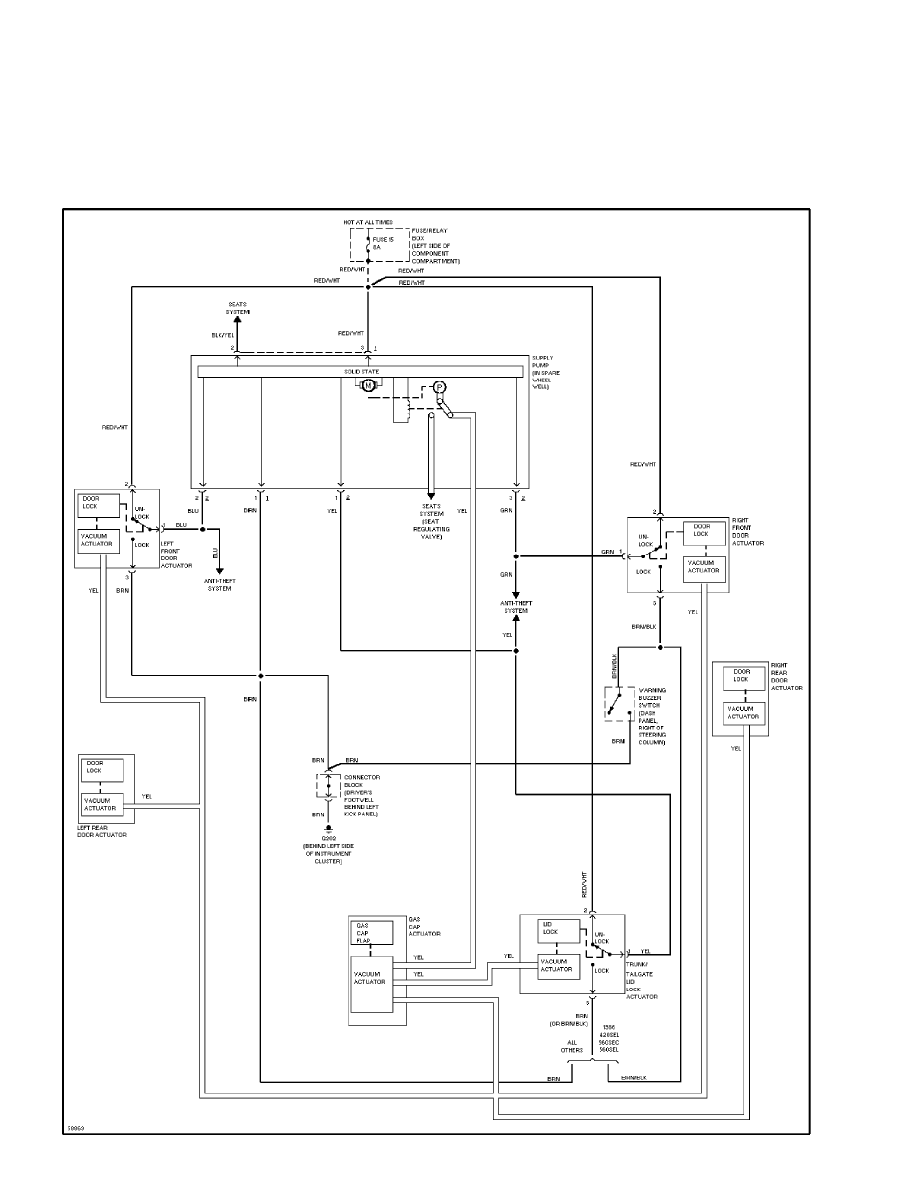

Power Door Lock Circuit

1990 Mercedes-Benz 300SEL

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, November 30, 2000 12:08PM

background image

SYSTEM WIRING DIAGRAMS

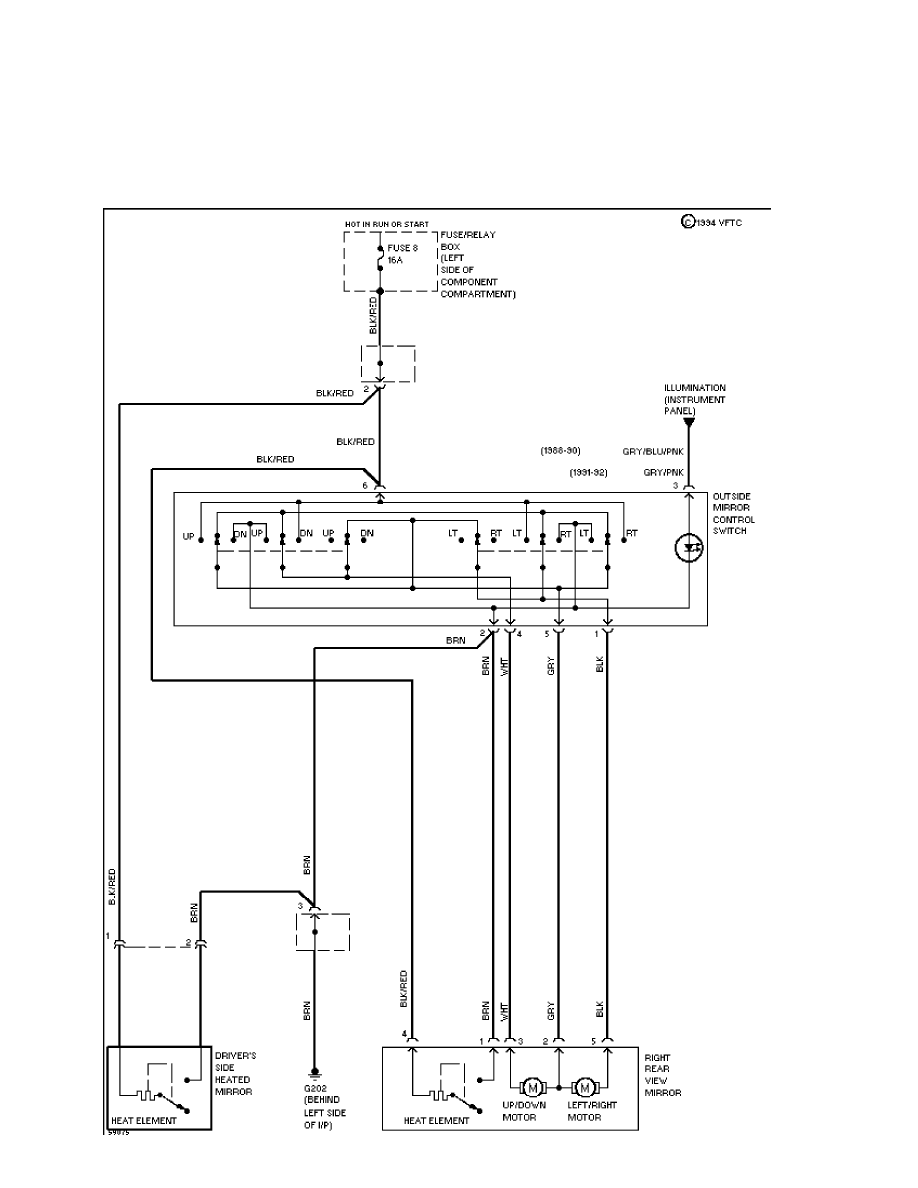

Power Mirror Circuit

1990 Mercedes-Benz 300SEL

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, November 30, 2000 12:08PM

background image

SYSTEM WIRING DIAGRAMS

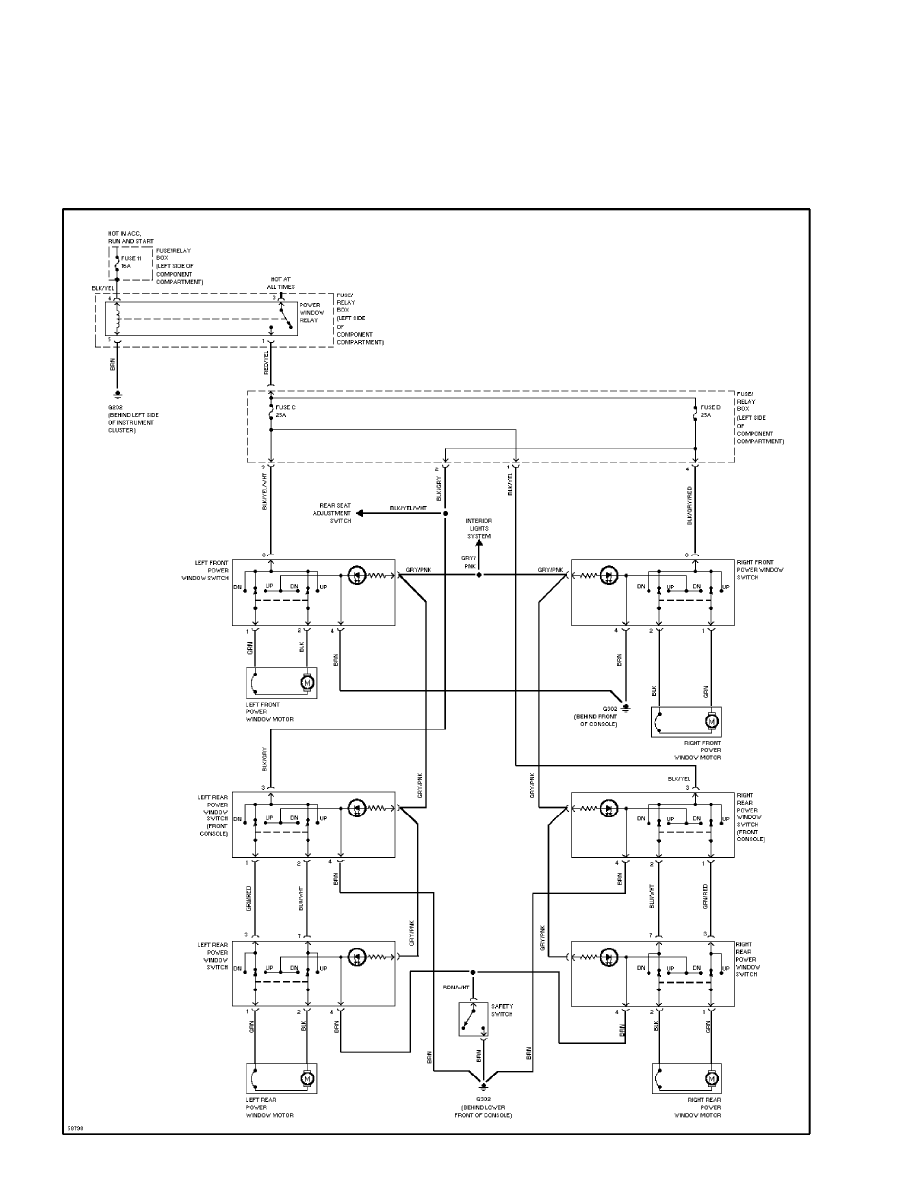

Power Window Circuit

1990 Mercedes-Benz 300SEL

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, November 30, 2000 12:20PM

background image

SYSTEM WIRING DIAGRAMS

Rear Seat Adjuster Circuit

1990 Mercedes-Benz 300SEL

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, November 30, 2000 12:20PM

background image

SYSTEM WIRING DIAGRAMS

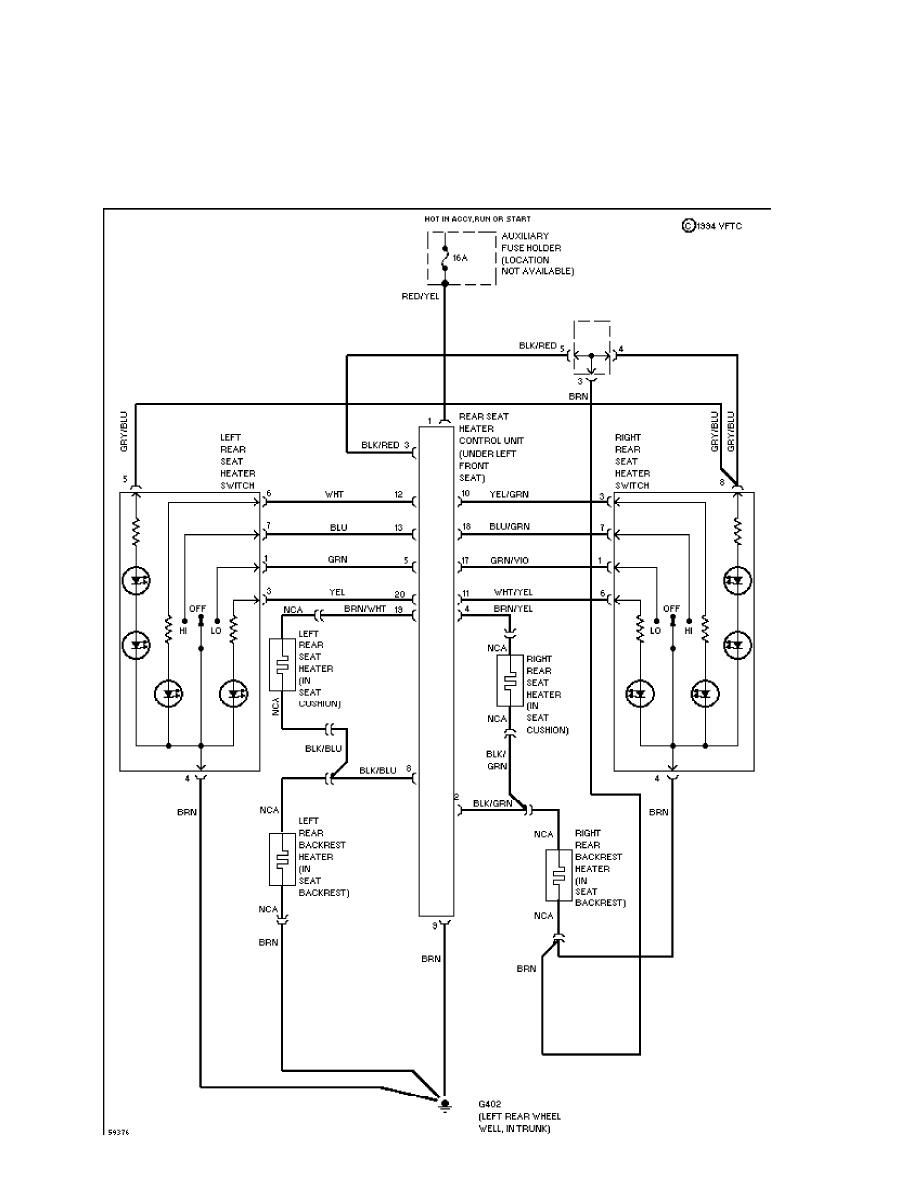

Rear Seat Heater Circuit

1990 Mercedes-Benz 300SEL

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, November 30, 2000 12:20PM

background image

SYSTEM WIRING DIAGRAMS

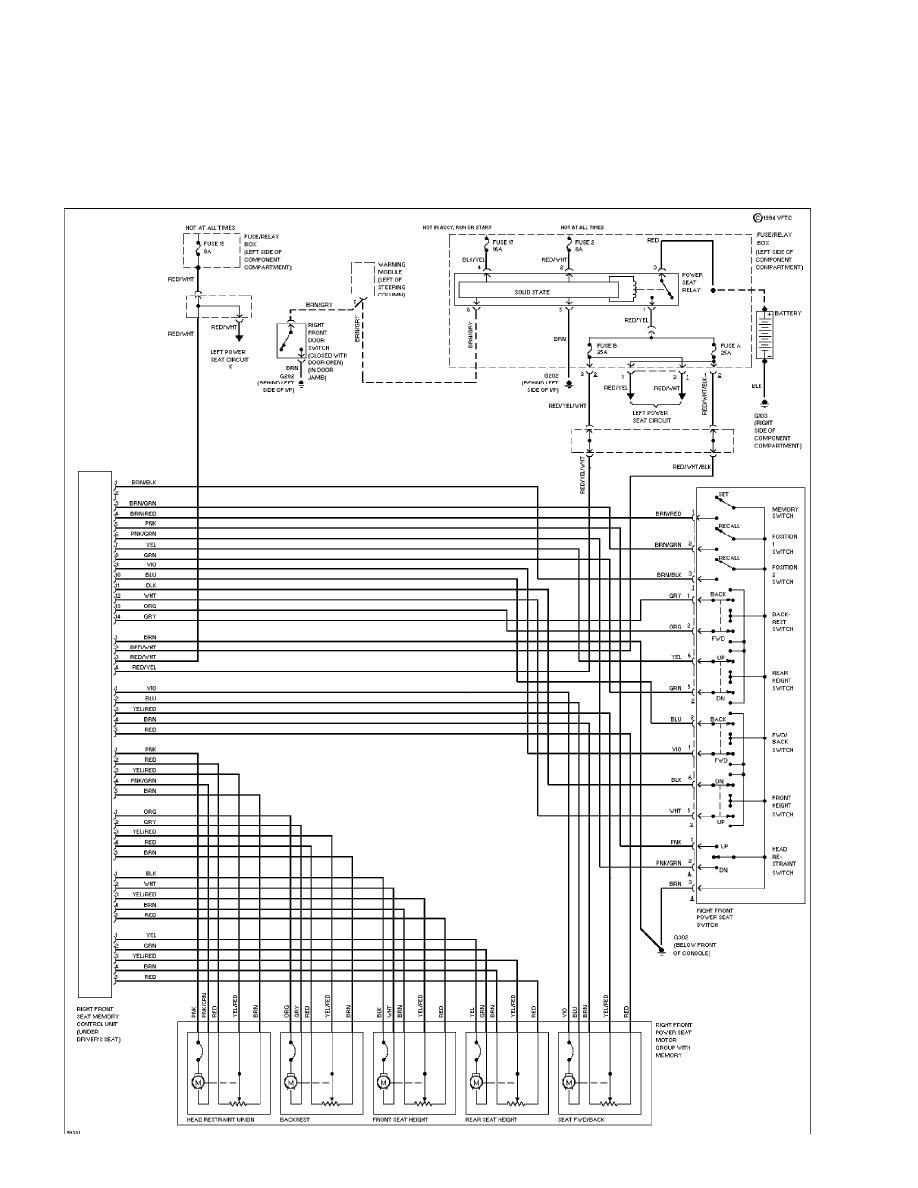

Right Seat Circuit

1990 Mercedes-Benz 300SEL

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, November 30, 2000 12:20PM
