STARTER

SOLENOID

RED CABLE

IGNITION COIL

NORMALLY OPEN, MOMENTARY SWITCH;  WHEN
KEY SWITCH IS TURNED, CLOSES TO START
ENGINE (AND ENERGIZES SOLENOID),
RELEASING KEY SWITCH OPENS SWITCH
(SOLENOID DE-ENERGIZES).  ENGINE IS STILL
RUNNING.

NORMALLY OPEN SWITCH;  CLOSES TO SHUT OFF
ENGINE.  (GROUNDS IGNITION COIL)

BRIGGS AND STRATTON  Customer Education Department

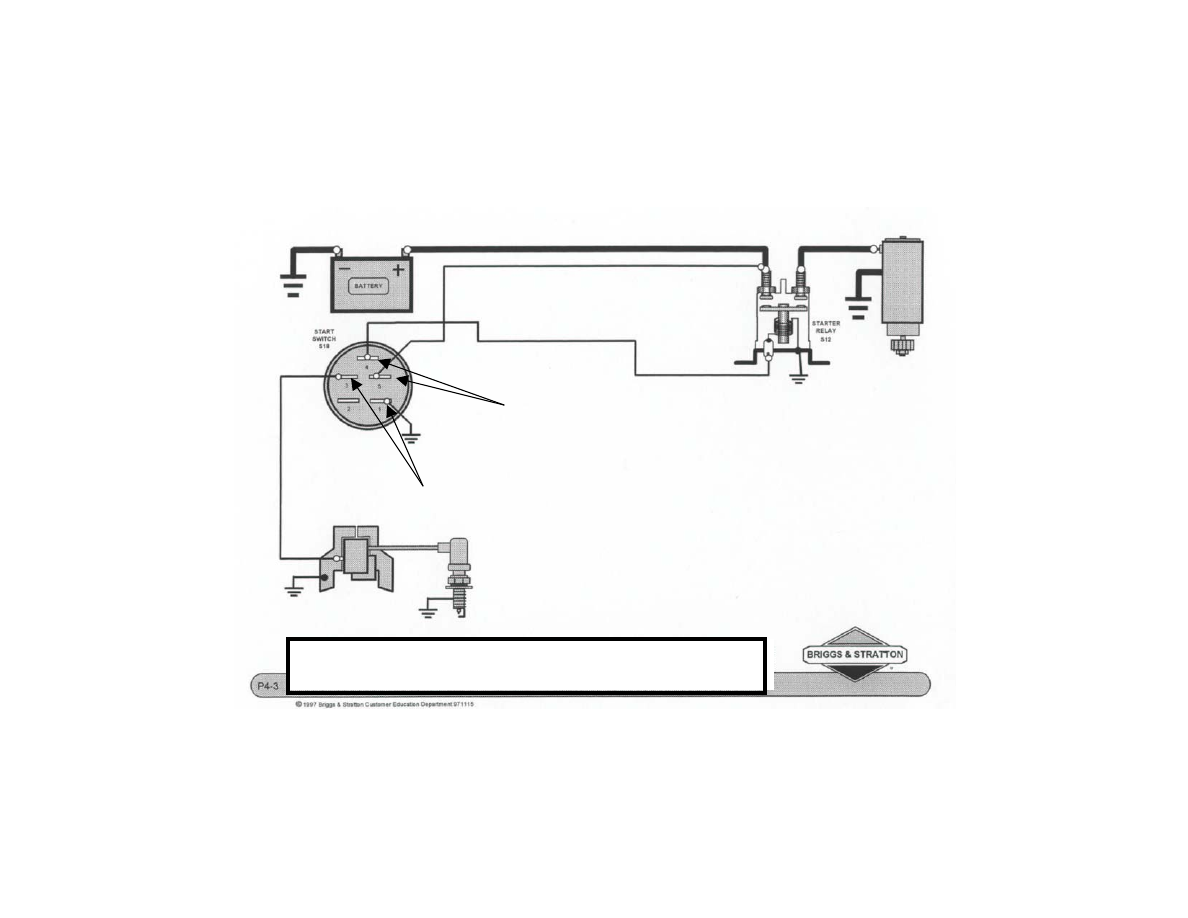

TYPICAL 5 POLE SWITCH  STARTER AND IGNITION SYSTEM WIRING

SPARK PLUG
