DIAGNOSIS MODE <VEHICLES WITH RADIO AND CD PLAYER>

DIAGNOSIS MODE <VEHICLES WITH RADIO
AND CD PLAYER>

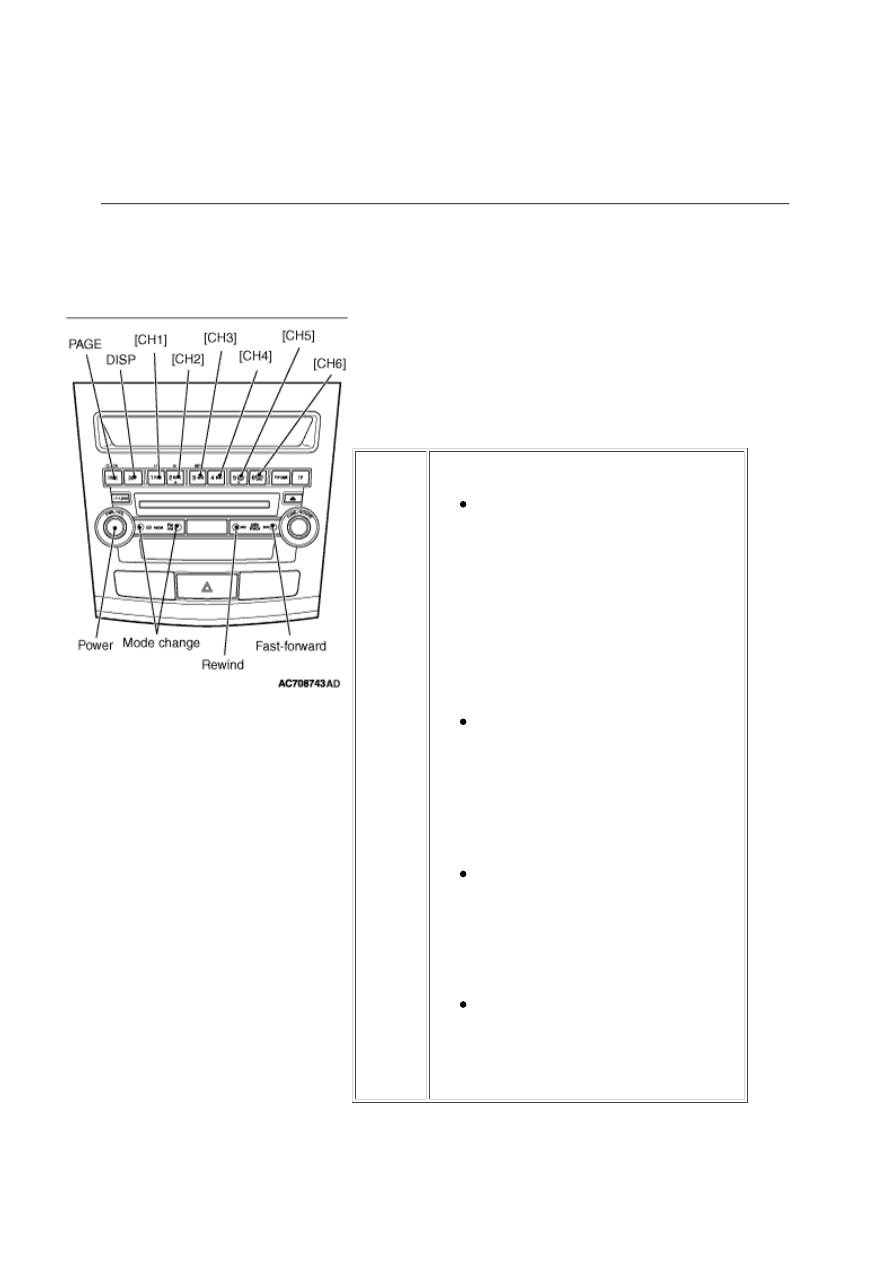

Enter the diagnosis mode according to the following
steps:

1.Turn the Ignition switch to the "ACC" or "ON" position
and switch off the radio and CD player.

2.Press the following buttons in that order within
sixty seconds from step (1).
(1) [CH1] button.
(2) Rewind button.
(3) Fast-forward button.
(4) [CH4] button.

note

When the "Power" button of the
radio and CD player is pressed
during the diagnosis mode, the
diagnosis mode will be cancelled,
thus switching off the radio and
CD player. However, if the
"Power" button is pressed while
the hands free ECU is being
updated, the update will not be
cancelled.
When the "Mode change" button
(FM/AM, CD) is pressed during
diagnosis mode except the
hands free ECU update, the
diagnosis mode will be cancelled
and relevant operation will be
carried out.
When an invalid button is
pressed during diagnosis mode
except the hands free ECU
update, the diagnosis mode will
be cancelled, thus switching off
the radio and CD player.
During the diagnosis mode, voice
which is input through the
microphone unit is played
through a relevant loudspeaker.

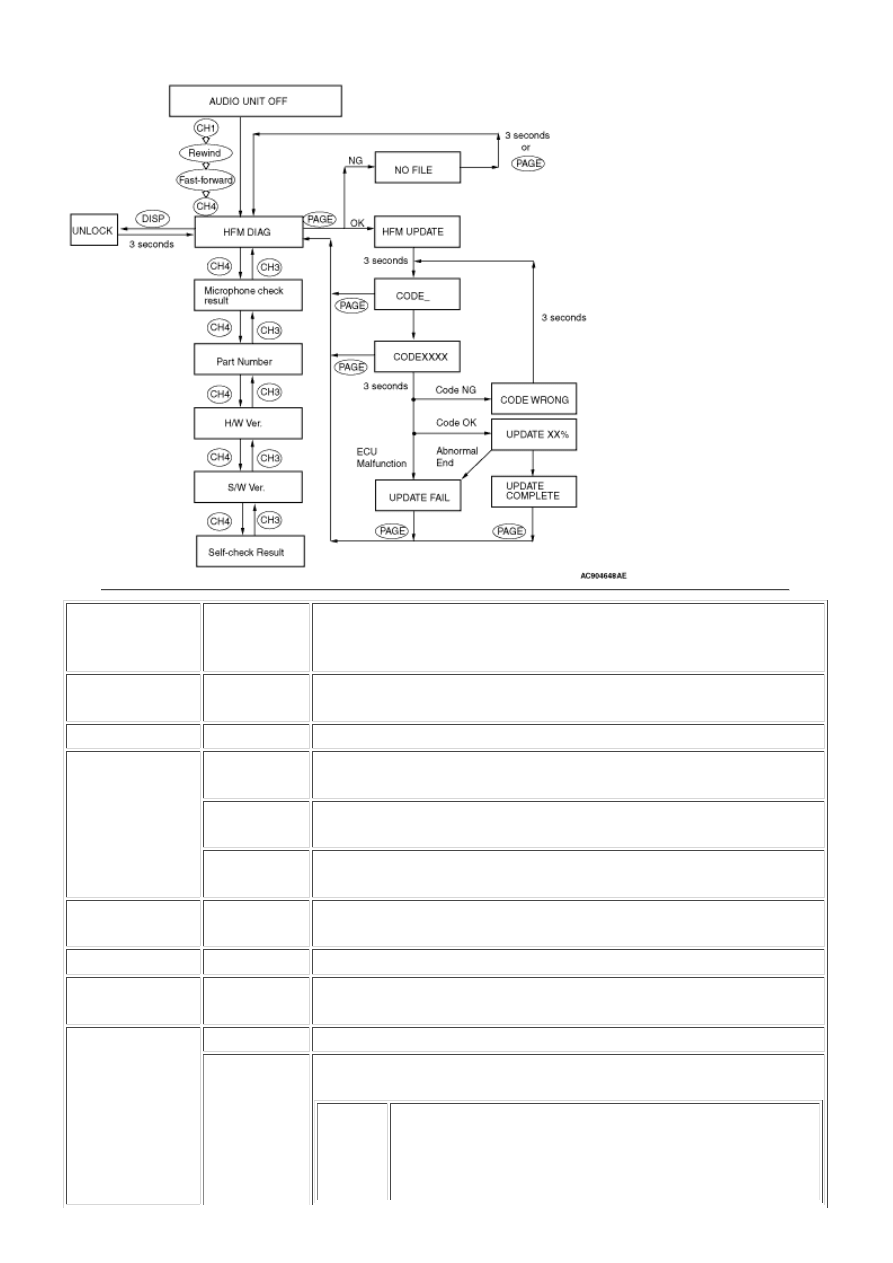

3."HFM DIAG" is displayed.

DIAGNOSIS MODE <VEHICLES WITH RADIO AND CD PLAYER>

http://mmc-manuals.ru/manuals/outlander_xl/online/Service_Manual_...

1 z 3

2016-09-25 10:25

Description in
the
illustrations

Actual
display

Condition

UNLOCK

Four-digit password, which has been set by the security
function, will be erased.

HFM DIAG

Displayed when the diagnosis mode is being entered.

Result of
microphone
check

MIC Short

Displayed when the line between the microphone and the
hands free ECU is short-circuited.

MIC Open

Displayed when the line between the microphone and the
hands free ECU is open-circuited.

MIC OK

Normal status (the line between the microphone and the hands
free ECU is not open/short-circuited)

Part number

PN
XXXXXXXX

Eight-digit part number is displayed.

H/W Ver.

H/W XX

Two-digit hardware version is displayed.

S/W Ver.

S/W
XXXXXXX

Seven-digit software version is displayed.

Self-check
result

HFM OK

Displayed when the hands free ECU is not defective.

HFM Error

Displayed when the hands free ECU is suspected to be
defective.

note

Turn the ignition switch to the "OFF" position once
when "ERROR" is displayed. Enter the diagnosis
mode by turning the ignition switch to the "ON"
position again. If the self-check result shows

DIAGNOSIS MODE <VEHICLES WITH RADIO AND CD PLAYER>

http://mmc-manuals.ru/manuals/outlander_xl/online/Service_Manual_...

2 z 3

2016-09-25 10:25

"ERROR" again, the hands free ECU is determined
to be defective.

NO FILE

NO file

A USB device stores no data.

HFM UPDATE

HFM Update Displayed when the hands free ECU update file is found, at the

transition to the hands free ECU update mode, in the USB
memory that is connected to the USB adapter.

CODE_

Input four-digit code for update. Use the "CH" button when a
code is input.

CODE XXXX

Code XXXX XXXX after Code shows the numbers from 1 to 6,

corresponding to the buttons "CH1" to "CH6".

CODE WRONG Code wrong The code, which has been input, is wrong.

UPDATING
XX%

Updating
XX%

Displayed when updating is carried out.

UPDATING
COMPLETE

Update
complete

The updating mode is complete.

UPDATE FAIL

Update fail

Displayed when the update of the hands free ECU fails.
