SYSTEM WIRING DIAGRAMS

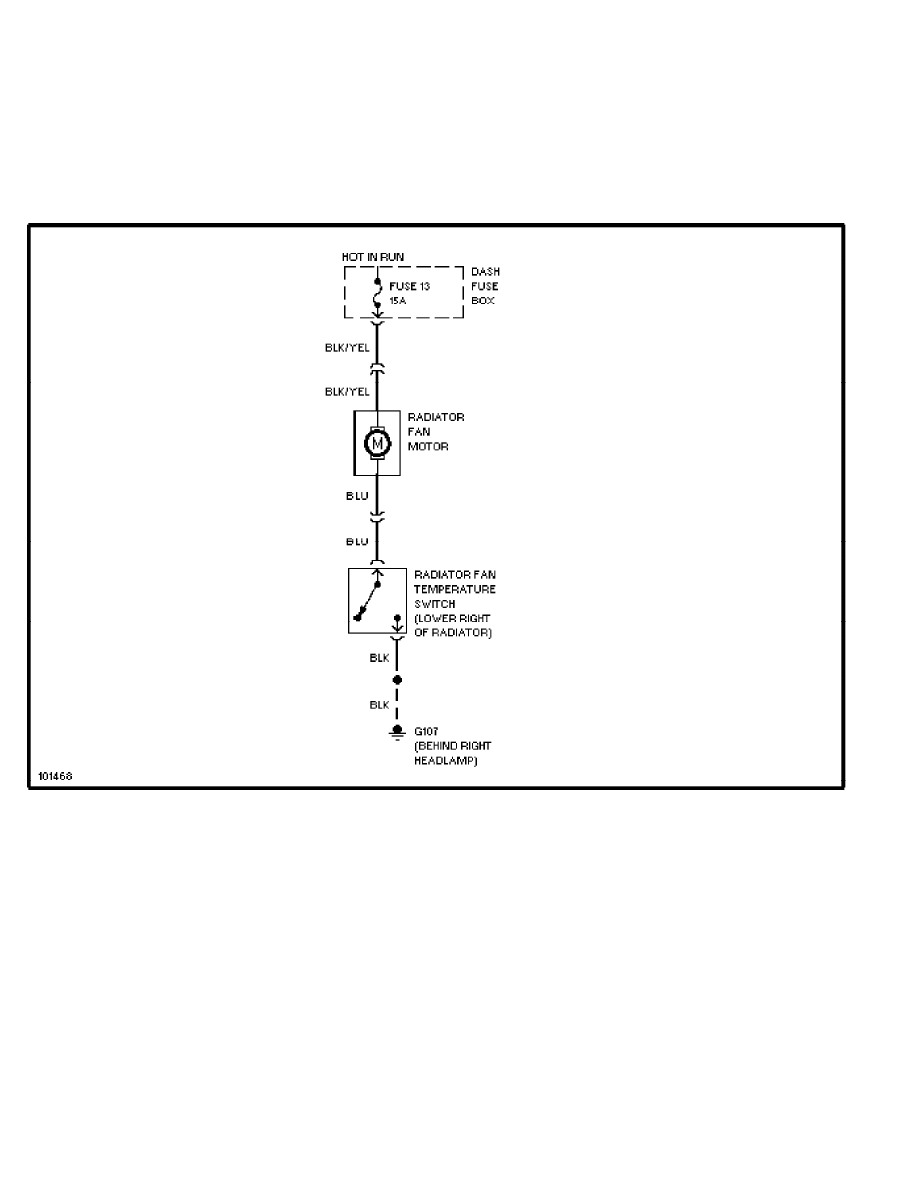

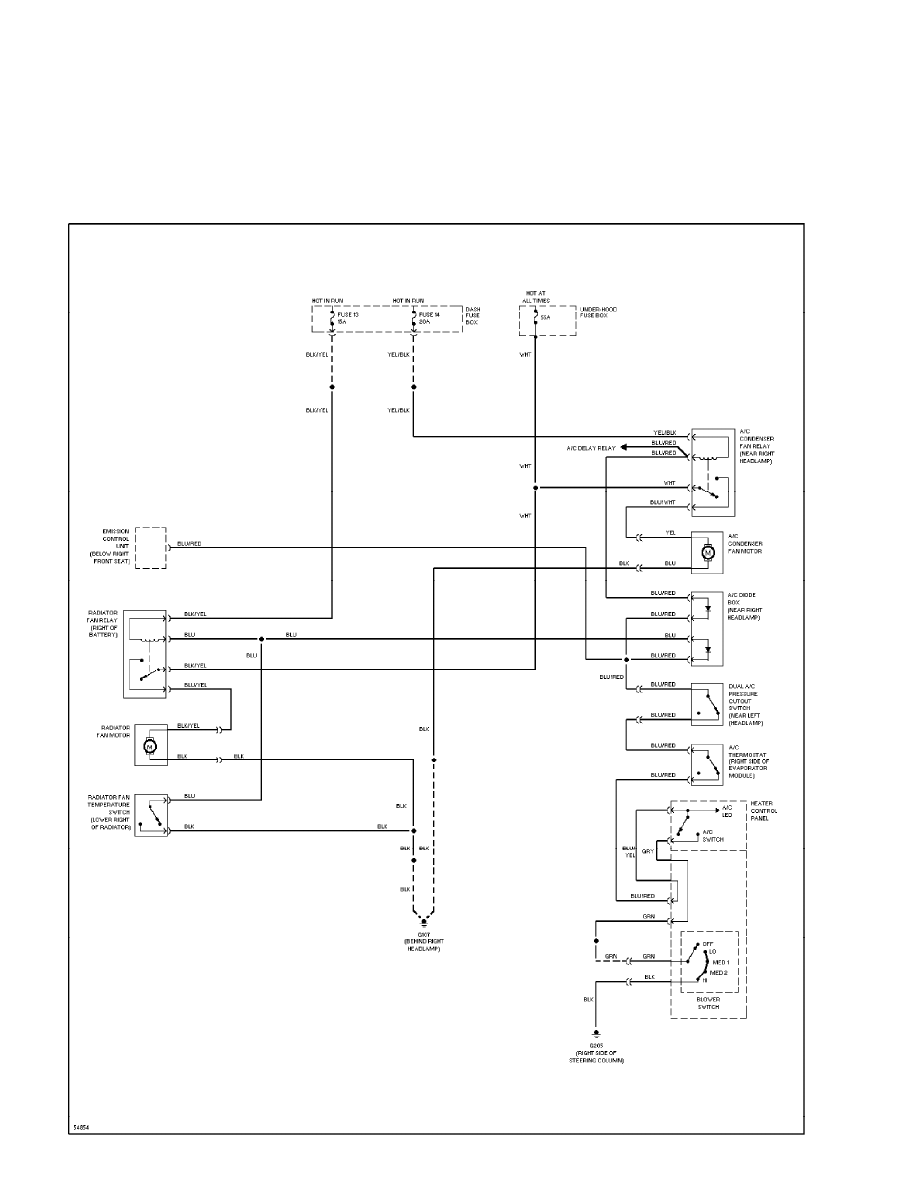

Cooling Fan Circuit, CRX DX

1985 Honda Civic/CRX

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, July 29, 2004  10:13PM

       CDR@WP.PL

background image

SYSTEM WIRING DIAGRAMS

Cooling Fan Circuit, CRX HF (p. 2)

1985 Honda Civic/CRX

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, July 29, 2004  10:13PM

background image

SYSTEM WIRING DIAGRAMS

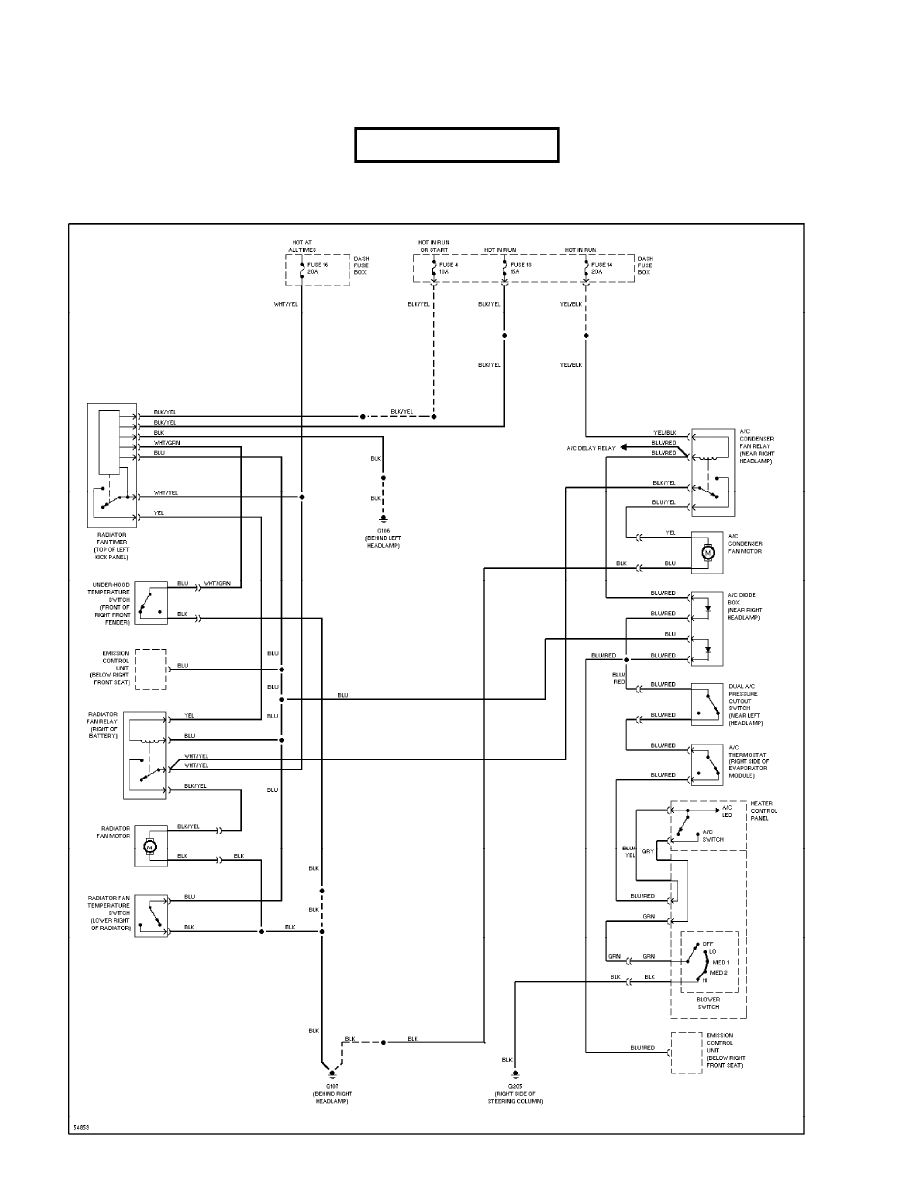

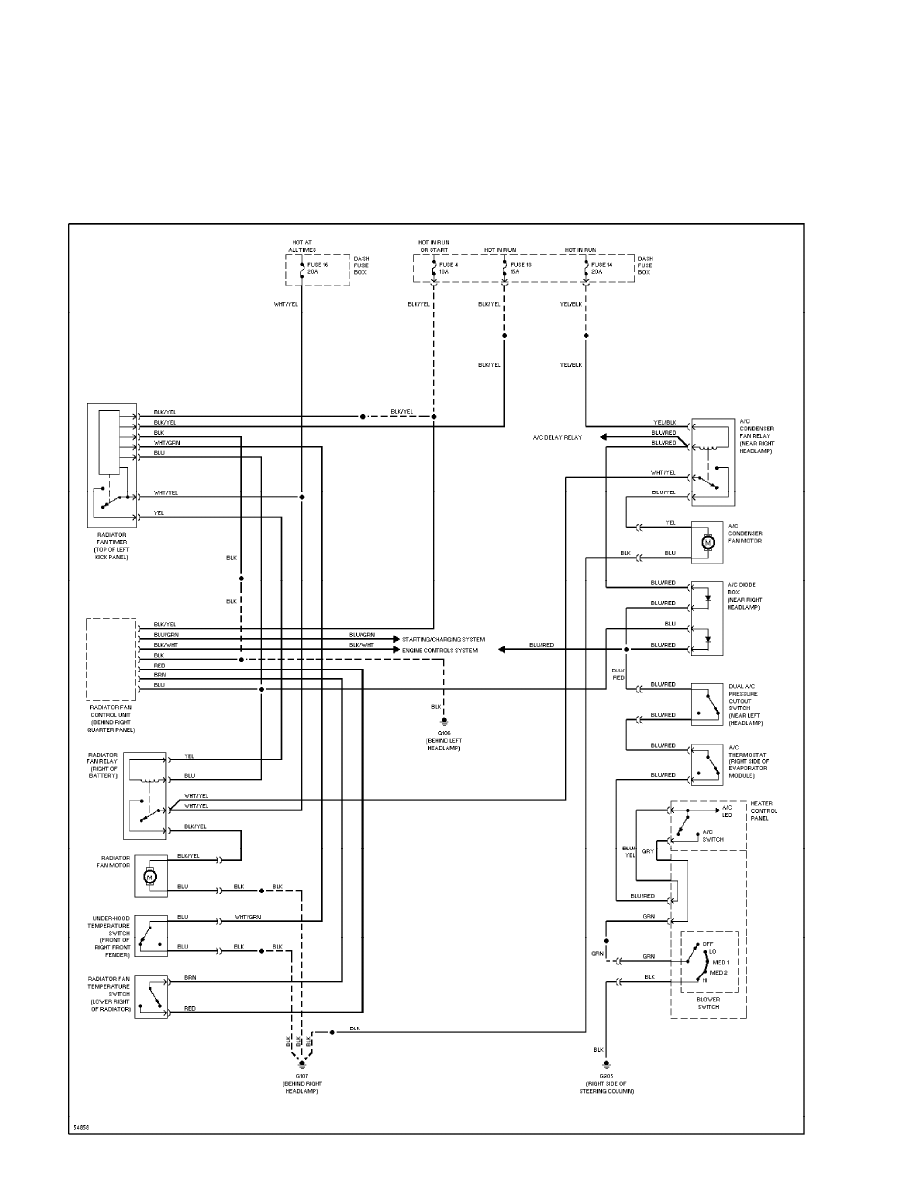

Cooling Fan Circuit, CRX SI W/ A/C (p. 3)

1985 Honda Civic/CRX

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, July 29, 2004  10:13PM

background image

SYSTEM WIRING DIAGRAMS

Cooling Fan Circuit, CRX SI W/O A/C (p. 4)

1985 Honda Civic/CRX

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, July 29, 2004  10:13PM

background image

SYSTEM WIRING DIAGRAMS

Cooling Fan Circuit, Civic Hatchback & Sedan (p. 5)

1985 Honda Civic/CRX

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, July 29, 2004  10:13PM

background image

SYSTEM WIRING DIAGRAMS

Cooling Fan Circuit, Civic Wagon (p. 6)

1985 Honda Civic/CRX

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, July 29, 2004  10:13PM

background image

SYSTEM WIRING DIAGRAMS

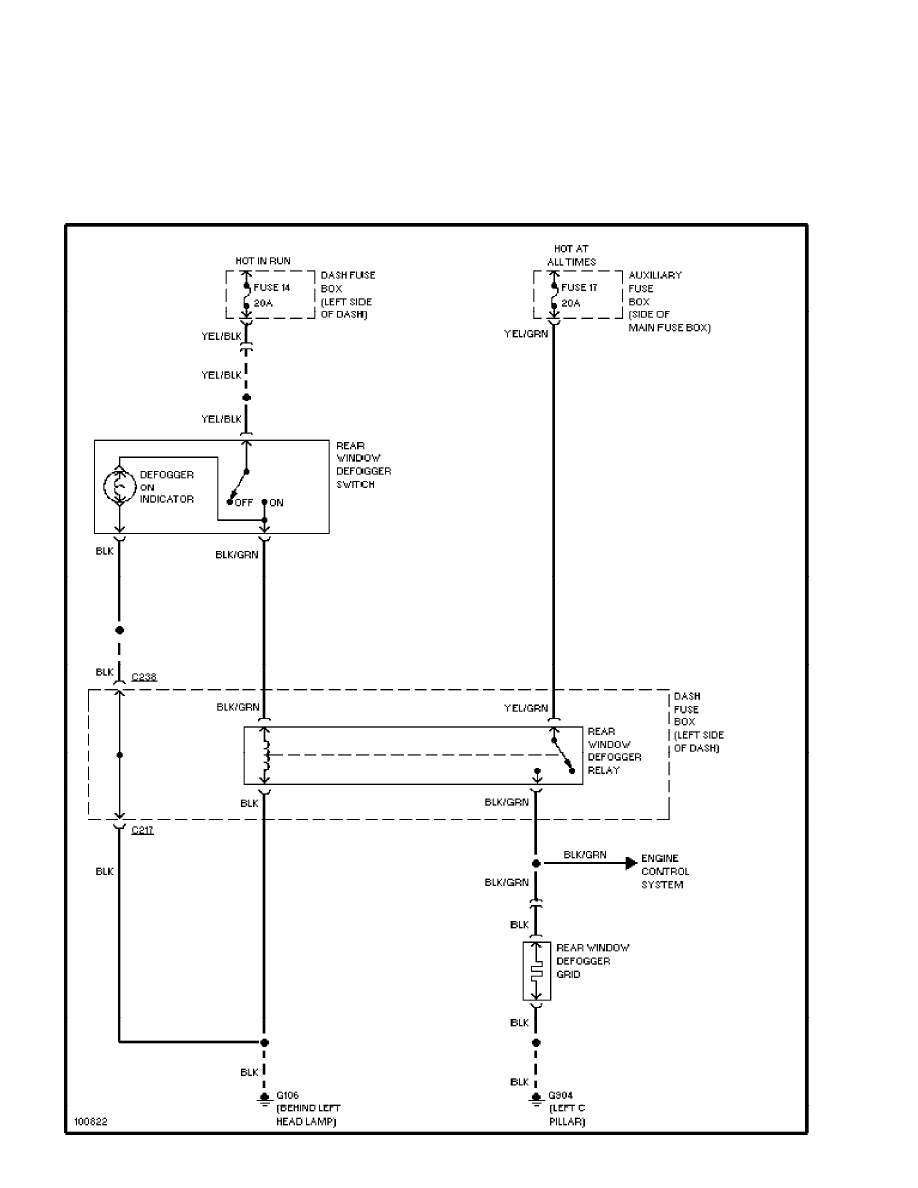

Defogger Circuit (p. 7)

1985 Honda Civic/CRX

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, July 29, 2004  10:13PM

background image

SYSTEM WIRING DIAGRAMS

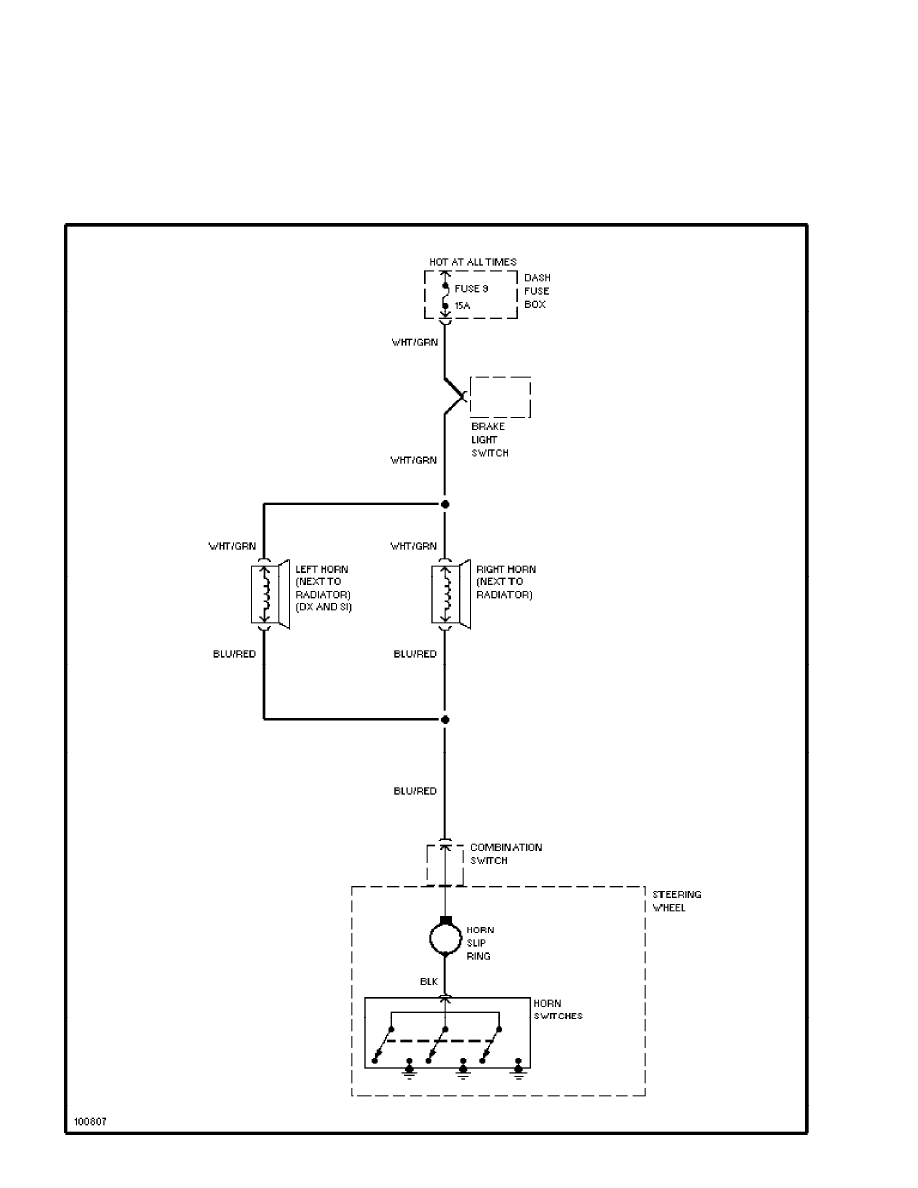

Horn Circuit (p. 8)

1985 Honda Civic/CRX

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, July 29, 2004  10:13PM

background image

SYSTEM WIRING DIAGRAMS

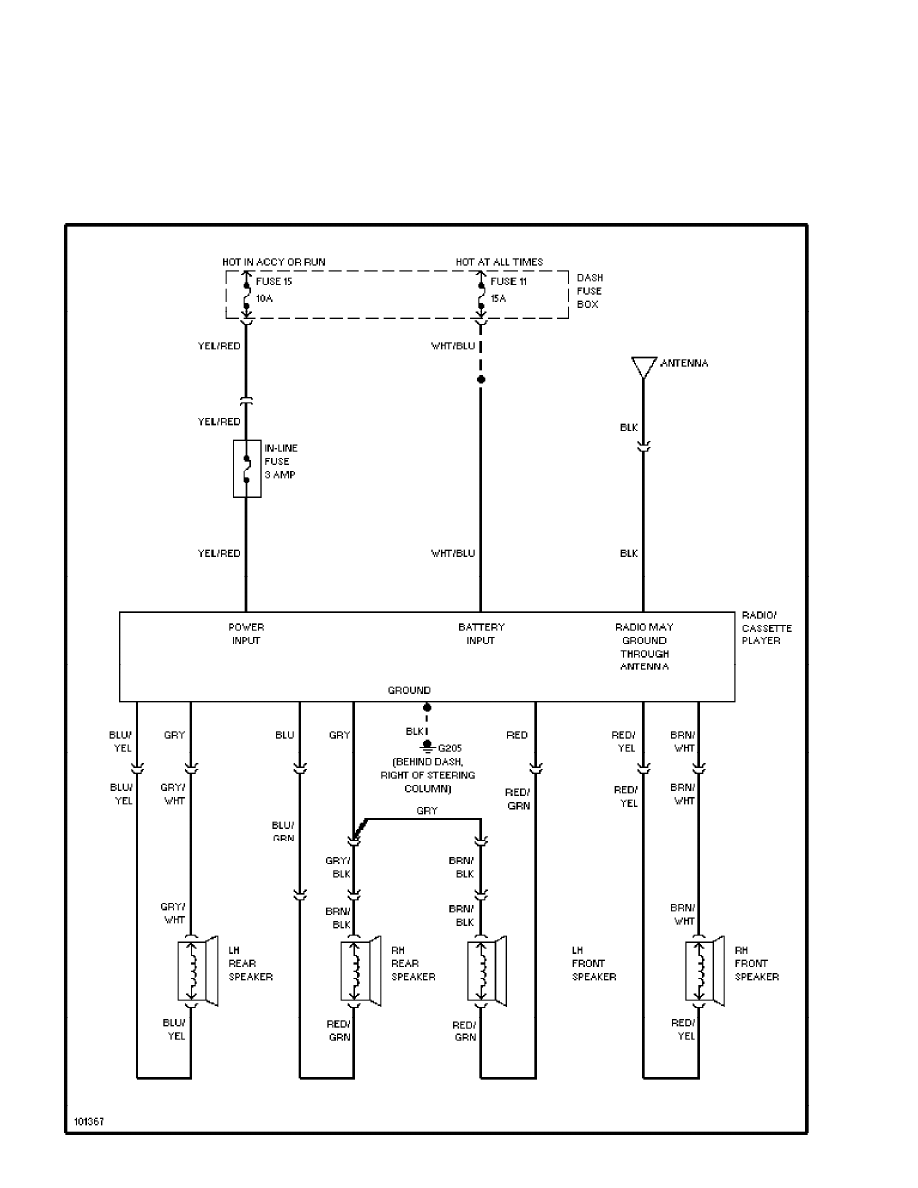

Radio Circuits (p. 9)

1985 Honda Civic/CRX

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, July 29, 2004  10:13PM

background image

SYSTEM WIRING DIAGRAMS

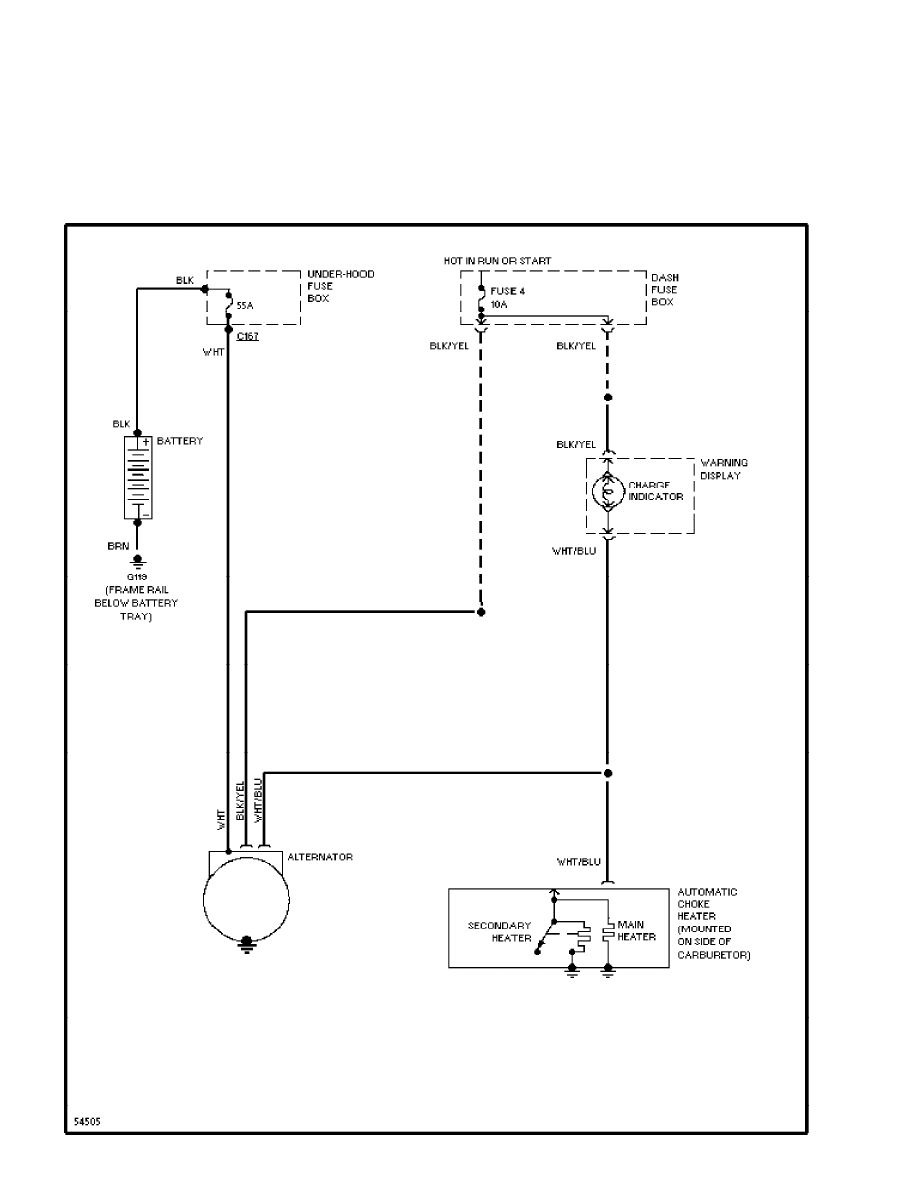

Charging Circuit (p. 10)

1985 Honda Civic/CRX

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, July 29, 2004  10:13PM

background image

SYSTEM WIRING DIAGRAMS

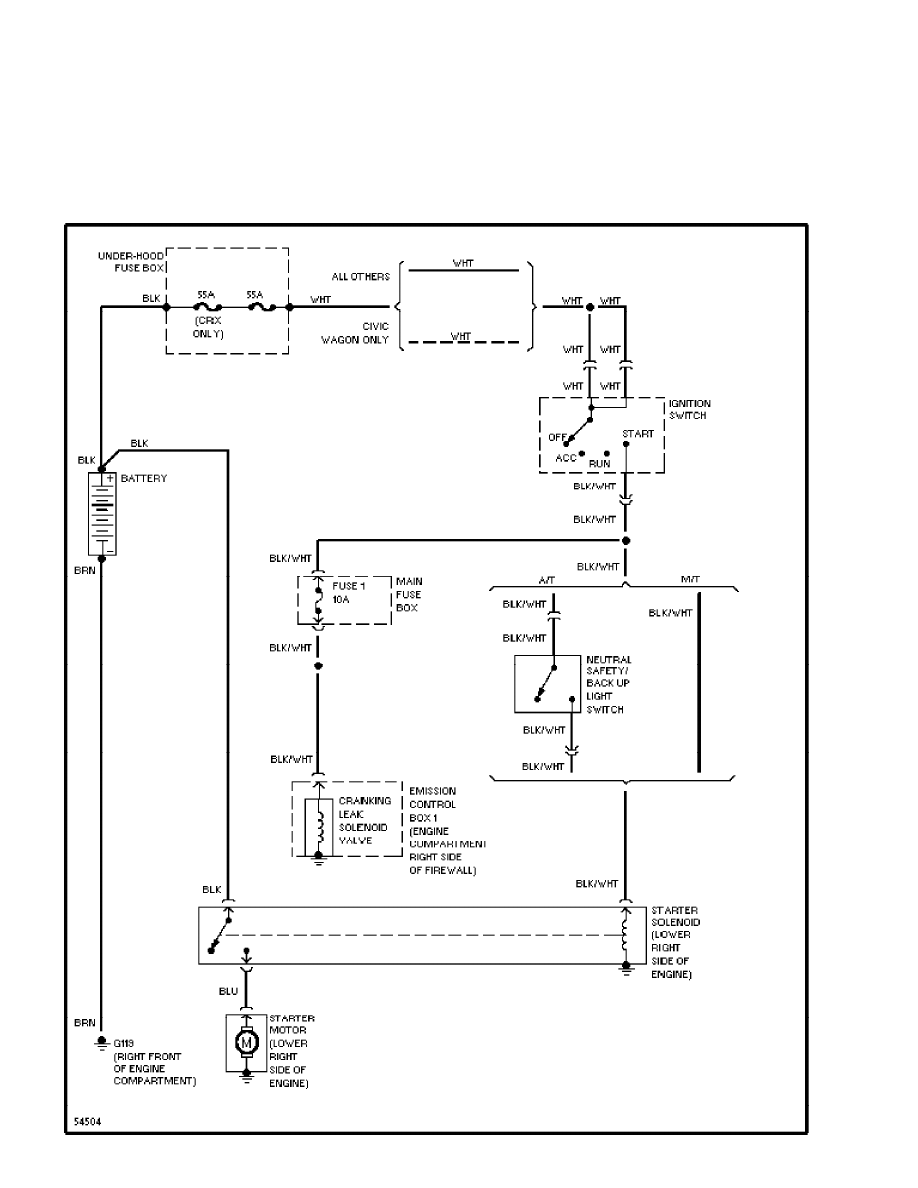

Starting Circuit (p. 11)

1985 Honda Civic/CRX

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, July 29, 2004  10:13PM

background image

SYSTEM WIRING DIAGRAMS

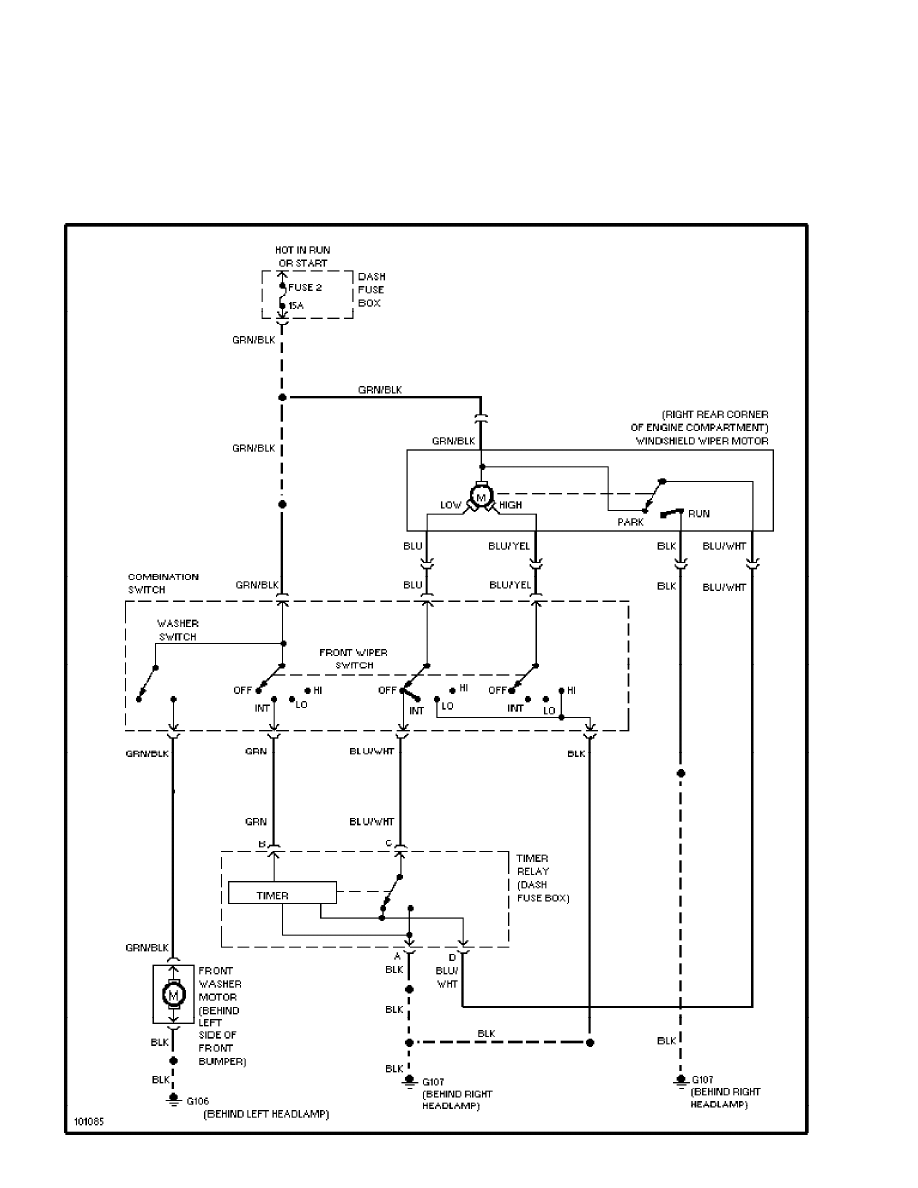

Front Wiper/Washer Circuit (p. 12)

1985 Honda Civic/CRX

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, July 29, 2004  10:13PM

background image

SYSTEM WIRING DIAGRAMS

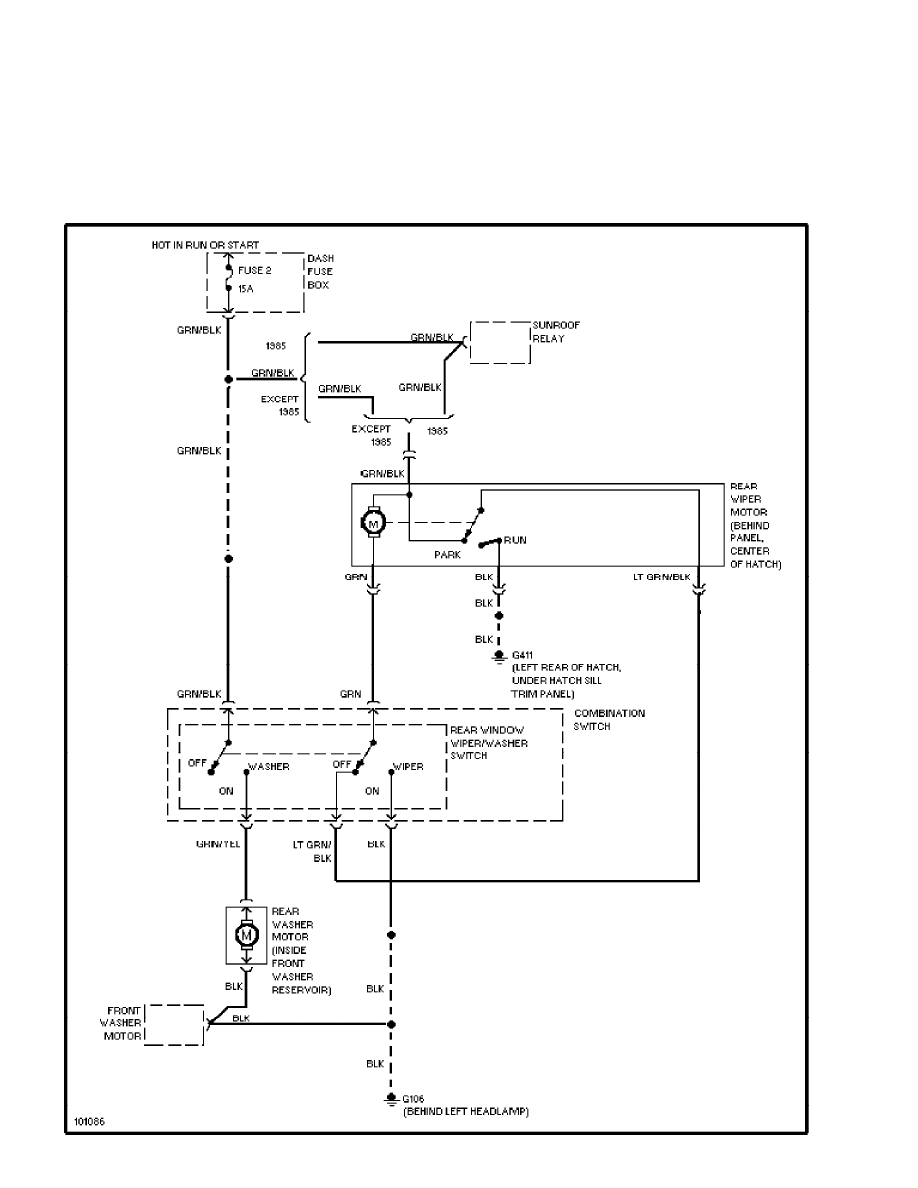

Rear Washer/Wiper Circuit (p. 13)

1985 Honda Civic/CRX

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, July 29, 2004  10:13PM

background image

WIRING DIAGRAMS - CRX

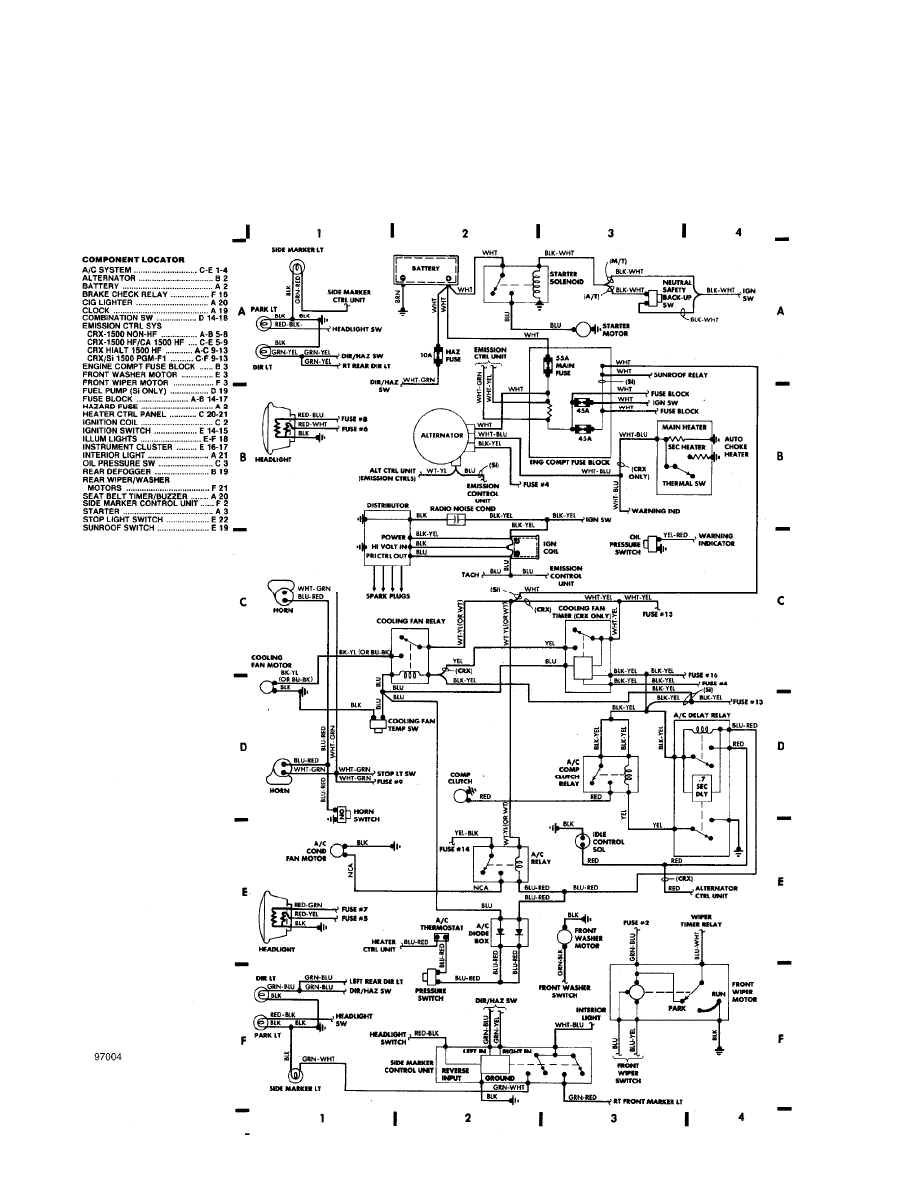

Fig. 1:  Engine Compartment

1985 Honda Civic/CRX

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, July 29, 2004  10:16PM

background image

WIRING DIAGRAMS - CRX

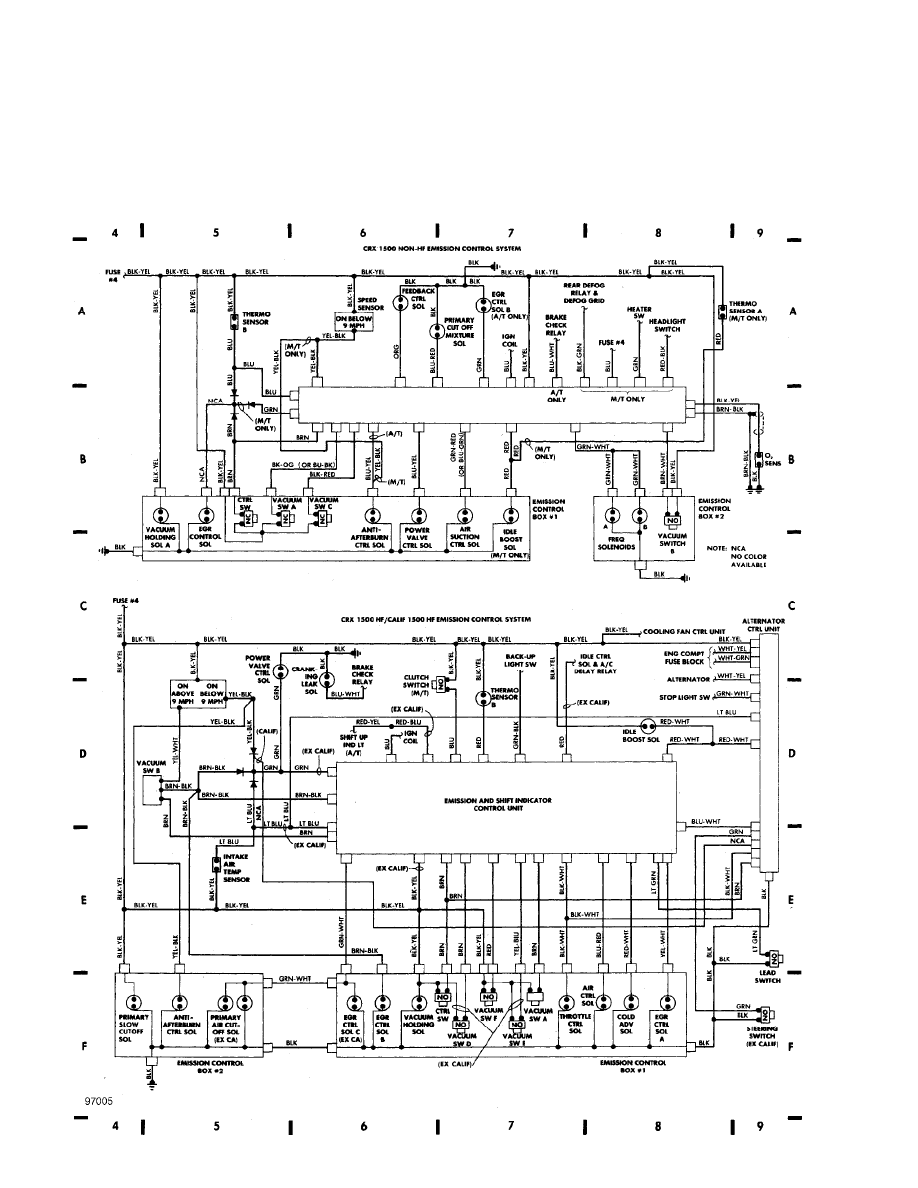

Fig. 2:  Engine Compartment (Cont.) (p. 2)

1985 Honda Civic/CRX

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, July 29, 2004  10:16PM

background image

WIRING DIAGRAMS - CRX

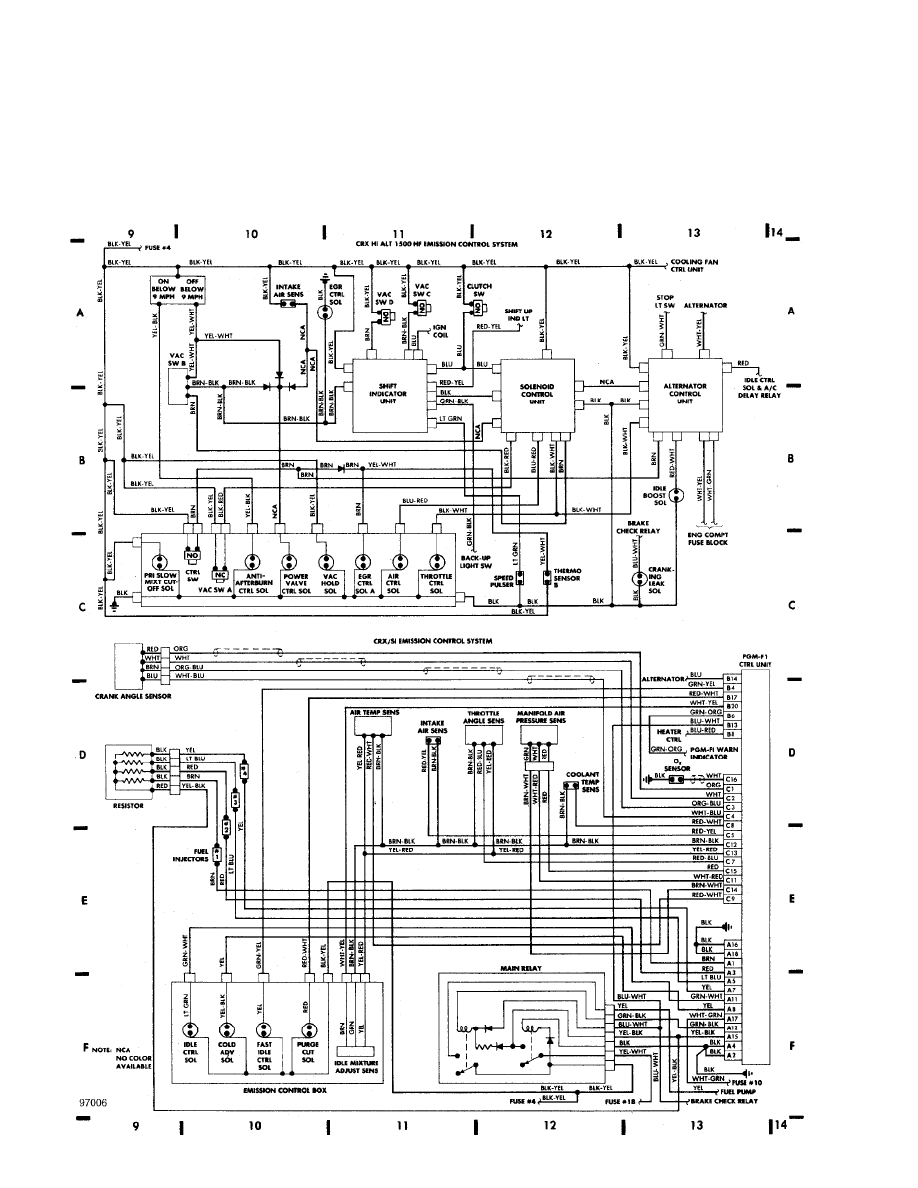

Fig. 3:  Engine Compartment (Cont.) (p. 3)

1985 Honda Civic/CRX

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, July 29, 2004  10:16PM

background image

WIRING DIAGRAMS - CRX

Fig. 4:  Underdash & Instrument Panel (p. 4)

1985 Honda Civic/CRX

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, July 29, 2004  10:16PM

background image

WIRING DIAGRAMS - CRX

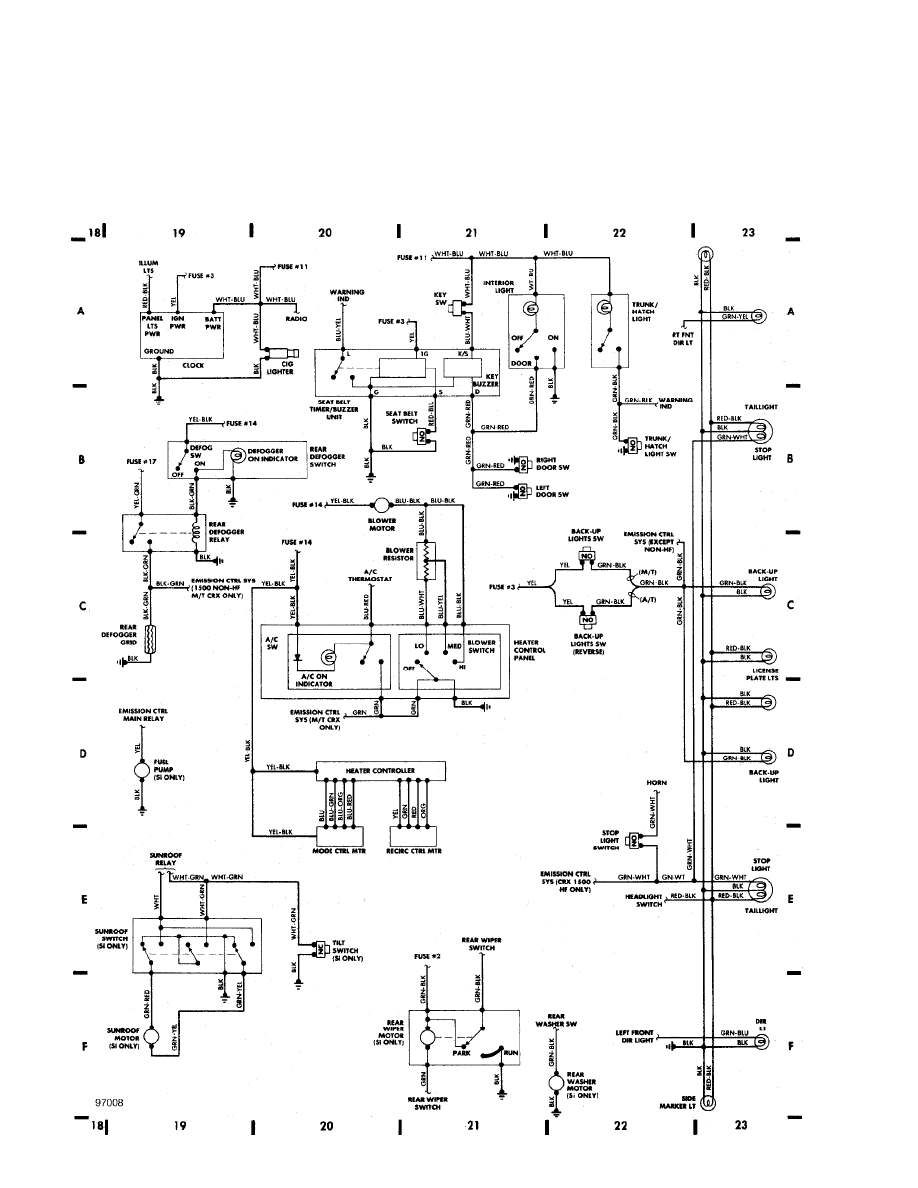

Fig. 5:  Rear Compartment & Accessories (p. 5)

1985 Honda Civic/CRX

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, July 29, 2004  10:16PM

background image

WIRING DIAGRAMS - CRX

Fig. 6:  Cooling Fan Wiring (1300 HF Only) (p. 6)

1985 Honda Civic/CRX

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, July 29, 2004  10:16PM

background image

WIRING DIAGRAMS - EXCEPT CRX

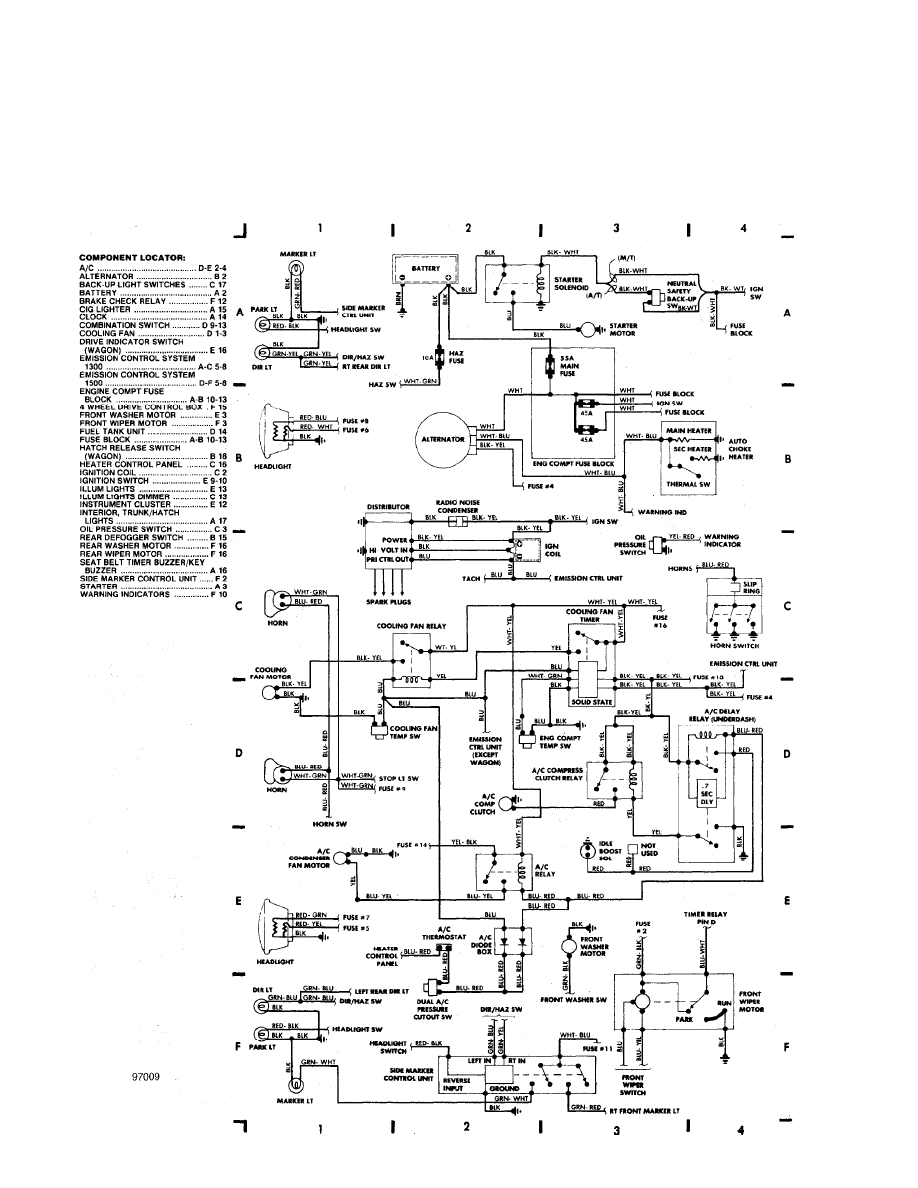

Fig. 1:  Engine Compartment

1985 Honda Civic/CRX

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, July 29, 2004  10:16PM

background image

WIRING DIAGRAMS - EXCEPT CRX

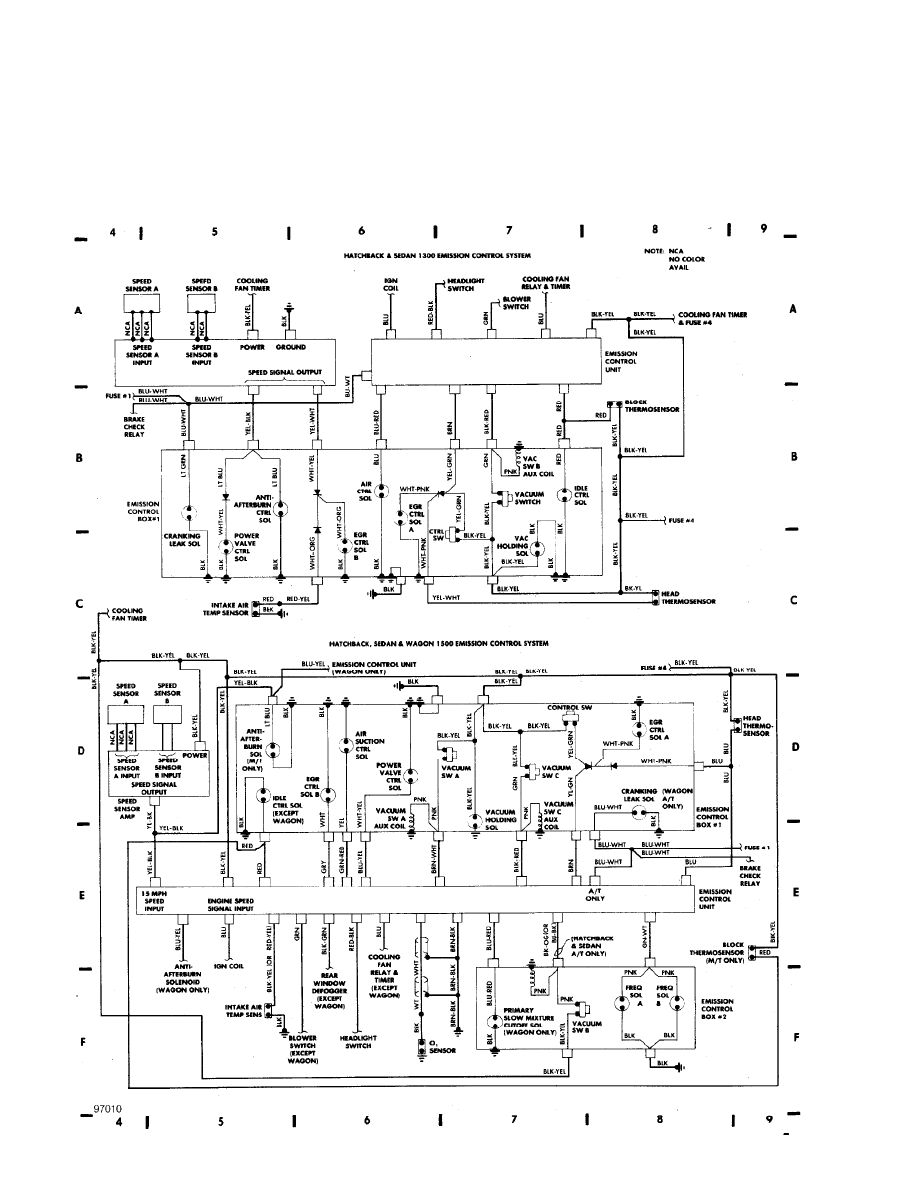

Fig. 2:  Engine Compartment (Cont.) (p. 2)

1985 Honda Civic/CRX

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, July 29, 2004  10:16PM

background image

WIRING DIAGRAMS - EXCEPT CRX

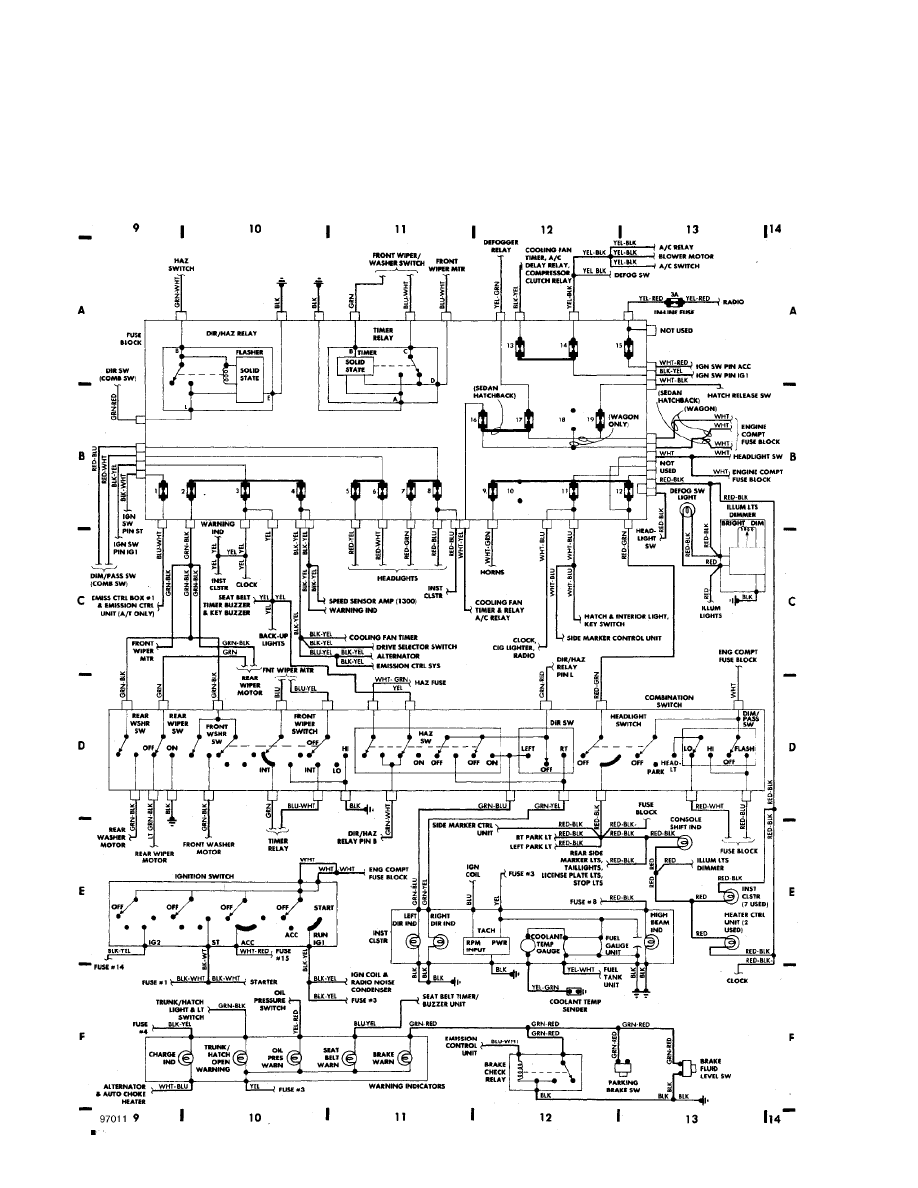

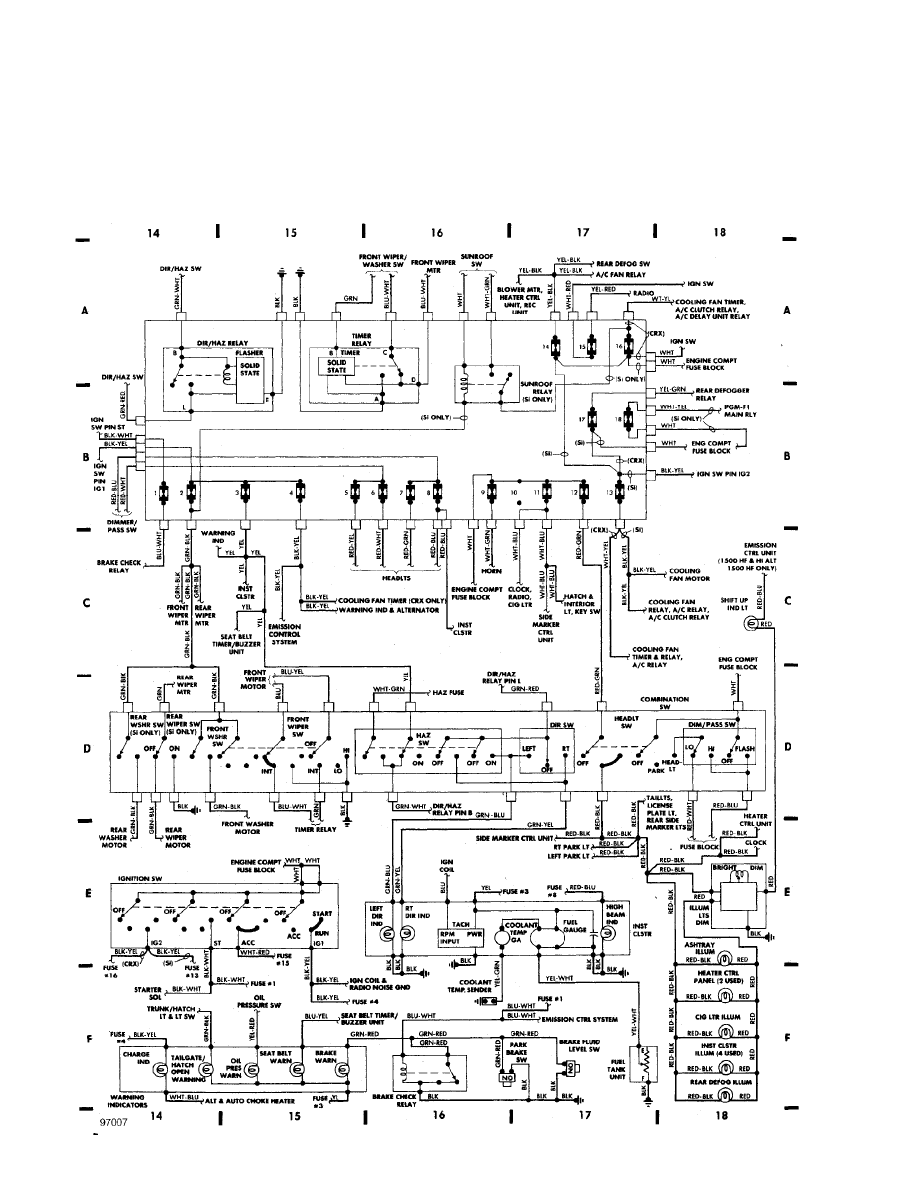

Fig. 3:  Underdash & Instrument Panel (p. 3)

1985 Honda Civic/CRX

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, July 29, 2004  10:16PM

background image

WIRING DIAGRAMS - EXCEPT CRX

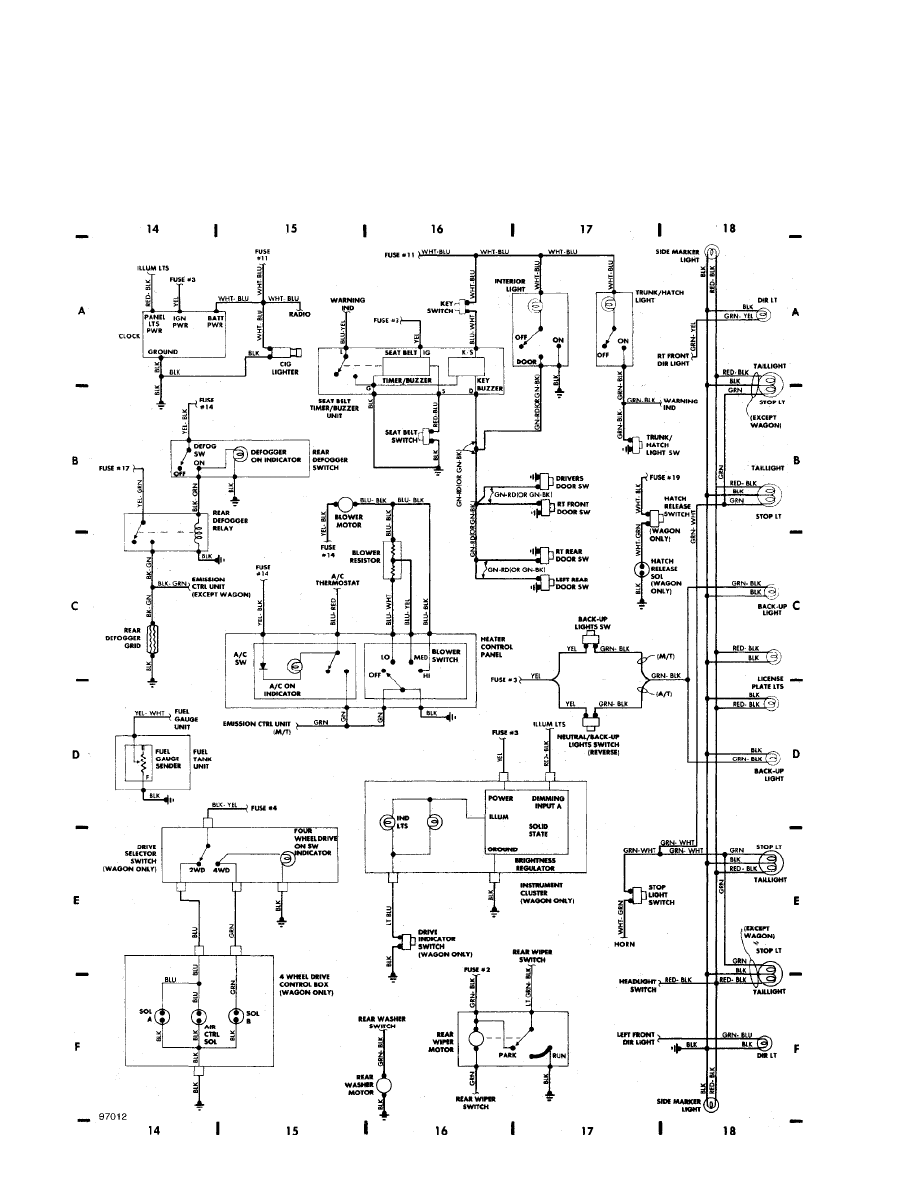

Fig. 4:  Rear Compartment & Accessories (p. 4)

1985 Honda Civic/CRX

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, July 29, 2004  10:16PM
