WIRING DIAGRAMS

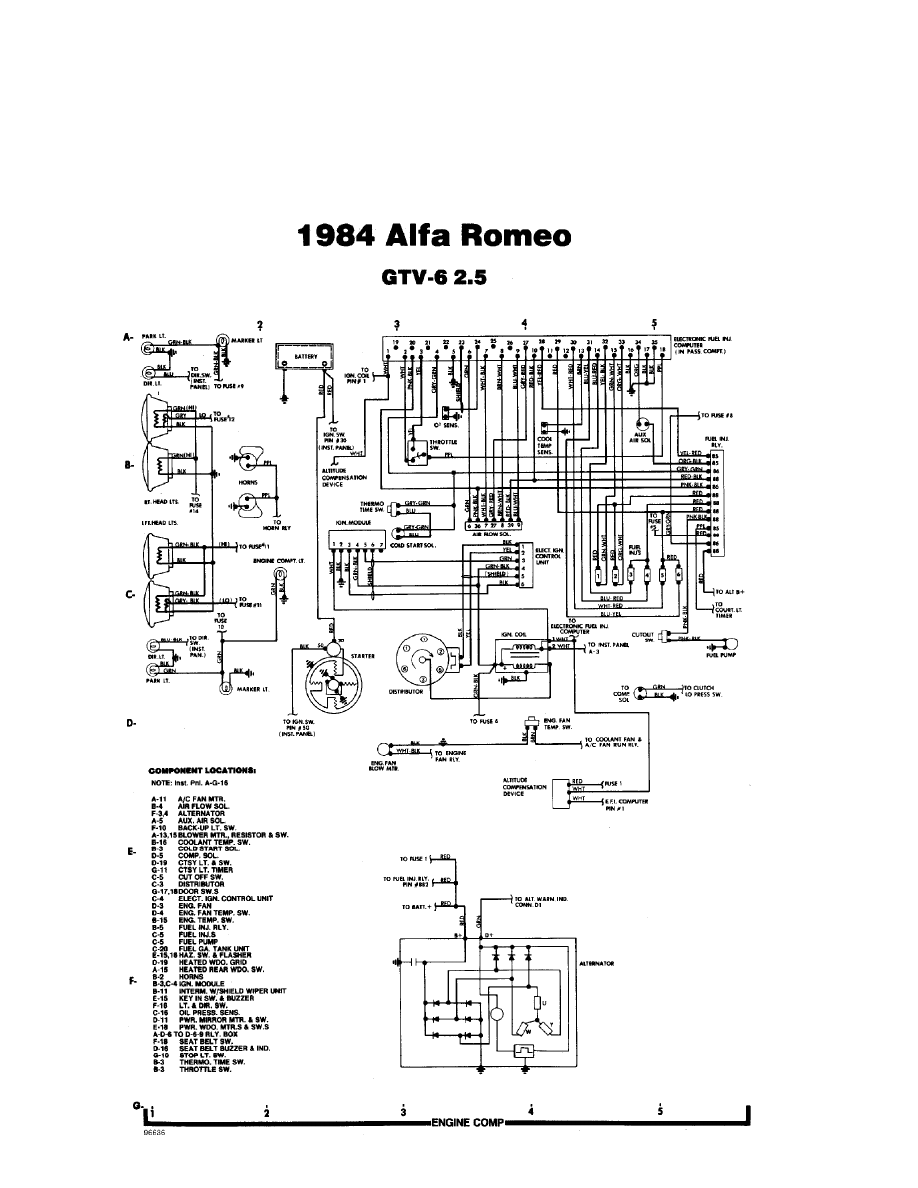

Fig. 1:  Engine Compartment

1984 Alfa Romeo GTV-6

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, April 02, 2006  11:43AM

background image

WIRING DIAGRAMS

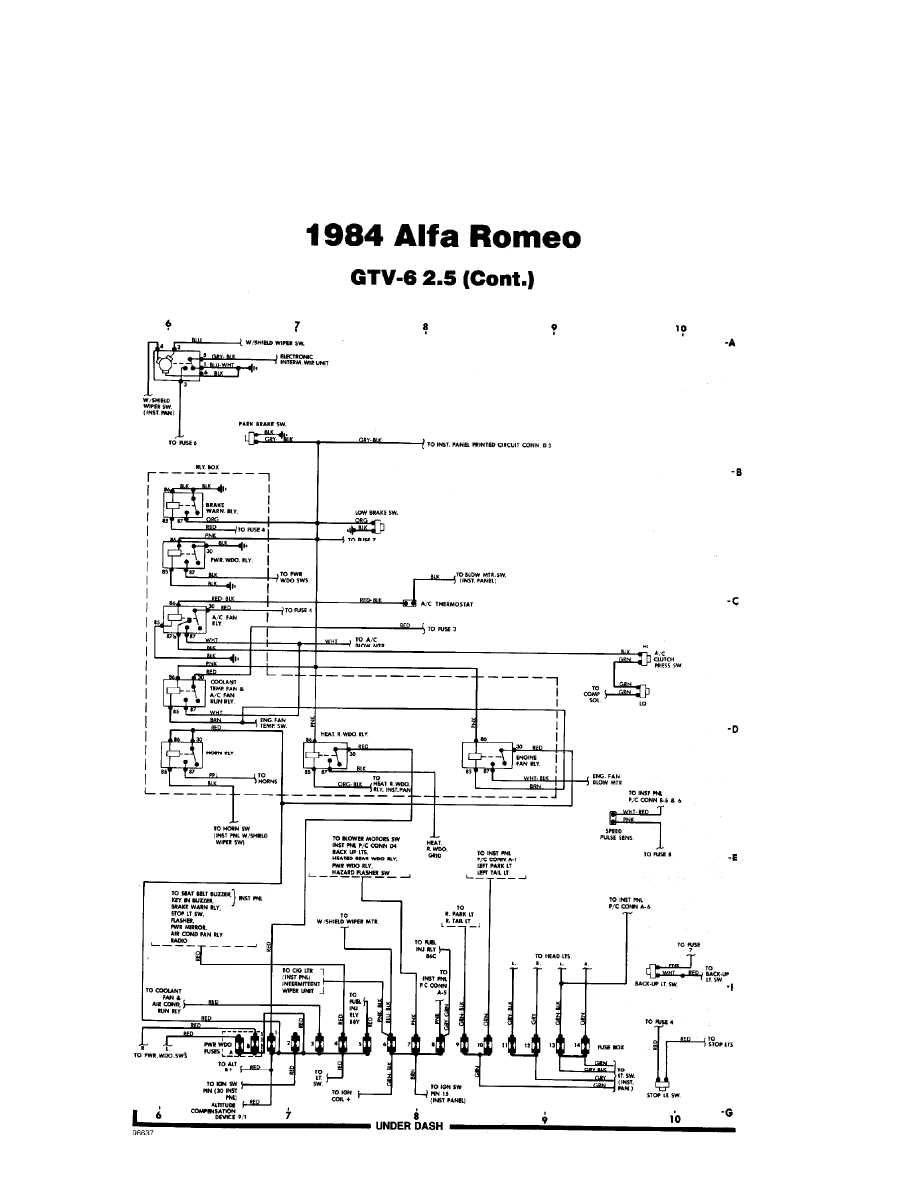

Fig. 2:  Underdash (p. 2)

1984 Alfa Romeo GTV-6

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, April 02, 2006  11:43AM

background image

WIRING DIAGRAMS

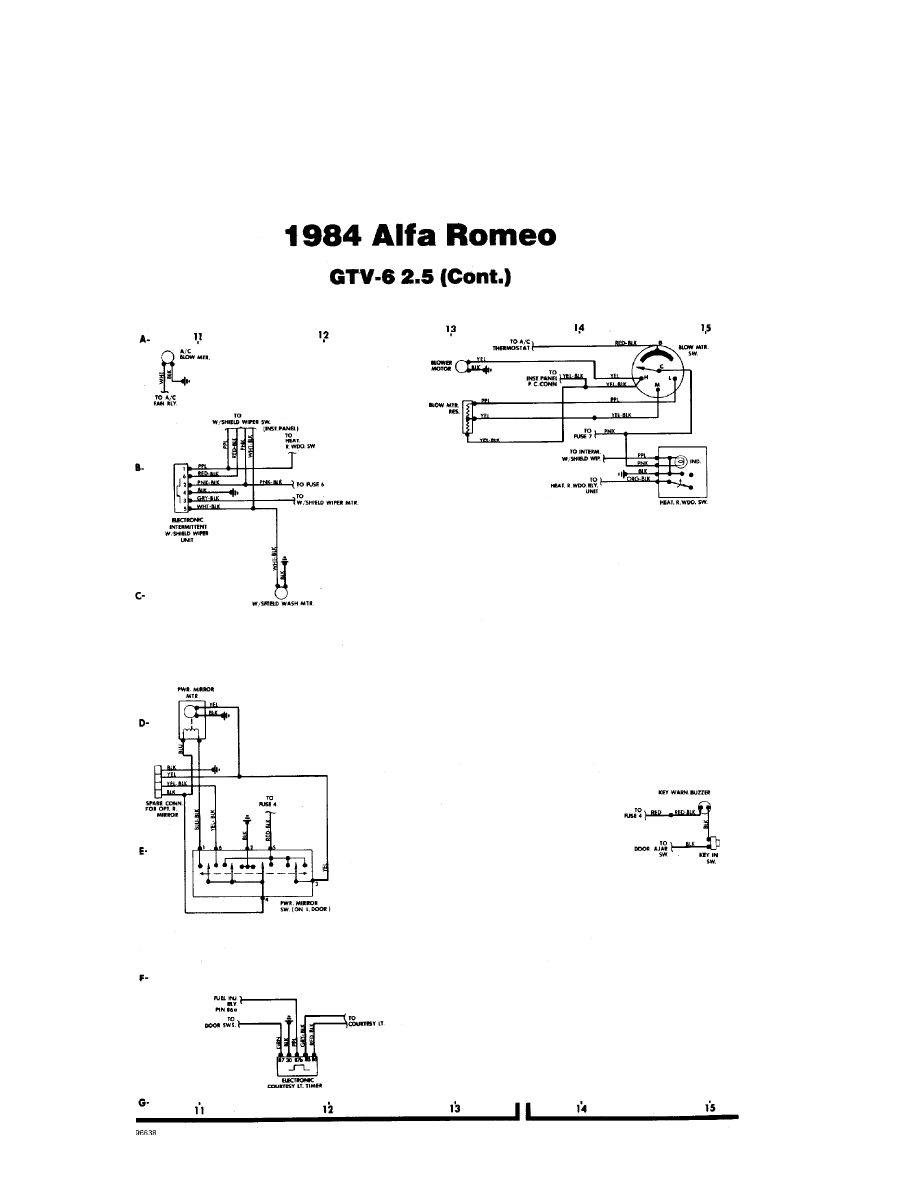

Fig. 3:  Underdash (Cont.) & Instrument Panel (p. 3)

1984 Alfa Romeo GTV-6

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, April 02, 2006  11:43AM

background image

WIRING DIAGRAMS

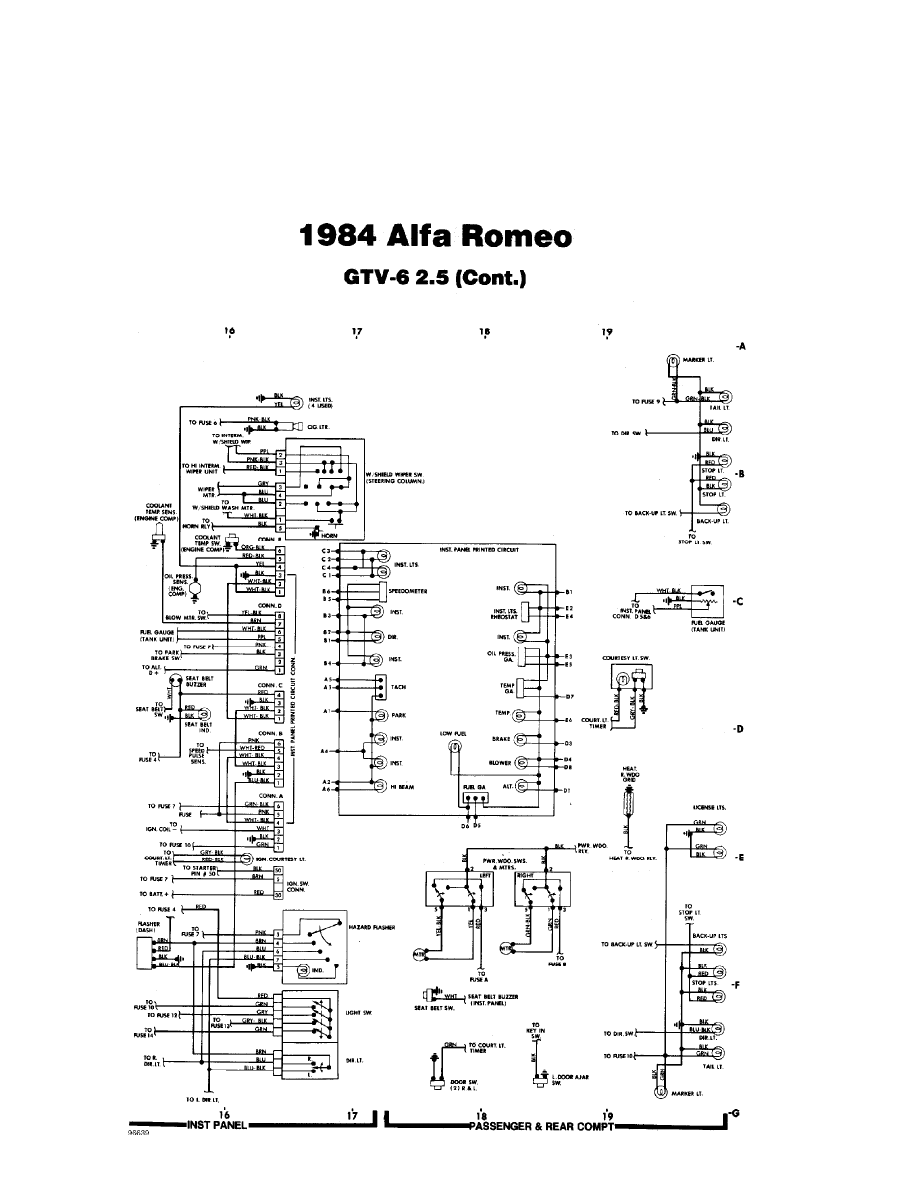

Fig. 4:  Instrument Panel (Cont.) Passenger & Rear Compartment (p. 4)

1984 Alfa Romeo GTV-6

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, April 02, 2006  11:43AM
