WIRING DIAGRAMS

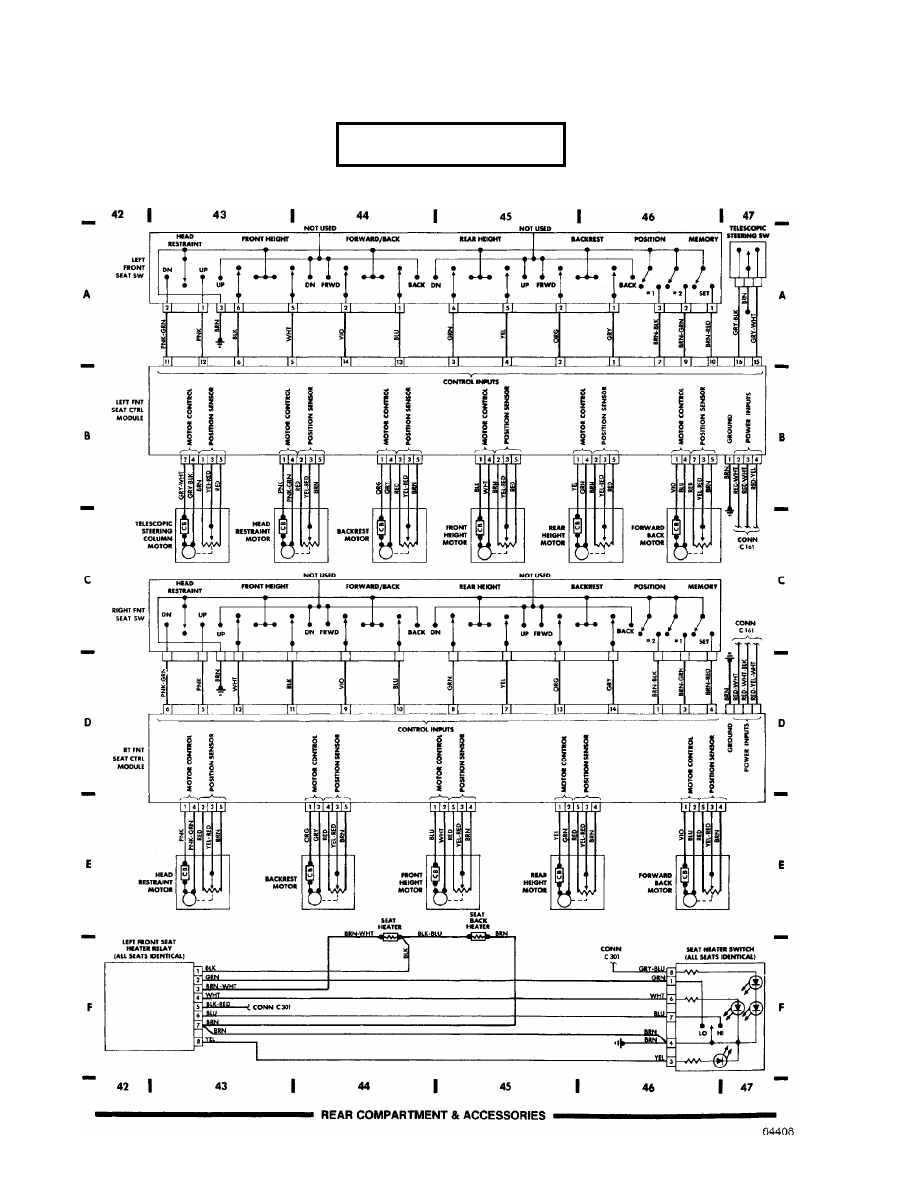

Fig. 10: Rear Compartment & Accessories (Cont.) (Grids 42-47)
1987 Mercedes-Benz 300SDL
For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, November 28, 2000 12:56PM
cdr@wp.pl
WIRING DIAGRAMS

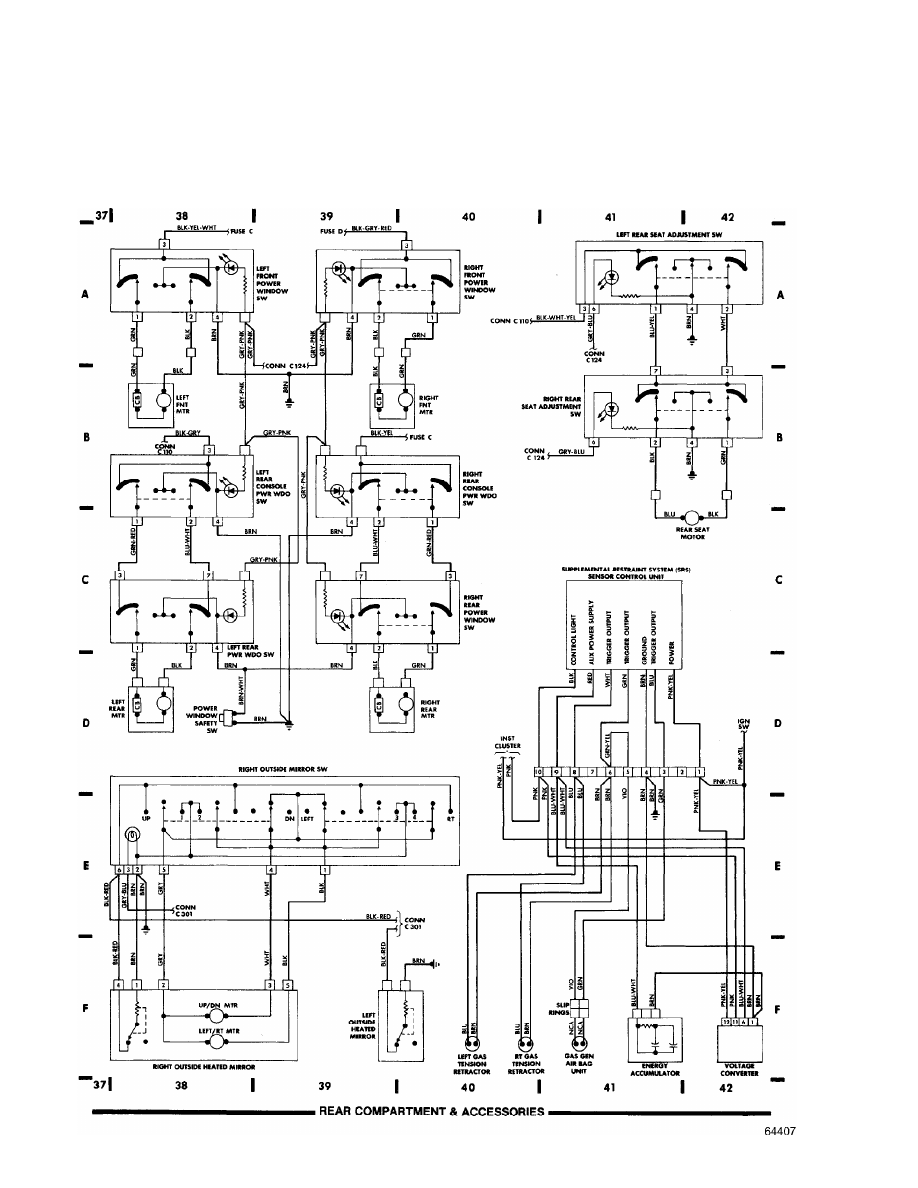

Fig. 9: Rear Compartment & Accessories (Cont.) (Grids 37-42)
1987 Mercedes-Benz 300SDL
For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, November 28, 2000 12:56PM
WIRING DIAGRAMS

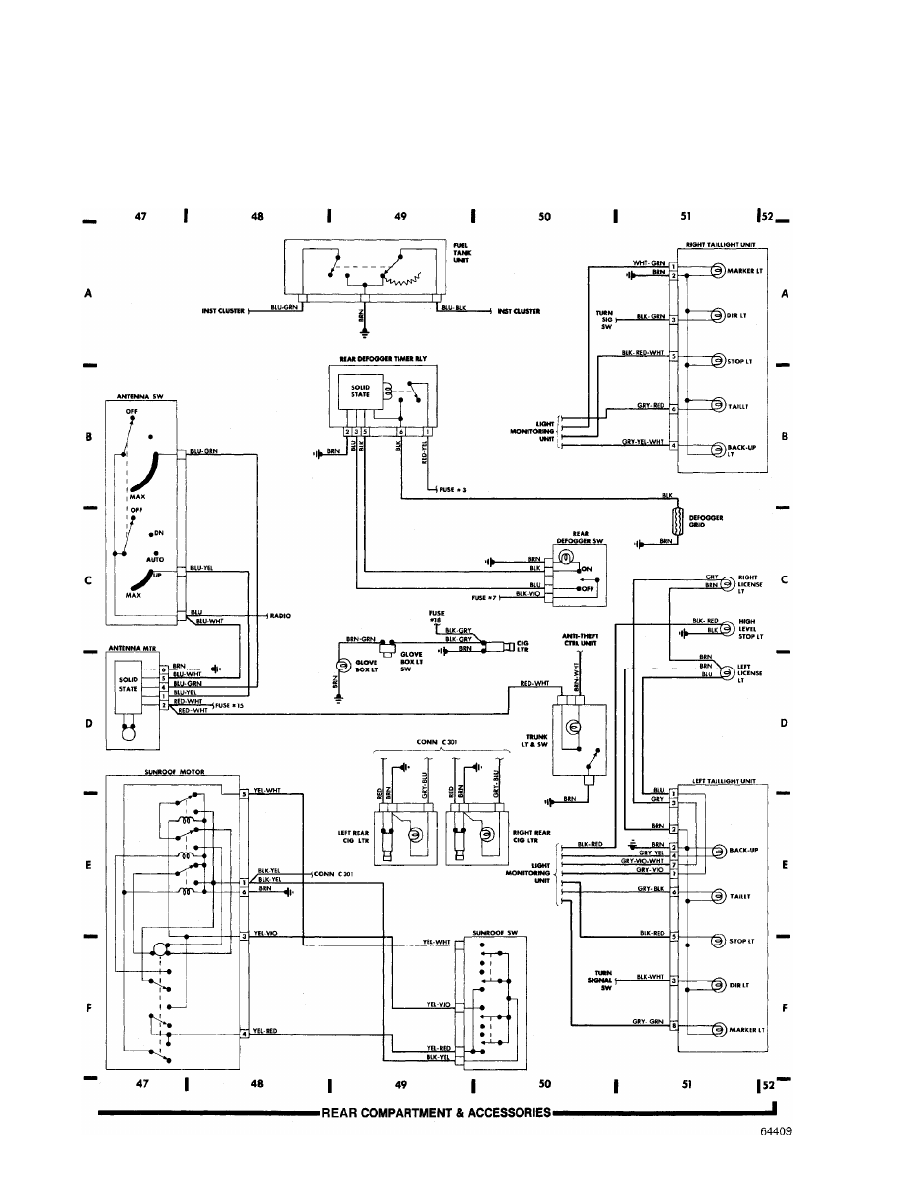

Fig. 11: Rear Compartment & Accessories (Cont.) (Grids 47-52)
1987 Mercedes-Benz 300SDL
For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, November 28, 2000 12:56PM
WIRING DIAGRAMS

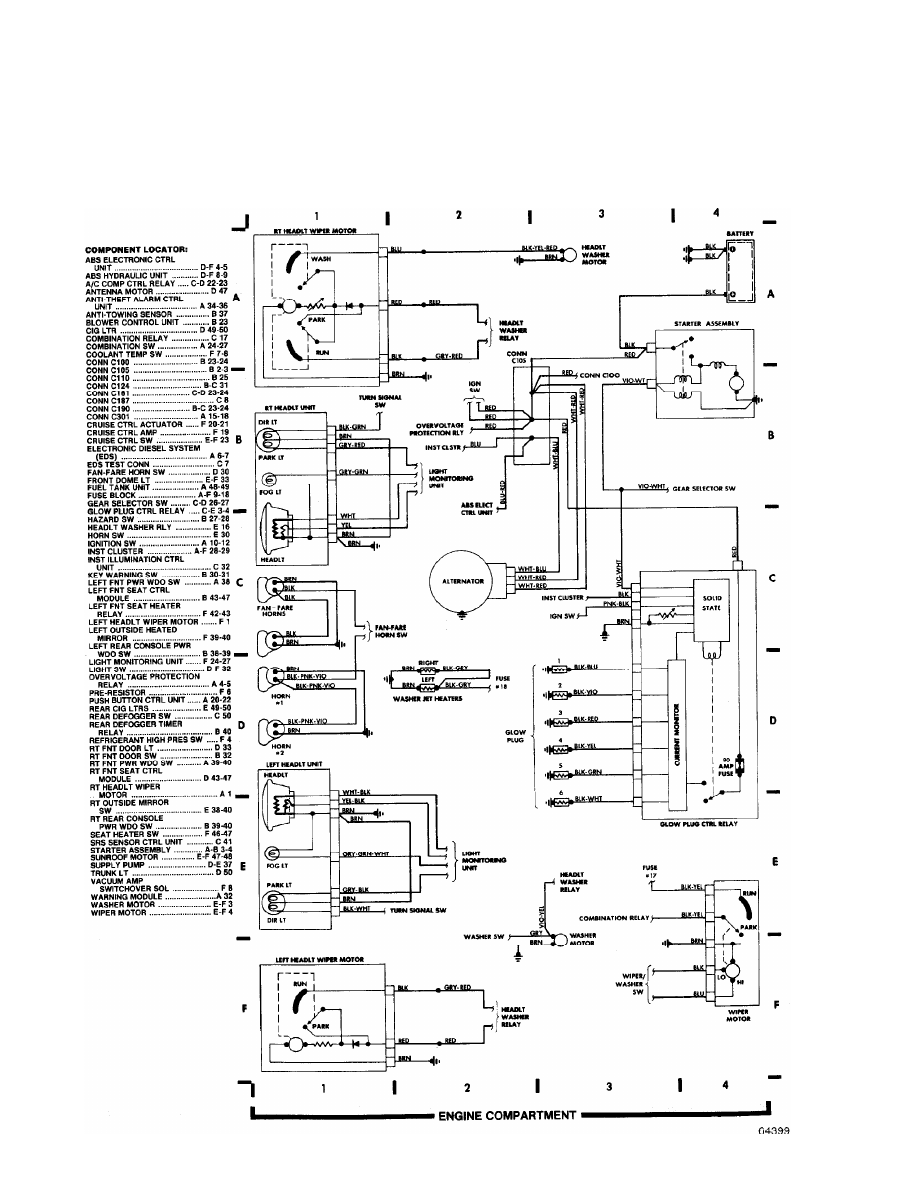

Fig. 1: Engine Compartment (Grids 1-4)
1987 Mercedes-Benz 300SDL
For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, November 28, 2000 12:54PM
WIRING DIAGRAMS

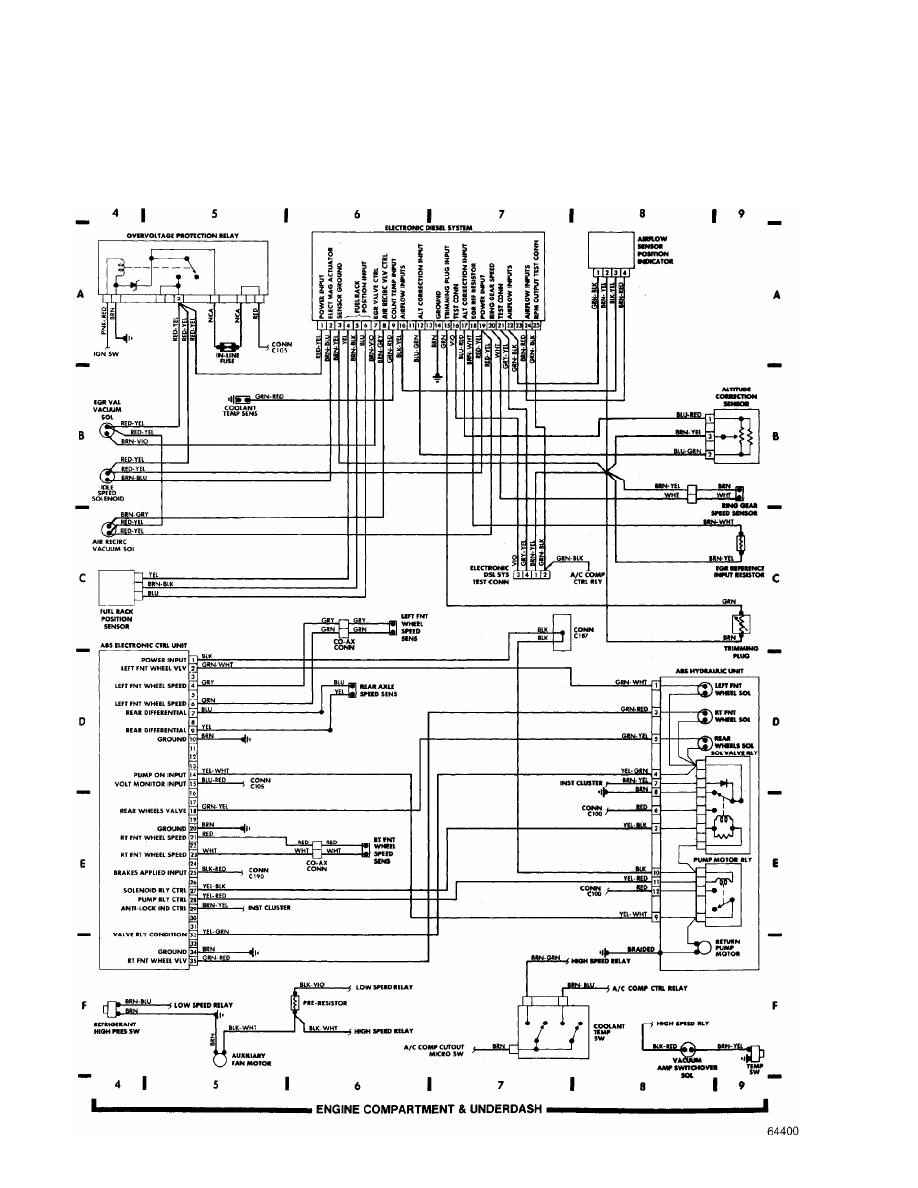

Fig. 2: Engine Compartment (Cont.) & Underdash (Grids 4-9)
1987 Mercedes-Benz 300SDL
For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, November 28, 2000 12:54PM
WIRING DIAGRAMS

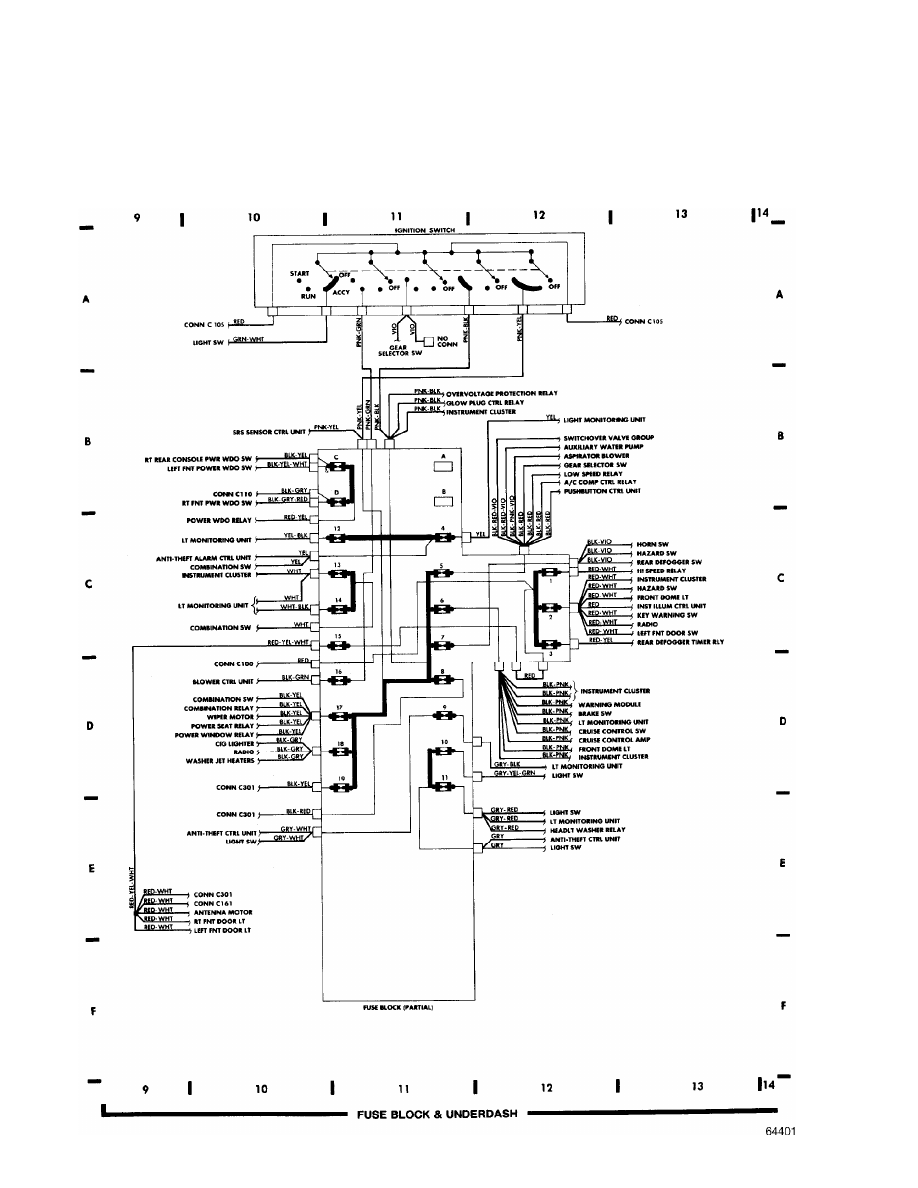

Fig. 3: Underdash (Cont.) & Fuse Block (Grids 9-14)
1987 Mercedes-Benz 300SDL
For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, November 28, 2000 12:54PM
WIRING DIAGRAMS

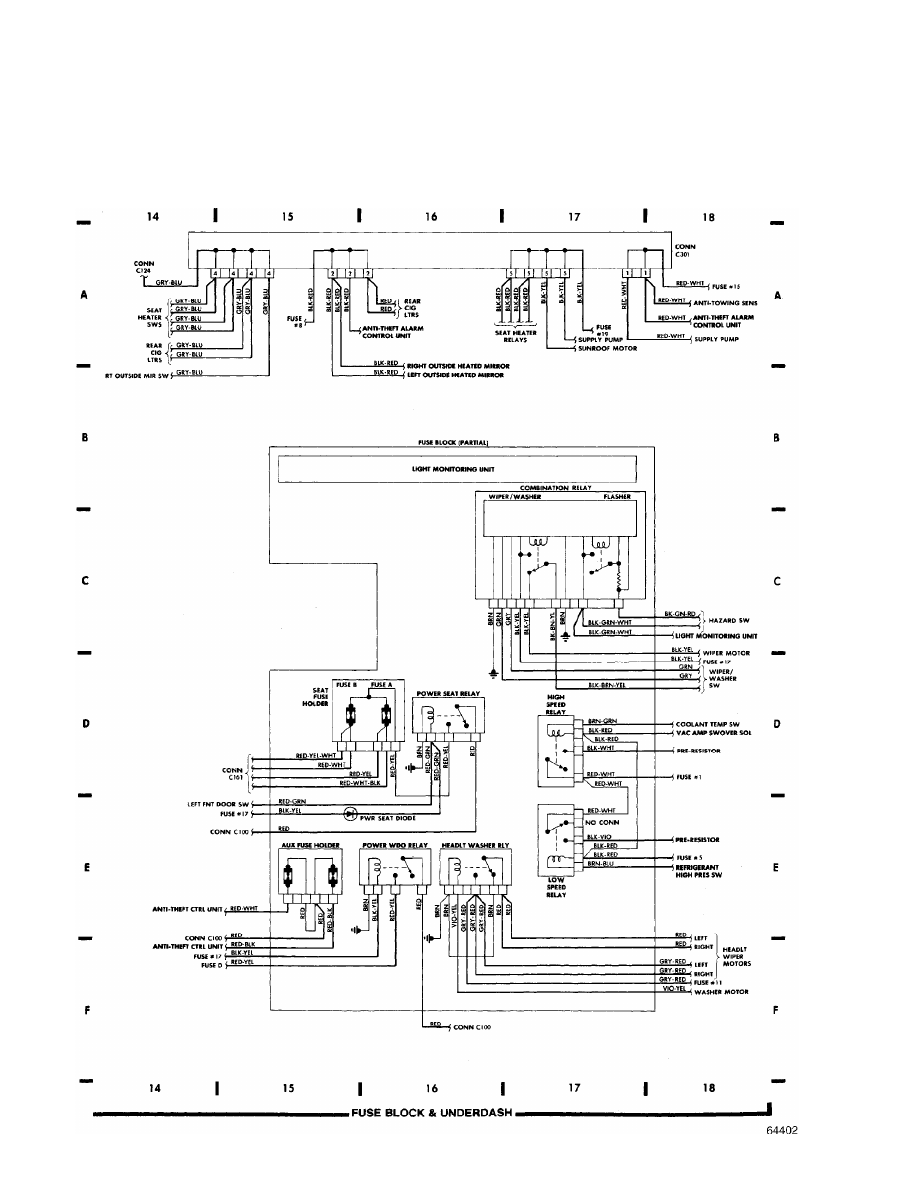

Fig. 4: Underdash & Fuse Block (Cont.) (Grids 14-18)
1987 Mercedes-Benz 300SDL
For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, November 28, 2000 12:55PM
WIRING DIAGRAMS

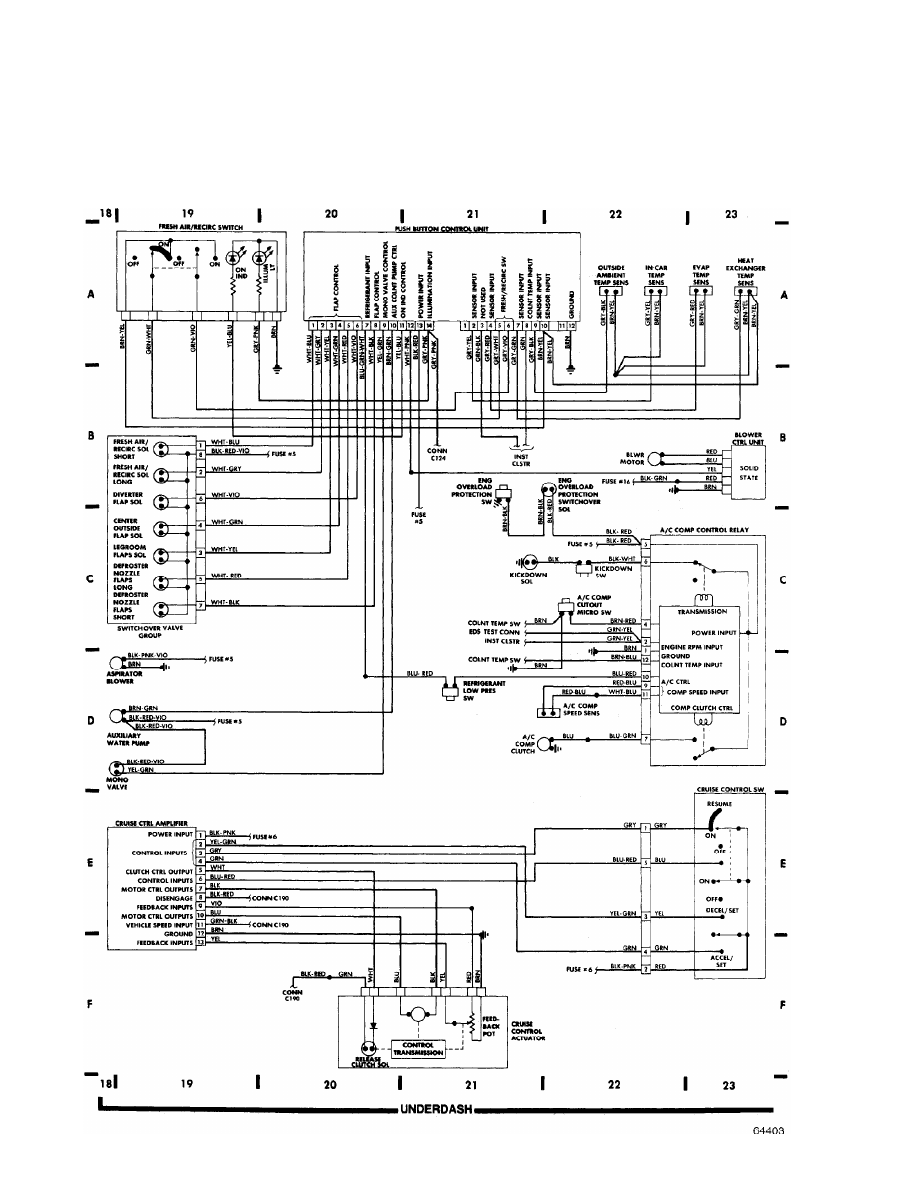

Fig. 5: Underdash (Cont.) (Grids 18-23)
1987 Mercedes-Benz 300SDL
For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, November 28, 2000 12:55PM
WIRING DIAGRAMS

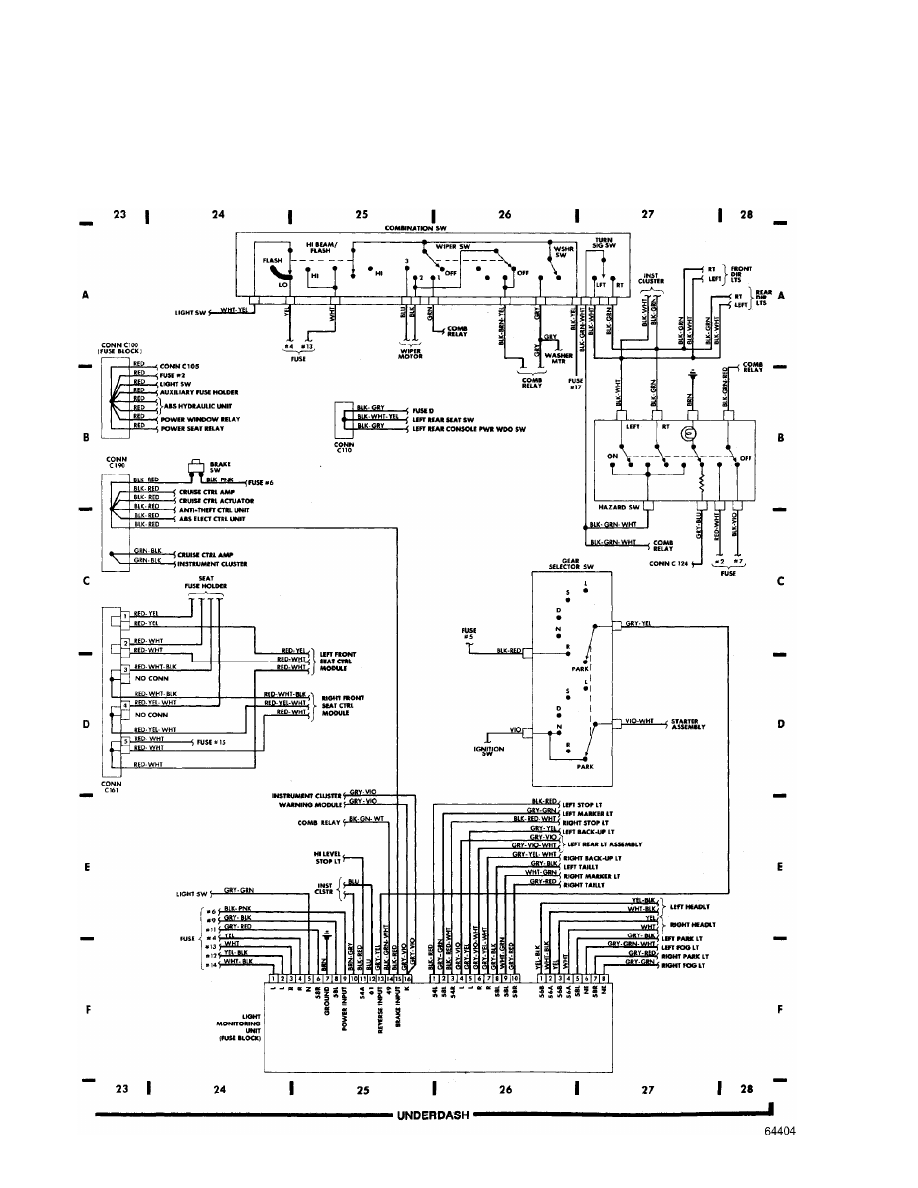

Fig. 6: Underdash (Cont.) (Grids 23-28)
1987 Mercedes-Benz 300SDL
For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, November 28, 2000 12:55PM
WIRING DIAGRAMS

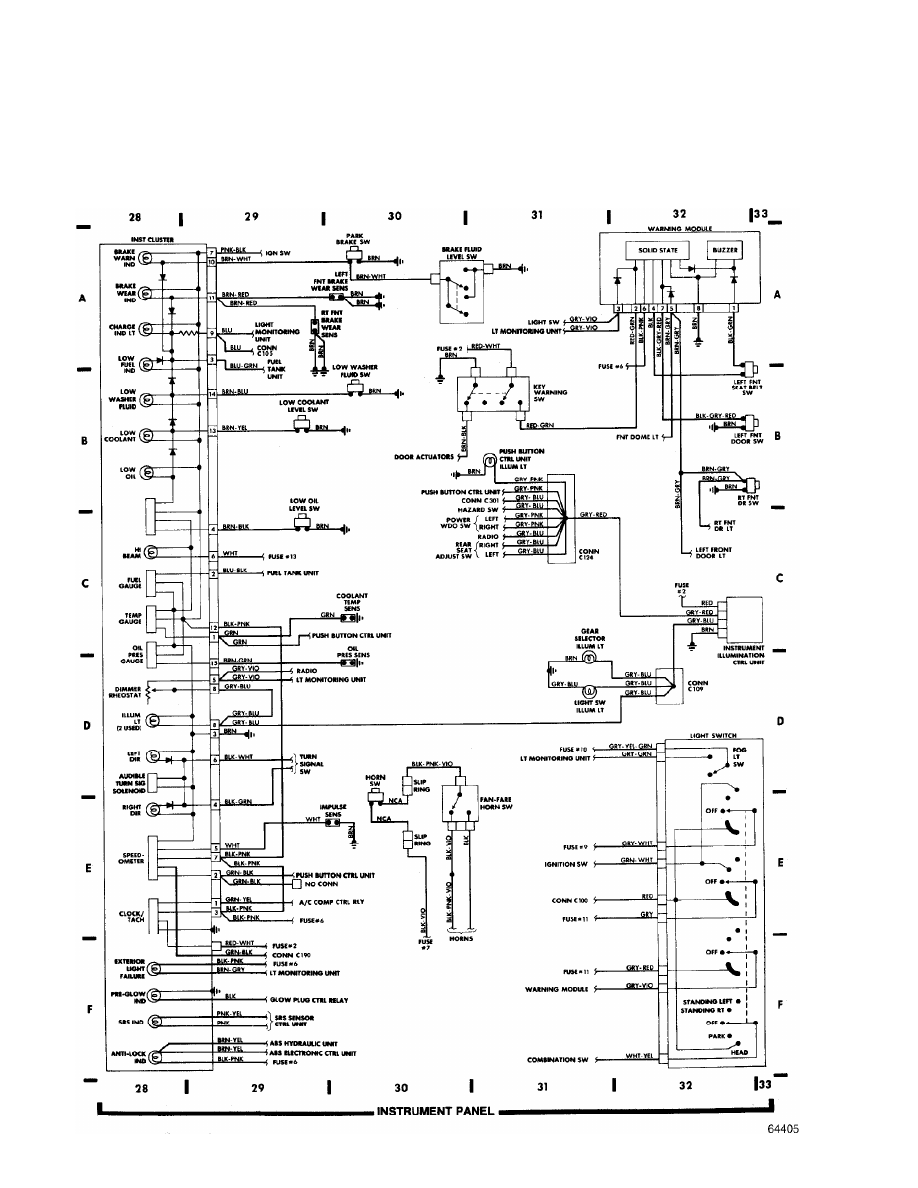

Fig. 7: Instrument Panel (Grids 28-33)
1987 Mercedes-Benz 300SDL
For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, November 28, 2000 12:55PM
WIRING DIAGRAMS

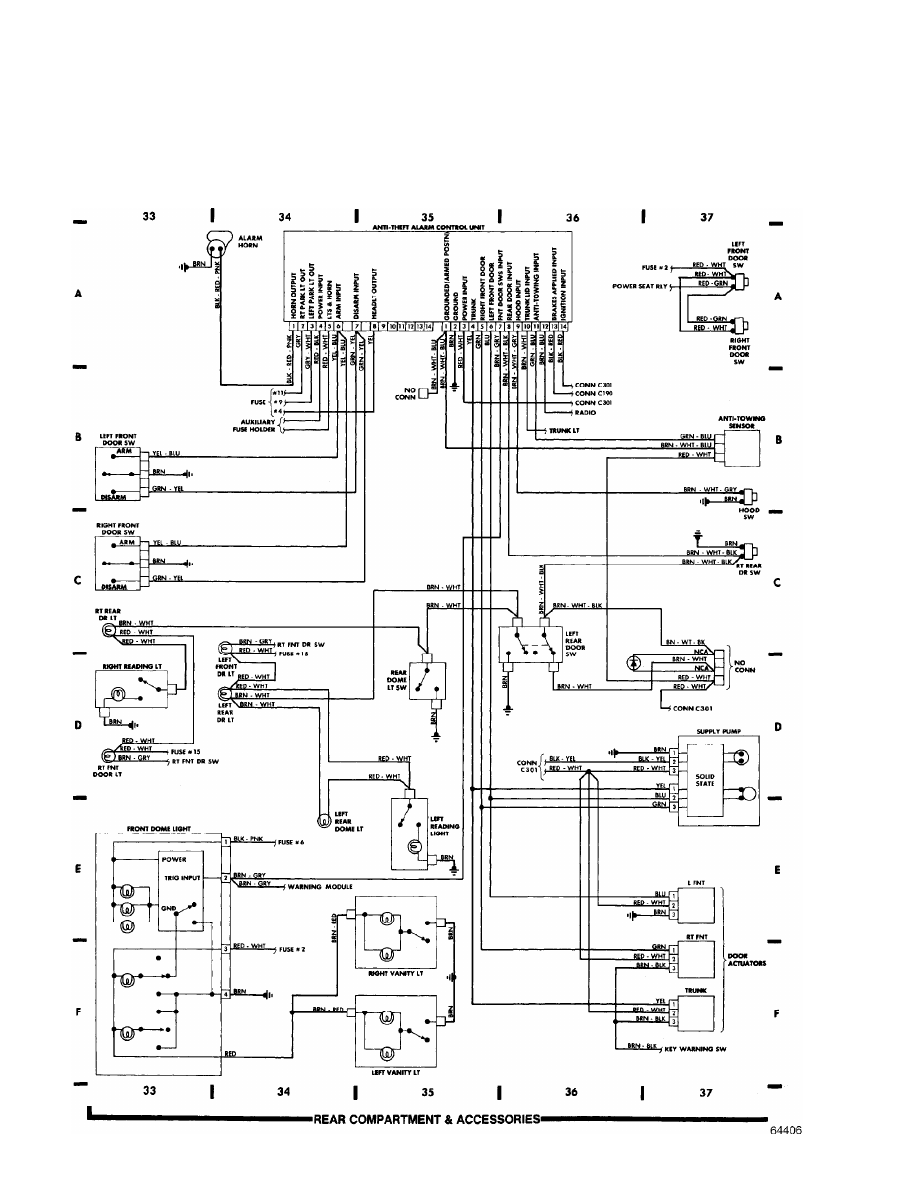

Fig. 8: Rear Compartment & Accessories (Grids 33-37)
1987 Mercedes-Benz 300SDL
For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, November 28, 2000 12:56PM
