Service Engineering & Optimization

V3/05

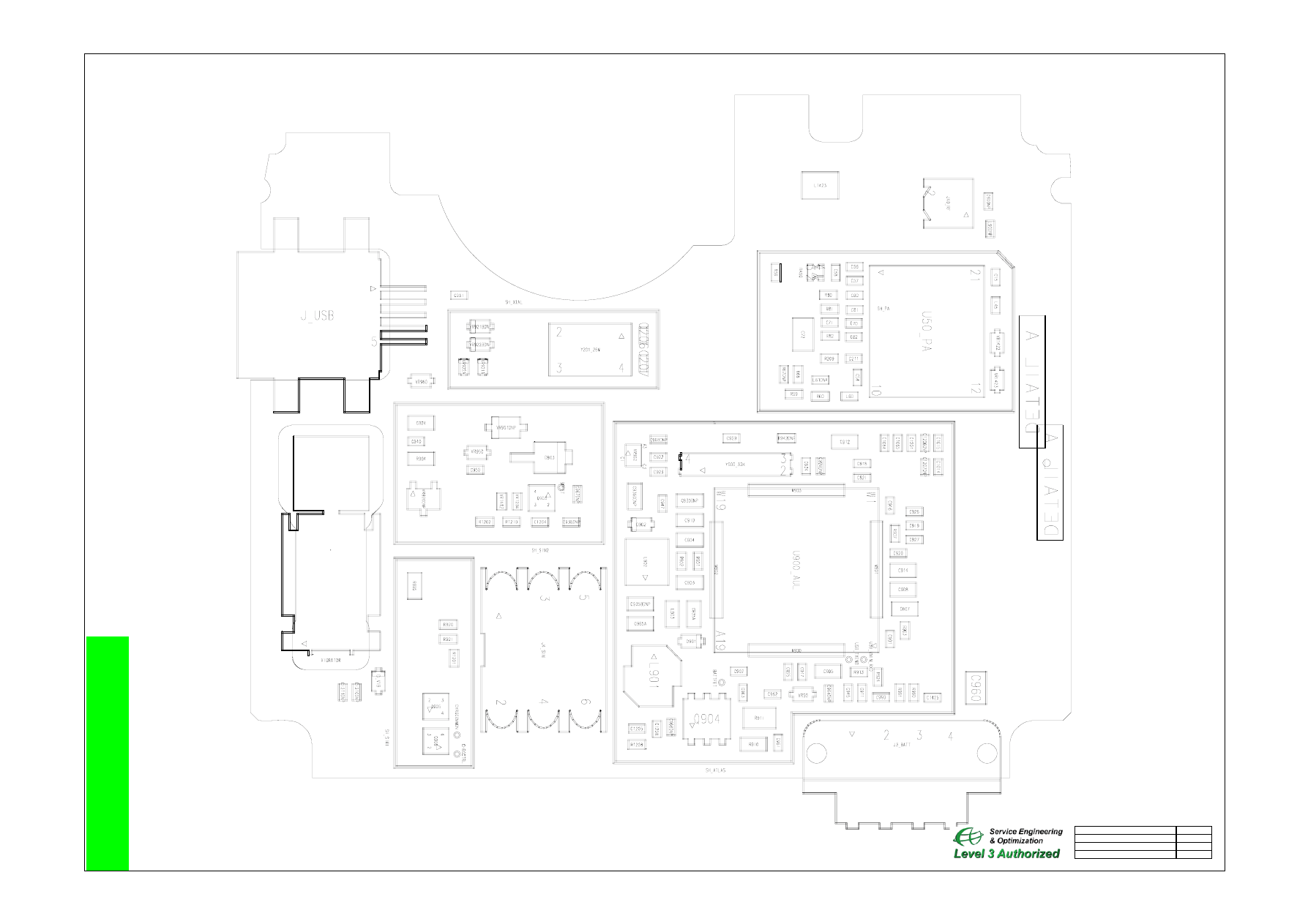

Level 3 Board Layout

2006.06.21

Rev. 1.0

8471201B01

Page 1 of 2

V3_05 8471201B01

background image

Service Engineering & Optimization

V3/05

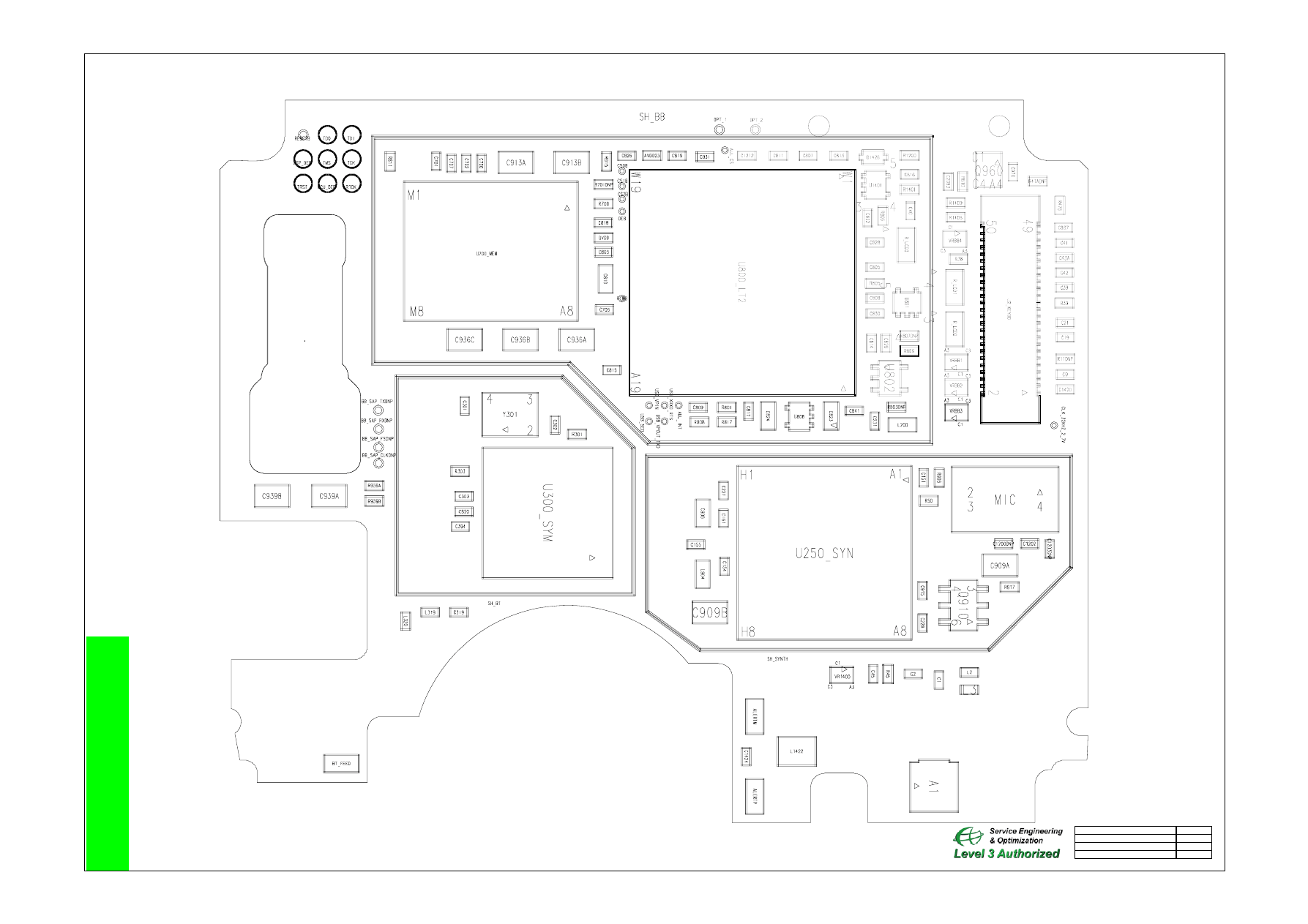

Level 3 Board Layout
