WIRING DIAGRAMS
Fig. 1: Engine Compartment
1984 Ford LTD Crown Victoria
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 09:55PM
WIRING DIAGRAMS
Fig. 1: Engine Compartment
1984 Ford LTD Crown Victoria
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 09:55PM
WIRING DIAGRAMS
Fig. 2: Ignition Circuit (p. 2)
1984 Ford LTD Crown Victoria
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 09:55PM
WIRING DIAGRAMS

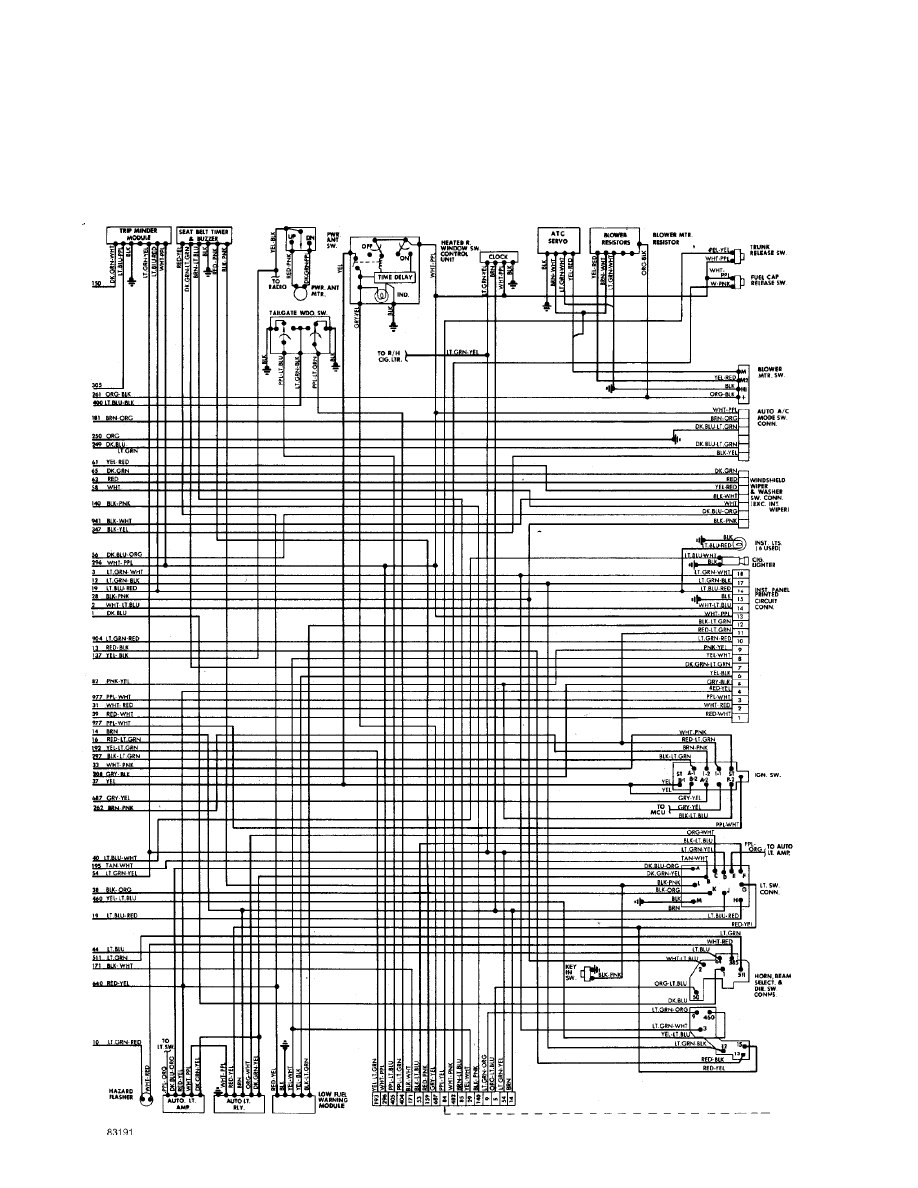

Fig. 3: Fuse Block & Underdash (p. 3)
1984 Ford LTD Crown Victoria
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 09:55PM
WIRING DIAGRAMS

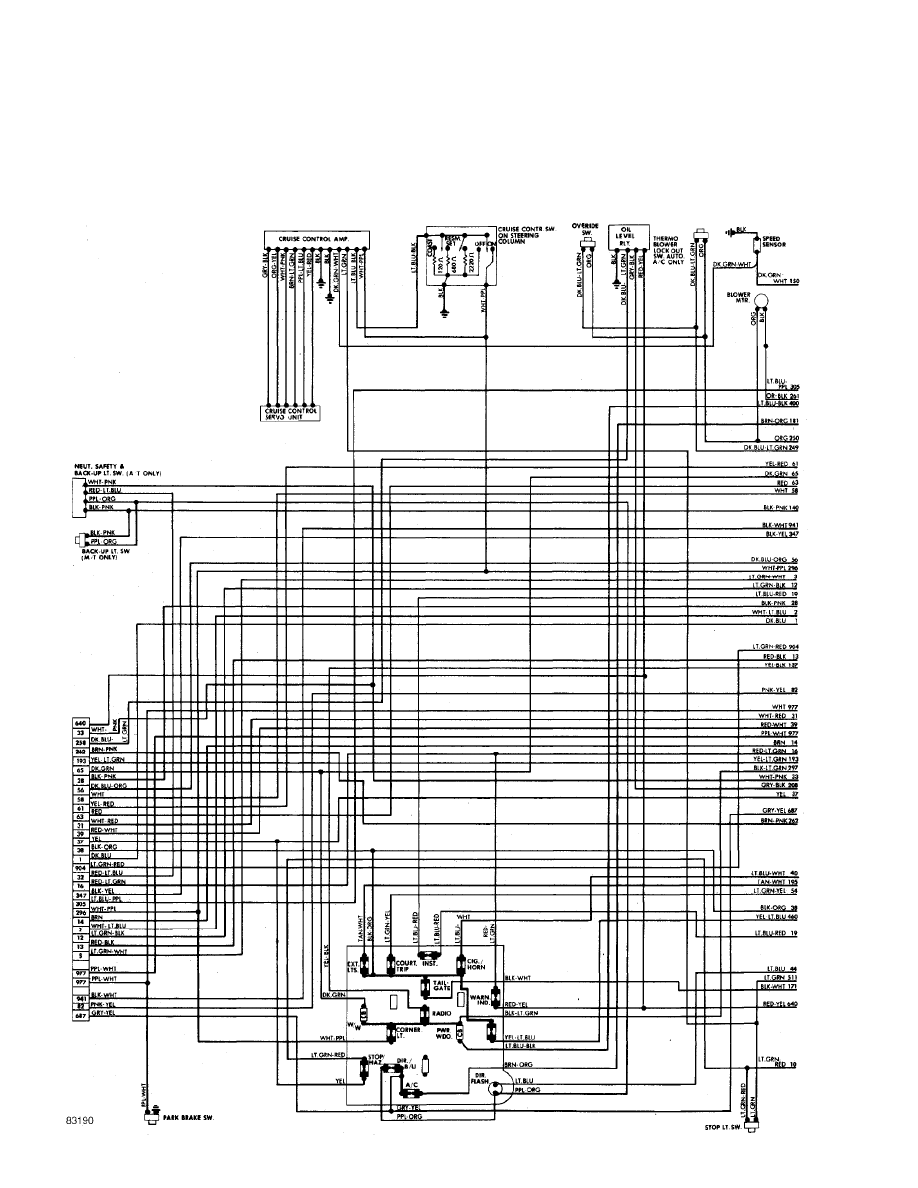

Fig. 4: Underdash (Cont.) & Instrument Panel (p. 4)
1984 Ford LTD Crown Victoria
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 09:55PM
WIRING DIAGRAMS

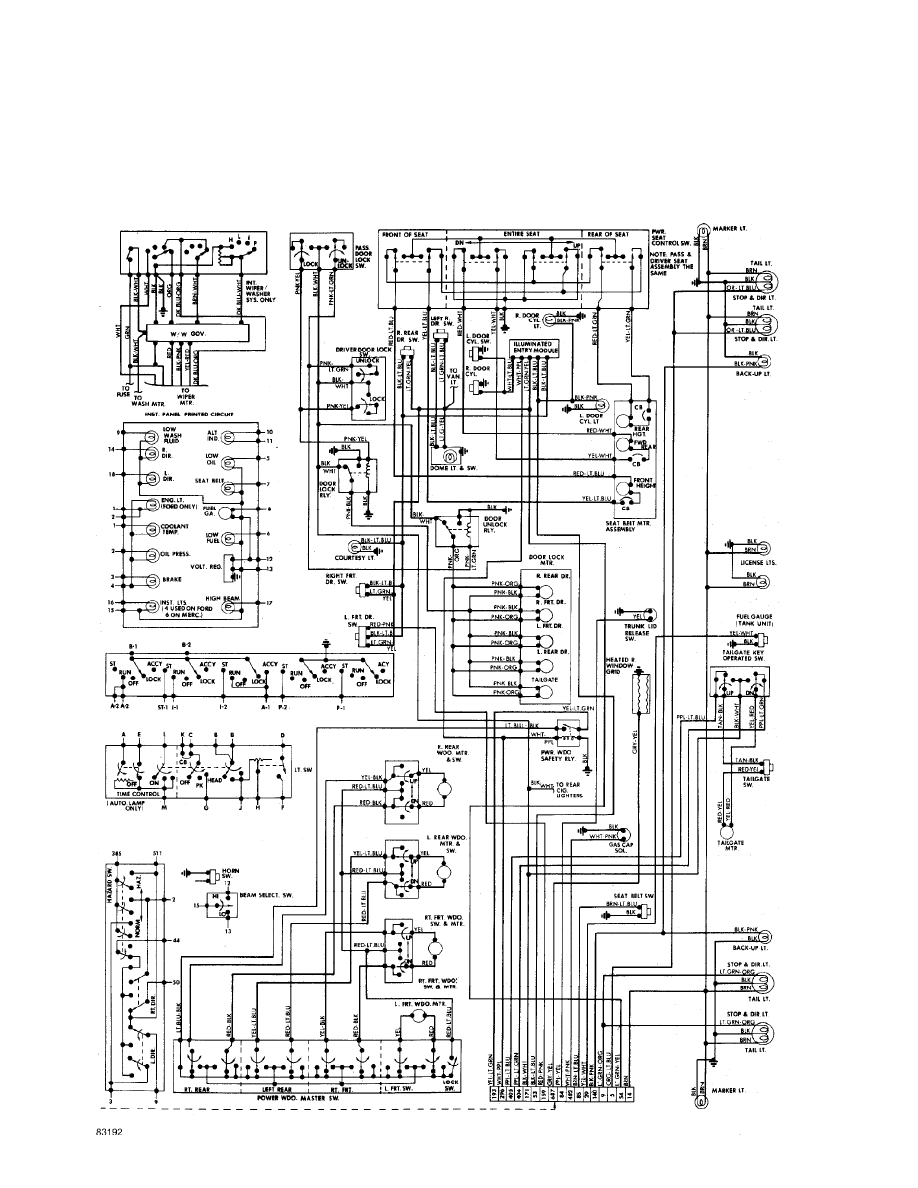

Fig. 5: Rear Compartment & Accessories (p. 5)
1984 Ford LTD Crown Victoria
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 09:55PM
WIRING DIAGRAMS
Fig. 6: Engine Compartment & Headlights (p. 6)
1984 Ford LTD Crown Victoria
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 09:55PM
WIRING DIAGRAMS
Fig. 7: Fuse Block & Underdash (p. 7)
1984 Ford LTD Crown Victoria
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 09:55PM
WIRING DIAGRAMS

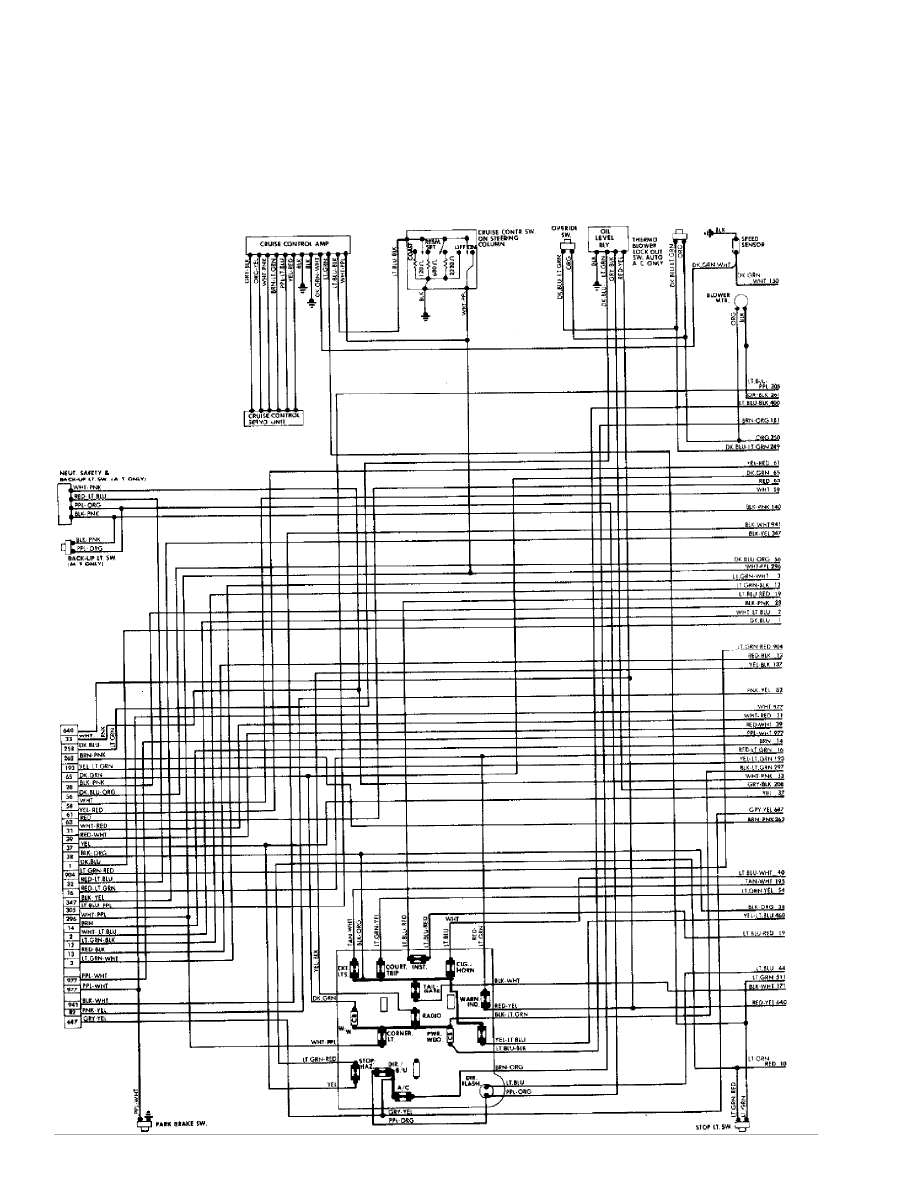

Fig. 8: Instrument Panel & Underdash (p. 8)
1984 Ford LTD Crown Victoria
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 09:55PM
WIRING DIAGRAMS

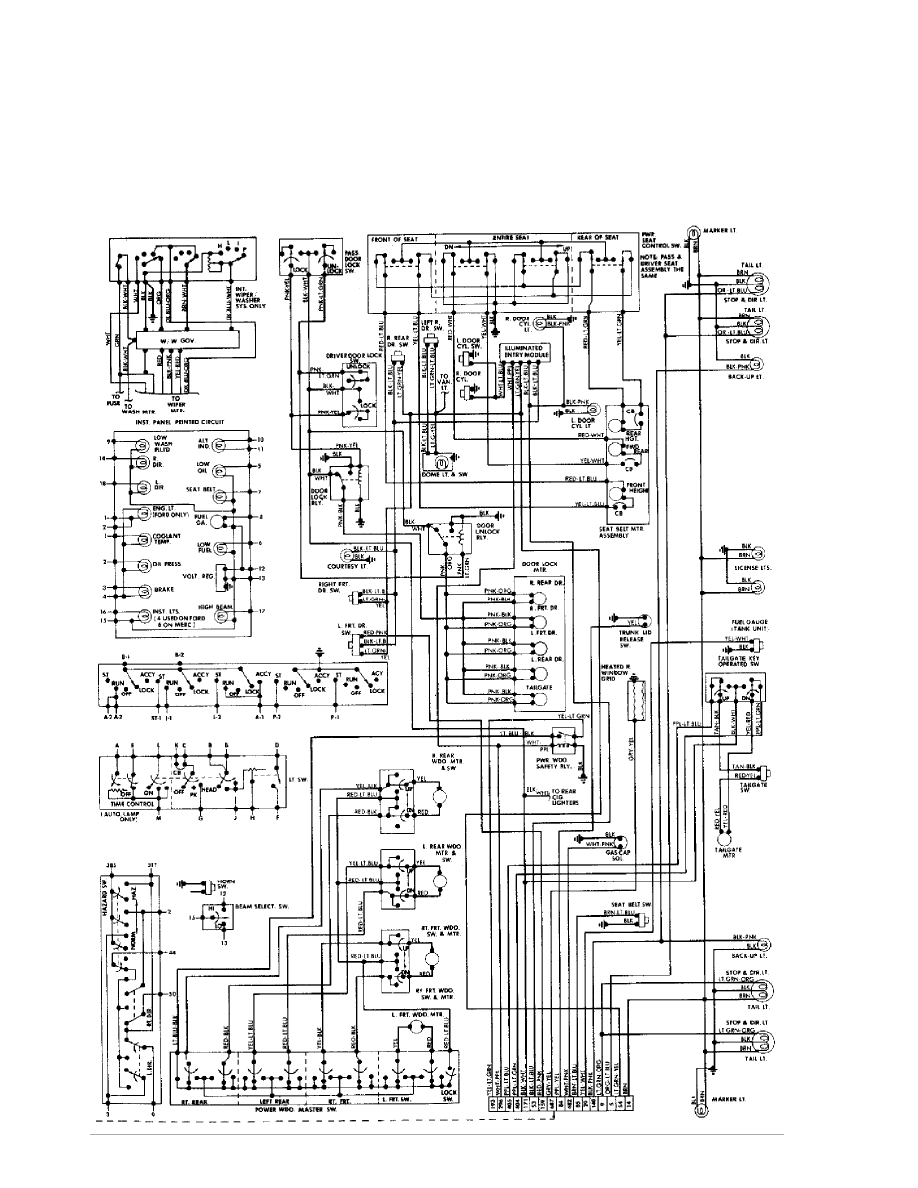

Fig. 9: Rear Compartment, Accessories & Taillights (p. 9)
1984 Ford LTD Crown Victoria
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 09:55PM
