SYSTEM WIRING DIAGRAMS

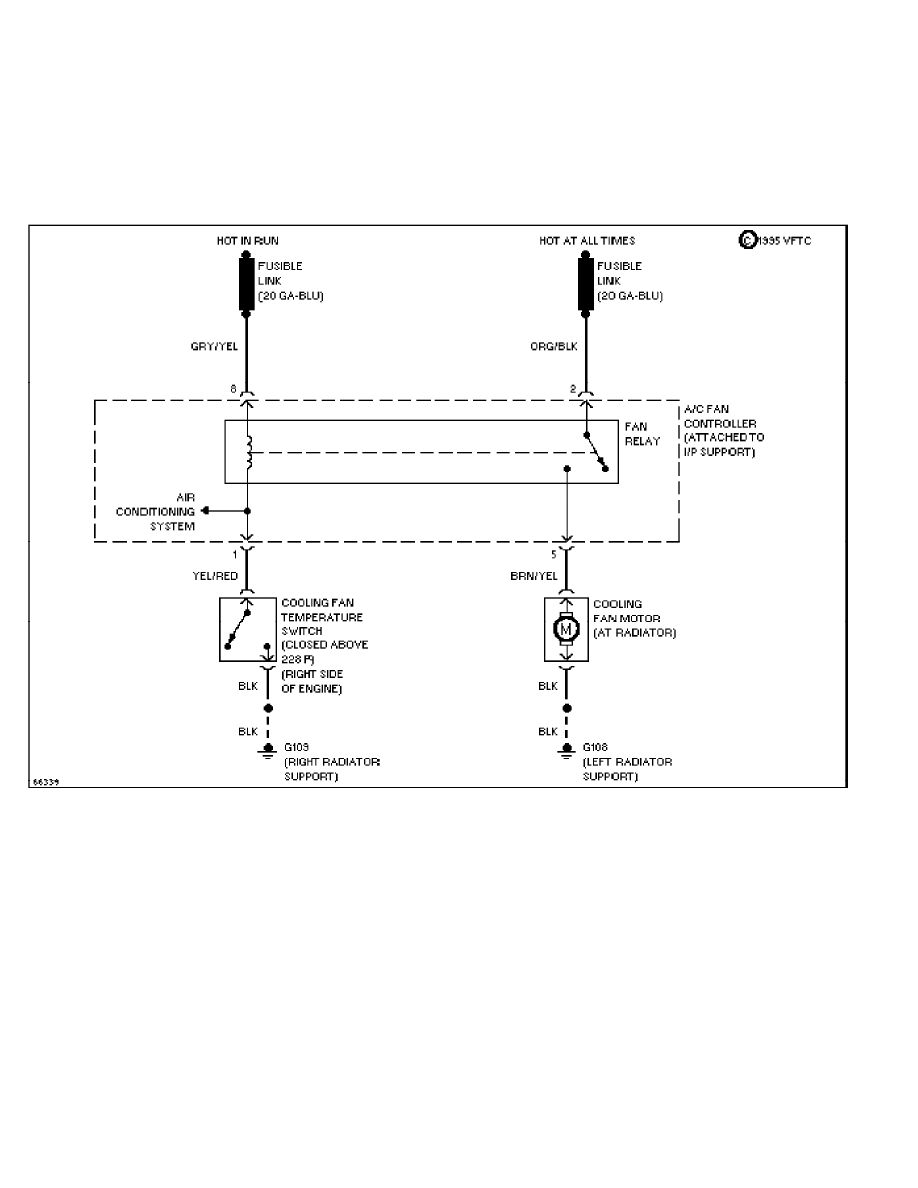

Cooling Fan Circuit
1986 Ford LTD
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 07:23PM
SYSTEM WIRING DIAGRAMS
Cooling Fan Circuit
1986 Ford LTD
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 07:23PM
SYSTEM WIRING DIAGRAMS

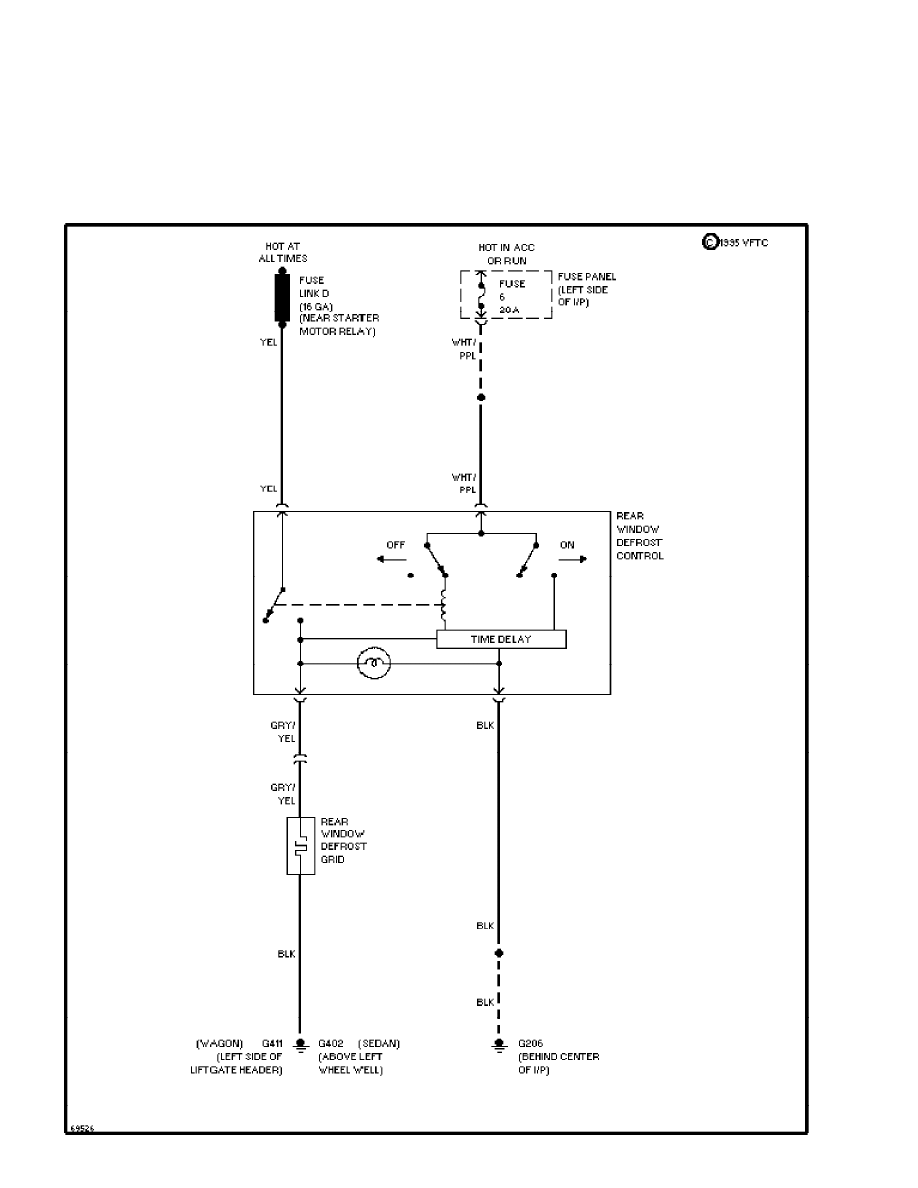

Defogger Circuit (p. 2)
1986 Ford LTD
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 07:23PM
SYSTEM WIRING DIAGRAMS

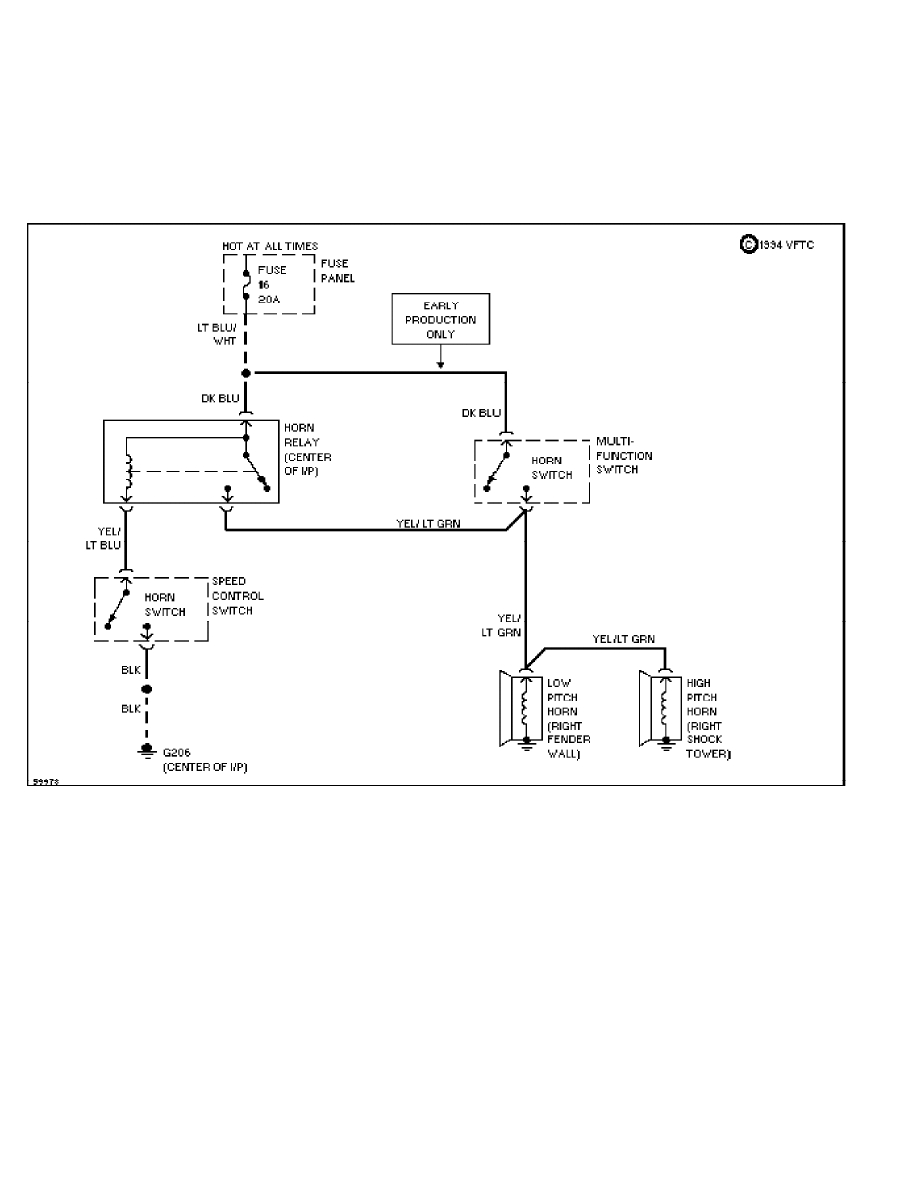

Horn Circuit (p. 3)
1986 Ford LTD
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 07:23PM
SYSTEM WIRING DIAGRAMS

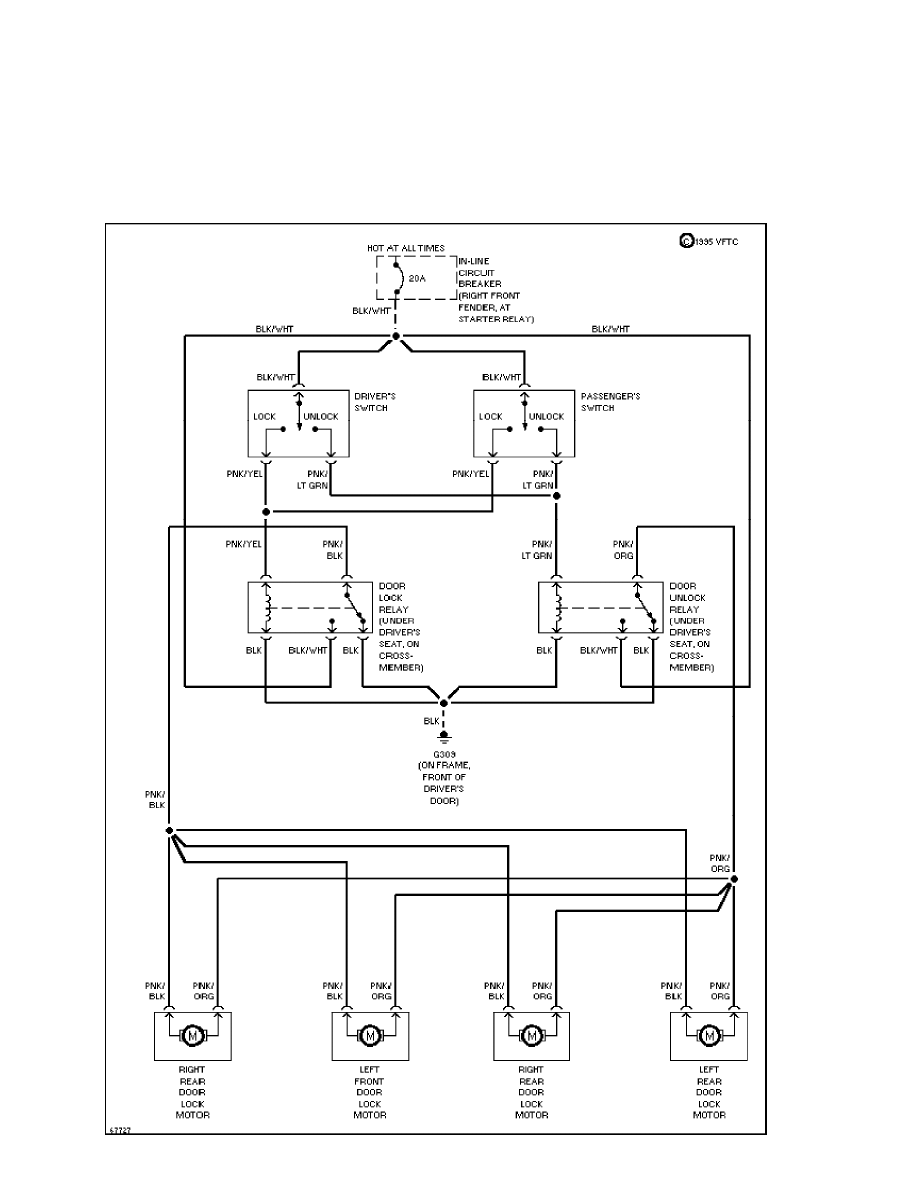

Power Door Lock Circuit (p. 4)
1986 Ford LTD
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 07:23PM
SYSTEM WIRING DIAGRAMS

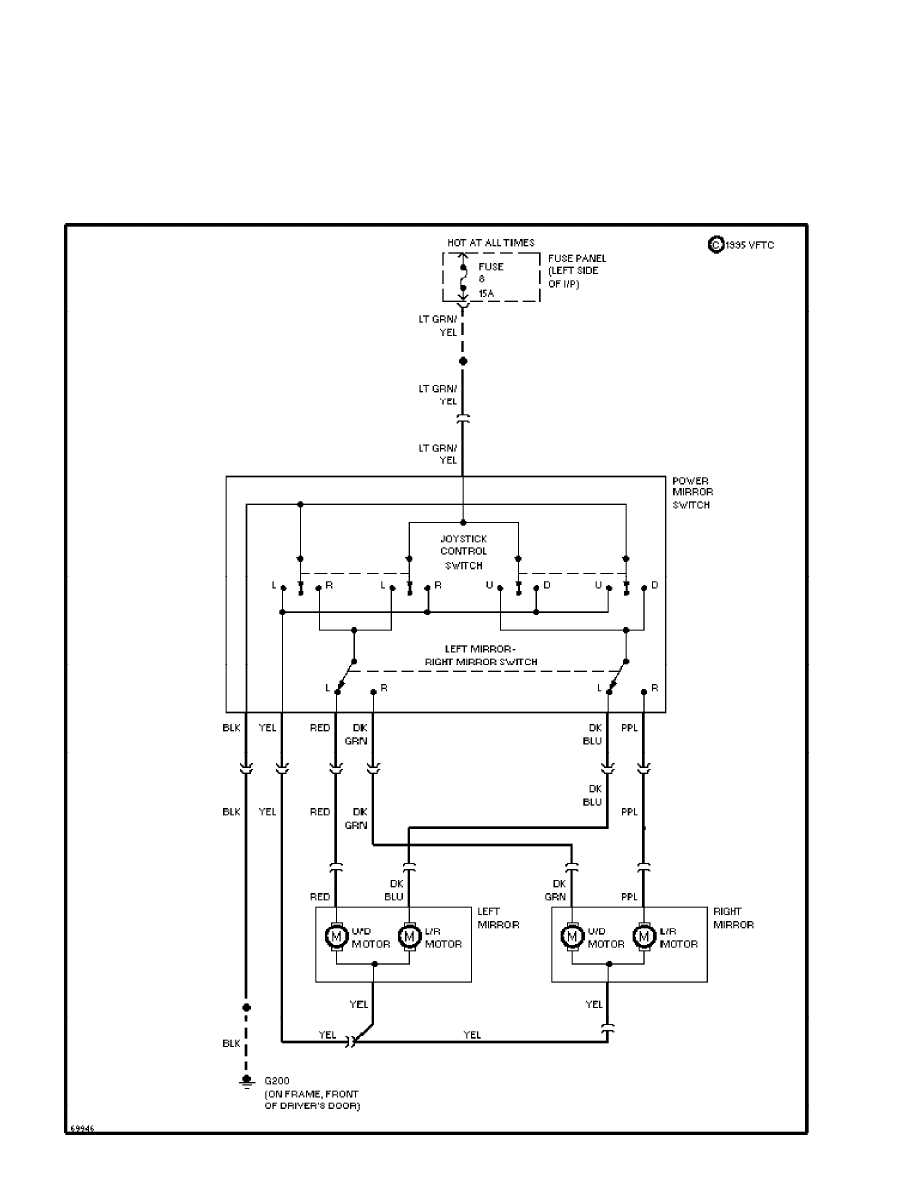

Power Mirror Circuit (p. 5)
1986 Ford LTD
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 07:23PM
SYSTEM WIRING DIAGRAMS

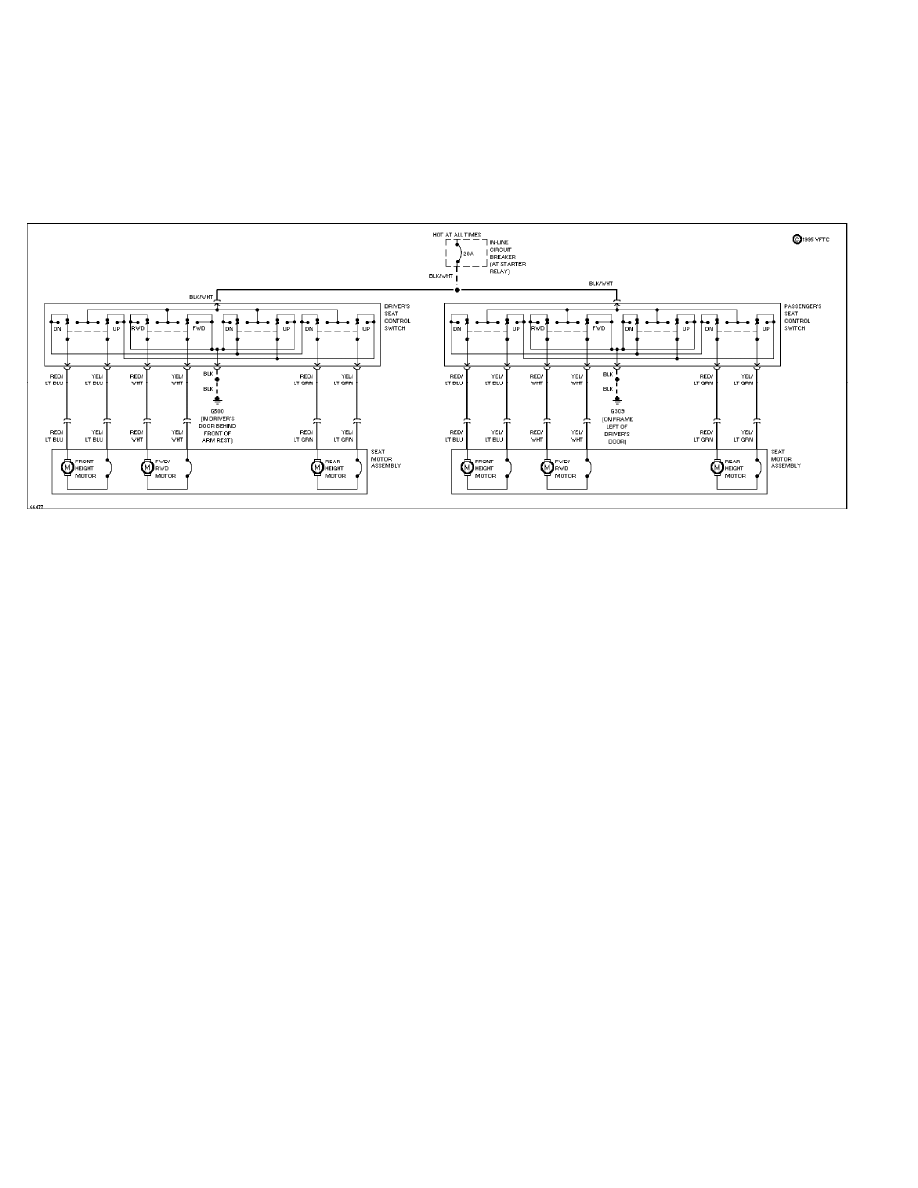

Power Seat Circuits (p. 6)
1986 Ford LTD
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 07:23PM
SYSTEM WIRING DIAGRAMS

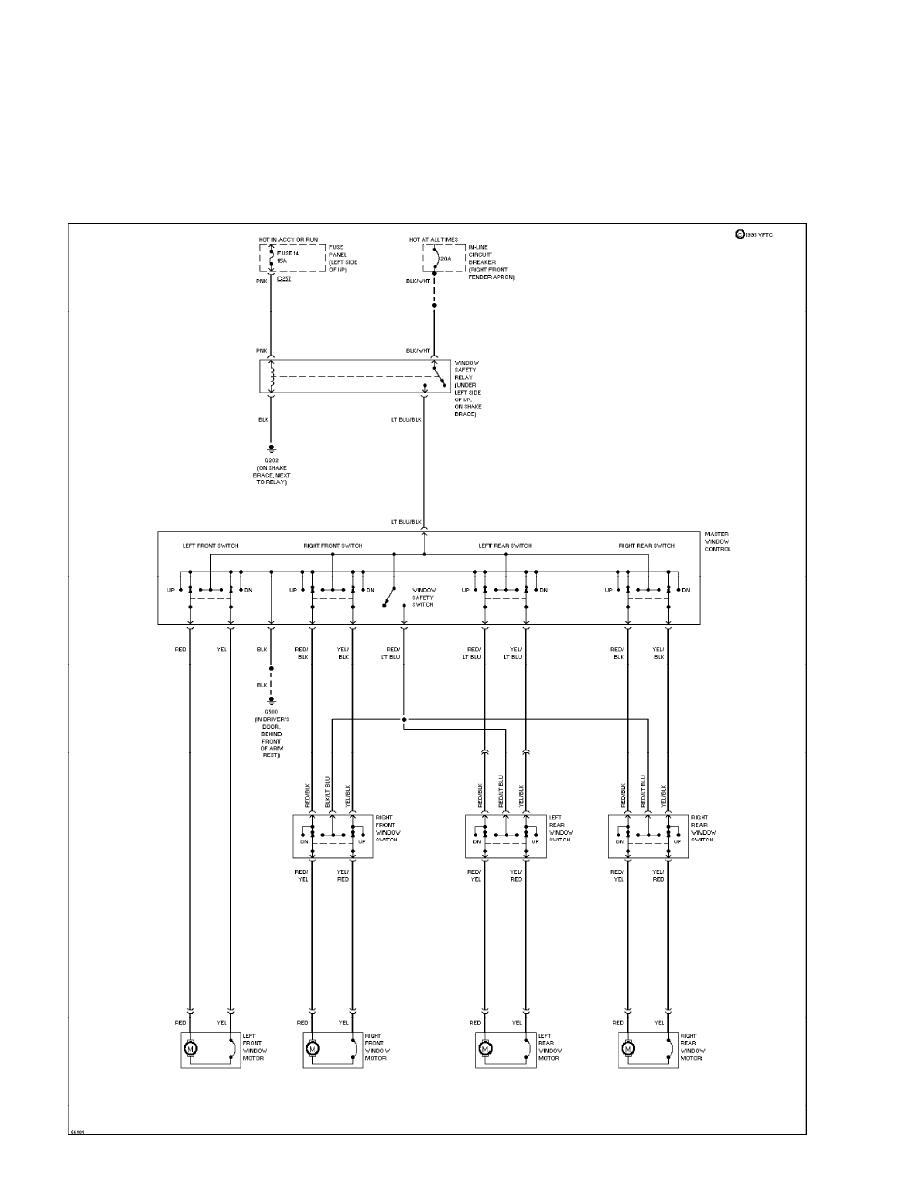

Power Window Circuit (p. 7)
1986 Ford LTD
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 07:23PM
SYSTEM WIRING DIAGRAMS

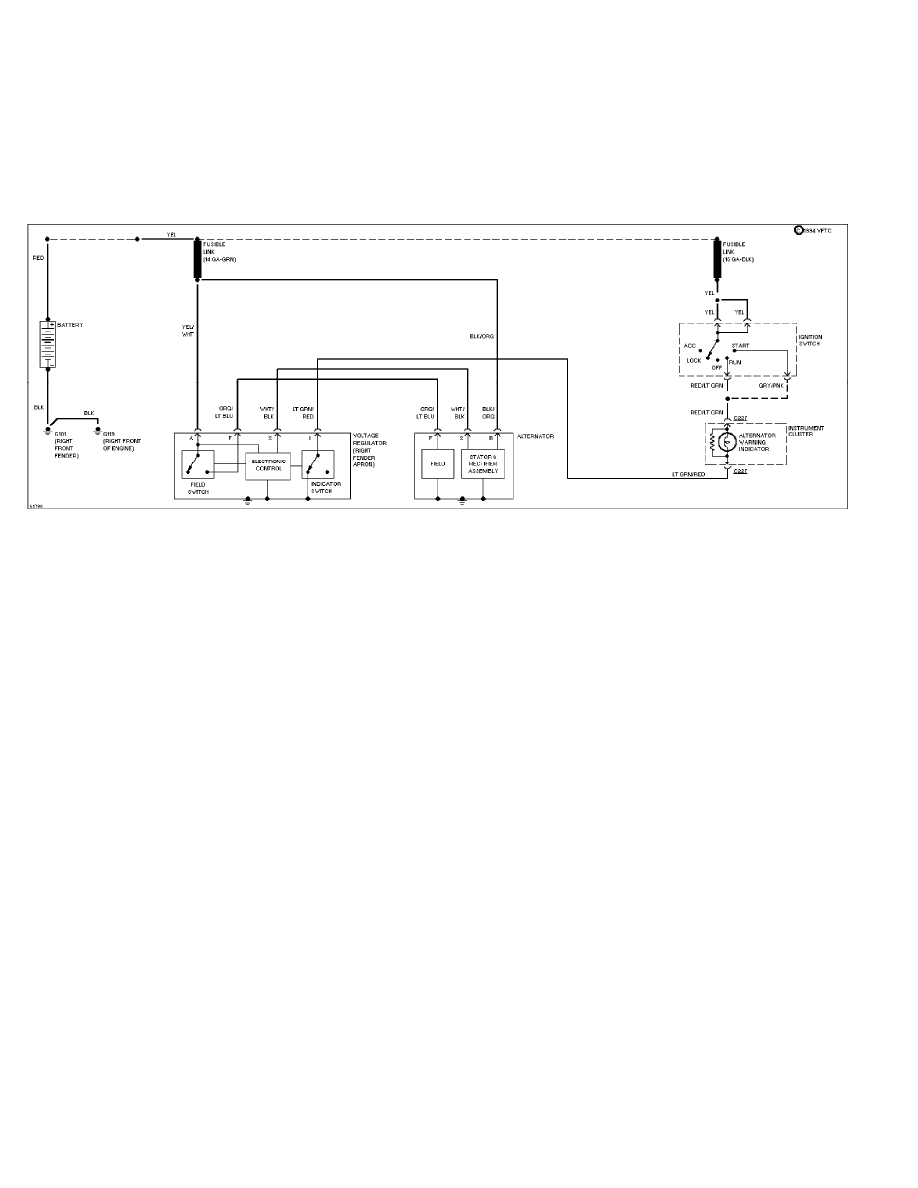

Charging Circuit (p. 8)
1986 Ford LTD
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 07:23PM
SYSTEM WIRING DIAGRAMS

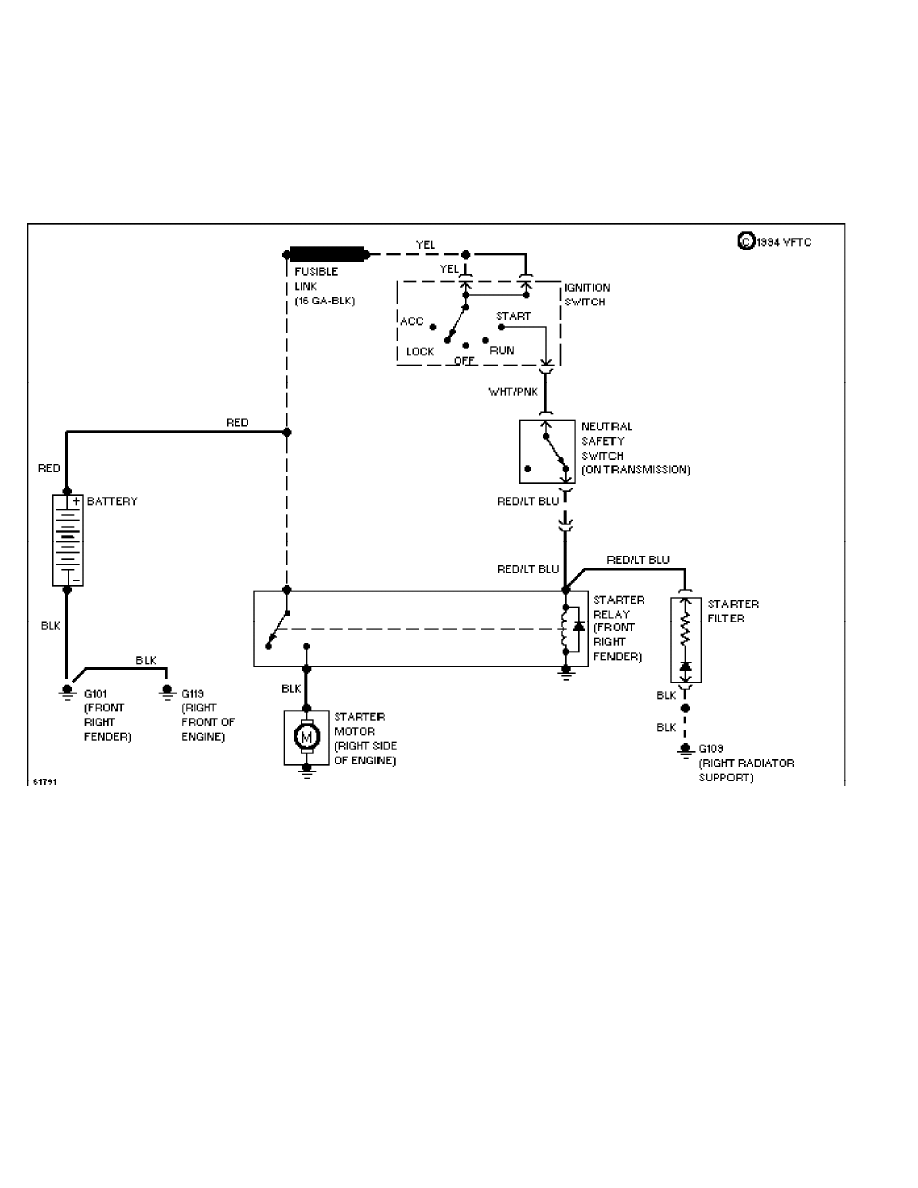

Starting Circuit (p. 9)
1986 Ford LTD
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 07:23PM
SYSTEM WIRING DIAGRAMS

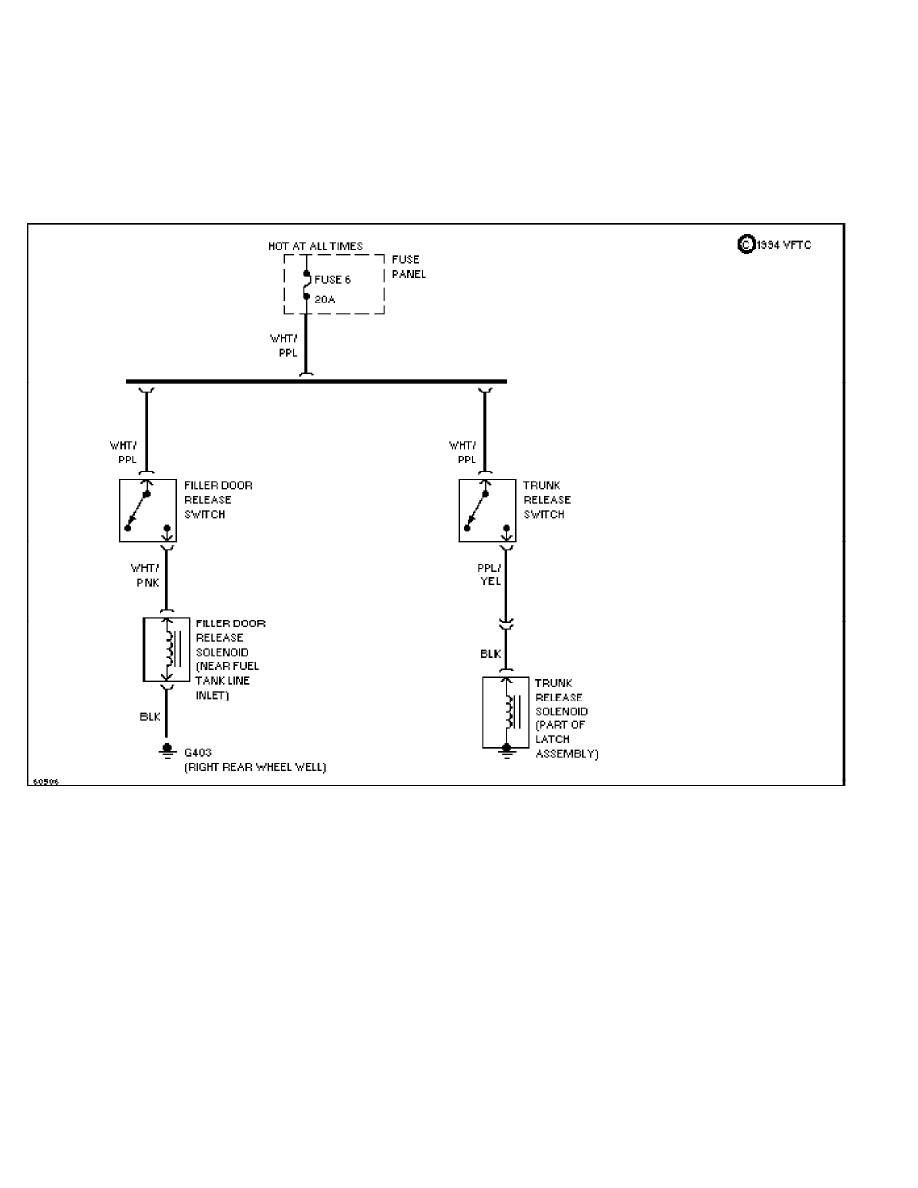

Trunk & Fuel Door Release Circuit (p. 10)
1986 Ford LTD
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 07:23PM
SYSTEM WIRING DIAGRAMS

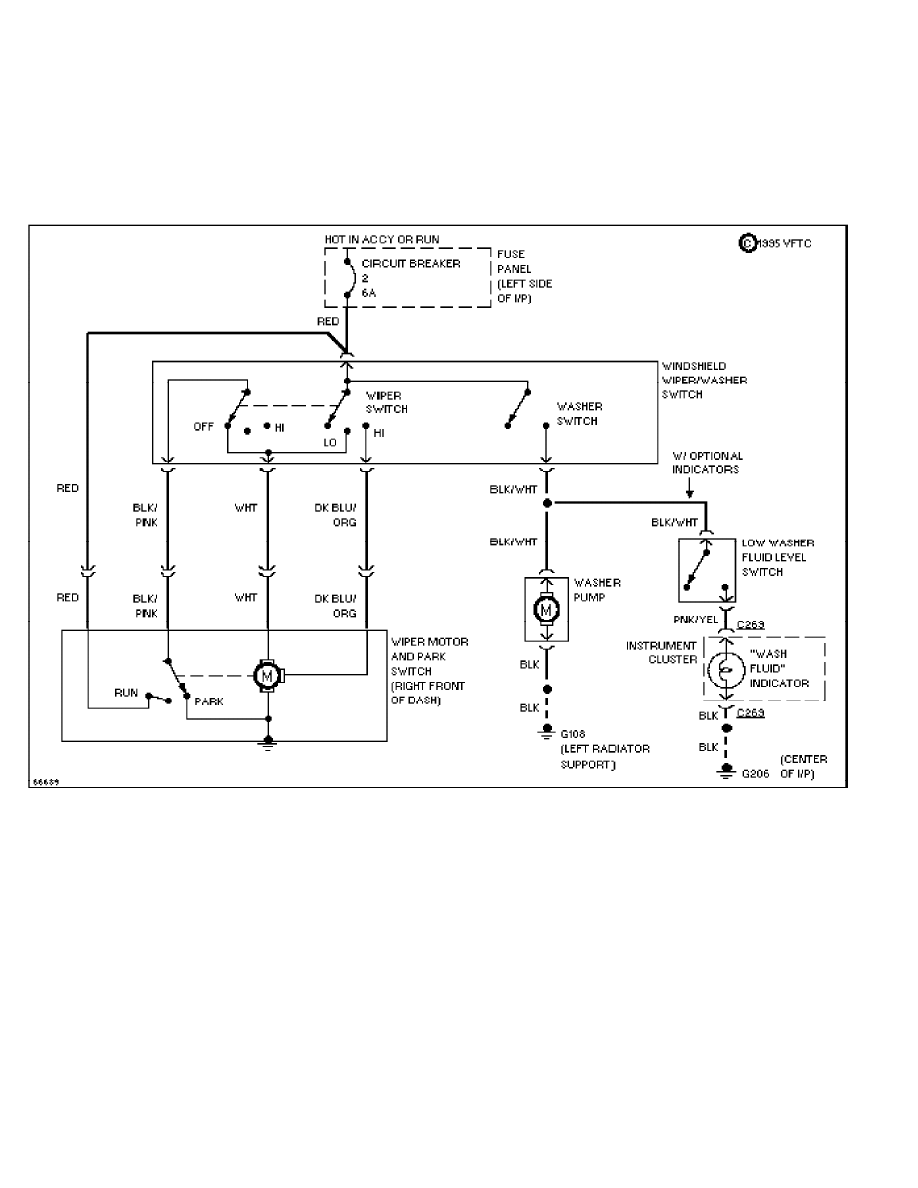

2-Speed Wiper/Washer Circuit (p. 11)
1986 Ford LTD
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 07:23PM
SYSTEM WIRING DIAGRAMS

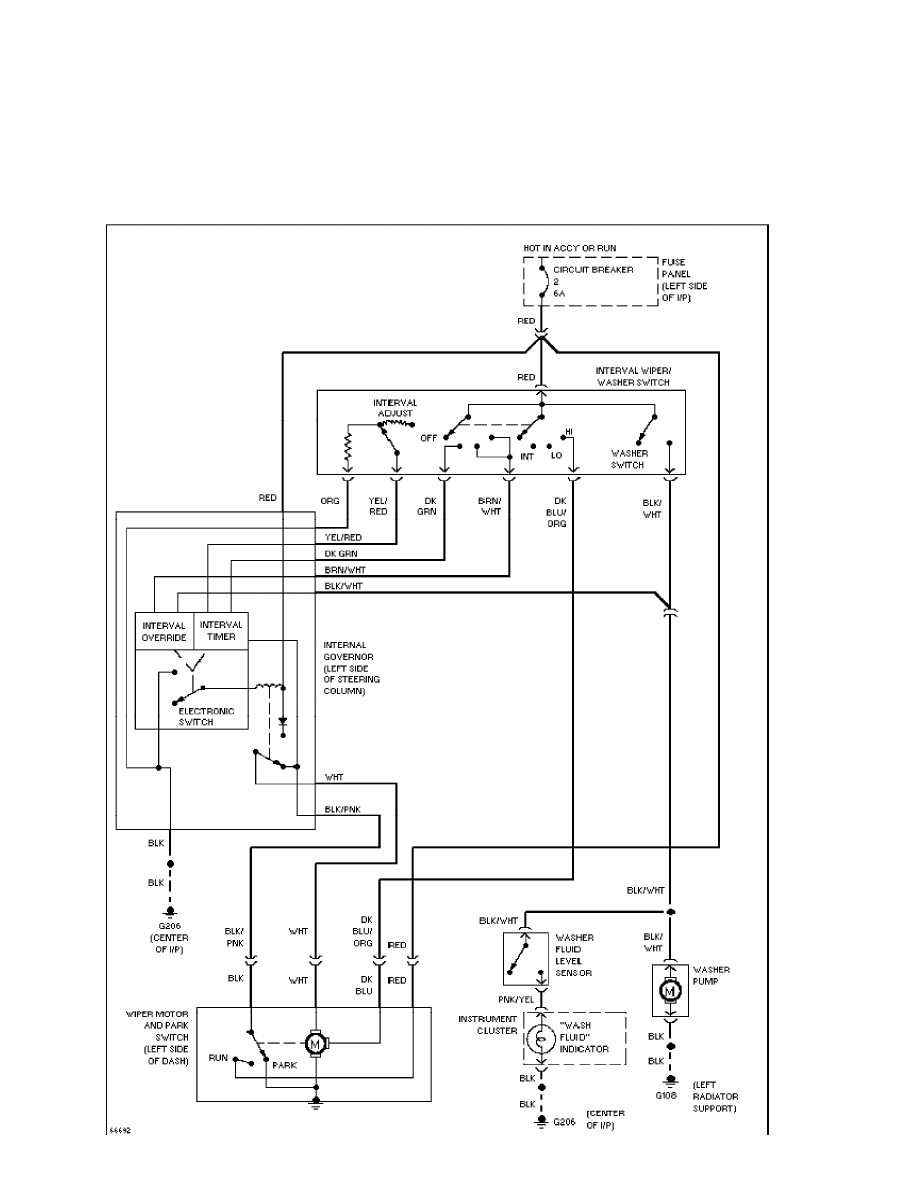

Interval Wiper/Washer Circuit (p. 12)
1986 Ford LTD
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 07:23PM
WIRING DIAGRAMS

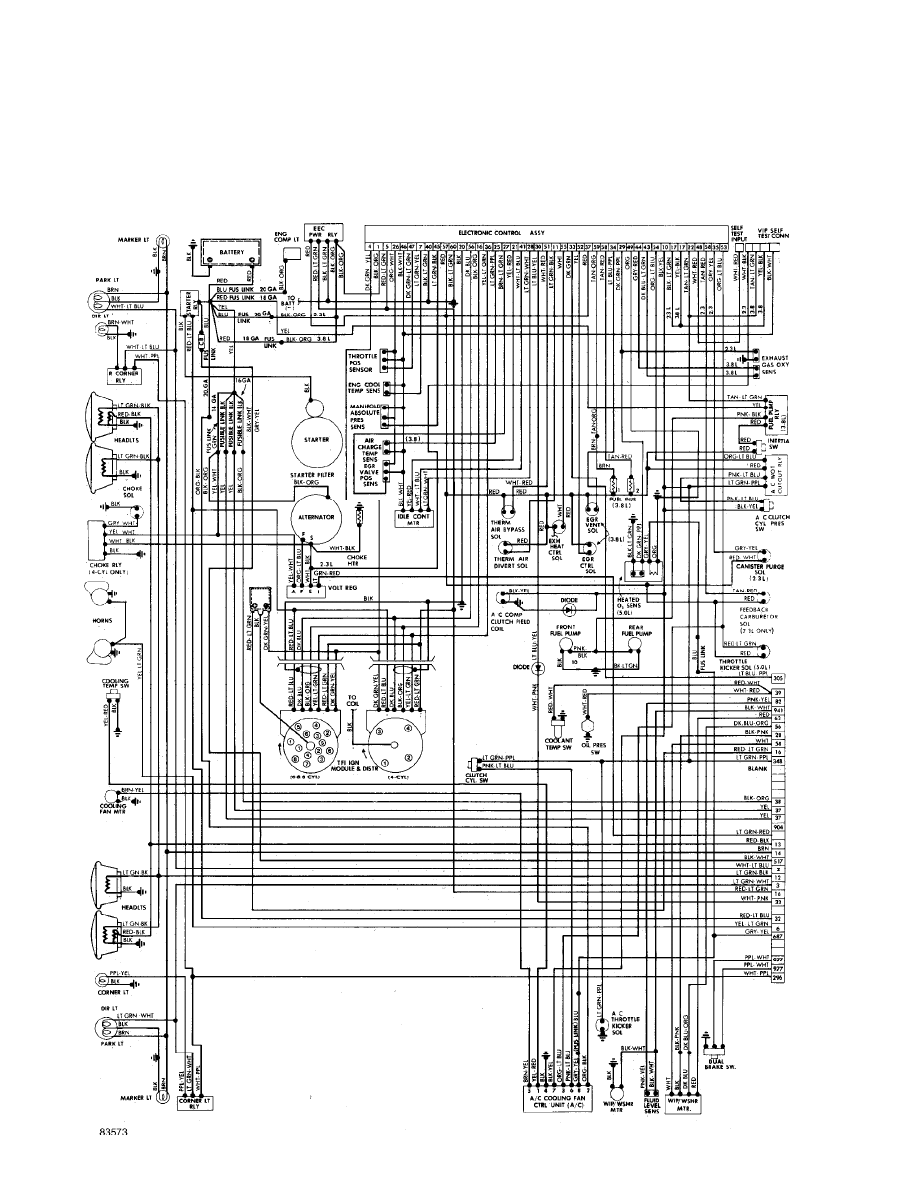

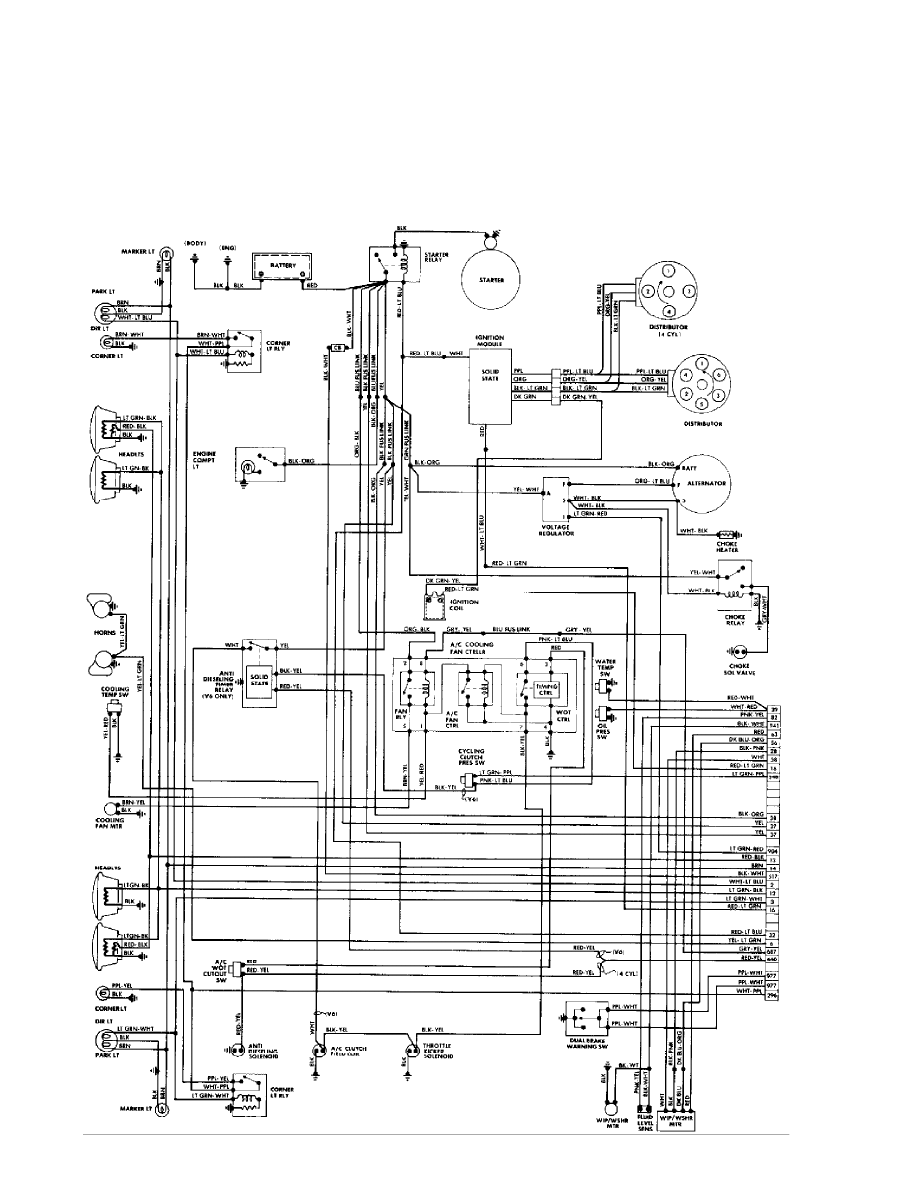

Fig. 1: Engine Compartment
1986 Ford LTD
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 07:23PM
WIRING DIAGRAMS

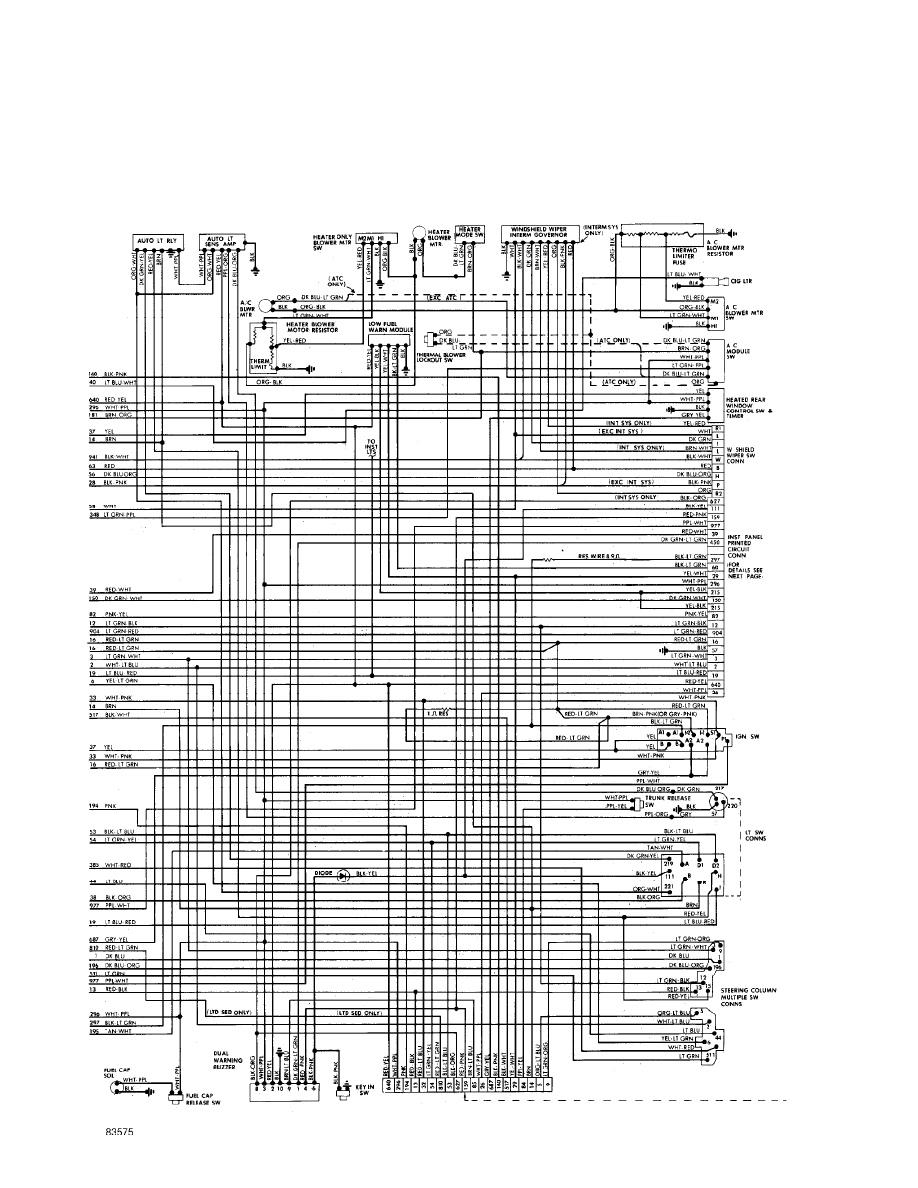

Fig. 2: Fuse Block & Underdash (p. 2)
1986 Ford LTD
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 07:23PM
WIRING DIAGRAMS

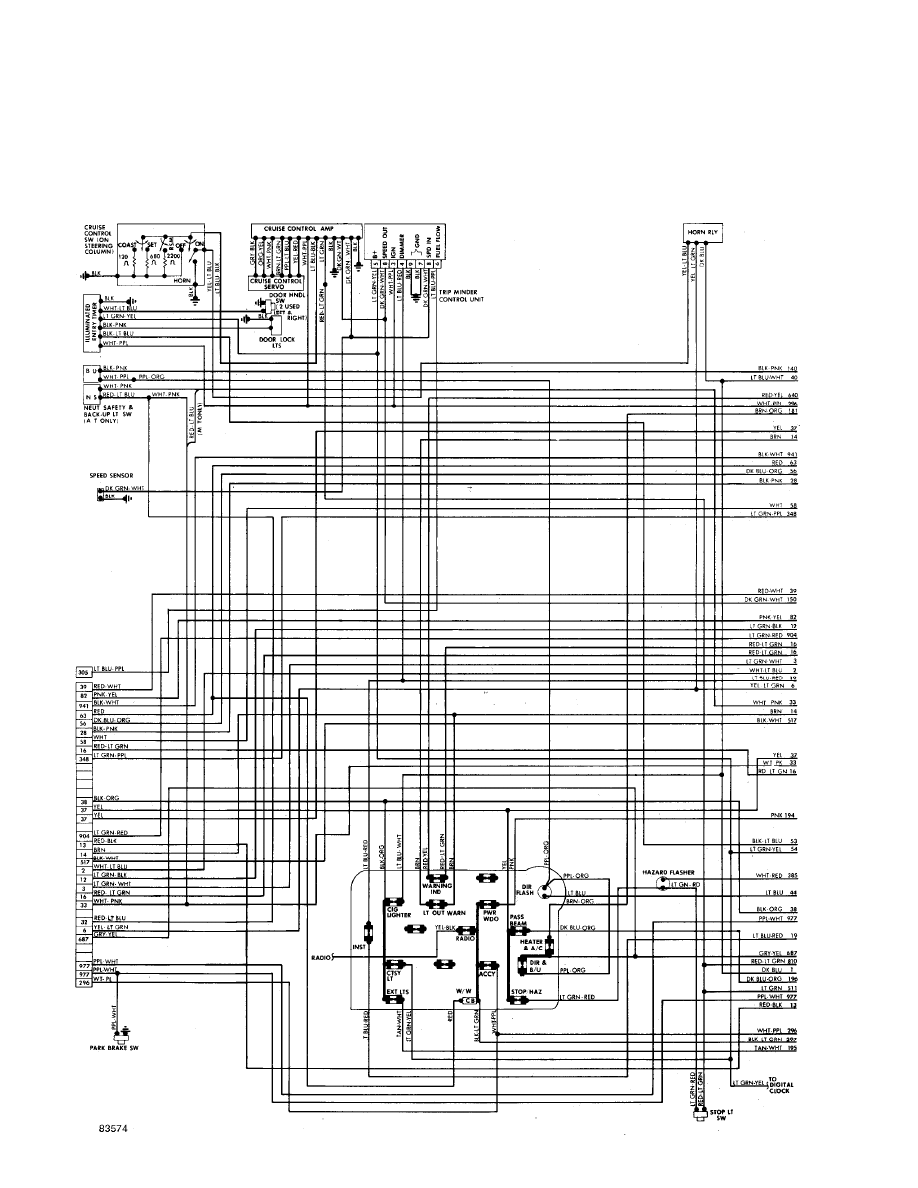

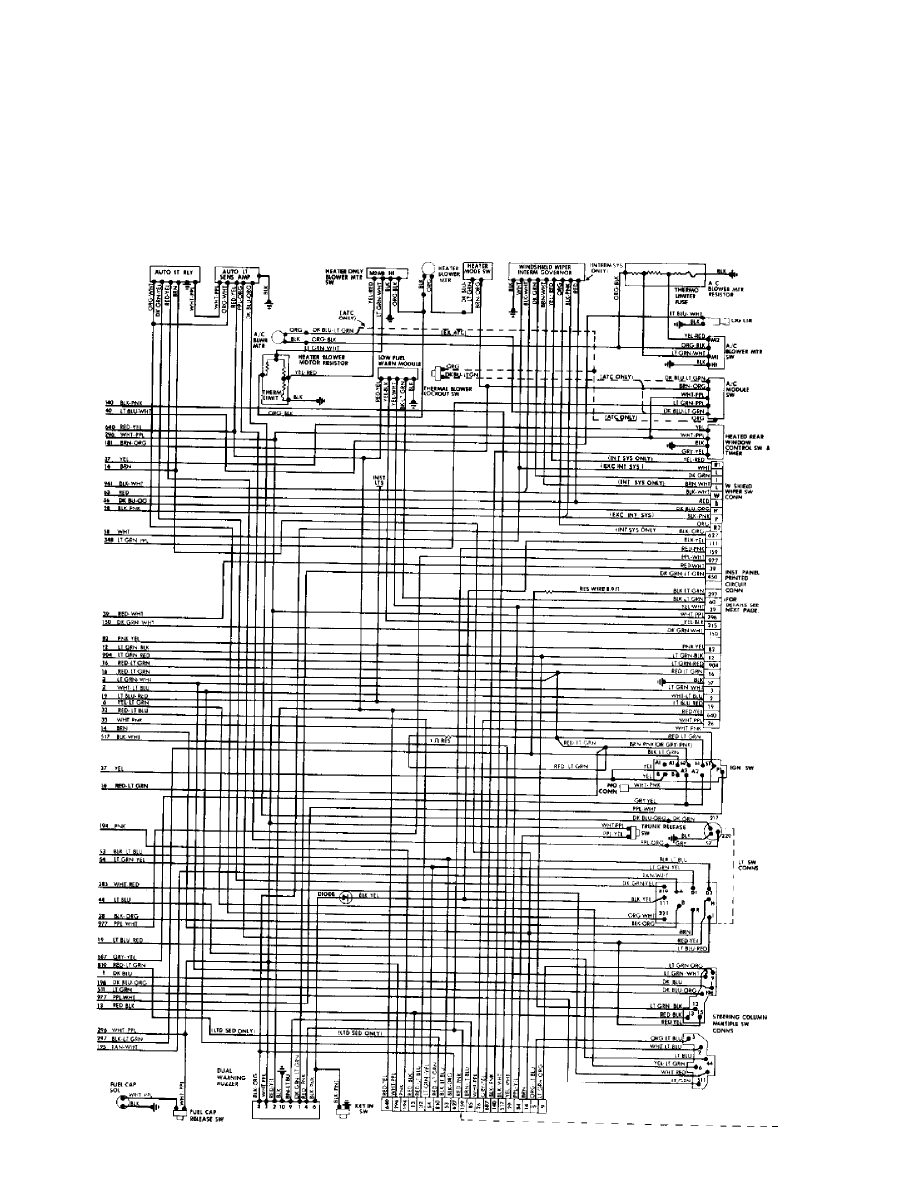

Fig. 3: Underdash (Cont.) & Instrument Panel (p. 3)
1986 Ford LTD
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 07:23PM
WIRING DIAGRAMS

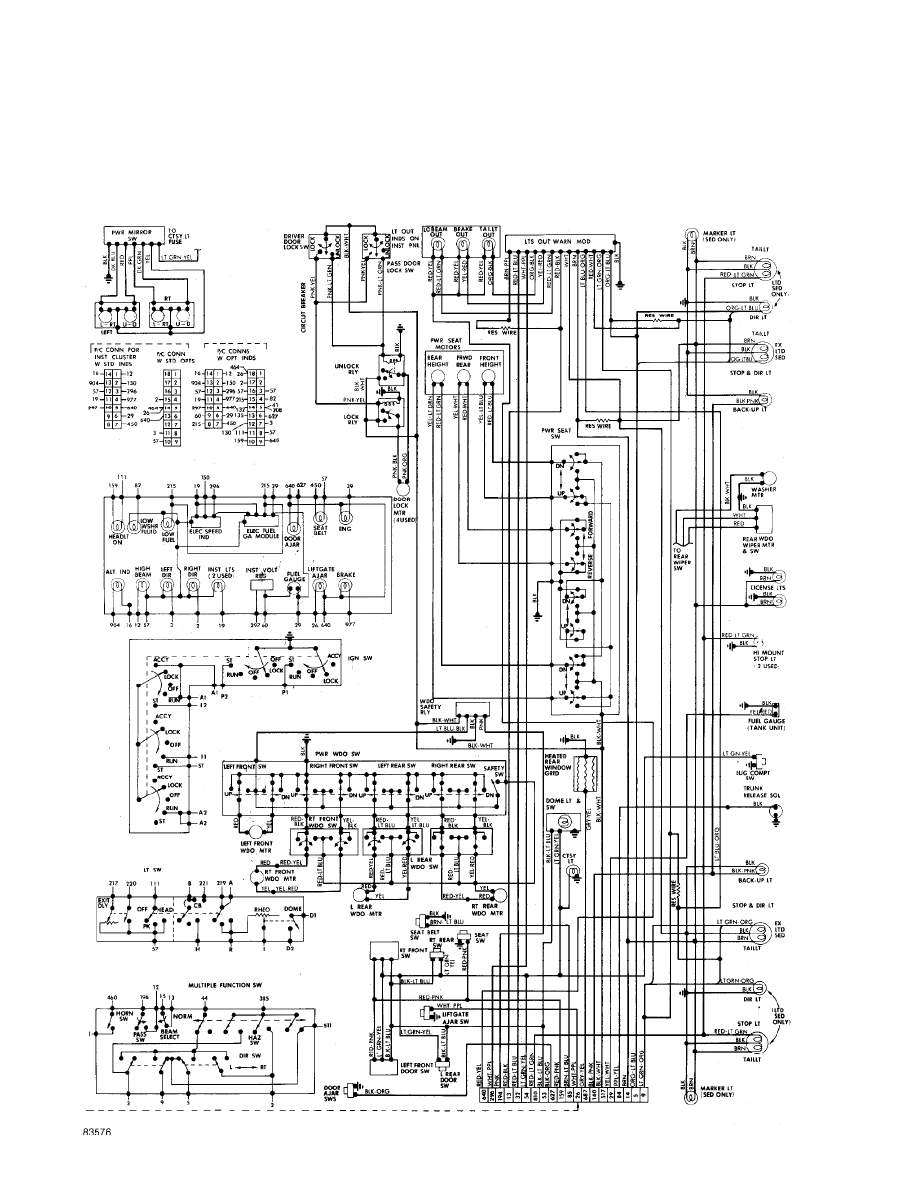

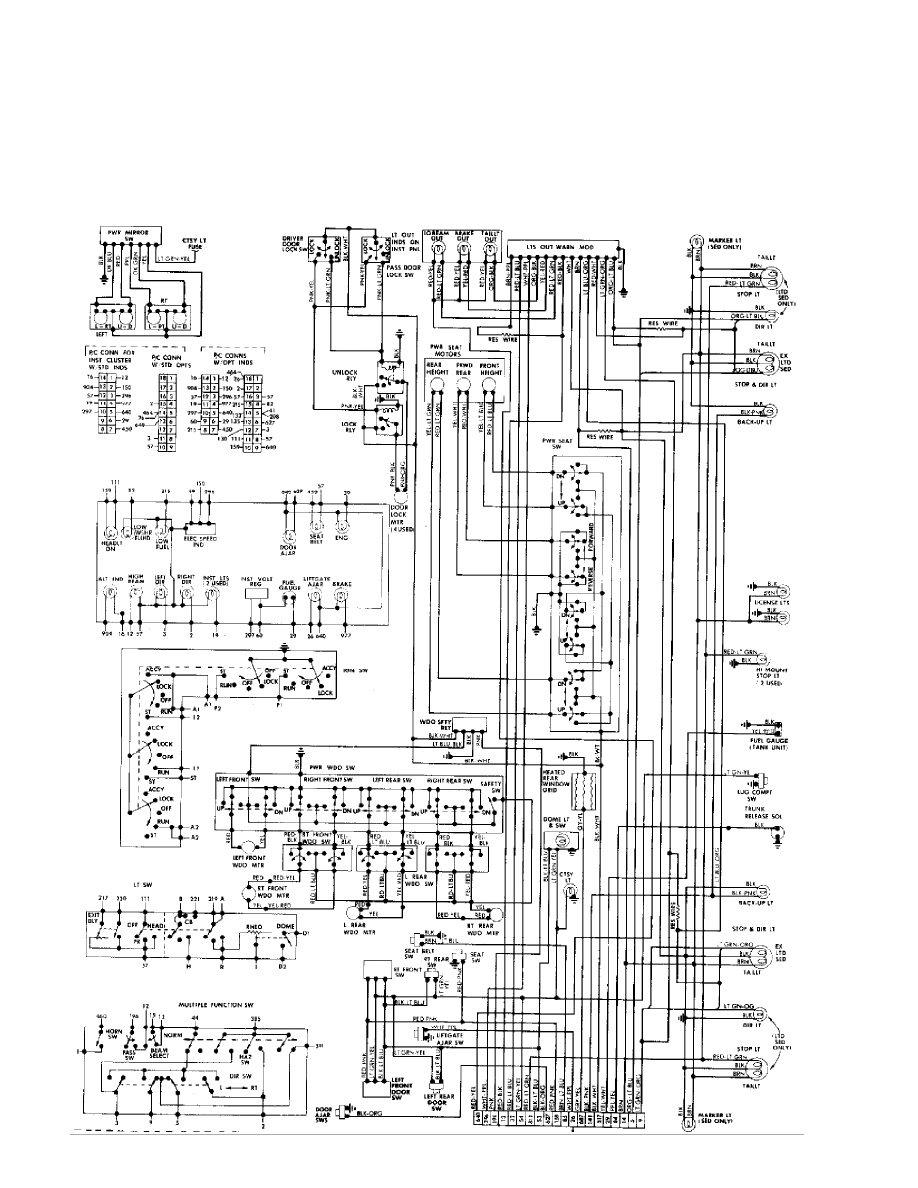

Fig. 4: Rear Compartment & Accessories (p. 4)
1986 Ford LTD
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 07:23PM
WIRING DIAGRAMS
Fig. 5: Engine Compartment & Headlights (p. 5)
1986 Ford LTD
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 07:23PM
WIRING DIAGRAMS
Fig. 6: Fuse Block & Underdash (p. 6)
1986 Ford LTD
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 07:23PM
WIRING DIAGRAMS

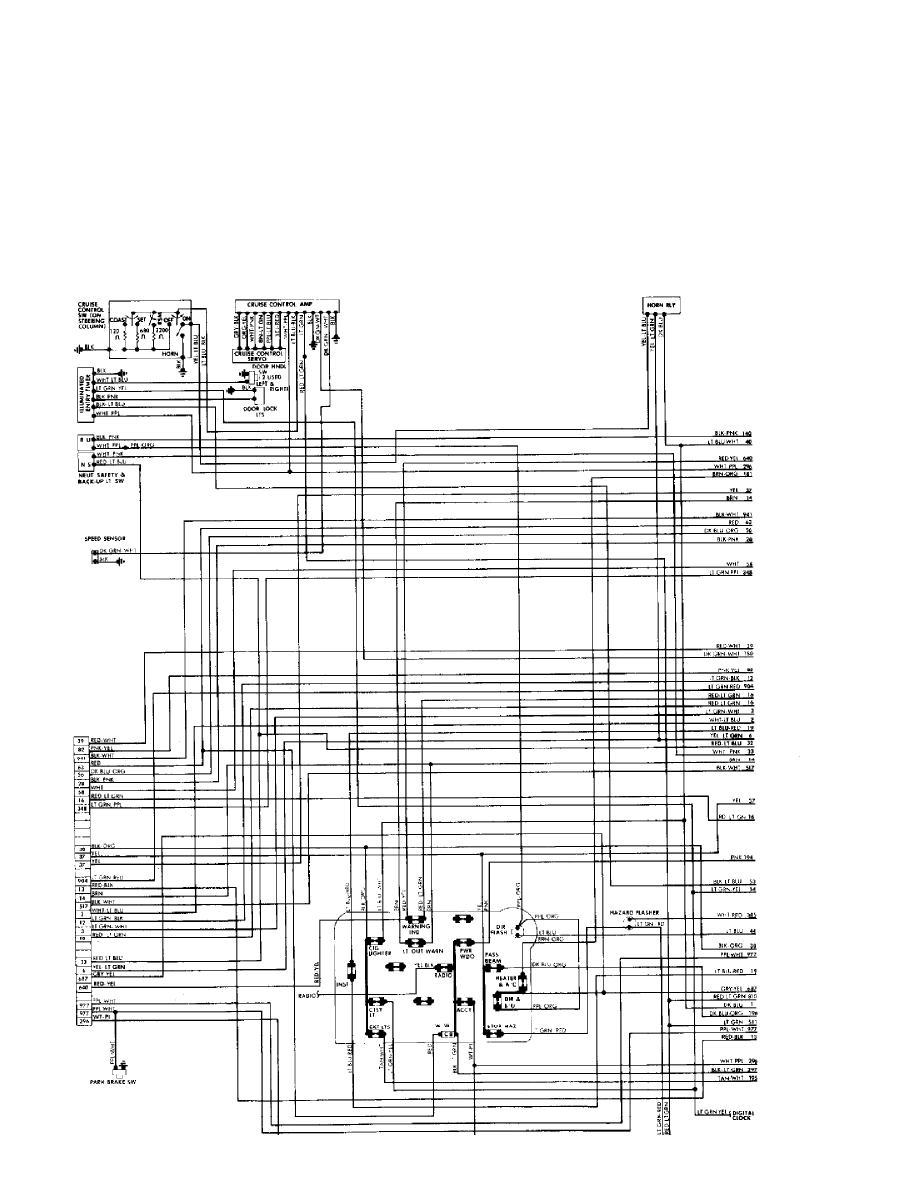

Fig. 7: Instrument Panel & Underdash (Cont.) (p. 7)
1986 Ford LTD
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 07:23PM
WIRING DIAGRAMS
Fig. 8: Rear Compartment, Accessories & Taillights (p. 8)
1986 Ford LTD
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 07:23PM
