WIRING DIAGRAMS

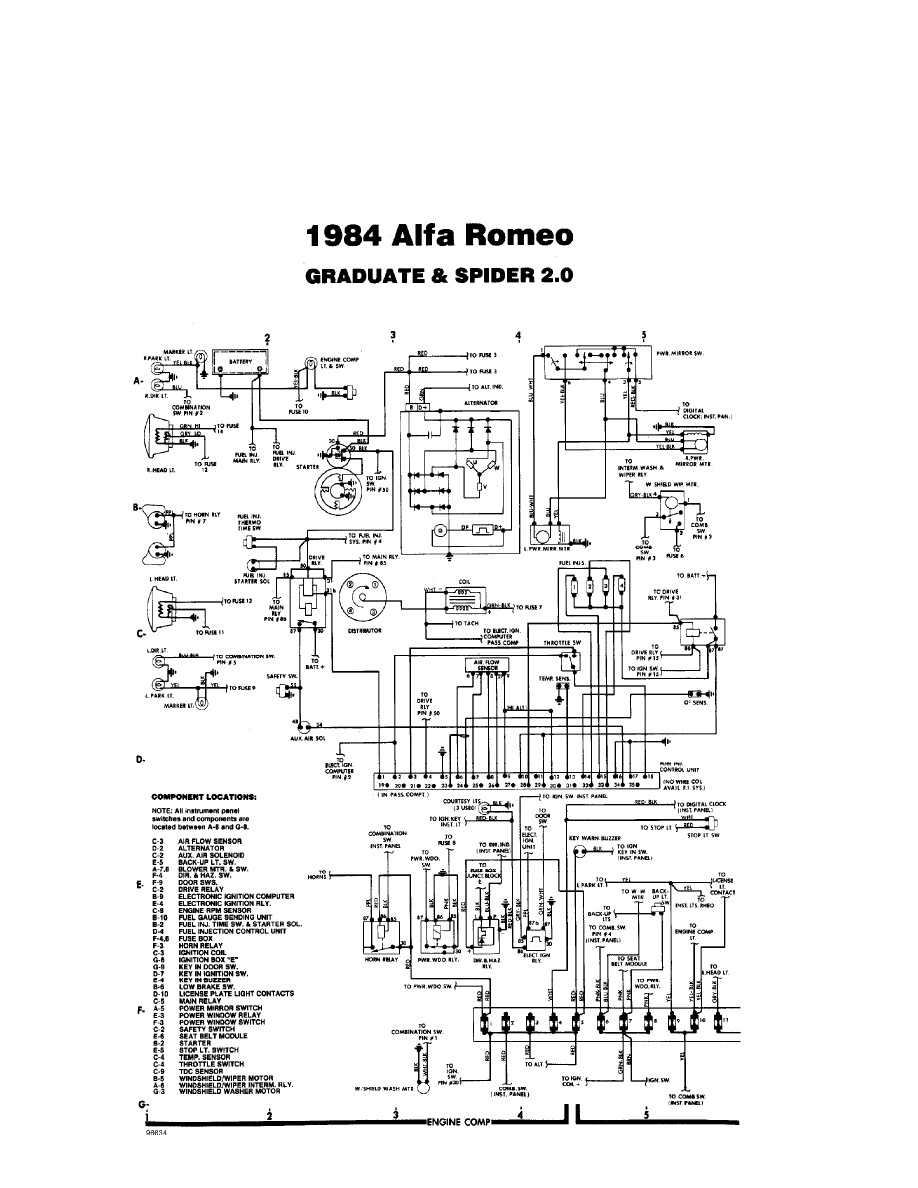

Fig. 1: Engine Compartment
1984 Alfa Romeo Spider
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, April 02, 2006 11:43AM
WIRING DIAGRAMS
Fig. 1: Engine Compartment
1984 Alfa Romeo Spider
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, April 02, 2006 11:43AM
WIRING DIAGRAMS
Fig. 2: Engine Compartment (Cont.) Instrument Panel, Passenger Compartment & Rear Lights (p. 2)
1984 Alfa Romeo Spider
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, April 02, 2006 11:43AM
