Audi A6 Sedan 1998-2004, Audi A6 Avant 1999-2004, Audi allroad quattro 2001-2004, Audi S6 Avant 2002-2004, Audi RS6 2003-2004 - Body Exterior

60-14

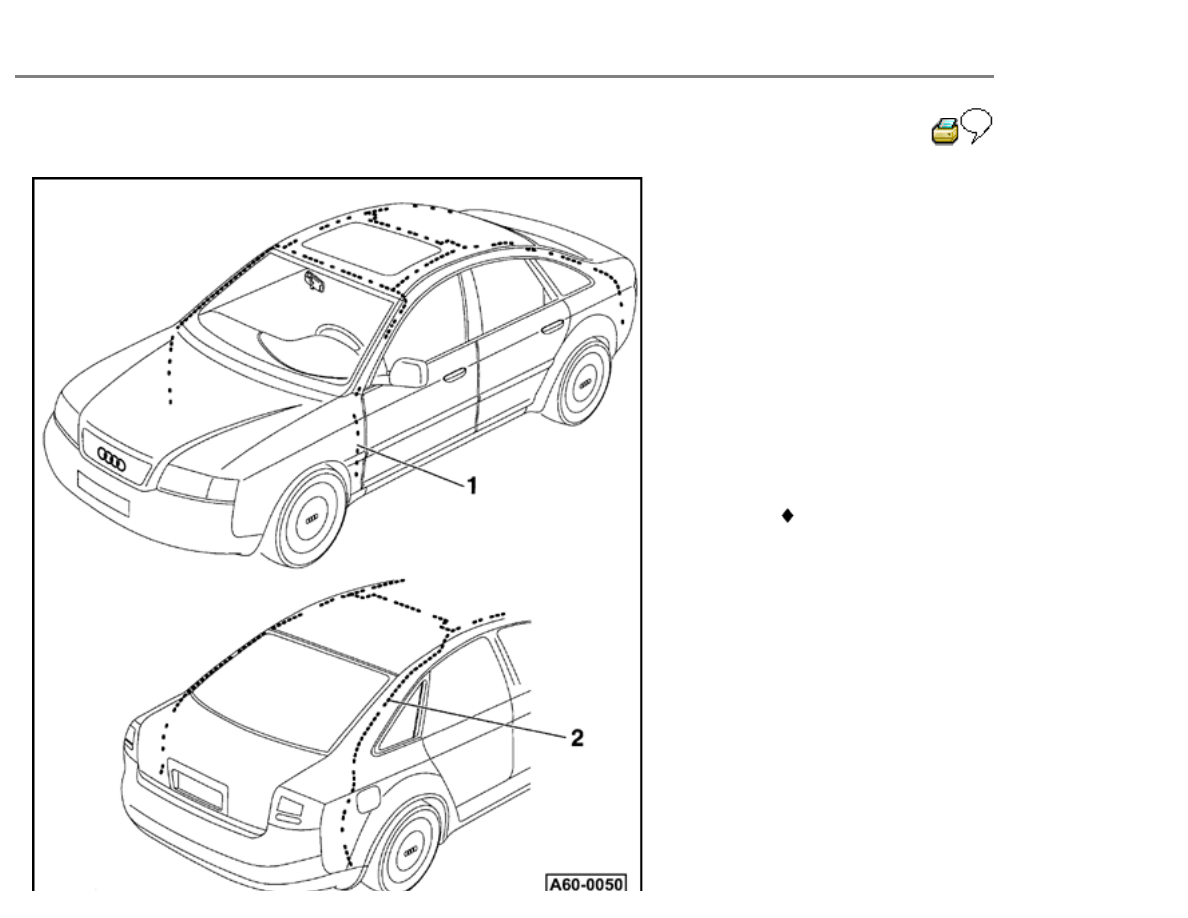

Sunroof water drain
hoses, cleaning

Note:

For cleaning, a locally
manufactured tool made from
a speedometer inner cable,
approx. 2300 mm (90.5 in.)
long is recommended.

1 - Front water drain

hoses

Routed in A-pillars
and exits between
door and A-pillar.
Can be cleaned
from sunroof cut-out

2 - Rear water drain

hoses

http://127.0.0.1:8080/audi/servlet/ESIS?action=Goto&type=repair&id=AUDI.C5.BD01.60.1 (20 of 21)5/22/2006 5:39:39 PM

Audi A6 Sedan 1998-2004, Audi A6 Avant 1999-2004, Audi allroad quattro 2001-2004, Audi S6 Avant 2002-2004, Audi RS6 2003-2004 - Body Exterior

Routed in C-pillars
and exits behind
bumper cover at
side. Can be
cleaned from lower
end of hose. To do
so, rear bumper
cover must be
removed

Page

63-42

 .
