WIRING DIAGRAMS

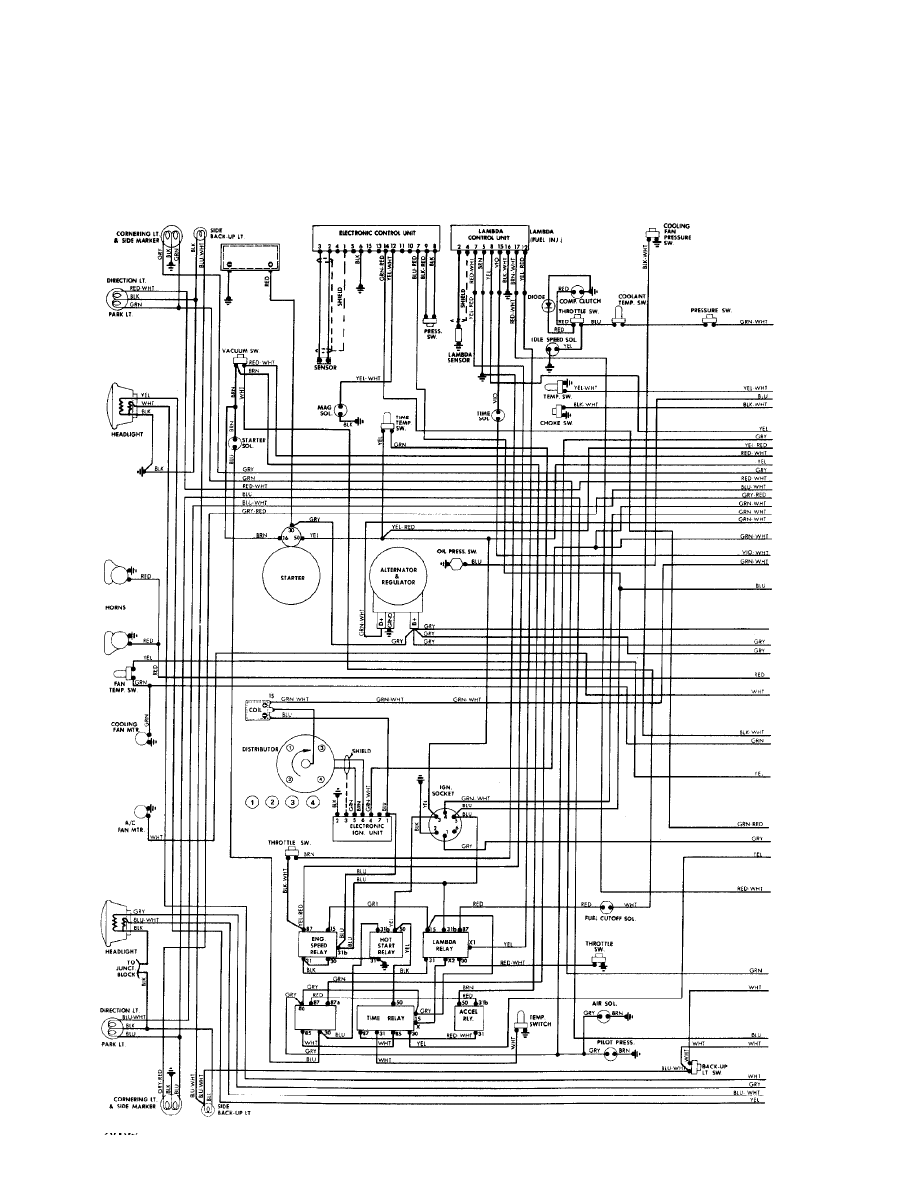

Fig. 1:  Engine Compartment

1983 Saab 900

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, January 14, 2006  06:36PM

background image

WIRING DIAGRAMS

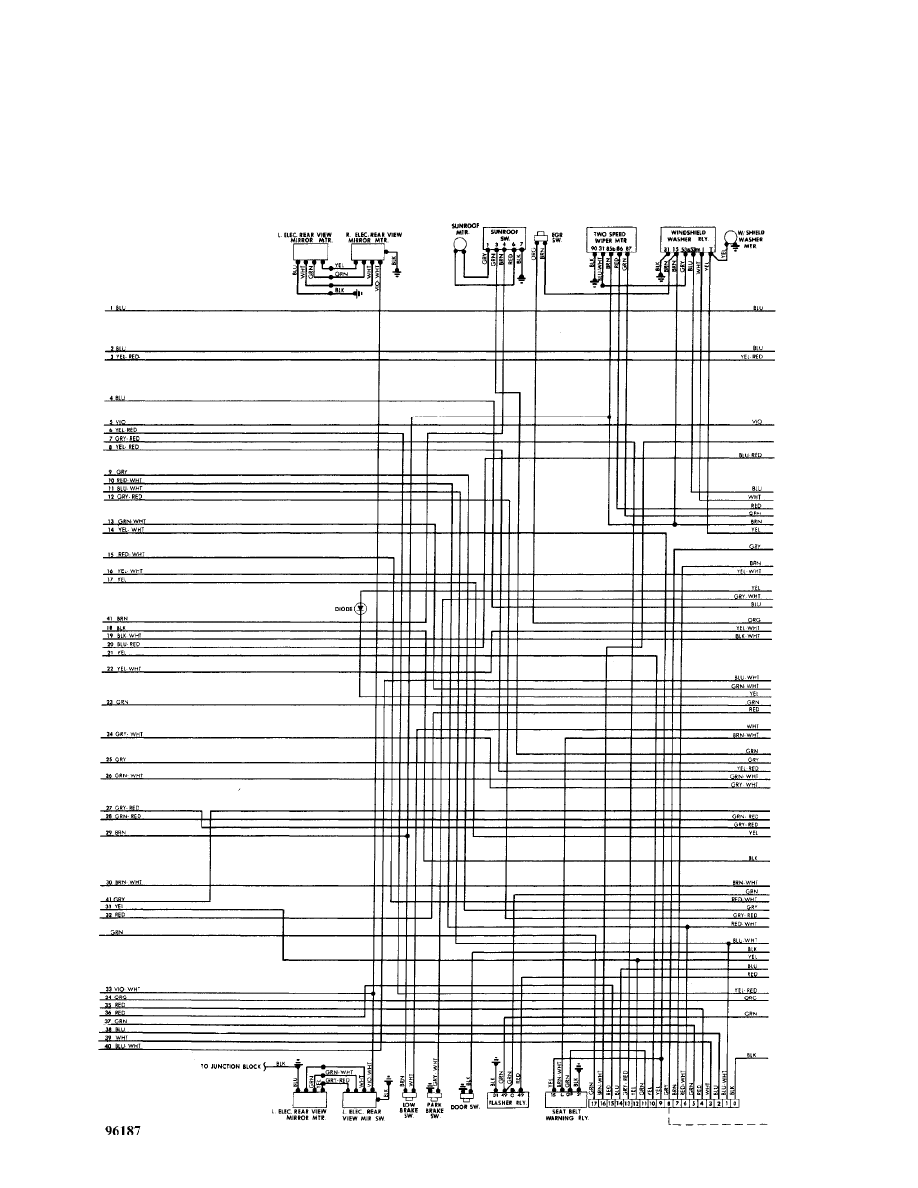

Fig. 2:  Fuse Block & Underdash (p. 2)

1983 Saab 900

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, January 14, 2006  06:36PM

background image

WIRING DIAGRAMS

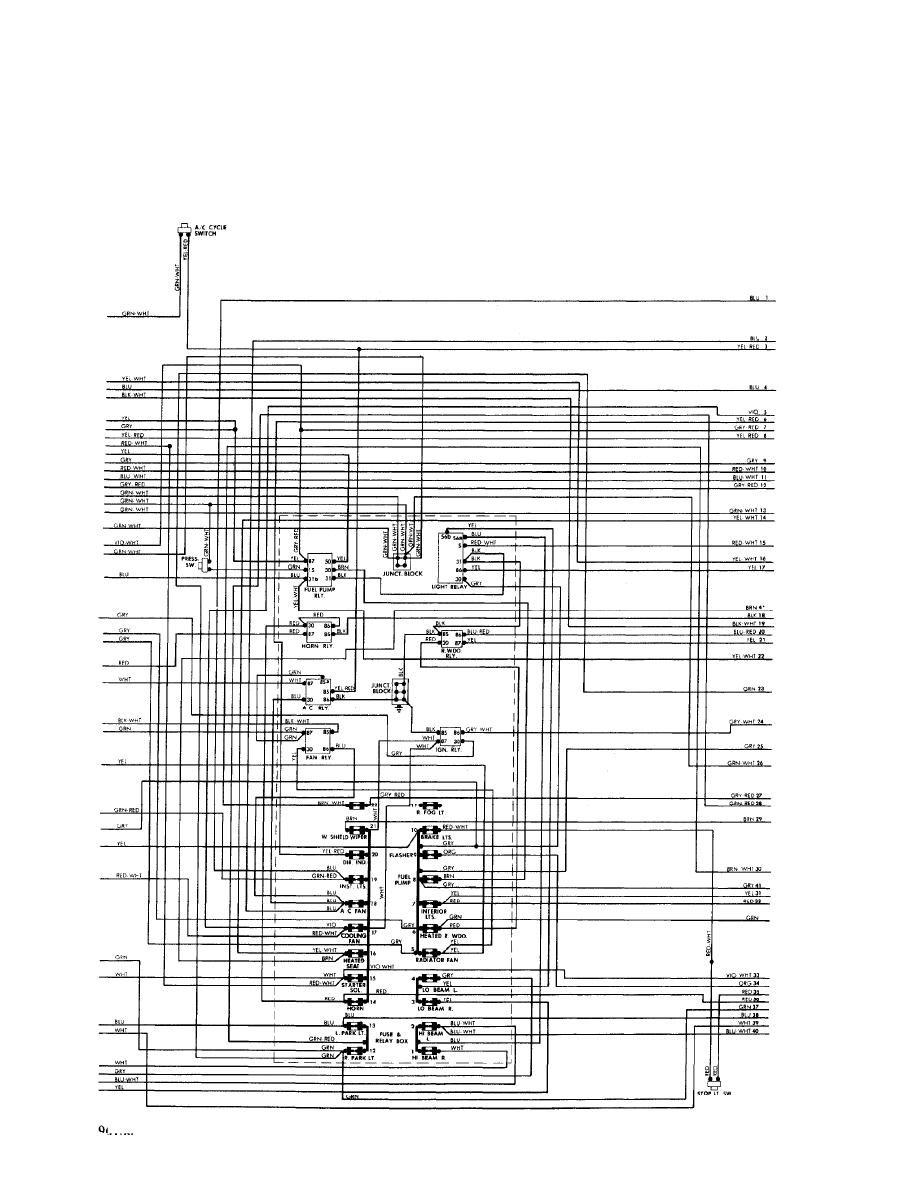

Fig. 3:  Underdash (Cont.) (p. 3)

1983 Saab 900

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, January 14, 2006  06:36PM

background image

WIRING DIAGRAMS

Fig. 4:  Instrument Panel, Rear Compartment & Accessories (p. 4)

1983 Saab 900

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, January 14, 2006  06:36PM
