DRIVE BELT ROUTING

1993 Mitsubishi Montero

         1993 ENGINE COOLING

         Chrysler/Mitsubishi Drive Belt Routing

         Chrysler Corp.:  Ram-50

         Mitsubishi:  Montero & Pickup

         BELT ADJUSTMENT

NOTE:    For belt alignment, see Fig. 1.

BELT ADJUSTMENT TABLE

                                                  Deflection

Application                                    (1) In. (mm)

Montero (2)  ...........................  .20-.24 (5.1-6.1)

Pickup & Ram-50

 2.4L  .................................  .27-.39 (6.8-9.9)

 3.0L (2)  .............................  .32-.39 (8.1-9.9)

(1) - With 22 lbs. (10 kg) pressure applied midway on belt

      run.

(2) - For serpentine belt routing, see Fig. 1.

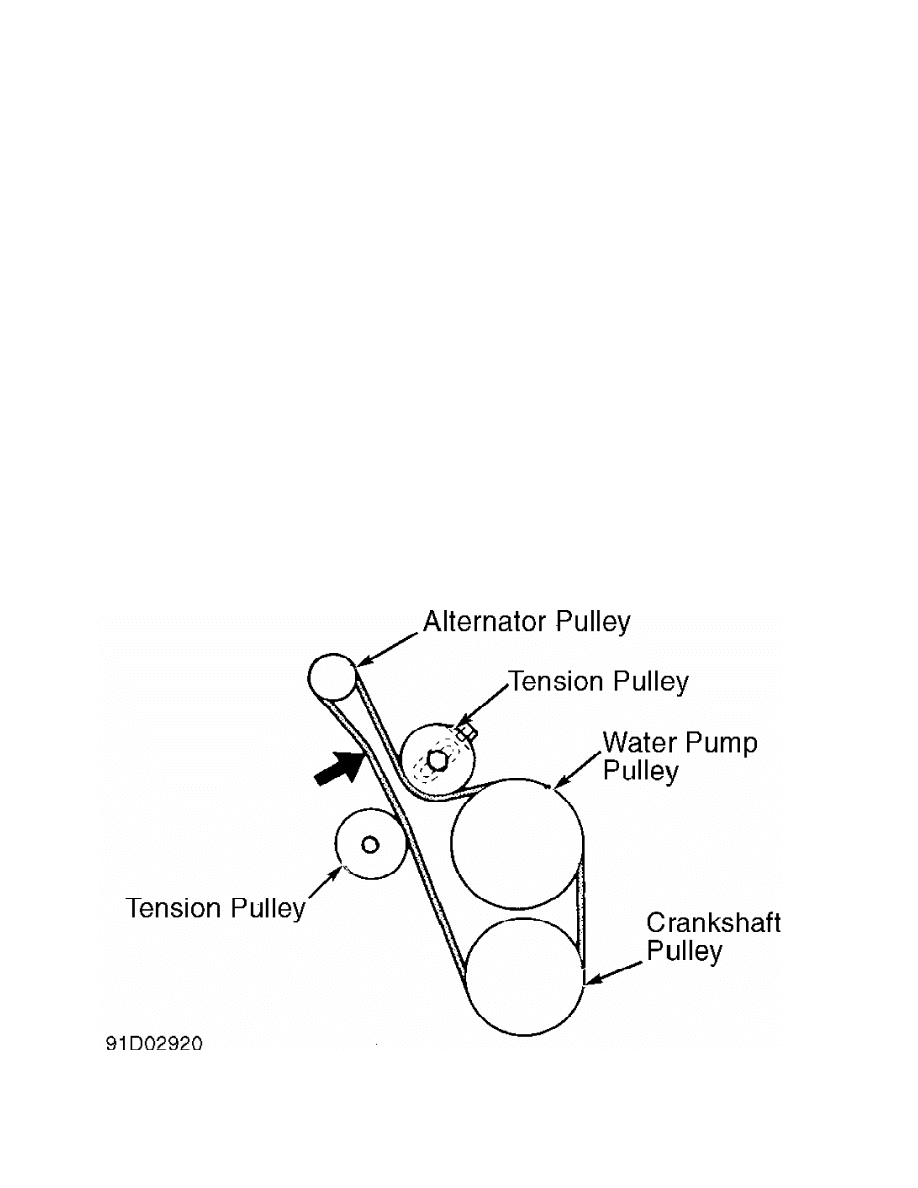

Fig. 1:  Routing Serpentine Belt

Courtesy of Mitsubishi Motor Sales of America.
