E680/E680i

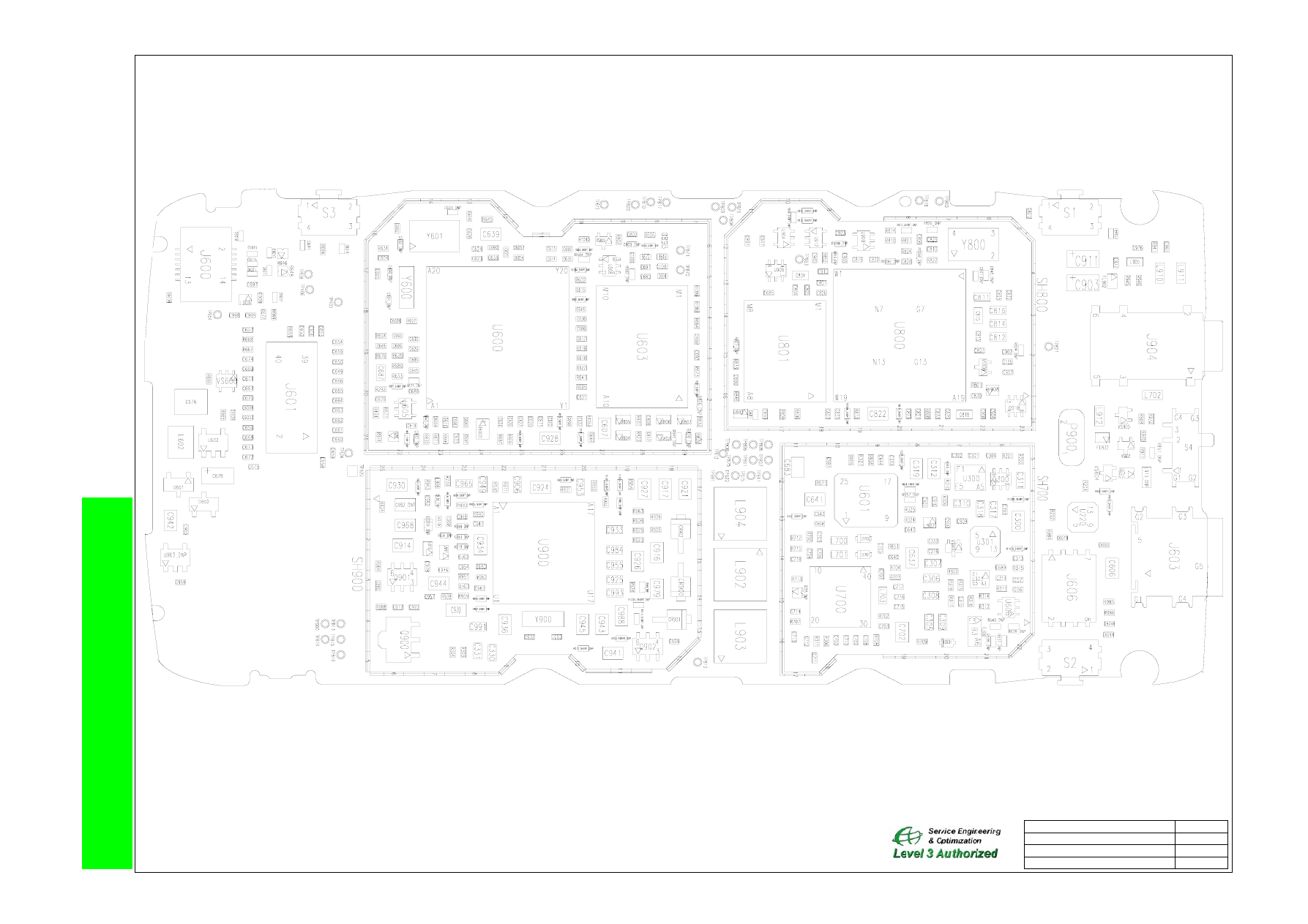

Level 3 Board Layout

Alexander Buehler, Michael Mauderer

2005.03.18

Rev. 1.0

84880559Z01_P7C

Page 1 of 2

E680/ E680i

_ 8488059Z

01_P

7C



Service Engineering & Optimization

background image

E680/E680i

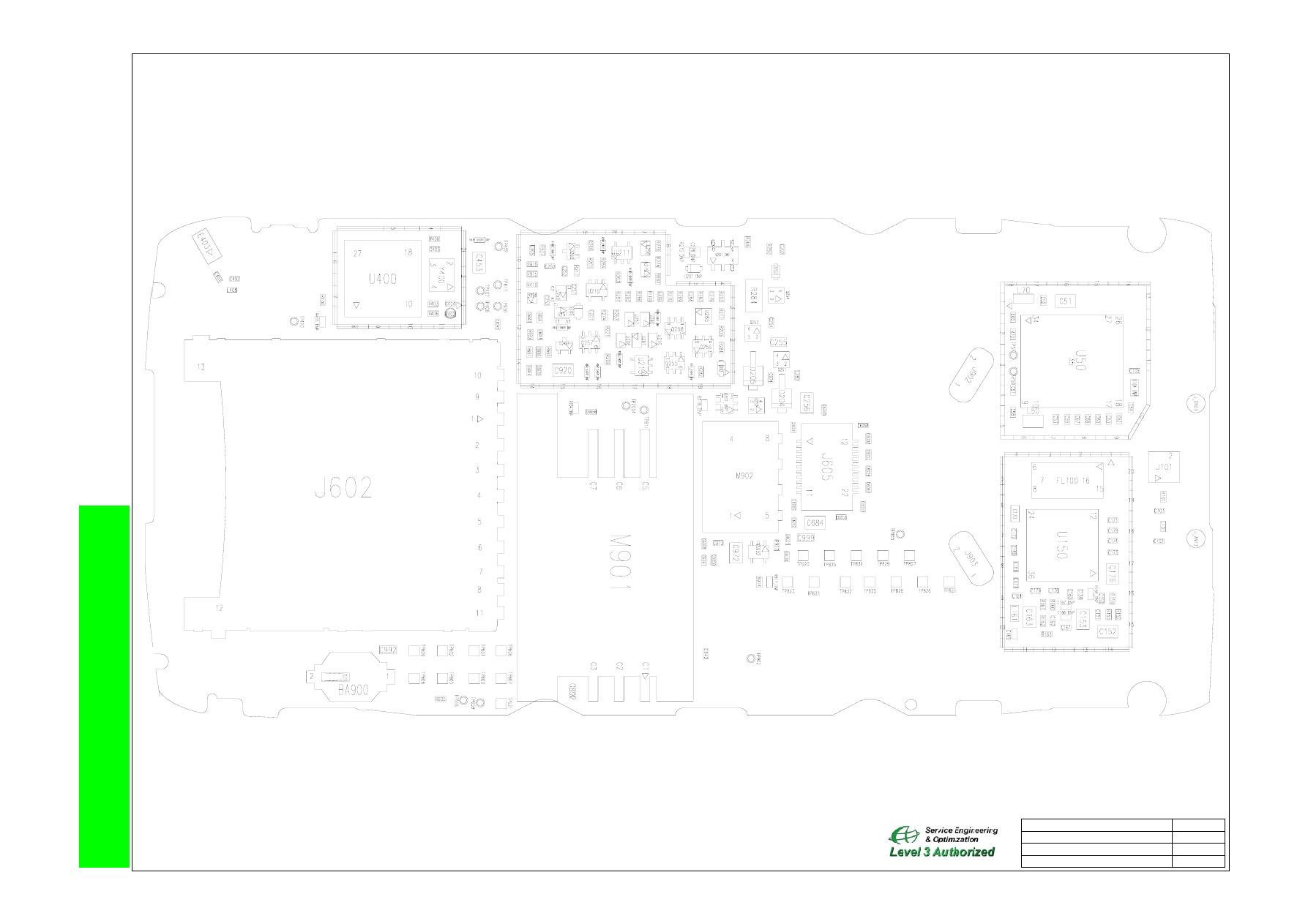

Level 3 Board Layout
