S E R V I C E

Whirlpool Europe
Customer Services

Model

PDP 619/P PL

Version

8580 420 49601

Page

Technical data

2

Spare part list

3 - 4

Exploded view

5 - 6

Circuit diagram

7 - 9

Service Manual

Washing machine
Frontloader
PDP 619/P PL

PDP 619/P PL

This documentation is only intended for qualified technicians who are aware of the respec-
tive safety regulations.
Date: 27.06.2006

Subject to modification

Document-No.: 4812 722 26302

S E R V I C E

27.06.2006 / Page 2

PDP 619/P PL

Whirlpool Europe

Doc. No: 4812 722 26302

8580 420 49601

Customer Service

Technical data

Dimension

Height

85

cm

Width

59.5

cm

Depth

53

cm

Weight

Gross

~68.5

kg

Net

~67.5

kg

Main connection

Voltage

230

V

±

10%

Frequency

50

Hz

Power Consumption

~2200

W

Fuse rating

10

A

Drum data

Volume

42

l

Washing

46

rpm

Spinning

600

rpm

Capacity of dry laundry

Loading - washing max.

5.0

kg

Heating

Type

Tubular radiator

Rated power draft:

1900

W

Voltage

230

V

Pressostat (without laundry)

Wash level

~13

±

1

l

Rinse level

~12

±

1

l

Motor

Type

Universal

Electronic

Type

DMPU 10/39

Voltage

220/240

V

Frequency

50

Hz

Timer washing

Type

Electronic

The timer chart includes
3 basic programs:

- normal washing
- delicate washing
- wool

Thermostat

A - fixed thermostat
with sensor (NTC)

90

±

3

˚C

B - adjustable thermostat

Delay timer knob

From

0 - 10

h

(1, 2, 3, 4, 6, 8, 10 h)

Push button switch unit

Version with 4buttons:

- Start
- Pre wash
- Extra rinse
- On/Off

S E R V I C E

Whirlpool Europe

PDP 619/P PL

27.06.2006 / Page 3

Customer Service

8580 420 49601

Doc. No: 4812 722 26302

Spare part list

Model

PDP 619/P PL

Service No.

858042049601

Version

858042049601

Pos. No. 12NC Code

Description

001 0

4812 440 11566

Cabinet from 03.04.06

001 0

4812 440 11567

Cabinet until 02.04.06

003 0

4819 404 43391

Bearer hook crosspiece

011 0

4819 462 47014

Foot adjustable

024 0

4812 440 11334

Panel, rear

030 0

4812 440 11333

Table top

041 0

4812 417 19305

Hinge

041 1

4819 903 10139

Rivet

054 0

4812 462 79961

Cover

061 0

4812 466 88842

Counter weight upper

061 1

4812 466 88693

Counter weight bottom fr.02/38

083 0

4819 466 47003

Friction plate

083 1

4812 404 18486

Bracket slide guide

086 0

4819 492 68576

Spring

086 1

4819 466 89132

Fastener counter weight

086 2

4812 310 28278

Fastener kit motor

086 3

4812 310 28281

Fastener kit counterweight bottom

086 5

4812 904 48018

Friction pad unit

110 0

4812 462 68947

Door handle

110 1

4812 462 68948

Door handle complete

133 0

4812 462 68968

Door latch

133 1

4819 903 10174

Pin handle

133 2

4812 417 28071

Door catch

133 4

4819 535 98324

Pin

140 0

4812 450 58586

Door glass

143 0

4819 903 02494

Strap

144 0

4812 459 28058

Frame,door glas

144 1

4812 416 19776

Frame,door glas outer

144 2

4812 532 98019

Collarring

190 0

4819 468 18365

Gasket, door

200 0

4812 418 08003

Tub

201 0

4812 418 89056

Bottom Kit bottom + bearing

220 0

4819 903 03676

Drum and crosspiece

271 0

4812 358 18198

Belt

272 0

4812 528 88125

Pulley

291 0

4812 466 88843

Gasket tub

301 0

4812 464 69288

Control panel

303 0

4812 462 28726

Cover drawer handle

303 1

4812 498 48031

Handle detergent drawer

331 0

4812 411 29056

Knob,switch

332 0

4812 410 78188

Button,push

333 0

4812 410 78187

Button,push ON/OFF

350 0

4812 214 79476

LED PCB

401 0

4812 361 38115

Motor

430 0

4812 360 18575

Pump,draining

432 0

4812 360 78144

Filter body

451 0

4812 259 28883

Heating element

451 1

4812 466 38094

Plate,protect. resistance

483 0

4812 321 78355

Cable harness

484 0

4812 321 28477

Cable flat,electronic

484 1

4812 321 28436

Cable LED PCB

490 0

4812 321 18294

Cable,mains from 03.04.2006

501 0

4812 273 28282

Selector,switch program

521 0

4812 214 58234

Unit electrical

521 2

4812 214 79475

Unit electrical PCB buttons

Pos. No. 12NC Code

Description

531 0

4812 273 28283

Potentiometer

551 0

4812 282 28324

Thermostat with temperature sensor

572 0

4812 271 18086

Valve,magnet cold water

583 0

4812 271 28551

Pressostat

620 0

4812 276 38081

Switch,pushbut.

630 0

4812 280 58043

Door lock

701 0

4819 530 28932

Hose, inlet 1.5 m cold water

702 0

4812 530 29367

Hose, inlet inner

708 4

4812 530 29366

Drainhose inner

711 0

4812 418 68351

Dispenser

711 1

4812 462 28725

Cover dispenser

712 0

4819 418 78067

Drawer

713 0

4819 418 78989

Accessory deterg. fluid

714 0

4819 418 78988

Container liquid detergent

714 1

4819 418 78166

Tray bleach

718 1

4819 310 38651

Accessories liquid detergent

754 0

4812 529 18059

Drainhose

755 0

4812 530 29368

Adapter hose soap recirculation

755 1

4812 530 29369

Hose,connection soap recirculation

760 0

4819 480 58082

Filter

760 1

4819 462 78861

Grip filter

781 0

4812 530 29372

Hose,draining

781 1

4819 903 02515

Hose

782 0

4819 530 28908

Hose Pressostat

794 0

4819 903 04978

Gasket

794 1

4819 310 38057

Gasket

794 2

4819 532 68309

Cover filter

900 1

4819 466 98528

Clamping piece

900 3

4812 404 48997

Bracket pressostat

900 5

4819 401 13349

Hook

900 6

4812 404 48996

Support indicator bulb

900 7

4819 535 38158

Hook

900 8

4812 404 18485

Bracket

901 0

4822 401 10258

Clamp,hose 10-18 mm

901 1

4819 903 02487

Clamp,hose

901 2

4819 401 18736

Clamp,hose

901 3

4819 401 18351

Clamp,hose

901 4

4819 401 18174

Clamp,hose 25-45 mm

901 7

4819 401 18429

Clamp

902 1

4812 404 48907

Holder unit elect.

902 3

4812 418 70008

Holder modul complete

903 0

4819 492 68392

Clamp

903 1

4819 903 02535

Silent bloc

903 2

4819 401 18348

Holder,hose

903 4

4819 903 10167

Door glass insert

903 6

4819 401 18883

Staple

904 1

4819 466 63326

Ring,rubber

910 1

4812 502 18649

Screw Torx D=4,2 H=9,5

910 3

4812 502 18651

Screw Torx D=4,2 H=13

910 4

4812 930 08011

Screw

910 5

4812 502 18652

Screw

910 7

4819 502 33254

Screw

910 8

4819 502 18386

Screw

910 9

4812 502 38362

Screw

911 1

4812 502 18653

Screw D=6,3 H=23

S E R V I C E

27.06.2006 / Page 4

PDP 619/P PL

Whirlpool Europe

Doc. No: 4812 722 26302

8580 420 49601

Customer Service

Spare part list

Model

PDP 619/P PL

Service No.

858042049601

Version

858042049601

Pos. No. 12NC Code

Description

911 2

4812 502 18696

Screw tub bottom

911 3

4819 903 10173

Screw

911 4

4819 903 10165

Screw f.Door Glass expired

911 5

4812 502 18673

Screw

911 6

4819 903 10171

Screw

911 7

4819 502 18534

Screw

911 8

4819 502 18409

Screw

914 0

4819 505 13084

Nut

921 0

4819 532 13433

Washer pulley

931 0

4819 903 10178

Spring

931 3

4812 492 68199

Spring,suspens. from 15/04

931 4

4812 492 38399

Spring handle cover

931 5

4819 903 10172

Spring,ret.

931 6

4819 492 38135

Spring

933 0

4819 903 03659

Spring,tension

941 2

4819 310 38768

Bearing, kit

950 0

4812 466 88841

Gasket buttons

951 0

4812 530 78048

Shaft seal

952 0

4819 466 69816

Gasket

952 1

4819 903 02447

Gasket thermostat

952 2

4812 466 88793

Gasket potentiometer

993 0

4819 401 18345

Bow

S E R V I C E

Whirlpool Europe

PDP 619/P PL

27.06.2006 / Page 5

Customer Service

8580 420 49601

Doc. No: 4812 722 26302

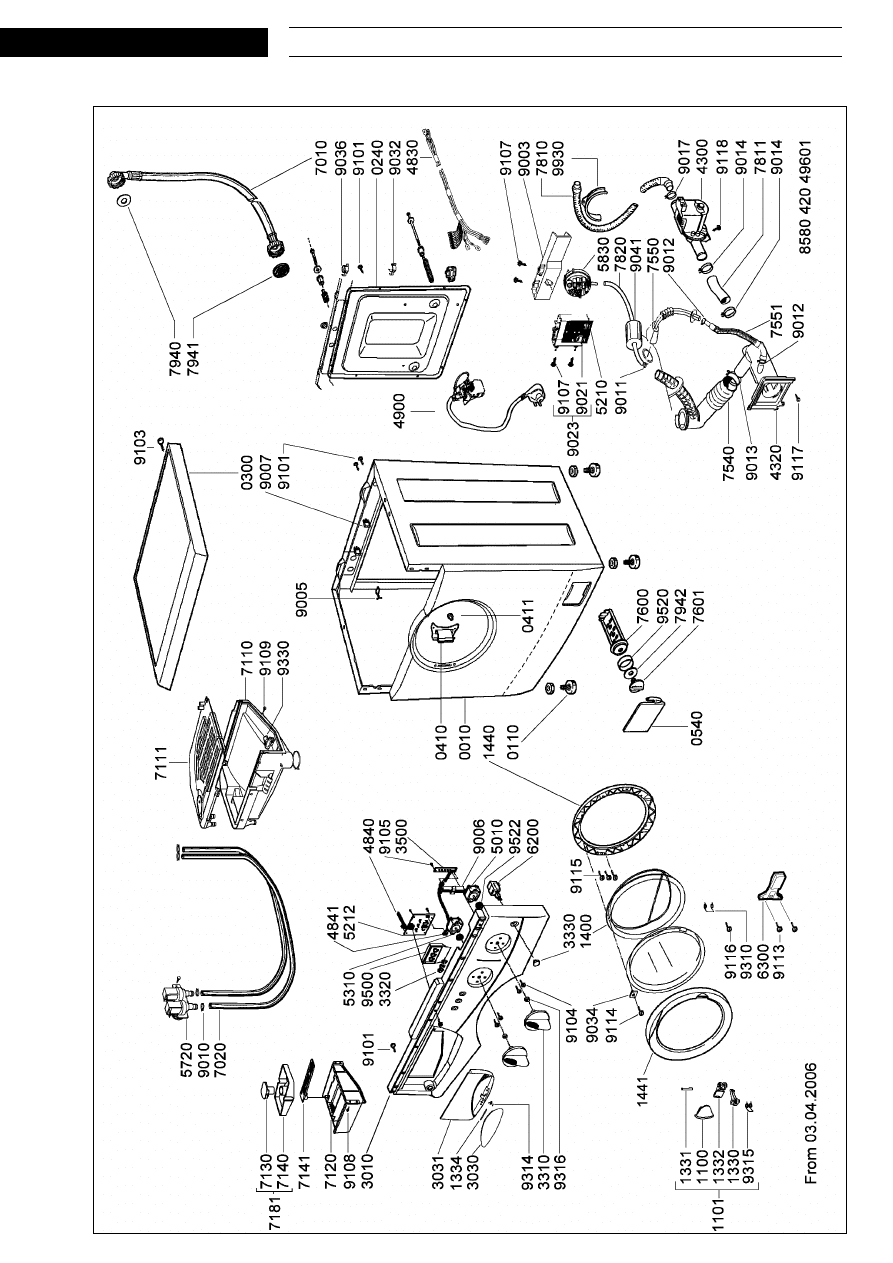

Exploded view

S E R V I C E

27.06.2006 / Page 6

PDP 619/P PL

Whirlpool Europe

Doc. No: 4812 722 26302

8580 420 49601

Customer Service

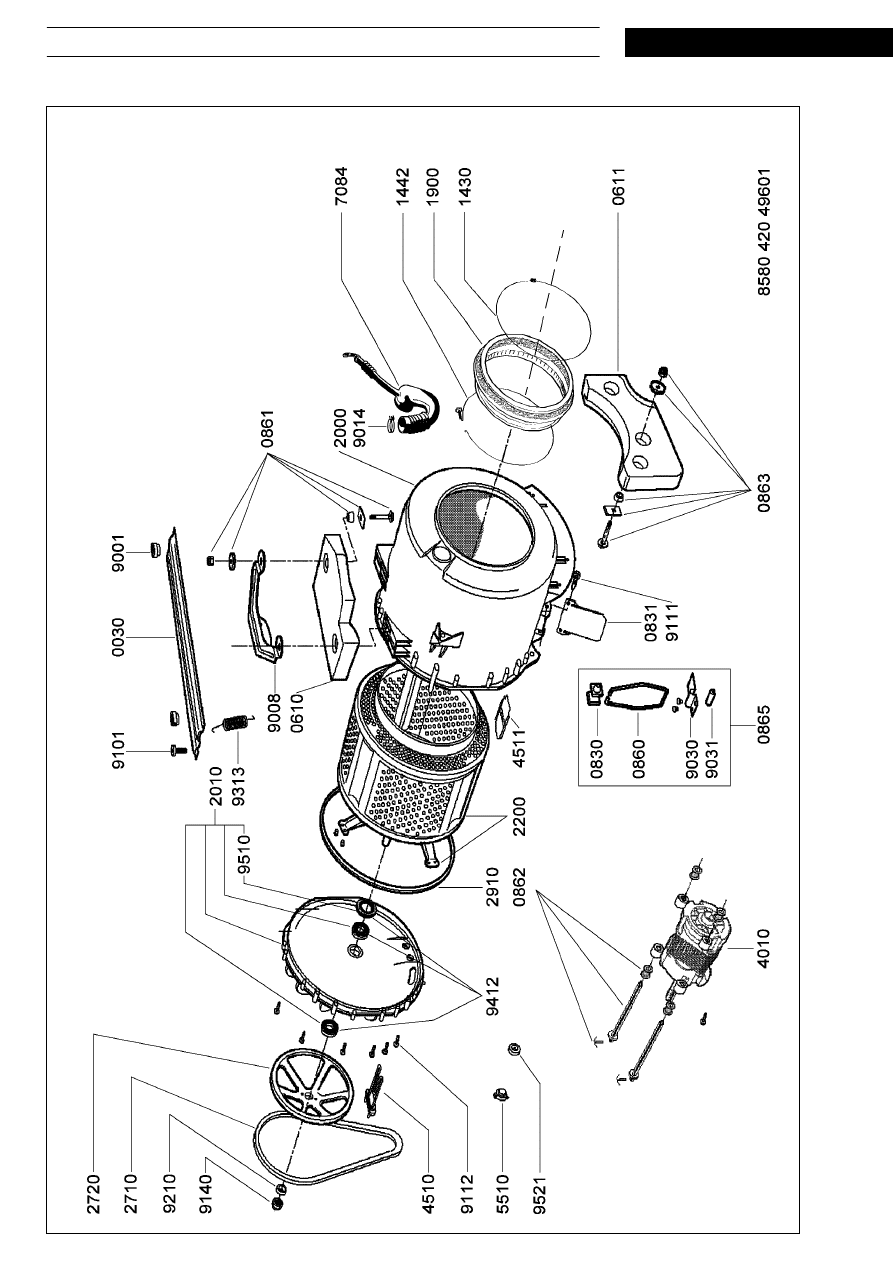

Exploded view

S E R V I C E

Whirlpool Europe

PDP 619/P PL

27.06.2006 / Page 7

Customer Service

8580 420 49601

Doc. No: 4812 722 26302

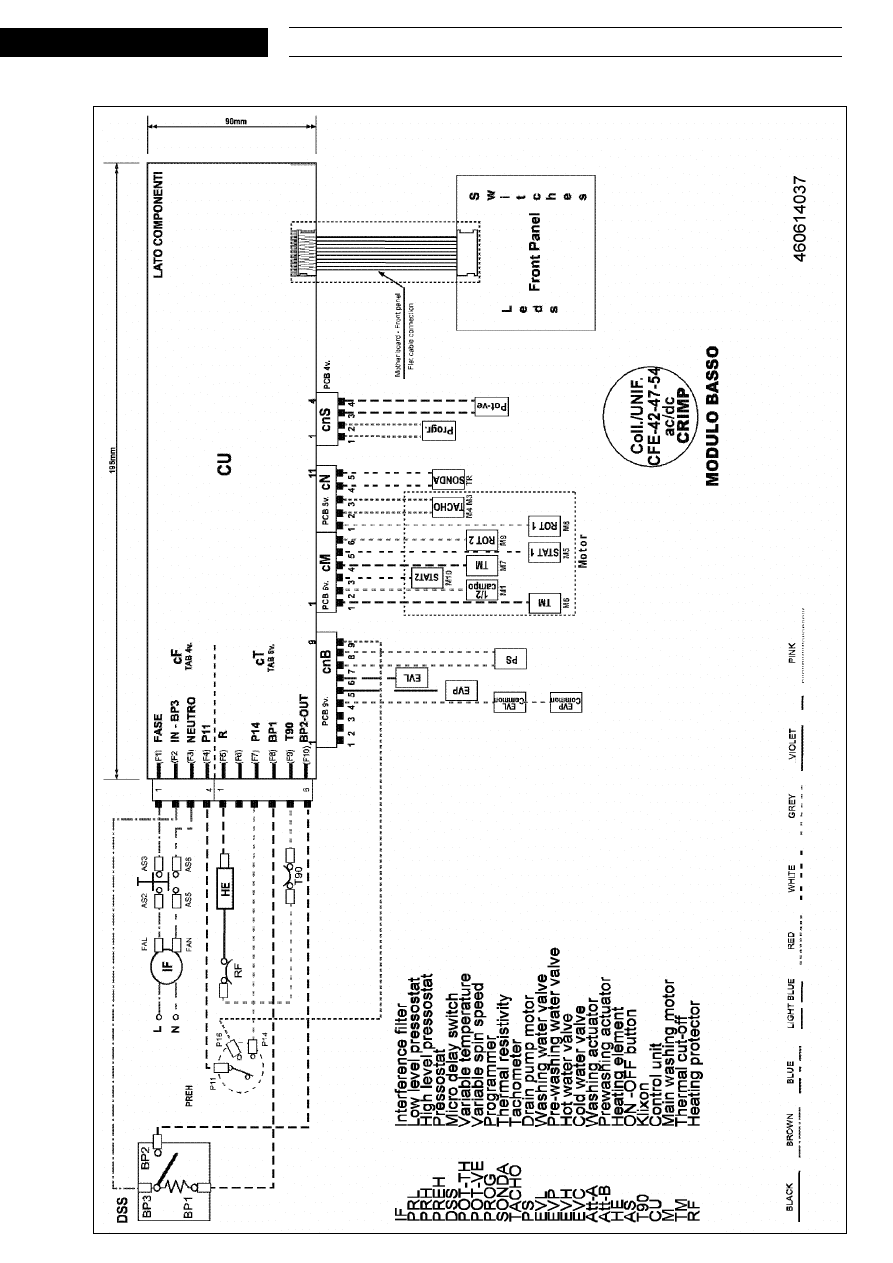

Circuit diagram

S E R V I C E

27.06.2006 / Page 8

PDP 619/P PL

Whirlpool Europe

Doc. No: 4812 722 26302

8580 420 49601

Customer Service

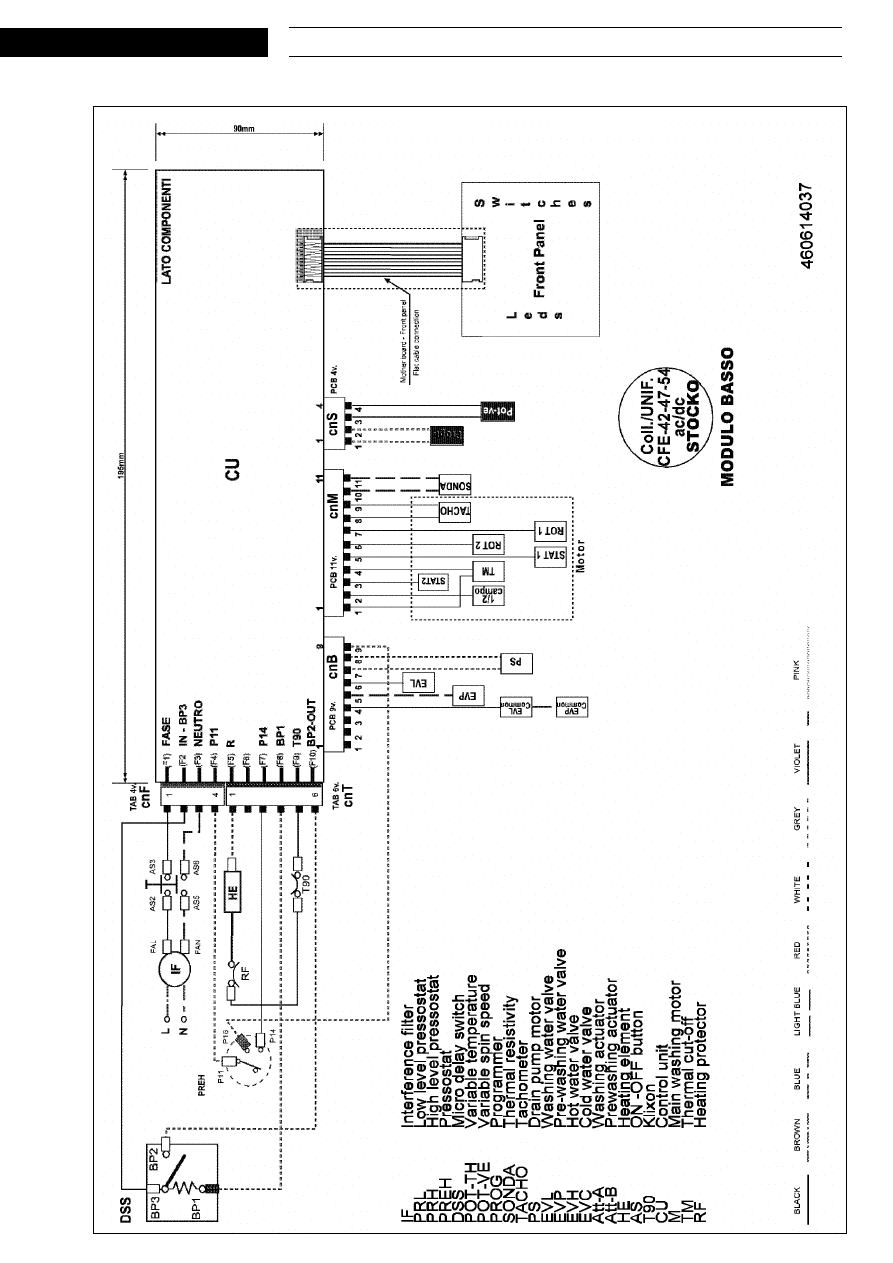

Circuit diagram

S E R V I C E

Whirlpool Europe

PDP 619/P PL

27.06.2006 / Page 9

Customer Service

8580 420 49601

Doc. No: 4812 722 26302

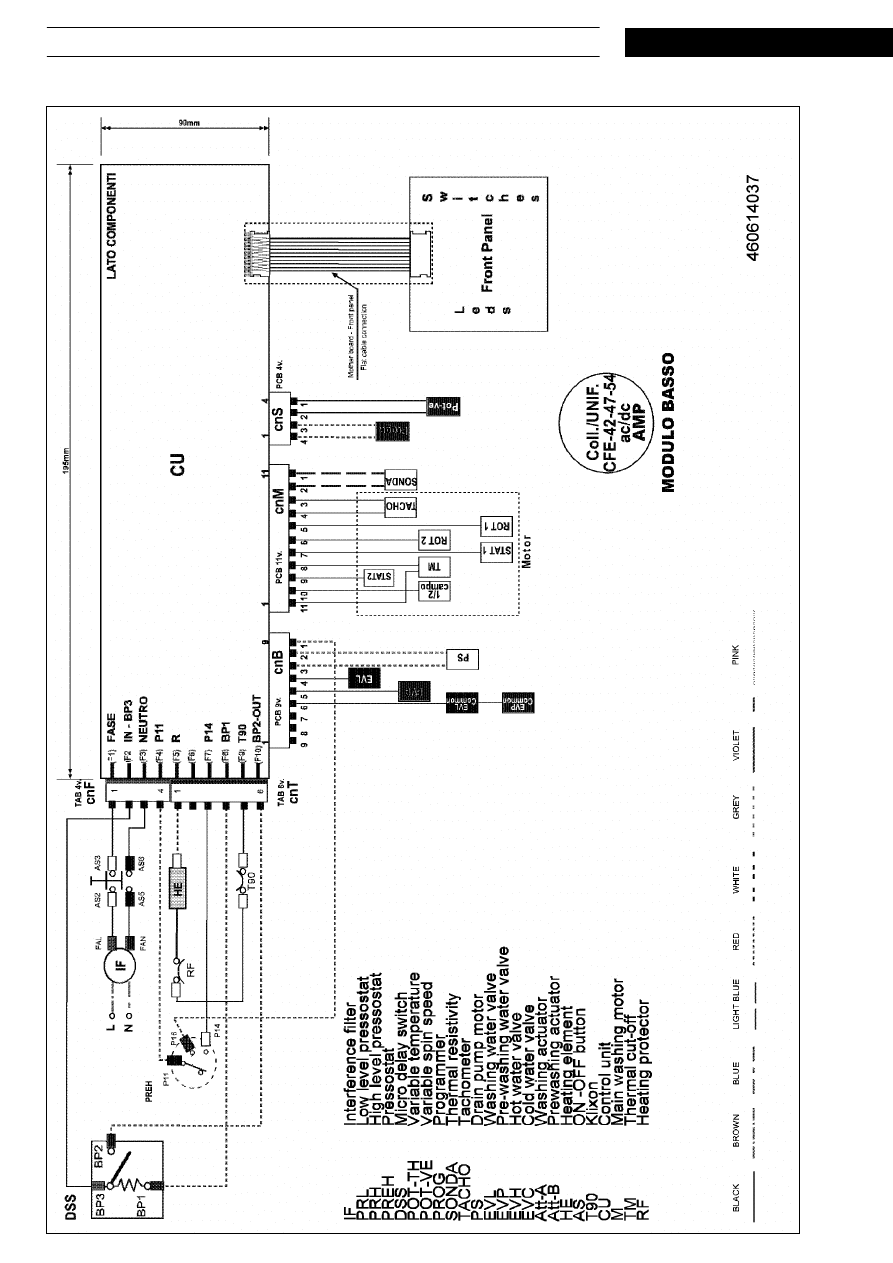

Circuit diagram
