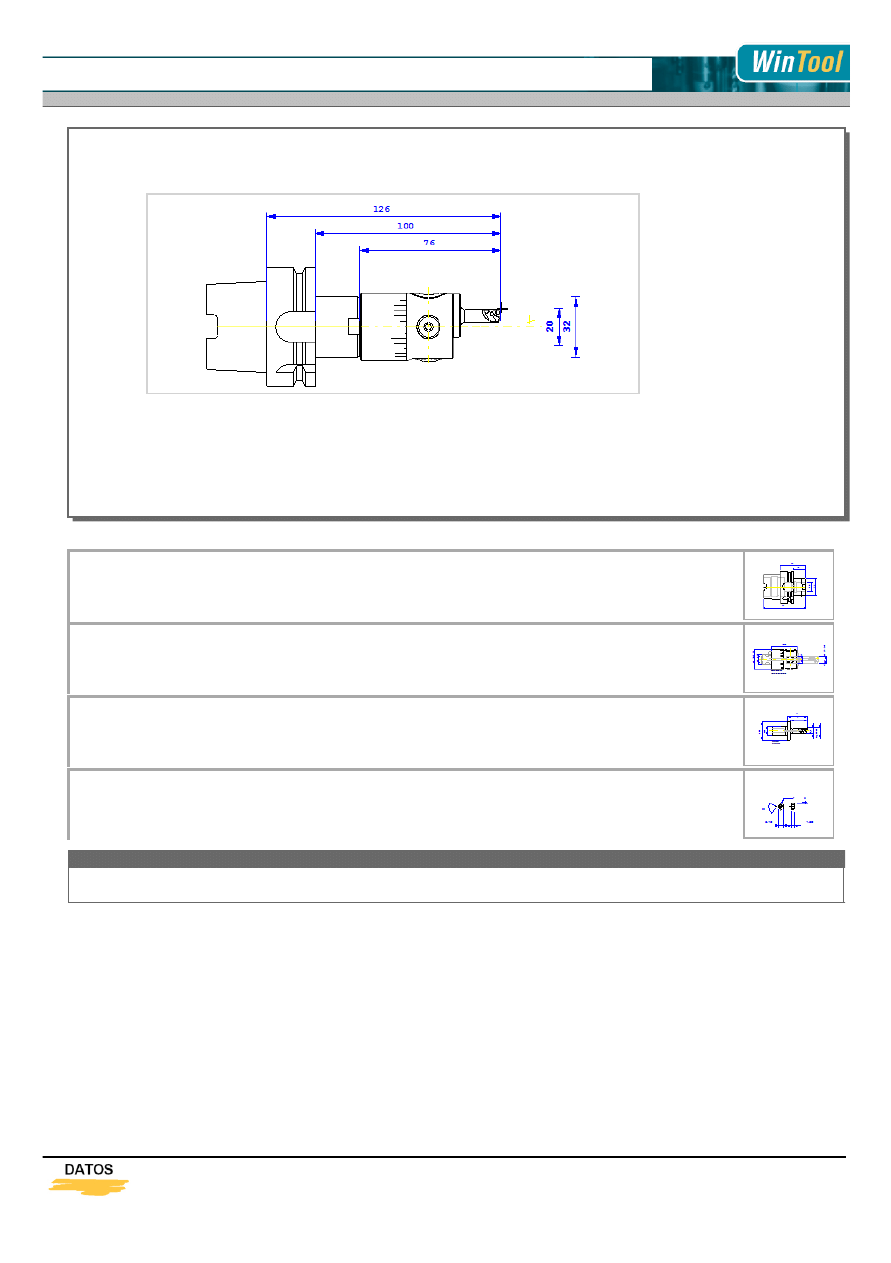

Tool Sheet

Tool Details incl. Cutting Data

 27

ABS 50 KUB 12,0/18R
W29 17....
lightly roughi.

- no attachment -

 20.0000
 30.0000

 0.0000

 0.0000

 126.0000

 0.0000
 0.0000

 0.0000

Cutting Width

 1.5900

Side Angle

 80.0000

Weight

 1,21

Price

 0,00

Recorded

10.04.2016

Modified

User Admin

Quantity

Description / Sort

Design / Item No / Product Code / Storage Place

Diameter

Cutting length

Radius

Main Arc

Length

Width

Collision Length

Collsion Dia.

Machine Type

RCState

 1 DIN 69893A Graflex holder

d=18, short A=50

EM93044011850

 1 AxiaLibraBore Plus, type head

balance.d=18, cap. ø2-20, A=50

A76012

 1 Steel tool, 80° insert

d1=12, cap. ø 8-10,  A=26
WB..0301...

A763002

 1 Carbide finishing insert

left cuttting, ground contour
lightly roughi.

WBGT03010003G3

T (min)

P

F

S

fz

Vc

z

D

ae

ap

2016-04-10

1
