MERCEDES BENZ 500SEC 1985

background image

SYSTEM WIRING DIAGRAMS

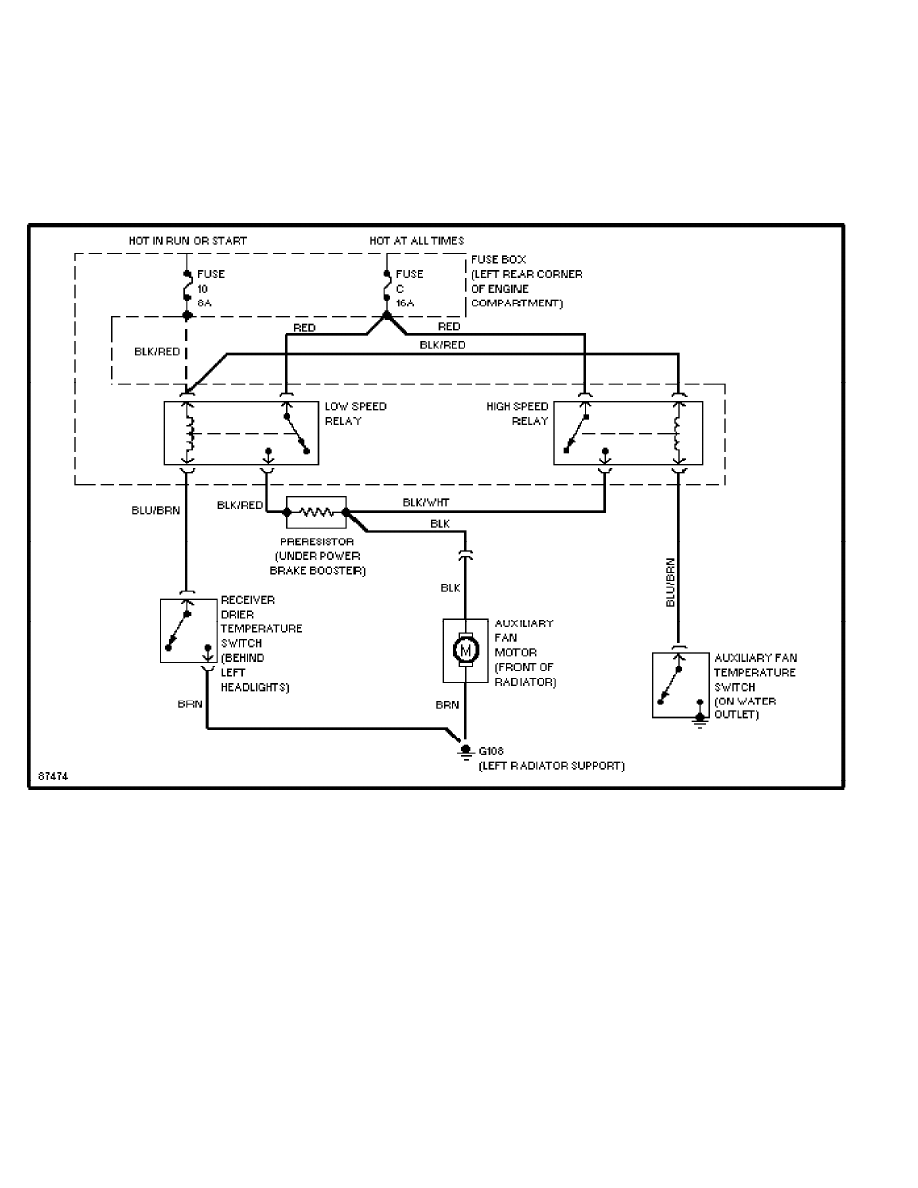

Cooling Fan Circuit

1985 Mercedes-Benz 500SEC

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, April 02, 2006 03:41PM

background image

SYSTEM WIRING DIAGRAMS

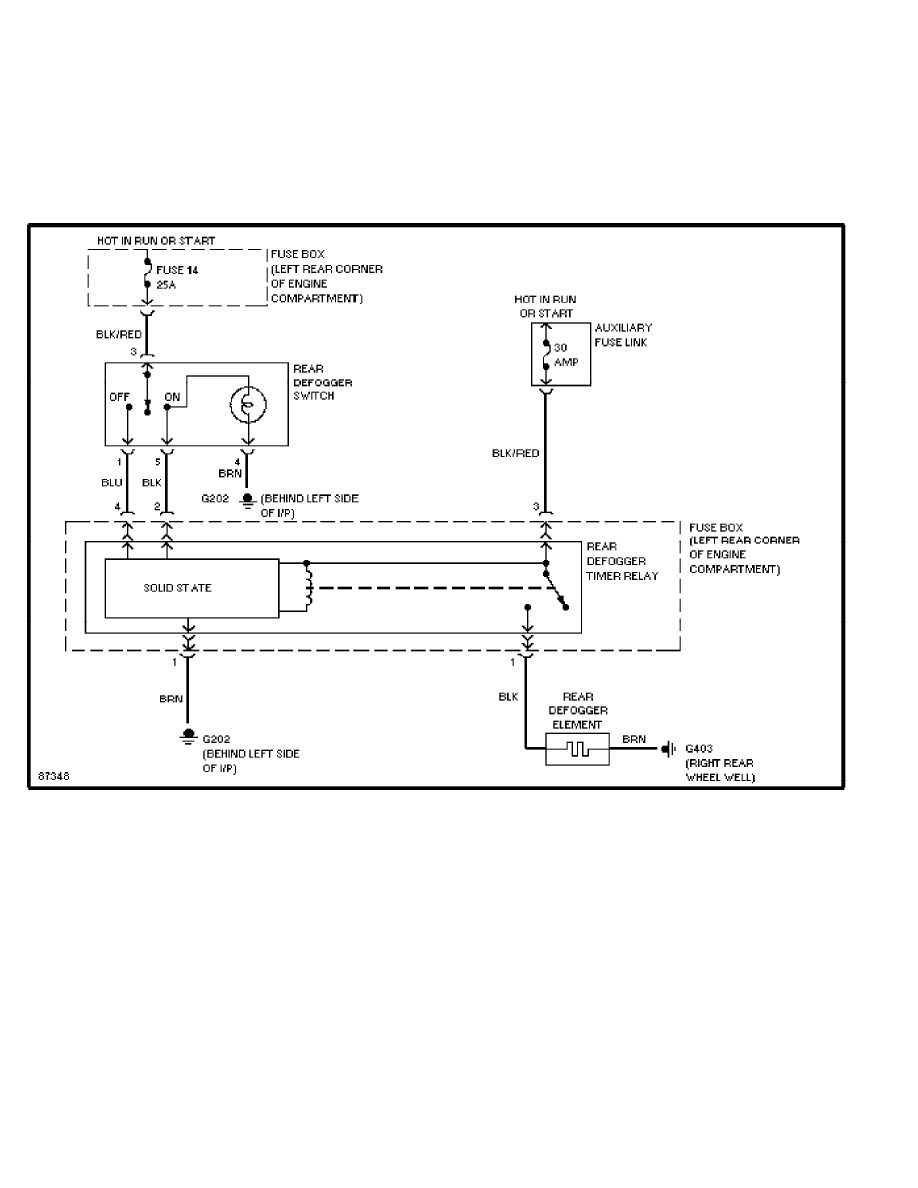

Defogger Circuit (p. 2)

1985 Mercedes-Benz 500SEC

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, April 02, 2006 03:41PM

background image

SYSTEM WIRING DIAGRAMS

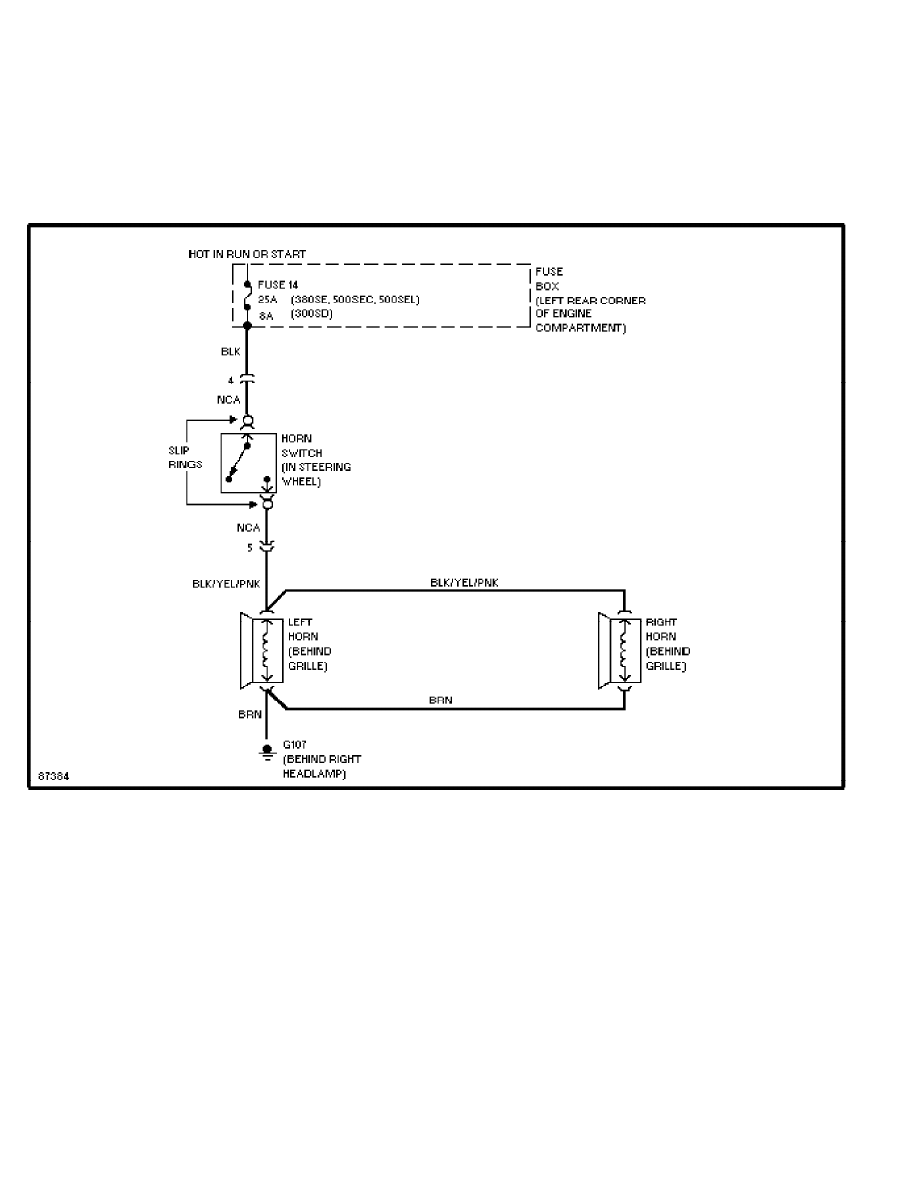

Horn Circuit (p. 3)

1985 Mercedes-Benz 500SEC

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, April 02, 2006 03:41PM

background image

SYSTEM WIRING DIAGRAMS

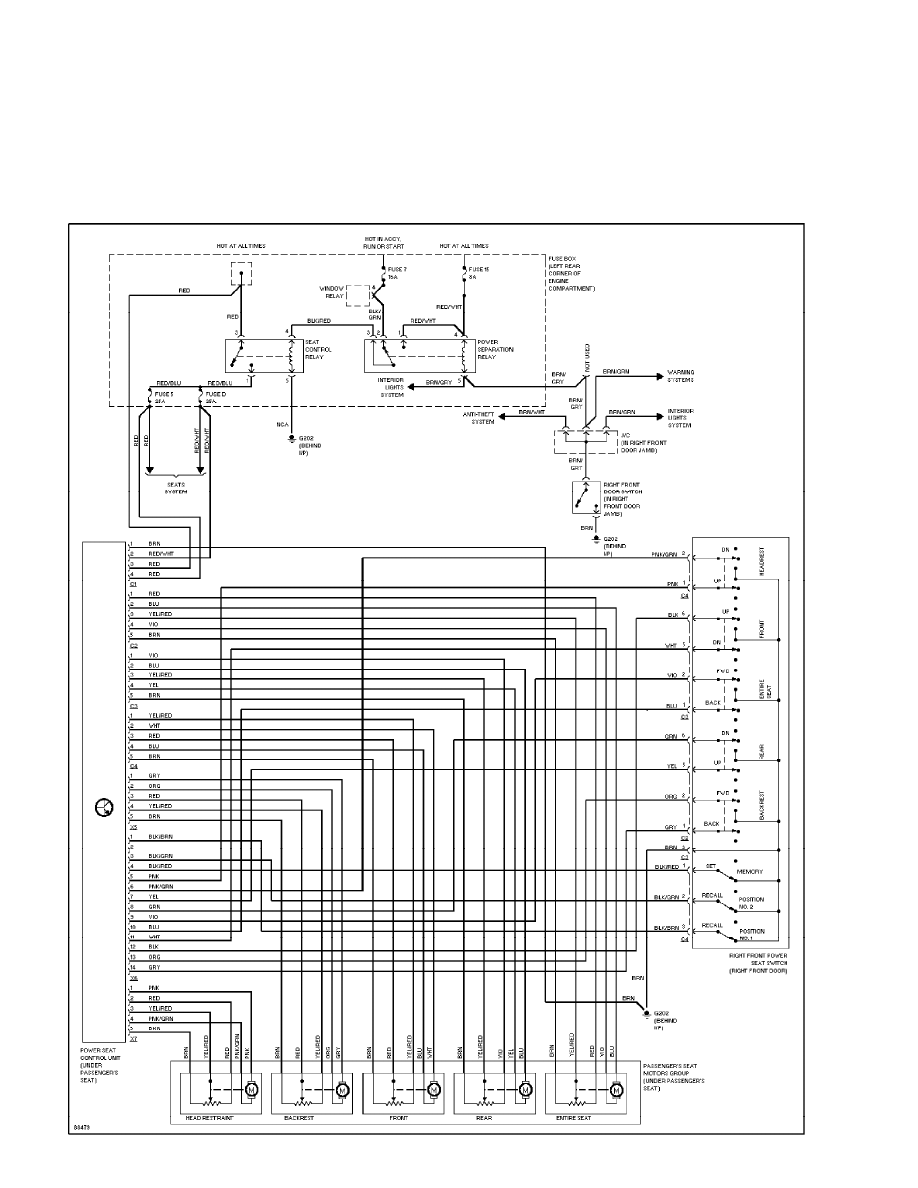

Driver's Memory Seat Circuit (p. 4)

1985 Mercedes-Benz 500SEC

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, April 02, 2006 03:41PM

background image

SYSTEM WIRING DIAGRAMS

Passenger's Memory Seat Circuit (p. 5)

1985 Mercedes-Benz 500SEC

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, April 02, 2006 03:41PM

background image

SYSTEM WIRING DIAGRAMS

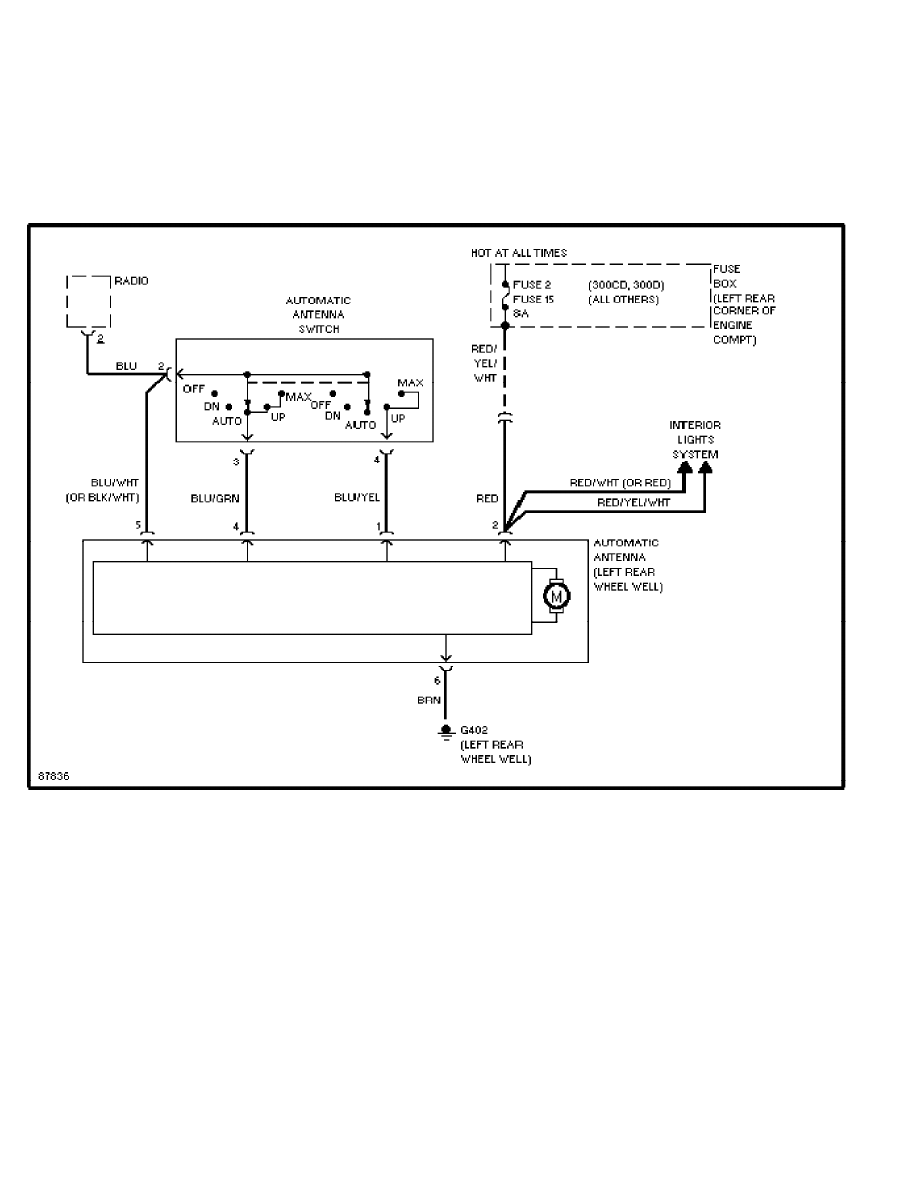

Power Antenna Circuit (p. 6)

1985 Mercedes-Benz 500SEC

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, April 02, 2006 03:41PM

background image

SYSTEM WIRING DIAGRAMS

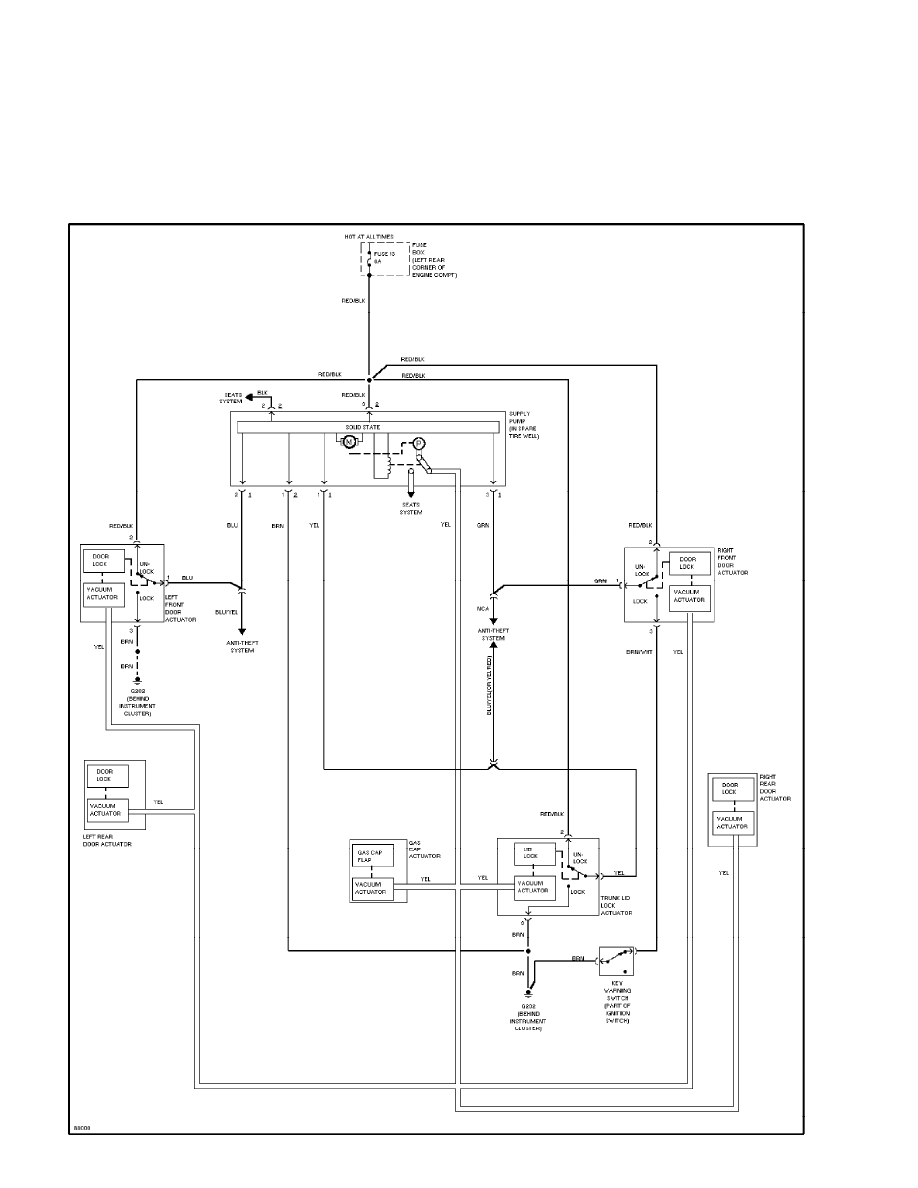

Power Door Lock Circuit (p. 7)

1985 Mercedes-Benz 500SEC

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, April 02, 2006 03:41PM

background image

SYSTEM WIRING DIAGRAMS

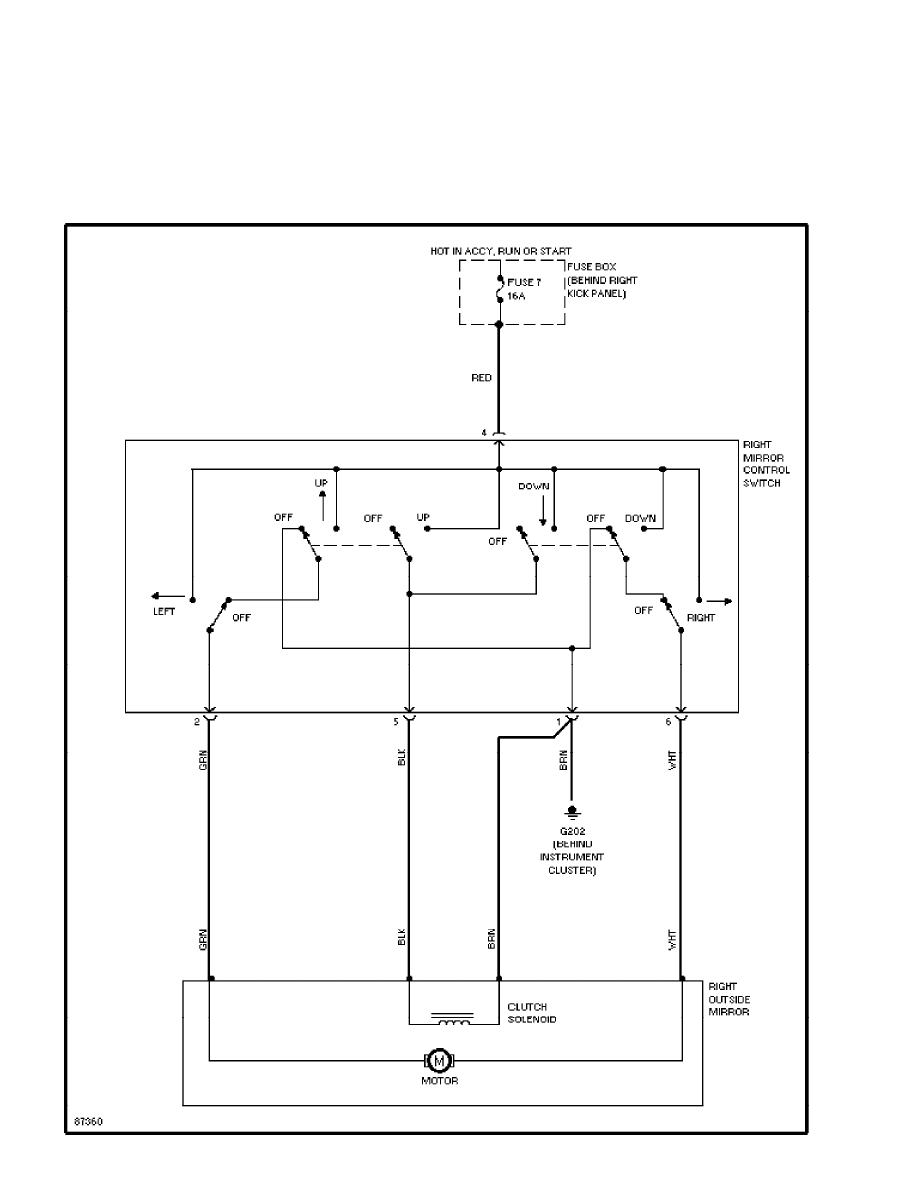

Power Mirror Circuit (p. 8)

1985 Mercedes-Benz 500SEC

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, April 02, 2006 03:41PM

background image

SYSTEM WIRING DIAGRAMS

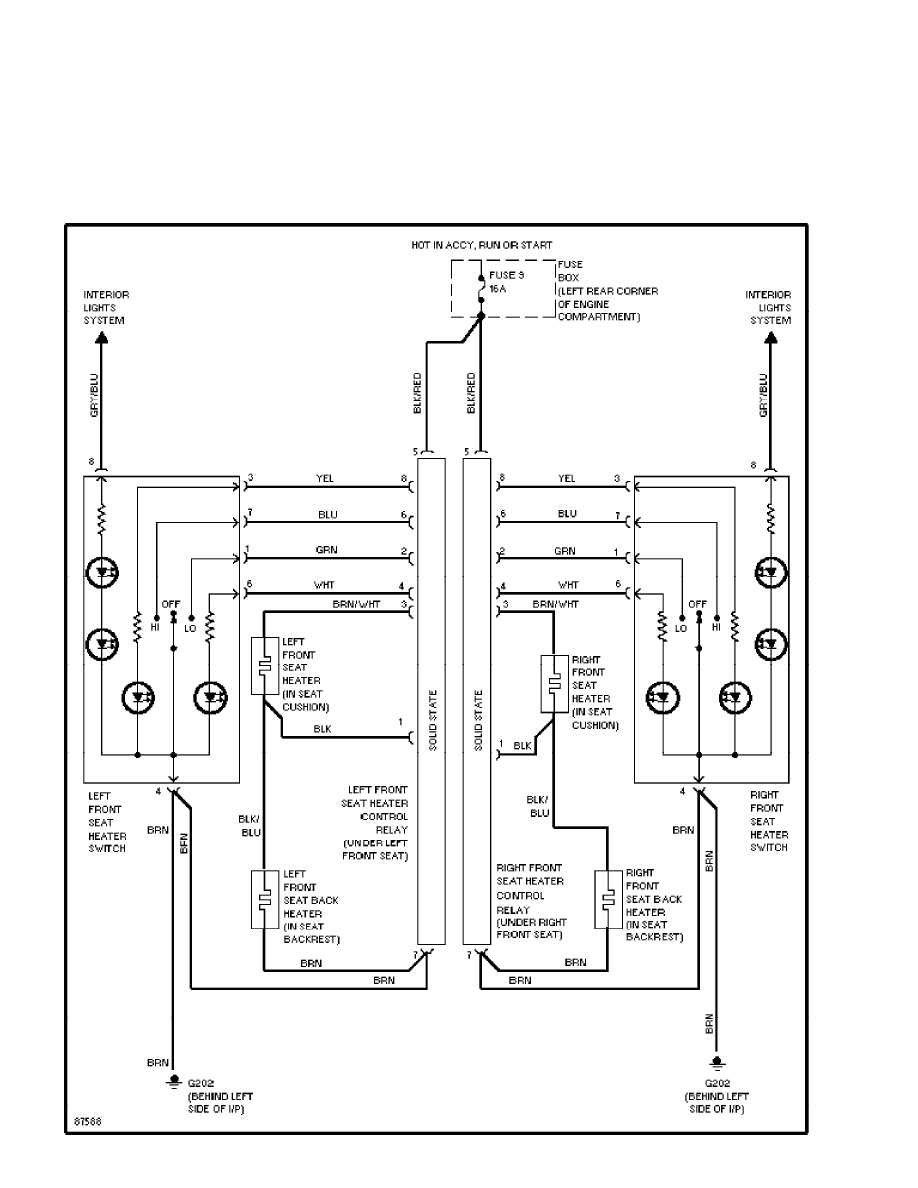

Front Seat Heater Circuit (p. 9)

1985 Mercedes-Benz 500SEC

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, April 02, 2006 03:41PM

background image

SYSTEM WIRING DIAGRAMS

Orthopedic Seats (p. 10)

1985 Mercedes-Benz 500SEC

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, April 02, 2006 03:41PM

background image

SYSTEM WIRING DIAGRAMS

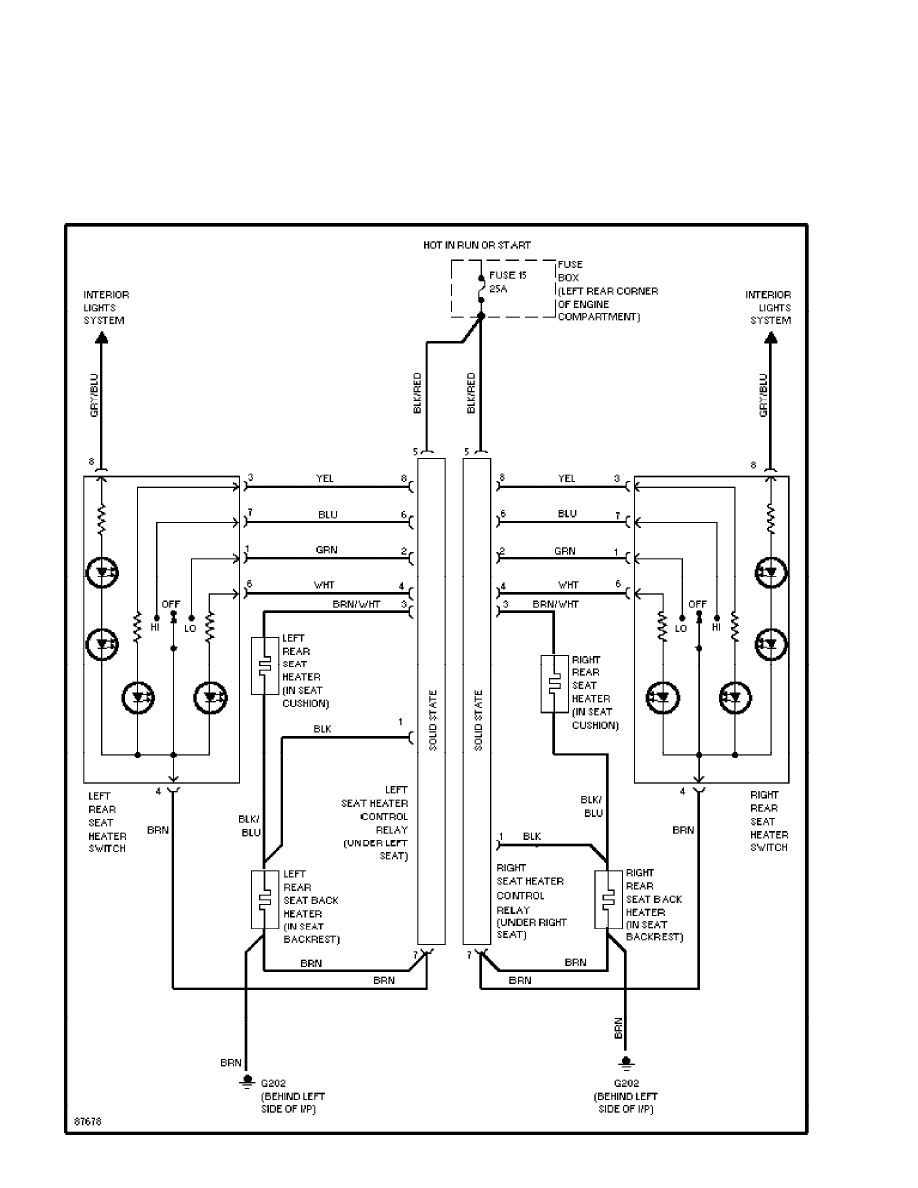

Rear Seat Heater Circuit (p. 11)

1985 Mercedes-Benz 500SEC

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, April 02, 2006 03:41PM

background image

SYSTEM WIRING DIAGRAMS

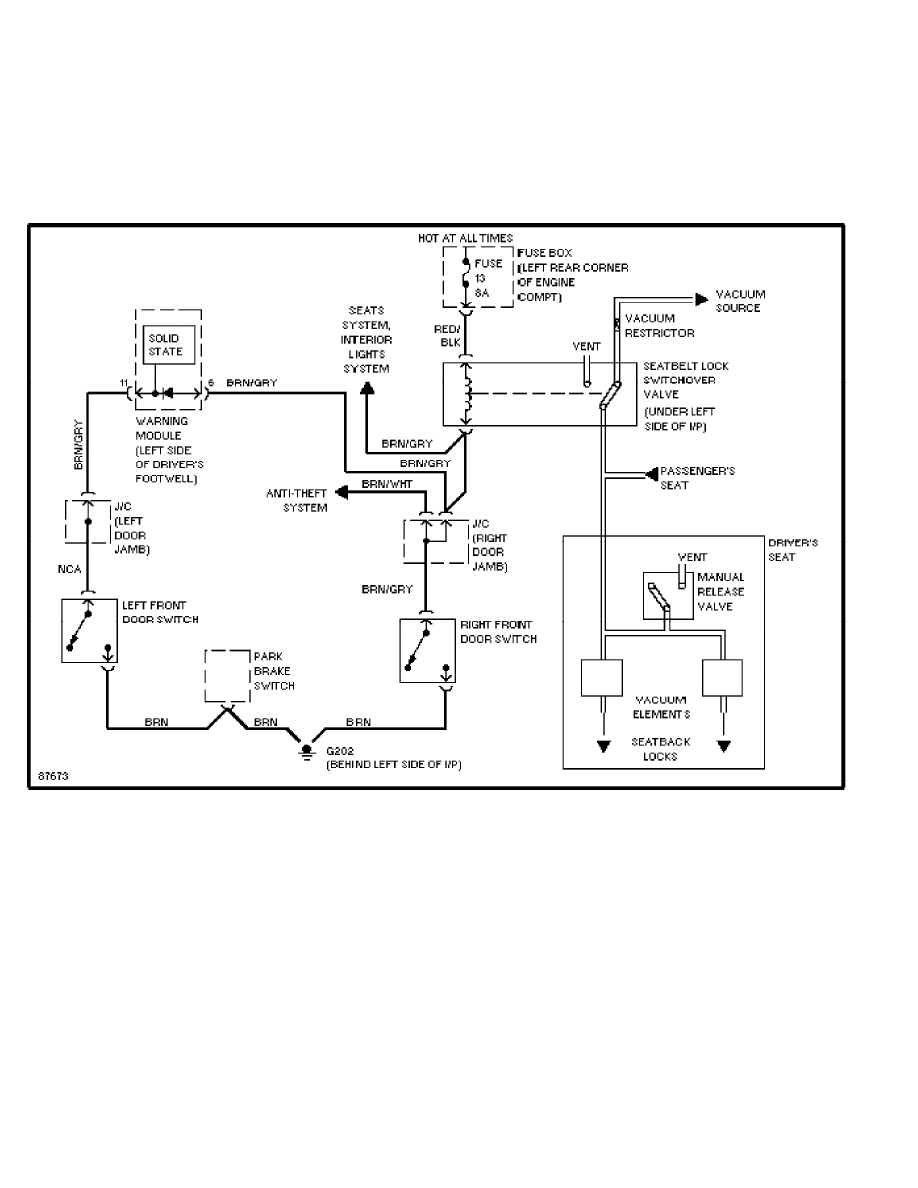

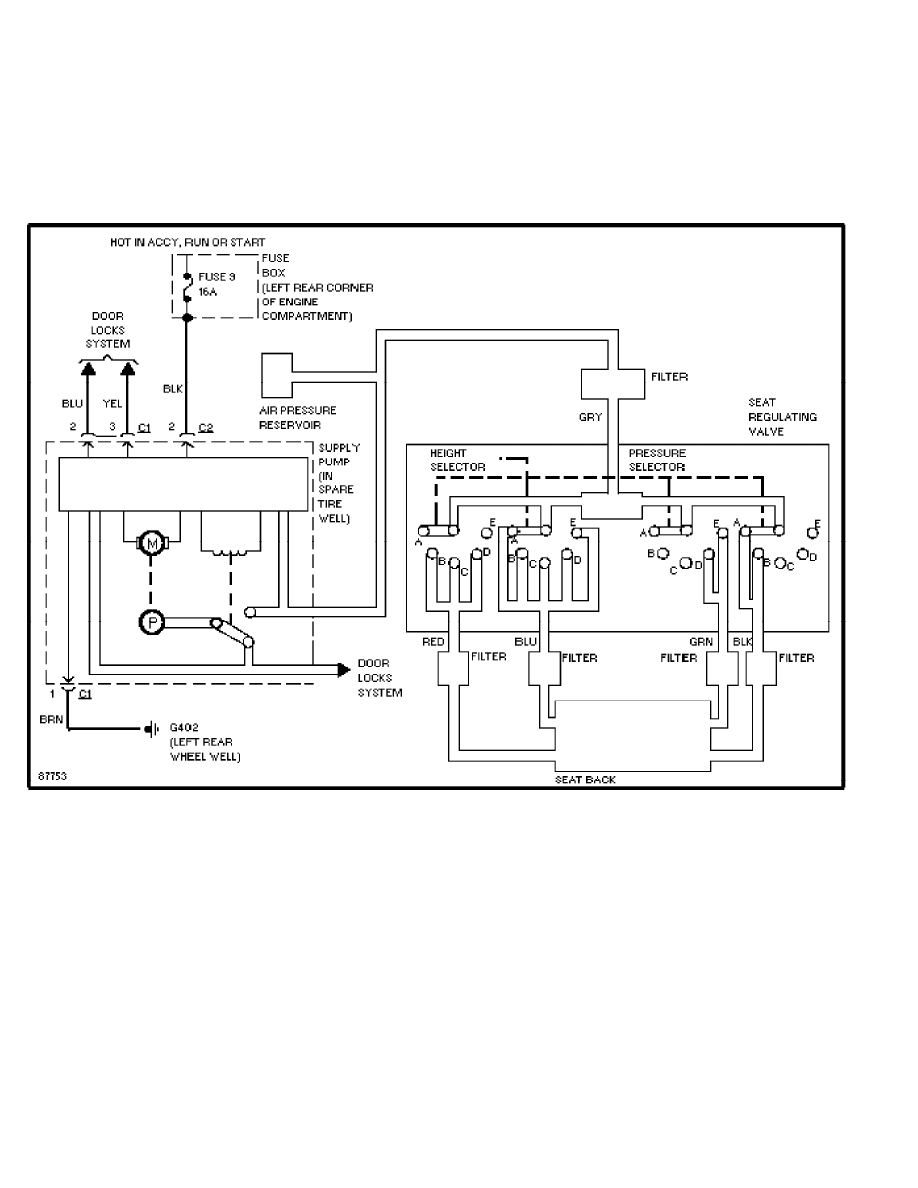

Seat Backrest Locking System (p. 12)

1985 Mercedes-Benz 500SEC

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, April 02, 2006 03:41PM

background image

SYSTEM WIRING DIAGRAMS

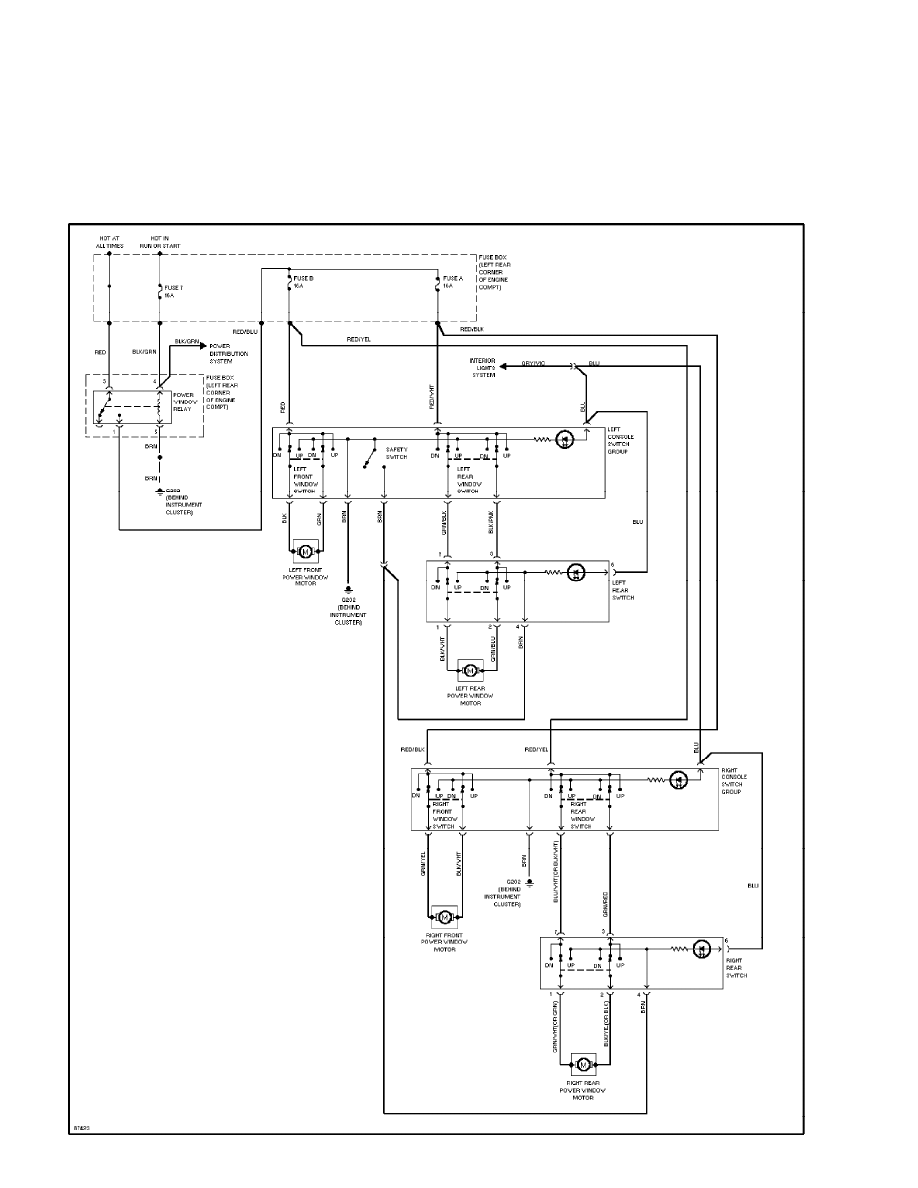

Power Window Circuit (p. 13)

1985 Mercedes-Benz 500SEC

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, April 02, 2006 03:41PM

background image

SYSTEM WIRING DIAGRAMS

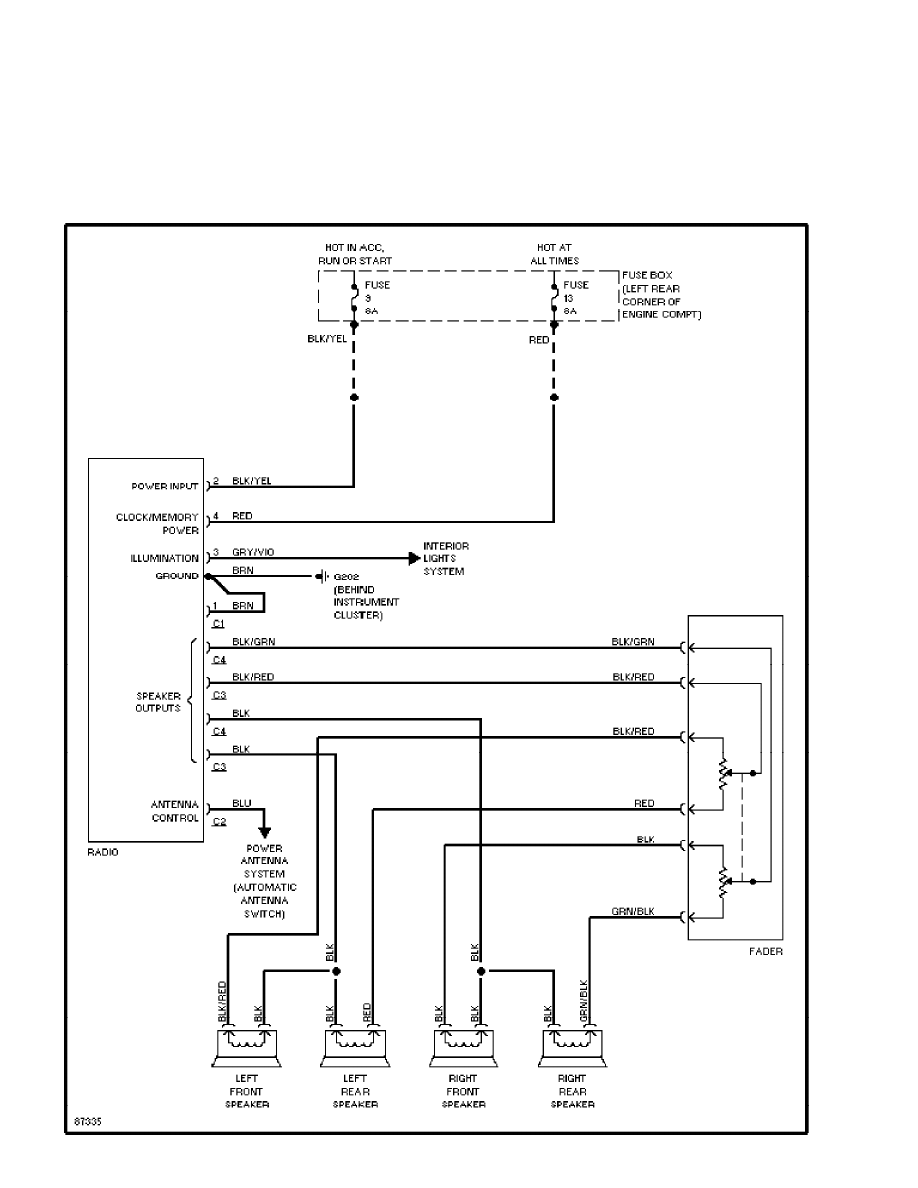

Radio Circuits (p. 14)

1985 Mercedes-Benz 500SEC

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, April 02, 2006 03:41PM

background image

SYSTEM WIRING DIAGRAMS

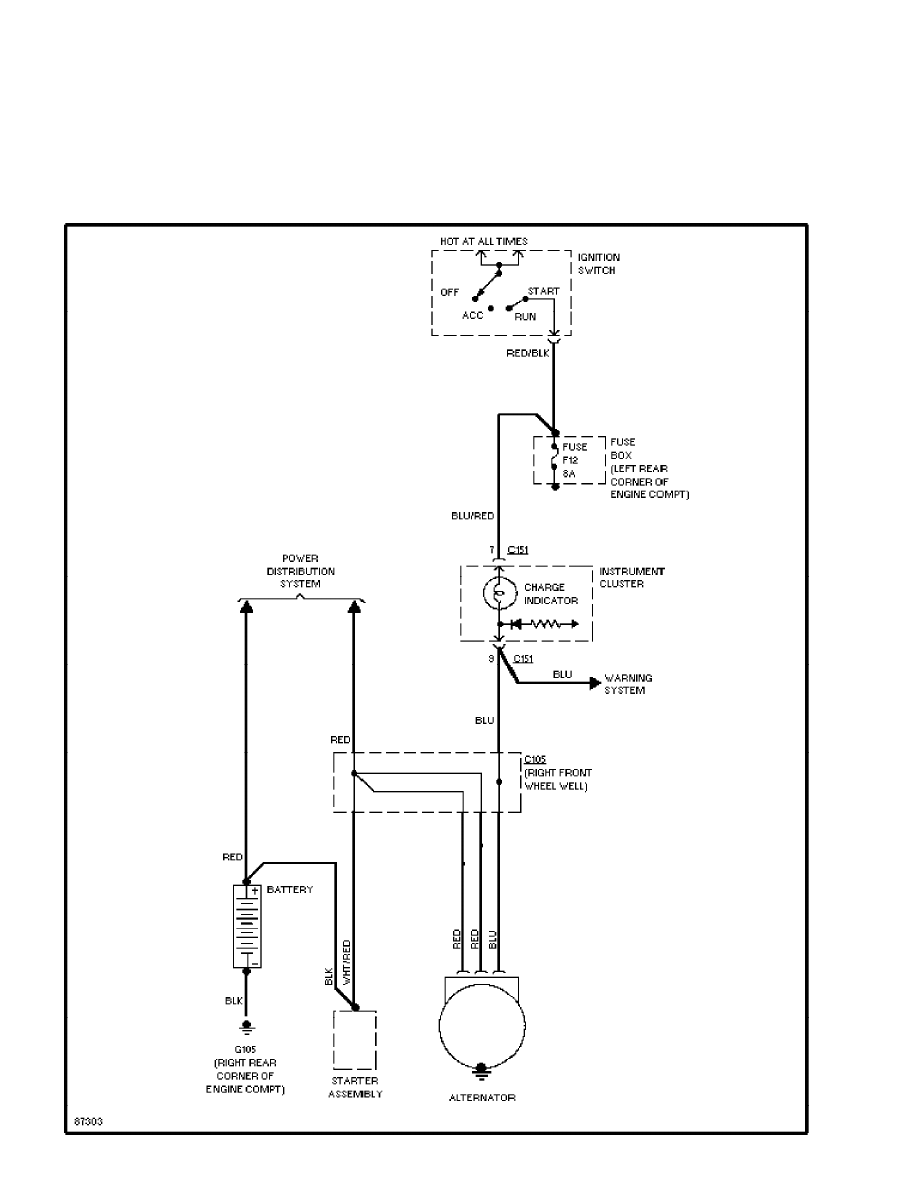

Charging Circuit (p. 15)

1985 Mercedes-Benz 500SEC

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, April 02, 2006 03:41PM

background image

SYSTEM WIRING DIAGRAMS

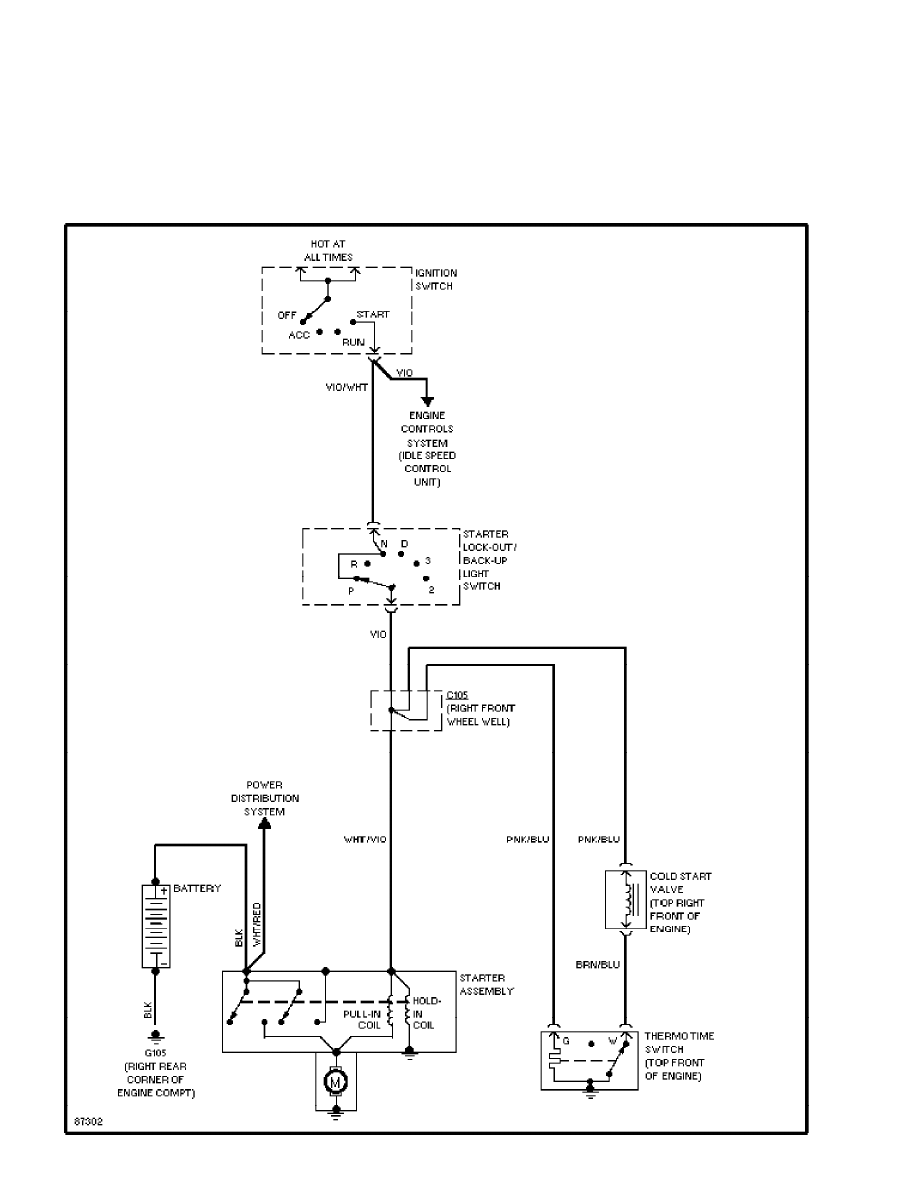

Starting Circuit (p. 16)

1985 Mercedes-Benz 500SEC

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, April 02, 2006 03:41PM

background image

SYSTEM WIRING DIAGRAMS

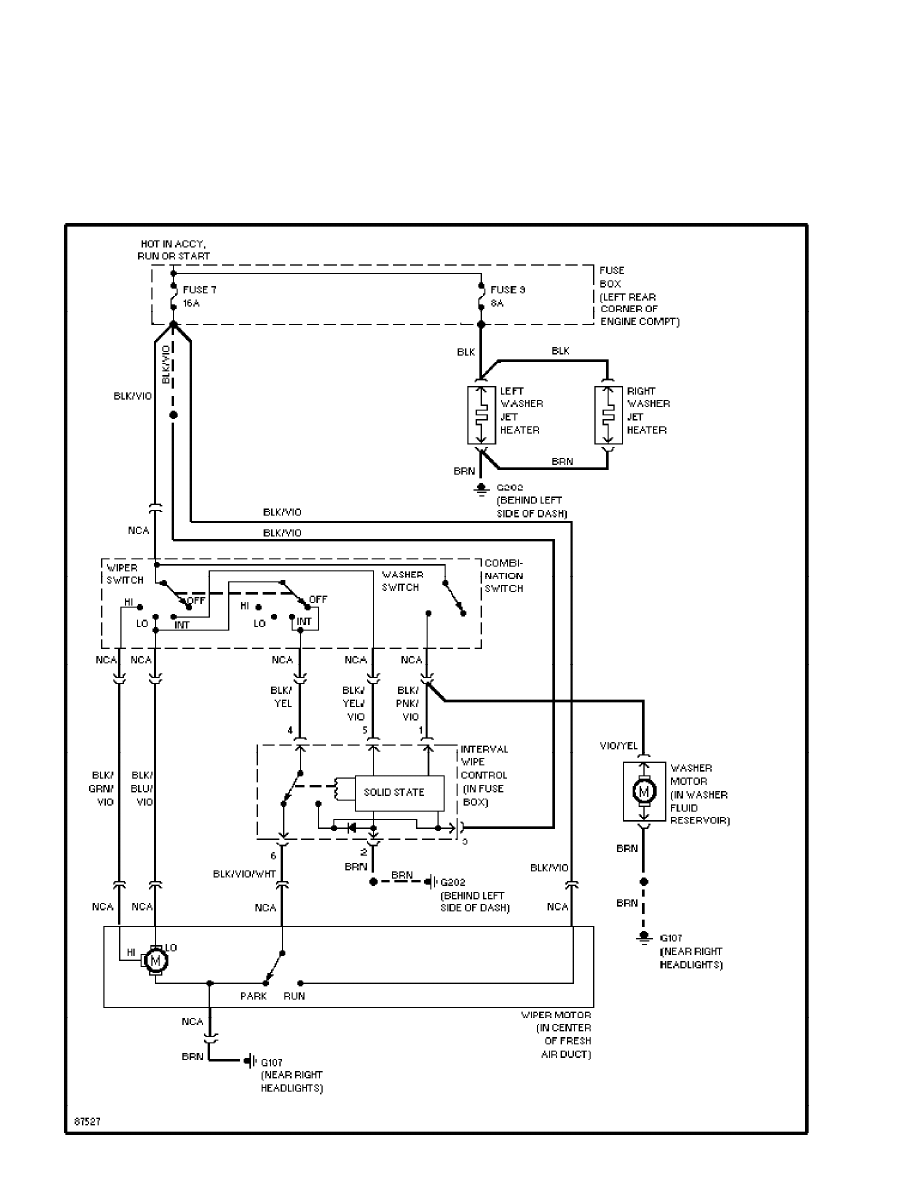

Wiper/Washer Circuit (p. 17)

1985 Mercedes-Benz 500SEC

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, April 02, 2006 03:41PM
