WIRING DIAGRAMS

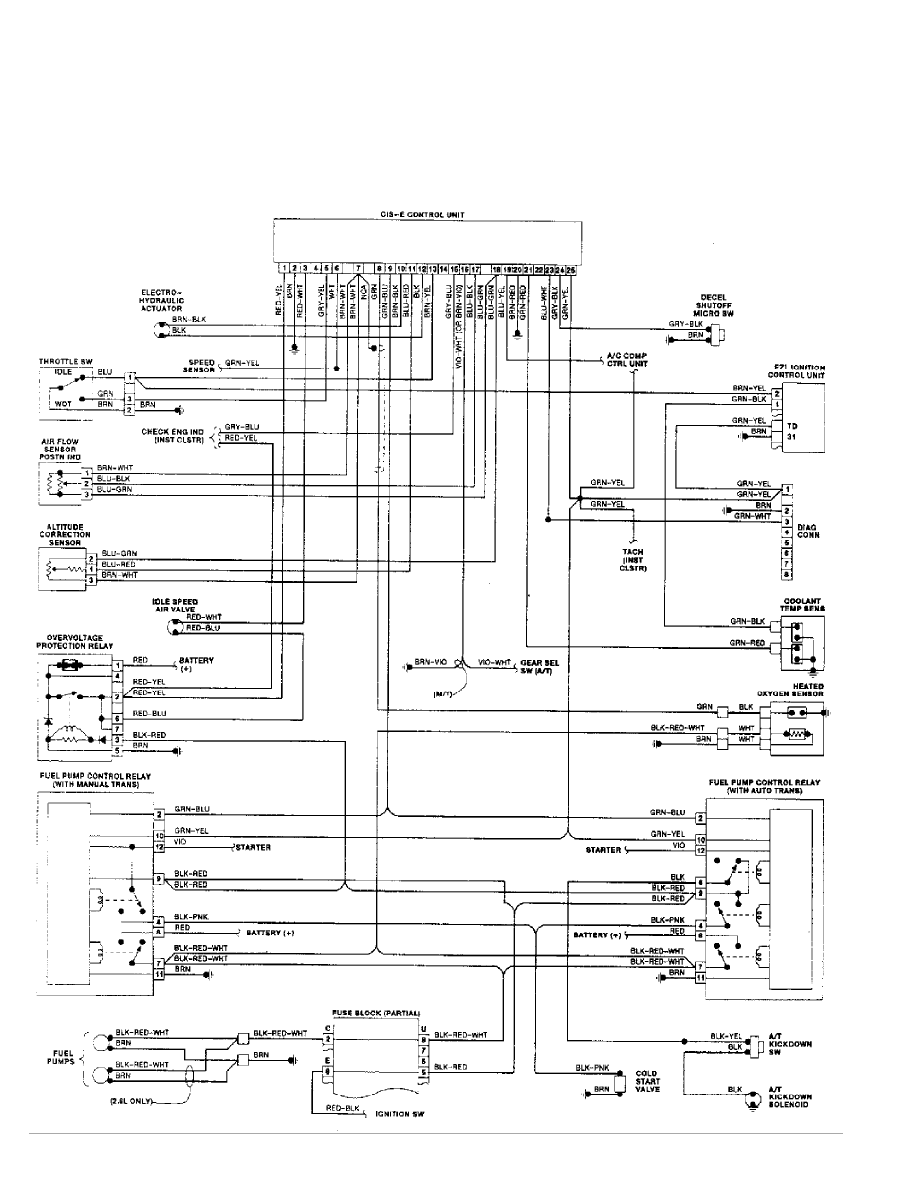

Fig. 5: CIS-E Wiring Diagram - 420 & 560 Series (Ex. 560SL)

1988 Mercedes-Benz 260E

For DIAKOM-AUTO http://www.diakom.ru Taganrog [e-mail] (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, November 28, 2000 03:32PM

[e-mail]

WIRING DIAGRAMS

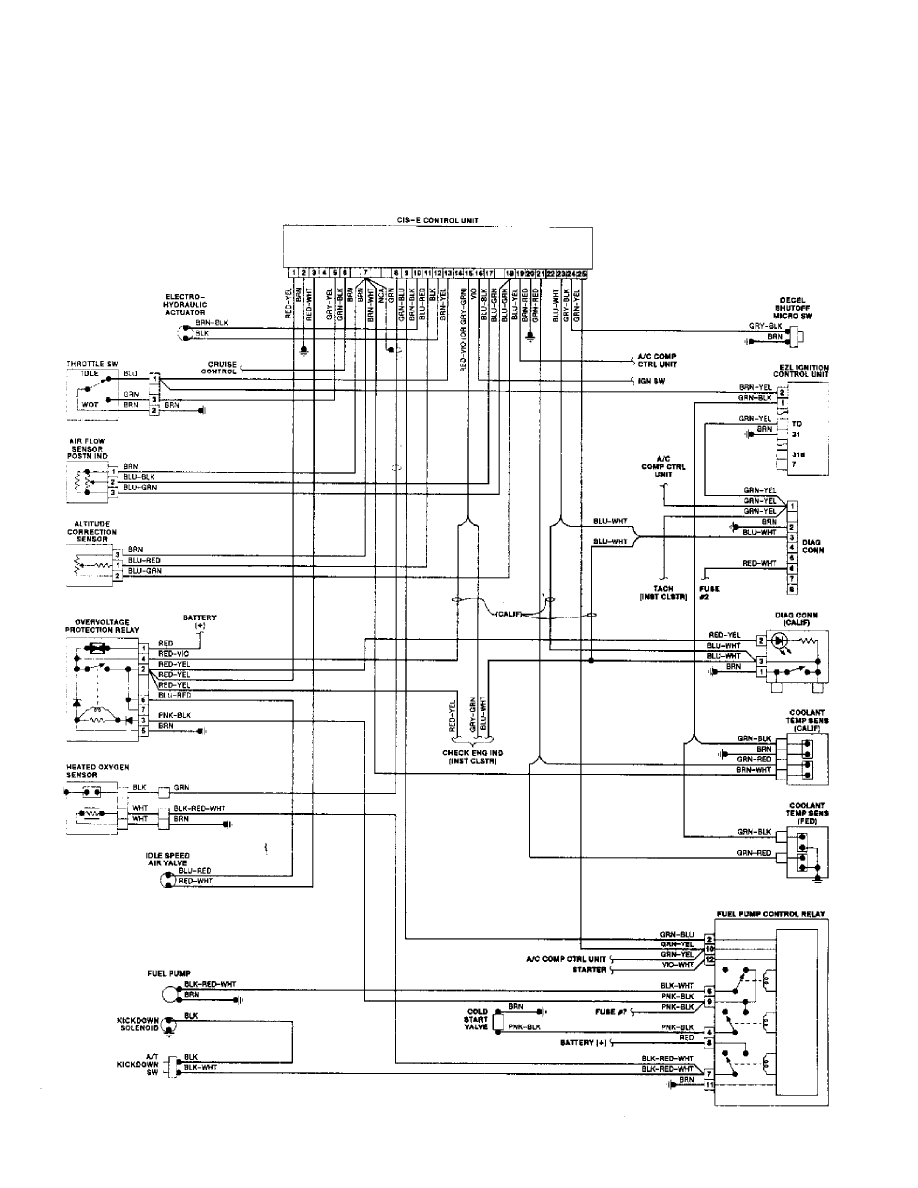

Fig. 6: CIS-E Wiring Diagram - 560SL

1988 Mercedes-Benz 260E

For DIAKOM-AUTO http://www.diakom.ru Taganrog [e-mail] (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, November 28, 2000 03:32PM

WIRING DIAGRAMS

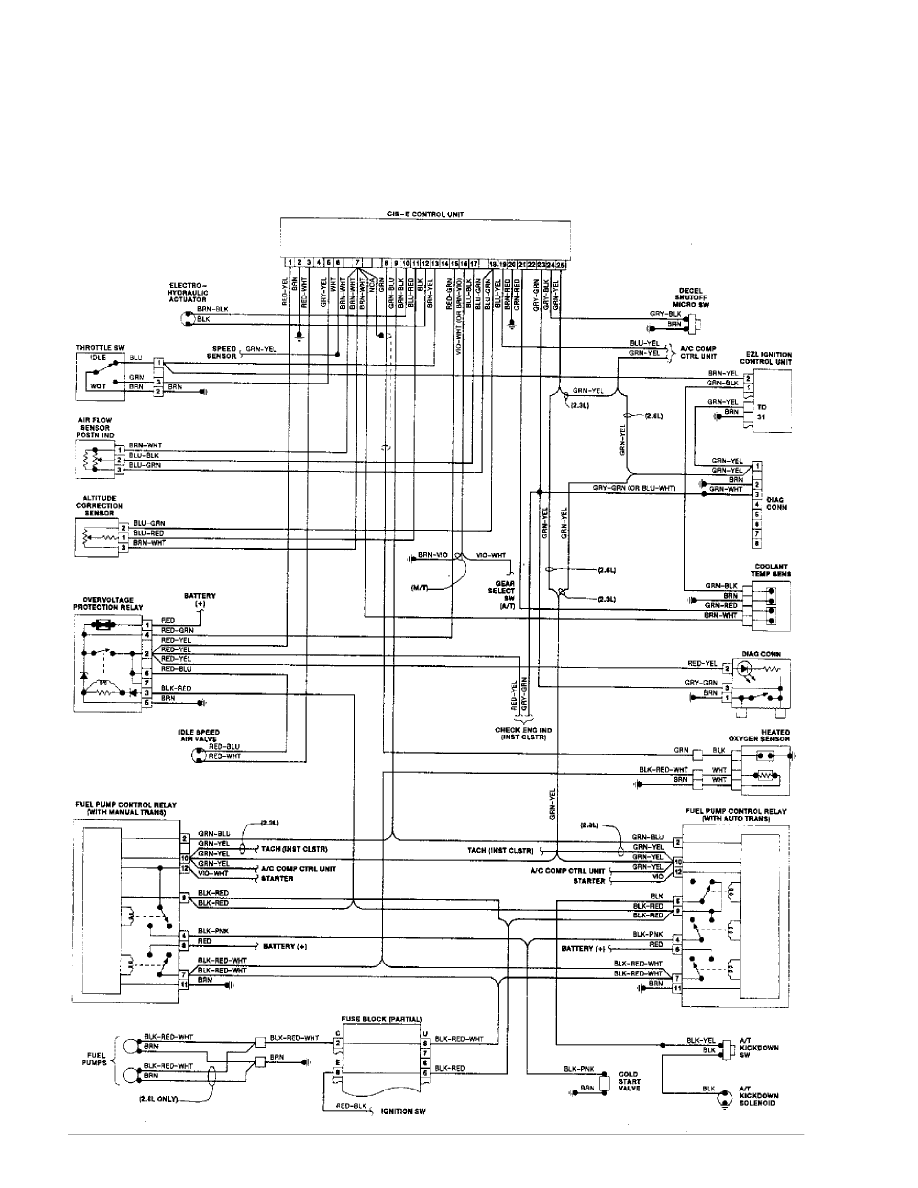

Fig. 2: CIS-E Wiring Diagram - 190E 2.3L & 2.6L (Fed.)

1988 Mercedes-Benz 260E

For DIAKOM-AUTO http://www.diakom.ru Taganrog [e-mail] (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, November 28, 2000 03:31PM

WIRING DIAGRAMS

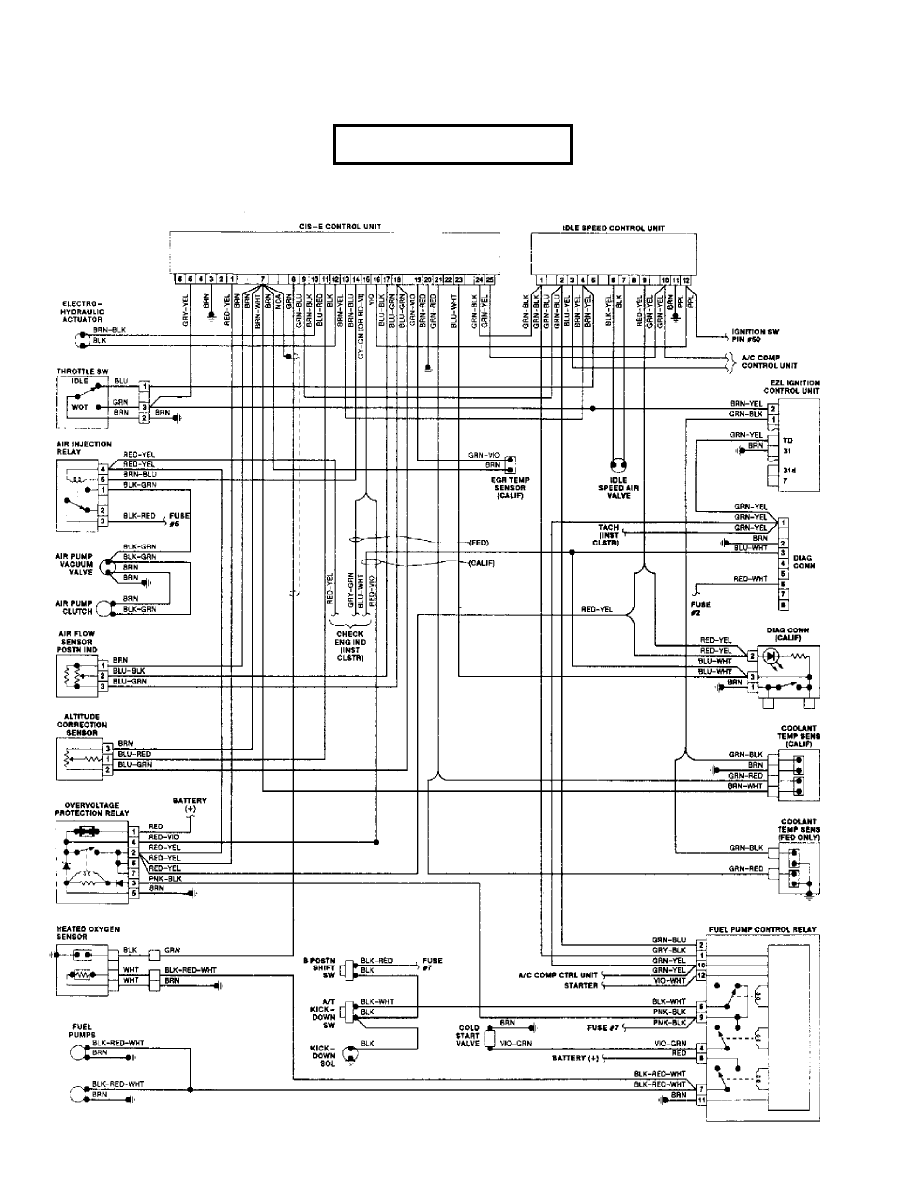

Fig. 3: CIS-E Wiring Diagram - 260E, 300E, 300CE & 300TE

1988 Mercedes-Benz 260E

For DIAKOM-AUTO http://www.diakom.ru Taganrog [e-mail] (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, November 28, 2000 03:31PM

WIRING DIAGRAMS

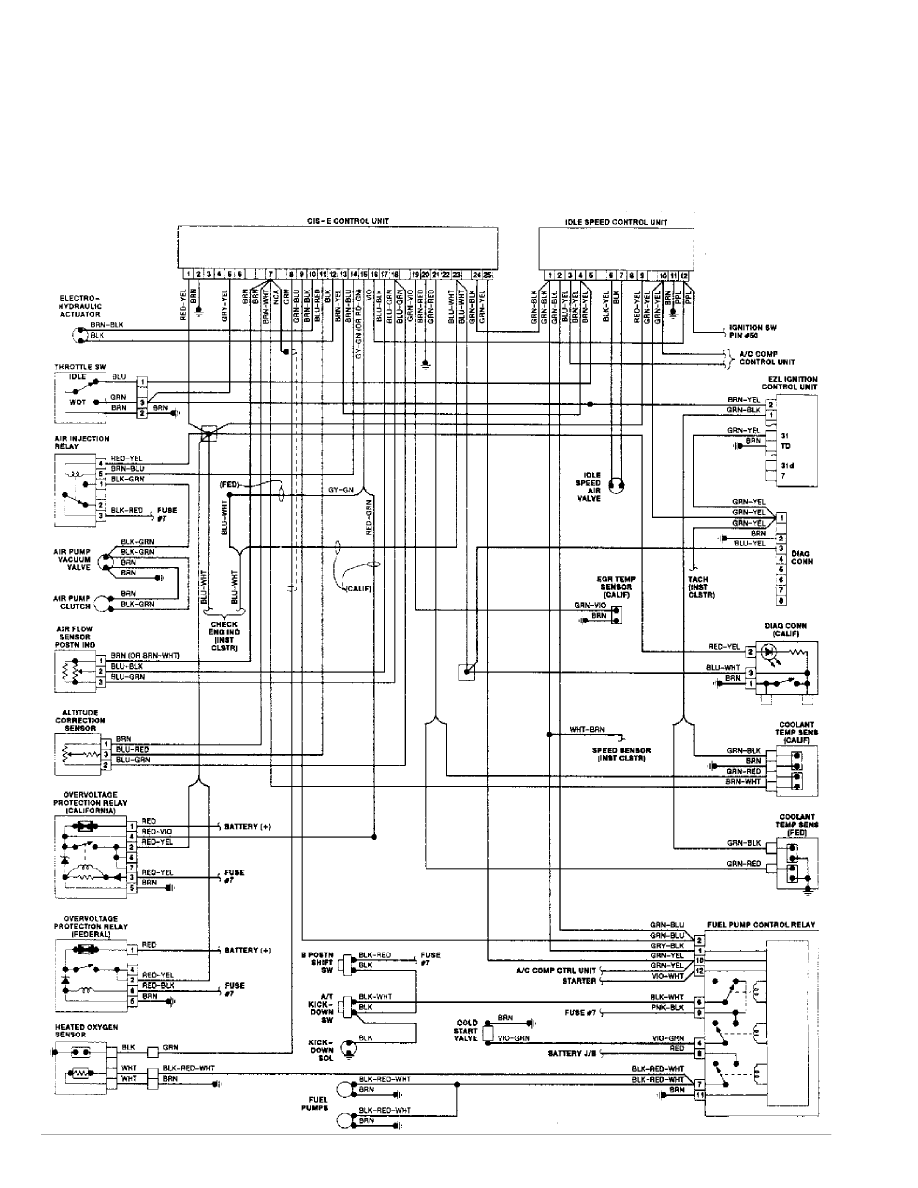

Fig. 4: CIS-E Wiring Diagram - 300SE & 300SEL

1988 Mercedes-Benz 260E

For DIAKOM-AUTO http://www.diakom.ru Taganrog [e-mail] (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, November 28, 2000 03:32PM

WIRING DIAGRAMS

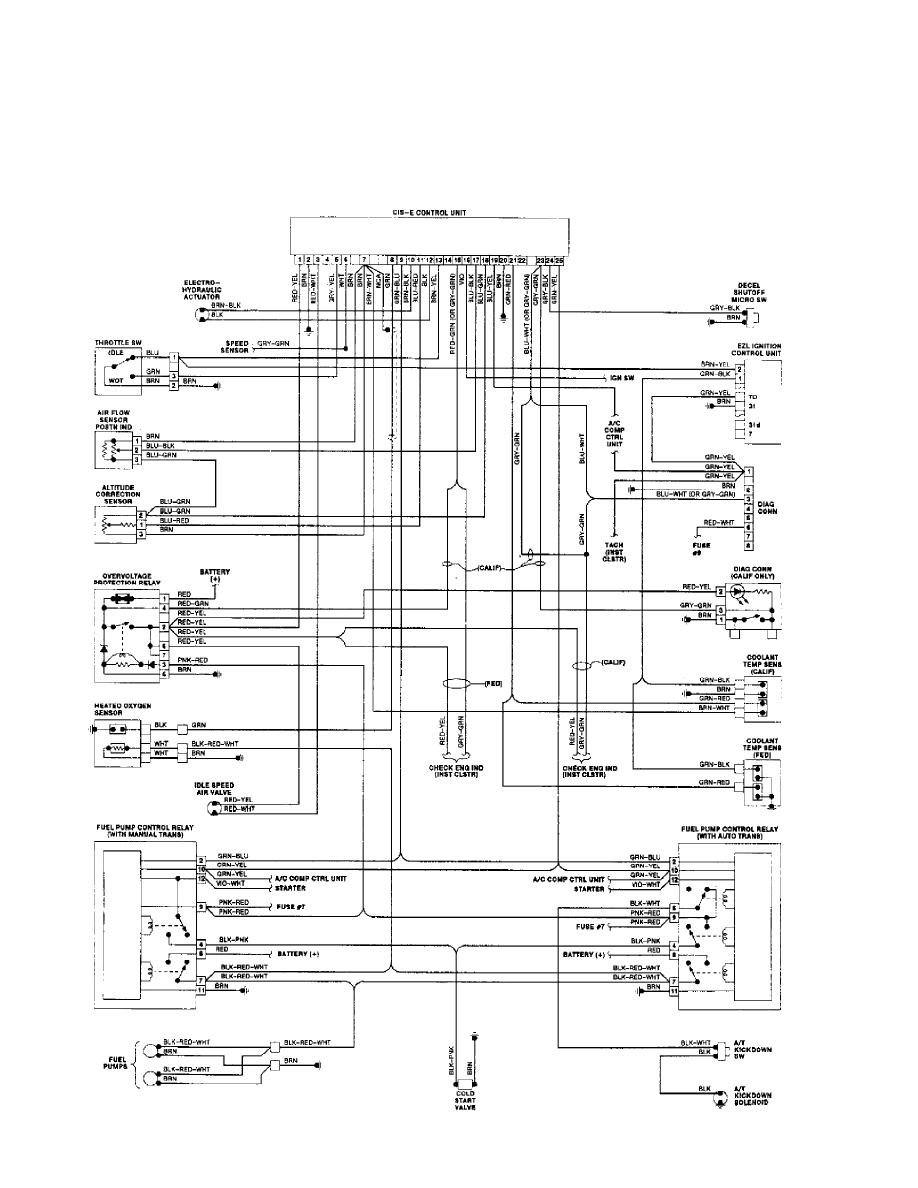

Fig. 1: CIS-E Wiring Diagram - 190E 2.3L & 2.6L (Calif.)

1988 Mercedes-Benz 260E

For DIAKOM-AUTO http://www.diakom.ru Taganrog [e-mail] (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, November 28, 2000 03:31PM
