MERCEDES BENZ 560SL 1989

background image

SYSTEM WIRING DIAGRAMS

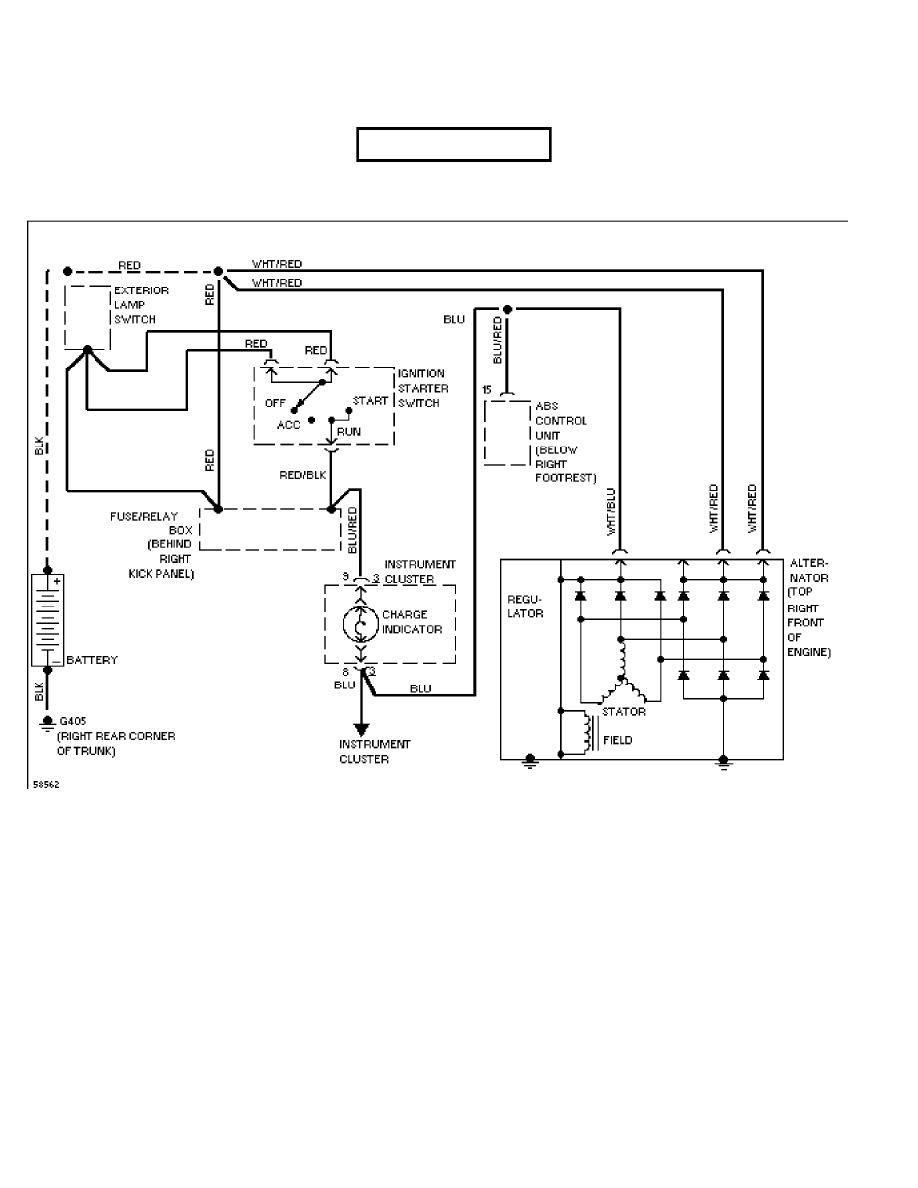

Charging Circuit

1989 Mercedes-Benz 560SL

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Wednesday, November 29, 2000 08:51PM

cdr@wp.pl

background image

SYSTEM WIRING DIAGRAMS

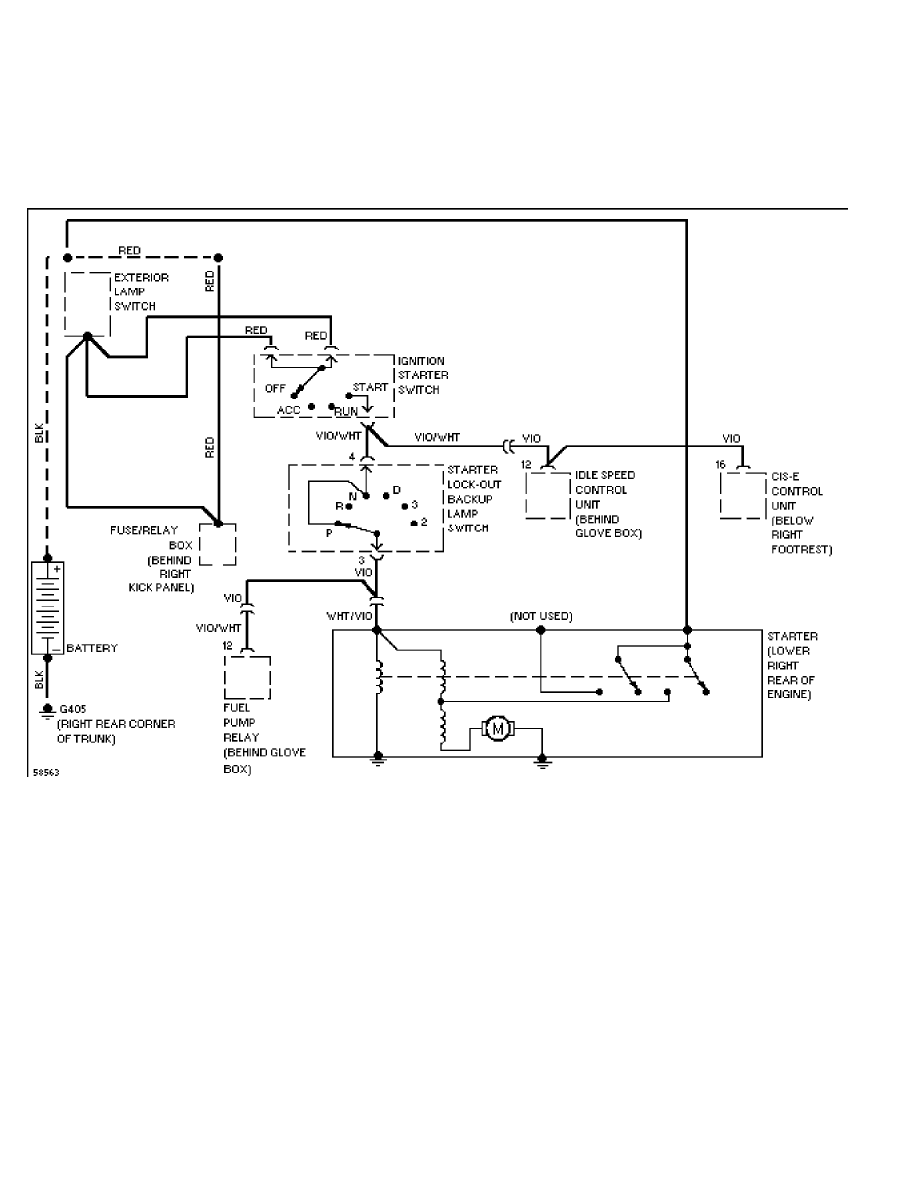

Starting Circuit

1989 Mercedes-Benz 560SL

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Wednesday, November 29, 2000 08:51PM

background image

SYSTEM WIRING DIAGRAMS

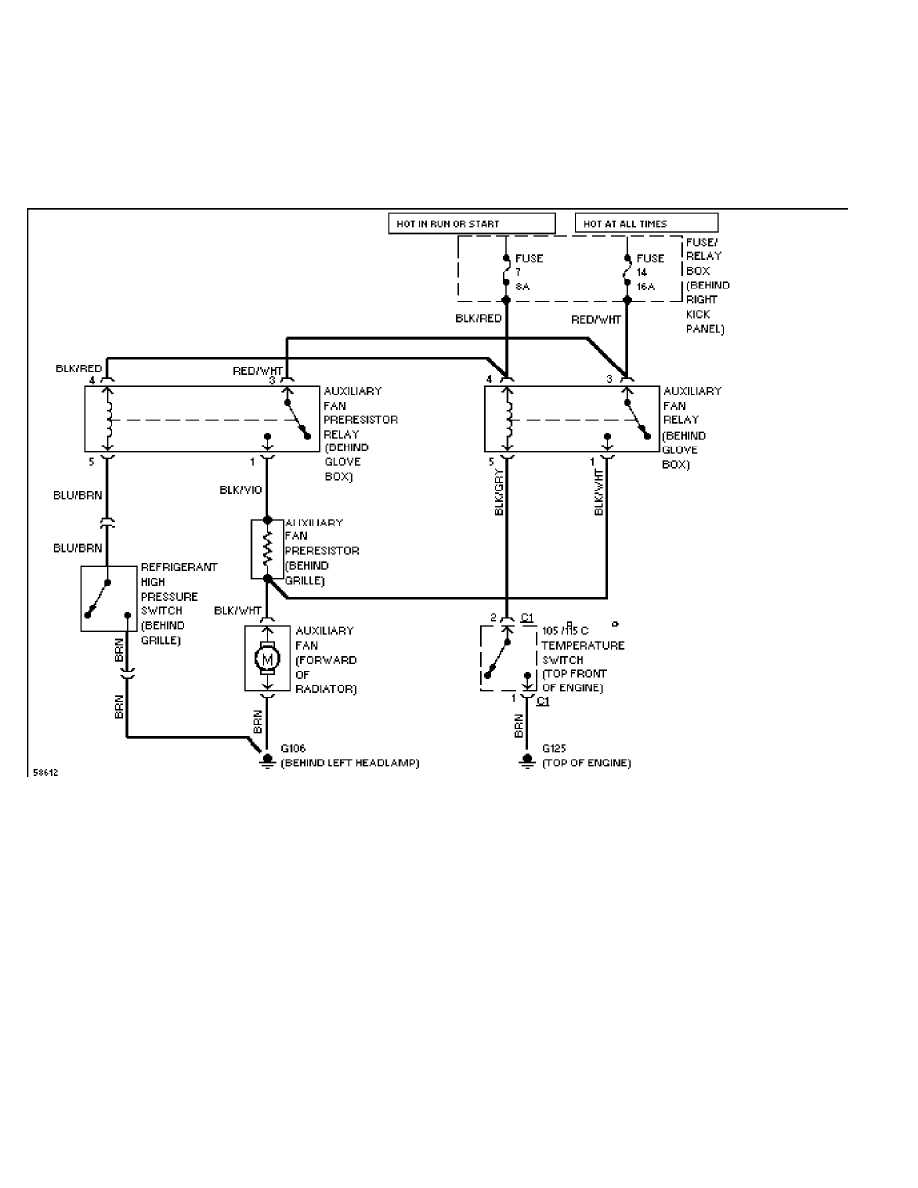

Cooling Fan Circuit

1989 Mercedes-Benz 560SL

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Wednesday, November 29, 2000 08:49PM

background image

SYSTEM WIRING DIAGRAMS

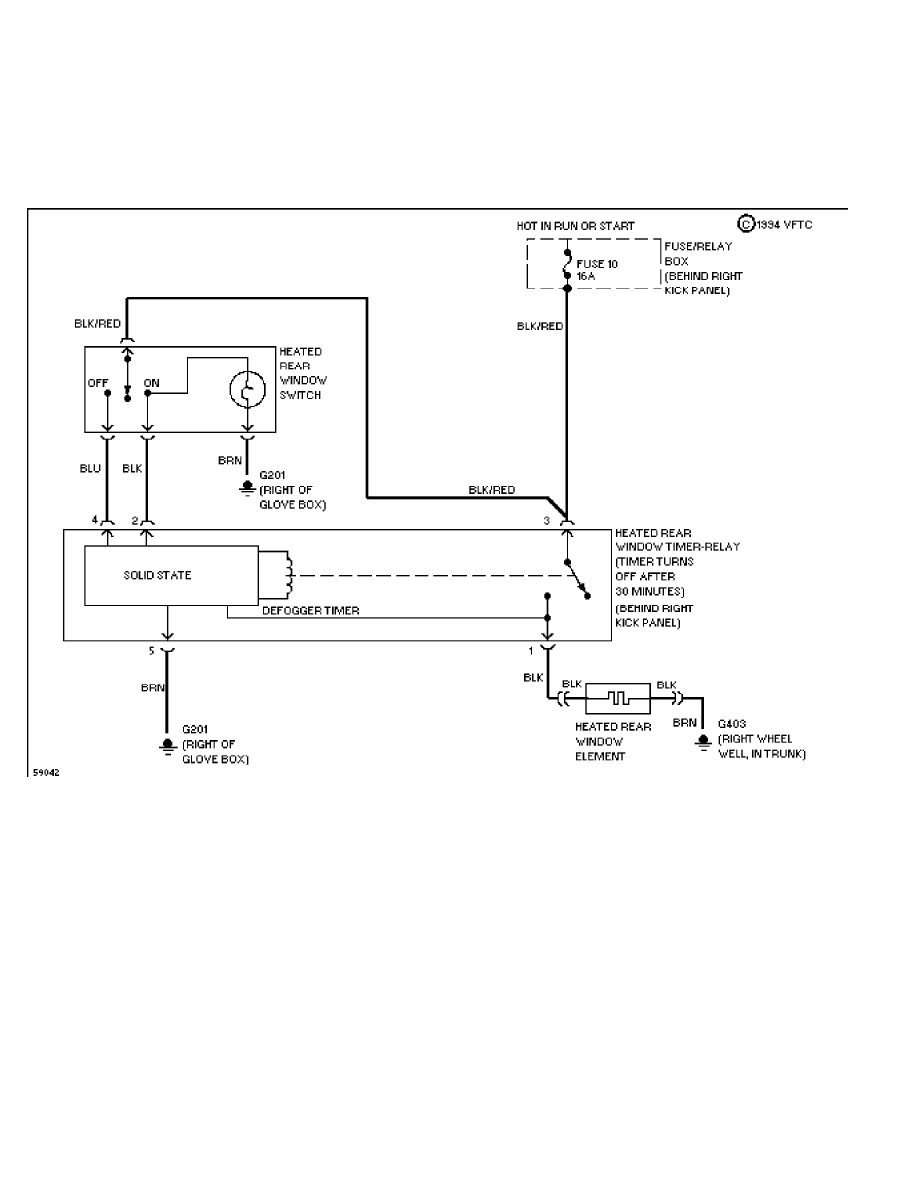

Defogger Circuit

1989 Mercedes-Benz 560SL

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Wednesday, November 29, 2000 08:50PM

background image

SYSTEM WIRING DIAGRAMS

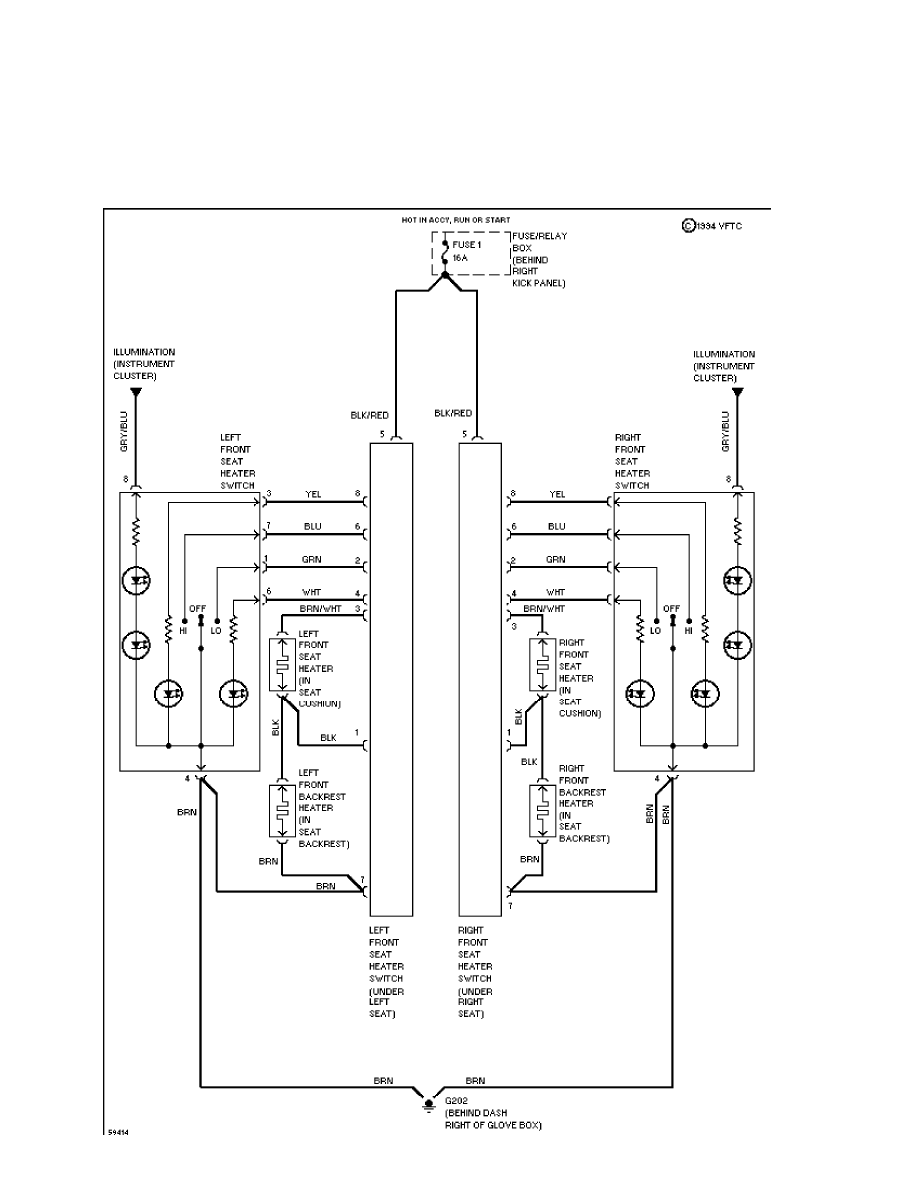

Heater Circuit

1989 Mercedes-Benz 560SL

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Wednesday, November 29, 2000 08:51PM

background image

SYSTEM WIRING DIAGRAMS

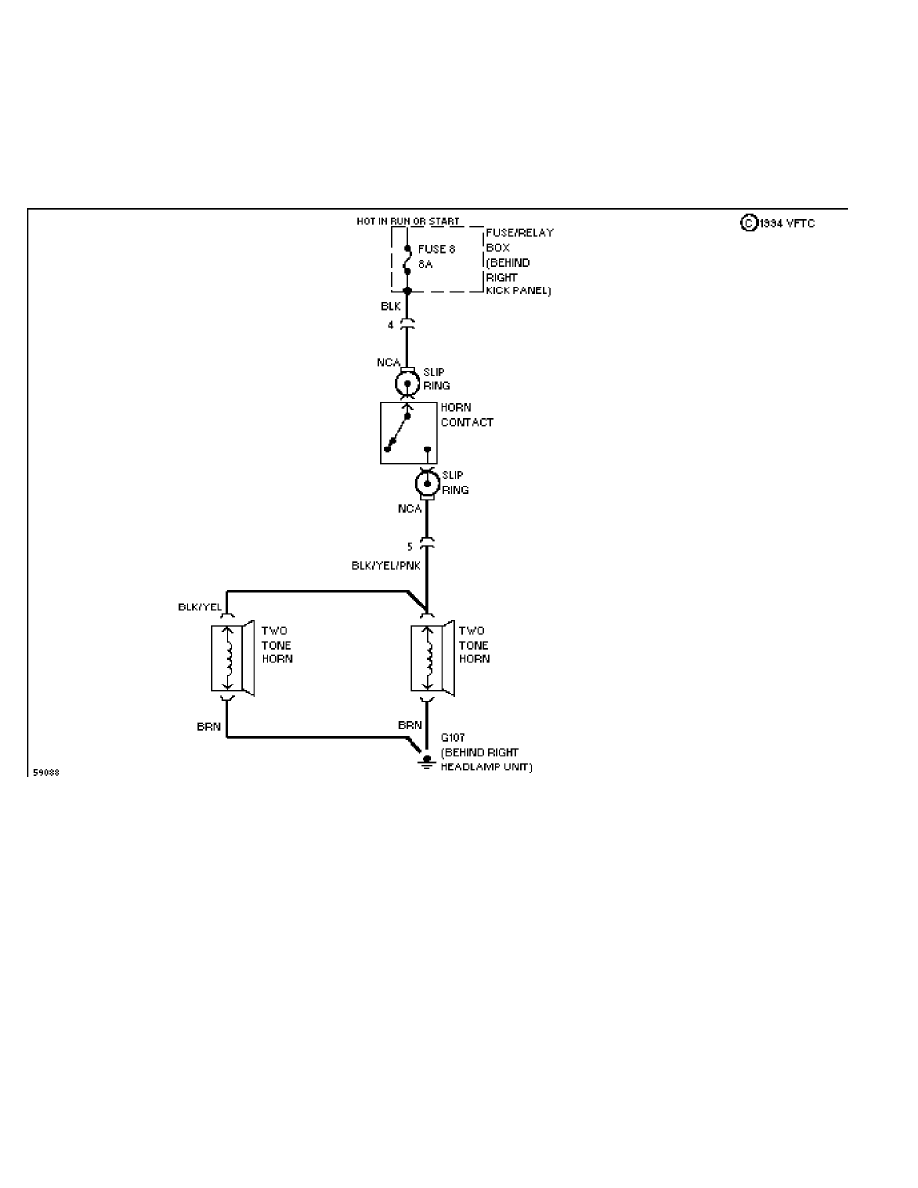

Horn Circuit

1989 Mercedes-Benz 560SL

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Wednesday, November 29, 2000 08:50PM

background image

SYSTEM WIRING DIAGRAMS

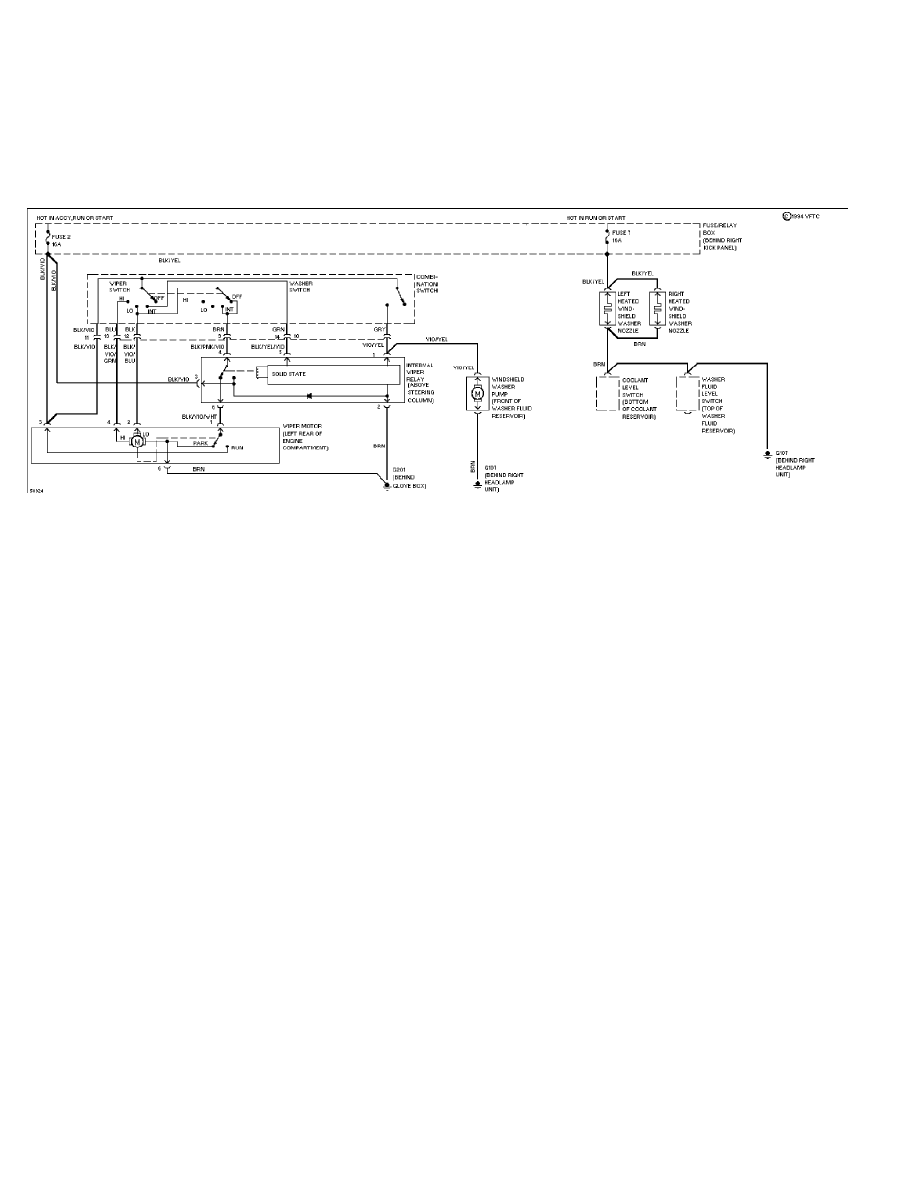

Interval Wiper/Washer Circuit

1989 Mercedes-Benz 560SL

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Wednesday, November 29, 2000 08:51PM

background image

SYSTEM WIRING DIAGRAMS

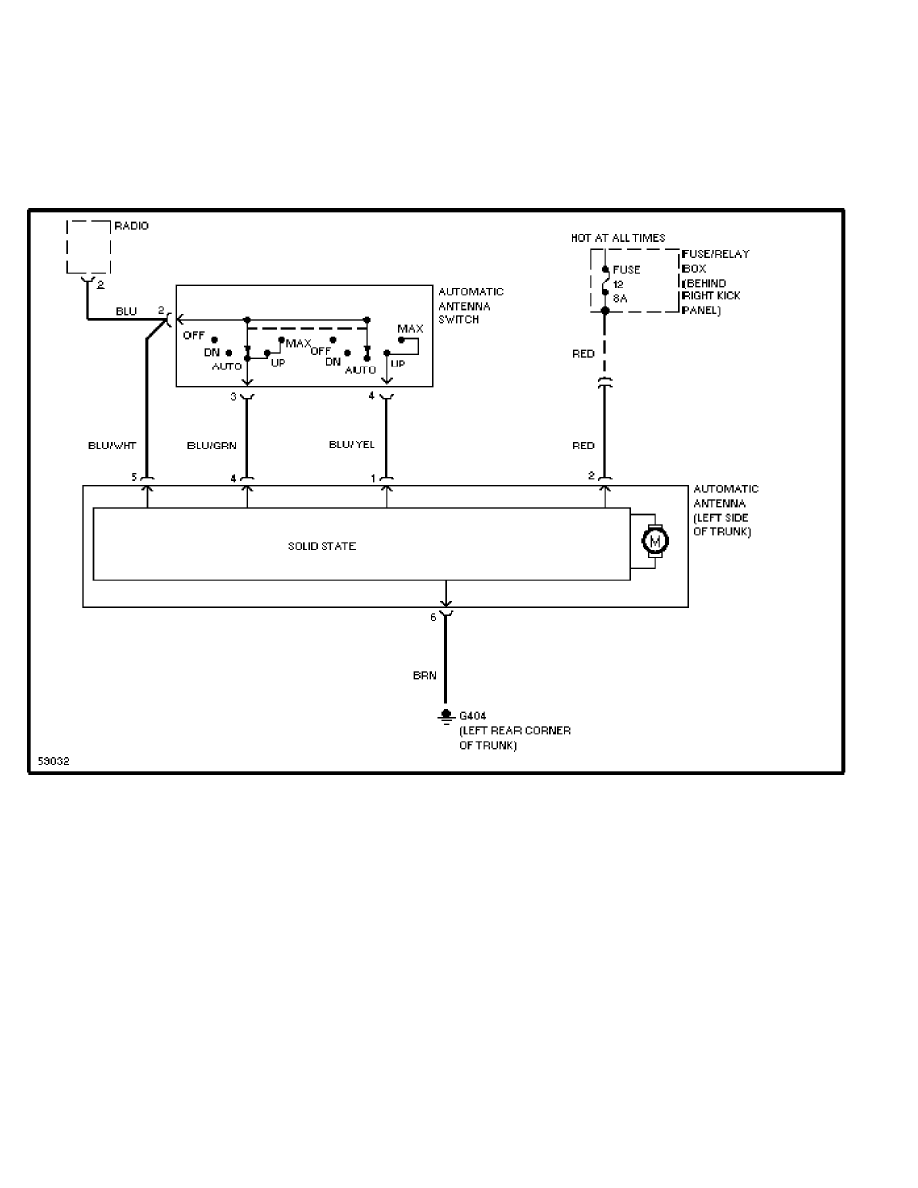

Power Antenna Circuit

1989 Mercedes-Benz 560SL

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Wednesday, November 29, 2000 08:50PM

background image

SYSTEM WIRING DIAGRAMS

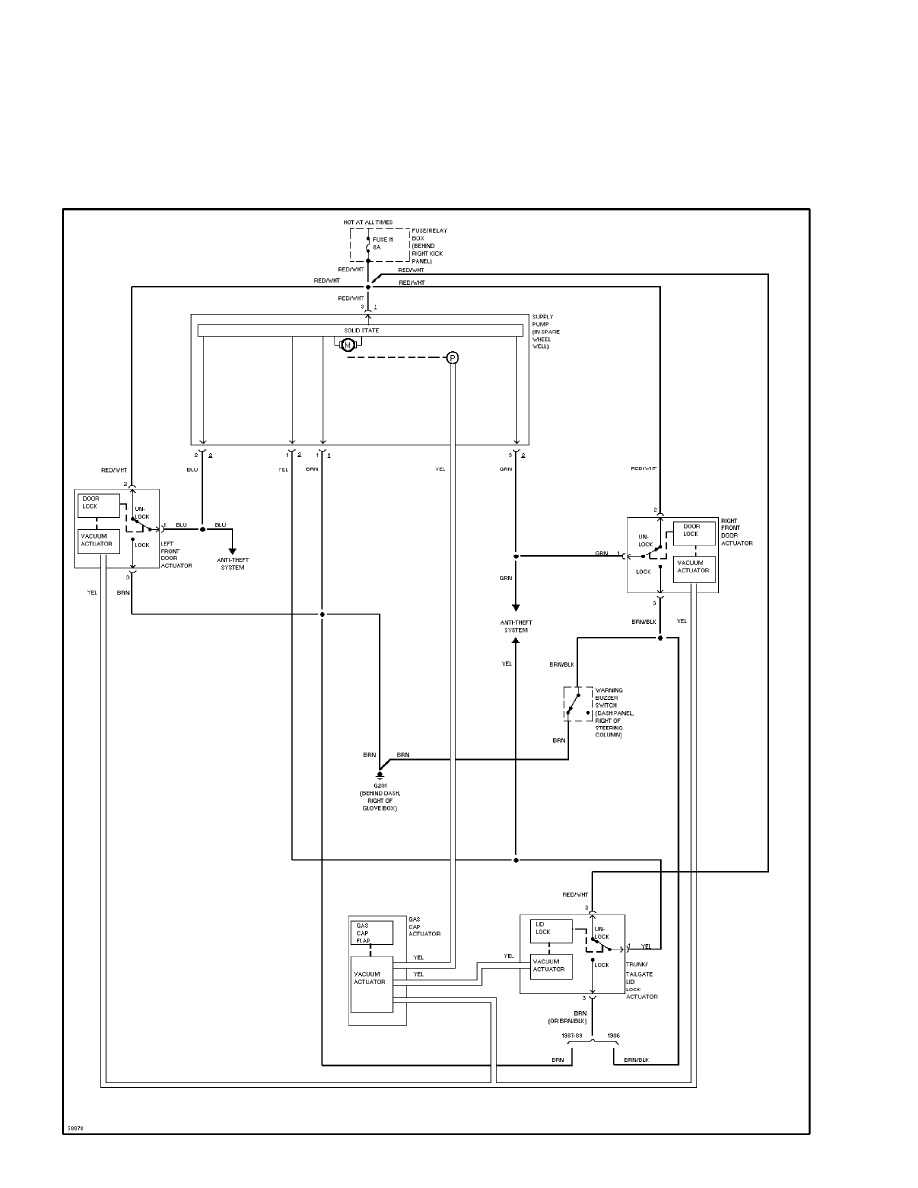

Power Door Lock Circuit

1989 Mercedes-Benz 560SL

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Wednesday, November 29, 2000 08:50PM

background image

SYSTEM WIRING DIAGRAMS

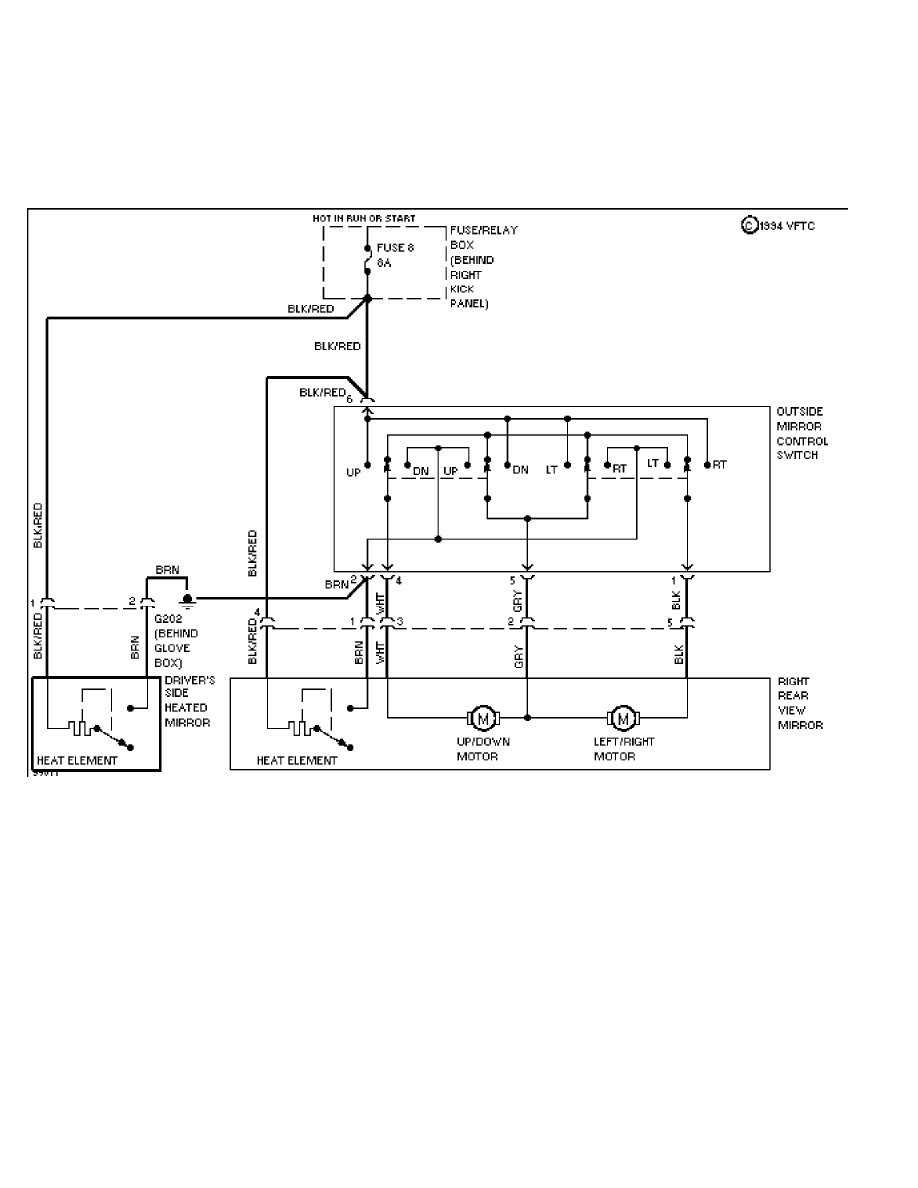

Power Mirror Circuit

1989 Mercedes-Benz 560SL

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Wednesday, November 29, 2000 08:50PM

background image

SYSTEM WIRING DIAGRAMS

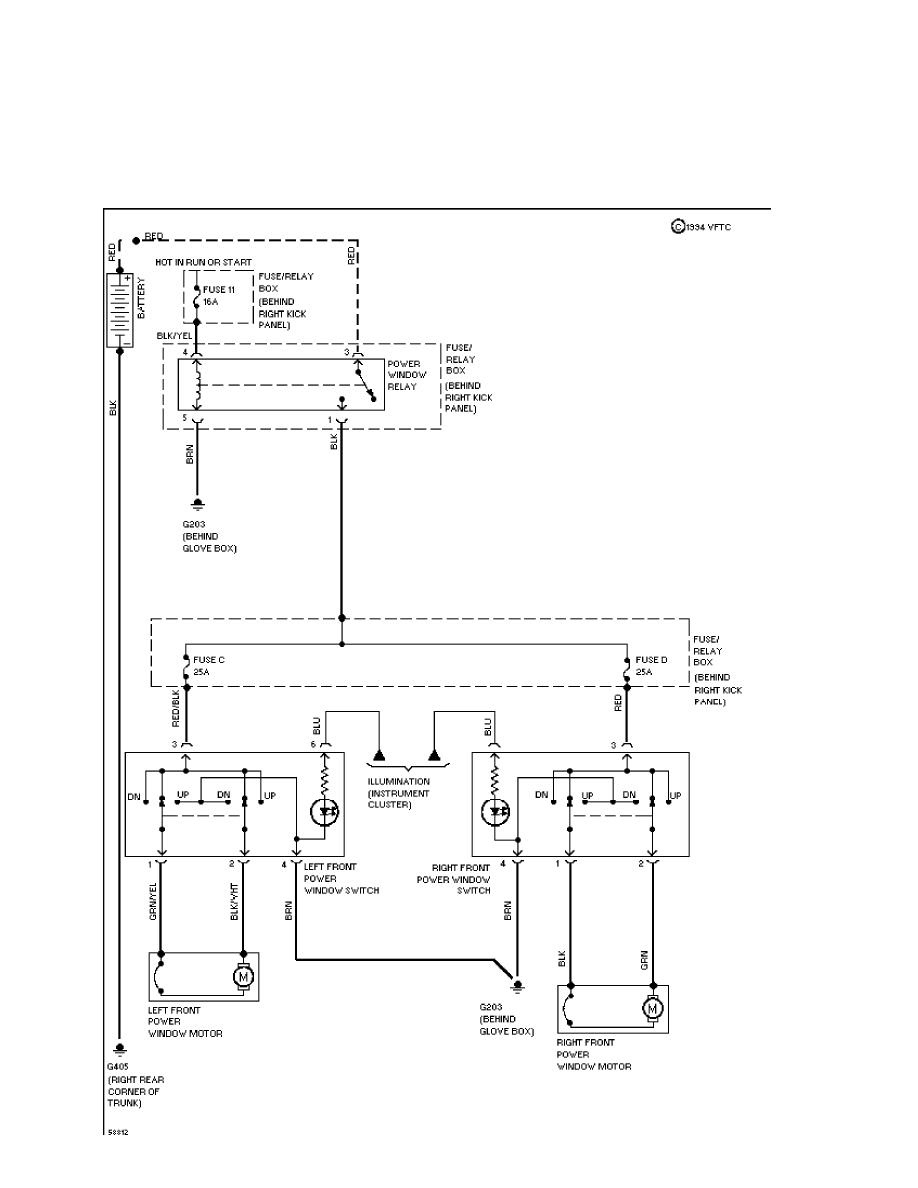

Power Window Circuit

1989 Mercedes-Benz 560SL

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Wednesday, November 29, 2000 08:51PM

background image

SYSTEM WIRING DIAGRAMS

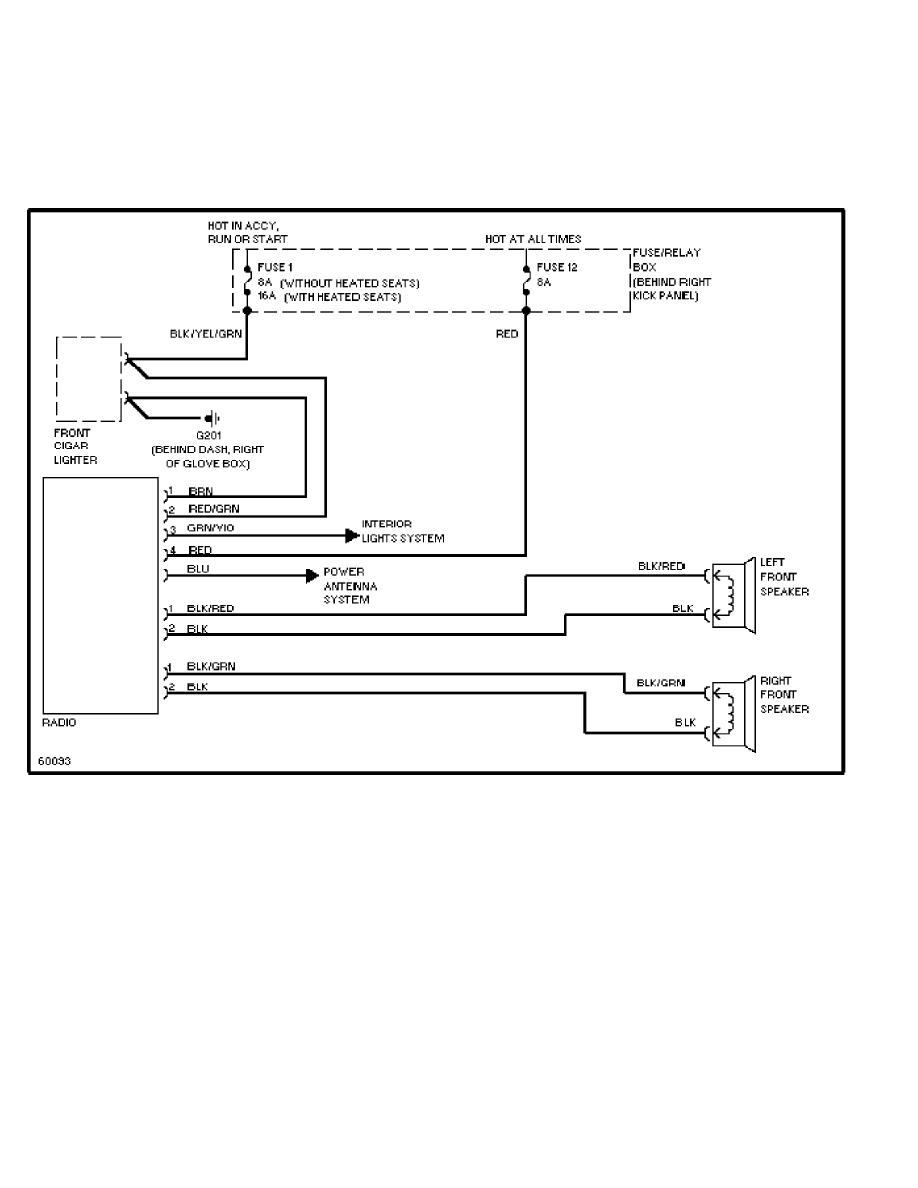

Radio Circuits

1989 Mercedes-Benz 560SL

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Wednesday, November 29, 2000 08:51PM
