MERCEDES BENZ 500E 1992

background image

SYSTEM WIRING DIAGRAMS

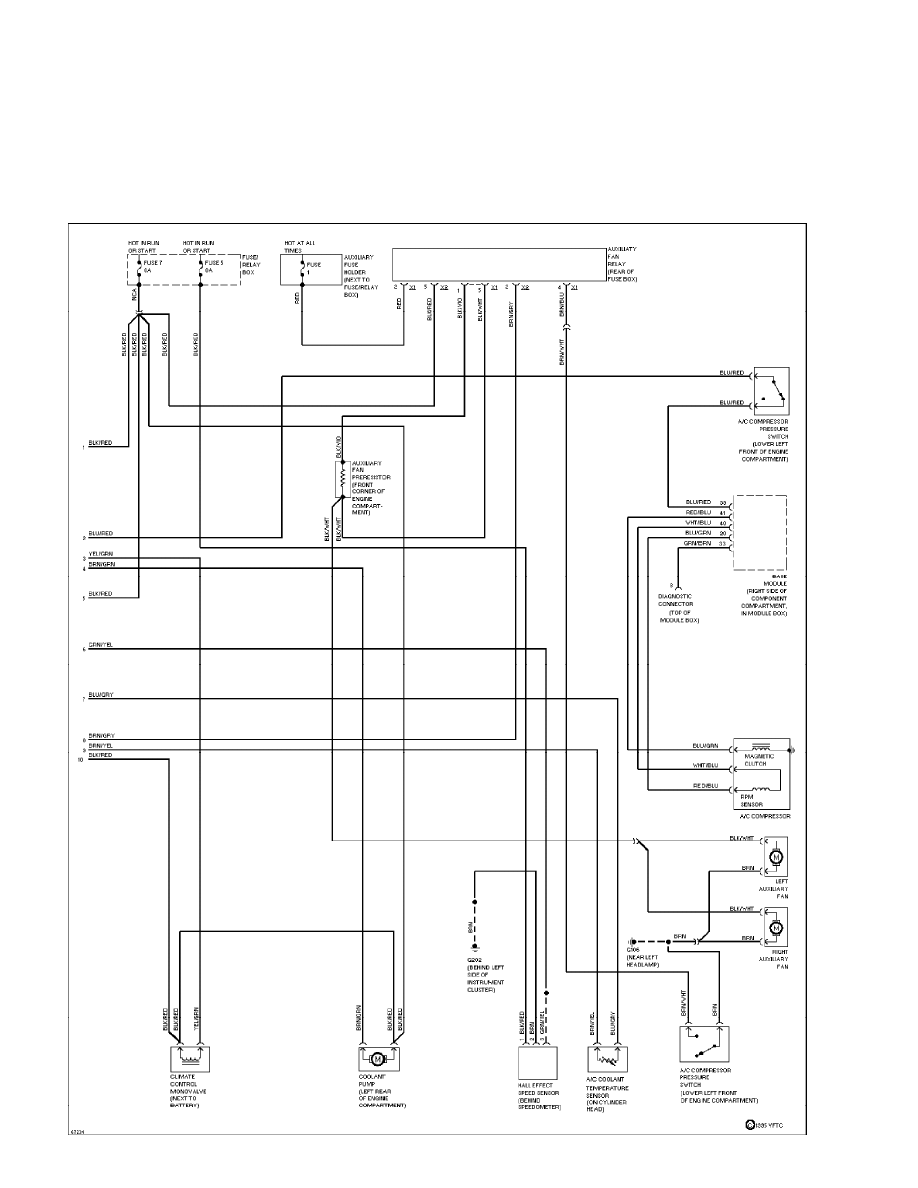

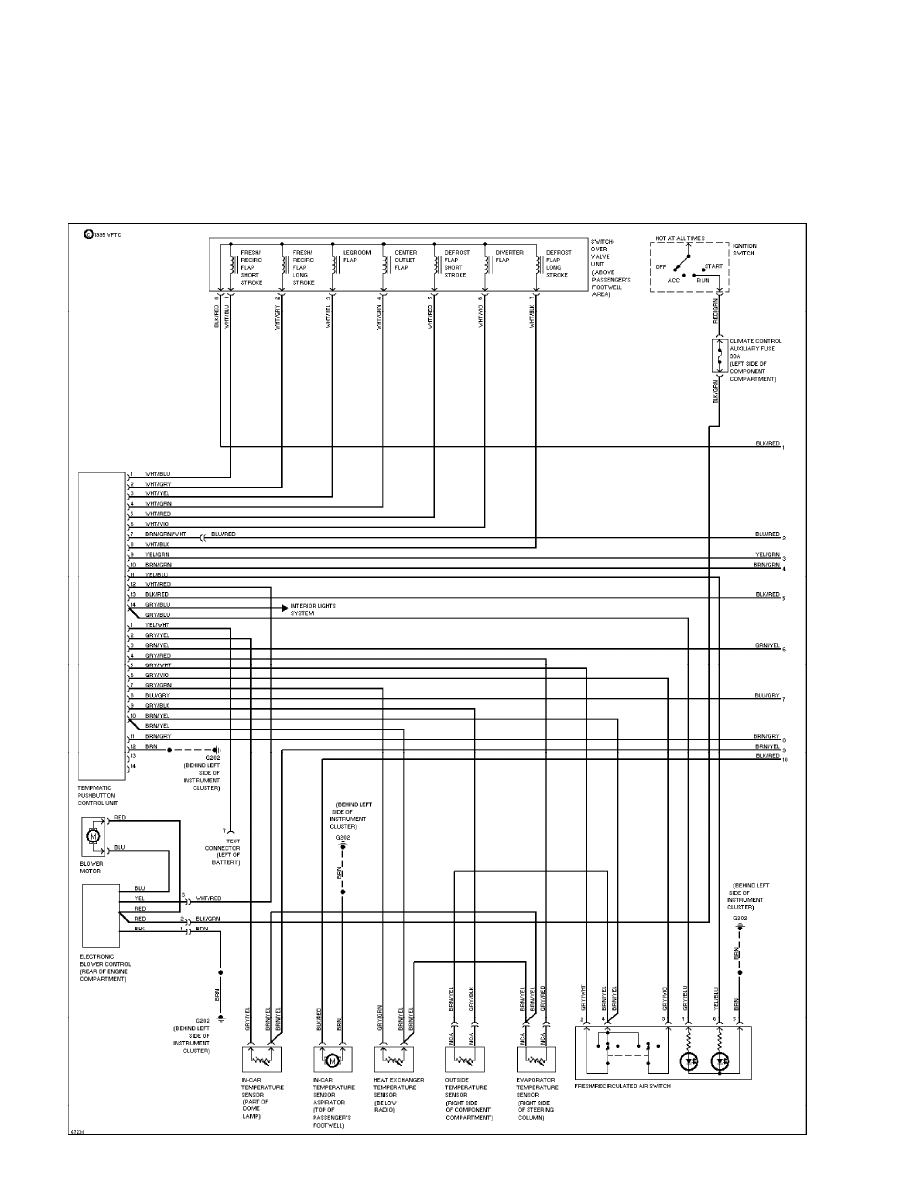

Air Conditioning Circuits (1 of 2)

1992 Mercedes-Benz 500E

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, April 02, 2006 03:40PM

background image

SYSTEM WIRING DIAGRAMS

Air Conditioning Circuits (2 of 2) (p. 2)

1992 Mercedes-Benz 500E

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, April 02, 2006 03:40PM

background image

SYSTEM WIRING DIAGRAMS

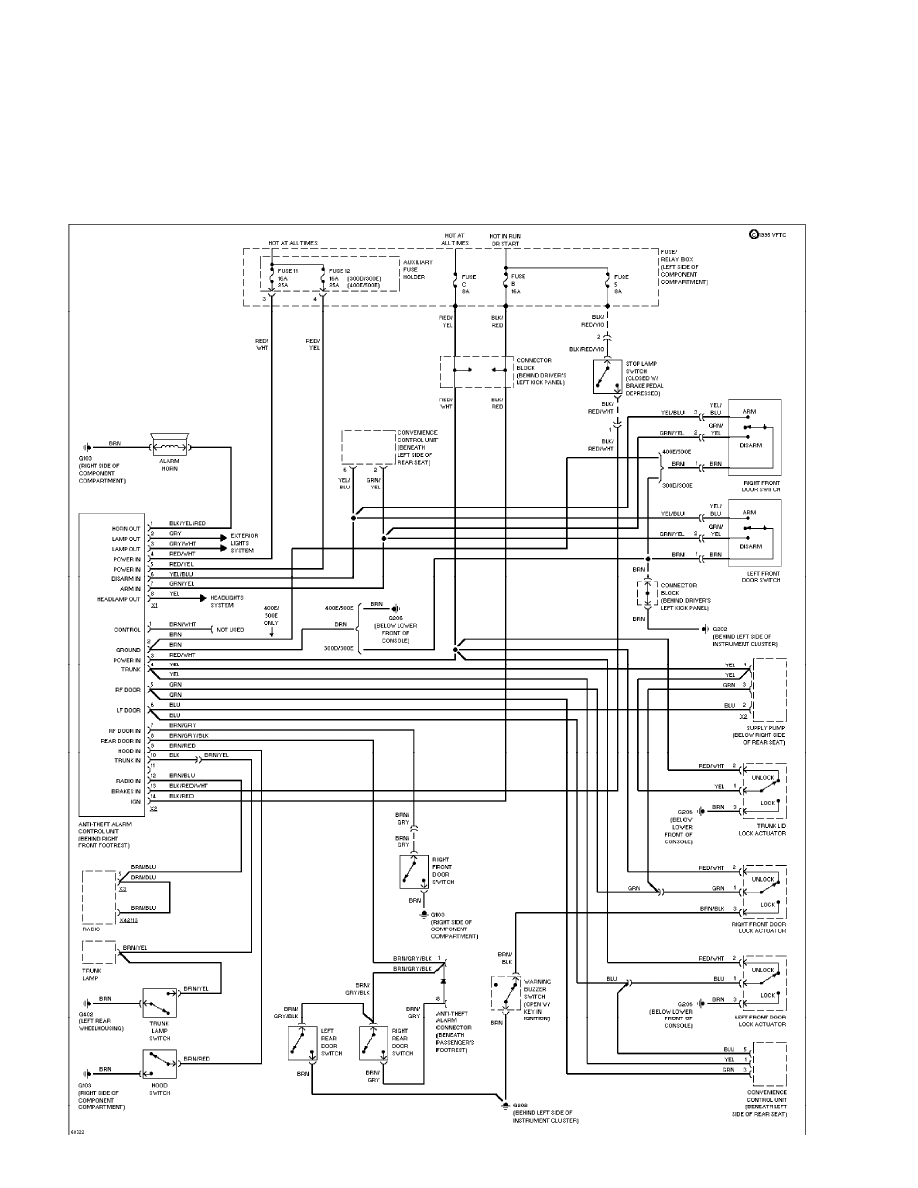

Anti-theft Circuit (p. 3)

1992 Mercedes-Benz 500E

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, April 02, 2006 03:40PM

background image

SYSTEM WIRING DIAGRAMS

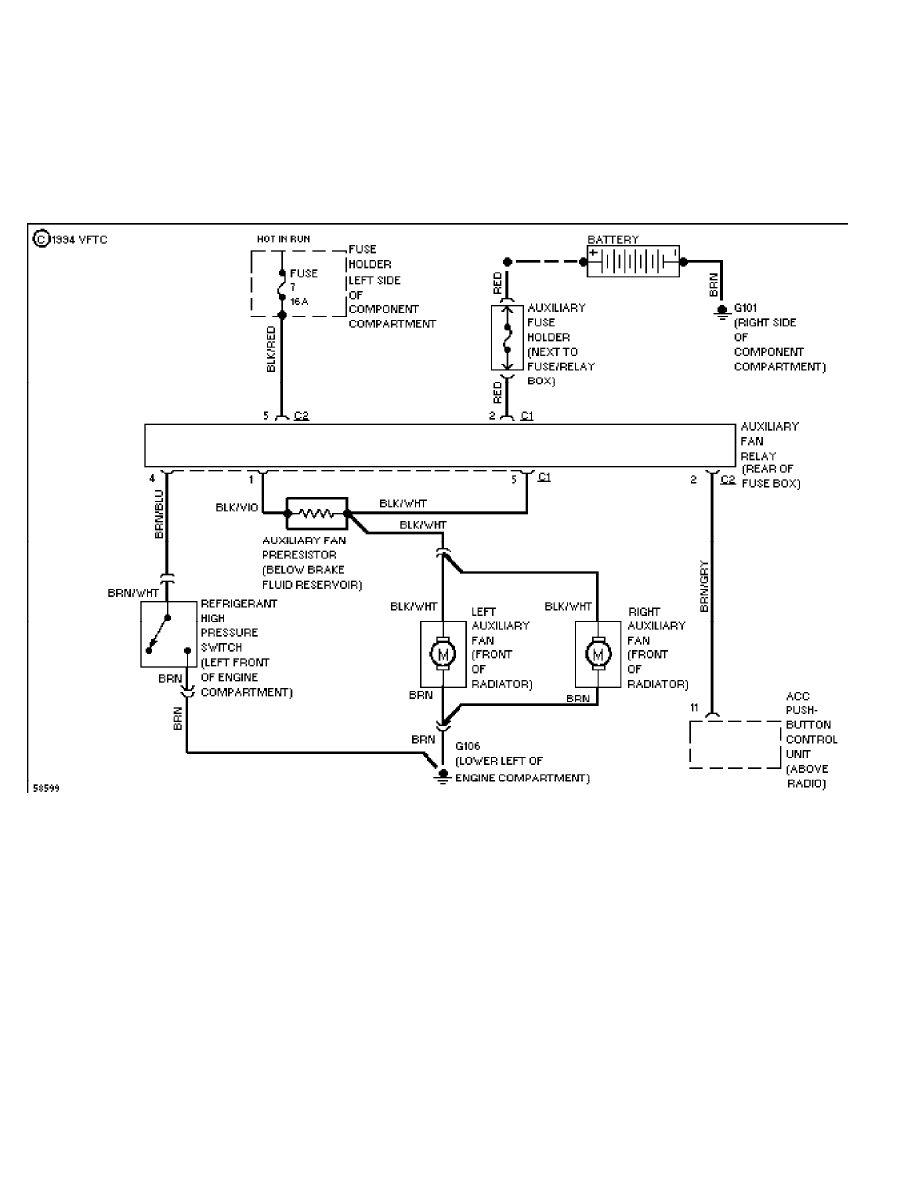

Cooling Fan Circuit (p. 4)

1992 Mercedes-Benz 500E

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, April 02, 2006 03:40PM

background image

SYSTEM WIRING DIAGRAMS

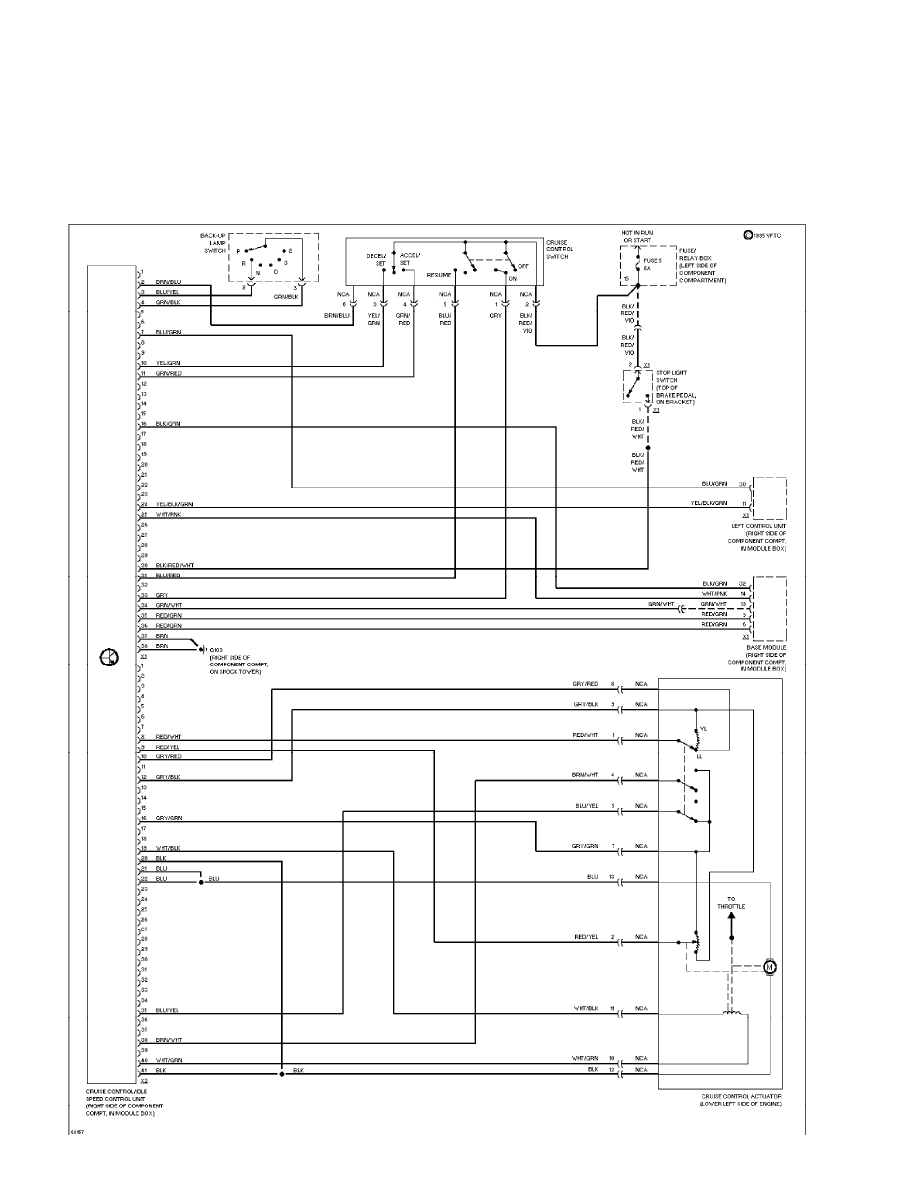

Cruise Control Circuit (p. 5)

1992 Mercedes-Benz 500E

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, April 02, 2006 03:40PM

background image

SYSTEM WIRING DIAGRAMS

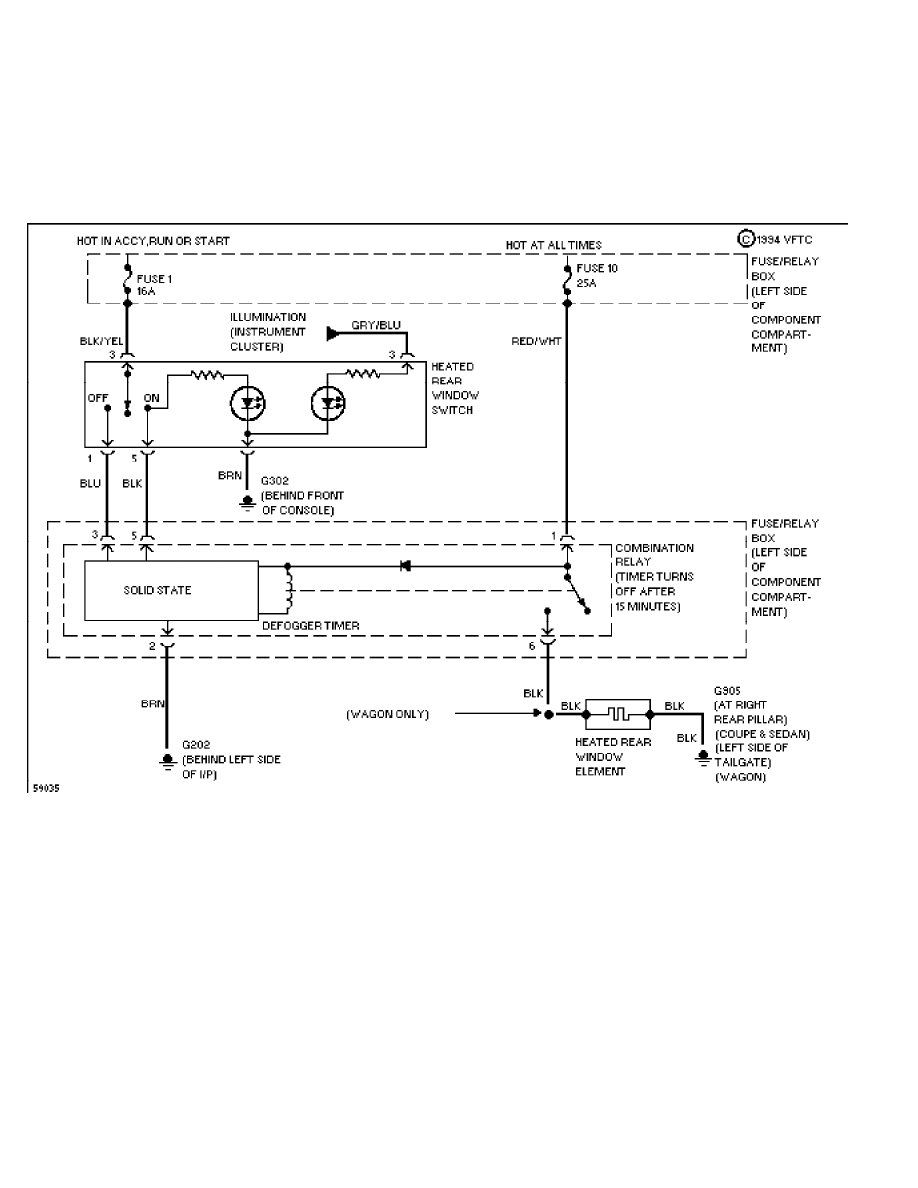

Defogger Circuit (p. 6)

1992 Mercedes-Benz 500E

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, April 02, 2006 03:40PM

background image

SYSTEM WIRING DIAGRAMS

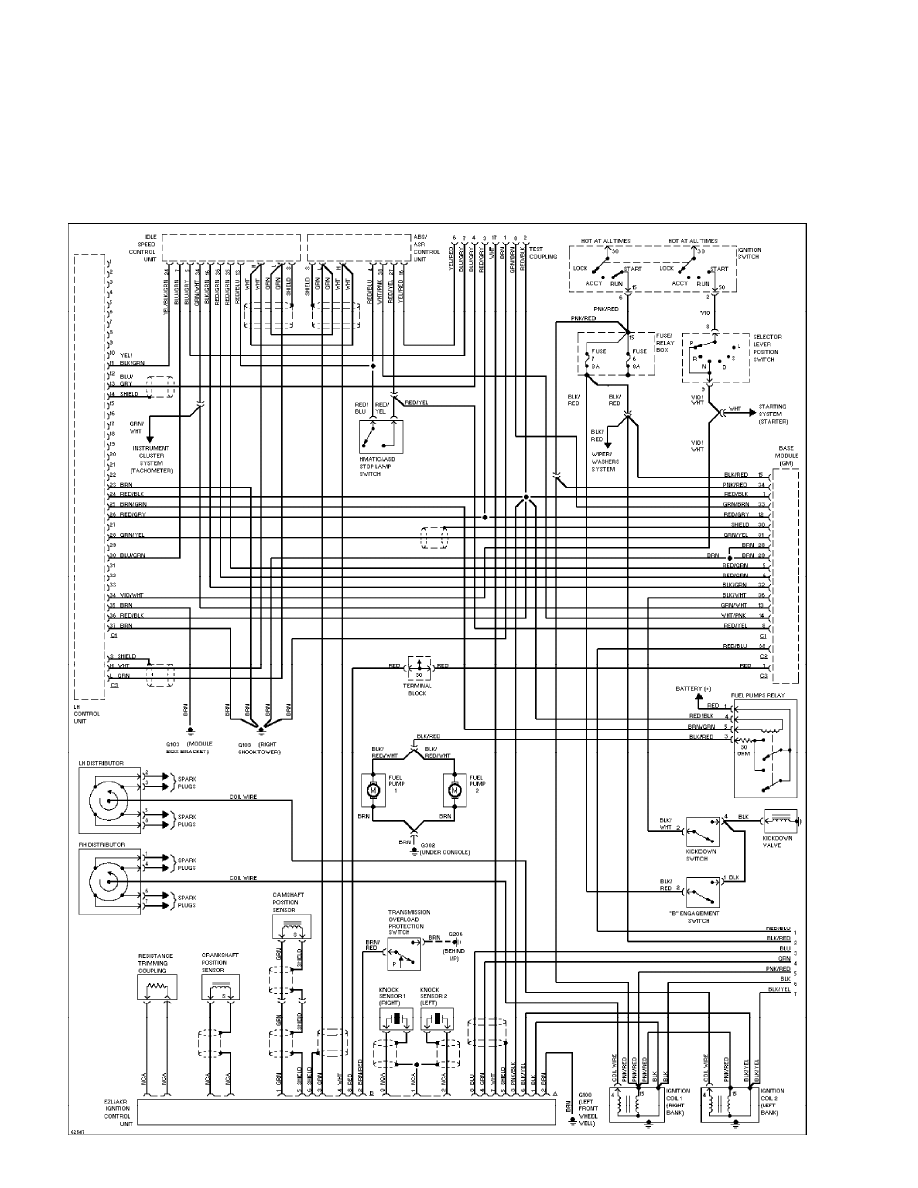

5.0L, Engine Performance Circuits (1 of 2) (p. 7)

1992 Mercedes-Benz 500E

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, April 02, 2006 03:40PM

background image

SYSTEM WIRING DIAGRAMS

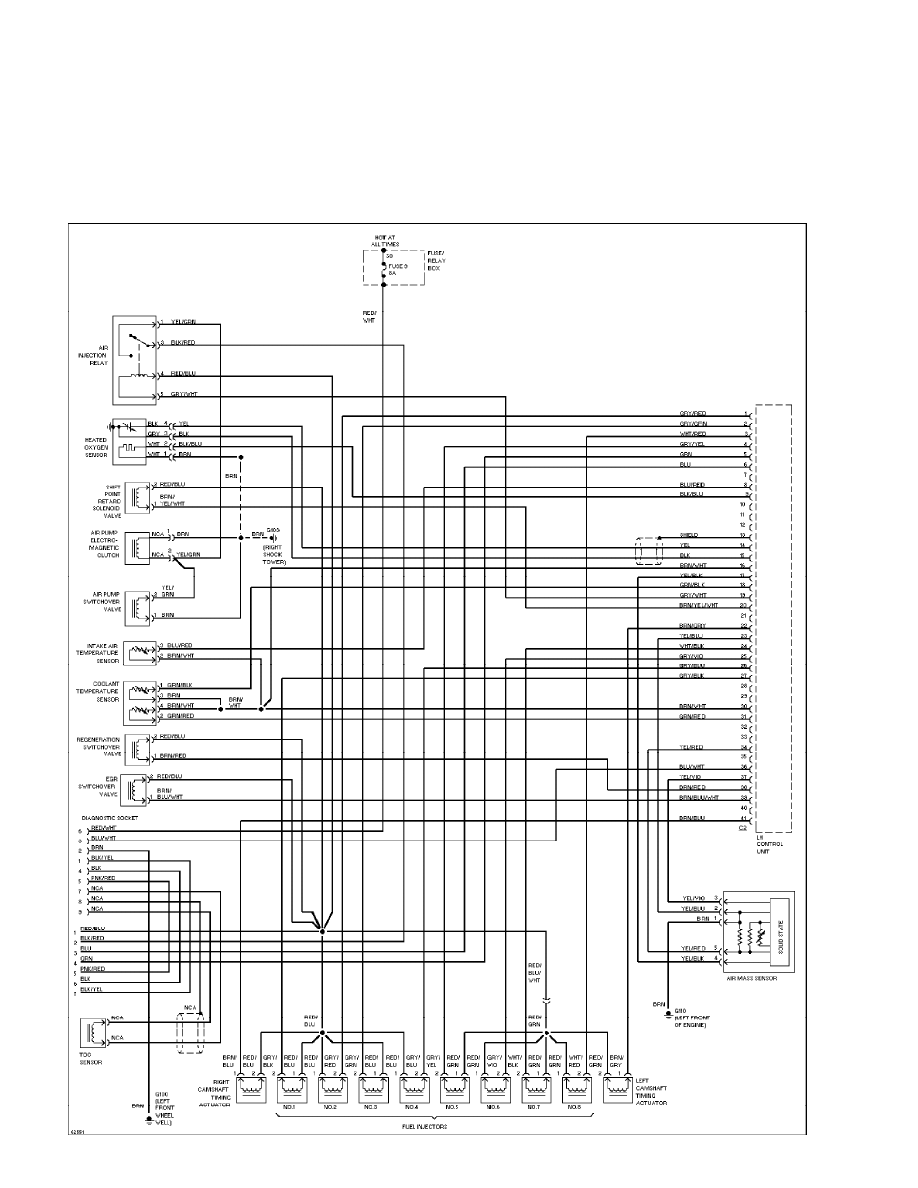

5.0L, Engine Performance Circuits (2 of 2) (p. 8)

1992 Mercedes-Benz 500E

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, April 02, 2006 03:40PM

background image

SYSTEM WIRING DIAGRAMS

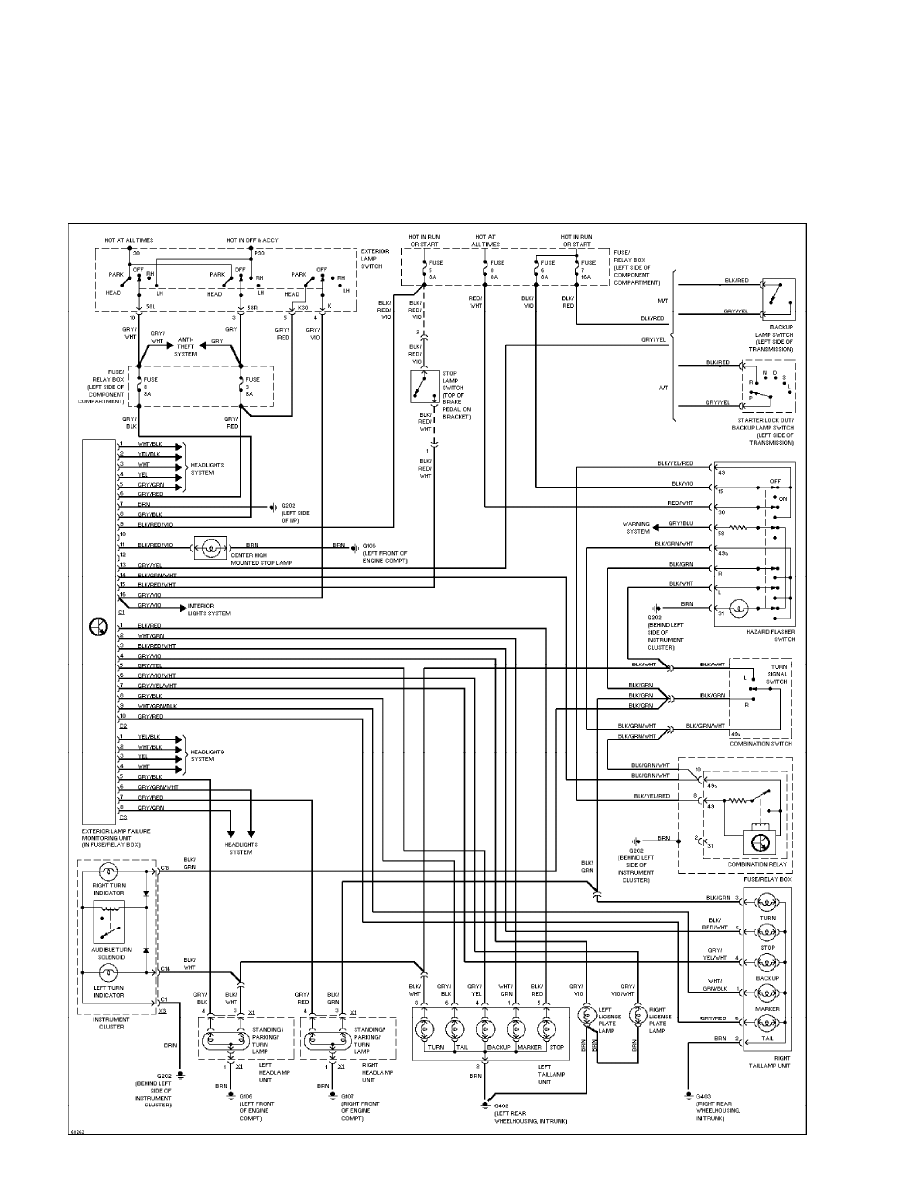

Exterior Light Circuit (p. 9)

1992 Mercedes-Benz 500E

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, April 02, 2006 03:40PM

background image

SYSTEM WIRING DIAGRAMS

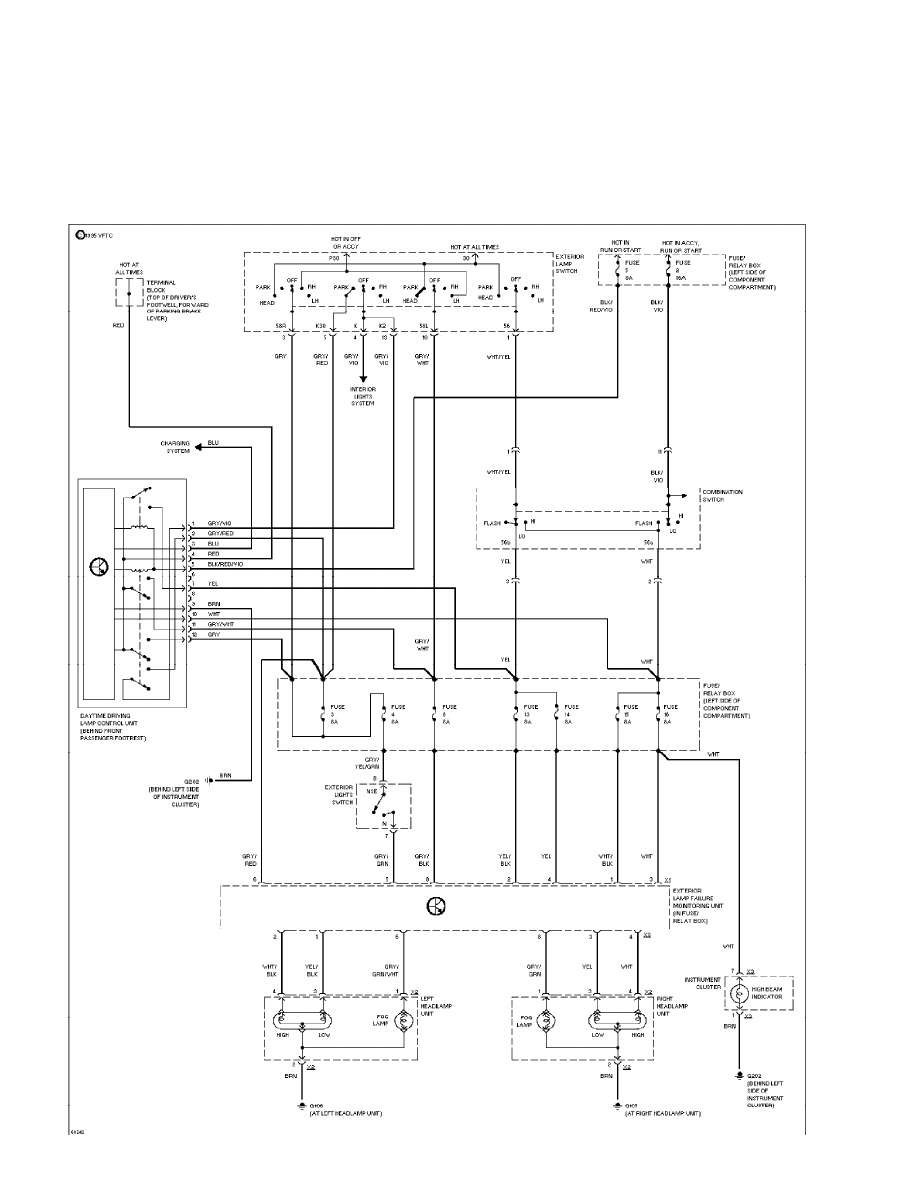

Headlight Circuit, W/ DRL (p. 10)

1992 Mercedes-Benz 500E

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, April 02, 2006 03:40PM

background image

SYSTEM WIRING DIAGRAMS

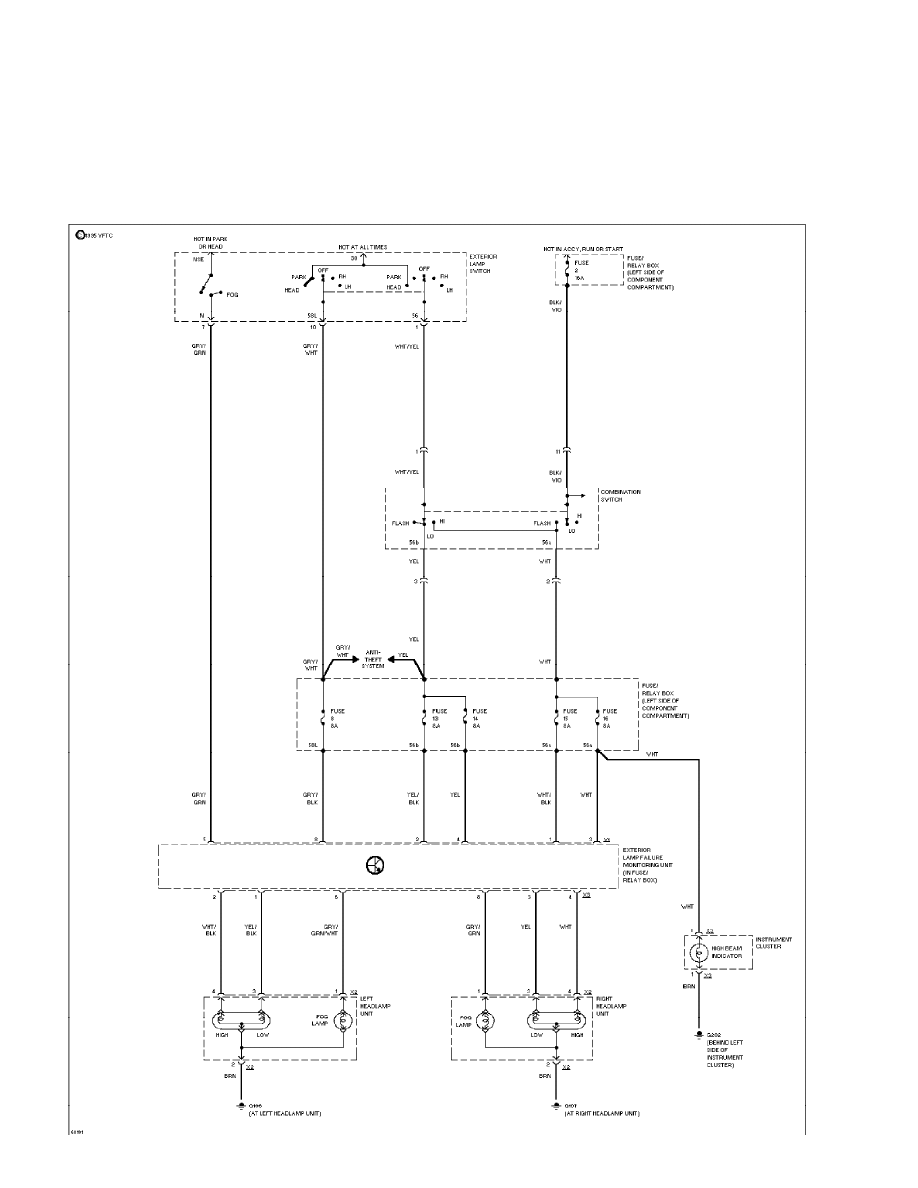

Headlight Circuit, W/O DRL (p. 11)

1992 Mercedes-Benz 500E

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, April 02, 2006 03:40PM

background image

SYSTEM WIRING DIAGRAMS

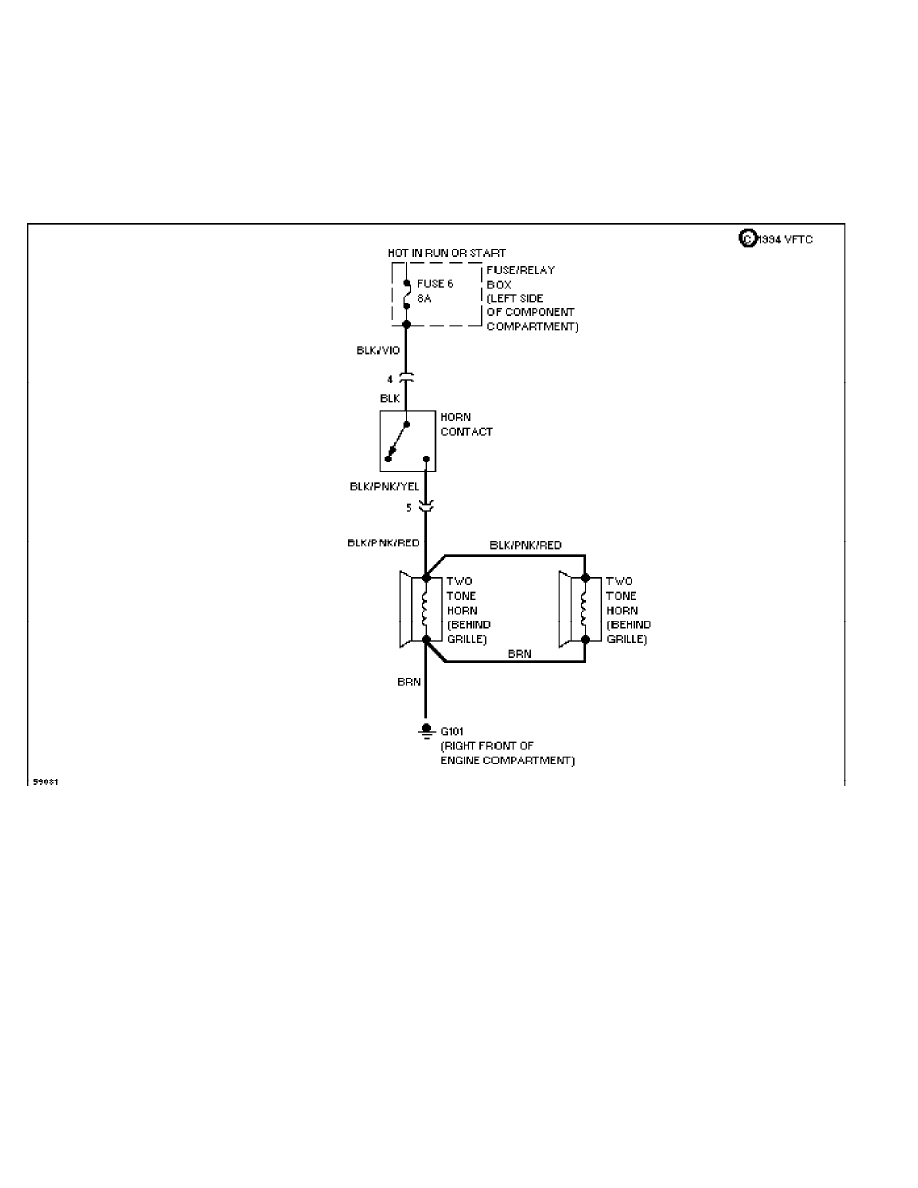

Horn Circuit (p. 12)

1992 Mercedes-Benz 500E

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, April 02, 2006 03:40PM

background image

SYSTEM WIRING DIAGRAMS

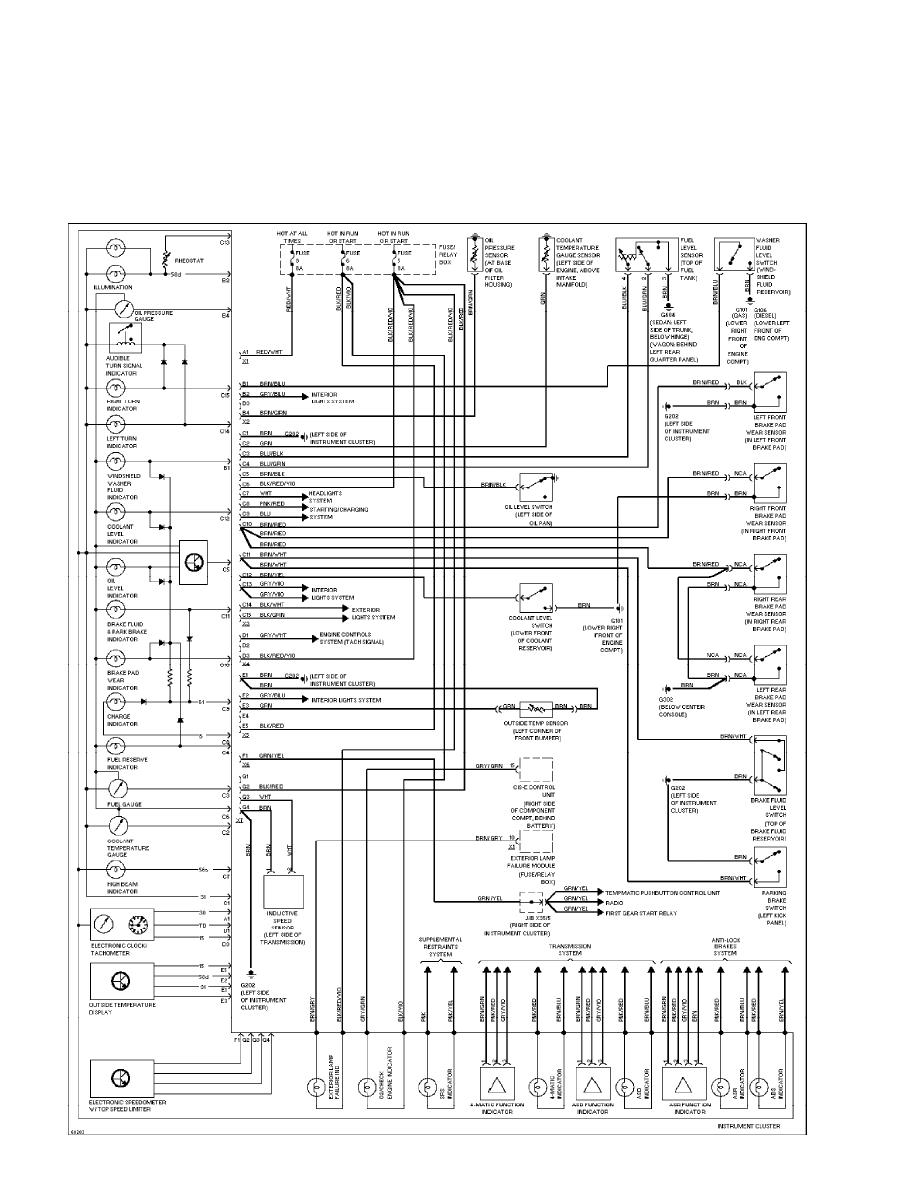

Instrument Cluster Circuit (p. 13)

1992 Mercedes-Benz 500E

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, April 02, 2006 03:40PM

background image

SYSTEM WIRING DIAGRAMS

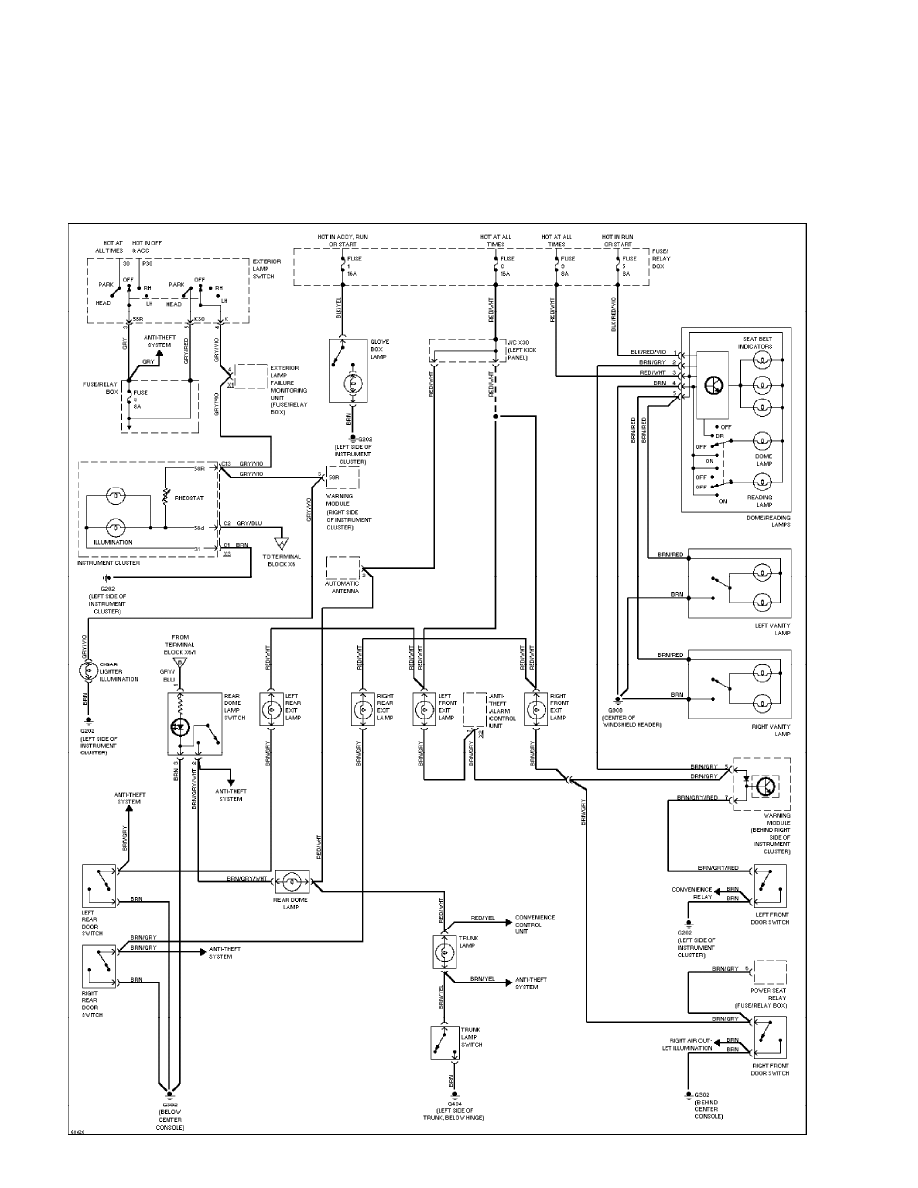

Interior Light Circuit (1 of 2) (p. 14)

1992 Mercedes-Benz 500E

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, April 02, 2006 03:40PM

background image

SYSTEM WIRING DIAGRAMS

Interior Light Circuit (2 of 2) (p. 15)

1992 Mercedes-Benz 500E

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, April 02, 2006 03:40PM

background image

SYSTEM WIRING DIAGRAMS

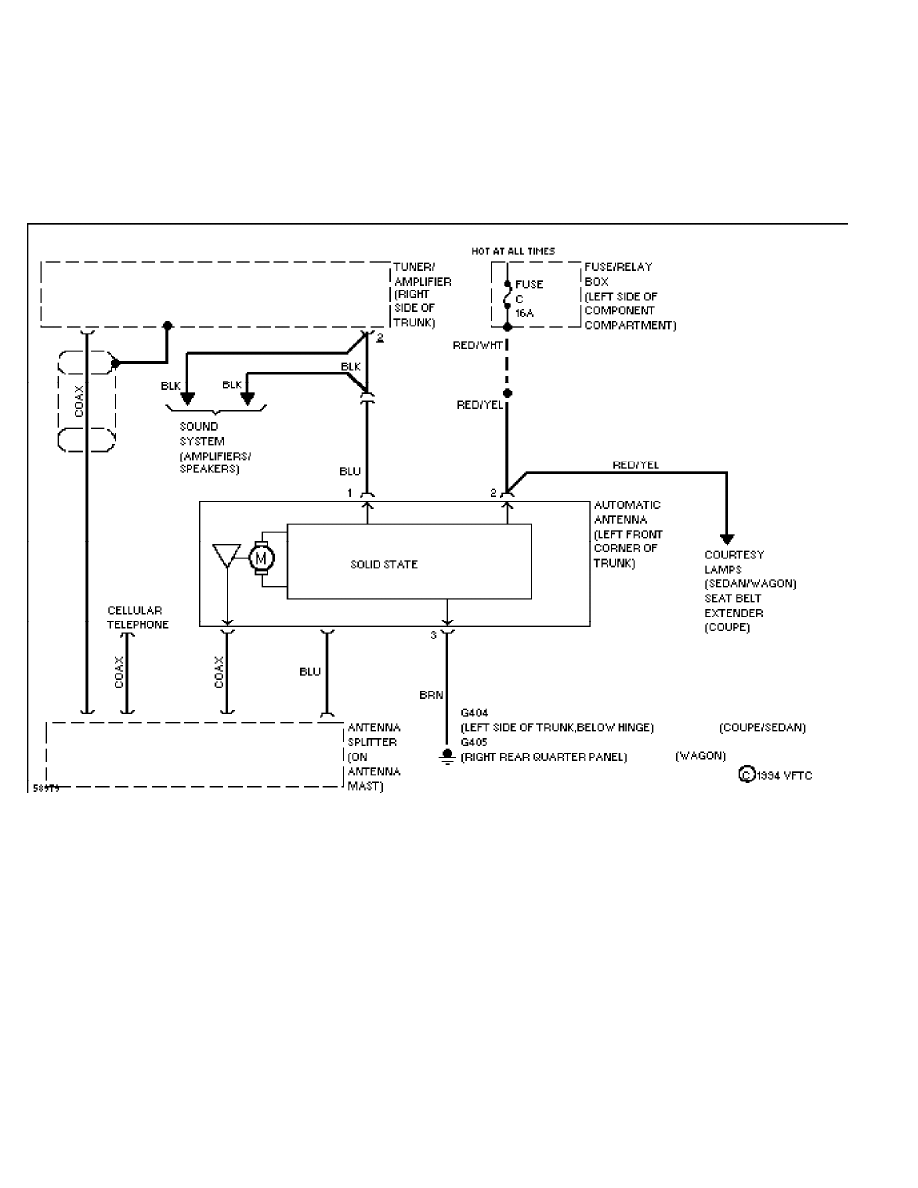

Power Antenna Circuit (p. 16)

1992 Mercedes-Benz 500E

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, April 02, 2006 03:40PM

background image

SYSTEM WIRING DIAGRAMS

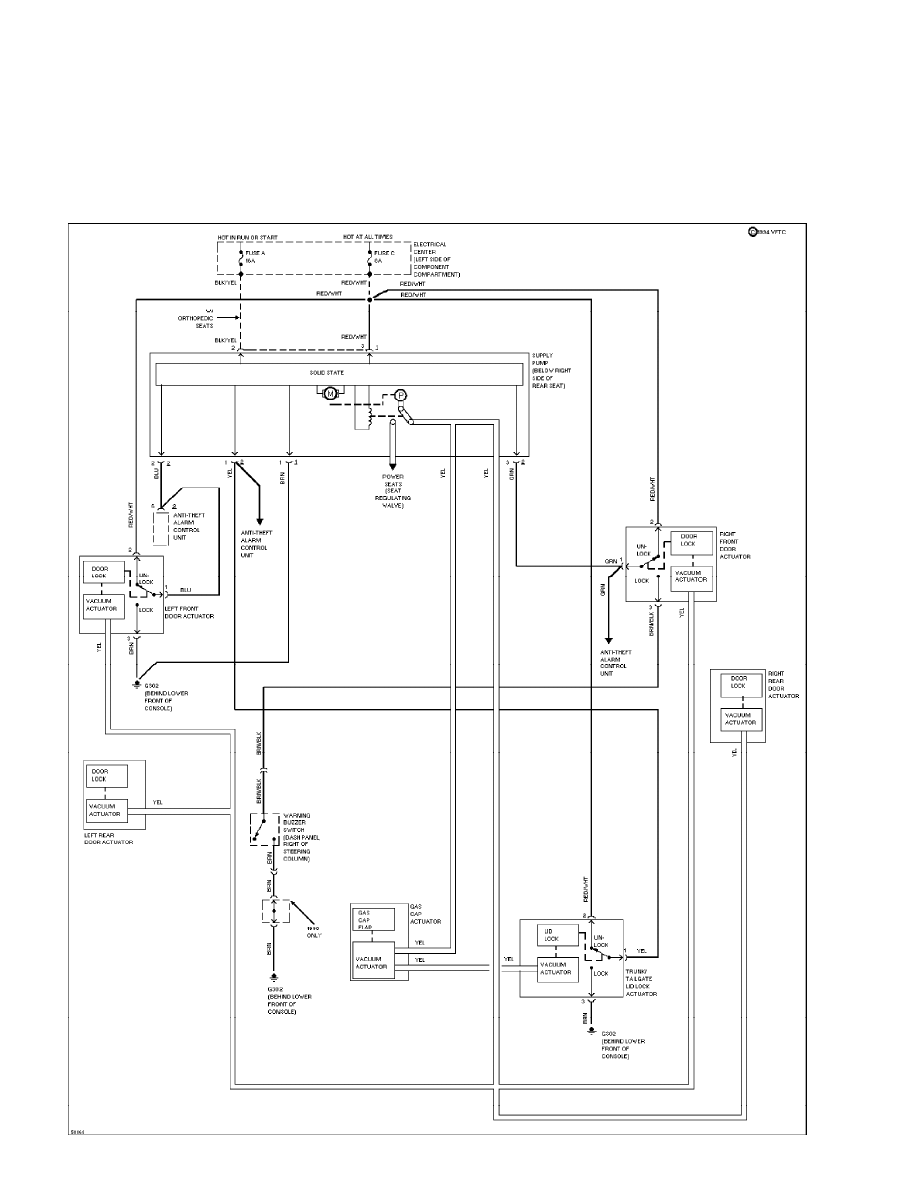

Power Door Lock Circuit (p. 17)

1992 Mercedes-Benz 500E

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, April 02, 2006 03:40PM

background image

SYSTEM WIRING DIAGRAMS

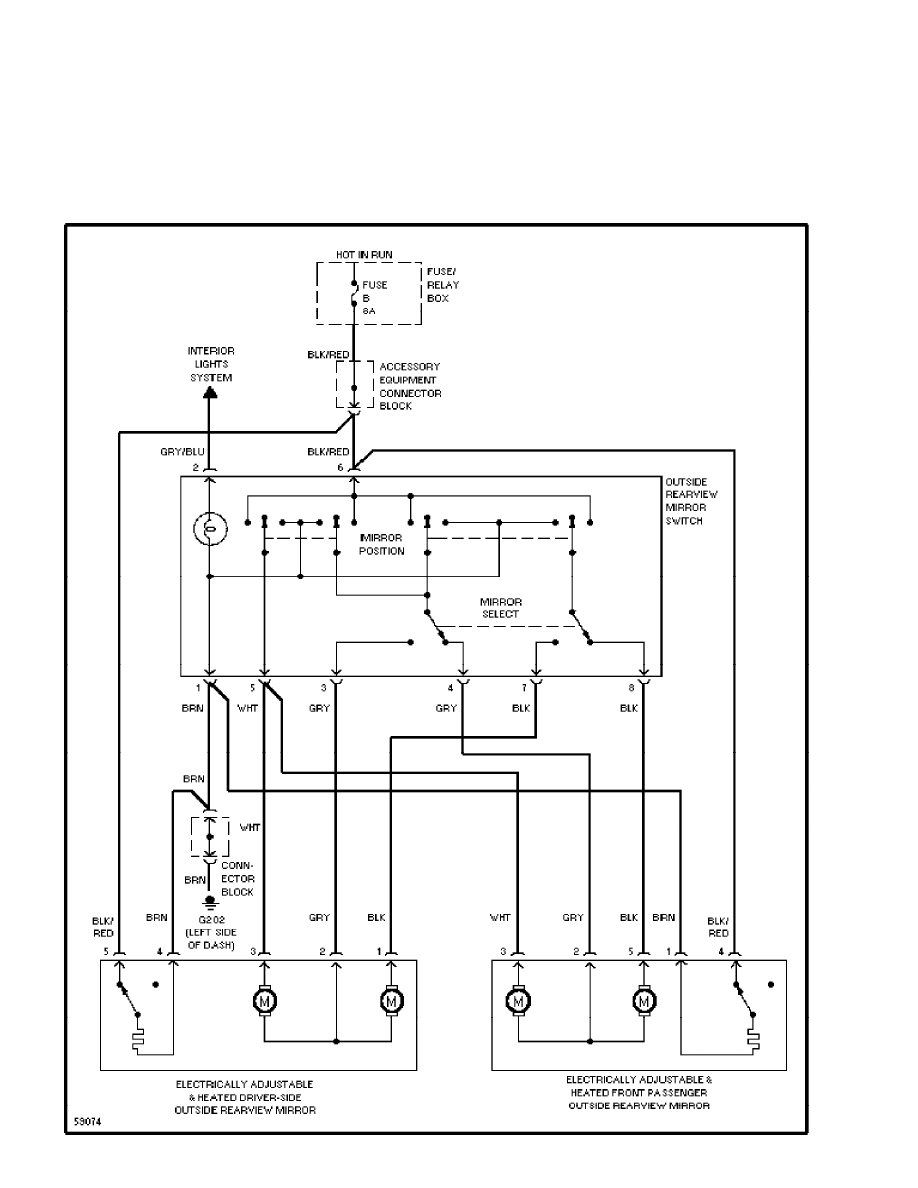

Power Mirror Circuit (p. 18)

1992 Mercedes-Benz 500E

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, April 02, 2006 03:40PM

background image

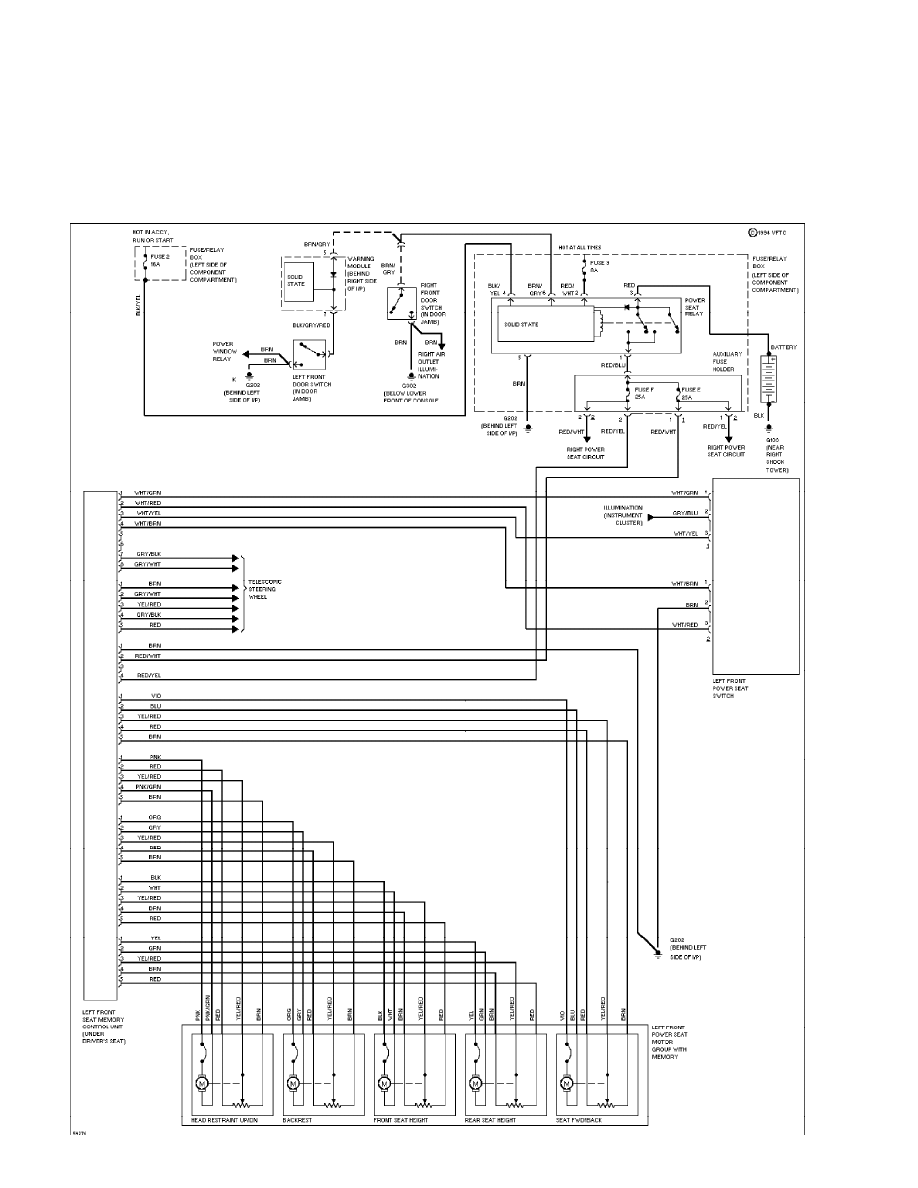

SYSTEM WIRING DIAGRAMS

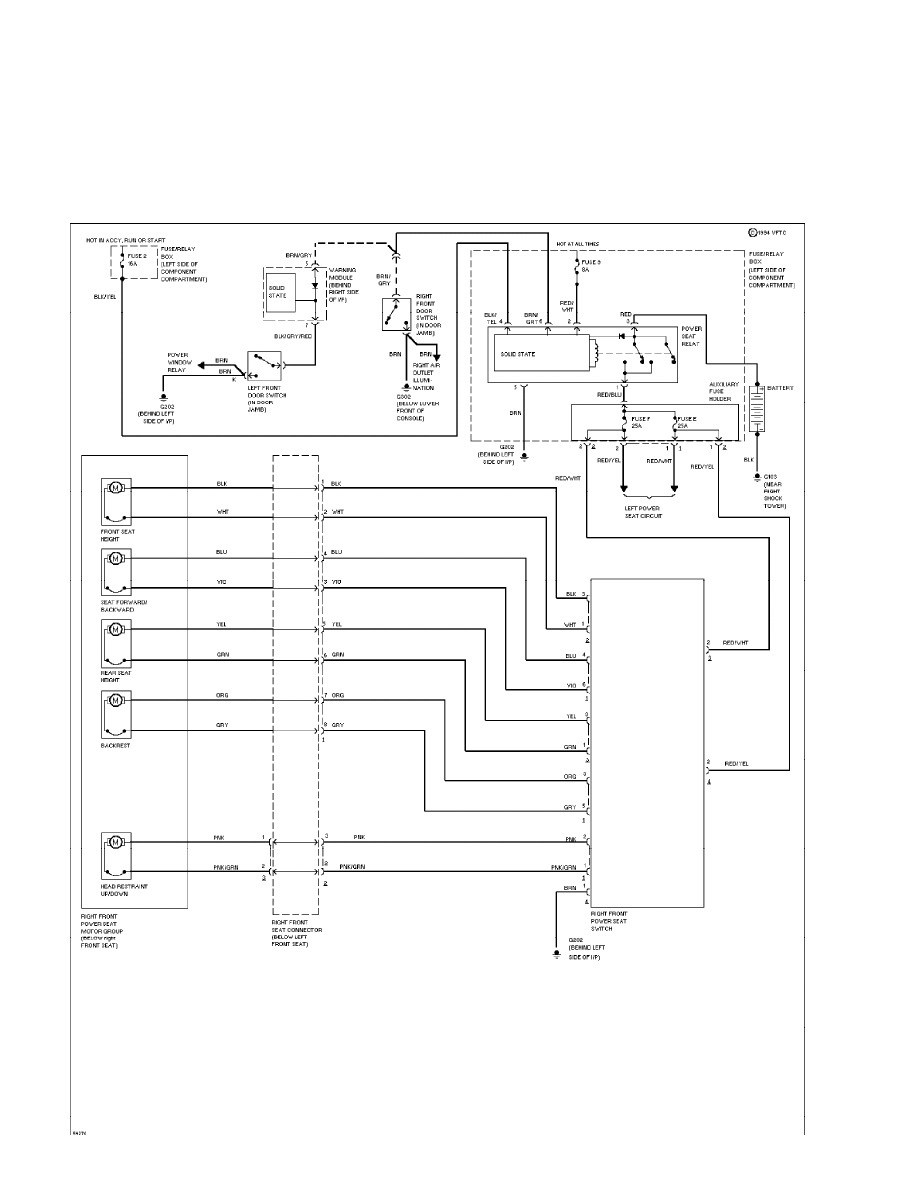

Driver Power Seat Circuit, W/ Memory (p. 19)

1992 Mercedes-Benz 500E

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, April 02, 2006 03:40PM

background image

SYSTEM WIRING DIAGRAMS

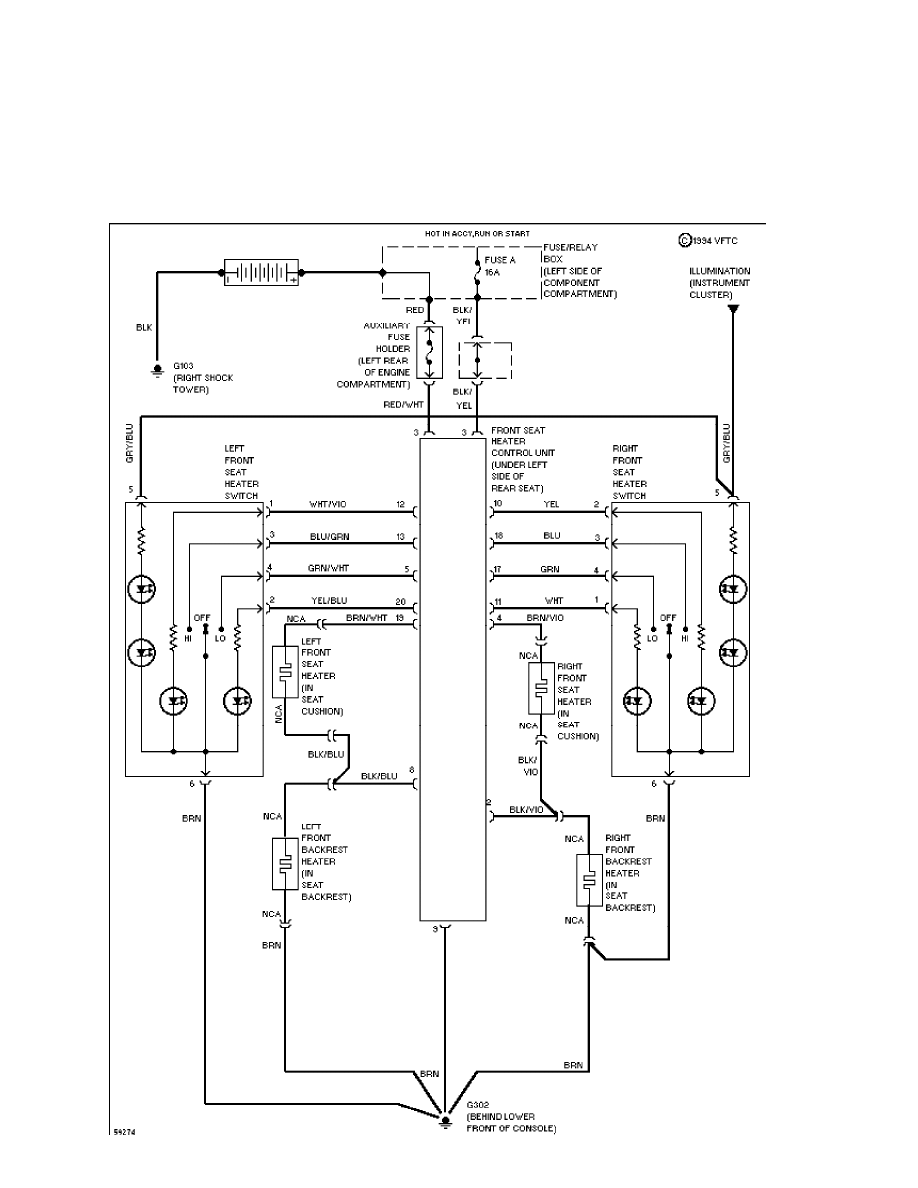

Heater Circuit (p. 20)

1992 Mercedes-Benz 500E

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, April 02, 2006 03:40PM

background image

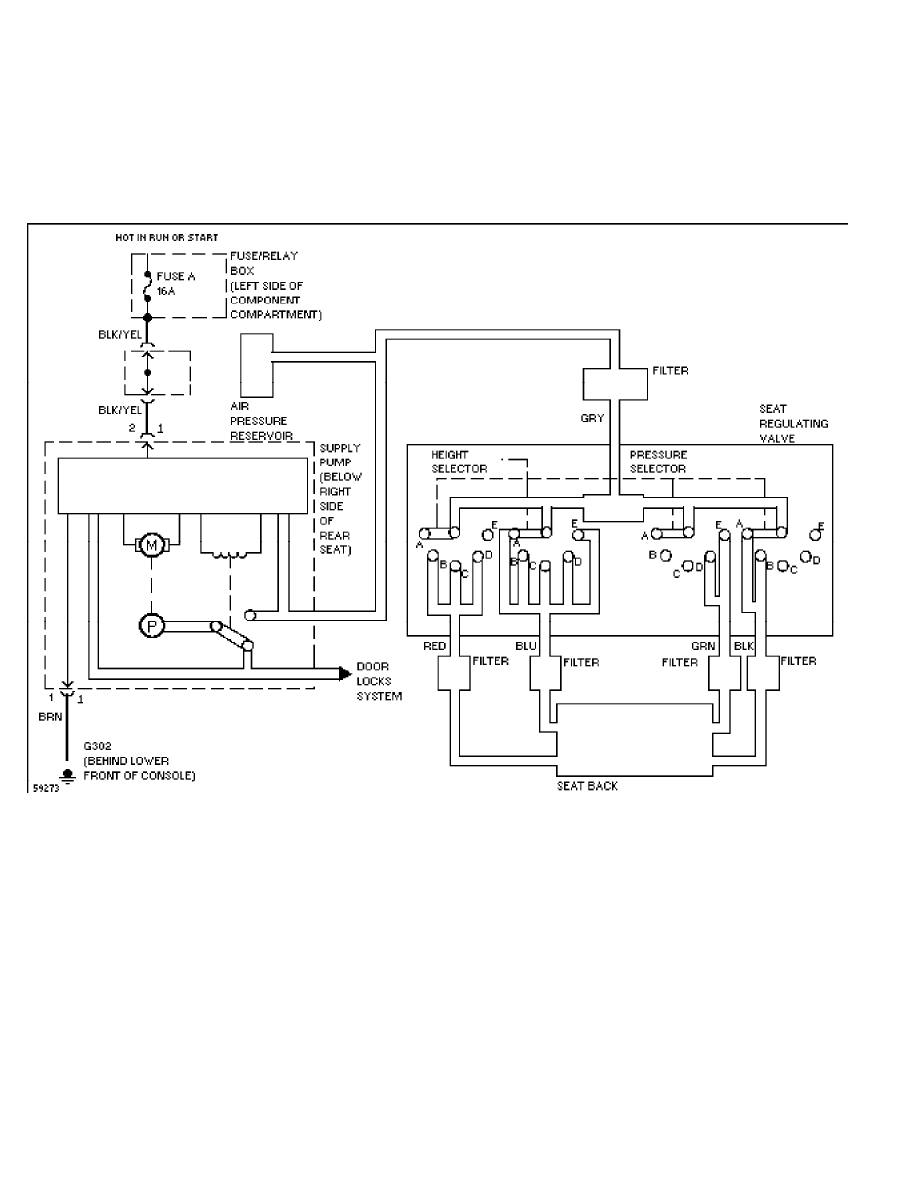

SYSTEM WIRING DIAGRAMS

Orthopedic Seats (p. 21)

1992 Mercedes-Benz 500E

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, April 02, 2006 03:40PM

background image

SYSTEM WIRING DIAGRAMS

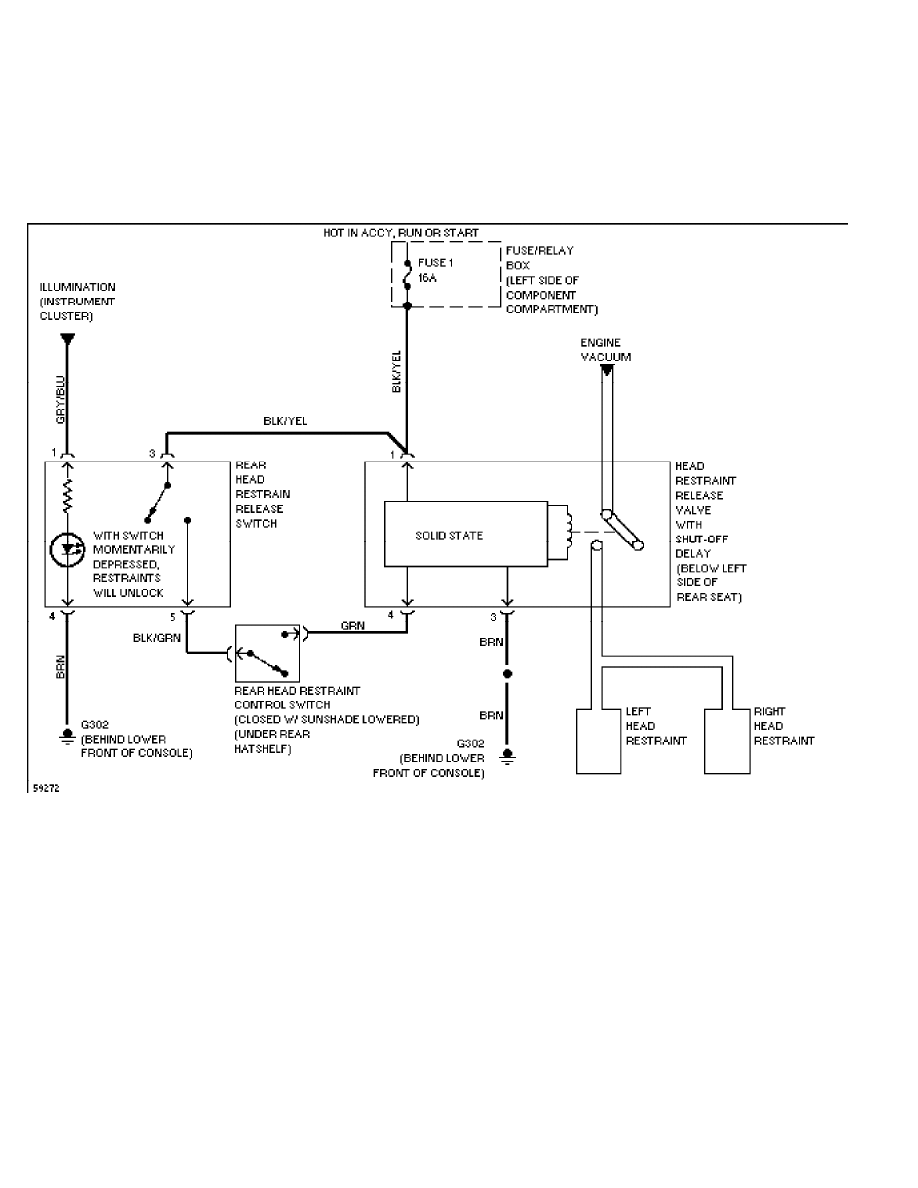

Rear Head Restraint Circuit (p. 22)

1992 Mercedes-Benz 500E

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, April 02, 2006 03:40PM

background image

SYSTEM WIRING DIAGRAMS

Right Seat Circuit (p. 23)

1992 Mercedes-Benz 500E

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, April 02, 2006 03:40PM

background image

SYSTEM WIRING DIAGRAMS

Power Top/Sunroof Circuits (p. 24)

1992 Mercedes-Benz 500E

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, April 02, 2006 03:40PM

background image

SYSTEM WIRING DIAGRAMS

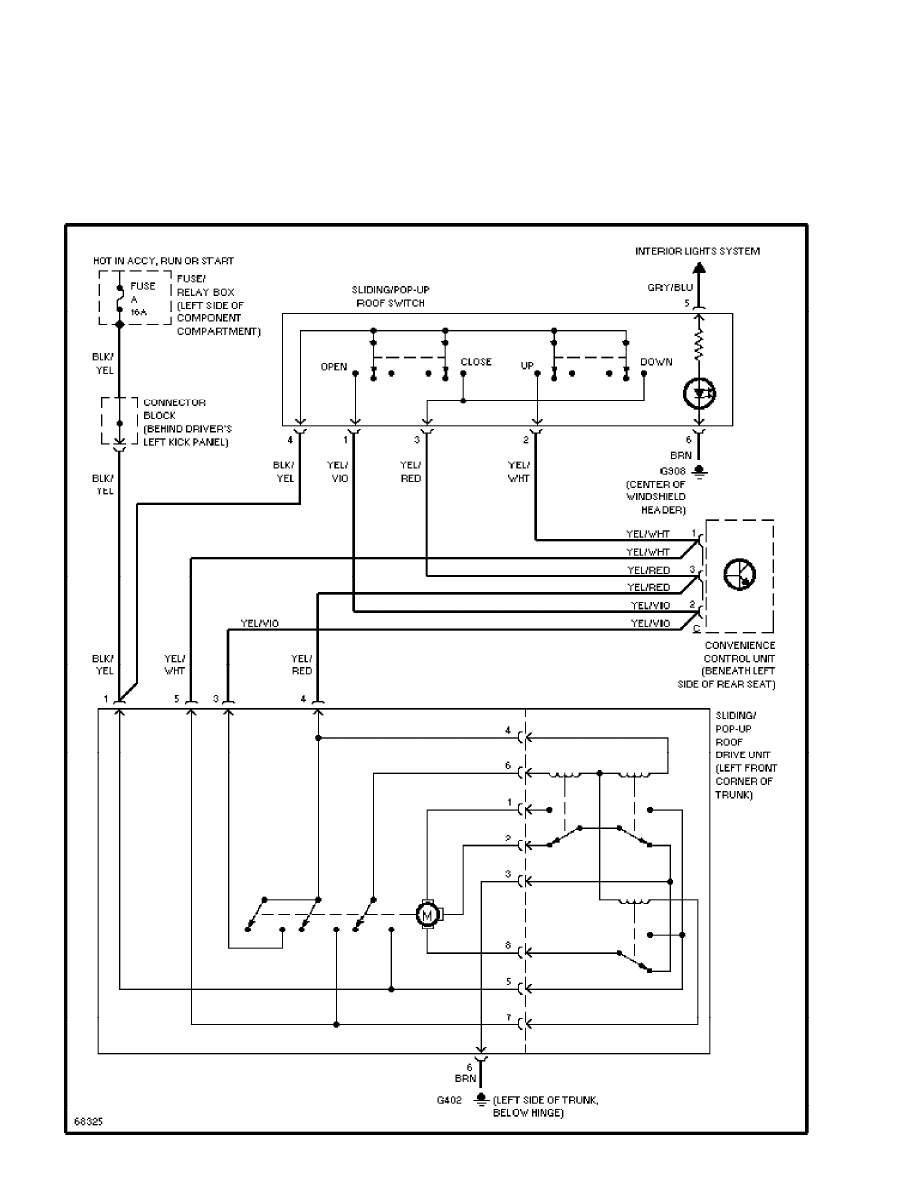

Sunroof Circuit (p. 25)

1992 Mercedes-Benz 500E

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, April 02, 2006 03:40PM

background image

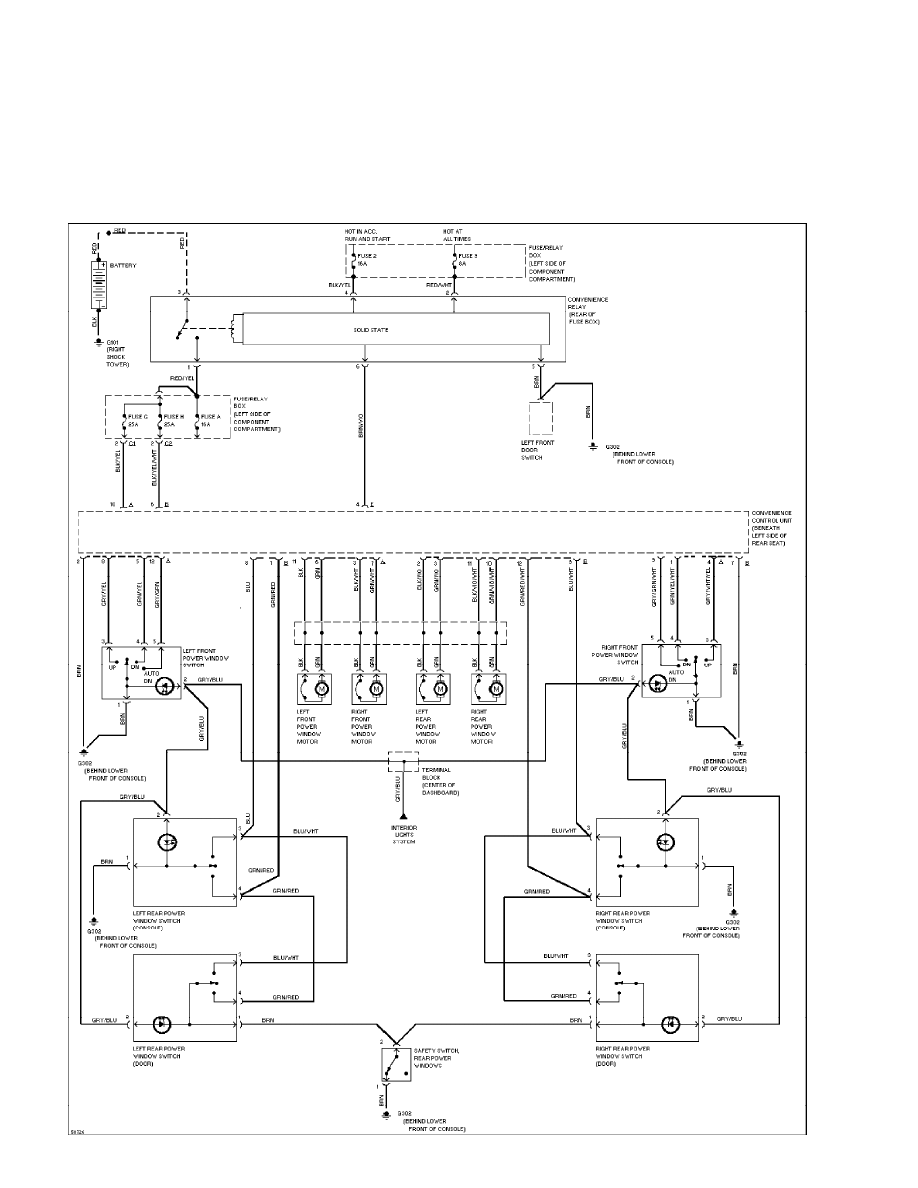

SYSTEM WIRING DIAGRAMS
Power Window Circuit (p. 26)

1992 Mercedes-Benz 500E

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, April 02, 2006 03:40PM

background image

SYSTEM WIRING DIAGRAMS

One Piece Radio, W/ Active Bass (p. 27)

1992 Mercedes-Benz 500E

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, April 02, 2006 03:40PM

background image

SYSTEM WIRING DIAGRAMS

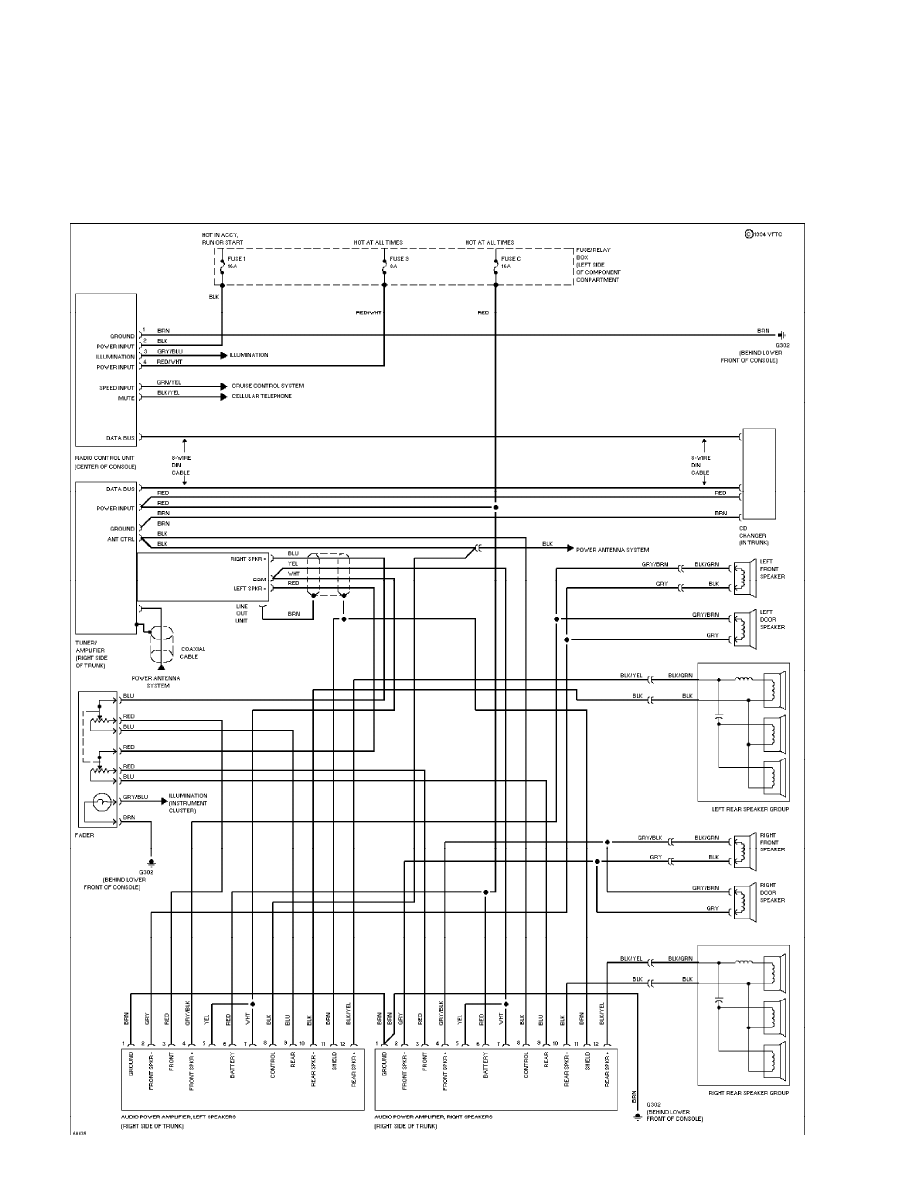

One Piece Radio, W/ Sound System (p. 28)

1992 Mercedes-Benz 500E

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, April 02, 2006 03:40PM

background image

SYSTEM WIRING DIAGRAMS

Two Piece Radio, W/ Active Bass (p. 29)

1992 Mercedes-Benz 500E

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, April 02, 2006 03:40PM

background image

SYSTEM WIRING DIAGRAMS

Two Piece Radio, W/ Active Bass & CD Player (2 of 1) (p. 30)

1992 Mercedes-Benz 500E

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, April 02, 2006 03:40PM

background image

SYSTEM WIRING DIAGRAMS

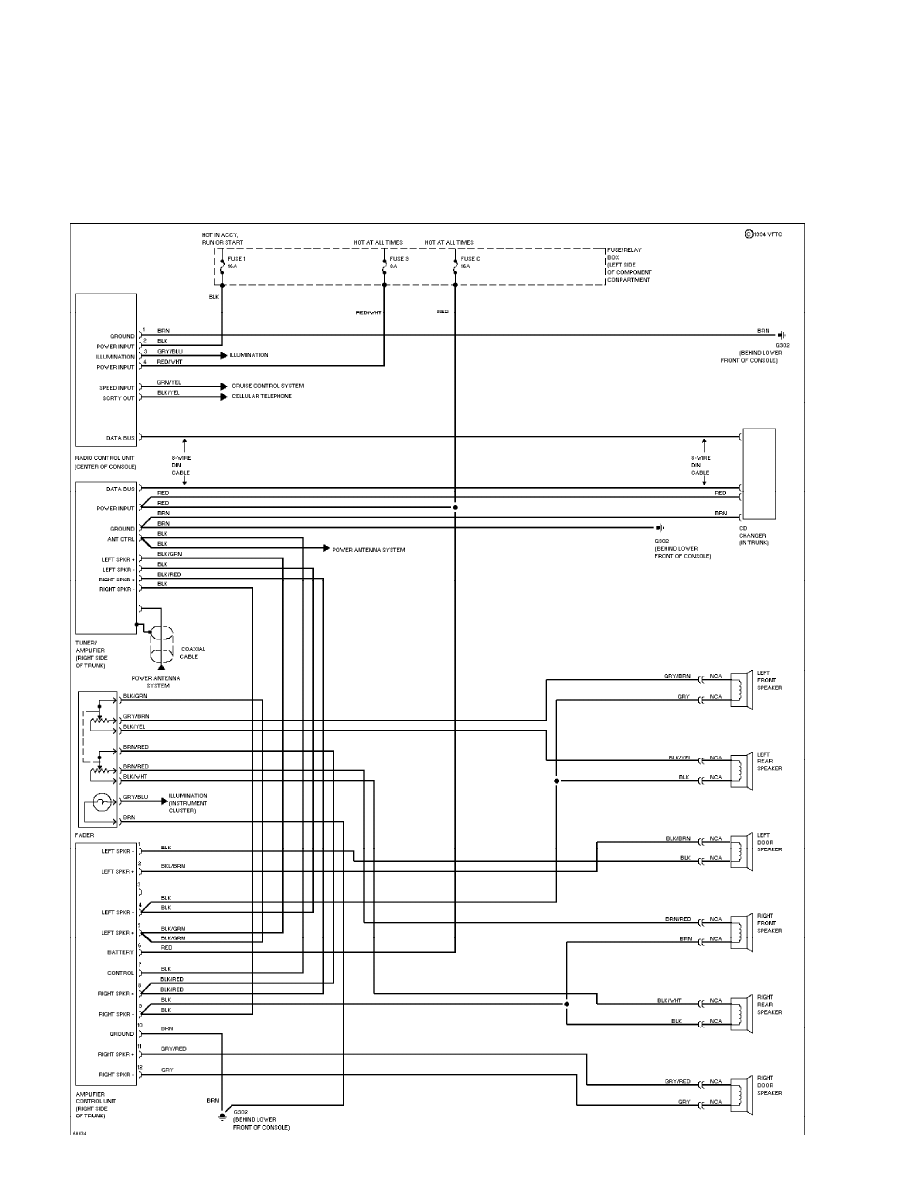

Two Piece Radio, W/ Sound System (p. 31)

1992 Mercedes-Benz 500E

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, April 02, 2006 03:40PM

background image

SYSTEM WIRING DIAGRAMS

Two Piece Radio, W/ Sound System & CD Player (p. 32)

1992 Mercedes-Benz 500E

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, April 02, 2006 03:40PM

background image

SYSTEM WIRING DIAGRAMS

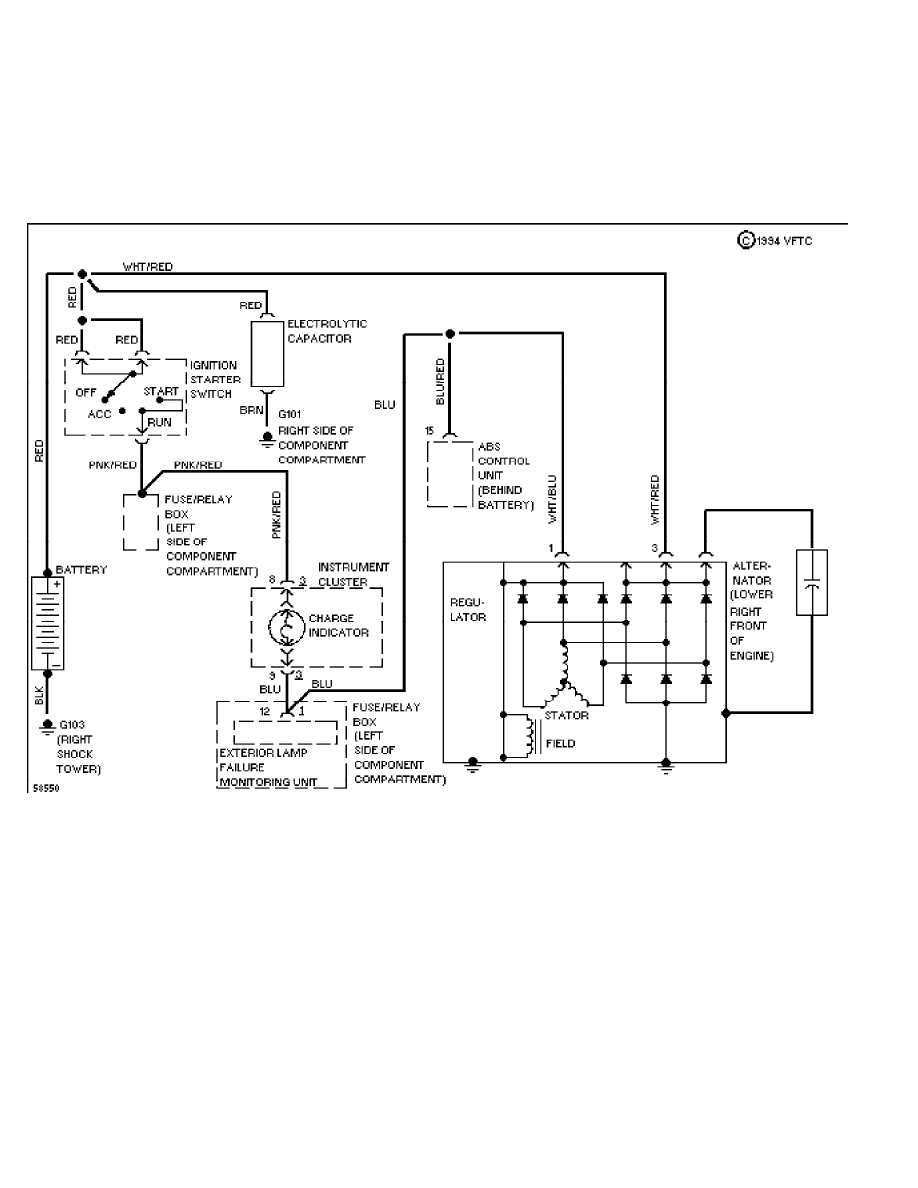

Charging Circuit (p. 33)

1992 Mercedes-Benz 500E

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, April 02, 2006 03:40PM

background image

SYSTEM WIRING DIAGRAMS

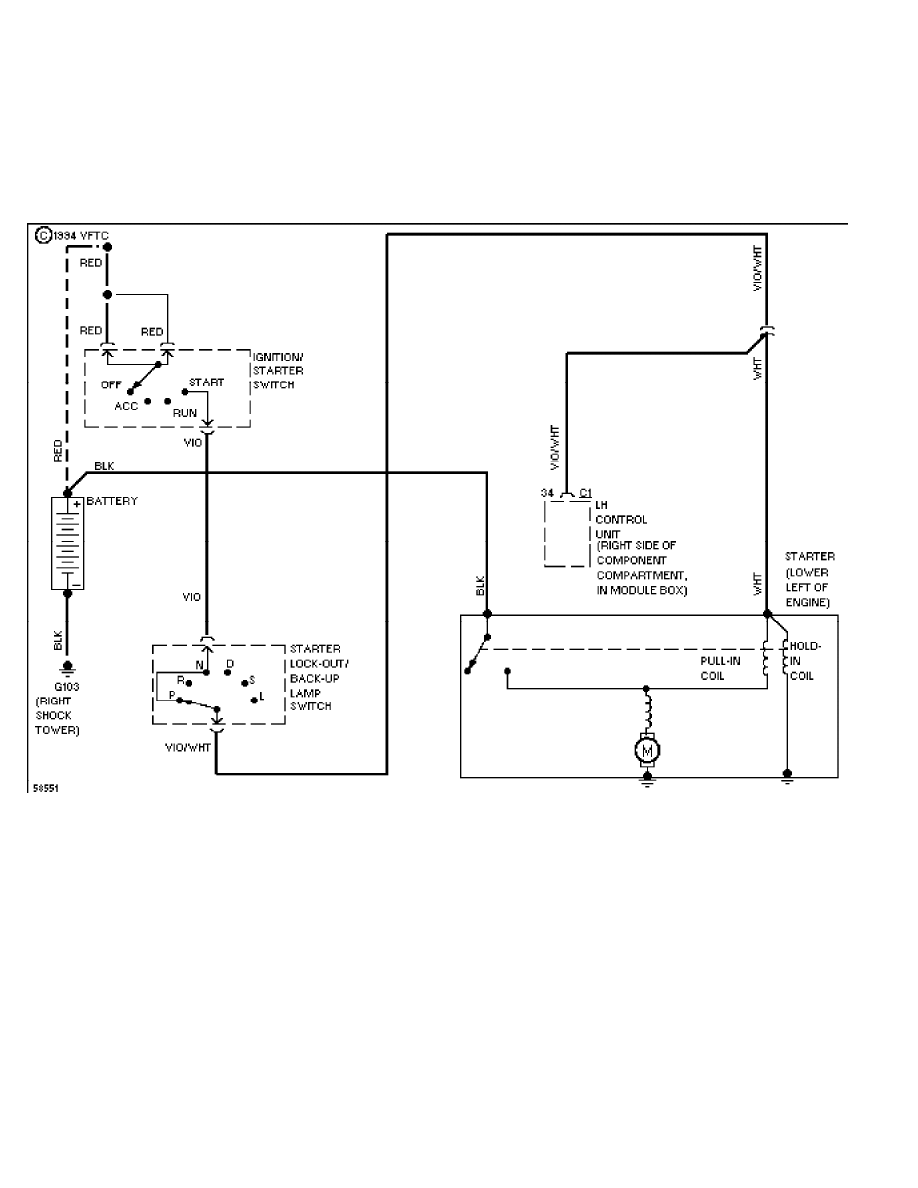

Starting Circuit (p. 34)

1992 Mercedes-Benz 500E

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, April 02, 2006 03:40PM

background image

SYSTEM WIRING DIAGRAMS

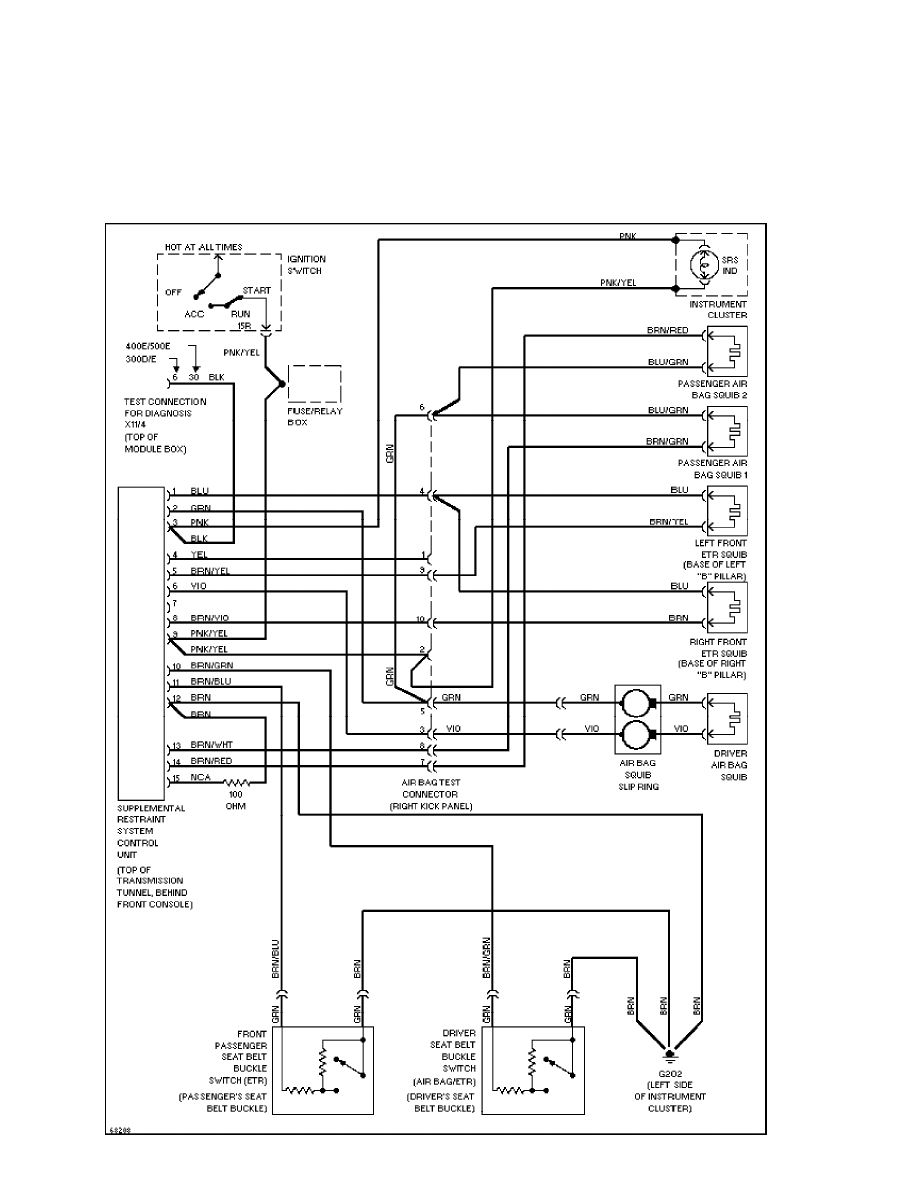

Supplemental Restraint Circuit (p. 35)

1992 Mercedes-Benz 500E

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, April 02, 2006 03:40PM

background image

SYSTEM WIRING DIAGRAMS

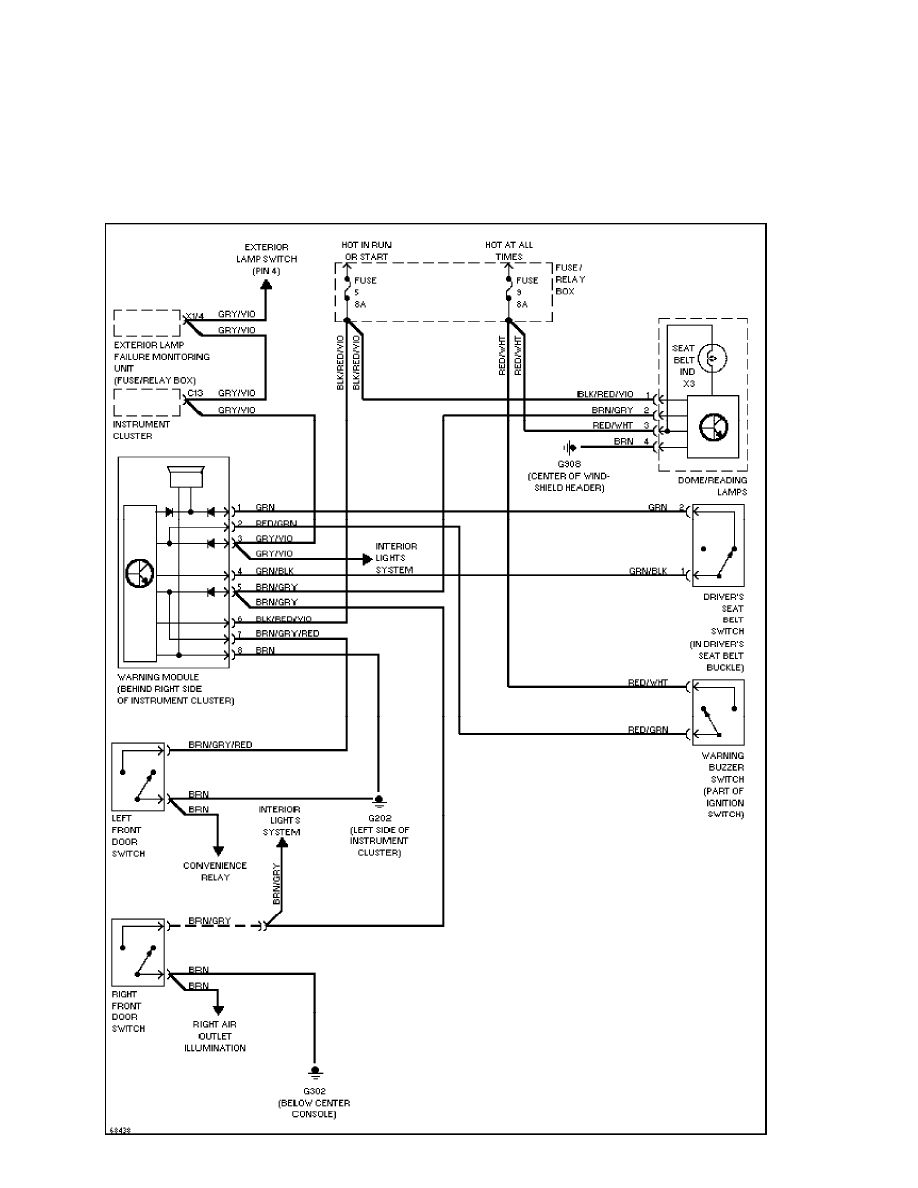

Warning System Circuits (p. 36)

1992 Mercedes-Benz 500E

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, April 02, 2006 03:40PM

background image

SYSTEM WIRING DIAGRAMS

Front Wiper/Washer Circuit (p. 37)

1992 Mercedes-Benz 500E

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, April 02, 2006 03:40PM

background image

SYSTEM WIRING DIAGRAMS

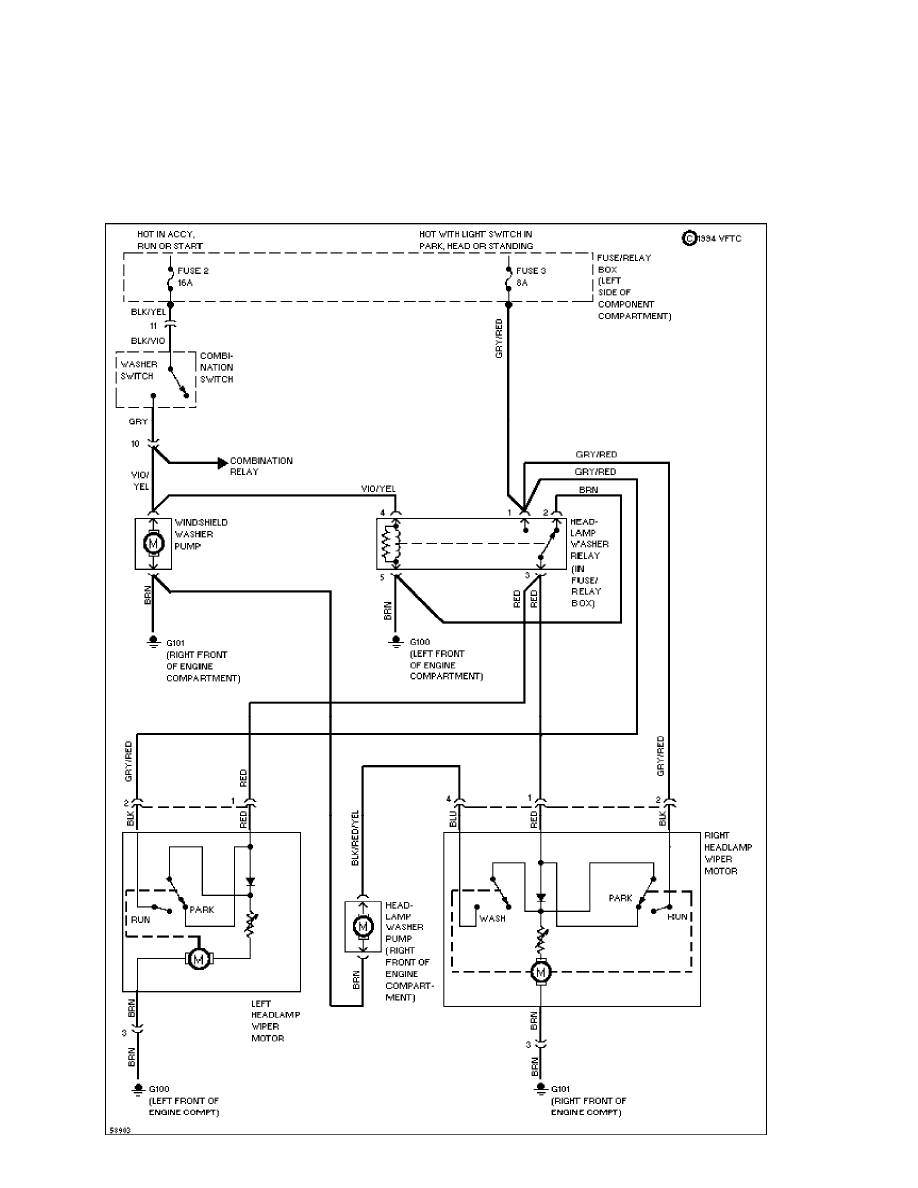

Headlight Washer/Wiper Circuit (p. 38)

1992 Mercedes-Benz 500E

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, April 02, 2006 03:40PM

background image

SYSTEM WIRING DIAGRAMS

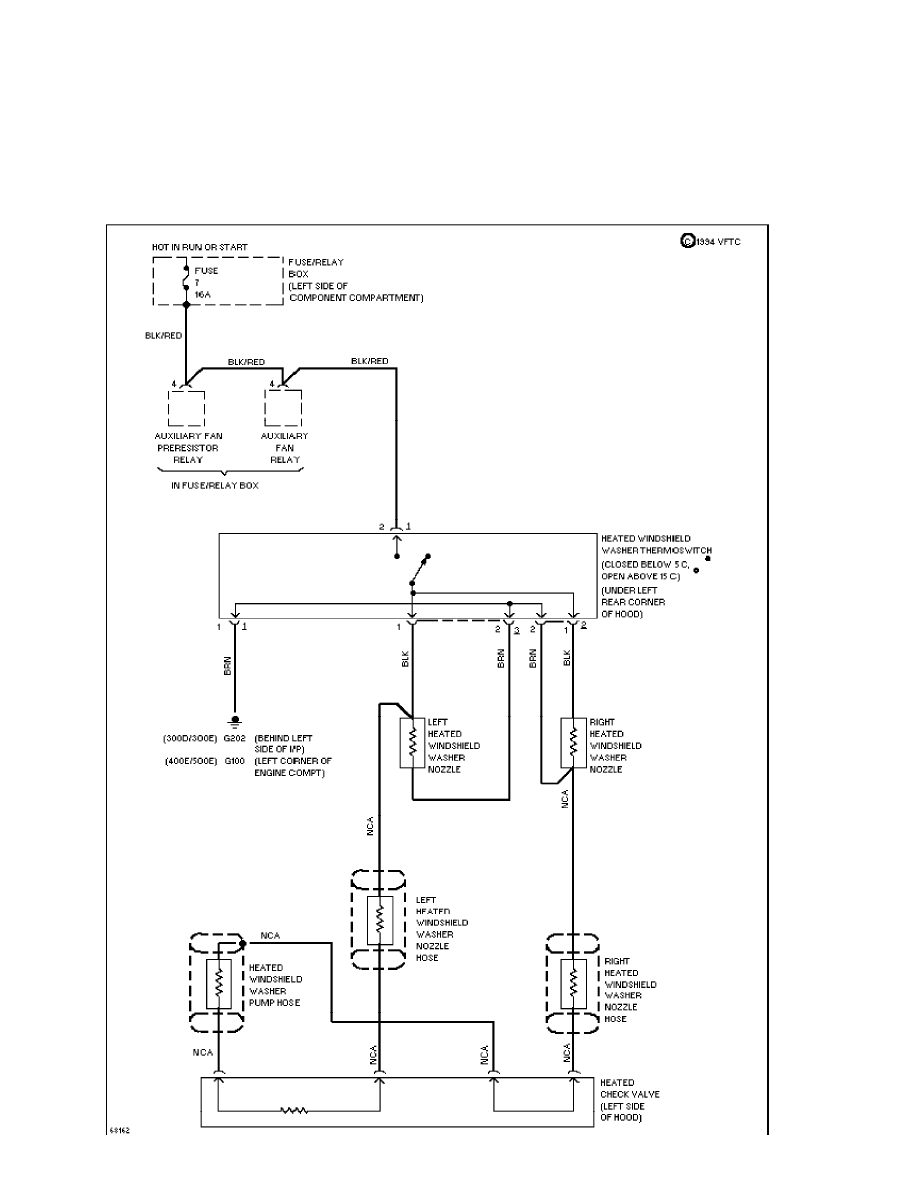

Heated Windshield Washer Circuit (p. 39)

1992 Mercedes-Benz 500E

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, April 02, 2006 03:40PM

background image

SYSTEM WIRING DIAGRAMS

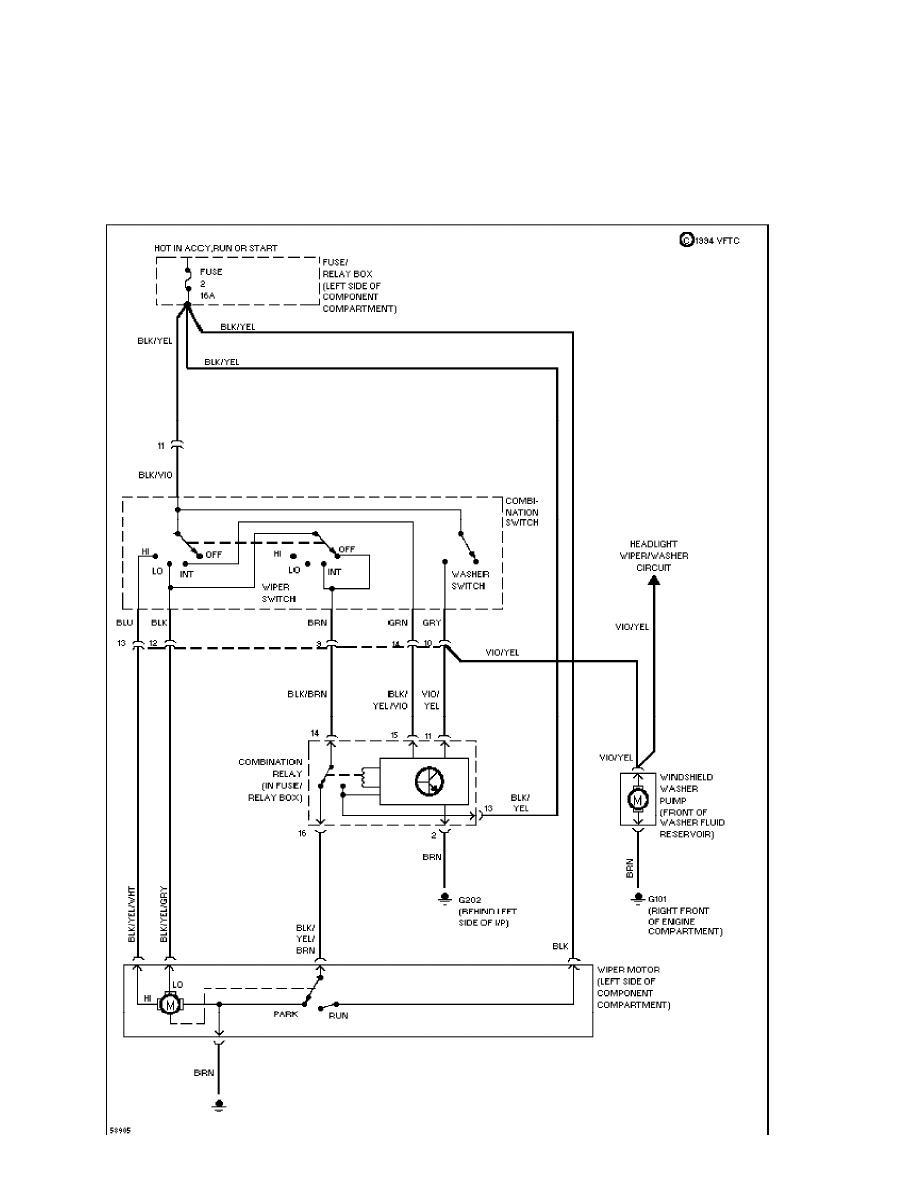

Interval Wiper/Washer Circuit (p. 40)

1992 Mercedes-Benz 500E

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, April 02, 2006 03:40PM
