MERCEDES BENZ 560SEC 1991

background image

SYSTEM WIRING DIAGRAMS

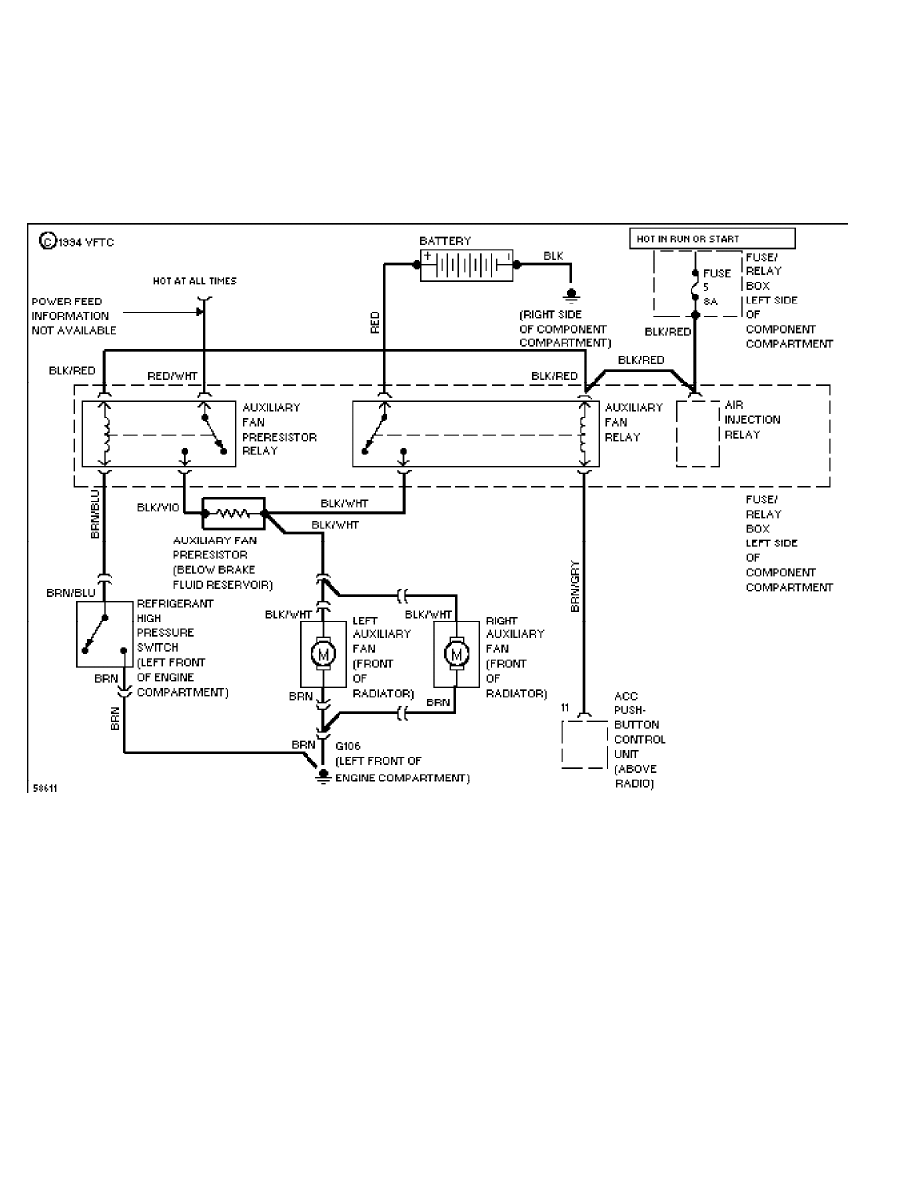

Cooling Fan Circuit

1991 Mercedes-Benz 560SEC

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, April 02, 2006 03:49PM

background image

SYSTEM WIRING DIAGRAMS

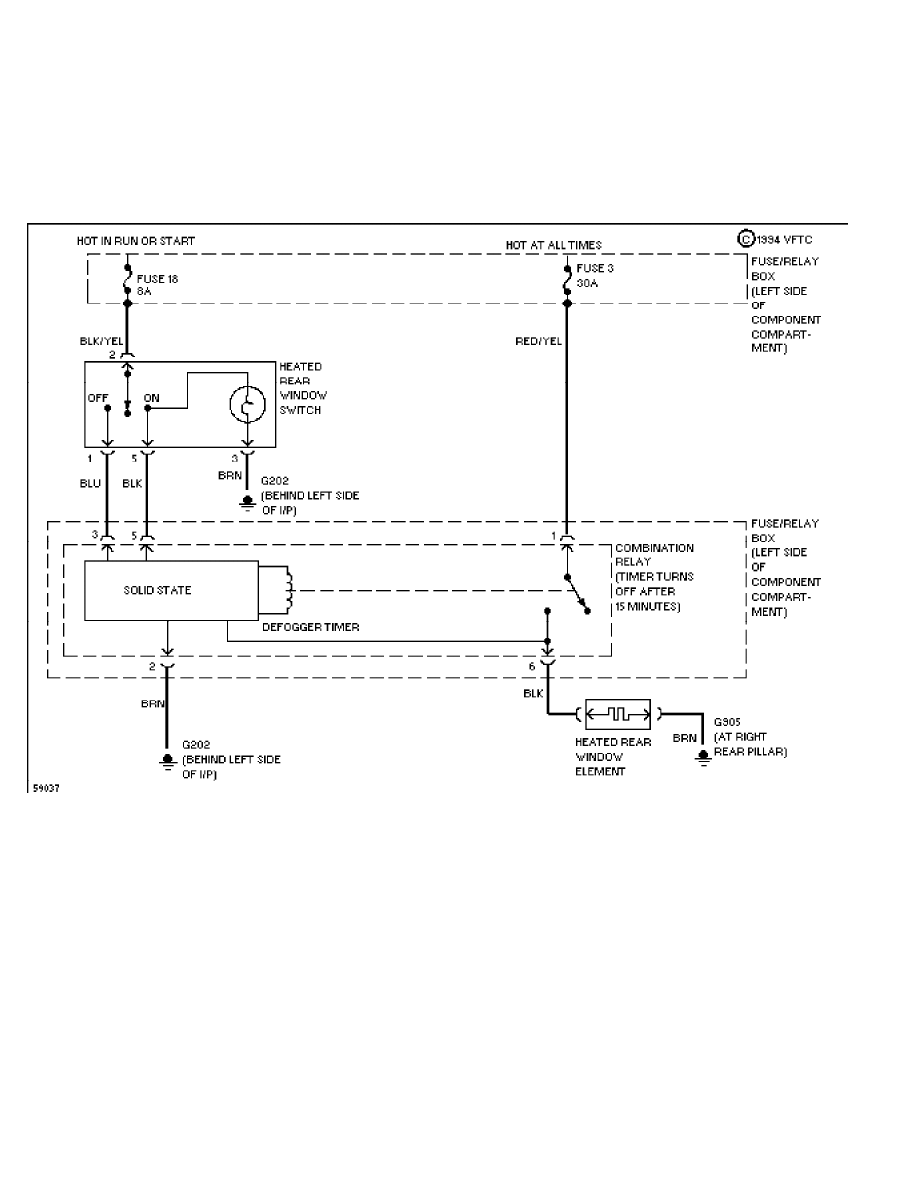

Defogger Circuit (p. 2)

1991 Mercedes-Benz 560SEC

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, April 02, 2006 03:49PM

background image

SYSTEM WIRING DIAGRAMS

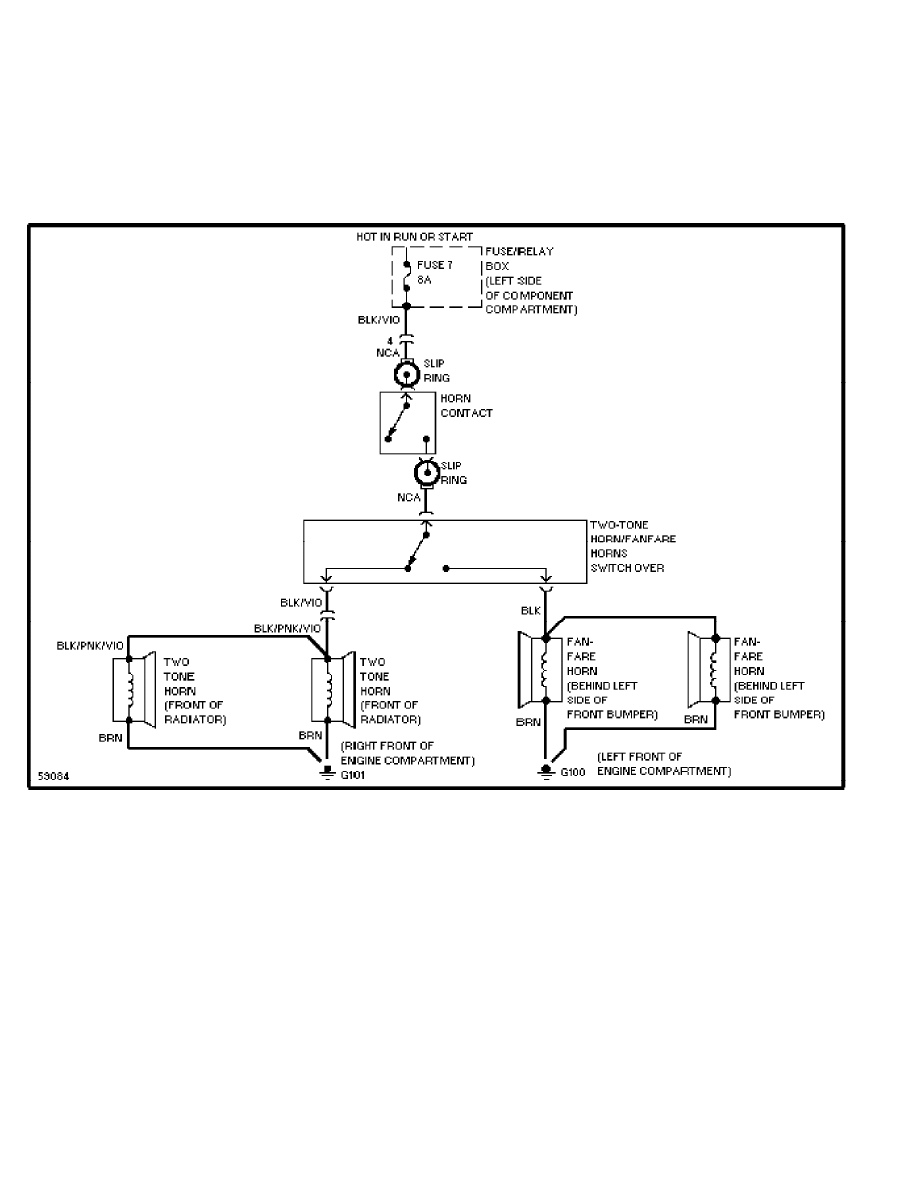

Horn Circuit (p. 3)

1991 Mercedes-Benz 560SEC

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, April 02, 2006 03:49PM

background image

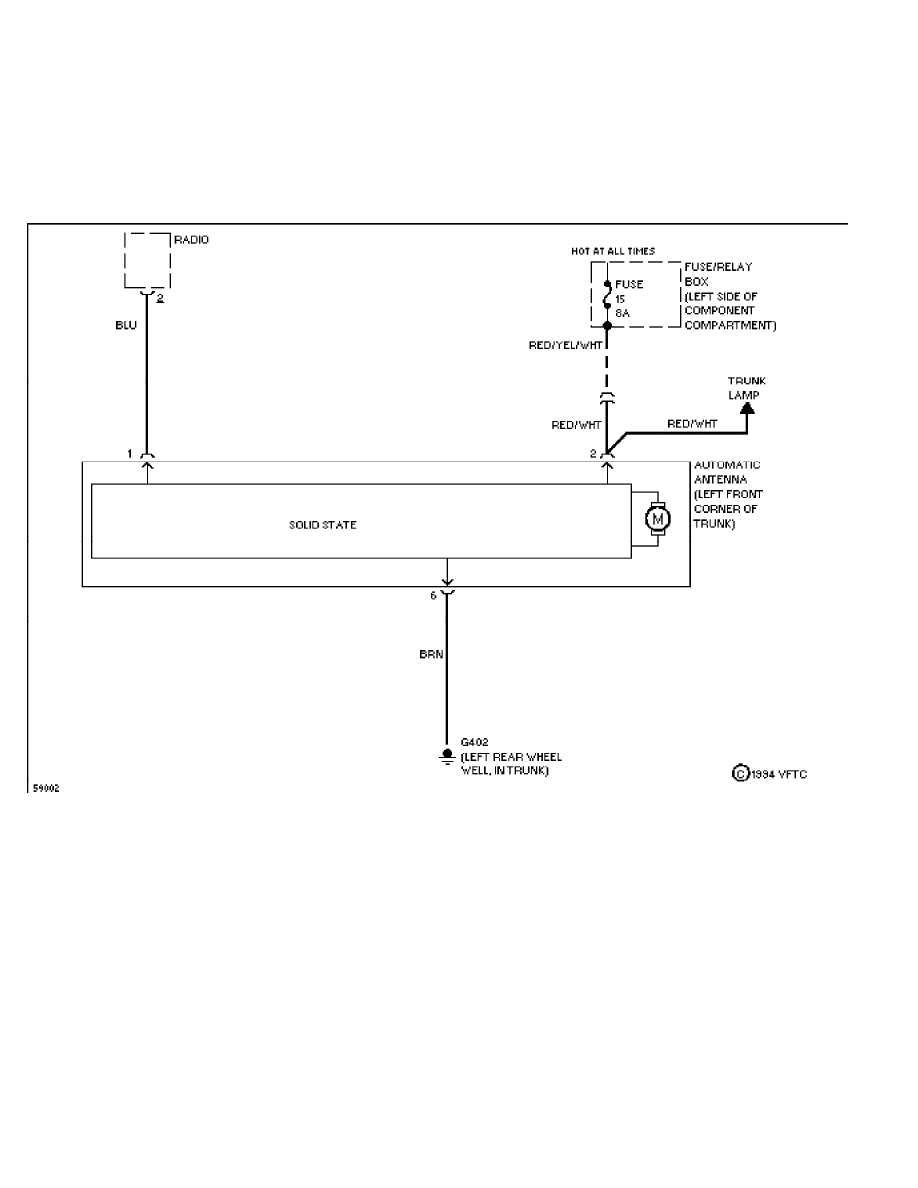

SYSTEM WIRING DIAGRAMS

Power Antenna Circuit, Base Radio (p. 4)

1991 Mercedes-Benz 560SEC

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, April 02, 2006 03:49PM

background image

SYSTEM WIRING DIAGRAMS

Power Antenna Circuit, One Piece Radio W/ Sound System (p. 5)

1991 Mercedes-Benz 560SEC

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, April 02, 2006 03:49PM

background image

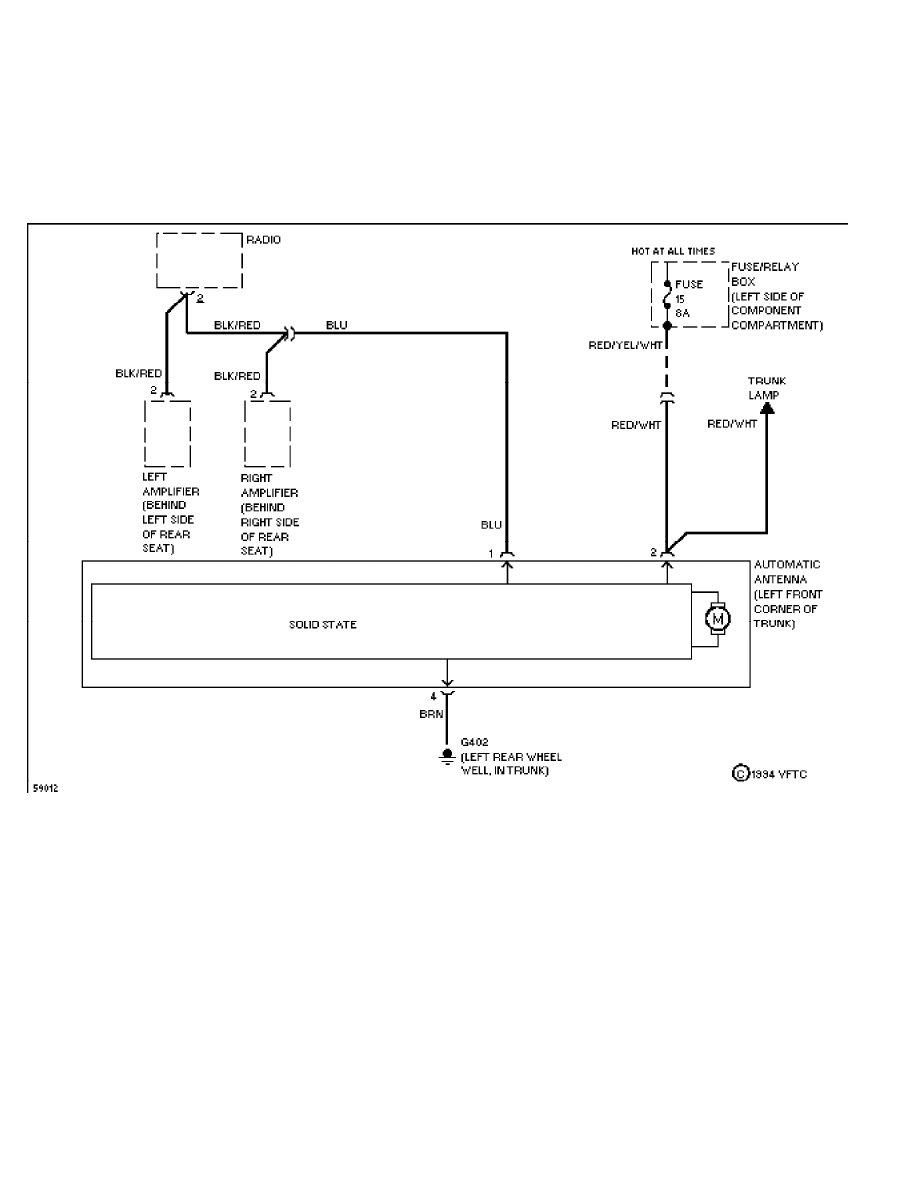

SYSTEM WIRING DIAGRAMS

Power Antenna Circuit, Two Piece Radio (p. 6)

1991 Mercedes-Benz 560SEC

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, April 02, 2006 03:49PM

background image

SYSTEM WIRING DIAGRAMS

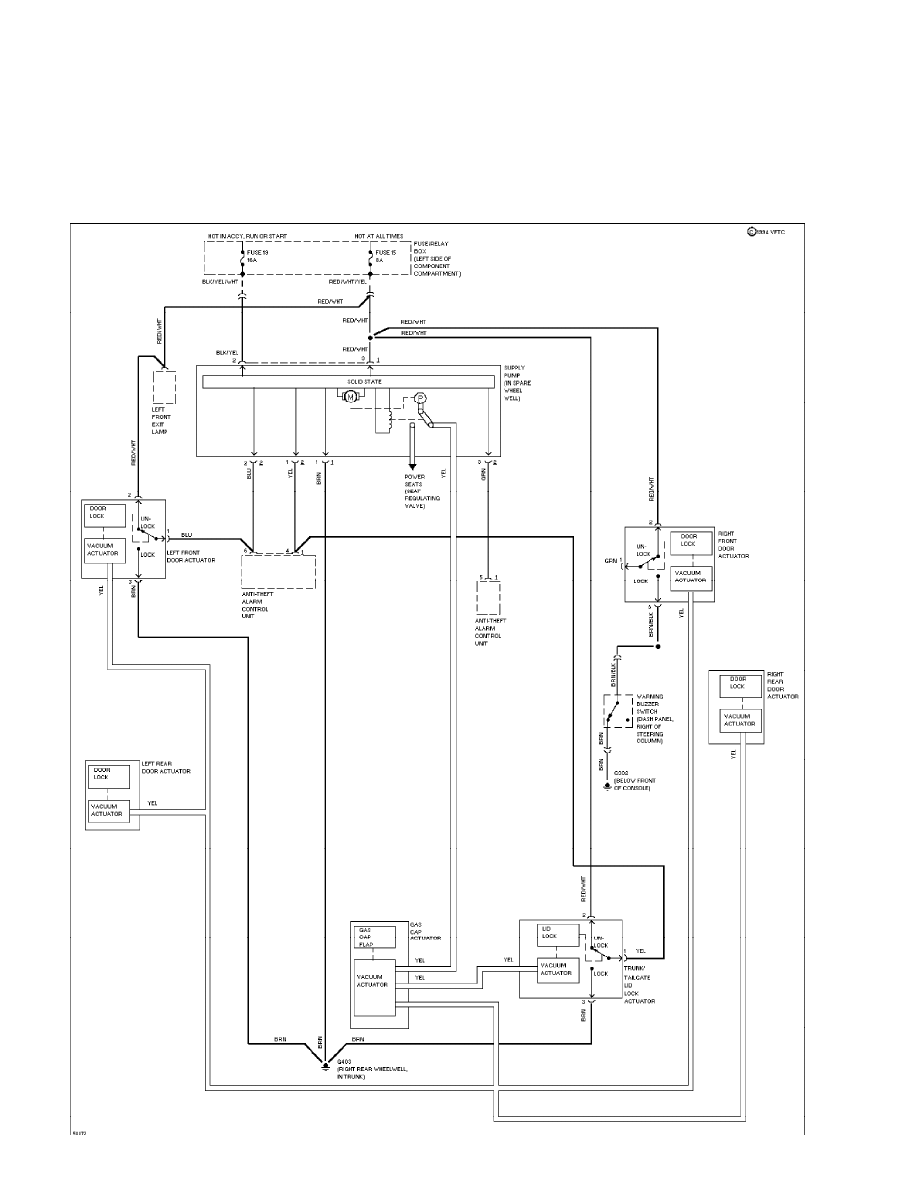

Power Door Lock Circuit (p. 7)

1991 Mercedes-Benz 560SEC

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, April 02, 2006 03:49PM

background image

SYSTEM WIRING DIAGRAMS

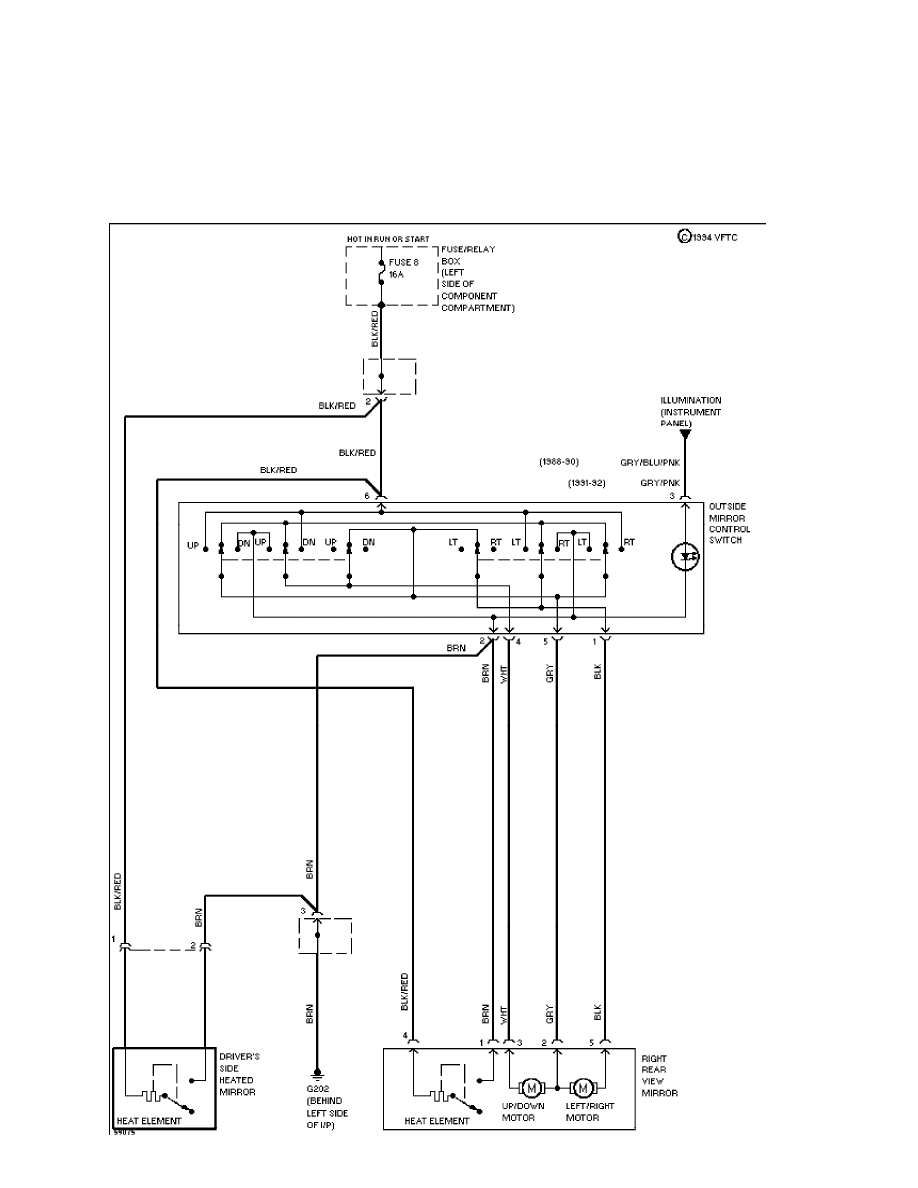

Power Mirror Circuit (p. 8)

1991 Mercedes-Benz 560SEC

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, April 02, 2006 03:49PM

background image

SYSTEM WIRING DIAGRAMS

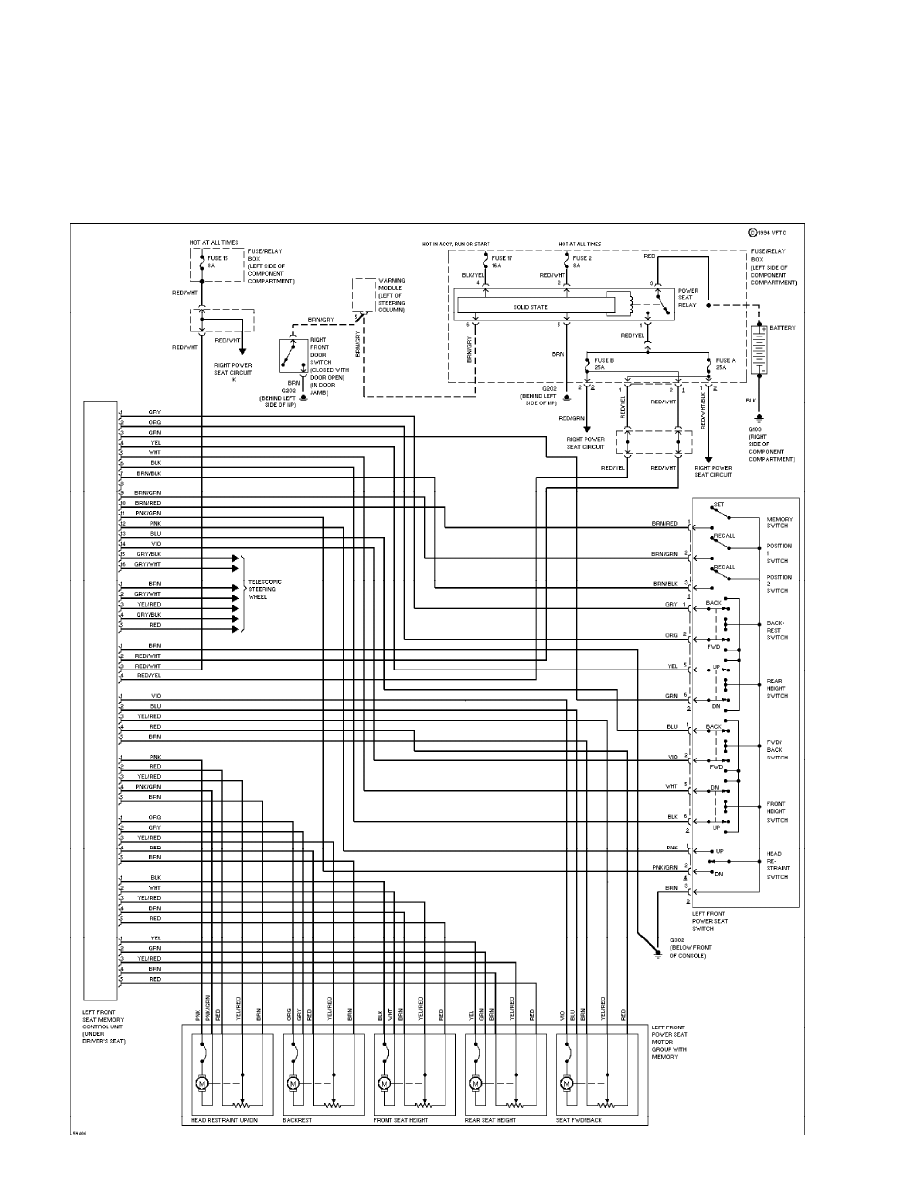

Driver Power Seat Circuit (p. 9)

1991 Mercedes-Benz 560SEC

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, April 02, 2006 03:49PM

background image

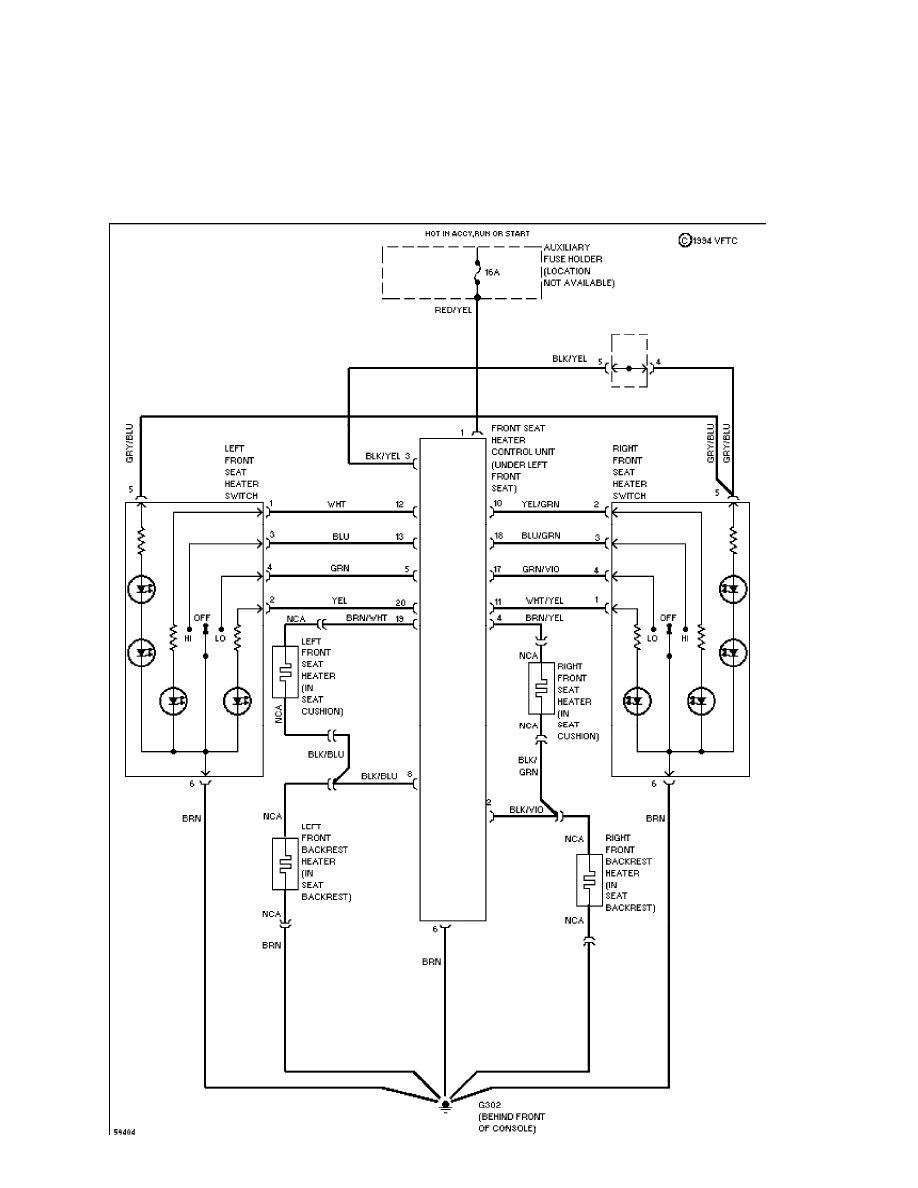

SYSTEM WIRING DIAGRAMS

Front Seat Heater Circuit (p. 10)

1991 Mercedes-Benz 560SEC

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, April 02, 2006 03:49PM

background image

SYSTEM WIRING DIAGRAMS

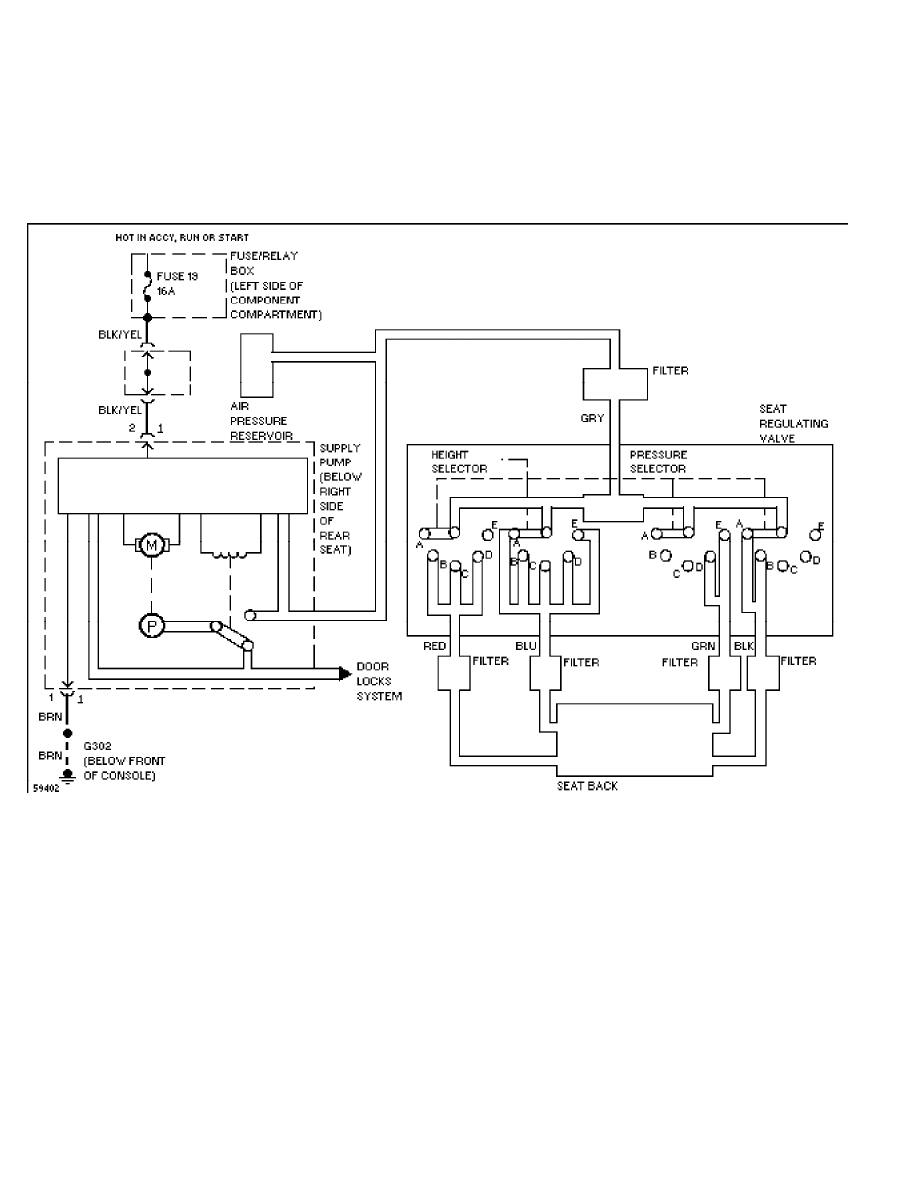

Orthopedic Seats (p. 11)

1991 Mercedes-Benz 560SEC

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, April 02, 2006 03:49PM

background image

SYSTEM WIRING DIAGRAMS

Rear Seat Adjuster Circuit, Sedan (p. 12)

1991 Mercedes-Benz 560SEC

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, April 02, 2006 03:49PM

background image

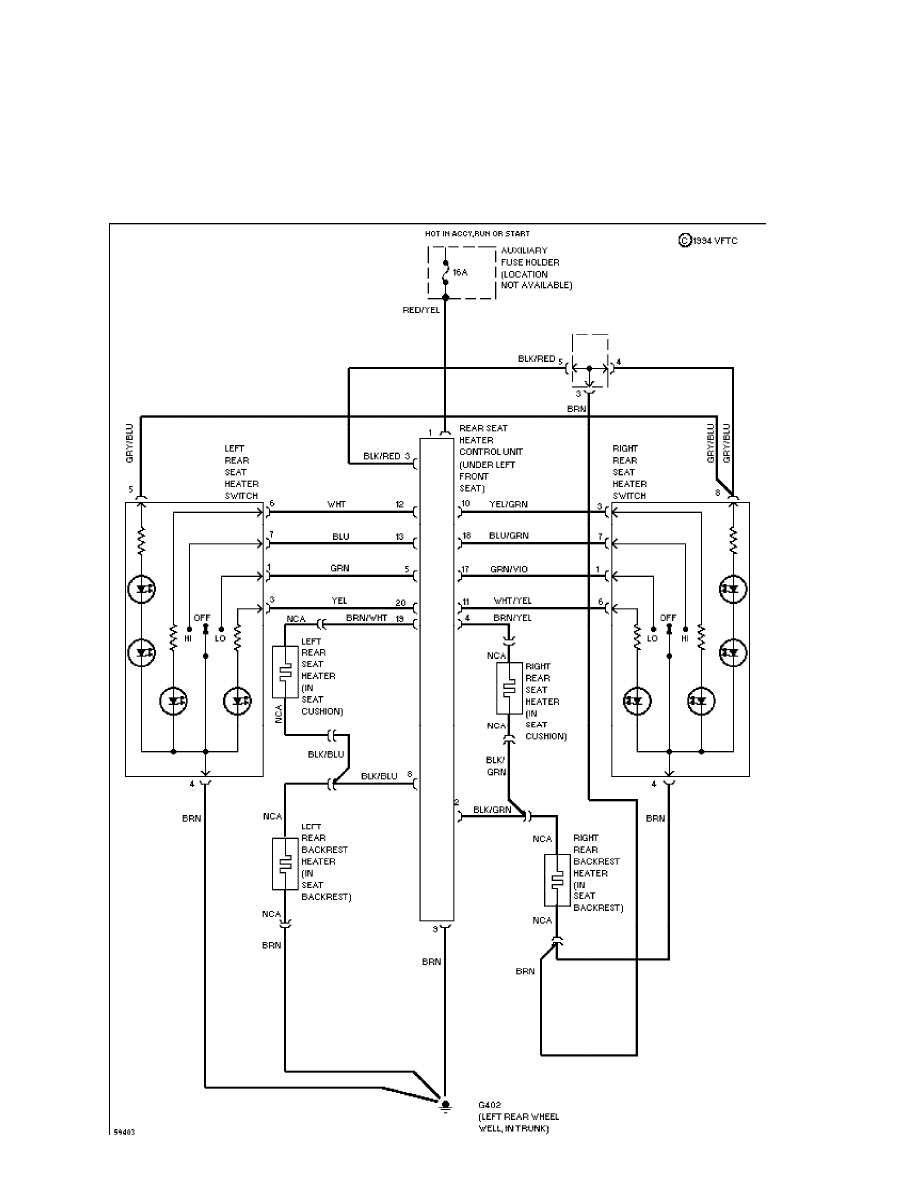

SYSTEM WIRING DIAGRAMS

Rear Seat Heater Circuit (p. 13)

1991 Mercedes-Benz 560SEC

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, April 02, 2006 03:49PM

background image

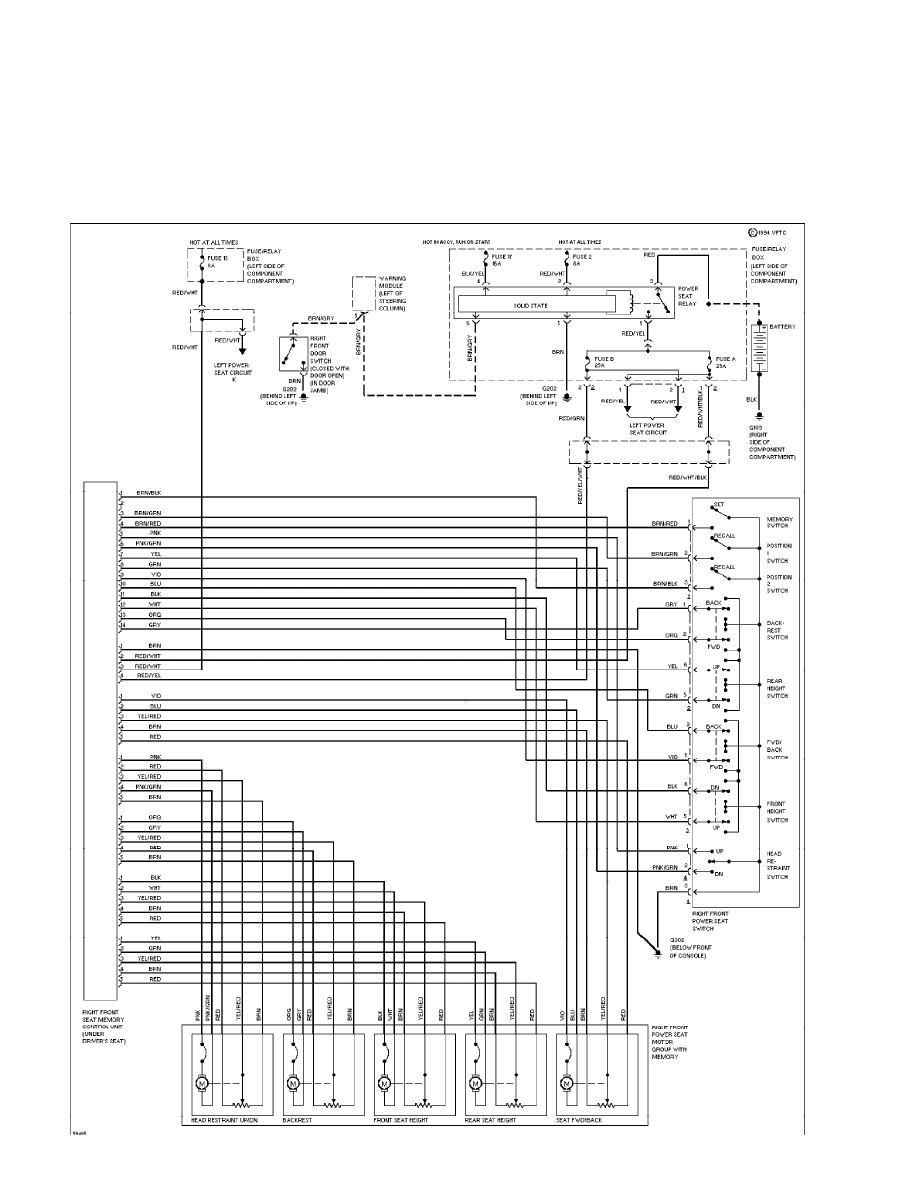

SYSTEM WIRING DIAGRAMS

Right Seat Circuit (p. 14)

1991 Mercedes-Benz 560SEC

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, April 02, 2006 03:49PM

background image

SYSTEM WIRING DIAGRAMS

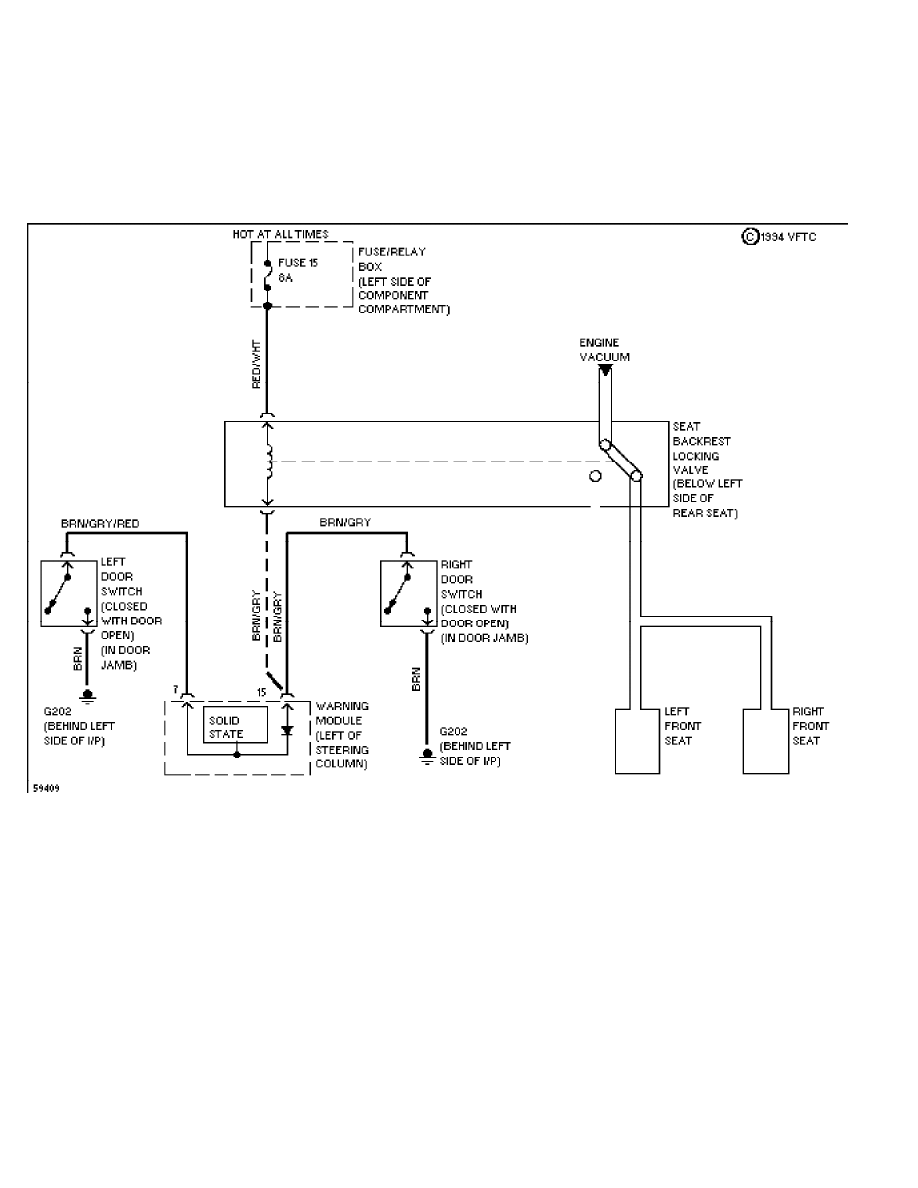

Seat Backrest Locking System, Coupe (p. 15)

1991 Mercedes-Benz 560SEC

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, April 02, 2006 03:49PM

background image

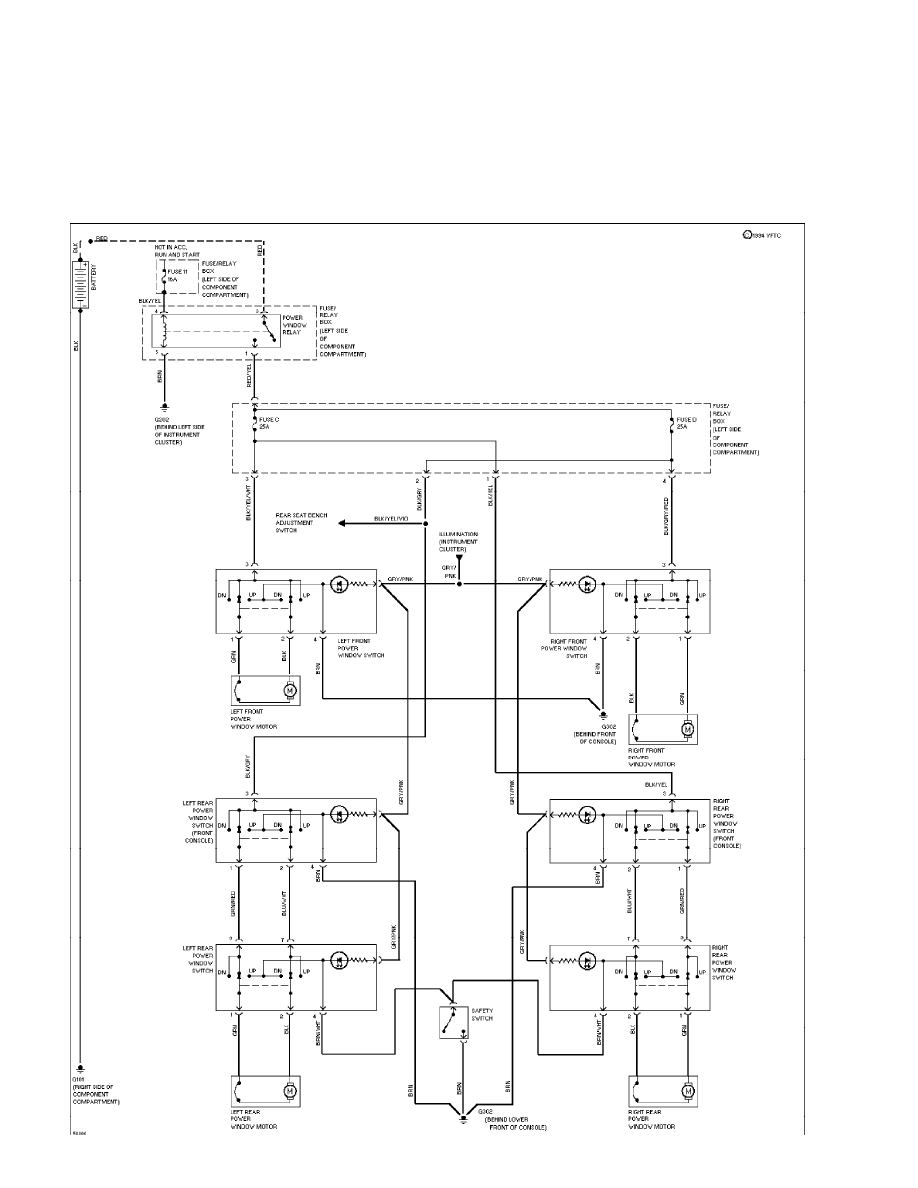

SYSTEM WIRING DIAGRAMS
Power Window Circuit (p. 16)

1991 Mercedes-Benz 560SEC

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, April 02, 2006 03:49PM

background image

SYSTEM WIRING DIAGRAMS

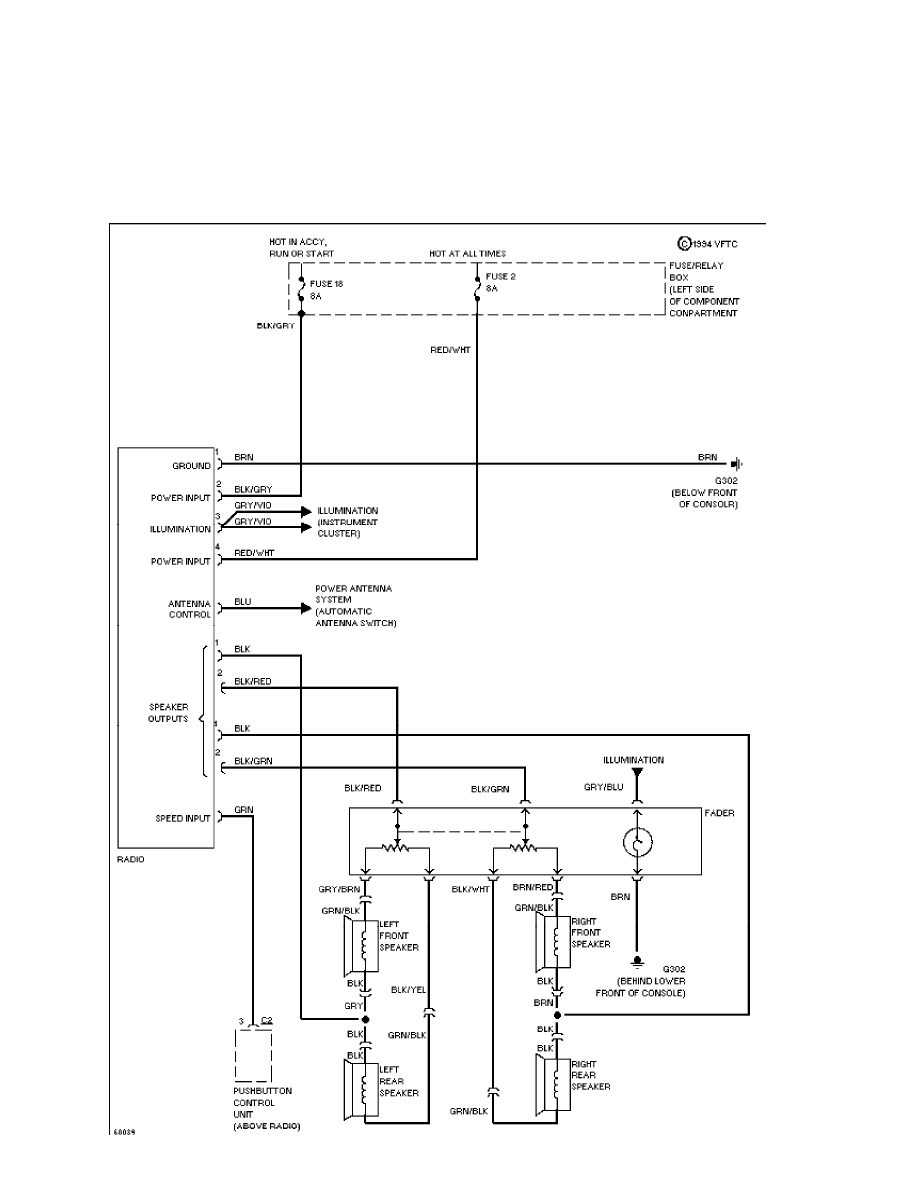

Base Radio (p. 17)

1991 Mercedes-Benz 560SEC

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, April 02, 2006 03:49PM

background image

SYSTEM WIRING DIAGRAMS

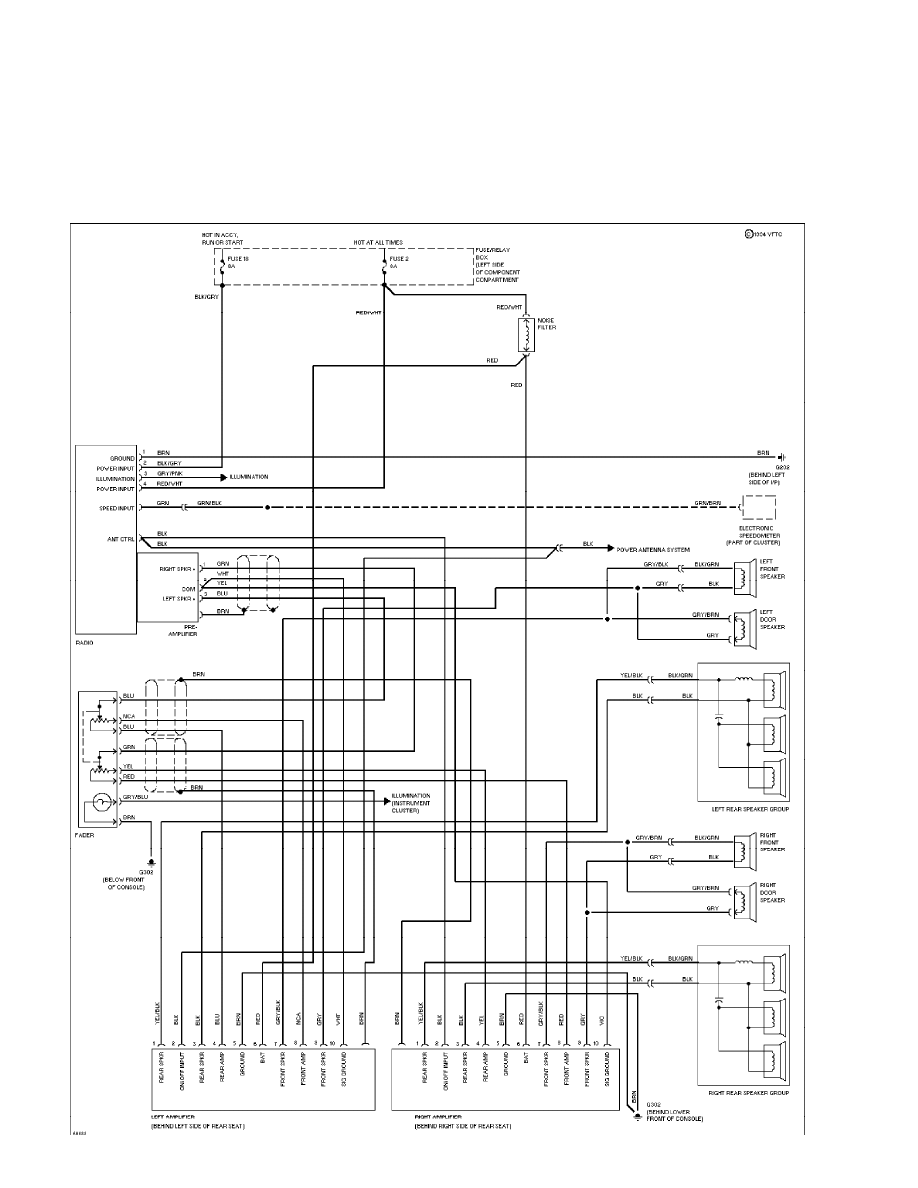

One Piece Radio, W/ Sound System (p. 18)

1991 Mercedes-Benz 560SEC

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, April 02, 2006 03:49PM

background image

SYSTEM WIRING DIAGRAMS

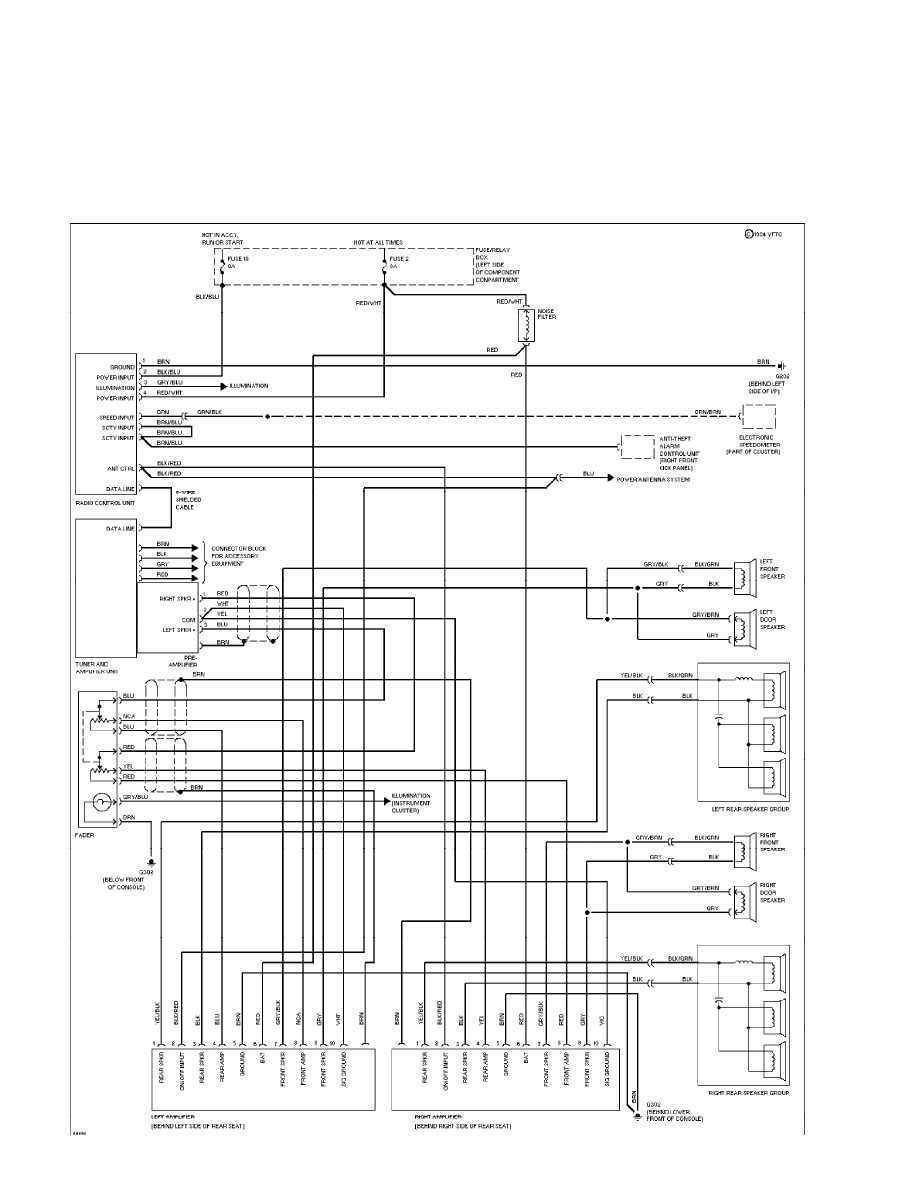

Two Piece Radio, W/ Sound System (p. 19)

1991 Mercedes-Benz 560SEC

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, April 02, 2006 03:49PM

background image

SYSTEM WIRING DIAGRAMS

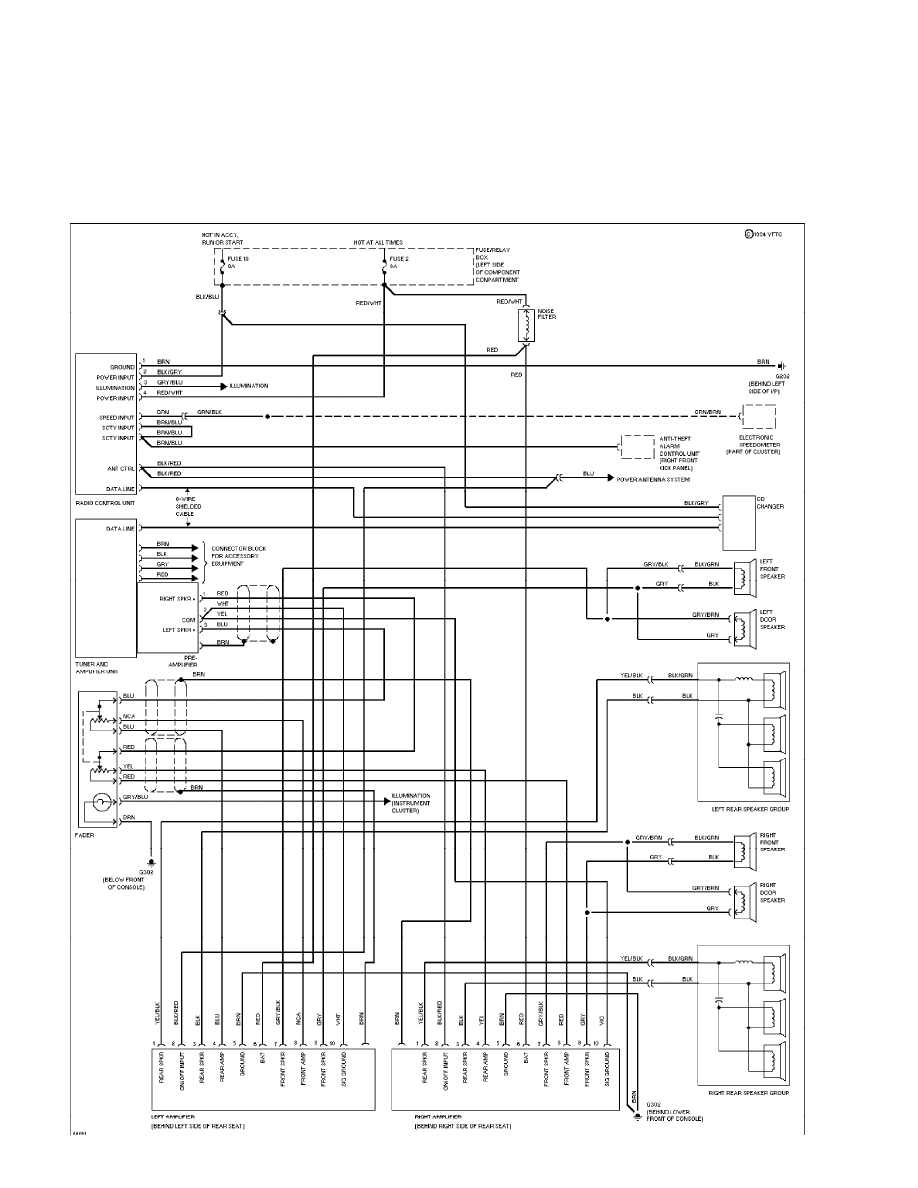

Two Piece Radio, W/ Sound System & CD Player (p. 20)

1991 Mercedes-Benz 560SEC

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, April 02, 2006 03:49PM

background image

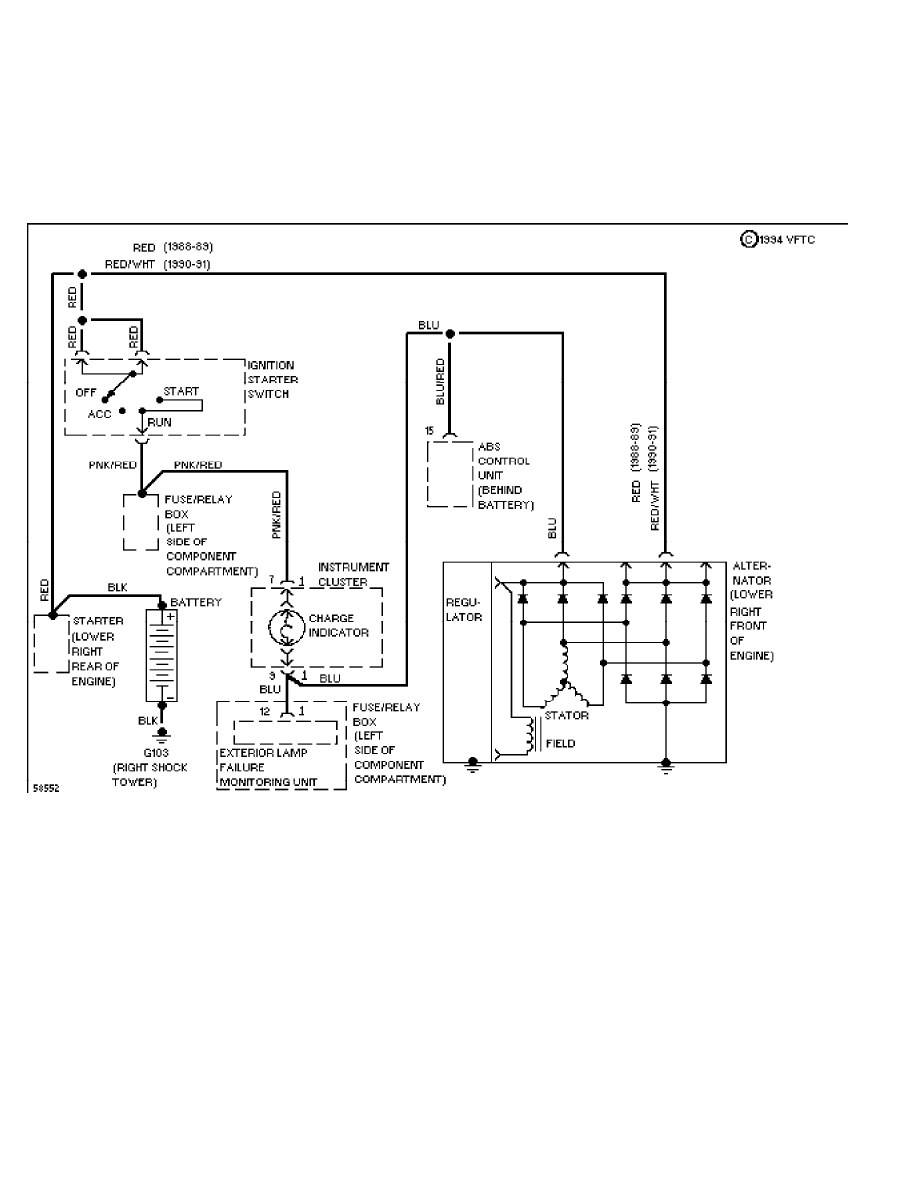

SYSTEM WIRING DIAGRAMS

Charging Circuit (p. 21)

1991 Mercedes-Benz 560SEC

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, April 02, 2006 03:49PM

background image

SYSTEM WIRING DIAGRAMS

Starting Circuit (p. 22)

1991 Mercedes-Benz 560SEC

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, April 02, 2006 03:49PM

background image

SYSTEM WIRING DIAGRAMS

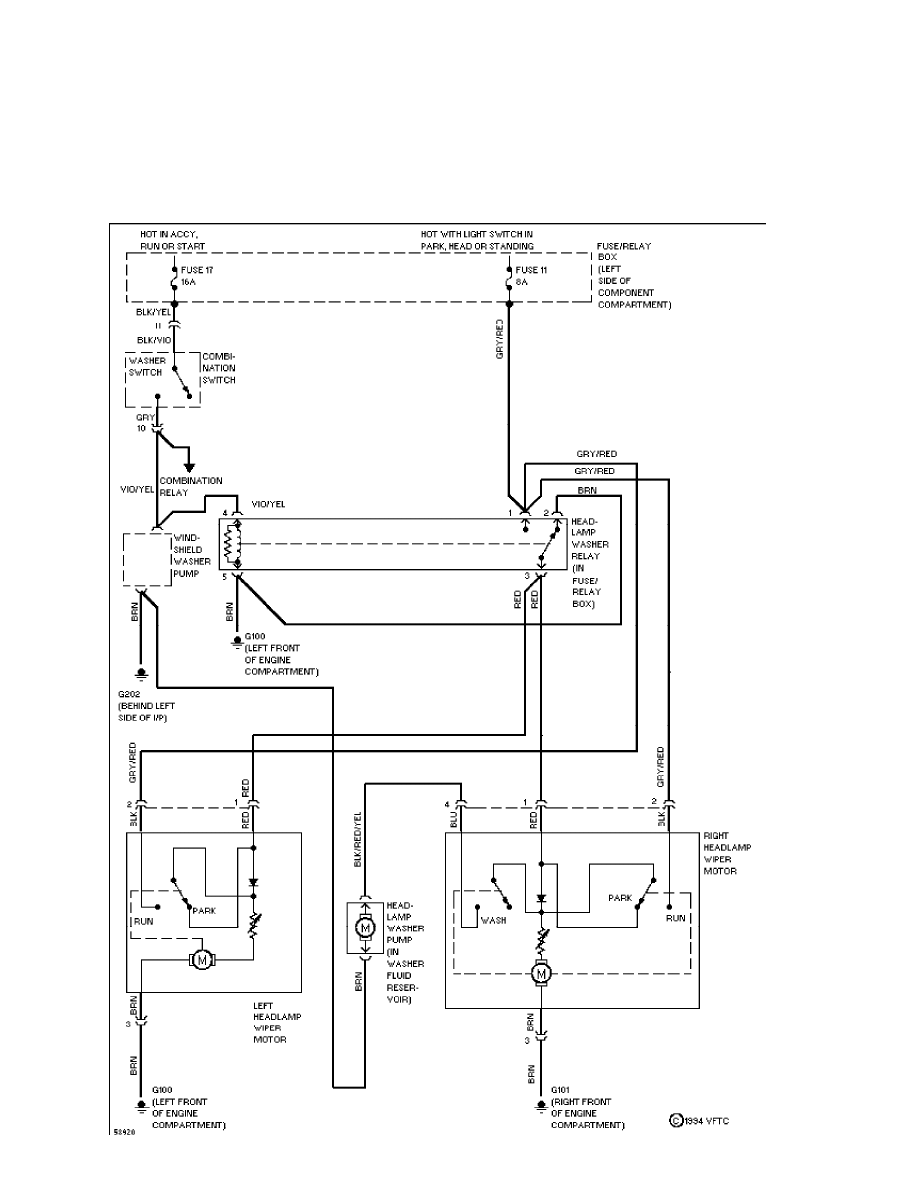

Headlight Washer/Wiper Circuit (p. 23)

1991 Mercedes-Benz 560SEC

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, April 02, 2006 03:49PM

background image

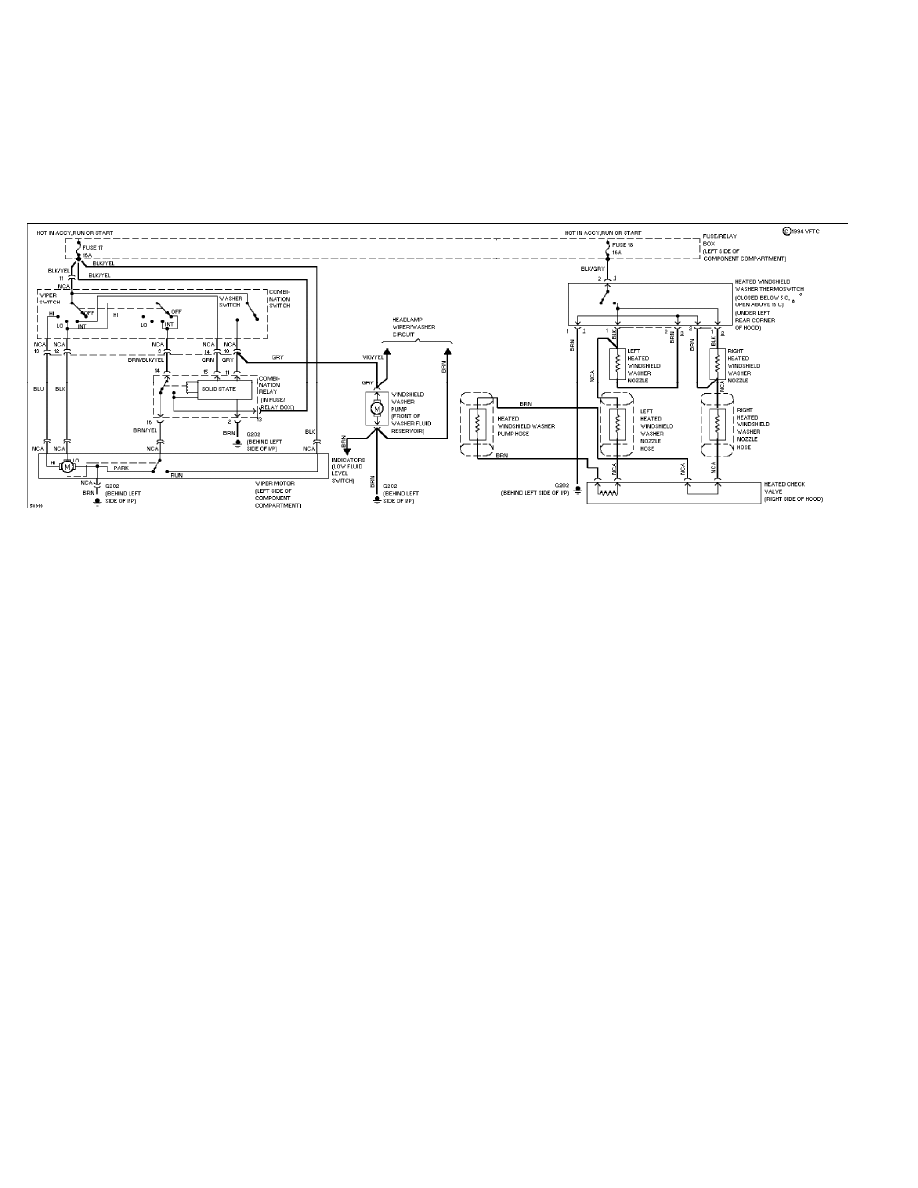

SYSTEM WIRING DIAGRAMS

Interval Wiper/Washer Circuit (p. 24)

1991 Mercedes-Benz 560SEC

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, April 02, 2006 03:49PM
